ECE 526 Network Processing Systems Design Lecture 3 -6: Implementation Models

ECE 526 Network Processing Systems Design Lecture 3 -6: Implementation Models

A rather small set of key concepts is enough. Only by learning the essence

A rather small set of key concepts is enough. Only by learning the essence of each topic, and by carrying along the least amount of mental baggage at each step, will the student emerge with a good overall understanding of the subject! - Carver Mead and Lynn Conway Ning Weng ECE 526 2

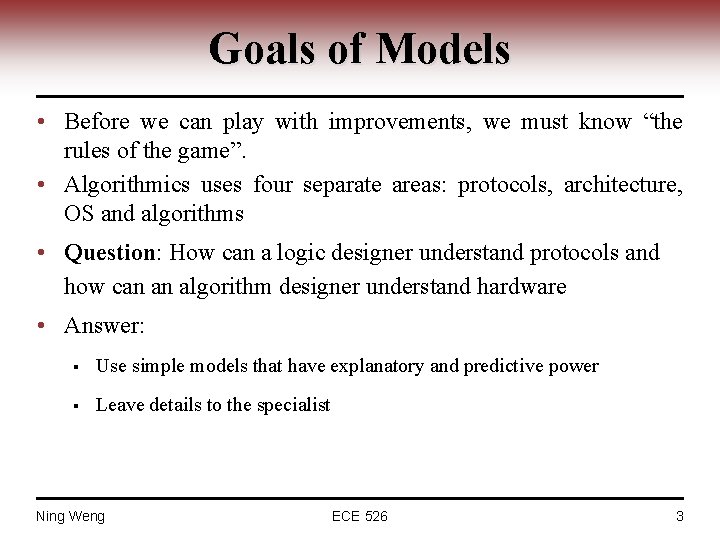

Goals of Models • Before we can play with improvements, we must know “the

Goals of Models • Before we can play with improvements, we must know “the rules of the game”. • Algorithmics uses four separate areas: protocols, architecture, OS and algorithms • Question: How can a logic designer understand protocols and how can an algorithm designer understand hardware • Answer: § Use simple models that have explanatory and predictive power § Leave details to the specialist Ning Weng ECE 526 3

Outline of Models • • Networking protocols Hardware Architecture Operating systems Ning Weng ECE

Outline of Models • • Networking protocols Hardware Architecture Operating systems Ning Weng ECE 526 4

Transport Models • • Presents illusion of two shared queues in each direction despite

Transport Models • • Presents illusion of two shared queues in each direction despite unreliable network using seq # and retransmission Connection between local queues named ports at IP addresses Ning Weng ECE 526 5

Routing Protocols • • Forwarding: router determines next hop/router based on forwarding table to

Routing Protocols • • Forwarding: router determines next hop/router based on forwarding table to send a packet. Speed-critical. Routing: routers work together to populate/build forwarding table § RIP (Exchange distance estimates) § OSPF (Link state) § BGP (Path vector, based on policy) Ning Weng ECE 526 6

Abstract Model of Protocols • Interfaces: used by applications or higher level protocols •

Abstract Model of Protocols • Interfaces: used by applications or higher level protocols • Packet (message) format: IP, TCP, UDP • Typical protocol operations § Data copy: from application to kernel; from input link to output link via switch § Demultiplexing § Looking up state: longest prefix match § Set timers and receive alarms Ning Weng ECE 526 7

Measures • Throughput: number of jobs per second § Focus of industry, ISPs wish

Measures • Throughput: number of jobs per second § Focus of industry, ISPs wish to maximize • Latency: time to complete a job § § E. g. time for a packet to go from one end to another (RTT) Ideal interactive time 100 ms (today 250 msec across US) Ning Weng ECE 526 8

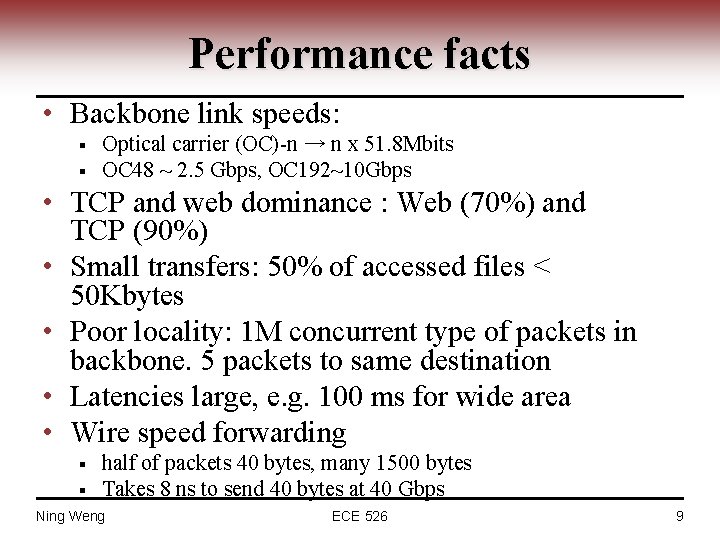

Performance facts • Backbone link speeds: § § Optical carrier (OC)-n → n x

Performance facts • Backbone link speeds: § § Optical carrier (OC)-n → n x 51. 8 Mbits OC 48 ~ 2. 5 Gbps, OC 192~10 Gbps • TCP and web dominance : Web (70%) and TCP (90%) • Small transfers: 50% of accessed files < 50 Kbytes • Poor locality: 1 M concurrent type of packets in backbone. 5 packets to same destination • Latencies large, e. g. 100 ms for wide area • Wire speed forwarding § § half of packets 40 bytes, many 1500 bytes Takes 8 ns to send 40 bytes at 40 Gbps Ning Weng ECE 526 9

Case study: i. SCSI • Large data centers connect disks and computers with a

Case study: i. SCSI • Large data centers connect disks and computers with a SAN (Storage area network) to enable disk sharing. Expensive today. • Single SCSI command can READ: 10 Mbytes from a remote disk • i. SCSI over TCP/IP: must implement TCP in hardware, add i. SCSI header with length. • SCSI messages can be issued out of order, but TCP does not allow!!! Case study: the protocol features affect greatly on application performance Ning Weng ECE 526 10

Models • • Networking (protocols) Hardware Architecture Operating systems Ning Weng ECE 526 11

Models • • Networking (protocols) Hardware Architecture Operating systems Ning Weng ECE 526 11

Hardware • Combinatorial logic ─ From transistors to gates ─ Timing and power ─

Hardware • Combinatorial logic ─ From transistors to gates ─ Timing and power ─ High level building blocks (standard cells) • Memories ─ ─ Registers, SRAM, DRAM Fancy memory tricks (page mode, interleaved) Ning Weng ECE 526 12

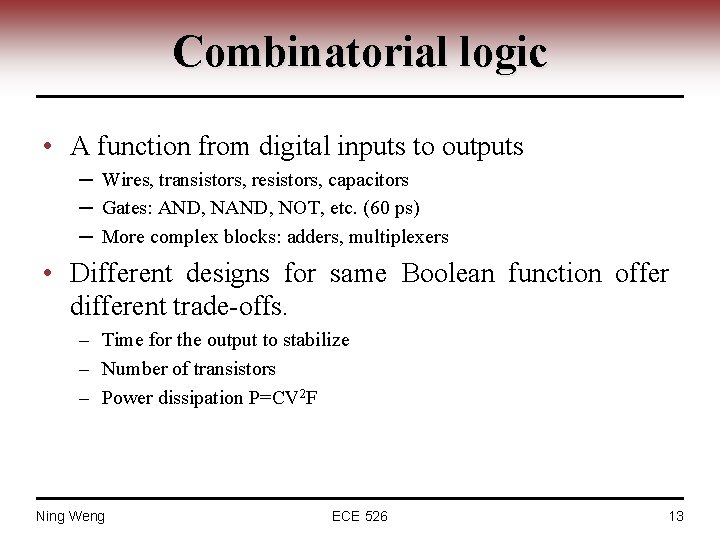

Combinatorial logic • A function from digital inputs to outputs ─ Wires, transistors, resistors,

Combinatorial logic • A function from digital inputs to outputs ─ Wires, transistors, resistors, capacitors ─ Gates: AND, NOT, etc. (60 ps) ─ More complex blocks: adders, multiplexers • Different designs for same Boolean function offer different trade-offs. ─ ─ ─ Time for the output to stabilize Number of transistors Power dissipation P=CV 2 F Ning Weng ECE 526 13

Priority encoder timing • Input I and outputs O are N-bit vectors such that

Priority encoder timing • Input I and outputs O are N-bit vectors such that ─ O[j] = 1 iff I[j] = 1 and I[k] = 0, for all k<j. ─ Find first one, represent in one-hot notation ─ • Design 1: Implement using N AND gates where each gate takes all 1 to N inputs ─ O(N 2) appears to take O(1) time. Ning Weng ECE 526 14

Priority encoder timing • Design 2: Every output bit requires the AND of compliment

Priority encoder timing • Design 2: Every output bit requires the AND of compliment of first j-1 bits ─ Construct recursively P[j] = P[j-1]. ~I[j] ─ Using N 2 -input AND gates in series ─ O(N) transistors but takes O(N) Summary: Design 1 fast and fat; Design 2 slow and lean • Design 3: Tradeoff design. ─ Idea: use balanced binary tree to compute P[j] and combine partial results. Ning Weng ECE 526 15

Reduction using standard cells • Build four input mux from 2 input muxes. Ning

Reduction using standard cells • Build four input mux from 2 input muxes. Ning Weng ECE 526 16

Crossbar scheduler • PPE: like a priority encoder but with rotating priority. ─ Find

Crossbar scheduler • PPE: like a priority encoder but with rotating priority. ─ Find first 1 beyond P • Arises in switch arbitration • Design 1: ─ Use a barrel shifter to shift I to the left by P bits. ─ Apply PE ─ Shift back by P bits. • Two shifts + PE ~ 3 log N gate delays. ─ Each barrel shift using tree of 2 -muxes ~ log (N) Ning Weng ECE 526 17

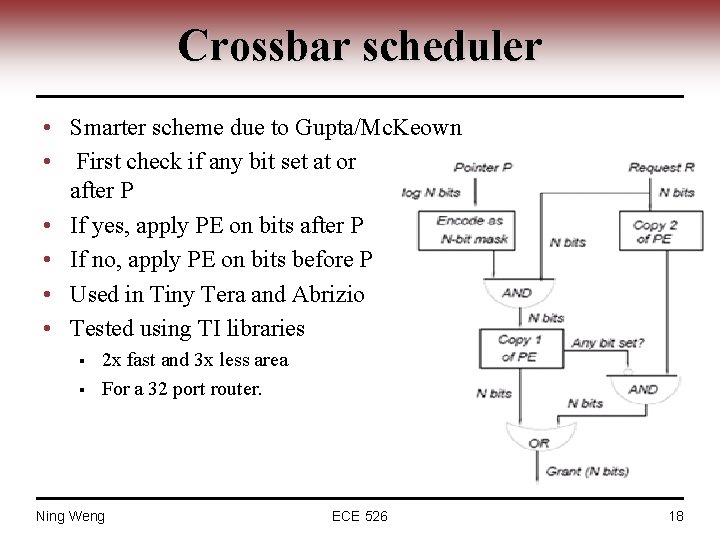

Crossbar scheduler • Smarter scheme due to Gupta/Mc. Keown • First check if any

Crossbar scheduler • Smarter scheme due to Gupta/Mc. Keown • First check if any bit set at or after P • If yes, apply PE on bits after P • If no, apply PE on bits before P • Used in Tiny Tera and Abrizio • Tested using TI libraries § § 2 x fast and 3 x less area For a 32 port router. Ning Weng ECE 526 18

Memories • Router forwarding done using logic but packets stored in memories. • Memory

Memories • Router forwarding done using logic but packets stored in memories. • Memory are significant bottlenecks ─ Slower than logic delays • Different subsystems require different types ─ 200 ms worth of packet buffering (DRAM) ─ 1 Mbyte of fast SRAM forwarding tables • Need different models Ning Weng ECE 526 19

Registers • Need to store bit such that it stays indefinitely (absence of writes/power

Registers • Need to store bit such that it stays indefinitely (absence of writes/power failures) • Register is ordered collection of flip-flops • Access from logic to a register ~ 0. 5 -1 ns Ning Weng ECE 526 20

SRAM • N registers addressed by log N bits Addresses. • Self refreshing. •

SRAM • N registers addressed by log N bits Addresses. • Self refreshing. • Needs a decoder to translate A to unary so add decode delay. • On chip SRAM 1 -2 ns, Off-chip 5 -10 ns. Ning Weng ECE 526 21

DRAM • SRAM flip-flop needs 5 transistors. • DRAM needs one transistor plus capacitor

DRAM • SRAM flip-flop needs 5 transistors. • DRAM needs one transistor plus capacitor (so more dense) • Leakage fixed by refresh. • Slower because output not driven by the power supply as in SRAM • 40 -60 ns Ning Weng ECE 526 22

Memories • Page mode DRAM (latency 40 -60 ns) • Direct decoding hard: use

Memories • Page mode DRAM (latency 40 -60 ns) • Direct decoding hard: use divide and conquer § § Decode in stages, row first and column next Reduces decoder from O(N) to O(√N) gates • Accesses within rows do not require Row address strobe. Ning Weng ECE 526 23

Interleaved DRAMs • • Increase DRAM throughput (same latency) While Bank 1 works, send

Interleaved DRAMs • • Increase DRAM throughput (same latency) While Bank 1 works, send addresses to Bank 2, etc. SDRAM uses 2 banks, RDRAM uses 16 banks. If consecutive accesses to different banks, bandwidth increased by a factor of B Ning Weng ECE 526 24

Example: Pipelined flow id lookup • • • Lookup 1 M 96 -bit packet

Example: Pipelined flow id lookup • • • Lookup 1 M 96 -bit packet ID for accounting using binary tree in 128 nsec (OC-48) SRAM infeasible. DRAM too slow (20 accesses) Use interleaved memory + pipeline Direct RDRAM runs at 800 MHz, read access 60 ns 216 too small. So use RAMBUS page mode to retrieve two 96 -bit keys + three 20 bit pointers in one 256 bit access. Ning Weng ECE 526 25

Pin count limitations matter • Example: Router with five 10 GBps links • Overall

Pin count limitations matter • Example: Router with five 10 GBps links • Overall buffering - 200 ms * 50 Gbps • Want to use DRAM § Bw required 2 * 50 = 100 Gbits/sec + overhead ~ 200 Gbps • Use single RDRAM with 16 banks § Peak bw of 1. 6 Gbytes or 13 Gbps • Accessing each RDRAM requires 64 pins for data, 25 for address/control ~90. § 200 Gbps memory requires 16 RDRAMs ~ 1440 pins • Chips have pin limitations (typically <1000 pins) • Thus requires at least one more chip. Ning Weng ECE 526 26

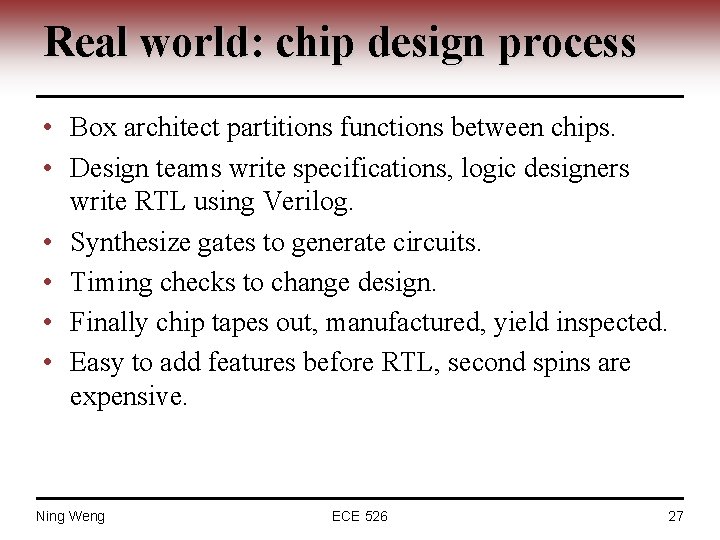

Real world: chip design process • Box architect partitions functions between chips. • Design

Real world: chip design process • Box architect partitions functions between chips. • Design teams write specifications, logic designers write RTL using Verilog. • Synthesize gates to generate circuits. • Timing checks to change design. • Finally chip tapes out, manufactured, yield inspected. • Easy to add features before RTL, second spins are expensive. Ning Weng ECE 526 27

Next Lecture • Networking (protocols) • Hardware • Device architecture • Operating systems Ning

Next Lecture • Networking (protocols) • Hardware • Device architecture • Operating systems Ning Weng ECE 526 28

Architecture Models • Optimizing network performance requires optimizing all data paths. ─ Through the

Architecture Models • Optimizing network performance requires optimizing all data paths. ─ Through the internals of source node, sink node and routers • End node architectures optimized for general computation. • Router architectures for Internet communication.

End Node Architecture • • • Main memory (1 GB, 50 -80 nsec, L

End Node Architecture • • • Main memory (1 GB, 50 -80 nsec, L 2 cache, on chip SRAM registers) Direct mapped caches § Cache lines, spatial locality, page mode Memory mapped I/O, DMA, I/O bus versus processor bus.

Alternative endnode architecture • • Packets from network Mem 2. Processor Reads Mem 1.

Alternative endnode architecture • • Packets from network Mem 2. Processor Reads Mem 1. Switch can alternate the accesses E. g. , infiniband as a replacement for PCI

What a Router Looks Like

What a Router Looks Like

Router Architectures • Major tasks: § § Lookup Classification Switching Queuing • Less time-critical

Router Architectures • Major tasks: § § Lookup Classification Switching Queuing • Less time-critical § § § Header verification Checksum Route computation

Generic Router Architecture Slide courtesy of Nick Mc. Keown

Generic Router Architecture Slide courtesy of Nick Mc. Keown

Generic Router Architecture

Generic Router Architecture

Network Processors • General purposes processors optimized for network traffic § Motivated by unpredictable

Network Processors • General purposes processors optimized for network traffic § Motivated by unpredictable router tasks. • Often just multiple processors that work on different packets at the same time. § Intel IXP has 6 processors with 5. 6 ns clock. • Use multithreading to quickly switch contexts § IXP has 4 contexts. • Special purpose instructions for address lookup and other functions.

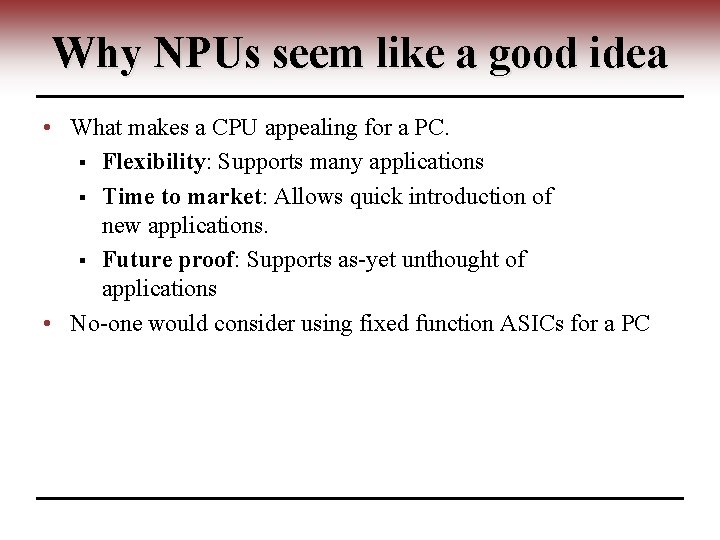

Why NPUs seem like a good idea • What makes a CPU appealing for

Why NPUs seem like a good idea • What makes a CPU appealing for a PC. § Flexibility: Supports many applications § Time to market: Allows quick introduction of new applications. § Future proof: Supports as-yet unthought of applications • No-one would consider using fixed function ASICs for a PC

Why NPUs seem like a good idea • What makes a NPU appealing §

Why NPUs seem like a good idea • What makes a NPU appealing § § Flexibility: Protocols and standards change. Time to market: Saves 18 months building an ASIC. Code re-use. Future proof: New protocols emerge. Less risk: Bugs more easily fixed in s/w. • Surely no-one would consider using fixed function ASICs for new networking equipment?

Network Processors: Load-balancing Incoming packets dispatched to: 1. Idle processor, or 2. Processor dedicated

Network Processors: Load-balancing Incoming packets dispatched to: 1. Idle processor, or 2. Processor dedicated to packets in this flow (to prevent mis-sequencing), or 3. Special-purpose processor flow, e. g. security, transcoding, applicationlevel processing.

Network Processors: Pipelining Processing broken down into (hopefully balanced) steps, Each processor performs one

Network Processors: Pipelining Processing broken down into (hopefully balanced) steps, Each processor performs one step of processing.

Models • • Networking (protocols) Hardware Device architecture Operating systems

Models • • Networking (protocols) Hardware Device architecture Operating systems

Operating System • Routers usually have a lightweight OS ─ Different from traditional Oses

Operating System • Routers usually have a lightweight OS ─ Different from traditional Oses • End-node performance dependent on OS • Abstractions ─ Uninterrupted Computation: No Interrupts ─ Infinite Memory: just an illusion. ─ Simple I/O: Avoid dealing directly with devices (simple writes/reads)

Uninterrupted communication • Underlying mechanisms § § § Context switching Scheduling Protection • Flavors

Uninterrupted communication • Underlying mechanisms § § § Context switching Scheduling Protection • Flavors of “process” - increasing complexity § Interrupt handlers, threads, processes

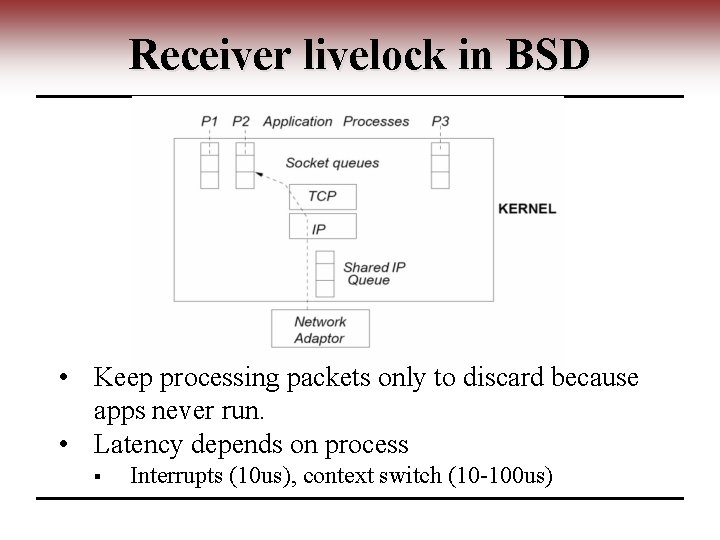

Receiver livelock in BSD • Keep processing packets only to discard because apps never

Receiver livelock in BSD • Keep processing packets only to discard because apps never run. • Latency depends on process § Interrupts (10 us), context switch (10 -100 us)

Infinite memory • Via virtual memory Page mapping (avoids finding contiguous locations). § Demand

Infinite memory • Via virtual memory Page mapping (avoids finding contiguous locations). § Demand paging (use more space than memory) Slow DRAM lookup avoided with fast TLB Protection by allowing only OS to modify page tables. § • •

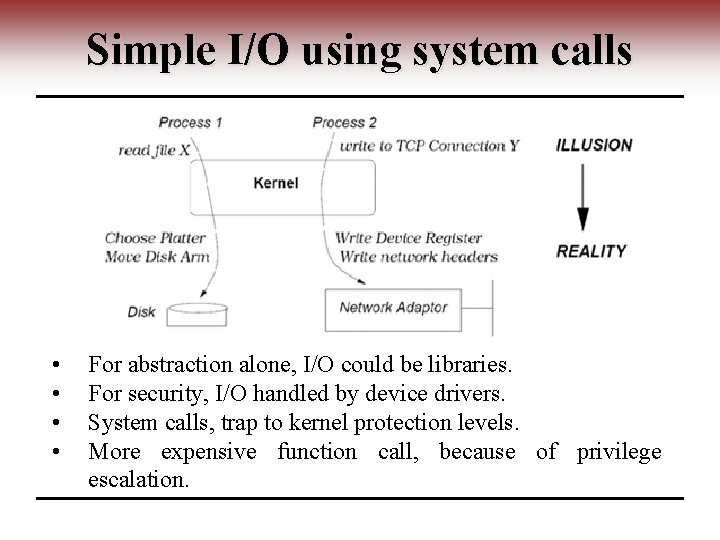

Simple I/O using system calls • • For abstraction alone, I/O could be libraries.

Simple I/O using system calls • • For abstraction alone, I/O could be libraries. For security, I/O handled by device drivers. System calls, trap to kernel protection levels. More expensive function call, because of privilege escalation.

Next class… • Implementation principles. • Read chapter 3 and 4. • Quiz 1

Next class… • Implementation principles. • Read chapter 3 and 4. • Quiz 1
