ECE 526 Network Processing Systems Design Hardware Architecture
- Slides: 15
ECE 526 – Network Processing Systems Design Hardware Architecture for Protocol Processing Chapter 8: D. E. Comer

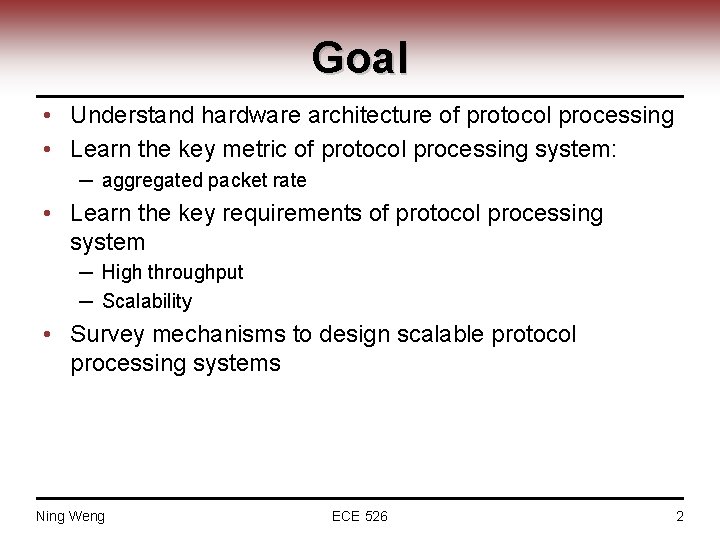

Goal • Understand hardware architecture of protocol processing • Learn the key metric of protocol processing system: ─ aggregated packet rate • Learn the key requirements of protocol processing system ─ High throughput ─ Scalability • Survey mechanisms to design scalable protocol processing systems Ning Weng ECE 526 2
Outline • First generation of network processing system architecture • Figure of metric of network processing system • Possible ways to improve performance of network processing systems Ning Weng ECE 526 3
1 st Generation Network System • Traditional software-based router • Using conventional hardware ─ ─ Single general-purpose processor handles most tasks Single shared memory I/O over a shared bus NIC use same design as other I/O devices Cheap but performance is poor! Ning Weng ECE 526 4
Figure of Metric of Network Systems • Interface data rate ─ Rate at which data enters /leaves • Aggregate data rate ─ ─ Sum of interface rates Measure of total data rate system can handle Note: aggregate rate crucial if CPU handles traffic from all interfaces Could be misleading if packet size varying and processing cost constant • Aggregate packet rate ─ Sum of the number of packets enters / leaves system ─ More important for protocol processing (no touch payload) ─ Why? • Packet rate vs. data rate ─ CPU metric: per-packet rate ─ Interface hardware metric: per-bit (data) rate Ning Weng ECE 526 5
Data Rate vs. Packet Rate • Packet size: small 64 byte; large 1518 byte • For protocol processing, with same data rate, which is more difficult for network processing system? ─ Smallest packet or ─ Biggest packet • How to calculate the packet rate? Ning Weng ECE 526 6
Aggregate Packet Rate Ning Weng ECE 526 7
Time per Packet • Aggregate packet rate determines time per packet • Each packet processing requires in the order of 100 s to 1000 s instruction per packet Ning Weng ECE 526 8
Feasibility Analysis • Design a software router ─ data rate 10 Gbps ─ Assuming small packets (64 B) ─ Assuming each packet need 10, 000 instruction to process • Can Intel 80986@2009 do the job? ─ ─ CPU: 24 Ghz 1 billion transistors Address bus bit: 64 CPU is a RISC machine which can execute an instruction per clock cycle • Hint: ─ What is the packet rate? ─ What is the processing requirement in MIPS? • Single CPU router lacks scalability. How multi-core? Ning Weng ECE 526 9
Scalability • The capability of a system that can be easily extended in “size” and performance ─ E. g. , CPU with more memory slots and disk slots; router can add more ports or faster links • Why we care scalability? ─ Design a new system is timing consuming and expensive ─ Performance requirement increase fast ─ Others • How can we make a network system more scalable? ─ Optimized processing engines ─ Intelligent NICs ─ Parallel processing by duplicating processing engines + NICs Ning Weng ECE 526 10
Processing Power • Overcoming processing bottlenecks: ─ ─ ─ Specialized hardware (ASICs) Fine-grained parallelism Symmetric coarse-grain parallelism Asymmetric coarse-grain parallelism Special-purpose coprocessors • Other improvements ─ NICs with onboard processing ─ Smart NICs ─ => basically same as per-port processing engines Ning Weng ECE 526 11
Parallelism in Processors • Fine-grained parallelism ─ Exploits instruction-level parallelism ─ Examples: VLIW, SMT, etc. ─ Limited due to workload • Symmetric coarse-grain parallelism ─ Multiple parallel identical CPUs ─ Inter-processor communication can limit performance • Asymmetric coarse-grain parallelism ─ Multiple parallel different CPUs ─ E. g. , one processor for layer 2, one for layer 3 • Special-purpose coprocessors ─ Custom logic for lookups, checksums, etc. ─ High-performance but not (fully) programmable • Key question: how such a system can be programmed • Duplicate processing engines --- Advance router architecture Ning Weng ECE 526 12
Advanced Router Architecture S. Keshav etc. IEEE Communication 1998 • • • Port: point of attachment for a physical link Switching Fabric (SF): interconnect input & output ports Line Card: the device connecting between link and SF Routing Processor: create forwarding tables using routing protocol Queues: buffers between input port and SF or SF and output port Ning Weng ECE 526 13
Advanced Router Architecture • Changing requirements ─ ─ Increasing link speed Increasing number of ports Increasing routing tables Increasing processing complexity • Scalable system design: ─ Exploit parallelism wherever possible • Per-port, per-flow, per-packet, instruction-level ─ One Processing engine per port (instead of single CPU) ─ Multiple processors per port ─ “Better” processors Ning Weng ECE 526 14
Reminder • Read Comer: chapter 11 & 12 • Sep. 19: project group leader email me your group members for the project • Sep. 24: homework 1 due Ning Weng ECE 526 15
