ECE 448 Lecture 8 Programmable Logic Memories ECE

ECE 448 Lecture 8 Programmable Logic Memories ECE 448 – FPGA and ASIC Design with VHDL George Mason University

Required reading • P. Chu, FPGA Prototyping by VHDL Examples Chapter 7, RAM and Buffer of FPGA 2

Recommended reading • Vivado Design Suite User Guide: Synthesis Chapter 4 • RAM HDL Coding Techniques • Initializing RAM Contents • 7 Series FPGAs Memory Resources: User Guide • Chapter 1: Block RAM Resources • 7 Series FPGAs Configurable Logic Block: User Guide • Chapter 2: Functional Details: Distributed RAM 3

Memory Types 4

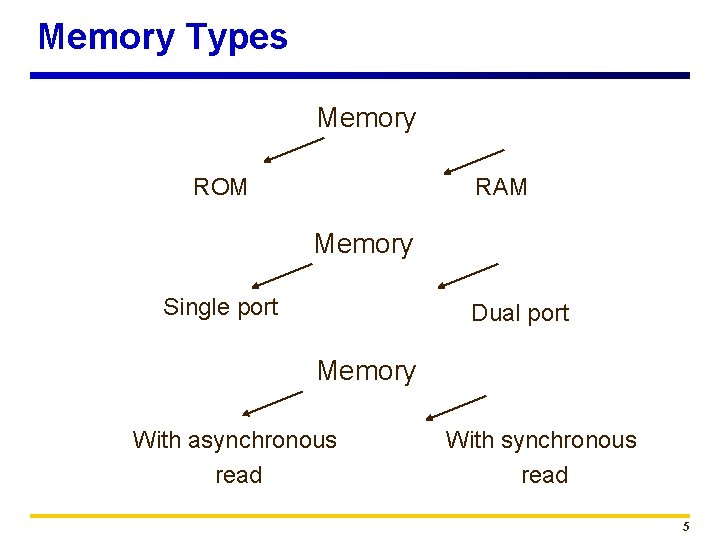

Memory Types Memory ROM RAM Memory Single port Dual port Memory With asynchronous read With synchronous read 5

Memory Types specific to Xilinx FPGAs Memory Distributed (MLUT-based) Block RAM-based (BRAM-based) Memory Inferred Instantiated Manually Using Vivado 6

Distributed Memory 7

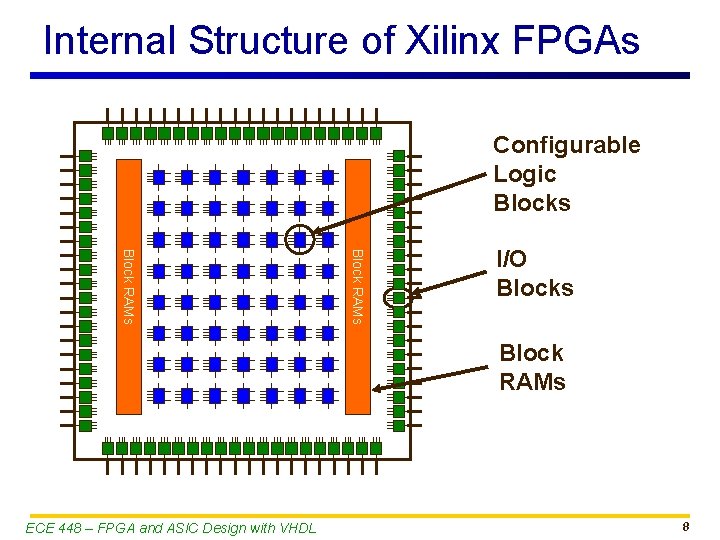

Internal Structure of Xilinx FPGAs Configurable Logic Blocks Block RAMs I/O Blocks Block RAMs ECE 448 – FPGA and ASIC Design with VHDL 8

General structure of an FPGA The Design Warrior’s Guide to FPGAs Devices, Tools, and Flows. ISBN 0750676043 Copyright © 2004 Mentor Graphics Corp. (www. mentor. com) ECE 448 – FPGA and ASIC Design with VHDL 9

Xilinx Artix-7 CLB ECE 448 – FPGA and ASIC Design with VHDL 10

SLICEM Basic Components of the Slice 4 MLUTs 8 Storage Elements 11

Xilinx Multipurpose LUT (MLUT) 32 -bit SR 64 x 1 RAM 64 x 1 ROM (logic) The Design Warrior’s Guide to FPGAs Devices, Tools, and Flows. ISBN 0750676043 Copyright © 2004 Mentor Graphics Corp. (www. mentor. com) 12

Single-port 64 x 1 -bit RAM 13

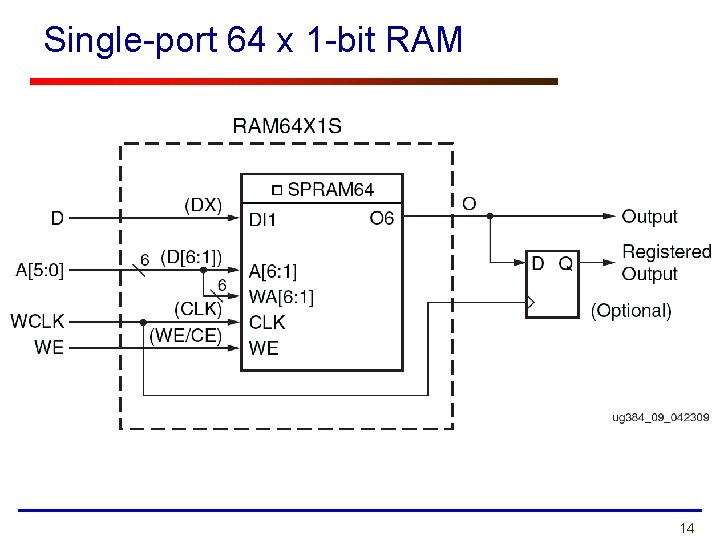

Single-port 64 x 1 -bit RAM 14

Memories Built of Neighboring MLUTs Memories built of 2 MLUTs: • Single-port 128 x 1 -bit RAM: • Dual-port 64 x 1 -bit RAM : RAM 128 x 1 S RAM 64 x 1 D Memories built of 4 MLUTs: • • Single-port 256 x 1 -bit RAM: RAM 256 x 1 S Dual-port 128 x 1 -bit RAM: RAM 128 x 1 D Quad-port 64 x 1 -bit RAM: RAM 64 x 1 Q Simple-dual-port 64 x 3 -bit RAM: RAM 64 x 3 SDP (one address for read, one address for write) 15

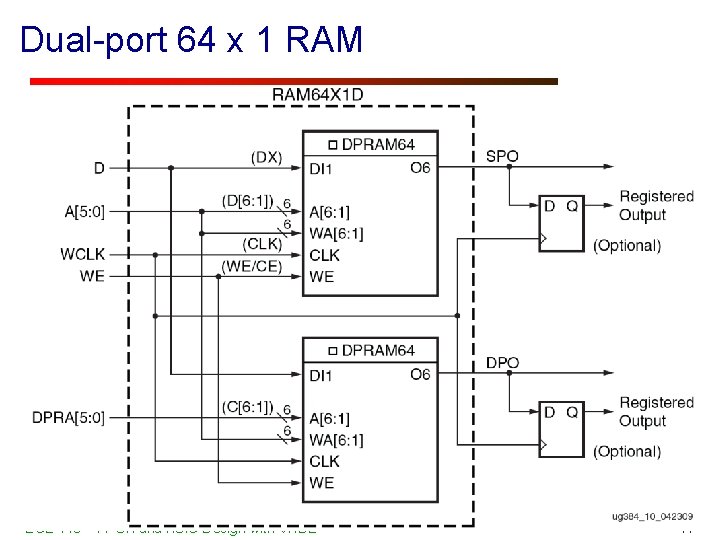

Dual-port 64 x 1 RAM • • Dual-port 64 x 1 -bit RAM : Single-port 128 x 1 -bit RAM: 64 x 1 D 128 x 1 S 16

Dual-port 64 x 1 RAM • • Dual-port 64 x 1 -bit RAM : Single-port 128 x 1 -bit RAM: ECE 448 – FPGA and ASIC Design with VHDL 64 x 1 D 128 x 1 S 17

Artix-7 FPGA Family ECE 448 – FPGA and ASIC Design with VHDL 18

Block Memory 19

Location of Block RAMs Logic resources (CLB slices) RAM blocks DSP units Logic resources Graphics based on The Design Warrior’s Guide to FPGAs Devices, Tools, and Flows. ISBN 0750676043 Copyright © 2004 Mentor Graphics Corp. (www. mentor. com) 20

Block RAM Configured as 1 x 36 kbit RAM or 2 x 18 kbit RAMs 21

Block RAM Simple Dual Port (SDP) = one port for read, one port for write (write_A-read_B, read_A_write_B) True Dual Port (TDP) = both ports can be used for read or write (read_A-read_B, read_A-write_B, write_A-read_B, write_A-write_B) 22

Block RAM can have various configurations (port aspect ratios) 1 2 0 4 0 0 4 k x 4 8 k x 2 4, 095 16 k x 1 8, 191 8+1 0 2 k x (8+1) 2047 16+2 0 1023 1024 x (16+2) 16, 383 23

24

25

18 k Block RAM Port Aspect Ratios 26

Block RAM Interface 27

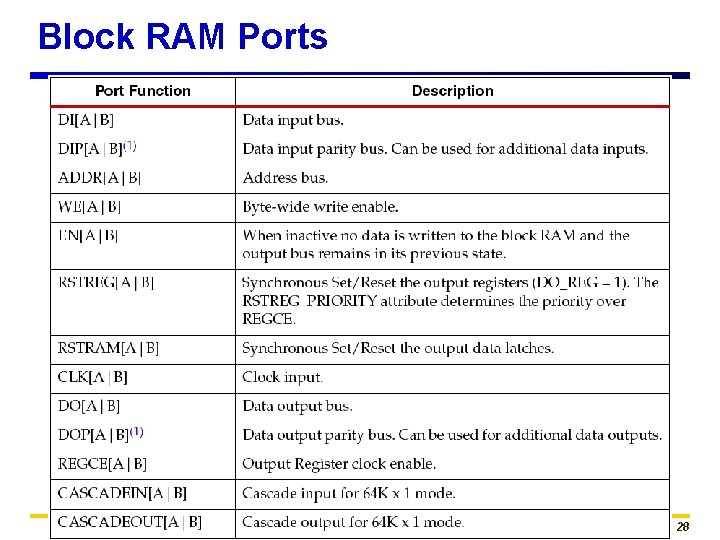

Block RAM Ports 28

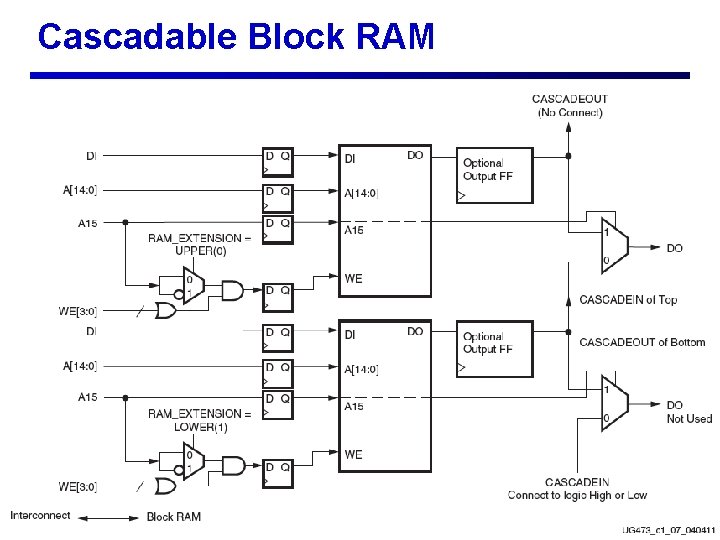

Cascadable Block RAM 29

Block RAM Waveforms – READ_FIRST mode 30

Block RAM Waveforms – WRITE_FIRST mode 31

Block RAM Waveforms – NO_CHANGE mode 32

Features of Block RAMs 33

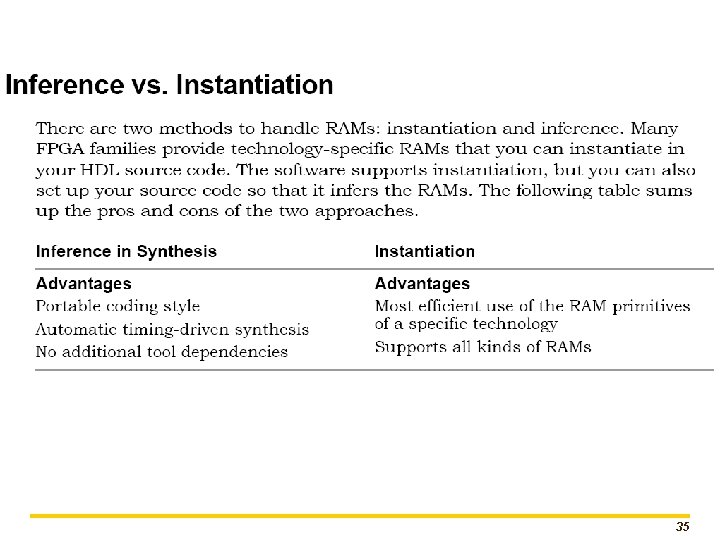

Inference vs. Instantiation 34

35

Generic Inferred ROM 36

Distributed ROM with asynchronous read LIBRARY ieee; USE ieee. std_logic_1164. all; USE ieee. numeric_std. all; Entity ROM is generic ( w : integer : = 12; -- number of bits per ROM word r : integer : = 3); -- 2^r = number of words in ROM port (addr : in std_logic_vector(r-1 downto 0); dout : out std_logic_vector(w-1 downto 0)); end ROM; 37

Distributed ROM with asynchronous read architecture behavioral of rominfr is type rom_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); constant ROM_array : rom_type : = ("000011000100", "010011010010", "010011011011", "011011000010", "000011110001", "011111010110", "010011010000", "111110011111"); begin dout <= ROM_array(to_integer(unsigned(addr))); end behavioral; 38

Distributed ROM with asynchronous read architecture behavioral of rominfr is type rom_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); constant ROM_array : rom_type : = (X"0 C 4", X"4 D 2", X"4 DB", X"6 C 2", X"0 F 1", X"7 D 6", X"4 D 0", X"F 9 F"); begin dout <= ROM_array(to_integer(unsigned(addr))); end behavioral; 39

Generic Inferred RAM 40

Distributed versus Block RAM Inference Examples: 1. Distributed single-port RAM with asynchronous read 2. Distributed dual-port RAM with asynchronous read 3. Block RAM with synchronous read (no version with asynchronous read!) More excellent RAM examples from XST Coding Guidelines. 41

Distributed single-port RAM with asynchronous read LIBRARY ieee; USE ieee. std_logic_1164. all; USE ieee. numeric_std. all; entity raminfr is generic ( w : integer : = 32; -- number of bits per RAM word r : integer : = 6); -- 2^r = number of words in RAM port (clk : in std_logic; we : in std_logic; a : in std_logic_vector(r-1 downto 0); di : in std_logic_vector(w-1 downto 0); do : out std_logic_vector(w-1 downto 0)); end raminfr; 42

Distributed single-port RAM with asynchronous read architecture behavioral of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if rising_edge(clk) then if (we = '1') then RAM(to_integer(unsigned(a))) <= di; end if; end process; do <= RAM(to_integer(unsigned(a))); end behavioral; 43

Distributed dual-port RAM with asynchronous read library ieee; use ieee. std_logic_1164. all; use ieee. numeric_std. all; entity raminfr is generic ( w : integer : = 32; -- number of bits per RAM word r : integer : = 6); -- 2^r = number of words in RAM port (clk : in std_logic; we : in std_logic; a : in std_logic_vector(r-1 downto 0); dpra : in std_logic_vector(r-1 downto 0); di : in std_logic_vector(w-1 downto 0); spo : out std_logic_vector(w-1 downto 0); dpo : out std_logic_vector(w-1 downto 0)); end raminfr; 44

Distributed dual-port RAM with asynchronous read architecture syn of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if rising_edge(clk) then if (we = '1') then RAM(to_integer(unsigned(a))) <= di; end if; end process; spo <= RAM(to_integer(unsigned(a))); dpo <= RAM(to_integer(unsigned(dpra))); end syn; 45

Block RAM Waveforms – READ_FIRST mode 46

Block RAM with synchronous read LIBRARY ieee; USE ieee. std_logic_1164. all; USE ieee. numeric_std. all; entity raminfr is generic ( w : integer : = 32; -- number of bits per RAM word r : integer : = 9); -- 2^r = number of words in RAM port (clk : in std_logic; we : in std_logic; en : in std_logic; addr : in std_logic_vector(r-1 downto 0); di : in std_logic_vector(w-1 downto 0); do : out std_logic_vector(w-1 downto 0)); end raminfr; 47

Block RAM with synchronous read Read-First Mode - cont'd architecture behavioral of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if rising_edge(clk) then if (en = '1') then do <= RAM(to_integer(unsigned(addr))); if (we = '1') then RAM(to_integer(unsigned(addr))) <= di; end if; end process; end behavioral; 48

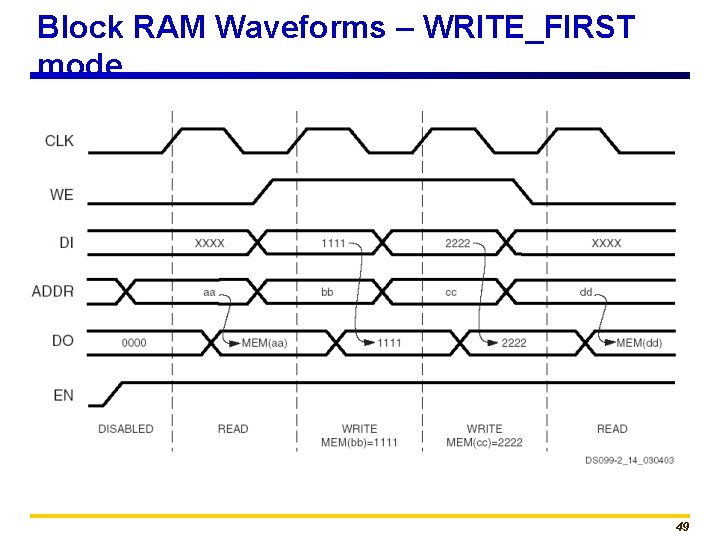

Block RAM Waveforms – WRITE_FIRST mode 49

Block RAM with synchronous read Write-First Mode - cont'd architecture behavioral of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if (clk'event and clk = '1') then if (en = '1') then if (we = '1') then RAM(to_integer(unsigned(addr))) <= di; do <= di; else do <= RAM(to_integer(unsigned(addr))); end if; end process; end behavioral; 50

Block RAM Waveforms – NO_CHANGE mode 51

Block RAM with synchronous read No-Change Mode - cont'd architecture behavioral of raminfr is type ram_type is array (0 to 2**r-1) of std_logic_vector (w-1 downto 0); signal RAM : ram_type : = (others => '0')); begin process (clk) begin if (clk'event and clk = '1') then if (en = '1') then if (we = '1') then RAM(to_integer(unsigned(addr))) <= di; else do <= RAM(to_integer(unsigned(addr))); end if; end process; end behavioral; 52

Criteria for Implementing Inferred RAM in BRAMs 53

FIFOs 54

FIFO Interface clk rst FIFO din dout 8 8 full write ECE 448 – FPGA and ASIC Design with VHDL empty read 55

Operation of the “Standard” FIFO −−−−− A B C D 56

Operation of the First-Word Fall-Through FIFO 57
