ECE 103 DIGITAL LOGIC DESIGN CHAPTER V SEQUENTIAL
- Slides: 41
ECE 103 DIGITAL LOGIC DESIGN CHAPTER V SEQUENTIAL LOGIC CIRCUITS PART 2 Reference: M. Morris Mano & Michael D. Ciletti, "Digital Design", Fourth Edition, Prentice Hall of India Pvt. Ltd. , Chapter – Chapter -5 & 6 VIT UNIVERSITY 1
VIT UNIVERSITY 2
VIT UNIVERSITY 3
VIT UNIVERSITY 4
VIT UNIVERSITY 5
VIT UNIVERSITY 6
VIT UNIVERSITY 7
VIT UNIVERSITY 8
VIT UNIVERSITY 9
VIT UNIVERSITY 10
VIT UNIVERSITY 11
VIT UNIVERSITY 12
VIT UNIVERSITY 13
VIT UNIVERSITY 14
VIT UNIVERSITY 15
VIT UNIVERSITY 16
VIT UNIVERSITY 17
VIT UNIVERSITY 18
Excitation Table For a T Flip Flop Row Q Q+ T Previous State -> Present State T 0 0 0 -> 0 0 1 0 1 1 0 -> 1 1 2 1 0 1 1 -> 0 1 1 -> 1 0 3 1 1 0 Excitation Table For a JK Flip Flop ("X" is "don't care") Previous State -> J Present State K 0 -> 0 0 X 0 -> 1 1 X 1 -> 0 X 1 1 -> 1 X 0 VIT UNIVERSITY 19
VIT UNIVERSITY 20
VIT UNIVERSITY 21
VIT UNIVERSITY 22
VIT UNIVERSITY 23
VIT UNIVERSITY 24

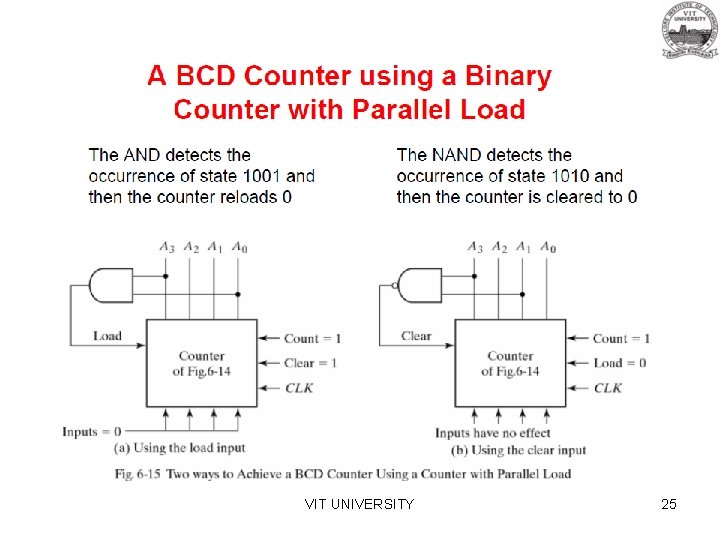

VIT UNIVERSITY 25
VIT UNIVERSITY 26
VIT UNIVERSITY 27
VIT UNIVERSITY 28
VIT UNIVERSITY 29
VIT UNIVERSITY 30
Assignments Problems VIT UNIVERSITY 31
Assignments Problems… q The contents of a 4 -bit register is initially 0000. The register is shifted eight times to the left, with the sequence 00101011 as the serial input. The leftmost bit of the sequence is applied first. What is the content of the register after each shift? VIT UNIVERSITY 32
Assignments Problems… q Design a finite state machine to detect a bit pattern in a sequence of binary bits. The FSM will have one data input X, a reset input R, and an output Y. Y is ‘ 1’ when the previous four bits received have the pattern “ 0110” and ‘ 0’ otherwise. In the example below the pattern occurs twice, and Y=’ 1’ on the following clock cycle. q X = 011101101001110110001 q Y = 00000000100 q a. Determine how many states are required, and make a state transition table. q b. Determine the number of D flip‐flops and find the Boolean equations for the next‐state logic and the output logic. q c. Sketch a schematic of your design. VIT UNIVERSITY 33
Assignments Problems… q Suppose a certain sequential circuit has a JK flip-flop labeled A and a D flip-flop labeled B. In q addition, the circuit has an input x and an output y. The formulas for the flip-flop inputs and y q are given below. q JA = x 0 q KA = B 0 q DB = A 0 + B 00 q y = x. A 0 B 0 q (a) Draw the circuit. q (b) Write the next state equation for the A flip-flop. q (c) Write the next state equation for the B flip-flop. q (d) Write down the state table of the circuit. q (e) Write down the state diagram of the circuit. q For the circuit in Figure 1, write down the next state equation for the A flip-flop VIT UNIVERSITY 34
Assignments Problems… q For the circuit in Figure 2, do the following: (a) Write the next state equation for the A flip-flop. (b) Write the next state equation for the B flip-flop. (c) Write down the output equation for y. (d) Write down the state table of the circuit. (e) Write down the state diagram of the circuit. q For the circuit in Figure 3, do the following: (a) Write the next state equation for the A flip-flop. (b) Write the next state equation for the B flip-flop. (c) Write down the output equation for y. (d) Write down the state table of the circuit. (e) Write down the state diagram of the circuit. VIT UNIVERSITY 35
Assignments Problems… q. For more problems : q. Refer : M. Morris Mano, "Digital Design", 3 rd Edition, Prentice Hall of India Pvt. Ltd. , Chapter - Pages() VIT UNIVERSITY 36
Assignments Problems… VIT UNIVERSITY 37
Assignments Problems… VIT UNIVERSITY 38
Assignments Problems… VIT UNIVERSITY 39
Assignments Problems… VIT UNIVERSITY 40
Assignments Problems… VIT UNIVERSITY 41
