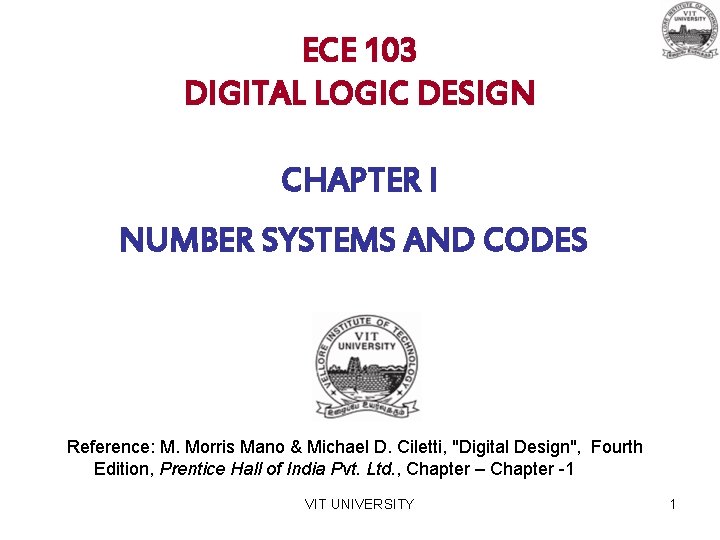

ECE 103 DIGITAL LOGIC DESIGN CHAPTER I NUMBER SYSTEMS AND CODES Reference: M. Morris Mano & Michael D. Ciletti, "Digital Design", Fourth Edition, Prentice Hall of India Pvt. Ltd. , Chapter – Chapter -1 VIT UNIVERSITY 1
Number systems and codes q. Representation of numbers q. Decimal - Octal - Hexadecimal number systems q. Representation of negative numbers q. Complement of a number q. Binary arithmetic q. Binary codes for decimal numbers q. Error detecting and correcting codes VIT UNIVERSITY 2

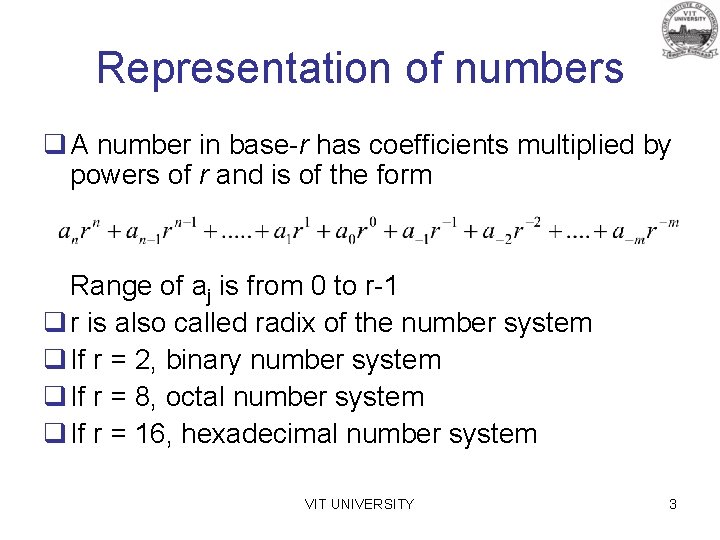

Representation of numbers q A number in base-r has coefficients multiplied by powers of r and is of the form Range of aj is from 0 to r-1 q r is also called radix of the number system q If r = 2, binary number system q If r = 8, octal number system q If r = 16, hexadecimal number system VIT UNIVERSITY 3

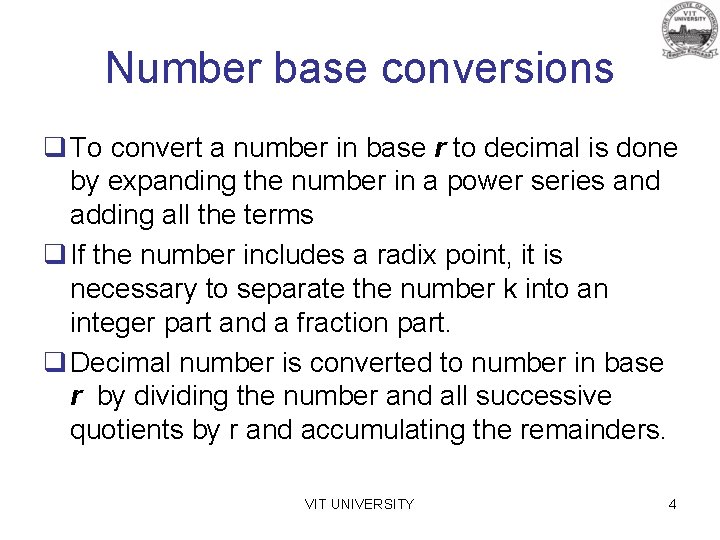

Number base conversions q To convert a number in base r to decimal is done by expanding the number in a power series and adding all the terms q If the number includes a radix point, it is necessary to separate the number k into an integer part and a fraction part. q Decimal number is converted to number in base r by dividing the number and all successive quotients by r and accumulating the remainders. VIT UNIVERSITY 4
Number base conversions q. Example 1: Convert decimal 153 to octal q. Example 2: Convert (0. 6875)10 to binary VIT UNIVERSITY 5

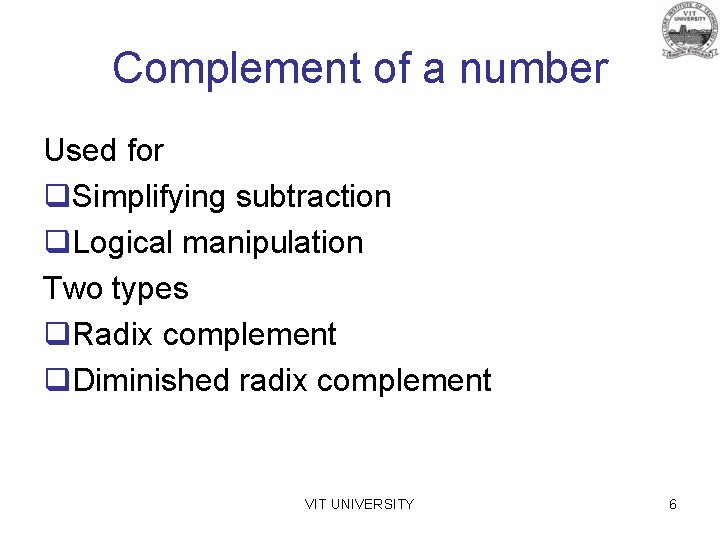

Complement of a number Used for q. Simplifying subtraction q. Logical manipulation Two types q. Radix complement q. Diminished radix complement VIT UNIVERSITY 6

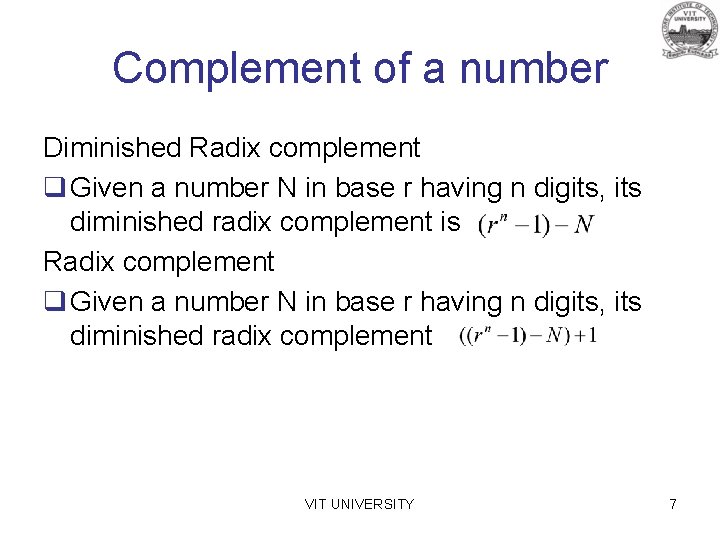

Complement of a number Diminished Radix complement q Given a number N in base r having n digits, its diminished radix complement is Radix complement q Given a number N in base r having n digits, its diminished radix complement VIT UNIVERSITY 7
Representation of negative numbers Two ways of representation q. Sign magnitude form q. Sign complement form signed 1’s complement form signed 2’s complement form VIT UNIVERSITY 8

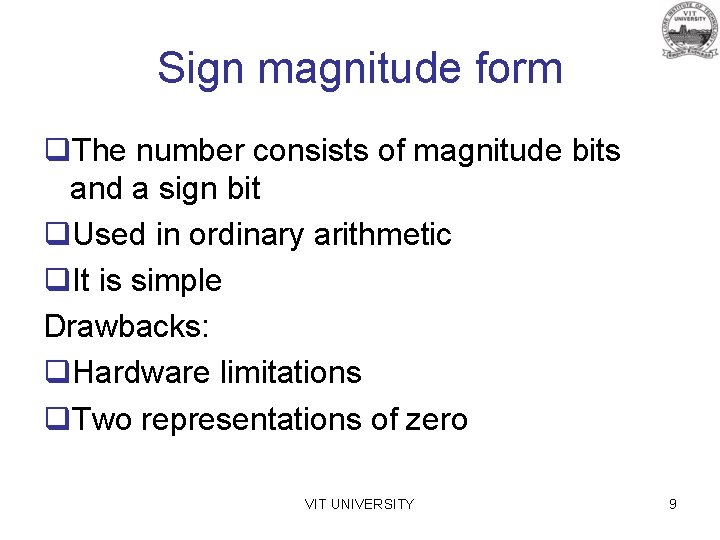

Sign magnitude form q. The number consists of magnitude bits and a sign bit q. Used in ordinary arithmetic q. It is simple Drawbacks: q. Hardware limitations q. Two representations of zero VIT UNIVERSITY 9

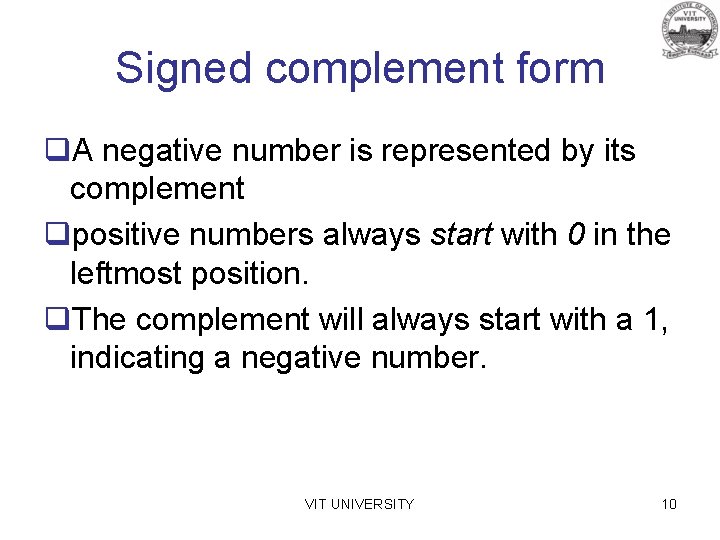

Signed complement form q. A negative number is represented by its complement qpositive numbers always start with 0 in the leftmost position. q. The complement will always start with a 1, indicating a negative number. VIT UNIVERSITY 10
Representation of negative numbers Eg: Represent -9 using 8 bits in both Sign magnitude form and sign complement form VIT UNIVERSITY 11
Binary arithmetic q. Addition q. Subtraction q. Multiplication Addition Similar to normal decimal addition Rules of addition: 1 + 1 = 0 CY = 1 1+0=0+1=1 VIT UNIVERSITY 12
Binary subtraction The subtraction of two n-digit unsigned numbers M - N in base r can be done as follows: 1. Add the minuend M to the r's complement of the subtrahend N. Mathematically, M + (rn - N) = M N + rn 2. If M >= N. the sum will produce an end carry rn which can be discarded. what is left is the result M - N. 3. If M < N. the sum does not produce an end carry and is equal to rn - (N - M) which is r's complement of (N - M). 4. To obtain the answer, take the r's complement of the sum and place a negative sign in front. VIT UNIVERSITY 13

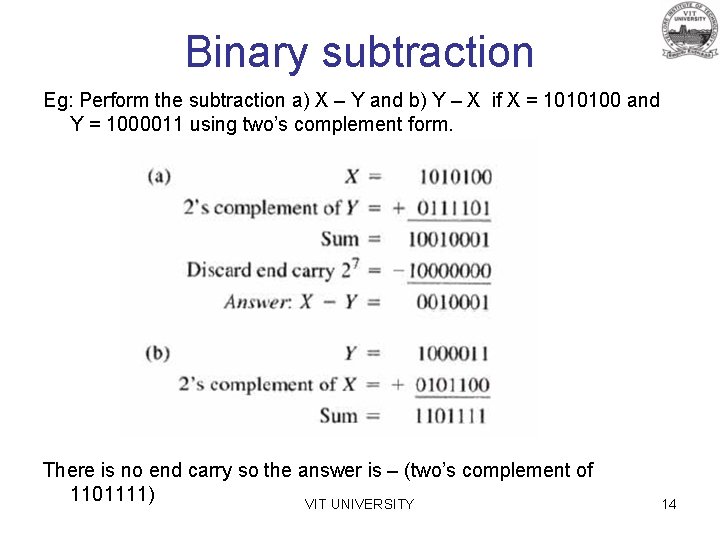

Binary subtraction Eg: Perform the subtraction a) X – Y and b) Y – X if X = 1010100 and Y = 1000011 using two’s complement form. There is no end carry so the answer is – (two’s complement of 1101111) VIT UNIVERSITY 14

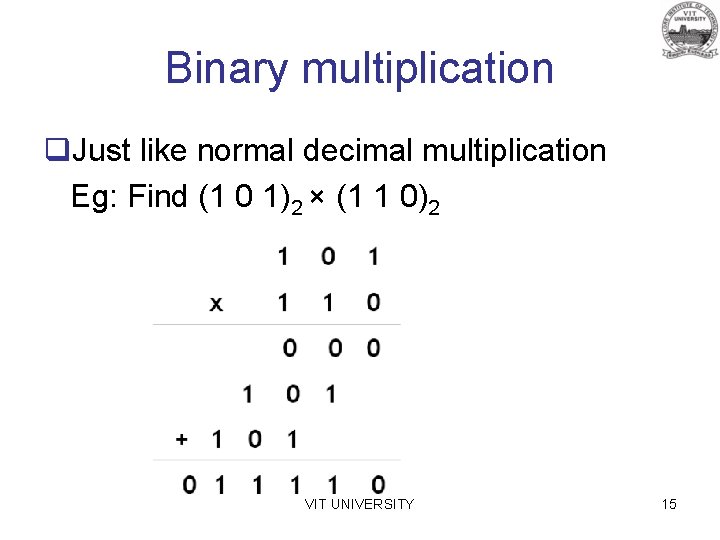

Binary multiplication q. Just like normal decimal multiplication Eg: Find (1 0 1)2 × (1 1 0)2 VIT UNIVERSITY 15

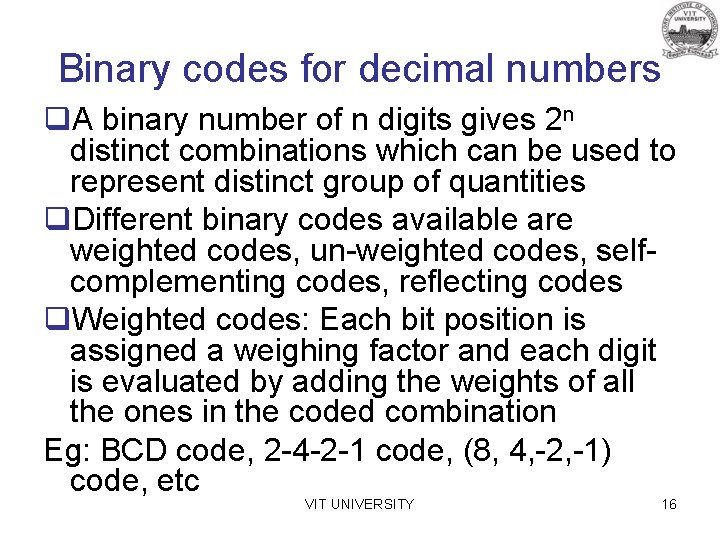

Binary codes for decimal numbers q. A binary number of n digits gives 2 n distinct combinations which can be used to represent distinct group of quantities q. Different binary codes available are weighted codes, un-weighted codes, selfcomplementing codes, reflecting codes q. Weighted codes: Each bit position is assigned a weighing factor and each digit is evaluated by adding the weights of all the ones in the coded combination Eg: BCD code, 2 -4 -2 -1 code, (8, 4, -2, -1) code, etc VIT UNIVERSITY 16
Binary codes for decimal numbers q. Un-weighted codes: Weight is not assigned to the bit positions Eg: Excess-3 code q. Self complementing code: 9’s complement of the decimal number is obtained by changing 1’s to 0’s and viceversa. Eg: 2 -4 -2 -1 code, Excess-3 code VIT UNIVERSITY 17

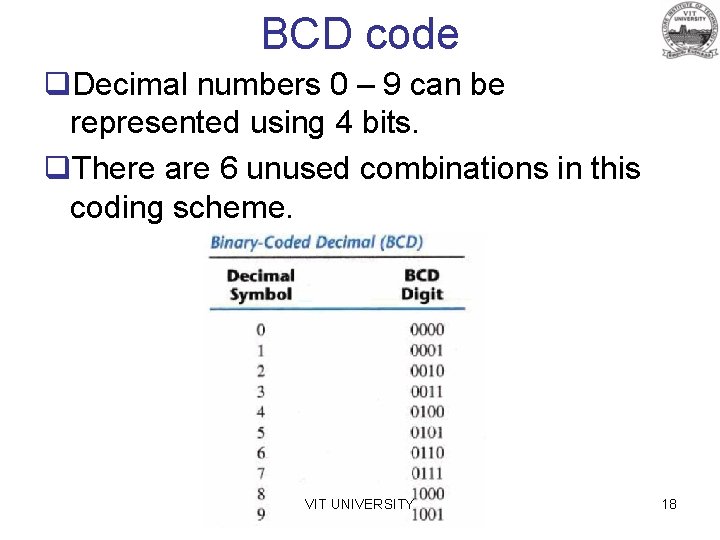

BCD code q. Decimal numbers 0 – 9 can be represented using 4 bits. q. There are 6 unused combinations in this coding scheme. VIT UNIVERSITY 18
Different binary codes for decimal numbers VIT UNIVERSITY 19
Gray Code q Reflection code q Advantage of Gray code over the straight binary number sequence is that only one bit in the code group changes in going from one number to the next. VIT UNIVERSITY 20

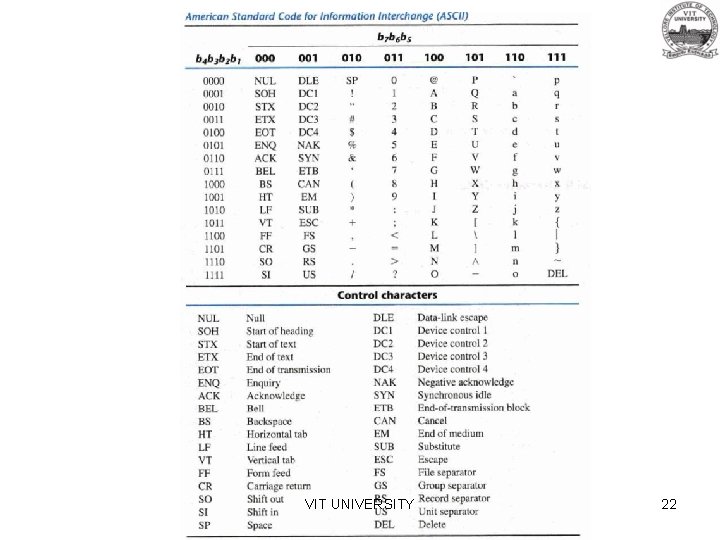

ASCII Character code q. The “American Standard Code for Information Interchange“ ASCII was suggested in 1968 q. Represents alphanumeric character set. q. Uses 7 bits to represent 128 characters q. There are special symbols which can be represented by this code q. The coding is given in next slide VIT UNIVERSITY 21
VIT UNIVERSITY 22

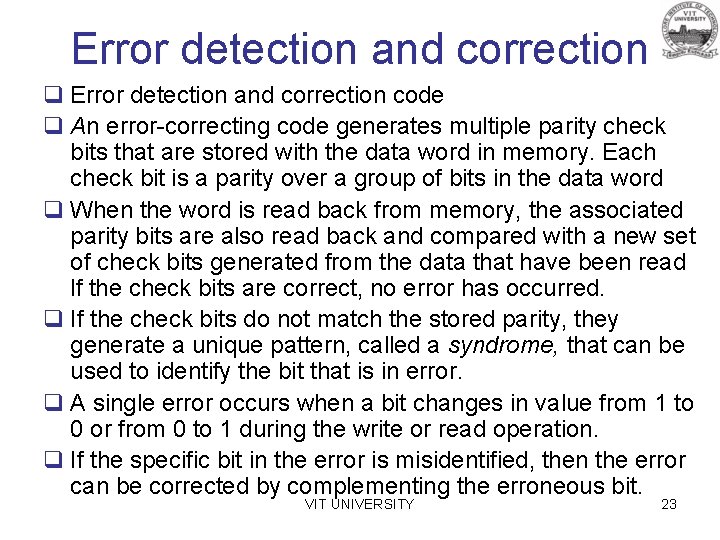

Error detection and correction q Error detection and correction code q An error-correcting code generates multiple parity check bits that are stored with the data word in memory. Each check bit is a parity over a group of bits in the data word q When the word is read back from memory, the associated parity bits are also read back and compared with a new set of check bits generated from the data that have been read lf the check bits are correct, no error has occurred. q If the check bits do not match the stored parity, they generate a unique pattern, called a syndrome, that can be used to identify the bit that is in error. q A single error occurs when a bit changes in value from 1 to 0 or from 0 to 1 during the write or read operation. q If the specific bit in the error is misidentified, then the error can be corrected by complementing the erroneous bit. VIT UNIVERSITY 23
Parity q. Simplest form of error detection is achieved by using parity bits. q. A parity bit is an extra bit included with a message to make the total number of 1's either even or odd. Eg: VIT UNIVERSITY 24
Hamming code qk parity bits are added to an n-bit data word forming a new word of n + k bits. q. The bit positions are numbered in sequence from 1 to n + k. q. The relation between the number of message bits and parity bits is q. Those positions numbered as a power of 2 are reserved for the parity bits q. The remaining bits are the data bits VIT UNIVERSITY 25

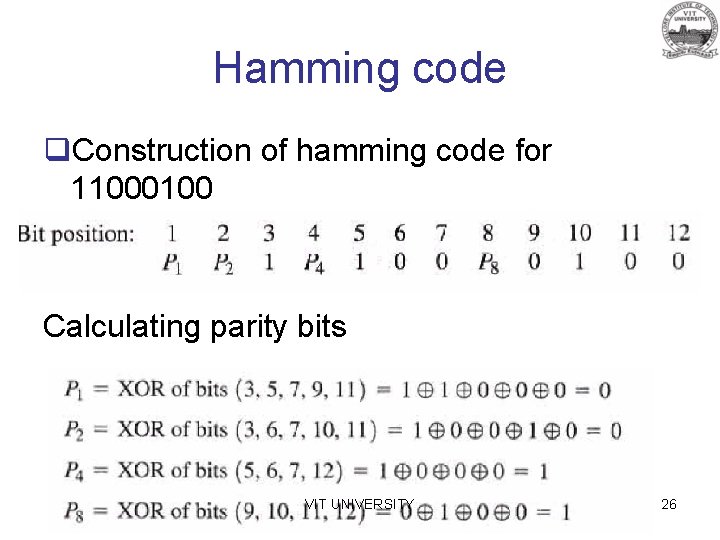

Hamming code q. Construction of hamming code for 11000100 Calculating parity bits VIT UNIVERSITY 26

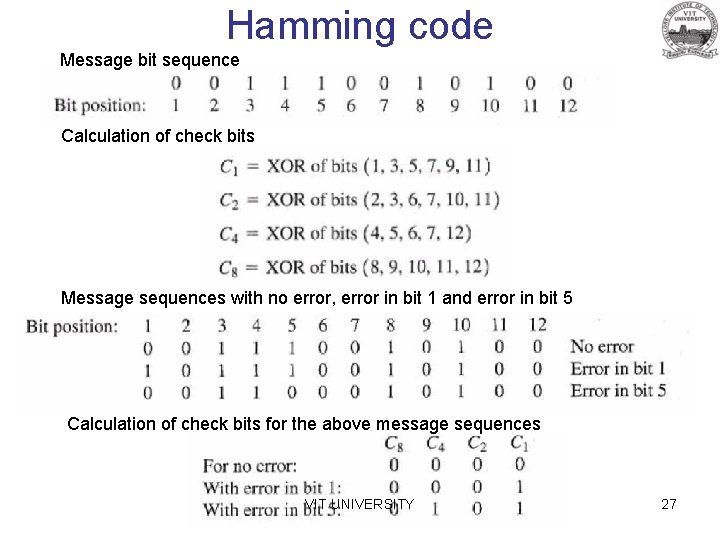

Hamming code Message bit sequence Calculation of check bits Message sequences with no error, error in bit 1 and error in bit 5 Calculation of check bits for the above message sequences VIT UNIVERSITY 27
Assignments Problems… q 1. Convert the following binary numbers in decimal: 101110; 1110101; and 110110100. q 2. Convert the following decimal numbers to the bases indicated. a. 7562 to octal b. 1938 to hexadecimal c. 175 to binary q 3. Show the value of all bits of a 12 -bit register that hold the number equivalent to decimal 215 in (a) binary; (b) octal; (c) hexadecimal; (d) binary-coded decimal (BCD). q 4. Show the following operations using 2 s complement: a. 10000111 – 1011001 b. 1011001 – 10000111 c. 0. 1001 – 0. 0101 d. 0. 0101 – 0. 1001 VIT UNIVERSITY 28

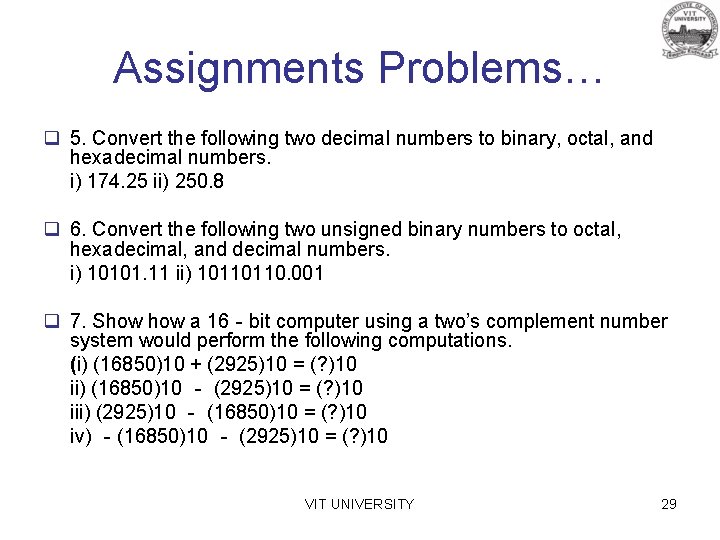

Assignments Problems… q 5. Convert the following two decimal numbers to binary, octal, and hexadecimal numbers. i) 174. 25 ii) 250. 8 q 6. Convert the following two unsigned binary numbers to octal, hexadecimal, and decimal numbers. i) 10101. 11 ii) 10110110. 001 q 7. Show a 16‐bit computer using a two’s complement number system would perform the following computations. (i) (16850)10 + (2925)10 = (? )10 ii) (16850)10 ‐ (2925)10 = (? )10 iii) (2925)10 ‐ (16850)10 = (? )10 iv) ‐(16850)10 ‐ (2925)10 = (? )10 VIT UNIVERSITY 29

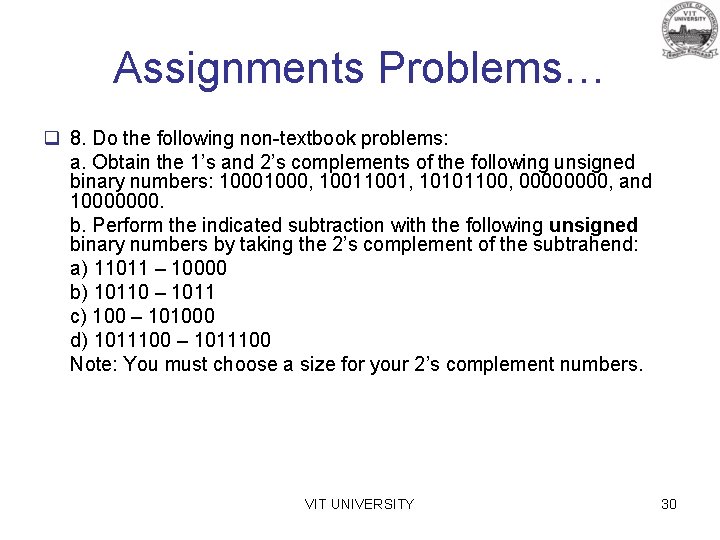

Assignments Problems… q 8. Do the following non-textbook problems: a. Obtain the 1’s and 2’s complements of the following unsigned binary numbers: 1000, 1001, 10101100, 0000, and 10000000. b. Perform the indicated subtraction with the following unsigned binary numbers by taking the 2’s complement of the subtrahend: a) 11011 – 10000 b) 10110 – 1011 c) 100 – 101000 d) 1011100 – 1011100 Note: You must choose a size for your 2’s complement numbers. VIT UNIVERSITY 30
Assignments Problems… qc. The following binary numbers are 6 -bit 2’s complement numbers. Perform the indicated arithmetic operations and qverify the answers. qa) 101111 + 111011 qb) 001011 + 100010 qc) 110001 – 001110 qd) 101010 – 110111 VIT UNIVERSITY 31

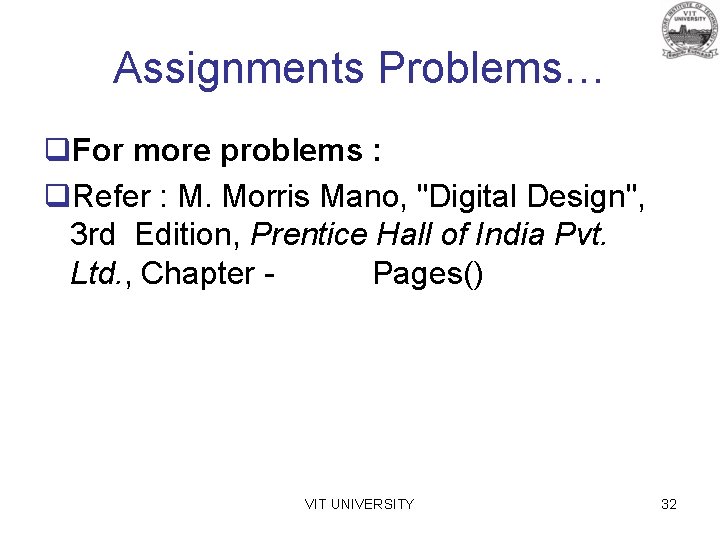

Assignments Problems… q. For more problems : q. Refer : M. Morris Mano, "Digital Design", 3 rd Edition, Prentice Hall of India Pvt. Ltd. , Chapter Pages() VIT UNIVERSITY 32
