EB-SXW 11&12 Series - Features Julia LIN – EMD Paris July 2011

EB-SXW 11&12 Series - Features Julia LIN – EMD Paris July 2011

Content • Lineup Summary • Product Fearues • Accessory List 2

Content • Lineup Summary • Product Fearues • Accessory List 2

Lineup Summary

Lineup Summary

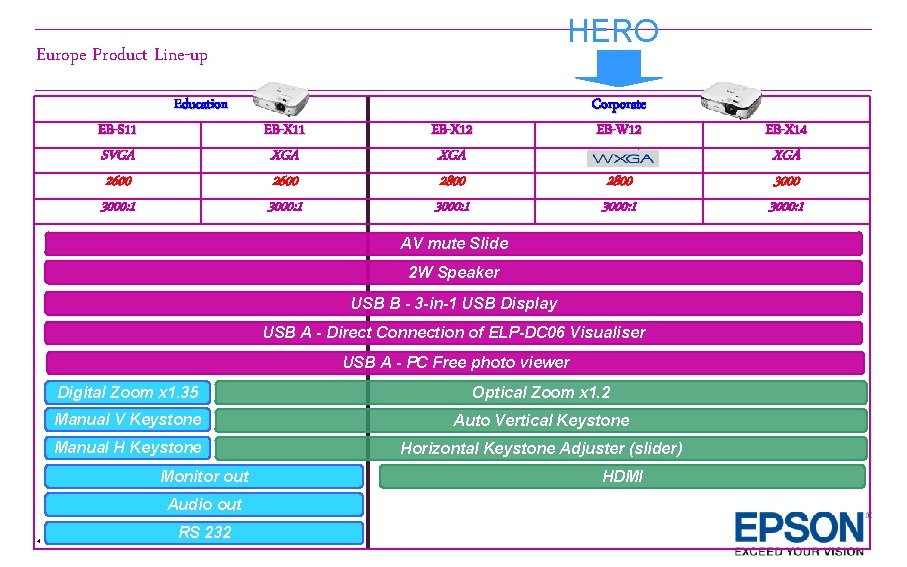

HERO Europe Product Line-up EB-S 11 Education SVGA 2600 3000: 1 EB-X 11 XGA

HERO Europe Product Line-up EB-S 11 Education SVGA 2600 3000: 1 EB-X 11 XGA 2600 3000: 1 EB-X 12 XGA 2800 3000: 1 Corporate EB-W 12 WXGA 2800 3000: 1 AV mute Slide 2 W Speaker USB B - 3 -in-1 USB Display USB A - Direct Connection of ELP-DC 06 Visualiser USB A - PC Free photo viewer Digital Zoom x 1. 35 Optical Zoom x 1. 2 Manual V Keystone Auto Vertical Keystone Manual H Keystone Horizontal Keystone Adjuster (slider) Monitor out Audio out 4 RS 232 HDMI EB-X 14 XGA 3000: 1

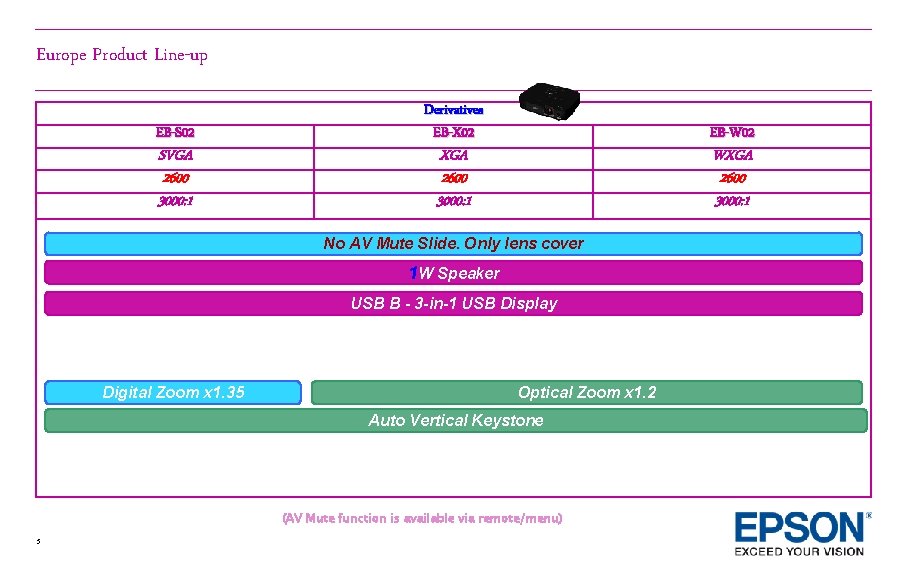

Europe Product Line-up EB-S 02 SVGA 2600 3000: 1 Derivatives EB-X 02 EB-W 02

Europe Product Line-up EB-S 02 SVGA 2600 3000: 1 Derivatives EB-X 02 EB-W 02 XGA 2600 3000: 1 WXGA 2600 3000: 1 No AV Mute Slide. Only lens cover 1 W Speaker USB B - 3 -in-1 USB Display Digital Zoom x 1. 35 Optical Zoom x 1. 2 Auto Vertical Keystone (AV Mute function is available via remote/menu) 5

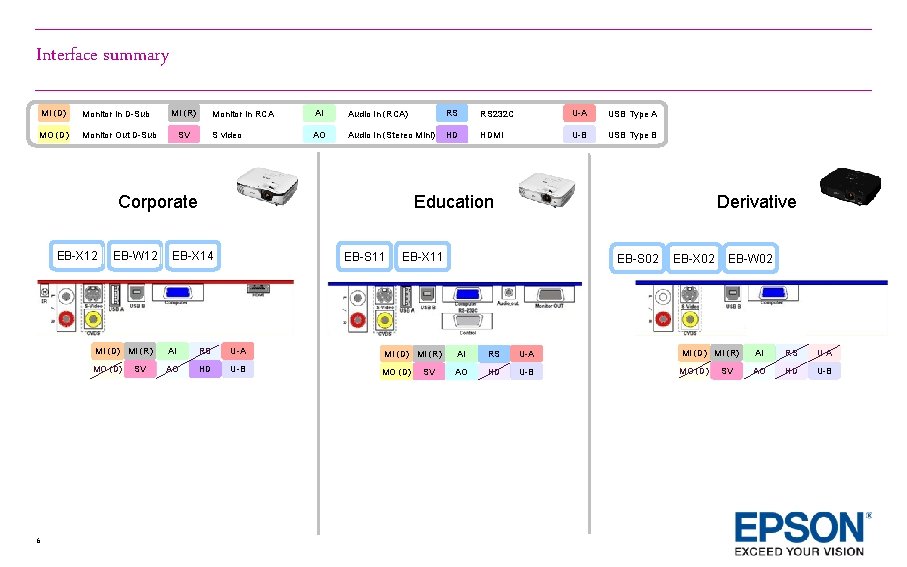

Interface summary MI (D) Monitor In D-Sub MO (D) Monitor Out D-Sub MI (R)

Interface summary MI (D) Monitor In D-Sub MO (D) Monitor Out D-Sub MI (R) SV Monitor In RCA AI Audio In (RCA) RS RS 232 C U-A USB Type A S video AO Audio In (Stereo Mini) HD HDMI U-B USB Type B Corporate EB-X 12 6 EB-W 12 Education EB-X 14 EB-S 11 Derivative EB-X 11 EB-S 02 EB-X 02 EB-W 02 MI (D) MI (R) AI RS U-A MO (D) AO HD U-B SV SV SV

Product Features

Product Features

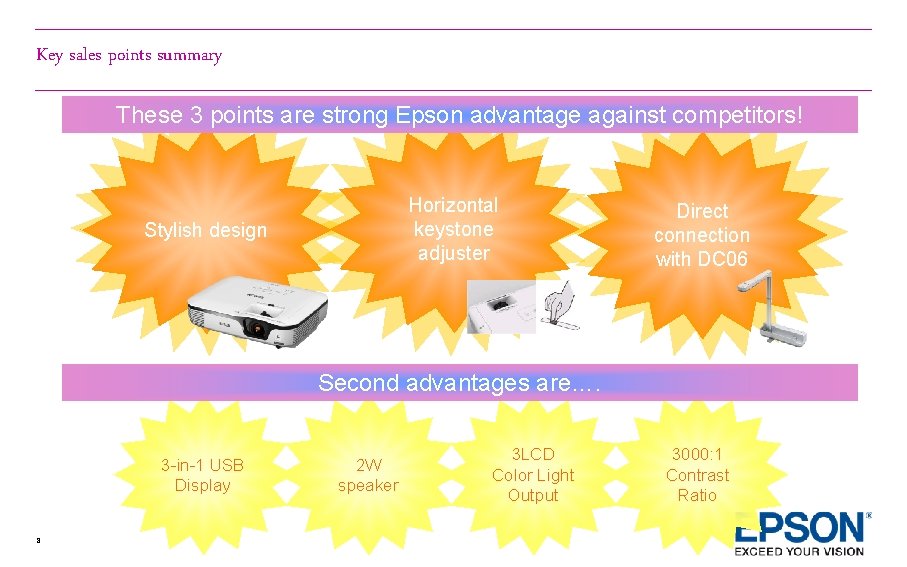

Key sales points summary These 3 points are strong Epson advantage against competitors! Horizontal

Key sales points summary These 3 points are strong Epson advantage against competitors! Horizontal keystone adjuster Stylish design Direct connection with DC 06 Second advantages are…. 3 -in-1 USB Display 8 2 W speaker 3 LCD Color Light Output 3000: 1 Contrast Ratio

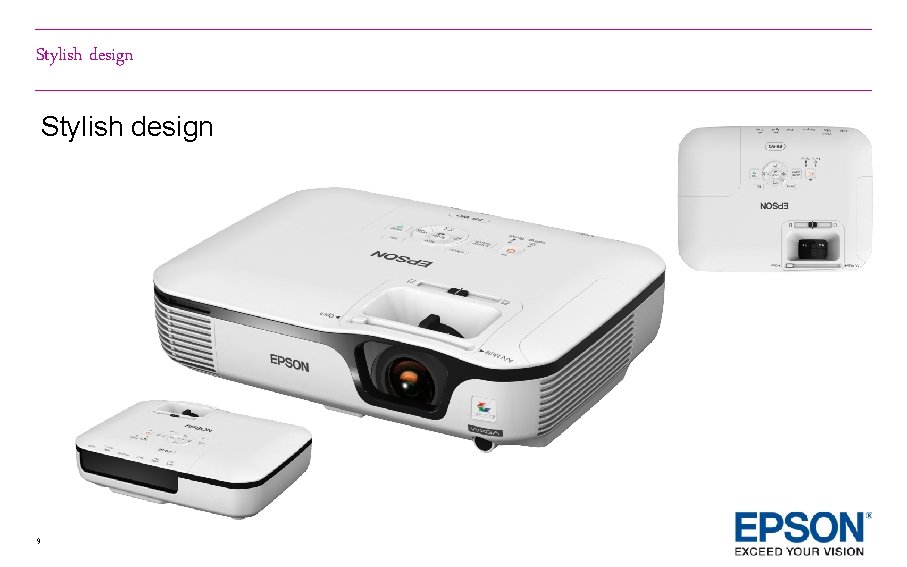

Stylish design 9

Stylish design 9

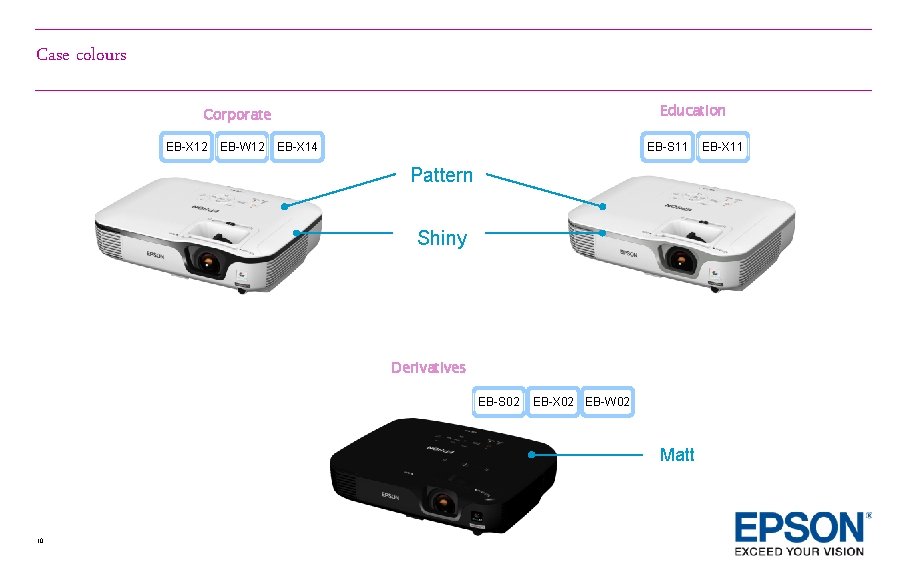

Case colours Education Corporate EB-X 12 EB-W 12 EB-X 14 EB-S 11 Pattern Shiny

Case colours Education Corporate EB-X 12 EB-W 12 EB-X 14 EB-S 11 Pattern Shiny Derivatives EB-S 02 EB-X 02 EB-W 02 Matt 10 EB-X 11

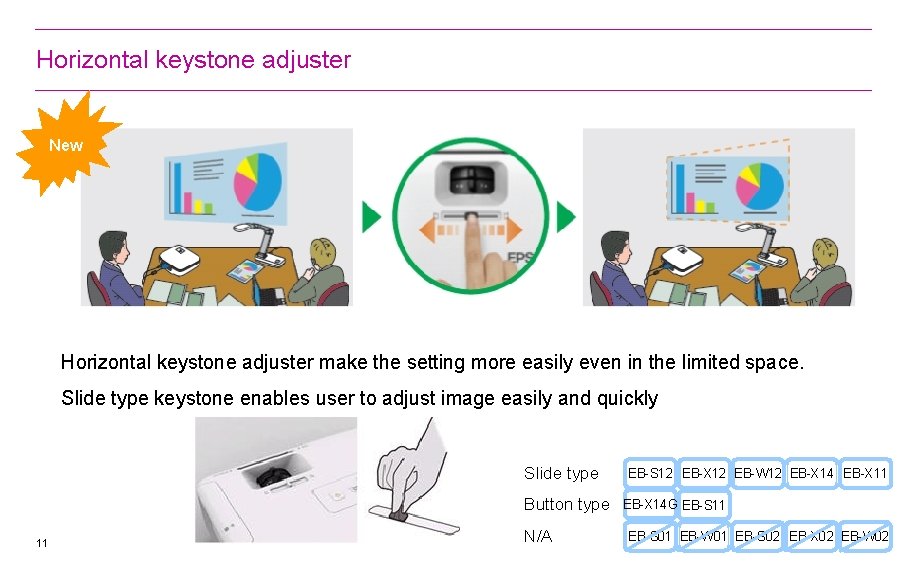

Horizontal keystone adjuster New Horizontal keystone adjuster make the setting more easily even in

Horizontal keystone adjuster New Horizontal keystone adjuster make the setting more easily even in the limited space. Slide type keystone enables user to adjust image easily and quickly Slide type Button type 11 N/A EB-S 12 EB-X 12 EB-W 12 EB-X 14 EB-X 11 EB-X 14 G EB-S 11 EB-S 01 EB-W 01 EB-S 02 EB-X 02 EB-W 02

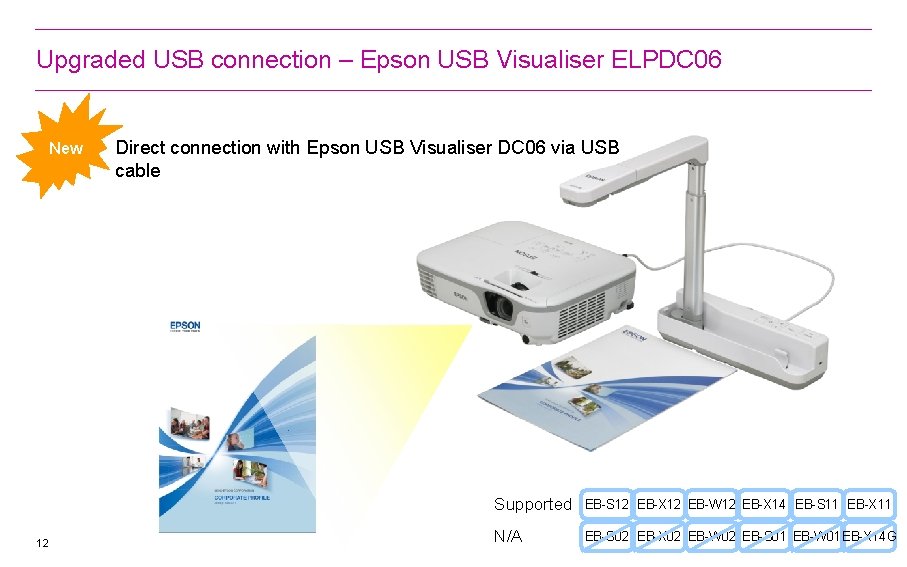

Upgraded USB connection – Epson USB Visualiser ELPDC 06 New 12 Direct connection with

Upgraded USB connection – Epson USB Visualiser ELPDC 06 New 12 Direct connection with Epson USB Visualiser DC 06 via USB cable Supported EB-S 12 EB-X 12 EB-W 12 EB-X 14 EB-S 11 EB-X 11 N/A EB-S 02 EB-X 02 EB-W 02 EB-S 01 EB-W 01 EB-X 14 G

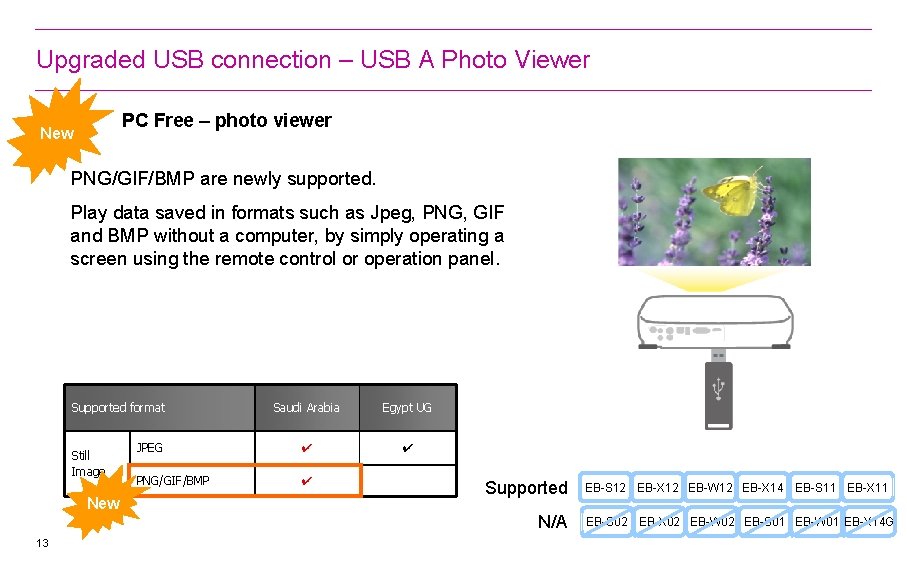

Upgraded USB connection – USB A Photo Viewer PC Free – photo viewer New

Upgraded USB connection – USB A Photo Viewer PC Free – photo viewer New PNG/GIF/BMP are newly supported. Play data saved in formats such as Jpeg, PNG, GIF and BMP without a computer, by simply operating a screen using the remote control or operation panel. Supported format Still Image New 13 Saudi Arabia Egypt UG JPEG ✔ ✔ PNG/GIF/BMP ✔ Supported N/A EB-S 12 EB-X 12 EB-W 12 EB-X 14 EB-S 11 EB-X 11 EB-S 02 EB-X 02 EB-W 02 EB-S 01 EB-W 01 EB-X 14 G

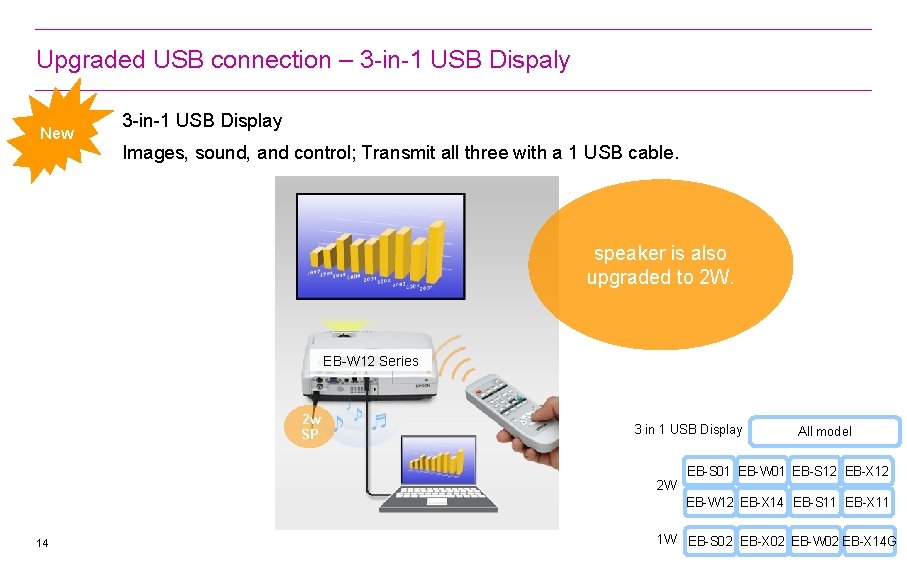

Upgraded USB connection – 3 -in-1 USB Dispaly New 3 -in-1 USB Display Images,

Upgraded USB connection – 3 -in-1 USB Dispaly New 3 -in-1 USB Display Images, sound, and control; Transmit all three with a 1 USB cable. speaker is also upgraded to 2 W. EB-W 12 Series 2 w SP 3 in 1 USB Display 2 W All model EB-S 01 EB-W 01 EB-S 12 EB-X 12 EB-W 12 EB-X 14 EB-S 11 EB-X 11 14 1 W EB-S 02 EB-X 02 EB-W 02 EB-X 14 G

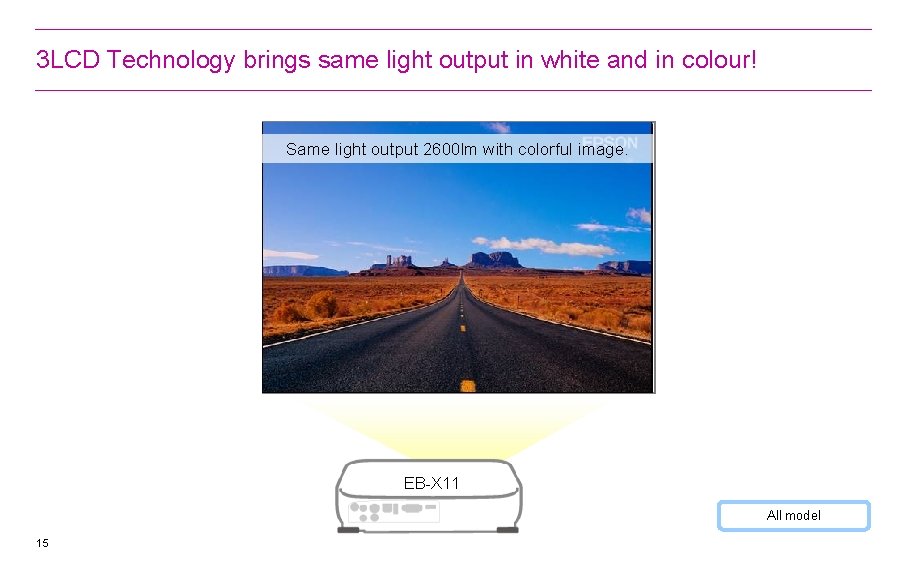

3 LCD Technology brings same light output in white and in colour! Same light

3 LCD Technology brings same light output in white and in colour! Same light output 2600 lm with colorful image. 2600 lm EB-X 11 All model 15

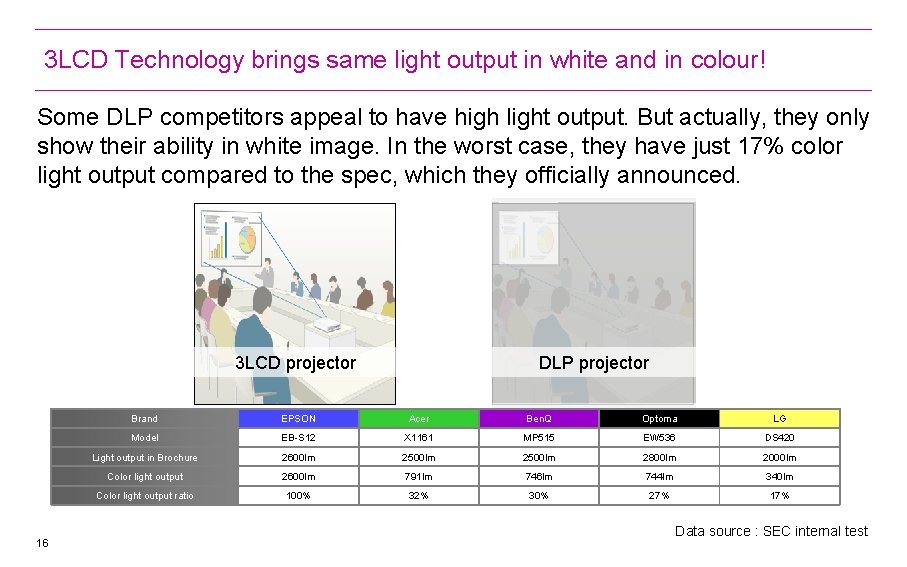

3 LCD Technology brings same light output in white and in colour! Some DLP

3 LCD Technology brings same light output in white and in colour! Some DLP competitors appeal to have high light output. But actually, they only show their ability in white image. In the worst case, they have just 17% color light output compared to the spec, which they officially announced. 3 LCD projector 16 DLP projector Brand EPSON Acer Ben. Q Optoma LG Model EB-S 12 X 1161 MP 515 EW 536 DS 420 Light output in Brochure 2600 lm 2500 lm 2800 lm 2000 lm Color light output 2600 lm 791 lm 746 lm 744 lm 340 lm Color light output ratio 100% 32% 30% 27% 17% Data source : SEC internal test

Features illustration chart High reso file available 17

Features illustration chart High reso file available 17

Accessory

Accessory

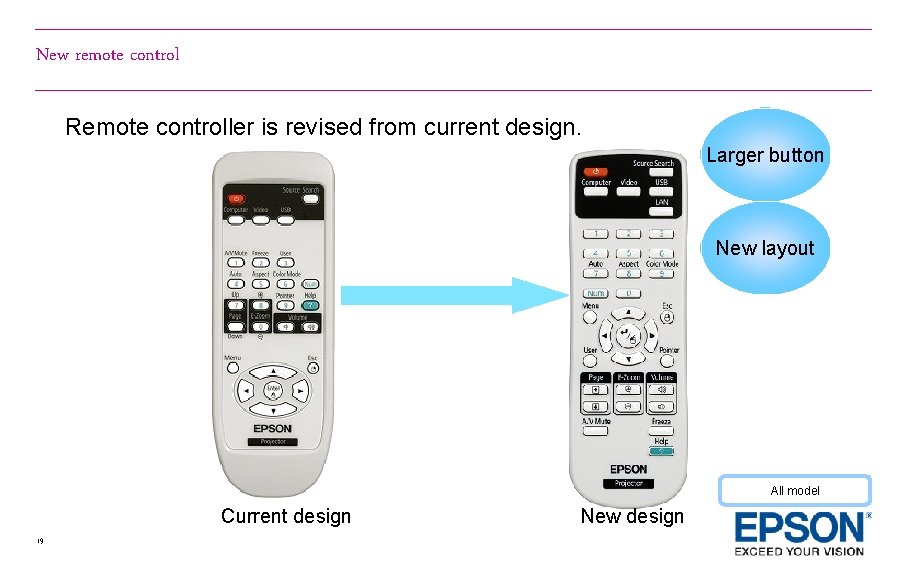

New remote control Remote controller is revised from current design. Larger button New layout

New remote control Remote controller is revised from current design. Larger button New layout All model Current design 19 New design

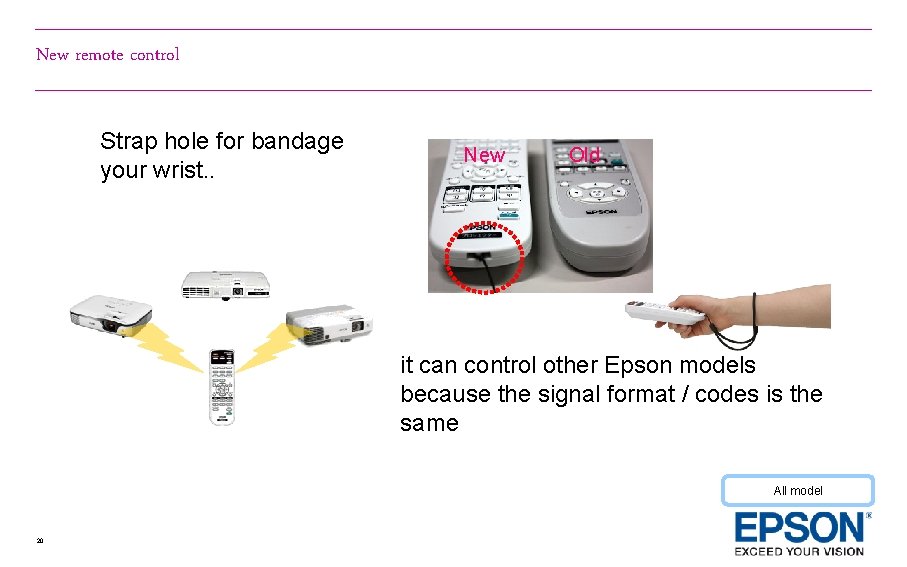

New remote control Strap hole for bandage your wrist. . New Old it can

New remote control Strap hole for bandage your wrist. . New Old it can control other Epson models because the signal format / codes is the same All model 20

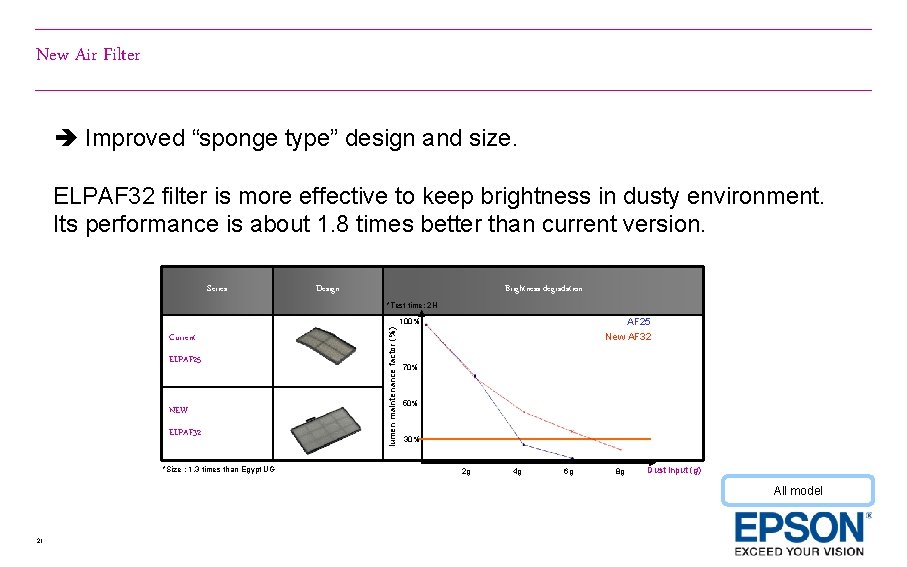

New Air Filter *When used in the general office environment. Based on the Epson’s

New Air Filter *When used in the general office environment. Based on the Epson’s in-house test results. Improved “sponge type” design and size. ELPAF 32 filter is more effective to keep brightness in dusty environment. Its performance is about 1. 8 times better than current version. Series Design Brightness degradation *Test time: 2 H AF 25 Current ELPAF 25 NEW ELPAF 32 *Size : 1. 3 times than Egypt UG lumen maintenance factor (%) 100% New AF 32 70% 50% 30% 2 g 4 g 6 g 8 g Dust input (g) All model 21

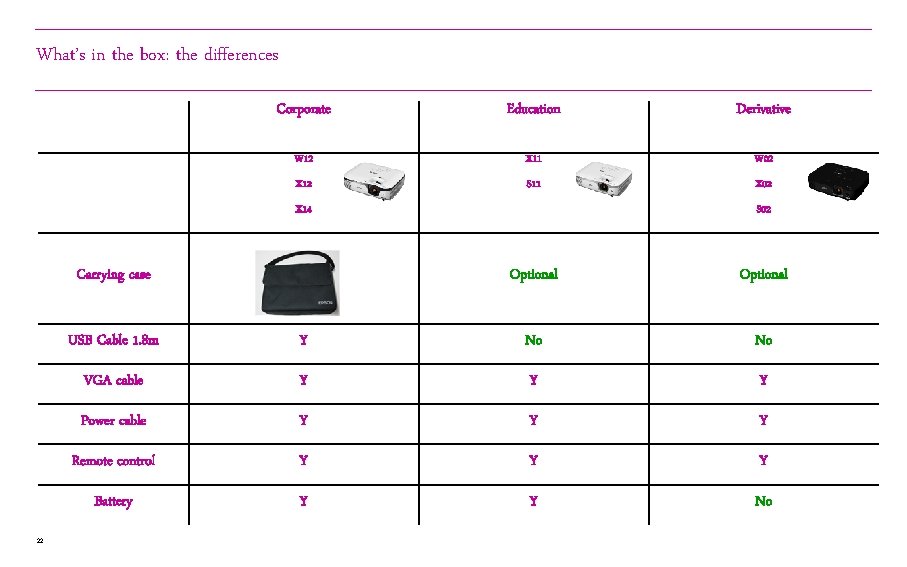

What’s in the box: the differences Corporate Education Derivative W 12 X 11 W

What’s in the box: the differences Corporate Education Derivative W 12 X 11 W 02 X 12 S 11 X 02 X 14 Carrying case 22 S 02 Optional USB Cable 1. 8 m Y No No VGA cable Y Y Y Power cable Y Y Y Remote control Y Y Y Battery Y Y No

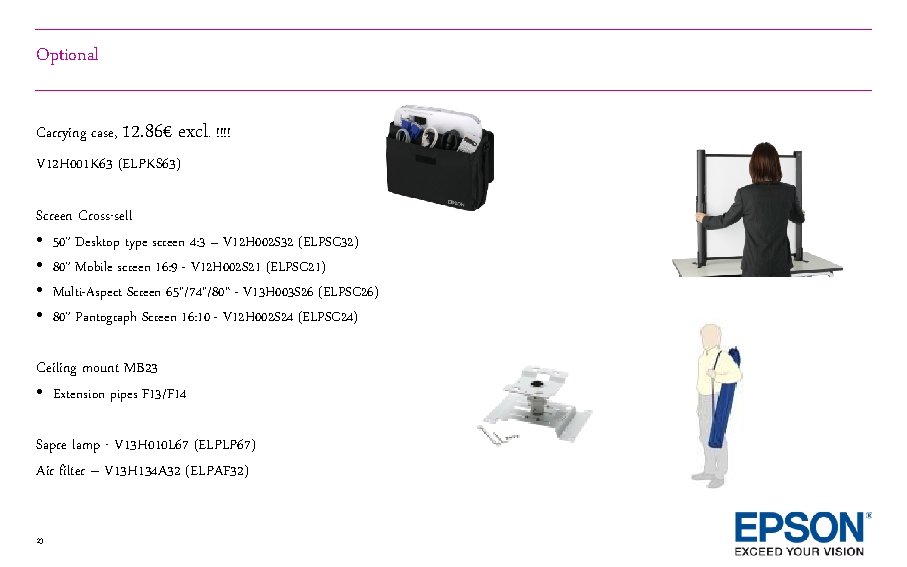

Optional Carrying case, 12. 86€ excl. !!!! V 12 H 001 K 63 (ELPKS

Optional Carrying case, 12. 86€ excl. !!!! V 12 H 001 K 63 (ELPKS 63) Screen Cross-sell • 50” Desktop type screen 4: 3 – V 12 H 002 S 32 (ELPSC 32) • 80” Mobile screen 16: 9 - V 12 H 002 S 21 (ELPSC 21) • Multi-Aspect Screen 65"/74"/80“ - V 13 H 003 S 26 (ELPSC 26) • 80” Pantograph Screen 16: 10 - V 12 H 002 S 24 (ELPSC 24) Ceiling mount MB 23 • Extension pipes F 13/F 14 Sapre lamp - V 13 H 010 L 67 (ELPLP 67) Air filter – V 13 H 134 A 32 (ELPAF 32) 23
