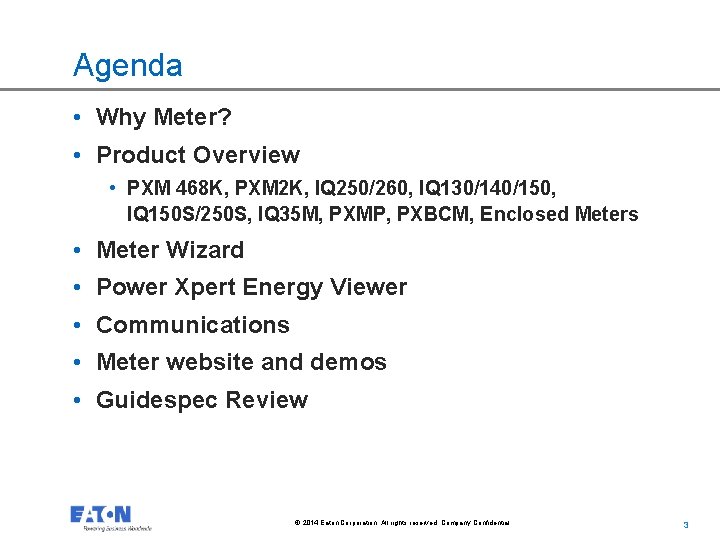

Agenda • Why Meter? • Product Overview • PXM 468 K, PXM 2 K, IQ 250/260, IQ 130/140/150, IQ 150 S/250 S, IQ 35 M, PXMP, PXBCM, Enclosed Meters • Meter Wizard • Power Xpert Energy Viewer • Communications • Meter website and demos • Guidespec Review © 2014 Eaton Corporation. All rights reserved. Company Confidential. 3 3

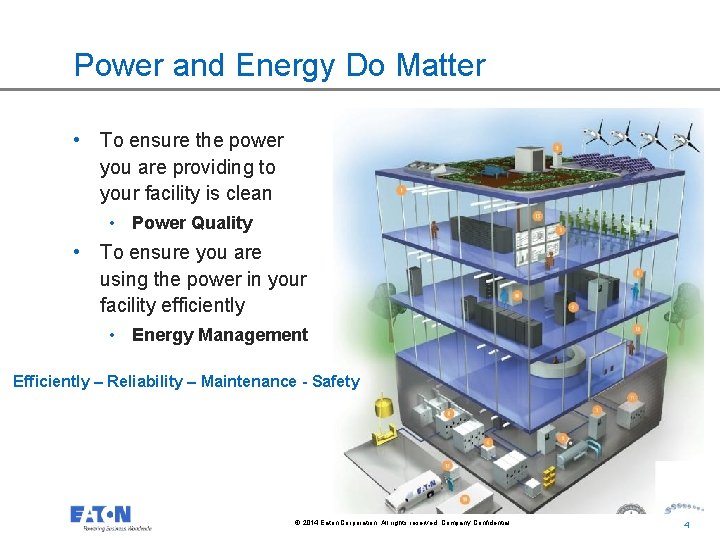

Power and Energy Do Matter • To ensure the power you are providing to your facility is clean • Power Quality • To ensure you are using the power in your facility efficiently • Energy Management Efficiently – Reliability – Maintenance - Safety © 2014 Eaton Corporation. All rights reserved. Company Confidential. 4 4

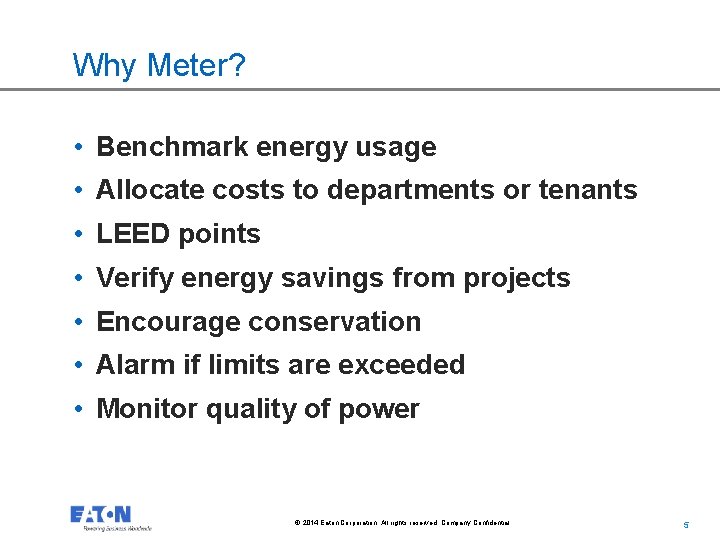

Why Meter? • Benchmark energy usage • Allocate costs to departments or tenants • LEED points • Verify energy savings from projects • Encourage conservation • Alarm if limits are exceeded • Monitor quality of power © 2014 Eaton Corporation. All rights reserved. Company Confidential. 5 5

Control ? Control = Management “You don’t Manage what you don’t Measure. ” © 2014 Eaton Corporation. All rights reserved. Company Confidential. 6 6

Eaton Meters at a Glancewww. eaton. com/meters Switchgear Submetering Switchboard PXM 2000 IQ 35 M Ethernet/ Data Logging PX Meter Full featured PQ Meter Low Profile Energy Meter-PRL 1/2/3 PX Multipoint Meter IQ 250/260 Revenue Class Panel Meter, I/O Opt IQ 130/140/150 Enclosed Flexible Submetering for Energy Use-PRL 4, Swbd Basic metering Communication Opt Wireless IQ 150 S/250 S PX Branch Circuit Monitor Flexible Submetering for Energy Use-PRL 1/2/3 Basic/Revenue Metering Integrated Wireless © 2014 Eaton Corporation. All rights reserved. Company Confidential. 7 7

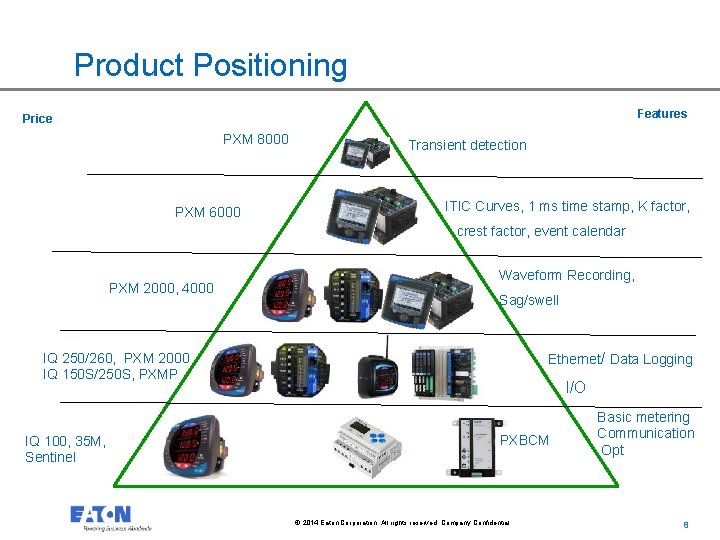

Product Positioning Features Price PXM 8000 PXM 6000 Transient detection ITIC Curves, 1 ms time stamp, K factor, crest factor, event calendar PXM 2000, 4000 Waveform Recording, Sag/swell Ethernet/ Data Logging IQ 250/260, PXM 2000 IQ 150 S/250 S, PXMP IQ 100, 35 M, Sentinel I/O PXBCM © 2014 Eaton Corporation. All rights reserved. Company Confidential. 8 Basic metering Communication Opt 8

IQ 130/140/150 Application • Where energy usage and utility charges are of primary concern • Replacing analog meters • Submetering individual loads • Cost effective measurement of current and voltage is needed • Interest in measurement of only power • Energy feed into 3 rd party systems Key Features Resources • Industry standard communication • Percentage load indication on face of meter • Configurable wiring systems • Password protect energy and demand resets • Selectable meter variables on display • Autoscroll or fixed display • Transducer only versions • • www. eaton. com/meters Product Focus Technical Data Sheet Specification guide User Manual www. es. eaton. com/meterwizard PQsupport@eaton. com, 1 -800 -809 -2772, option 4, 1 © 2014 Eaton Corporation. All rights reserved. Company Confidential. 9 9

IQ 35 M Application • Where energy usage and utility charges are of primary concern • Submetering individual loads • Adding metering where none existed before • Energy feed into 3 rd party systems Key Features Resources • Industry standard communication • Configurable wiring systems • Password protect energy and demand resets • Alarm indication on face • Din rail mount or surface mount • Up to 600 VAC control power • • www. eaton. com/meters Product Focus Technical Data Sheet Specification guide User Manual www. es. eaton. com/meterwizard PQsupport@eaton. com, 1 -800 -809 -2772, option 4, 1 © 2014 Eaton Corporation. All rights reserved. Company Confidential. 10 10

PX Branch Circuit Monitor Application • Where energy usage and utility charges are of primary concern • Submetering individual loads < 100 A • Allocating cost to cost centers or tenants • Disaggregation of loads (California Title 24) • Installed in PRL 1 a/2 a/3 e (Bid Manager) • Enclosed version/Components Key Features Resources • ANSI C 12. 20 class 0. 5% revenue-grade • Modbus TCP and RTU communication • Configurable metering-1 P or 2 P • High density, up to 100 meter points per unit • Scalable metering-6 pole increments • Web Interface • Optional touch screen interface • • www. eaton. com/meters Technical Data Sheet Product Aid FAQ Specification guide User Manual PQsupport@eaton. com, 1 -800 -809 -2772, option 4, 1 © 2014 Eaton Corporation. All rights reserved. Company Confidential. 11 11

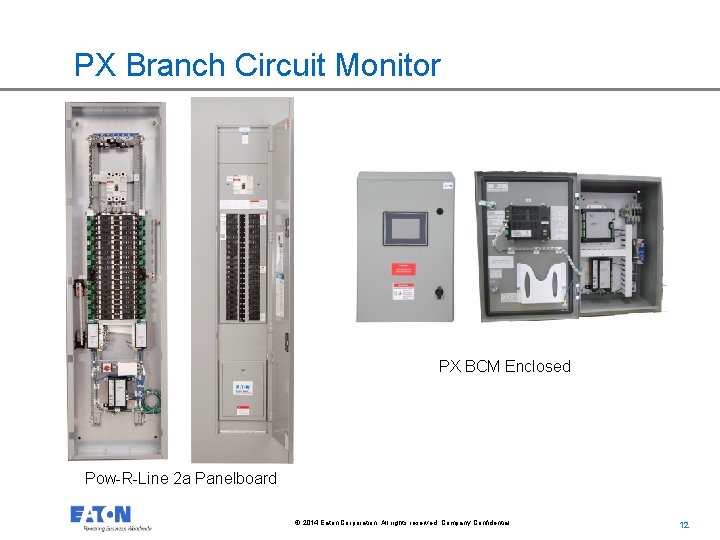

PX Branch Circuit Monitor PX BCM Enclosed Pow-R-Line 2 a Panelboard © 2014 Eaton Corporation. All rights reserved. Company Confidential. 12 12

PX Multipoint Meter BIDMANAGER Application • Where energy usage and utility charges are of primary concern • Submetering individual loads • Allocating energy to cost centers or tenants • Energy feed into existing Eaton software or 3 rd party systems with gateway Key Features Resources • Modbus communication • Configurable metering-1 P, 2 P, or 3 P • High density, up to 60 meter points per unit • Front panel LEDs provide status of unit and communication activity • Scalable metering-6 pole increments • Web Interface • Cost Allocation • • www. eaton. com/meters Technical Data Sheet Now in Bid. Man FAQ Specification guide User Manual PQsupport@eaton. com, 1 -800 -809 -2772, option 4, 1 © 2014 Eaton Corporation. All rights reserved. Company Confidential. 13 13

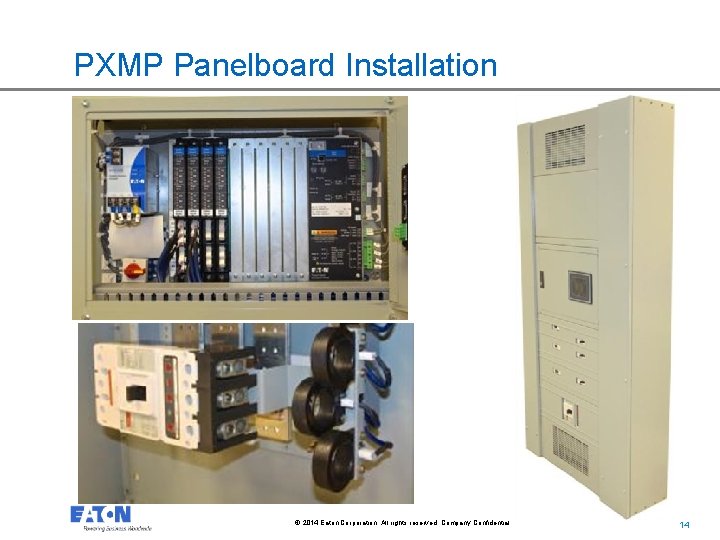

PXMP Panelboard Installation © 2014 Eaton Corporation. All rights reserved. Company Confidential. 14 14

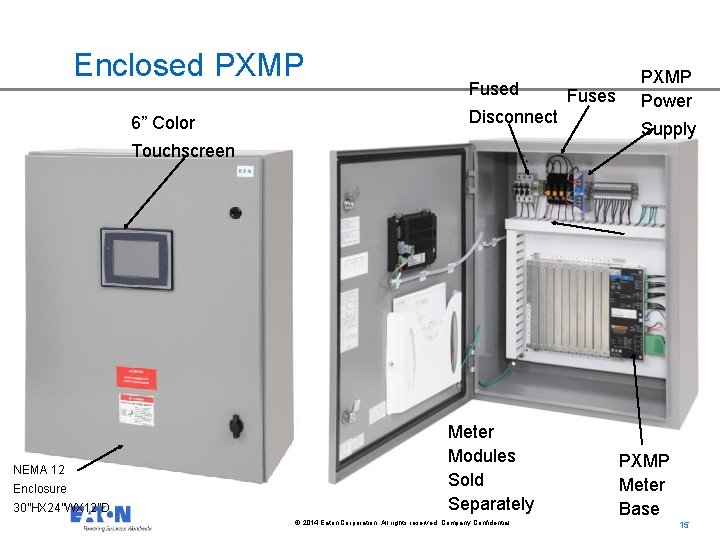

Enclosed PXMP 6” Color Fused Fuses Disconnect PXMP Power Supply Touchscreen NEMA 12 Enclosure 30”HX 24”WX 12”D Meter Modules Sold Separately © 2014 Eaton Corporation. All rights reserved. Company Confidential. 15 PXMP Meter Base 15

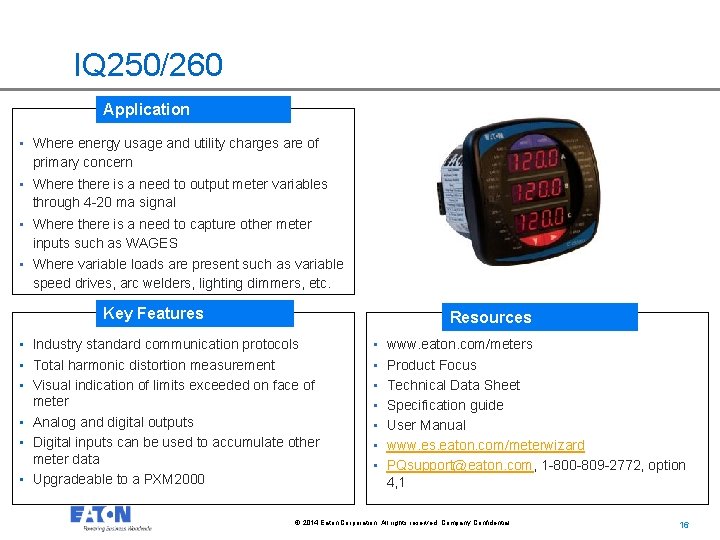

IQ 250/260 Application • Where energy usage and utility charges are of primary concern • Where there is a need to output meter variables through 4 -20 ma signal • Where there is a need to capture other meter inputs such as WAGES • Where variable loads are present such as variable speed drives, arc welders, lighting dimmers, etc. Key Features Resources • Industry standard communication protocols • Total harmonic distortion measurement • Visual indication of limits exceeded on face of meter • Analog and digital outputs • Digital inputs can be used to accumulate other meter data • Upgradeable to a PXM 2000 • • www. eaton. com/meters Product Focus Technical Data Sheet Specification guide User Manual www. es. eaton. com/meterwizard PQsupport@eaton. com, 1 -800 -809 -2772, option 4, 1 © 2014 Eaton Corporation. All rights reserved. Company Confidential. 16 16

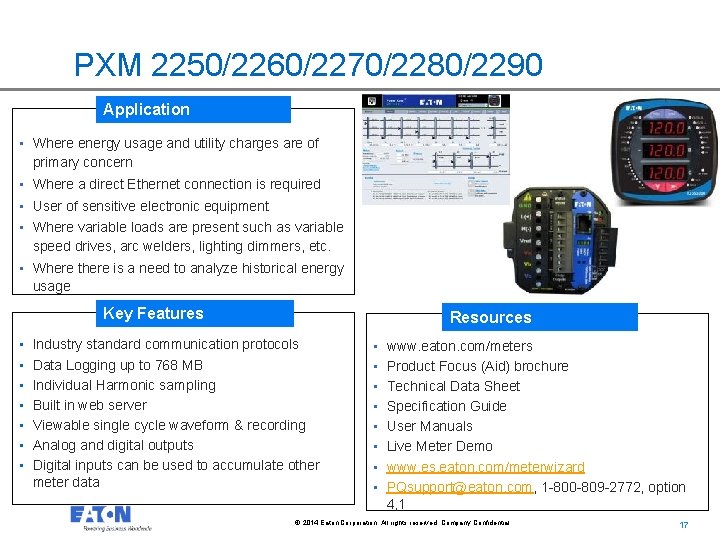

PXM 2250/2260/2270/2280/2290 Application • Where energy usage and utility charges are of primary concern • Where a direct Ethernet connection is required • User of sensitive electronic equipment • Where variable loads are present such as variable speed drives, arc welders, lighting dimmers, etc. • Where there is a need to analyze historical energy usage Key Features • • Resources Industry standard communication protocols Data Logging up to 768 MB Individual Harmonic sampling Built in web server Viewable single cycle waveform & recording Analog and digital outputs Digital inputs can be used to accumulate other meter data • • www. eaton. com/meters Product Focus (Aid) brochure Technical Data Sheet Specification Guide User Manuals Live Meter Demo www. es. eaton. com/meterwizard PQsupport@eaton. com, 1 -800 -809 -2772, option 4, 1 © 2014 Eaton Corporation. All rights reserved. Company Confidential. 17 17

PXM 4/6/8 k Application • Where downtime is expensive and a major concern • User of sensitive electronic equipment • Where variable loads are present such as variable speed drives, arc welders, lighting dimmers, etc. • Where energy usage and utility charges are high • Where there is a need to analyze historical power quality events and energy usage Key Features Resources • NEW – HTML-5 replaces JAVA - January 2017 • • 12” and 6” color touch screen displays Sub cycle transient detection ITIC Curves (Information Technology Industry Council) Industry standard communication protocols Data Logging and Waveform recording up to 8 GB Built in web server Millisecond time stamping • • www. eaton. com/meters Product Focus (Aid) brochure Technical Data Sheet Specification Guide User Manuals Live Meter Demo www. es. eaton. com/meterwizard PQsupport@eaton. com, 1 -800 -809 -2772, option 4, 1 © 2014 Eaton Corporation. All rights reserved. Company Confidential. 18 18

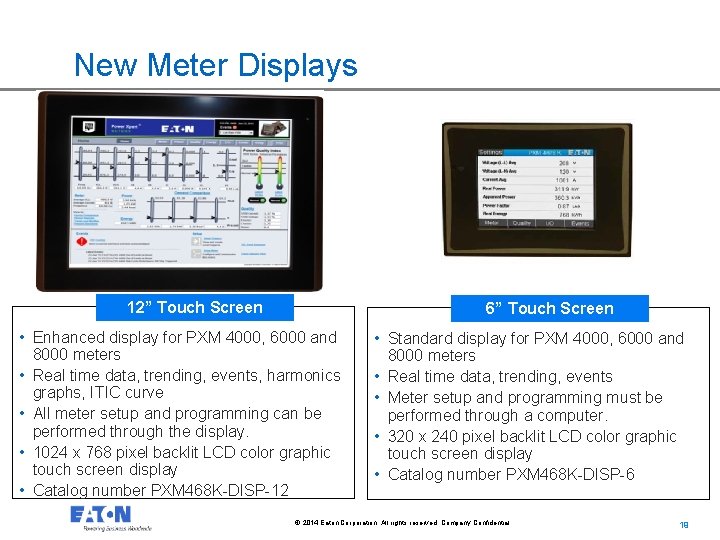

New Meter Displays 12” Touch Screen 6” Touch Screen • Enhanced display for PXM 4000, 6000 and 8000 meters • Real time data, trending, events, harmonics graphs, ITIC curve • All meter setup and programming can be performed through the display. • 1024 x 768 pixel backlit LCD color graphic touch screen display • Catalog number PXM 468 K-DISP-12 • Standard display for PXM 4000, 6000 and 8000 meters • Real time data, trending, events • Meter setup and programming must be performed through a computer. • 320 x 240 pixel backlit LCD color graphic touch screen display • Catalog number PXM 468 K-DISP-6 © 2014 Eaton Corporation. All rights reserved. Company Confidential. 19 19

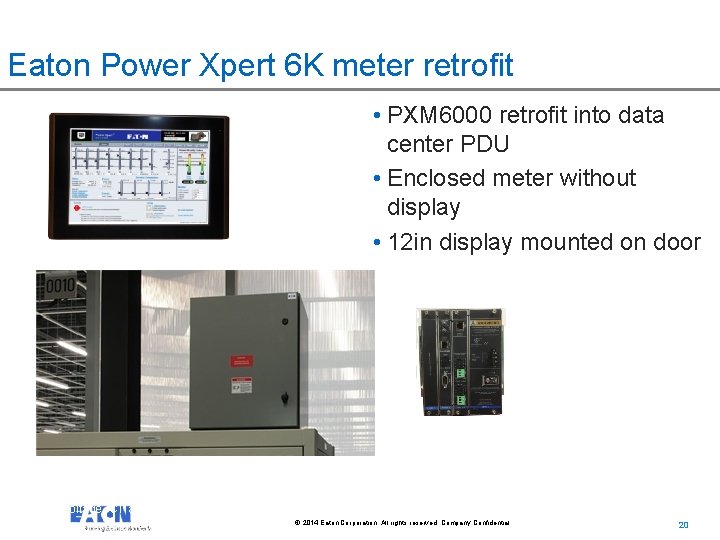

Eaton Power Xpert 6 K meter retrofit • PXM 6000 retrofit into data center PDU • Enclosed meter without display • 12 in display mounted on door Placement of the enclosed PXM 6000 meter on top of the PDU. Meter enclosure would be secured to the PDU with bolts and a 1” opening in the meter enclosure and PDU would be cut to provide an opening for the voltage, CT and communication (display and network) wires. © 2014 Eaton Corporation. All rights reserved. Company Confidential. 20 20

Enclosed Meters – standard and custom (Flex Center) Application • Where no metering compartment or mounting space is available in the existing electrical distribution equipment • Where installation time is a premium • Where energy usage and utility charges are of primary concern Key Features • • • Resources Available in NEMA 12, 3 R, or 4 X Available in single and multiple units Fused disconnect for line voltage Pre wired CT shorting blocks, CPT option Padlocking latch provision Designed to work with IQ 35 M/150/260 and PXM 2000/4000/6000/8000 PXMP PXBCM series • Custom • • www. eaton. com/meters Product brochure Specification guide User Manuals © 2014 Eaton Corporation. All rights reserved. Company Confidential. 21 21

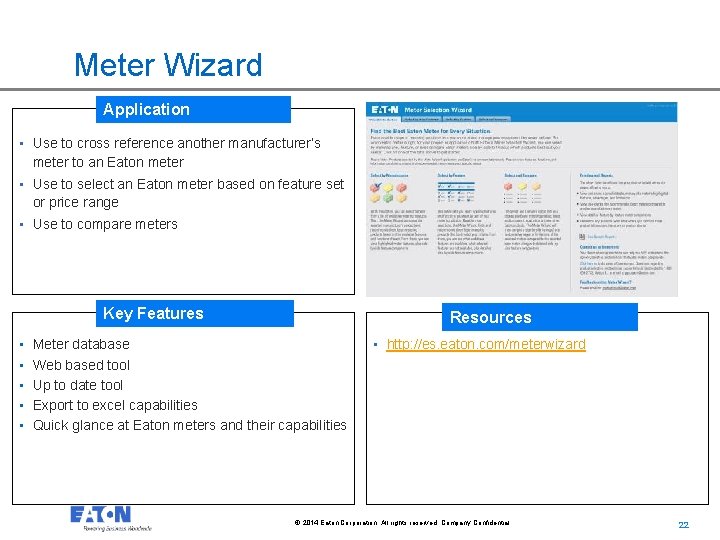

Meter Wizard Application • Use to cross reference another manufacturer’s meter to an Eaton meter • Use to select an Eaton meter based on feature set or price range • Use to compare meters Key Features • • • Resources Meter database Web based tool Up to date tool Export to excel capabilities Quick glance at Eaton meters and their capabilities • http: //es. eaton. com/meterwizard © 2014 Eaton Corporation. All rights reserved. Company Confidential. 22 22

Communications Topology Wireless Web Devices Power Xpert Ingisght PC Web Browser Ethernet Switch Ethernet Network Power Xpert Gateway Wireless Router Modbus RTU RS-485 Network PXM 4000/ PXM 2000 6000/8000 IQ 150 S/ 250 S PXMP PXBCM IQ 130 - 260 IQ 35 M IQ 150 S/ PXMP PXBCM 250 S Ethernet Network RS-485 Network © 2014 Eaton Corporation. All rights reserved. Company Confidential. 23 23
