Combination enclosed control offering Combination starters Soft starters Motor Control Made Easy © 2020 Eaton. All rights reserved. . 2
Enclosed control product offering An expansive, flexible offering that meets all your enclosed control needs, including custom control solutions NON-COMBINATION LIGHTING COMBINATION HVAC PUMP PANELS SOFT STARTERS ENCLOSURES & ACCESSORIES © 2020 Eaton. All rights reserved. . 3

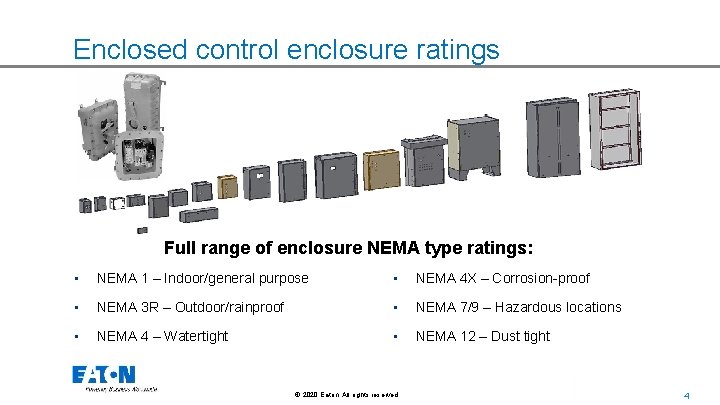

Enclosed control enclosure ratings Full range of enclosure NEMA type ratings: • NEMA 1 – Indoor/general purpose • NEMA 4 X – Corrosion-proof • NEMA 3 R – Outdoor/rainproof • NEMA 7/9 – Hazardous locations • NEMA 4 – Watertight • NEMA 12 – Dust tight © 2020 Eaton. All rights reserved. . 4
Enclosed control: combination starters Starter with fusible/non-fusible disconnect or circuit breaker in same enclosure • • Component offering: • NEMA – sizes 00 -9 (1½ - 1600 hp) • IEC – 7 A-150 A (1½ - 125 hp) • Soft Starter - 37 A-1000 A (10 - 800 hp) Full enclosure offering: • • NEMA 1, 3 R, 4, 4 X, 7/9, 12 Options: • Type: fusible/non-fusible disconnect or circuit breaker • Starter Overload: bi-metallic and SSOL (C 440 and C 441) • Cover Control: pilot lights, pushbuttons and selector switches • Control Power Transformer (CPT) © 2020 Eaton. All rights reserved. . 5
Enclosed control: combination starters Circuit Breaker Fusible Disconnect Handle Mechanism CPT Starter Cover Controls © 2020 Eaton. All rights reserved. . 6
Combination starters: typical applications • Optimal for machinery OEMs, pumping and commercial construction • Small and large motor applications • Irrigation • Oil & Gas • Compressors • Commercial Construction • HVAC • Water & Wastewater • And more… © 2020 Eaton. All rights reserved. . 7

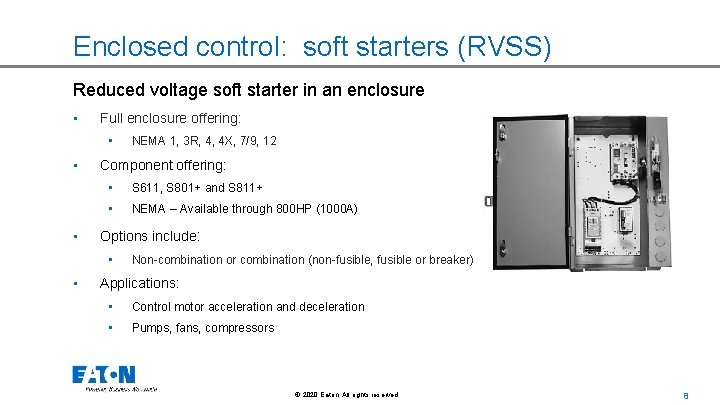

Enclosed control: soft starters (RVSS) Reduced voltage soft starter in an enclosure • Full enclosure offering: • • • Component offering: • S 611, S 801+ and S 811+ • NEMA – Available through 800 HP (1000 A) Options include: • • NEMA 1, 3 R, 4, 4 X, 7/9, 12 Non-combination or combination (non-fusible, fusible or breaker) Applications: • Control motor acceleration and deceleration • Pumps, fans, compressors © 2020 Eaton. All rights reserved. . 8
Enclosed control: soft starters (RVSS) S 811+ S 801+ S 611 Increasing capability and functionality • • ad Enclosure Types: • NEMA 1, 3 R, 4, 4 X, 12 • User Interface Module: • • LED display + keypad Can be door-mounted • • Keypad Can be door-mounted Modifications: Limited cover control options • Dimensions: • NEMA 1, 3 R, 4, 4 X, 7/9, 12 Control Interface Module: Modifications: • ad Enclosure Types: Depends on size and enclosure – reference catalog Factory or field-installable cover control options Dimensions: • Depends on size and enclosure – reference catalog • ad Enclosure Types: • NEMA 1, 3 R, 4, 4 X, 7/9, 12 Digital Interface Module: • • LCD display + keypad Can be door-mounted Modifications: • Factory or field-installable cover control options Dimensions: • Depends on size and enclosure – reference catalog Enclosed RVSS available as non-combination, combination with disconnect, or combination with circuit breaker. © 2020 Eaton. All rights reserved. . 9
Combination enclosed control Tools and resources © 2020 Eaton. All rights reserved. . 10
Combination enclosed control: questions to ask • What type of design – NEMA, IEC, Soft Starter, DP? • Is it combination or non-combination? • What is the HP and voltage of the motor? • What type of enclosure? • What is the coil voltage? Is a CPT needed? • Is cover control needed? • What type of overload (if applicable)? • Are any other modifications required? • i. e. auxiliary contacts, relays, terminal blocks, timers, etc. © 2020 Eaton. All rights reserved. . 11
Combination enclosed control: © 2020 Eaton. All rights reserved. . catalog, volume 10 12
Enclosed control: Bid manager © 2020 Eaton. All rights reserved. . 13
Combination enclosed control: © 2020 Eaton. All rights reserved. . Bid manager takeoff 14
Combination enclosed control: • Catalog (Volume 10) • Enclosed Control Reference Guide (SA 03311001 E) • Packaged Control Solutions (BR 123001 EN) • Motor Control Made Easy (SA 123006 EN) • Freedom Full-Voltage Enclosed Control (TD 03301006 E) • NEMA Freedom Slide Rule (S 4097 A) © 2020 Eaton. All rights reserved. . Tools and resources 15
Combination enclosed control Motor Control Made Easy (MCME) © 2020 Eaton. All rights reserved. . 16

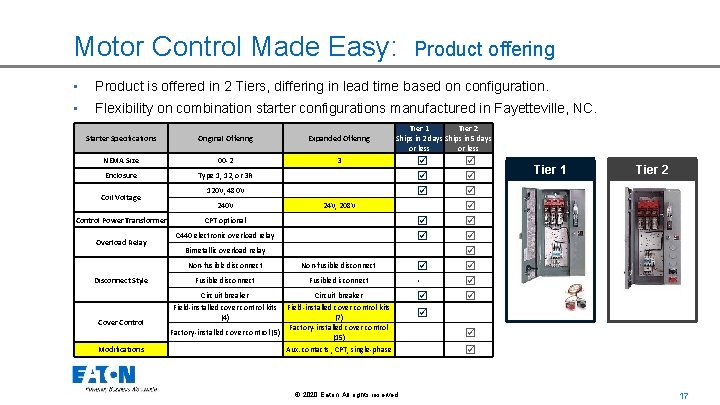

Motor Control Made Easy: Product offering • Product is offered in 2 Tiers, differing in lead time based on configuration. • Flexibility on combination starter configurations manufactured in Fayetteville, NC. Starter Specifications Original Offering Expanded Offering NEMA Size 00 -2 3 Enclosure Type 1, 12, or 3 R Coil Voltage Control Power Transformer Overload Relay Disconnect Style Tier 1 Tier 2 Ships in 2 days Ships in 5 days or less 120 V, 480 V 240 V þ þ þ 24 V, 208 V þ þ CPT optional C 440 electronic overload relay Bimetallic overload relay Non-fusible disconnect Fusible disconnect Circuit breaker Field-installed cover control kits (4) Cover Control Field-installed cover control kits (7) Factory-installed cover control (5) (15) Modifications Aux. contacts , CPT, single-phase © 2020 Eaton. All rights reserved. . þ þ þ þ Tier 1 Tier 2 þ þ 17
Motor Control Made Easy: Catalog number structure Chart below reflects all options on the Motor Control Made Easy program: ECN Starter Type 16 = With Disconnect 18 = With Disconnect and CPT 22 = With Circuit Breaker 24 = With Circuit Breaker and CPT NEMA Size A = 00 0=0 1=1 2=2 3=3 Enclosure Type 1 = Type 1 - General Purpose 2 = Type 3 R - Rainproof 8 = Type 12 - Dust-tight Field-installable Cover Control Kits Multiple kits can be used to achieve desired configuration. Maximum of 5 knockouts available in enclosure. C 400 T 1 = Start/Stop pushbutton C 400 T 12 = Hand Off Auto C 400 T 9 A = Red RUN (120 V) C 400 T 10 A = Green OFF (120 V) C 400 T 11 A = Red RUN/Green OFF (120 V) C 400 T 13 = START/STOP selector switch C 400 T 14 = ON/OFF selector switch Coil Voltage A = 120 V B = 240 V C = 480 V E = 208 V T = 24 V CPT Voltage B = 240 V/120 V C = 480 V/120 V E = 208 V/120 V S = 240 V/24 V R = 480 V/24 V Overload Blank = Bimetal Overload❷ R 63/B = 1 -5 A C 440 SSOL R 63/C = 4 -20 A C 440 SSOL R 63/D = 9 -45 A C 440 SSOL R 63/E = 20 -100 A C 440 SSOL Cover Control A = None❶ B = Start/Stop pushbuttons C = Start/Stop pushbuttons, Red RUN D=START/STOP pushbutton, Red RUN, Green OFF H = Hand/Off/Auto selector switch J = Hand/Off/Auto selector switch, Red RUN K = Hand/Off/Auto selector switch, Red RUN, Green OFF P=Red RUN pilot light Q=Green OFF pilot light R=Red RUN, Green OFF pilot lights S=START/STOP selector switch T=START/STOP selector switch, Red RUN U=START/STOP selector switch, Red RUN, Green OFF V=ON/OFF selector switch W=ON/OFF selector switch, red RUN X=ON/OFF selector switch, red RUN, Green OFF © 2020 Eaton. All rights reserved. . Fuse Clip Rating A = None B = 30 A/250 V C = 30 A/600 V D = 60 A/250 V E = 60 A/600 V F = 100 A/250 V G = 100 A/600 V Breaker Rating B = 3 A C = 7 A D = 15 A E = 30 A F = 50 A W = 70 A G = 100 A ~5 0 tha 0 k SK t U day ship i s n so r le 5 ss Modifications Blank = None A 23 = 1 NO/1 NC aux. contact (top mount) A 29 = 1 NO/1 NC aux. contact A 30 = 2 NO aux. contact A 31 = 2 NC aux. contact C 3 = 100 v. A extra capacity CPT C 42 = 50 v. A extra capacity CPT S 29 = Single-phase starter ❶If using field-installable cover control kits, select A here and select C 400 T kit part numbers. ❷Heater packs not included. For heater pack selection, see Eaton Catalog Volume 10 Tab 15. 18
Motor Control Made Easy Bid manager enclosed control takeoff (Tier 1) © 2020 Eaton. All rights reserved. . 19
Motor Control Made Easy Bid manager enclosed control takeoff (Tier 2) © 2020 Eaton. All rights reserved. . 20
