Eaton 5 SC Affordable and reliable Line Interactive
Eaton 5 SC Affordable and reliable Line Interactive UPS for Server protection © 2013 Eaton Corporation. All rights reserved.

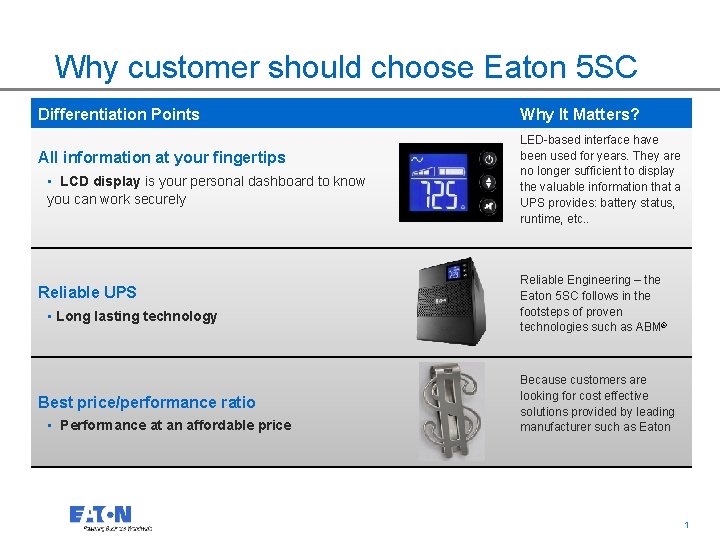

Why customer should choose Eaton 5 SC Differentiation Points All information at your fingertips • LCD display is your personal dashboard to know you can work securely Reliable UPS • Long lasting technology Best price/performance ratio • Performance at an affordable price Why It Matters? LED-based interface have been used for years. They are no longer sufficient to display the valuable information that a UPS provides: battery status, runtime, etc. . Reliable Engineering – the Eaton 5 SC follows in the footsteps of proven technologies such as ABM® Because customers are looking for cost effective solutions provided by leading manufacturer such as Eaton 1 1

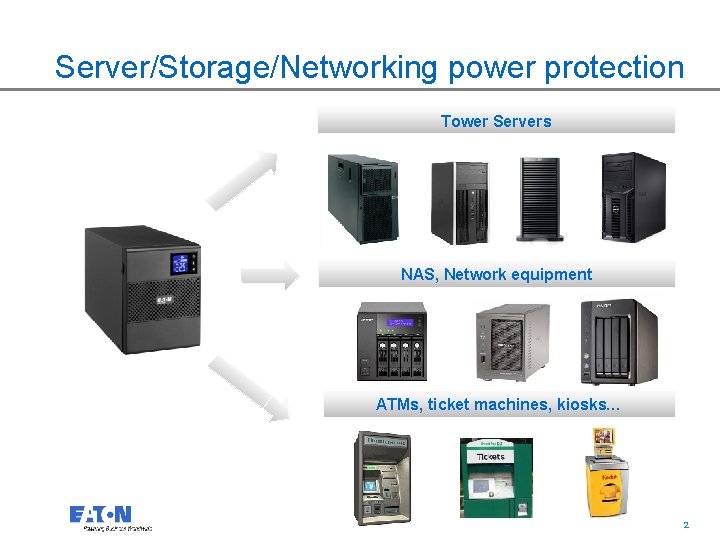

Server/Storage/Networking power protection Tower Servers NAS, Network equipment ATMs, ticket machines, kiosks… 2 2

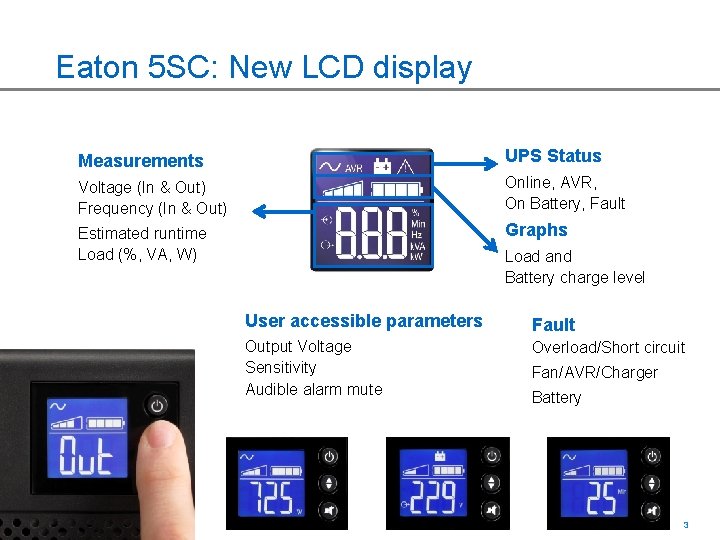

Eaton 5 SC: New LCD display Measurements UPS Status Voltage (In & Out) Frequency (In & Out) Online, AVR, On Battery, Fault Estimated runtime Load (%, VA, W) Graphs Load and Battery charge level User accessible parameters Fault Output Voltage Sensitivity Audible alarm mute Overload/Short circuit Fan/AVR/Charger Battery 3 3
Eaton 5 SC: Performance Line Interactive Topology (AVR): • Hi-frequency Line Interactive topology • Automatic Voltage Regulation with Booster & Fader Performance: • Sinewave output in battery mode (compatible with modern Server power supply, Active PFC) • Adjustable input waveform sensitivity to adapt the UPS to specific environment (like Genset) • Multiple adjustable parameters through LCD and more through the software (overload alarm, energy saving, restart battery level …) 4 4

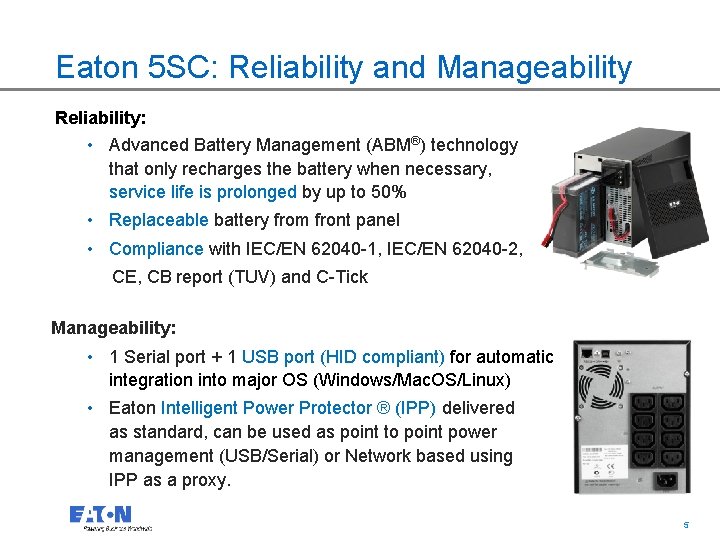

Eaton 5 SC: Reliability and Manageability Reliability: • Advanced Battery Management (ABM®) technology that only recharges the battery when necessary, service life is prolonged by up to 50% • Replaceable battery from front panel • Compliance with IEC/EN 62040 -1, IEC/EN 62040 -2, CE, CB report (TUV) and C-Tick Manageability: • 1 Serial port + 1 USB port (HID compliant) for automatic integration into major OS (Windows/Mac. OS/Linux) • Eaton Intelligent Power Protector ® (IPP) delivered as standard, can be used as point to point power management (USB/Serial) or Network based using IPP as a proxy. 5 5

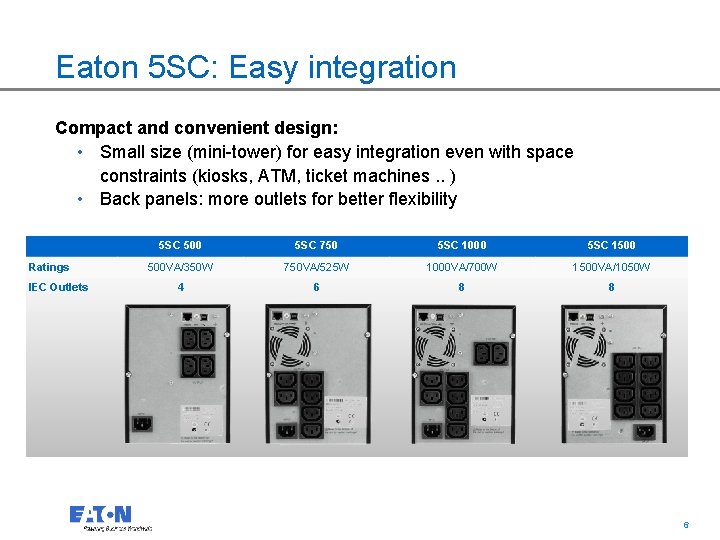

Eaton 5 SC: Easy integration Compact and convenient design: • Small size (mini-tower) for easy integration even with space constraints (kiosks, ATM, ticket machines. . ) • Back panels: more outlets for better flexibility Ratings IEC Outlets 5 SC 500 5 SC 750 5 SC 1000 5 SC 1500 500 VA/350 W 750 VA/525 W 1000 VA/700 W 1500 VA/1050 W 4 6 8 8 6 6

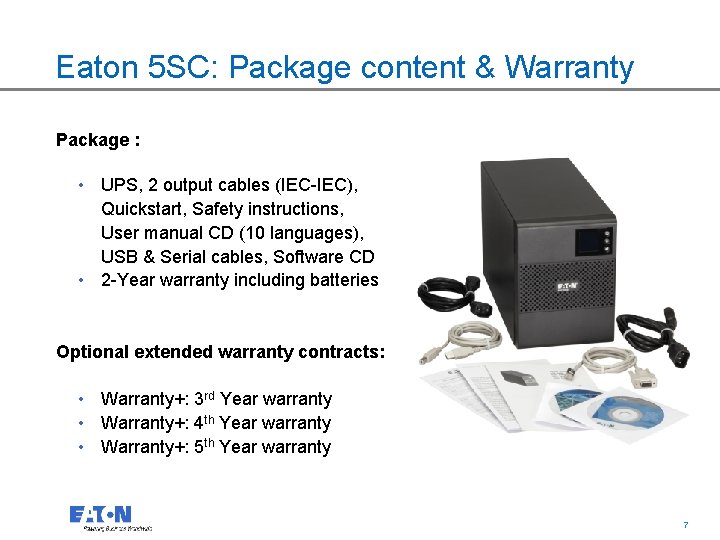

Eaton 5 SC: Package content & Warranty Package : • UPS, 2 output cables (IEC-IEC), Quickstart, Safety instructions, User manual CD (10 languages), USB & Serial cables, Software CD • 2 -Year warranty including batteries Optional extended warranty contracts: • Warranty+: 3 rd Year warranty • Warranty+: 4 th Year warranty • Warranty+: 5 th Year warranty 7 7

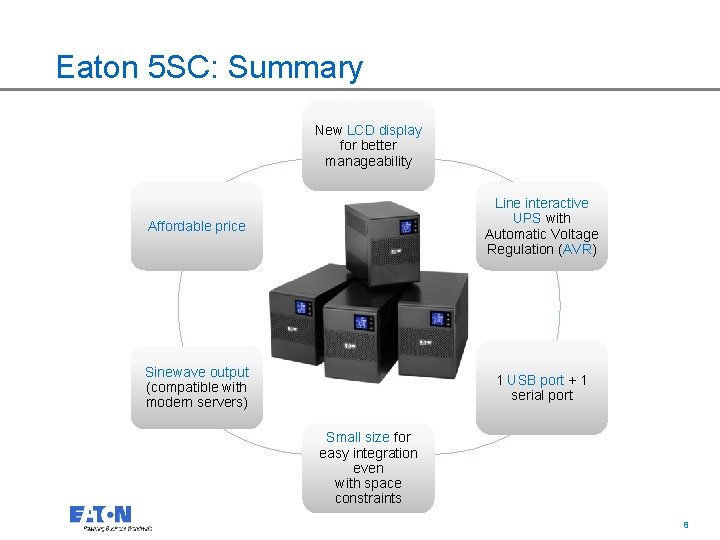

Eaton 5 SC: Summary New LCD display for better manageability Affordable price Line interactive UPS with Automatic Voltage Regulation (AVR) Sinewave output (compatible with modern servers) 1 USB port + 1 serial port Small size for easy integration even with space constraints 8 8

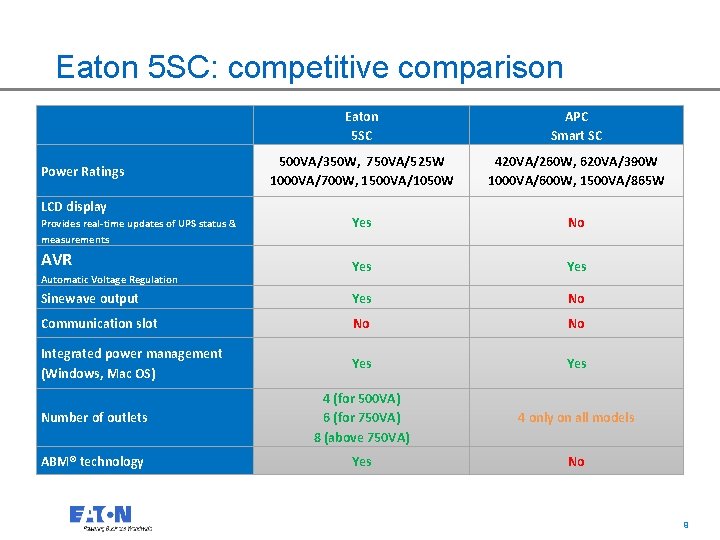

Eaton 5 SC: competitive comparison Eaton 5 SC APC Smart SC 500 VA/350 W, 750 VA/525 W 1000 VA/700 W, 1500 VA/1050 W 420 VA/260 W, 620 VA/390 W 1000 VA/600 W, 1500 VA/865 W Yes No Yes Sinewave output Yes No Communication slot No No Integrated power management (Windows, Mac OS) Yes Number of outlets 4 (for 500 VA) 6 (for 750 VA) 8 (above 750 VA) 4 only on all models ABM® technology Yes No Power Ratings LCD display Provides real-time updates of UPS status & measurements AVR Automatic Voltage Regulation 9 9
10 10
