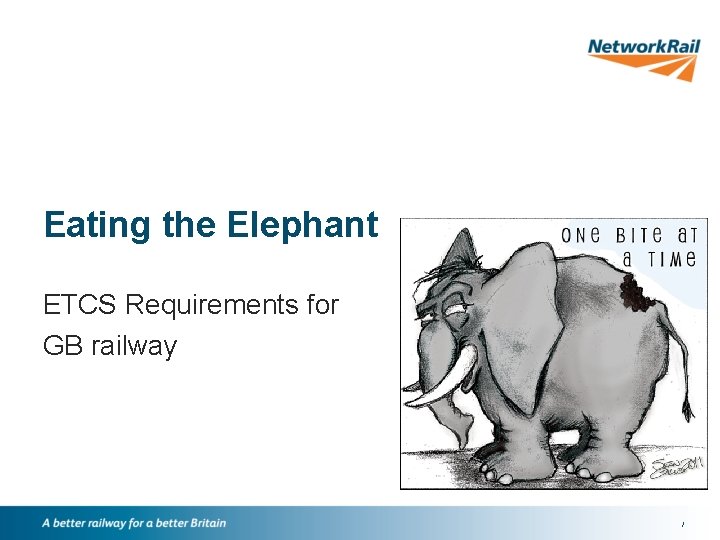

Eating the Elephant ETCS Requirements for GB railway

Eating the Elephant ETCS Requirements for GB railway /

INCOSE - Reference Design process ETCS – what is it and how was it developed? Ø A supplier driven product Ø Adopted by the European Union to enable cross-border train travel Ø Incorporated into EU legislation Ø Continuing to develop as each new application identifies opportunities or challenges / 2

INCOSE - Reference Design process Adoption by UK Government Ø Ø Seen as an opportunity to increase capacity Standardised products should allow reduction in costs and increases supply base Ø Addresses previous commitments for the provision of ATP Ø Enables European freight corridors Ø Interpretation of railway interoperability regulations Ø Potential future enhancement to ATO / 3

INCOSE - Reference Design process ETCS – a standard solution? Ø Designed to enable fitted trains to travel anywhere in Europe Ø ETCS train functionality is tightly defined Ø Communication protocols between train and track are defined Ø Application to individual trains is not defined Ø The trackside application is undefined / 4

ERTMS Level 2 Local control workstation Signalling Control Centre Infrastructure Trains Controls and indications Route & Track Occupancy information Interlocking Radio Block centre GSM-R Mobile switching centre And base station controller BTS Movement authorities Train detection Worked points Ground frames Position & status reports Data Radio JRU Voice radio Optional DMI EVC Odometry Doppler Radar Balise Reader Tachometer AWS TPWS Balise INCOSE - Reference Design process / 5

INCOSE - Reference Design process Our challenge Ø To specify a national application for consistency across the Routes Ø To establish the needs and wishes of the Stakeholders Ø To choose solutions that meet safety targets Ø To generate a set of high quality sub-system requirements / 6

INCOSE - Reference Design process Who are the stakeholders? Ø The Railway Undertakings both freight and passenger Ø The Rolling Stock owners Ø The Infrastructure Managers Ø The Safety Regulator Ø The Government Each has its own priorities and aspirations / 7

INCOSE - Reference Design process The European Specification Ø Levels of operation Ø Modes of operation Ø Many different ways of cracking the nut Ø Significant variance in supplier interpretation Ø Ø Suppliers’ trackside products only implement functionality that has previously been requested The dreaded Euro-English! / 8

INCOSE - Reference Design process The Reference Design Approach Ø To establish common scenarios and the possible approaches to address them Ø Prioritise on safety and performance whilst keeping cost down Ø Identify a set of Patterns which will deliver the Operational Concept Ø To confirm achievability of the Patterns against the European specifications / 9

INCOSE - Reference Design process Building Blocks Applications Select and apply Reference Design Select and assemble TSIs, SRS, etc. / 10

INCOSE - Reference Design process Bringing people to the table Ø Different commercial and political agendas Ø Lack of understanding of ETCS and misunderstanding of ETCS Ø Public statements/private views Ø Establishing real needs versus desires Ø Getting the full representation / 11

INCOSE - Reference Design process What was the problem to be solved? Ø Understanding the objectives Ø Documenting short scenarios Ø Assessing technical solutions Ø Considering the operational approach Ø Refining the solutions Ø Delivering the requirements / 12

INCOSE - Reference Design process Verifying the solutions Ø Safety risk analysis Ø Cross-industry operational workshops Ø Supplier engagement and cross-industry review Ø Pan-european collaboration / 13

INCOSE - Reference Design process Developing the requirements Ø Common scenarios assigned to topics Ø Topics broken down into options and variants Ø Desired behaviour of the system described Ø Analysis of descriptions to elicit requirements / 14

INCOSE - Reference Design process Day in the life of a train Train starts in depot (start of mission process), Train enters ETCS area (N 1) in Level 1, Train transitions to Level 2 (N 1), Movement authority is extended (A 1) several times, Train approaches occupied terminal platform (H 1) and transitions to OS mode, Driver brings train to a stand closes cab (C), Coupling takes place in SB (I), Driver enters cab and undertakes start of mission, Train obtains first movement authority (G 2 or G 3 followed by A 2), Train Dispatch takes place (D), Movement authority is extended (A 1) several times, Train approaches critical routing point and routing information is provided (A 3), Train is stopped on approach to junction (E), Movement authority is extended (A 1), Etc. / 15

INCOSE - Reference Design process Sounds simple but…. . Ø Some of the requirements already defined at the European level Ø System definition and boundaries unclear Ø Establishing the operational context for CSM Ø Managing conflicts and duplicates Ø Getting industry buy-in / 16

INCOSE - Reference Design process The changing standards and environment Ø Baseline 2 to baseline 3 Ø Maintenance release 1 to Release 2 Ø Changes through change control Ø Business/commercial constraints Ø Industry priorities / 17

INCOSE - Reference Design process Managing expectations Ø Misunderstandings of improvements ETCS can provide Ø Promised safety enhancements which may not be deliverable Ø Integration with existing safety processes Ø Bathtub curve / 18

INCOSE - Reference Design process The size of the problem Ø Number of topic areas Ø Number of authors Ø Number of stakeholders Ø Number of workshops Ø Timescales Ø Review cycles Ø Availability of people / 19

INCOSE - Reference Design process The good, the bad and the ugly Ø Enthusiasm and collaboration of the wider team Ø Continual improvement in process and knowledge - innovation Ø The maturity of the European specification Ø The railway culture of those leading the European specifications Ø The difficulty of getting policy decisions – who makes them? / 20

INCOSE - Reference Design process Next Steps Ø First tranche of deliverables to Digital Railway completed Ø Operational test scenarios to be developed Ø Ongoing change control Ø Management of changes to Release 2 Ø Development of project application rules Ø Simulation and modelling / 21

INCOSE - Reference Design process Questions / 22
