East Hall under construction 1962 East Area Renovation

East Hall under construction - 1962 East Area Renovation: Project Team meeting #29 Feedbacks from the worksites and coordination meetings Aboubakr Ebn Rahmoun / EN-EA, 28 -06 -2019 East Area Renovation

Activities overview Power converter b. 251 PS Extraction, F 61 b. 352 East Hall b. 157 A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 2

General information • Power converter b. 251 • Asbestos removal under the old selector ongoing • PS extraction b. 352 • The galleries contain asbestos, some part of de-cabling campaign affected • b. 157 • Emergency evacuation plan during renovation, with help of Louis-Frederic A. signalisation do be installed • Fence installation on south platform ongoing • From 1 to 5 July no access via door next to CLOUD • Damages during roof renovation & bad weather during June • On the control rooms of IRRAD and CHARM • Beam line T 08 b, all equipments and electrical services are consigned • Ongoing preparation of an event… A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 3

The summer is here So… East Area Renovation • Doodle A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 4

Summary Last coordination meeting 26 th June, Indico: 830256 • B. 157 • Dismantling (primary area) • Buffer area is ready for the dismantling • Test & validation of WDP for each operation (T 11) ✅ Buffer area • Cleaning of area & handling TCX • Storage blocks @157 and magnets @Flex • Floor load validation on pending from HSE • Q 100 on CLOUD will be removed soon • Survey between T 08 B and T 09 -T 10 experiments area done • EN-CV, dismantling on going, manifolds and water pipes • Civil engineering • On south wall, dismantling of scaffolding done. • The roof refurbishment on going, the dismantling of “lanterneau” started a CLOUD Are run preparation • B. 352, PS –F 61 • Magnets dismantling • Last magnets have been removed and stored in Prevessin b. 954 • M 100 15 t & M 200 30 t *CLOUD run From 02/09 to 15/11/2019 • Transport activities, EN-HE • Trenches will be opened for removing the hoses removal, TE-MSC/EN-EL • EN-CV dismantling on going, manifolds and water pipes 251 & 817 • Next steep, EN-EL (+ build. 251&157) A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 5

Status power converters building 1. On going asbestos removal, to prepare remaining de-cabling @251, obsolete signal, all interlock and the transformer cables. 2. Dismantling false floor pending the de-cabling campaign • Inspection by HSE (asbestos) and VIC done to start the de-cabling phase. A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 6

PS extraction, F 61 Inventaire partie 352 Démantèlement F 61 • • • Déconnexions câbles DC & flexibles ED, TE-MSC, Déconnexions du vide et enlèvement pompe à vide, TE-VSC/EN-EA Préparation network, EN-SMM, du 13 au 15/03 Désinstallation BE-BI, LSD, SEC, BTV’s, TFA, BE-BI/EN-HE, TREC et évacuation, matériel stockage, déchets en cours Démontage de la porte secteur, EN-ACE, BE/ICS, • Manutention EN-HE • • • Etude structurel du sol validé par SMB, Démontage blindage (coté accès et splitter), évacuation blocs < 24 -16 -8, Test de charge du pont validé Désinstallation aimants/équipements et supports F 61: Lancement VIC TE-MSC, EN-STI => EN-ACE Q 74 done TE-VSC, MNPA 25, Q 120, MEA (DVT 1), MEA (DVT 2), QFL, Q 600, SMH 01(SPLITER) Beam-stopper 01 et 02, EN-STI Démontage blindage MCB, Dump F 61 D MCB, Q 120, MNPA 25, M 105, blind access for MCB transport M 100 M 200, démontage prévu fin Mai, blind access, pont 25 t->30 t EN-CV dismantling manifolds and water pipes b. 352 done, 817 ->352 on going EN-SMM laser scan + measure on PS magnets EN-EA Shielding relocation between 157 -352 (intersection opening) EN-EL de-cabling DC & signal cable from 251 to 352 • Analysis of asbestos risk on galleries from PS, EN-ACE & EN-EA • opening trench by EN-HE and hoses removal by TE-MSC A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 7

TCX assembly East hall • Primary are dismantling • Vacuum disconnected • Partial removal • T 11, magnets BHZ 01&02, collimators & beam-stoppers • T 09, magnets QDE 01, QFO 02 & BZH 01 • Magnets removed to reduce the ambient dose rate • All instrumentations and the target have been removed • TCX (Collimator for primary targets) • Highly radioactive and most of them (80%) contaminated, different at each layer: • Up to 5 m. Sv/h contact • 70 to 1400 Bq/cm² (up to 500 x CS limit for Co-60 = 3 Bq/cm²) • Contamination well managed during intervention: RAS on the floor after intervention < 0. 4 Bq/cm 2 • Very old equipment and little information about configuration • Many different parts and composition, (concrete, iron, lead, no controlled ventilation) Estimation Work Dose Planning Real intervention 218 person. µSv 98 µSv max. indiv 434 person. µSv – well optimized compared to the actual duration 99 µSv max. indiv New DIMR version needed (ongoing) Future TCX plug-in 0. 5 day, 3 pers. handling and 1. 5 days, 6 pers. handling and decontamination cleaning + 1 Rp agent *Courtesy to G. Dumont, B. Lopez & J-F Gruber, HSE-RP A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 8

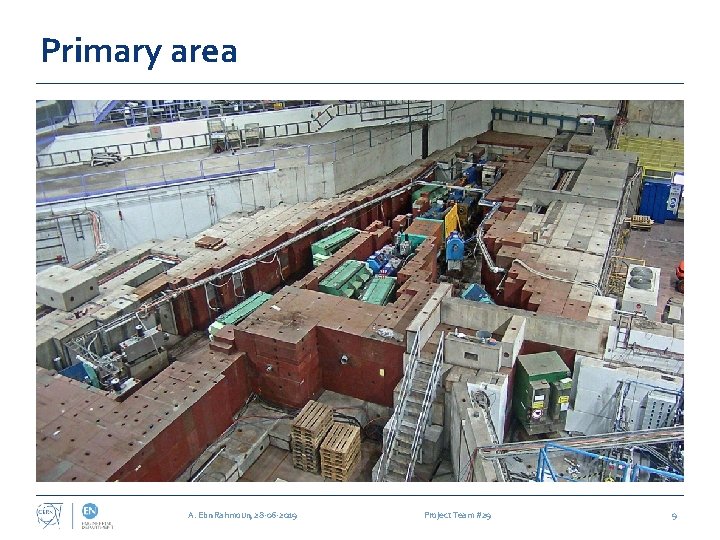

Primary area A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 9

EAR Schedule A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 10

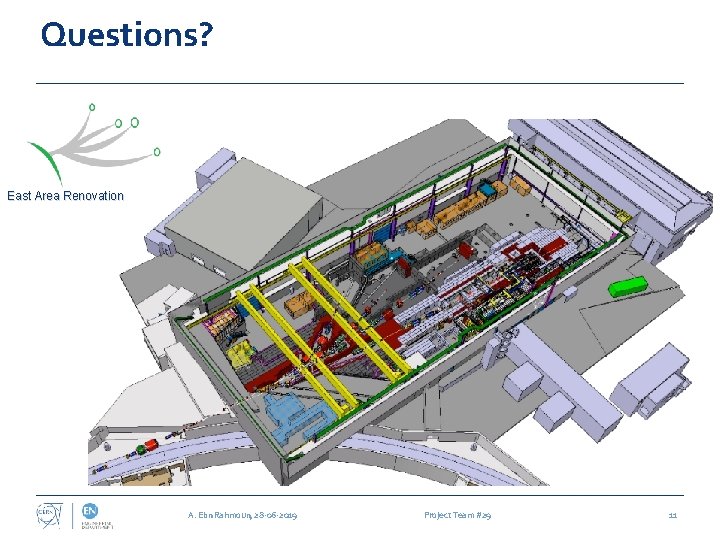

Questions? East Area Renovation A. Ebn Rahmoun, 28 -06 -2019 Project Team #29 11
