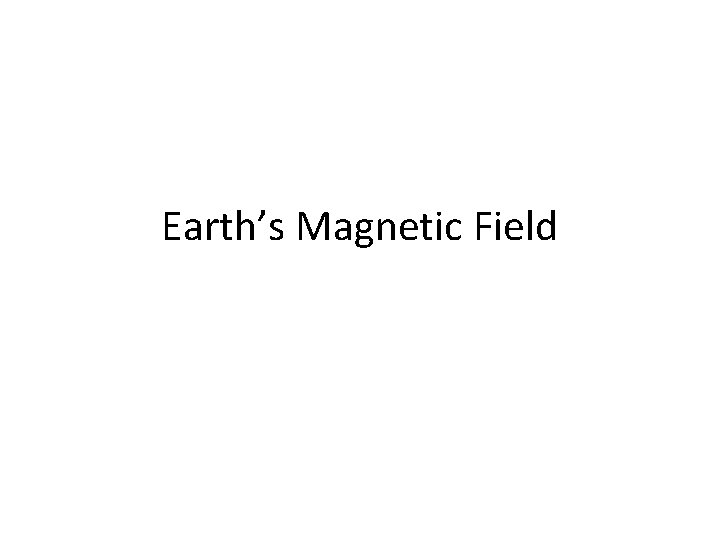

Earth’s Magnetic Field
![Earths Magnetic Field Earth is itself a huge magnet B field is Earth’s Magnetic Field • Earth is itself a huge magnet. • B field is](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-2.jpg)

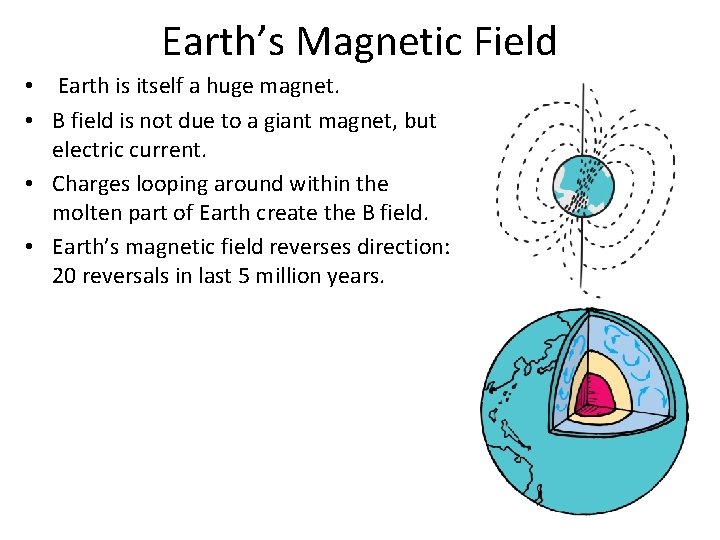

Earth’s Magnetic Field • Earth is itself a huge magnet. • B field is not due to a giant magnet, but electric current. • Charges looping around within the molten part of Earth create the B field. • Earth’s magnetic field reverses direction: 20 reversals in last 5 million years.
![Earths Magnetic Field Universe is a shooting gallery of charged particles called cosmic Earth’s Magnetic Field • Universe is a shooting gallery of charged particles called cosmic](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-3.jpg)

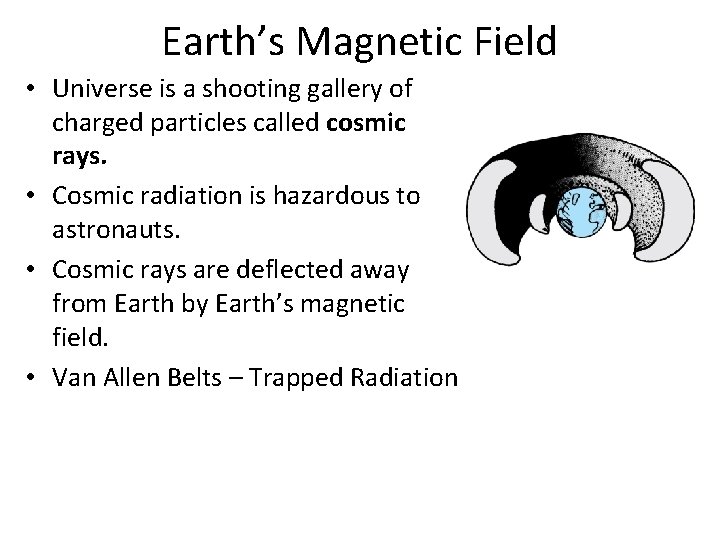

Earth’s Magnetic Field • Universe is a shooting gallery of charged particles called cosmic rays. • Cosmic radiation is hazardous to astronauts. • Cosmic rays are deflected away from Earth by Earth’s magnetic field. • Van Allen Belts – Trapped Radiation
![Earths Magnetic Field Storms on the Sun hurl charged particles out in great Earth’s Magnetic Field • Storms on the Sun hurl charged particles out in great](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-4.jpg)

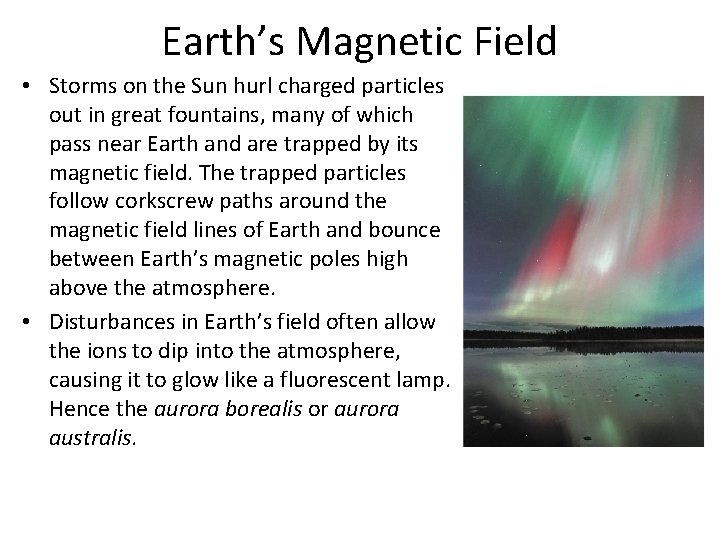

Earth’s Magnetic Field • Storms on the Sun hurl charged particles out in great fountains, many of which pass near Earth and are trapped by its magnetic field. The trapped particles follow corkscrew paths around the magnetic field lines of Earth and bounce between Earth’s magnetic poles high above the atmosphere. • Disturbances in Earth’s field often allow the ions to dip into the atmosphere, causing it to glow like a fluorescent lamp. Hence the aurora borealis or aurora australis.
![Homework Its sometime in the near future The Earths B field is diminishing Homework • It’s sometime in the near future. The Earth’s B -field is diminishing.](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-5.jpg)

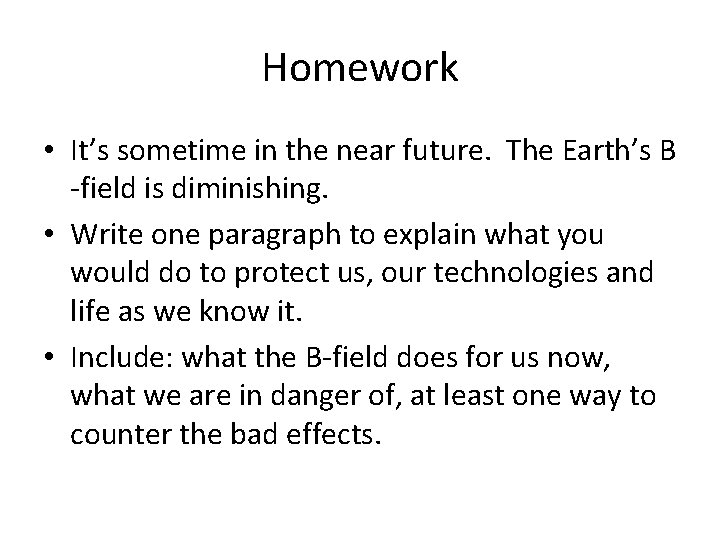

Homework • It’s sometime in the near future. The Earth’s B -field is diminishing. • Write one paragraph to explain what you would do to protect us, our technologies and life as we know it. • Include: what the B-field does for us now, what we are in danger of, at least one way to counter the bad effects.
![2012 Sun Storm Breach in BField B field Simulation • 2012 Sun Storm • Breach in B-Field • B field Simulation •](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-6.jpg)

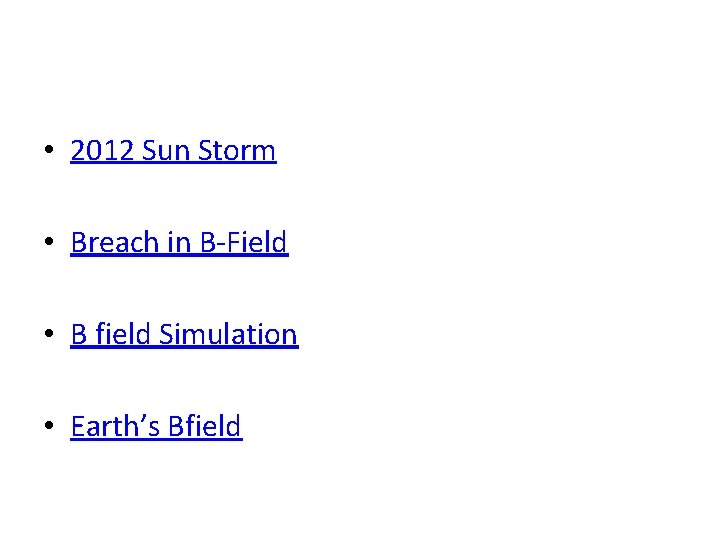

• 2012 Sun Storm • Breach in B-Field • B field Simulation • Earth’s Bfield

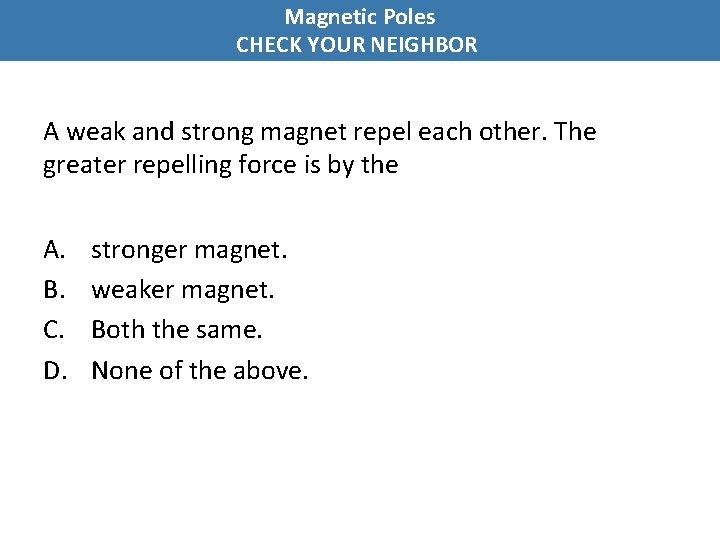

![Magnetic Poles CHECK YOUR NEIGHBOR A weak and strong magnet repel each other The Magnetic Poles CHECK YOUR NEIGHBOR A weak and strong magnet repel each other. The](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-7.jpg)
Magnetic Poles CHECK YOUR NEIGHBOR A weak and strong magnet repel each other. The greater repelling force is by the A. B. C. D. stronger magnet. weaker magnet. Both the same. None of the above.

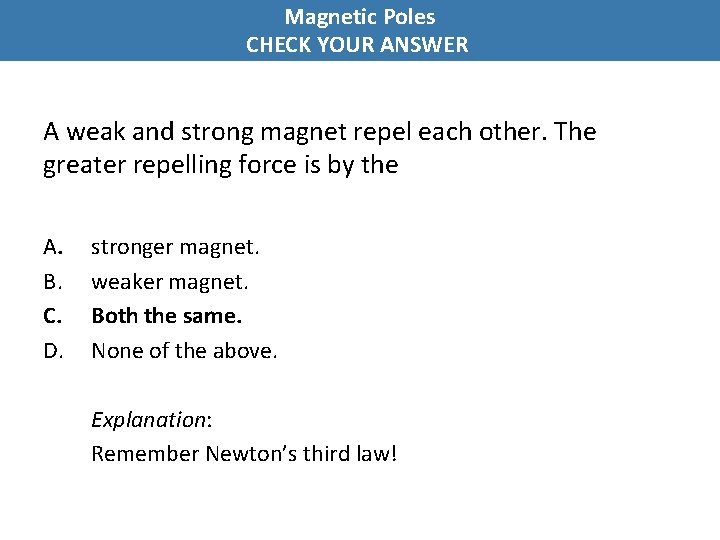

![Magnetic Poles CHECK YOUR ANSWER A weak and strong magnet repel each other The Magnetic Poles CHECK YOUR ANSWER A weak and strong magnet repel each other. The](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-8.jpg)
Magnetic Poles CHECK YOUR ANSWER A weak and strong magnet repel each other. The greater repelling force is by the A. B. C. D. stronger magnet. weaker magnet. Both the same. None of the above. Explanation: Remember Newton’s third law!

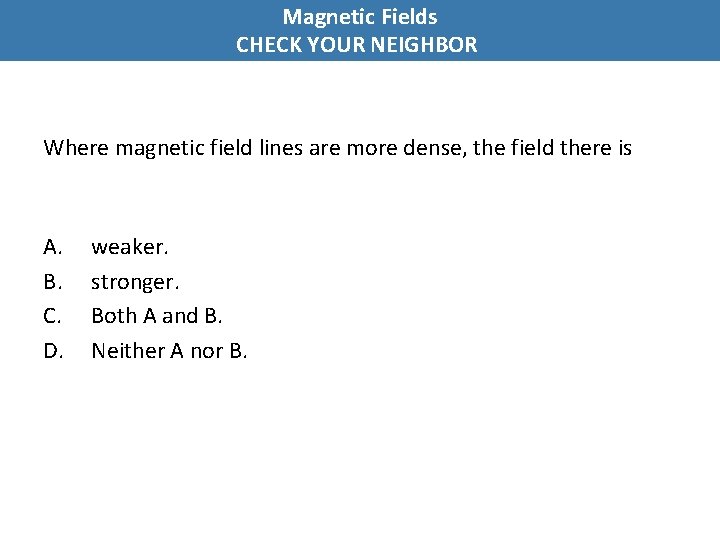

![Magnetic Fields CHECK YOUR NEIGHBOR Where magnetic field lines are more dense the field Magnetic Fields CHECK YOUR NEIGHBOR Where magnetic field lines are more dense, the field](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-9.jpg)
Magnetic Fields CHECK YOUR NEIGHBOR Where magnetic field lines are more dense, the field there is A. B. C. D. weaker. stronger. Both A and B. Neither A nor B.
![Magnetic Fields CHECK YOUR ANSWER Where magnetic field lines are more dense the field Magnetic Fields CHECK YOUR ANSWER Where magnetic field lines are more dense, the field](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-10.jpg)

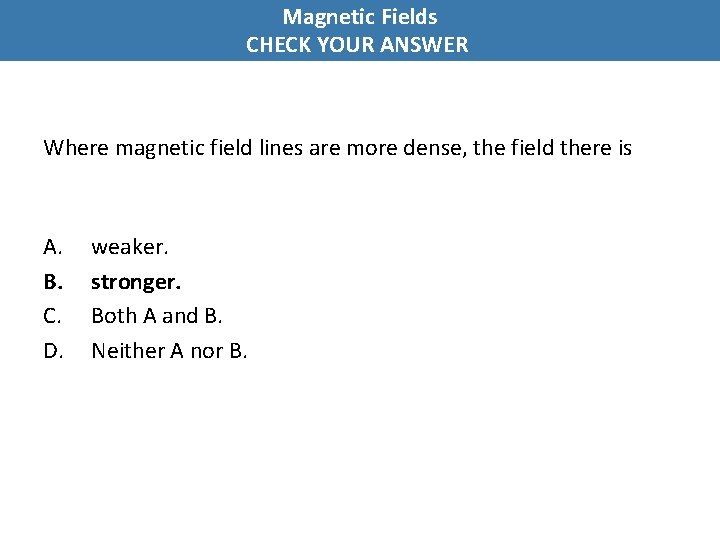

Magnetic Fields CHECK YOUR ANSWER Where magnetic field lines are more dense, the field there is A. B. C. D. weaker. stronger. Both A and B. Neither A nor B.

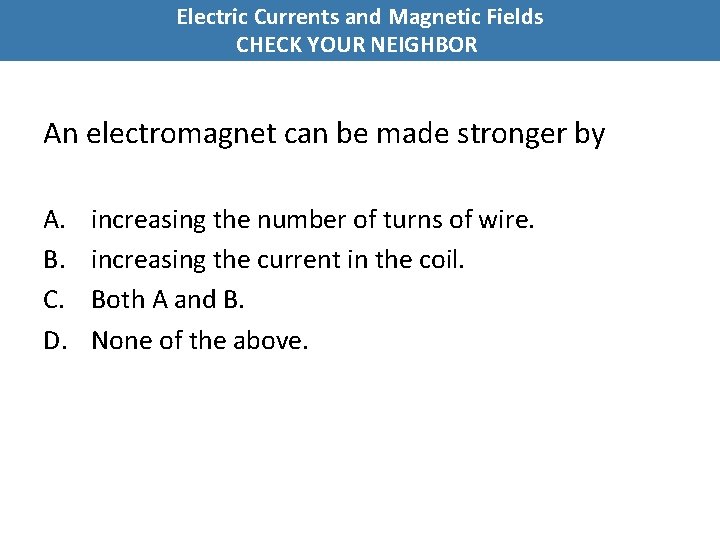

![Electric Currents and Magnetic Fields CHECK YOUR NEIGHBOR An electromagnet can be made stronger Electric Currents and Magnetic Fields CHECK YOUR NEIGHBOR An electromagnet can be made stronger](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-11.jpg)
Electric Currents and Magnetic Fields CHECK YOUR NEIGHBOR An electromagnet can be made stronger by A. B. C. D. increasing the number of turns of wire. increasing the current in the coil. Both A and B. None of the above.

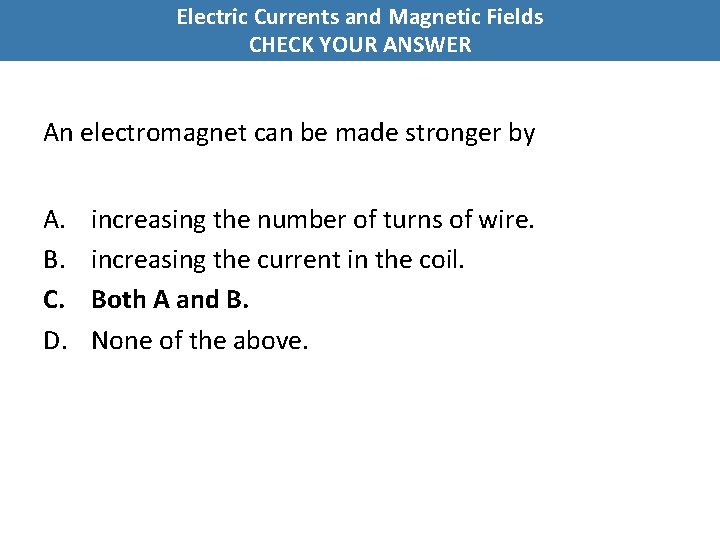

![Electric Currents and Magnetic Fields CHECK YOUR ANSWER An electromagnet can be made stronger Electric Currents and Magnetic Fields CHECK YOUR ANSWER An electromagnet can be made stronger](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-12.jpg)
Electric Currents and Magnetic Fields CHECK YOUR ANSWER An electromagnet can be made stronger by A. B. C. D. increasing the number of turns of wire. increasing the current in the coil. Both A and B. None of the above.
![Magnetic Force on Moving Charges CHECK YOUR NEIGHBOR The reason that an electron moving Magnetic Force on Moving Charges CHECK YOUR NEIGHBOR The reason that an electron moving](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-13.jpg)

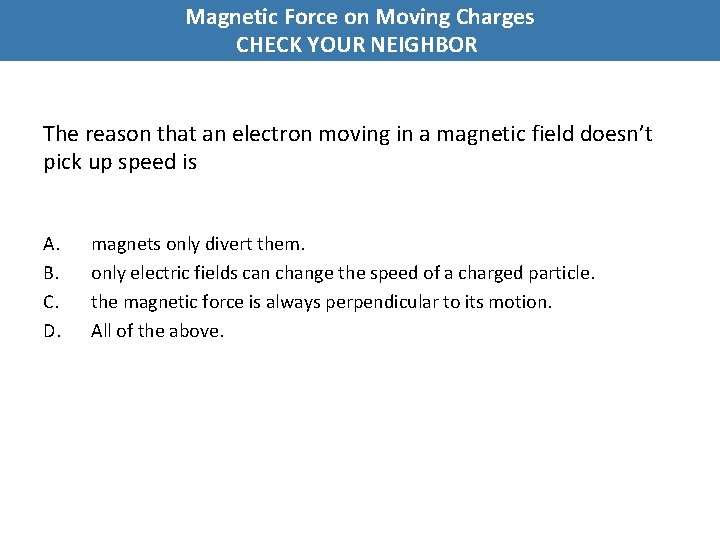

Magnetic Force on Moving Charges CHECK YOUR NEIGHBOR The reason that an electron moving in a magnetic field doesn’t pick up speed is A. B. C. D. magnets only divert them. only electric fields can change the speed of a charged particle. the magnetic force is always perpendicular to its motion. All of the above.
![Magnetic Force on Moving Charges CHECK YOUR ANSWER The reason that an electron moving Magnetic Force on Moving Charges CHECK YOUR ANSWER The reason that an electron moving](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-14.jpg)

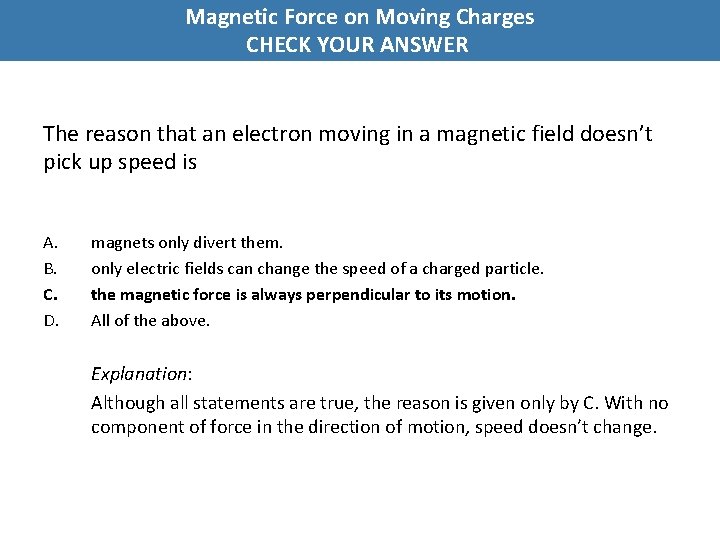

Magnetic Force on Moving Charges CHECK YOUR ANSWER The reason that an electron moving in a magnetic field doesn’t pick up speed is A. B. C. D. magnets only divert them. only electric fields can change the speed of a charged particle. the magnetic force is always perpendicular to its motion. All of the above. Explanation: Although all statements are true, the reason is given only by C. With no component of force in the direction of motion, speed doesn’t change.
![Magnetic Force on Moving Charges CHECK YOUR NEIGHBOR The magnetic force on a moving Magnetic Force on Moving Charges CHECK YOUR NEIGHBOR The magnetic force on a moving](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-15.jpg)

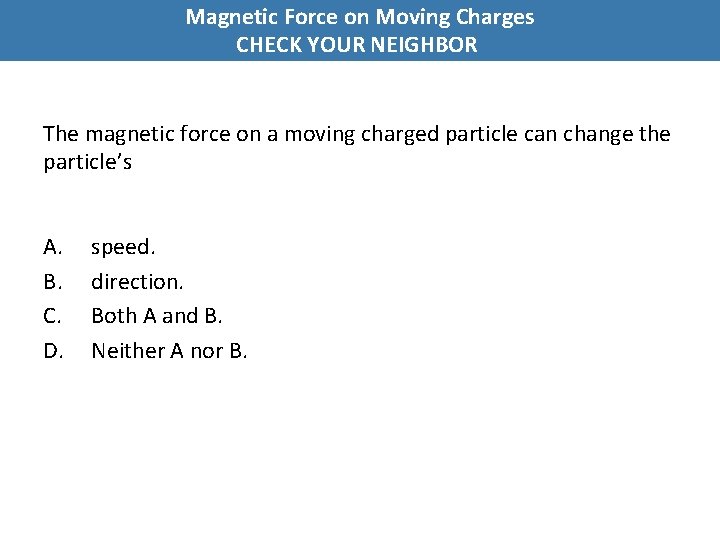

Magnetic Force on Moving Charges CHECK YOUR NEIGHBOR The magnetic force on a moving charged particle can change the particle’s A. B. C. D. speed. direction. Both A and B. Neither A nor B.

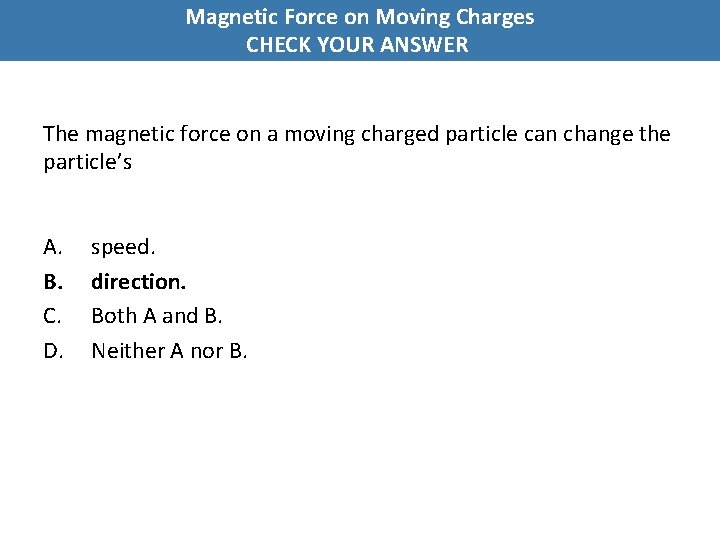

![Magnetic Force on Moving Charges CHECK YOUR ANSWER The magnetic force on a moving Magnetic Force on Moving Charges CHECK YOUR ANSWER The magnetic force on a moving](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-16.jpg)
Magnetic Force on Moving Charges CHECK YOUR ANSWER The magnetic force on a moving charged particle can change the particle’s A. B. C. D. speed. direction. Both A and B. Neither A nor B.
![Magnetic Force on CurrentCarrying Wires CHECK YOUR NEIGHBOR A motor and a generator are Magnetic Force on Current-Carrying Wires CHECK YOUR NEIGHBOR A motor and a generator are](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-17.jpg)

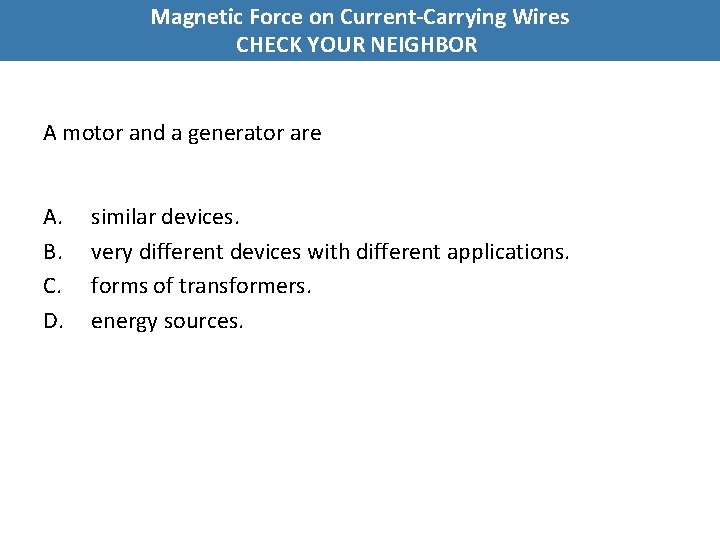

Magnetic Force on Current-Carrying Wires CHECK YOUR NEIGHBOR A motor and a generator are A. B. C. D. similar devices. very different devices with different applications. forms of transformers. energy sources.
![Magnetic Force on CurrentCarrying Wires CHECK YOUR ANSWER A motor and a generator are Magnetic Force on Current-Carrying Wires CHECK YOUR ANSWER A motor and a generator are](https://slidetodoc.com/presentation_image/bde14e69b989691be123af1f49864999/image-18.jpg)

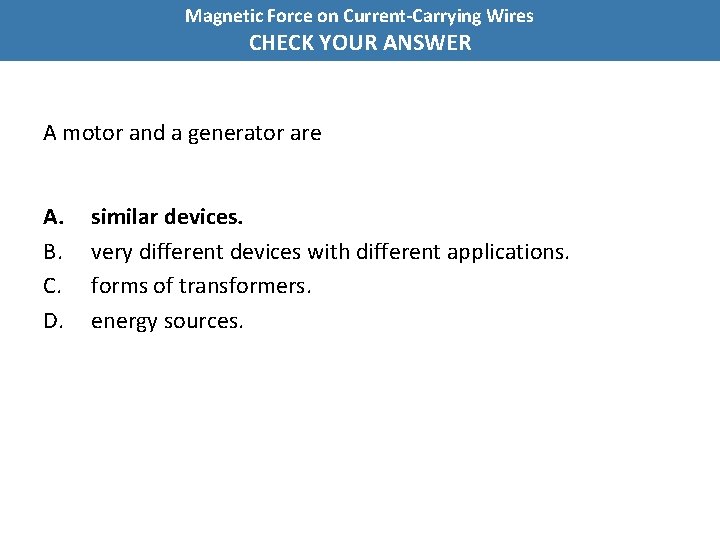

Magnetic Force on Current-Carrying Wires CHECK YOUR ANSWER A motor and a generator are A. B. C. D. similar devices. very different devices with different applications. forms of transformers. energy sources.
