Earth's Dynamic cycles

Earth's Dynamic cycles

Matter cycles and energy flows. Matter and energy move back and forth between the

Matter cycles and energy flows. Matter and energy move back and forth between the different Earth spheres, and the different spheres interact every day, all around you.

Earth Systems Science studies the flow of matter and energy in and out of

Earth Systems Science studies the flow of matter and energy in and out of the Earth’s open systems, or Spheres.

Cycles and the Earth A Cycle is a series of steps that repeats. Some

Cycles and the Earth A Cycle is a series of steps that repeats. Some cycles (water cycle) repeat over relatively short periods of time, while others repeat over millions of years (tectonic cycle). On Earth, the water cycle, energy cycle, carbon cycle, tectonic cycle and rock cycle “work” together to maintain a dynamic planet.

The Water Cycle

The Water Cycle

The Carbon Cycle • Biogeochemical cycle- compound is changed and moved throughout the Earth’s

The Carbon Cycle • Biogeochemical cycle- compound is changed and moved throughout the Earth’s spheres • Carbon is commonly called the “building block of life” • Carbon is not just a solid- it forms gases such as CO 2 and Methane

Carbon Into the Atmosphere • Living things breathe it out • Combustion engines burn

Carbon Into the Atmosphere • Living things breathe it out • Combustion engines burn fossil fuels and emit carbon. • Carbon based things (i. e. trees) burn. • Diffuses out of oceans. • Volcanoes erupt– Number 1 source of CO 2 into the atmosphere

Carbon From the Atmosphere • Oceans dissolve 40% of CO 2 in the atmosphere

Carbon From the Atmosphere • Oceans dissolve 40% of CO 2 in the atmosphere from fossil fuels • Wave action dissolves CO 2 into ocean • Photosynthesis- plants breathe it in, and breathe out oxygen (phytoplankton do this in ocean water)

The Carbon Cycle

The Carbon Cycle

Other ways CO 2 is shared… • Carbon stored in plants is passed on

Other ways CO 2 is shared… • Carbon stored in plants is passed on to another organism when eaten (food chain) • Organisms die and decomposition puts carbon into the ground creating fossil fuels (oil, coal, etc. )

Nitrogen Example When leaves fall from a tree in autumn, they will break down

Nitrogen Example When leaves fall from a tree in autumn, they will break down into absorbable nitrogen that can be used by other organisms.

The Energy Cycle (Energy Budget) • Water and carbon Cycles are like wheels •

The Energy Cycle (Energy Budget) • Water and carbon Cycles are like wheels • Energy Cycle is like a balance – Energy that comes in must equal the energy that comes out

What would happen if the Earth’s energy budget was not balanced?

What would happen if the Earth’s energy budget was not balanced?

Scenario #1 • Too much energy enters the Earth system and not enough leaves…

Scenario #1 • Too much energy enters the Earth system and not enough leaves…

Scenario #2 • Too much energy leaves the Earth system and not enough enters…

Scenario #2 • Too much energy leaves the Earth system and not enough enters…

Earths _____is the area where the most heat is stored. Hydrosphere. Explain…

Earths _____is the area where the most heat is stored. Hydrosphere. Explain…

Sources of Earth’s Energy 1. Solar energy- 99. 895 % 2. Geothermal energy- 0.

Sources of Earth’s Energy 1. Solar energy- 99. 895 % 2. Geothermal energy- 0. 013 % 3. Tidal energy- 0. 002 %

Solar Energy • Comes from nuclear fusion reactions in the sun • Drives wind,

Solar Energy • Comes from nuclear fusion reactions in the sun • Drives wind, ocean currents, waves • Source of energy that causes rocks to weather forming soil

Geothermal Energy • Comes from the Earth as radioactive materials decompose • Drives the

Geothermal Energy • Comes from the Earth as radioactive materials decompose • Drives the movement of the continents, powers geysers, earthquakes, and volcanoes

Tidal Energy • The result of the pull of the moon on the Earth’s

Tidal Energy • The result of the pull of the moon on the Earth’s oceans • Slows down Earth’s rotation and causes the oceans to bulge

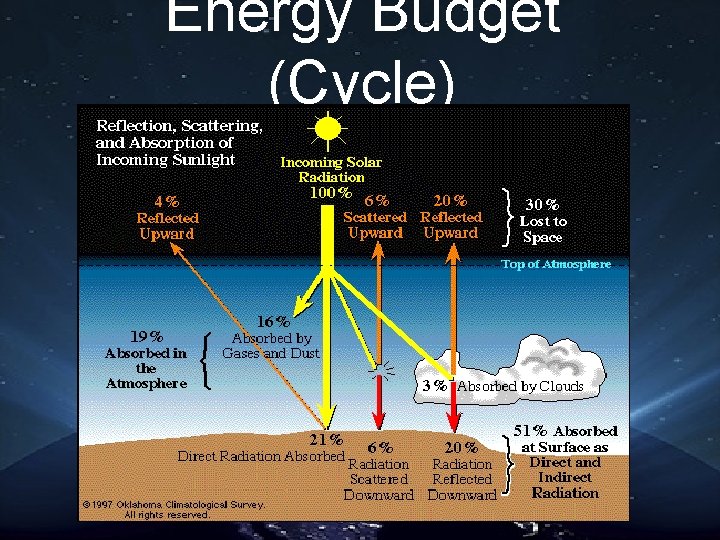

Energy Budget (Cycle)

Energy Budget (Cycle)

Energy Budget (Cycle) • about 40% is reflected back into space without being changed

Energy Budget (Cycle) • about 40% is reflected back into space without being changed • the remaining energy is used within the Earth system • as it moves through the system, it is changed. With every change, a little is lost to the system.

The Effects of Earth’s Surface • Albedo is the percentage of energy that is

The Effects of Earth’s Surface • Albedo is the percentage of energy that is reflected back into space without being changed • Earth’s average albedo: 30% • Forest has low albedo: 5 -10% • Desert has high albedo: 50% • Fresh snow: 80 -90%
