Earthquakes Photo credit USGS Causes of Earthquakes Types

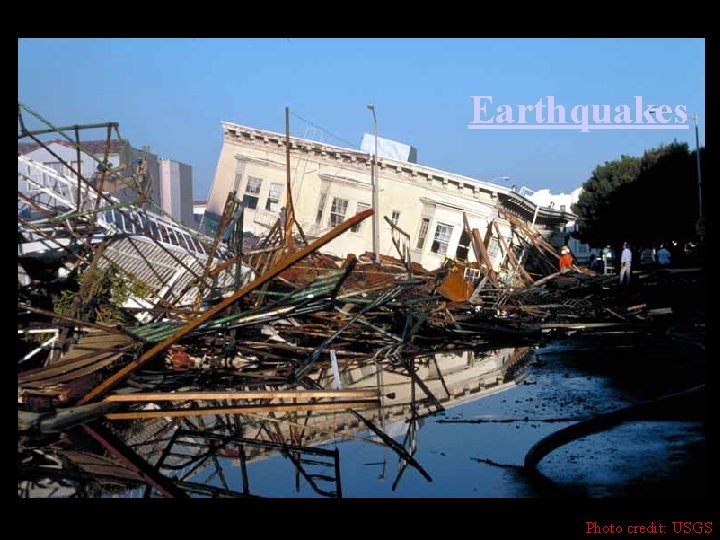

Earthquakes Photo credit: USGS

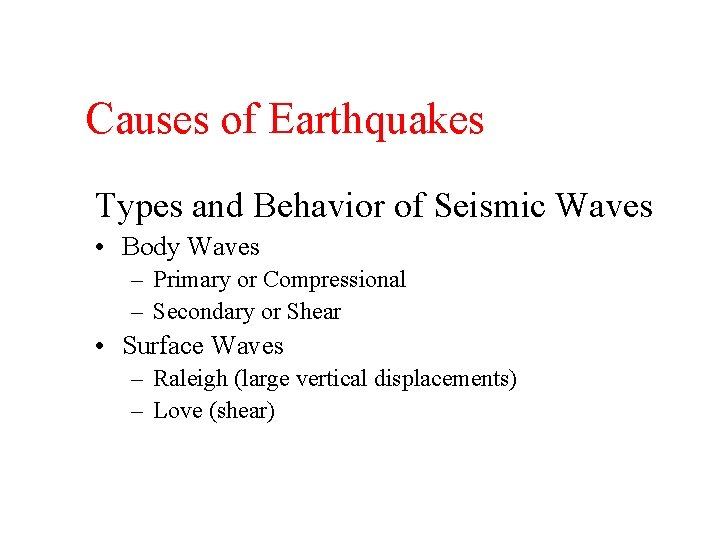

Causes of Earthquakes Types and Behavior of Seismic Waves • Body Waves – Primary or Compressional – Secondary or Shear • Surface Waves – Raleigh (large vertical displacements) – Love (shear)

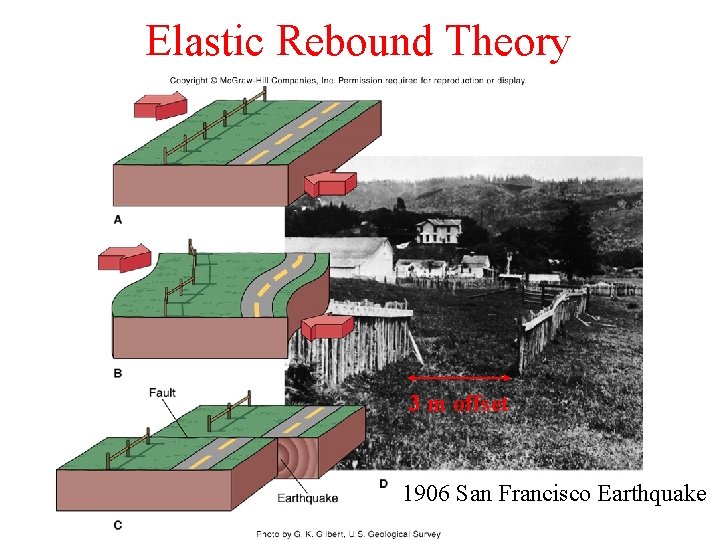

Elastic Rebound Theory 3 m offset 1906 San Francisco Earthquake

Elastic Rebound Animation

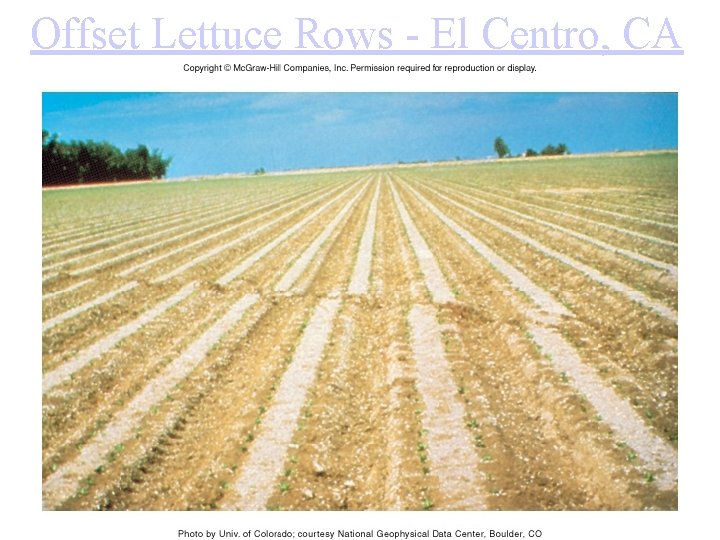

Offset Lettuce Rows - El Centro, CA

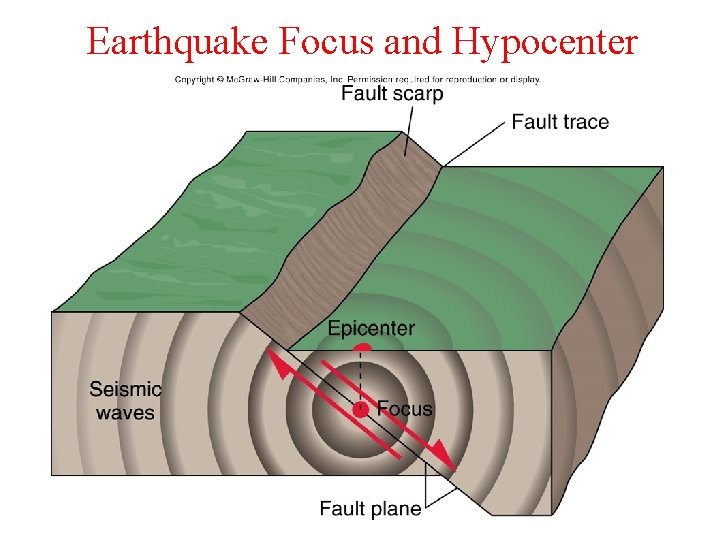

Earthquake Focus and Hypocenter

Earthquake Focus Animation

Seismic Wave Types Body Waves Surface Waves

equations for velocities Vp = Vs = k + 4/3µ r 1/2 r density µ shear modulus (rigidity) k bulk modulus (rigidity) because shear modulus (rigidity) for fluid is zero, S waves cannot propagate through a fluid consequence of equations is that P waves are 1. 7 x faster than S can infer physical properties from P and S waves

Wave Animations

Locating and Measuring Earthquakes • Determining the Location of an Earthquake • Measuring the Size of an Earthquake • Location and Size of Earthquakes in the United States

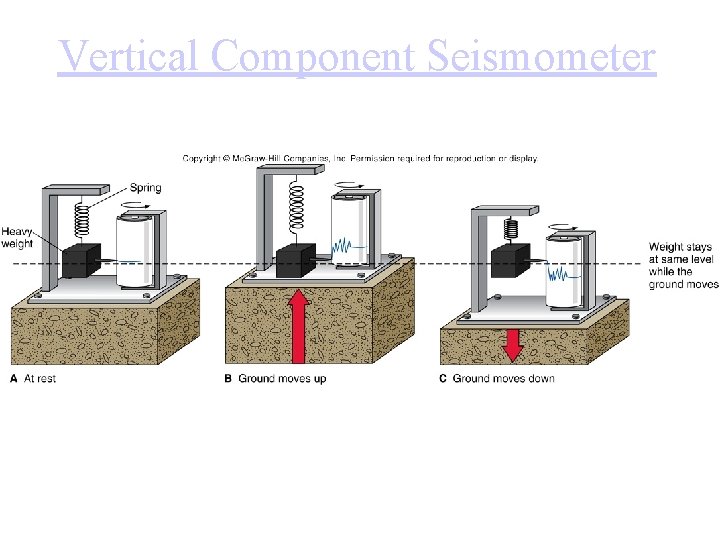

Vertical Component Seismometer

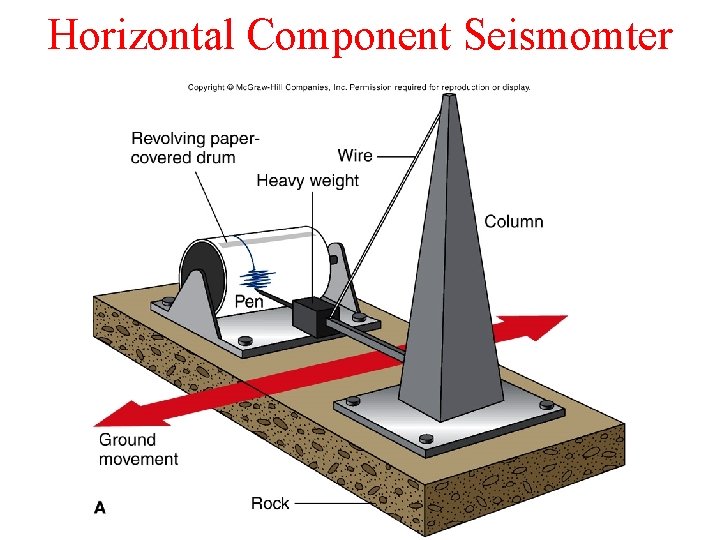

Horizontal Component Seismomter

Seismograph Animation

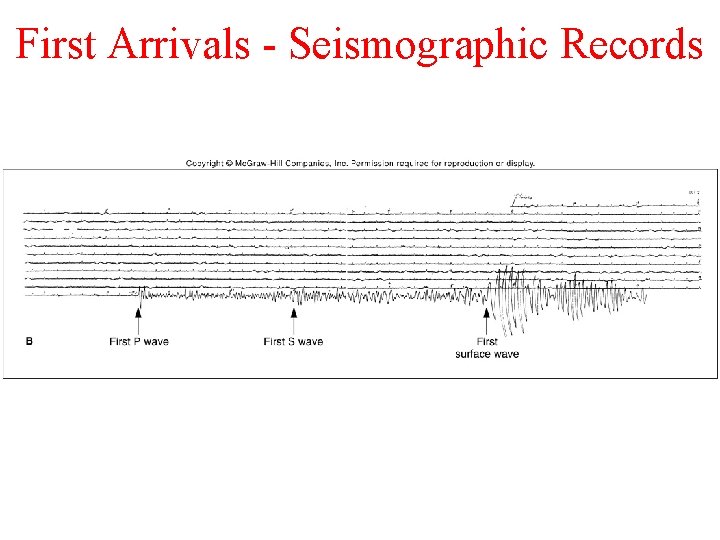

First Arrivals - Seismographic Records

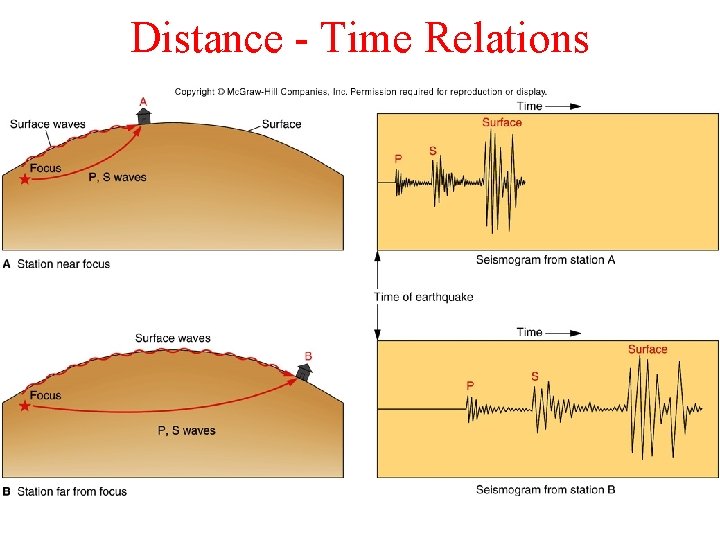

Distance - Time Relations

P vs. S Wave Travel Time Curves

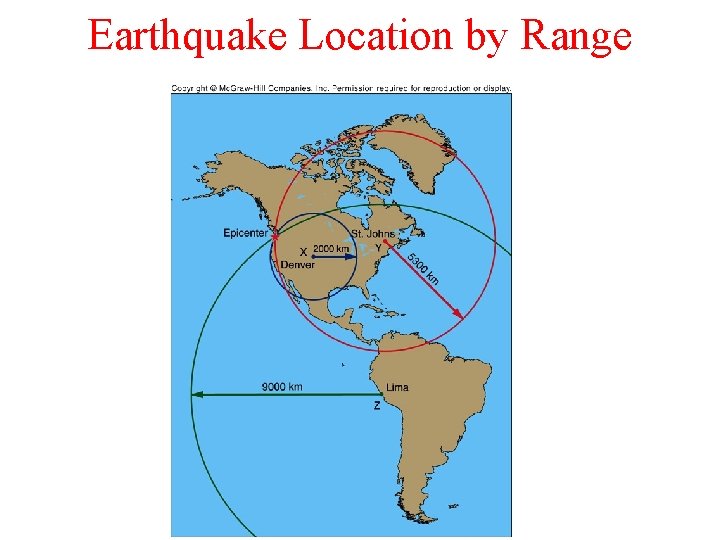

Earthquake Location by Range

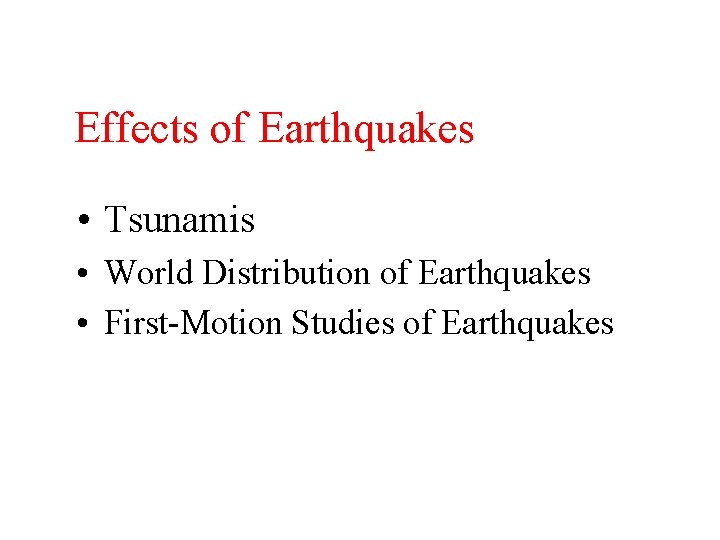

Effects of Earthquakes • Tsunamis • World Distribution of Earthquakes • First-Motion Studies of Earthquakes

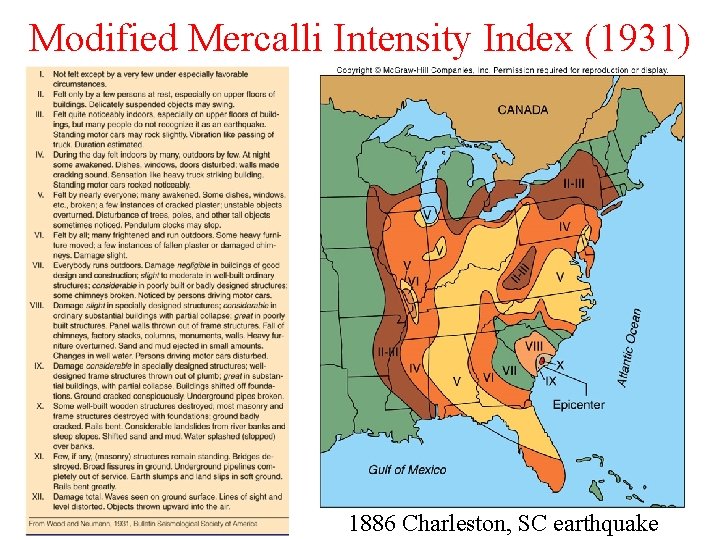

Modified Mercalli Intensity Index (1931) 1886 Charleston, SC earthquake

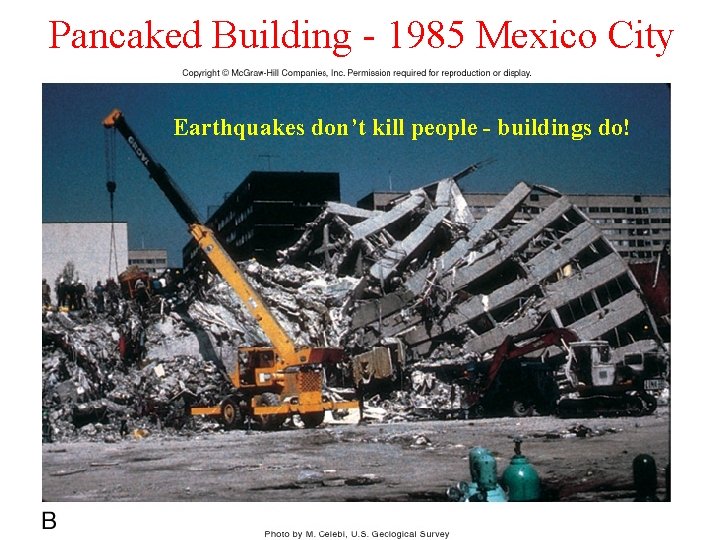

Pancaked Building - 1985 Mexico City Earthquakes don’t kill people - buildings do!
