EABASSOC LIGHTWEIGHT FOAMED CONCRETE for Roads and Geotechnical
EABASSOC LIGHTWEIGHT FOAMED CONCRETE for Roads and Geotechnical Applications

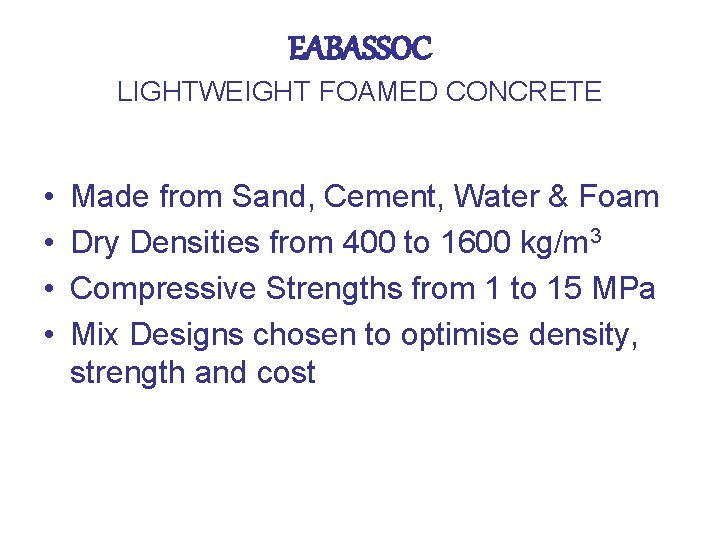

EABASSOC LIGHTWEIGHT FOAMED CONCRETE • • Made from Sand, Cement, Water & Foam Dry Densities from 400 to 1600 kg/m 3 Compressive Strengths from 1 to 15 MPa Mix Designs chosen to optimise density, strength and cost
Advantages of Foamed Concrete • • • Lightweight. . . does not impose large loadings Does not settle Free flowing Enables Fast Work Excellent load spreading characteristics Reliable quality control Once placed requires no maintenance Low water absorption over time Resistance to freeze-thaw cycle Non-Hazardous
Typical Uses for Roads • • • Trench Reinstatement Road Widening (Sub-Base) Road Building on Soft Ground (Sub-Base) Road Repairs Bridges over Drainage Channels
Road Widening
Road Sub-Base
Principle of Roads on Soft Ground = X kg Soft Ground Wearing Course = Y kg Soft Ground Foamed Concrete Road Base = Z kg Y + Z = X
Road on Soft Ground - example Density (kg/m 3) 0. 12 m Concrete 2400 0. 40 m Foamed Concrete 650 Peat 1200 Density of road = 1050 kg/m 3

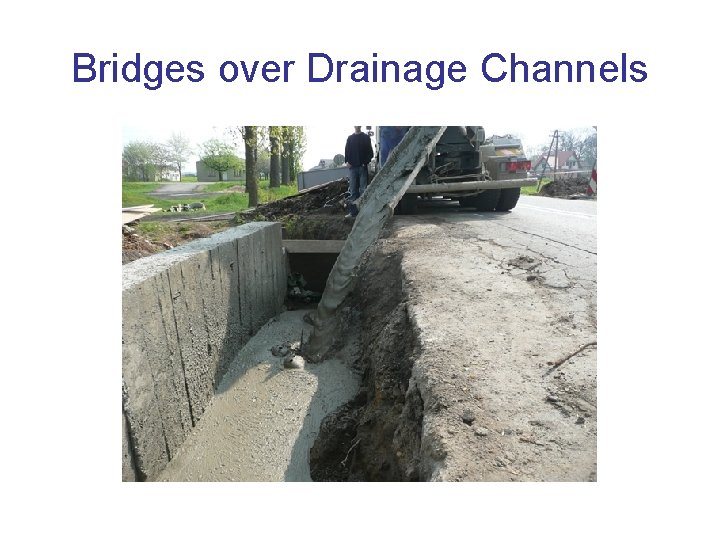

Bridges over Drainage Channels
Bridges over Drainage Channels
Bridges over Drainage Channels
Bridges over Drainage Channels
Geotechnical Applications • • Landslide Repair Soil Stabilisation Bridge Abutments (on soft ground) Emergency Void Filling Mine Fill Land Reclamation Tunnelling
Landslide Repair Nagano Expressway, Japan 27 m New Plan Foamed Concrete 650 kg/m 3 A = 0. 4 m B = 0. 3 m Original Plan Traditional Materials Terraces Wall (8 m) Hillside A = Road Surface Layer B = Basecourse Retaining Wall 80 m x 50 m x 9 m Landslip
Hillside Stabilisation
Hillside Stabilisation
Hillside Stabilisation
Hillside Stabilisation
Cathedral at Gniezno, Poland
Cathedral at Gniezno, Poland
Cathedral at Gniezno, Poland
Cathedral at Gniezno, Poland Foamed Concrete Mix Design sand : cement : water 1. 4 : 1 : 0. 6 Dry density 900 kg/m 3
Bridge Abutment
Bridge Abutment
Emergency Void Fill, Heathrow

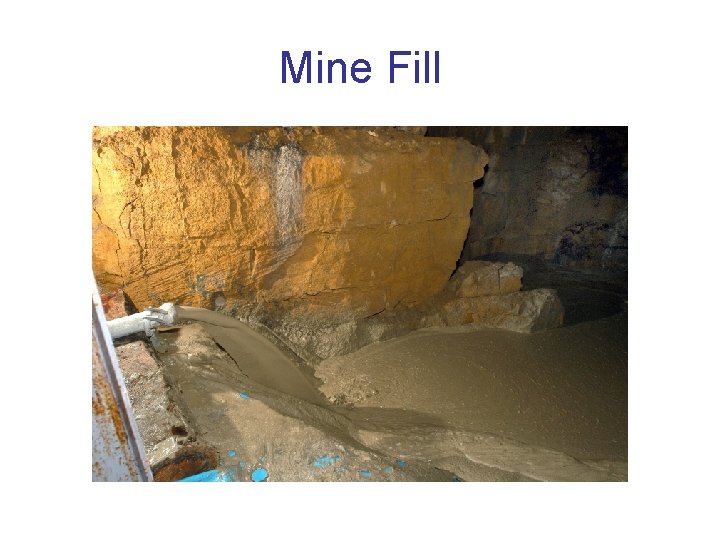

Mine Fill
EABASSOC LIGHTWEIGHT FOAMED CONCRETE • Made from Sand, Cement, Water & Foam • Dry Densities from 400 to 1600 kg/m 3 • Compressive Strengths from 1 to 15 MPa • • Road Widening, Sub-Bases, Repairs Soft Ground Stabilisation Emergency and Planned Void Filling
