E 472 Hospital Instrumentation Waleed Abdel Aziz Salem

E 472 Hospital Instrumentation Waleed Abdel Aziz Salem, Ph. D. Electrical Department Benha Faculty of Engineering, Benha University

Topic • 1 -Electrocardiography (ECG) • • 2 - Physiological pressure measurements 3 - Defibrillator 4 - Pacemakers 5 - Intensive & Coronary Care Units 6 - Electrosurgery Generators 7 - Medical Ultrasound 8 - The Human Respiratory Measurement 9 - Computers in Biomedical Equipment

• 10 - Experimental Work (Biomedical Measurement System)

Introduction to Biomedical Equipment Technology By Joseph Carr and John Brown

Electrocardiography (ECG)

Schematic Representation of Electro-Conduction System • SA Node • AV Node • Bundle of His • Bundle Branches • Purkinjie Fibers

• SA: serves as a pacemaker for the heart , fires electrical impulses but under control of the central nervous system • AV: Operate like a delay line to retard the advance of action potential along the internal electroconduction system toward the ventricles • Purkinje Fibers: Excite the muscle cells of the ventricles • The contaraction of many muscles cells at one time creates electrical signal that can detected by electrodes

• Sequence: Depolarization occurs in the sinoatrial (SA) node; current travels through internodal tracts of the atria to the atrioventricular (AV) node; then through Bundle of His, which divides into right and left bundle branches; left bundle branch divides into left anterior and posterior fascicles.

ECG Review

Electrocardiograph (ECG) • Components: – P wave = Atrial Contraction – QRS Complex = Ventricular Systole – T Wave = Refractory Period • • Typical measurement from right arm to left arm Also see 1 m. V Calibration pulse

Different Segments of ECG Depolarization: Electrical activation of the myocardium. Repolarization: Restoration of the electrical potential of the myocardial cell. P wave: the sequential activation (depolarization) of the right and left atria QRS complex: right and left ventricular depolarization (normally the ventricles are activated simultaneously) 0. 06 to 0. 10 seconds ST-T wave: ventricular repolarization PR interval: time interval from onset of atrial depolarization (P wave) to onset of ventricular depolarization (QRS complex) P-R interval is 0. 12 to 0. 20 seconds

Different Segments of ECG (Cont. ) QRS duration: duration of ventricular muscle depolarization QT interval: duration of ventricular depolarization and repolarization (0. 34 and 0. 42 seconds) RR interval: duration of ventricular cardiac cycle (an indicator of ventricular rate) PP interval: duration of atrial cycle (an indicator or atrial rate

Typical Leads RA = right arm LA = Left arm LL = left leg RL = right leg C = Chest Different leads result in different waveform shapes and amplitudes due to different view and are called leads

Cardiac Axis by different Leads • ECG Electrodes: Two arrangements, bipolar and unipolar leads. • Bipolar Lead: One in which the electrical activity at one electrode is compared with that of another. • Unipolar Lead: One in which the electrical potential at an exploring electrode is compared to a reference point that averages electrical activity,

Cardiac Axis by different Leads

Standard Limb Leads: I, III; bipolar, form a set of axes 60° apart Lead I: Composed of negative electrode on the right arm and positive electrode on the left arm. Lead II: Composed of negative electrode on the right arm and positive electrode on the left leg. Lead III: Composed of negative electrode on the left arm and positive electrode on the left leg. Augmented Voltage Leads: a. VR, a. VL a. VF; unipolar ; form a set of axes 60° apart but are rotated 30° from the axes of the standard limb leads. a. VR: Exploring electrode located at the right shoulder. a. VL: Exploring electrode located at the left shoulder. a. VF: Exploring electrode located at the left foot.

Types of Leads Bipolar Limb Leads: are those designated by Lead I, III which form Einthoven Triangle: – Lead I = LA connected to noninverting input and RA connected to inverting Input – Lead II = LL connected to noninverting input and RA connected to inverting input and LA shorted to RL – Lead III = LL connected to noninverting input and LA connected to inverting input and RA shorted to RL LL LL LL

Einthoven Triangle: Note potential difference for each lead of triangle Carr and Brown Figure 8 -3

Each lead gives a slightly different representation of electrical activity of heart

Types of Leads Unipolar Limb Leads: augmented limb leads: leads that look at composite potential from 3 limbs simultaneously where signal from 2 limbs are summed in a resistor network and then applied to an inverting amplifier input and the remaining limb electrode is applied to the noninverting input Lead a. VR = RA connected to non-inverting input while LA and LL are summed at inverting input augmented (amplified) Voltage for Right arm (a. VR) Lead a. VL = LA connected to non-inverting input while RA and LL are summed at inverting input augmented (amplified) Voltage for Left arm (a. VL) Lead a. VF = LL connected to non-inverting input while RA and LA are summed at inverting input augmented (amplified) Voltage for Foot (a. VF)

Types of Leads Unipolar Limb Leads: LL LL LL

Types of Leads Unipolar Chest Leads: measured with signals from certain specified locations on the chest applied to amplifiers non-inverting input while RA LA, and LL are summed in a resistor Wilson network at amplifier inverting inputs

Types of Leads Unipolar Chest Leads

Wilson’s Central Terminal • Configuration used with Unipolar Chest Leads where RA LA and LL are summed in resistor network and this is sent to the inverting input of an amplifier

Electrocardiograph Traces from different leads

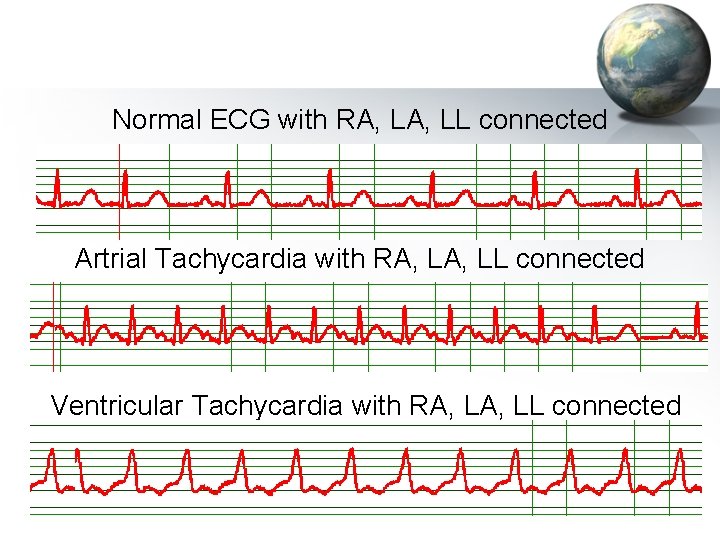

Normal ECG with RA, LL connected Artrial Tachycardia with RA, LL connected Ventricular Tachycardia with RA, LL connected

Block Diagram of ECG

ECG Pre-Amplifier • • High Impedance input of bioelectric amplifier Lead selector switch 1 m. V calibration source Means of protecting amplifier from high voltage discharge such as a defibrillator used on a patient • Amplifier will have instrumentation amplifier as well as isolation amplifier

Isolation Amplifier • Needed for safety! Want to isolate patient from high voltages and currents to prevent electric shock where there is specifically a barrier between passage of current from the power line to the patient. • Can be done using light (photo emitter and photo detector) or a transformer (set of inductors that are used in a step up / step down configuration)

Isolation of Signal of Patient from Power needed for safety

Typical Representation of an Isolation Amplifier

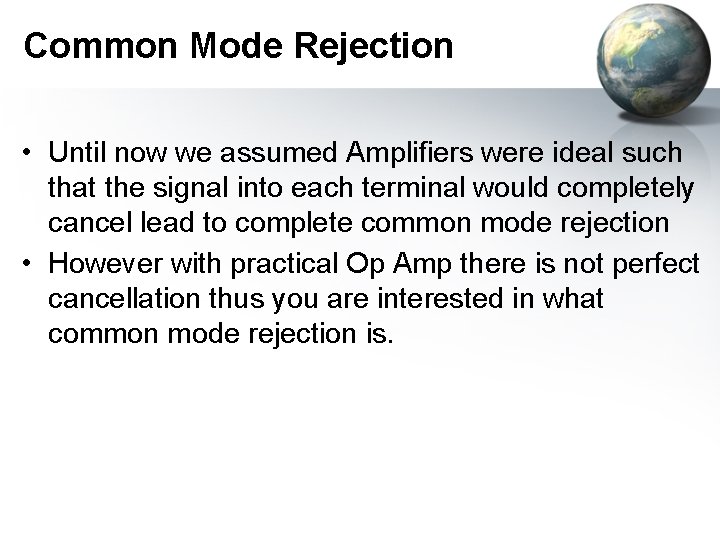

Common Mode Rejection • Until now we assumed Amplifiers were ideal such that the signal into each terminal would completely cancel lead to complete common mode rejection • However with practical Op Amp there is not perfect cancellation thus you are interested in what common mode rejection is.

Simplistic Example of ECG Circuit Would like to analyze what type of common mode voltage (CMV) can be derived

Common Mode Voltage (CMV) • If 2 inputs are hooked together into a differential amplifier driven by a common source with respect to ground the common mode voltage should be the same and the ideal output should be zero however practically you will see a voltage. • CMV is composed of 2 parts: – DC electrode offset potential – 60 Hz AC induced interference caused by magnetic and electric fields from power lines and transformers • This noise is a current from in signal, common and ground wires • Capacitively coupled into circuit • (Other markets that work at 220 -240 V will experience 50 Hz noise)

Analysis to reduce noise in ECG • Common Mode Rejection: – Instrumentation amplifier (EX. INA 128) using a differential amplifier which will cancel much of the 60 Hz and common DC offset currents to each input – If each signal is carrying similar noise then the some of the noise will subtract out with a differential amplifier

Analysis to reduce noise in ECG • Right leg driver circuit is used in a feedback configuration to reduce 60 Hz noise and drive noise on patient to a lower level.

Analysis to reduce noise in ECG • Isolation Amplifier also will attenuate noise • Shielding of cables further reduce noise

Review of Five ways to reduce Noise in ECG • • • Common Mode Rejection (differential Amplifier) Right Leg Drive (feedback loop to decrease noise) Shielding of wires Isolation amplifier Notch filter to reduce 60 Hz noise

How to overcome offset voltage Instrumentation Amplifier Gain (A 1, A 2, A 3) = Non-Inverting Amplifier A 4

Problems of offset voltage and how to correct • If you had 300 m. V of DC offset sent through two gains of 10 and then 50 you would have an offset of (300 m. V)(10)(50) = 150 V thus you would saturate your amplifiers and not see any of your signal • 3 V offset after first set of noninverting amplifiers goes through differential amplifier A 3 which reduces the offset voltage.

Other Corrections for Offset • Feedback circuit where output of A 4 goes through HPF of A 5 so only responses larger than cutoff frequency pass through thus the DC offset is attenuated R and C should be switched because this is really a LPF

Affect of High Pass Filter of A 5 • Feedback through HPF has a time constant of RC • 3 Modes: – Diagnostic Mode (most time) where RC = 1 x 10 -6 F*3. 2 x 106Ώ = 3. 2 sec Cutoff Freq = 1/(2πRC) = 0. 05 Hz – Monitor Mode (medium time) where RC = 1 x 10 -6 F*318 x 103Ώ = 0. 318 sec Cutoff Freq = 1/(2πRC) = 0. 5 Hz Drawn Incorrectly – Quick Restore (least time) where R and C should be RC = 1 x 10 -6 F*80 x 103Ώ = 0. 08 sec switched Cutoff Freq = 1/(2πRC) = 2 Hz With Feedback the DC offset is eliminated and thus can have a gain of 50 on the 2 nd Non-inverting Amplifier Stage without Saturating the Circuit

Defribillator • A Defribillator = a high voltage electrical heart stimulator used to resuscitate heart attack victims • When a physician applies this high voltage the high voltages and currents can cause damage to medical equipment BUT physician still needs to view ECG of the patient • How do you protect your medical equipment from excessively voltages and currents?

Protection Devices in ECGs: Glow Lamps • Glow Lamps are pair of electrodes mounted in a glass envelope in a atmosphere of lower pressure neon gain or a mix of inert gases • Typically impedance across electrodes is high but if voltage across electrodes exceeds ionization potential of gas then impedance drops so you create a short to ground so vast majority of current goes safely to ground avoids your amplifiers

Protection Devices in ECGs: Zener Diodes • Diode: device that conducts electricity in one direction only • Zener Diode: “Turns-On” when a minimum voltage is reached so in this configuration if a large voltage is applied (ie defibrillator) the zener diode will allow current to flow and shunts it to grounds thus current goes to ground and not to the amplifiers

Protection Devices in ECGs: Current. Limiting Diodes • Diode: device that conducts electricity in one direction only • Diode acts as a resistor as long as current level remains below limiting point. It current rises above the limit, the resistance will change and the current will become clamped • Can also use a varistor (variable resistor) which functions like a surge protector that clips spikes in voltages

Types of Defibrillator Damage • Defibrillator is 6 X greater than normal working voltage so damage will eventually occur • Two forms of Damage: – Both Amplifier inputs are blown thus readout is a flat line – One amplifier input is blown so the ECG appears distorted • Cause is from zener diodes becoming open or from glow lamps becoming defective from an air leak, or recombination or absorption of gases • Recommended that lamps are changed every 1 -2 years or sooner if ECG is in Emergency Room

Effect of Voltage Transient on ECG • Sometime a high voltage transient is applied to the patient (defibrillator) which cause magnitudes much greater than biopotential signal (ECG) which saturates the amplifier • Once the voltage transient signal is removed the ECG signal takes time to recover

Example of bandwidth and magnitude of various biopotentials ECG is approximately 1 m. V and spans from DC to 500 Hz Book assumes Diagnostic mode is 0. 05 Hz to 100 Hz Electromyography (EMG) Electroencephalography (EEG) Electrooculography (EOG)

Electro-Surgery Unit (ESU) Filtering

Electro-Surgery Unit (ESU) Filtering • While a surgeon is conducting surgery he/she will want to see their patient’s ECG • ESU can introduce frequencies into the ECG of 100 KHz to 100 MHz and with magnitudes up to k. Volts which can distort the ECG • ESU introduces: – DC offsets – Obscures the signal • ESU needs to be of diagnostic quality thus you must eliminate higher frequencies which are noise

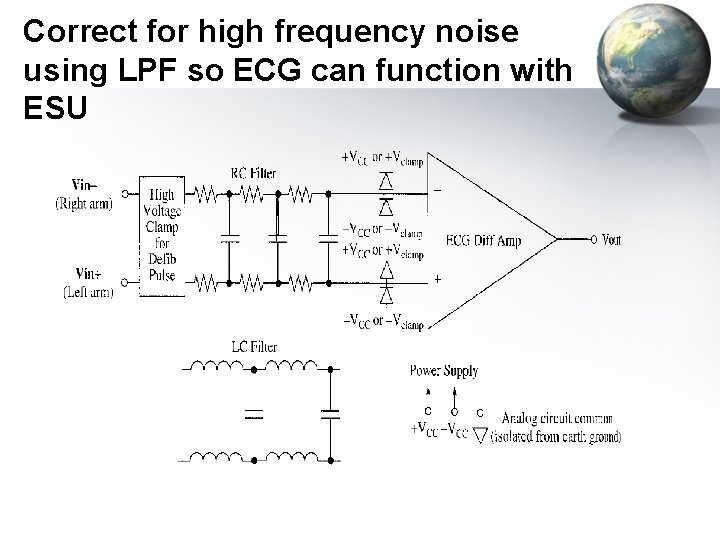

Correct for high frequency noise using LPF so ECG can function with ESU

RC Filters Vs Frequency FH • Low Pass Filters will pass frequencies lower than cutoff frequency of FH =1/2 RC Vs FL • High Pass Filters will pass frequencies greater than cutoff frequency of FL =1/2 RC

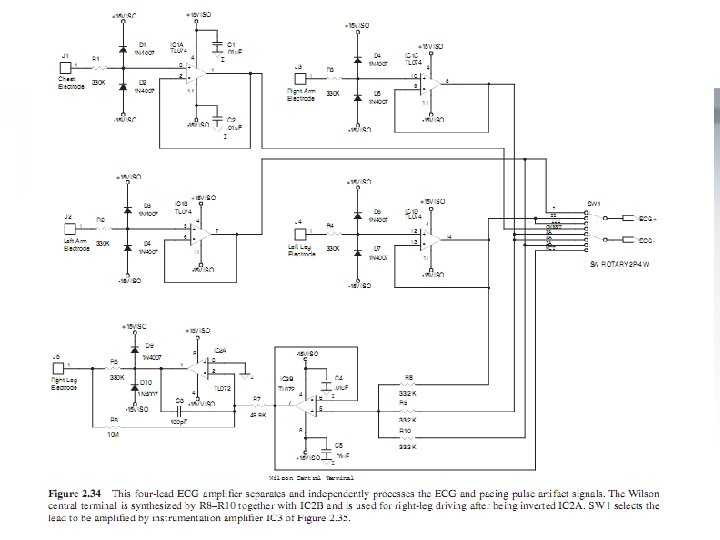

Circuit Schematic of an example of ECG • Lead I (LA – RA) means LA is going to the noninverting input and RA is going to inverting input • Precordial are the chest leads

Block diagram of Entire ECG Circuit

QUESTIONS? THANK YOU 57
