Dynamo A Transparent Dynamic Optimization System Bala Dueterwald

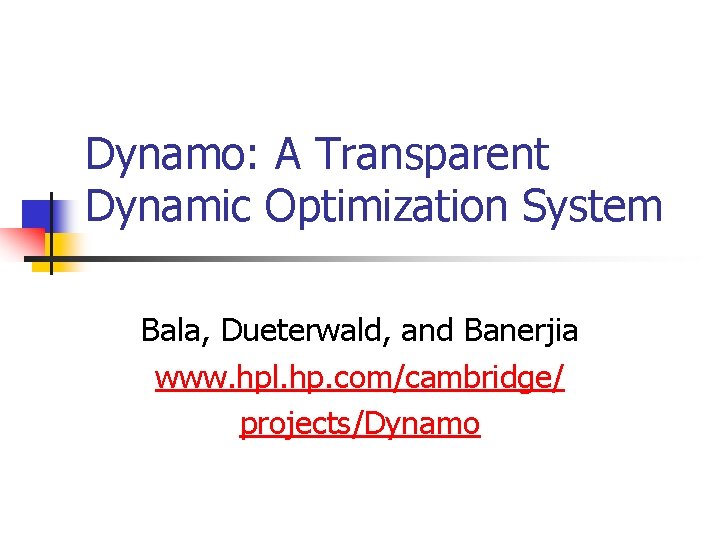

Dynamo: A Transparent Dynamic Optimization System Bala, Dueterwald, and Banerjia www. hpl. hp. com/cambridge/ projects/Dynamo

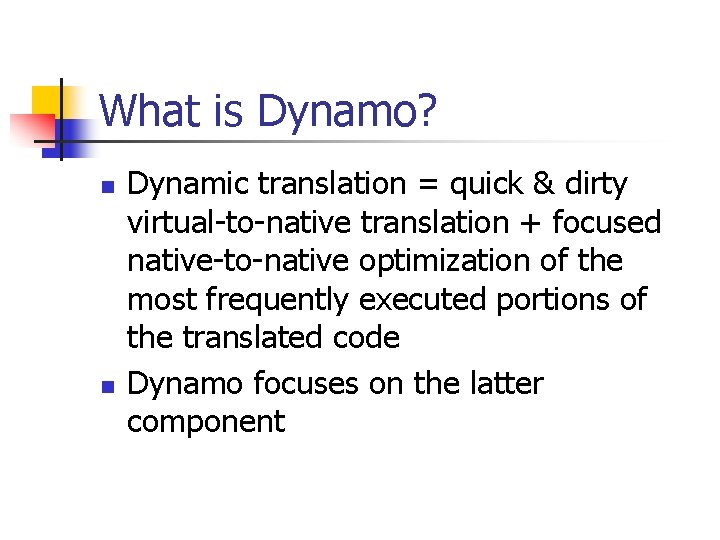

What is Dynamo? n n Dynamic translation = quick & dirty virtual-to-native translation + focused native-to-native optimization of the most frequently executed portions of the translated code Dynamo focuses on the latter component

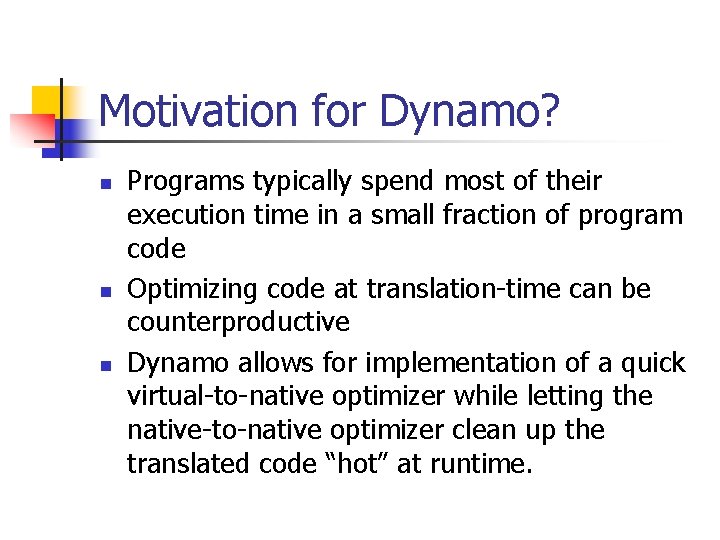

Motivation for Dynamo? n n n Programs typically spend most of their execution time in a small fraction of program code Optimizing code at translation-time can be counterproductive Dynamo allows for implementation of a quick virtual-to-native optimizer while letting the native-to-native optimizer clean up the translated code “hot” at runtime.

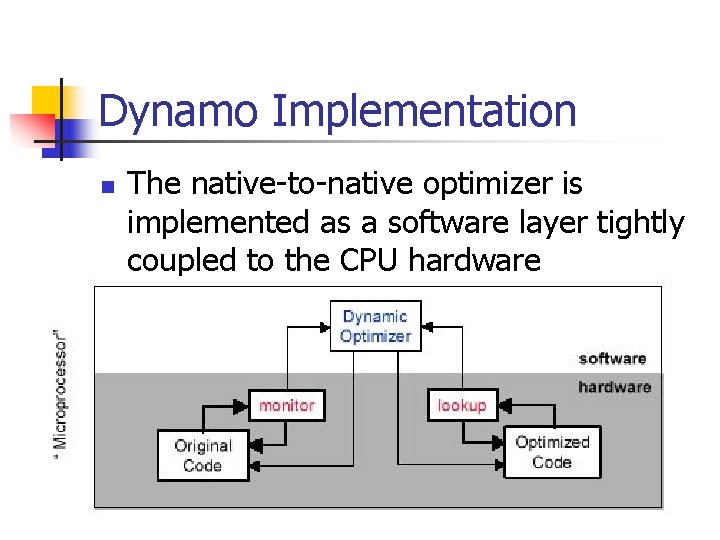

Dynamo Implementation n The native-to-native optimizer is implemented as a software layer tightly coupled to the CPU hardware

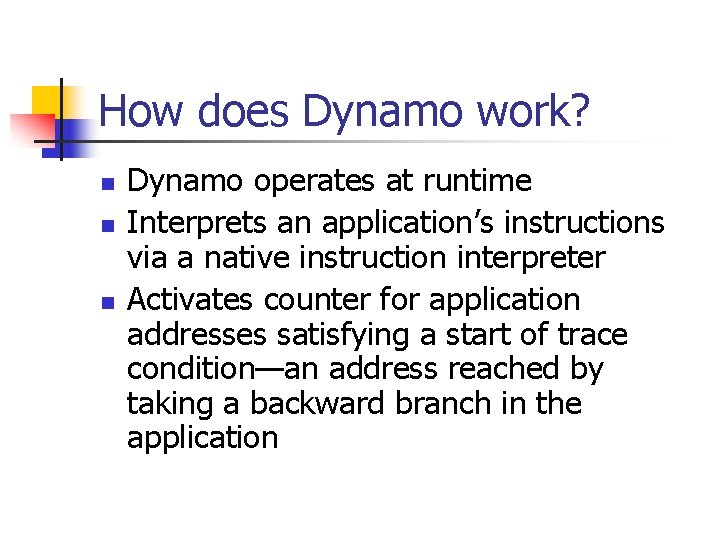

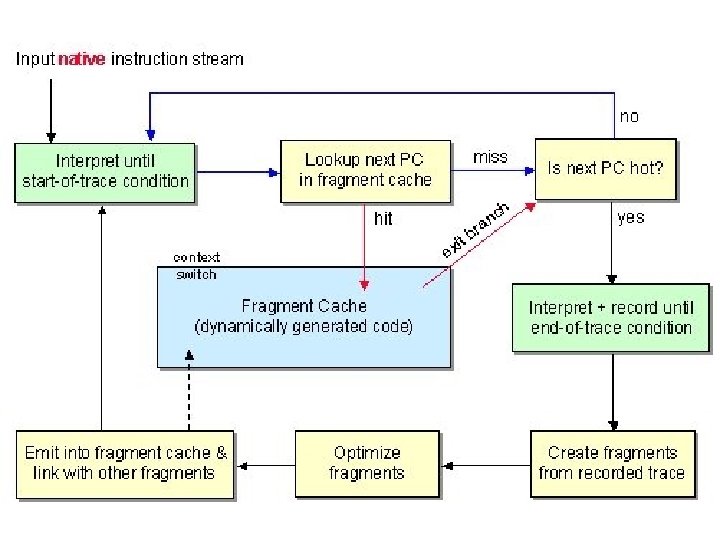

How does Dynamo work? n n n Dynamo operates at runtime Interprets an application’s instructions via a native instruction interpreter Activates counter for application addresses satisfying a start of trace condition—an address reached by taking a backward branch in the application

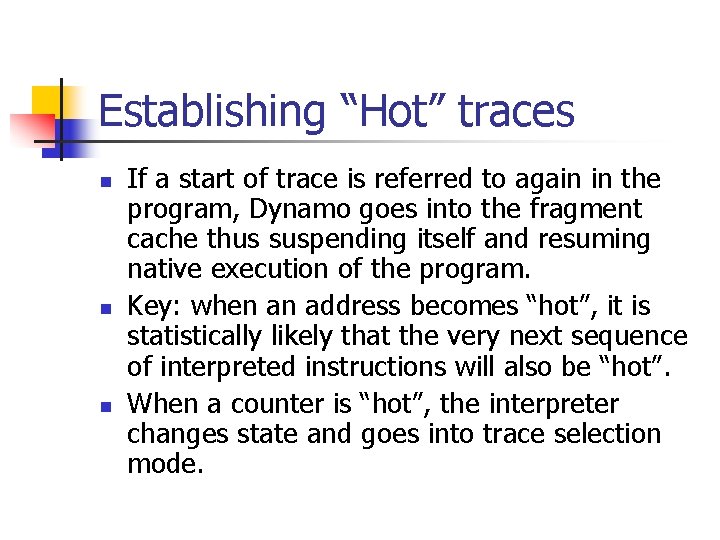

Establishing “Hot” traces n n n If a start of trace is referred to again in the program, Dynamo goes into the fragment cache thus suspending itself and resuming native execution of the program. Key: when an address becomes “hot”, it is statistically likely that the very next sequence of interpreted instructions will also be “hot”. When a counter is “hot”, the interpreter changes state and goes into trace selection mode.

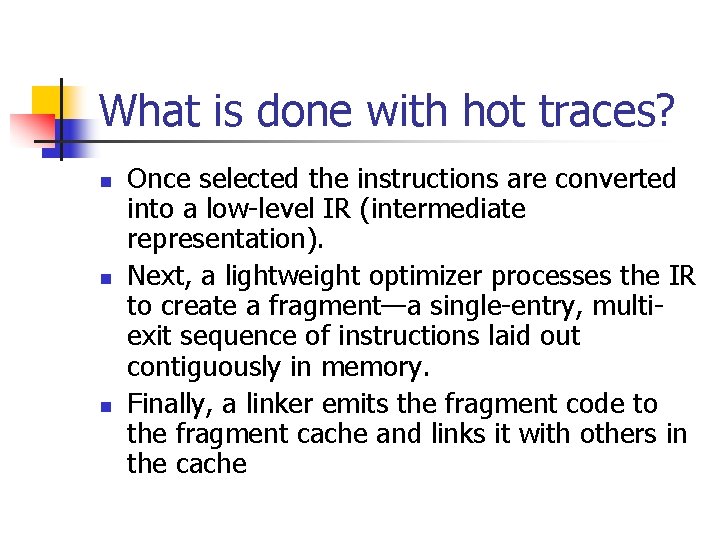

What is done with hot traces? n n n Once selected the instructions are converted into a low-level IR (intermediate representation). Next, a lightweight optimizer processes the IR to create a fragment—a single-entry, multiexit sequence of instructions laid out contiguously in memory. Finally, a linker emits the fragment code to the fragment cache and links it with others in the cache

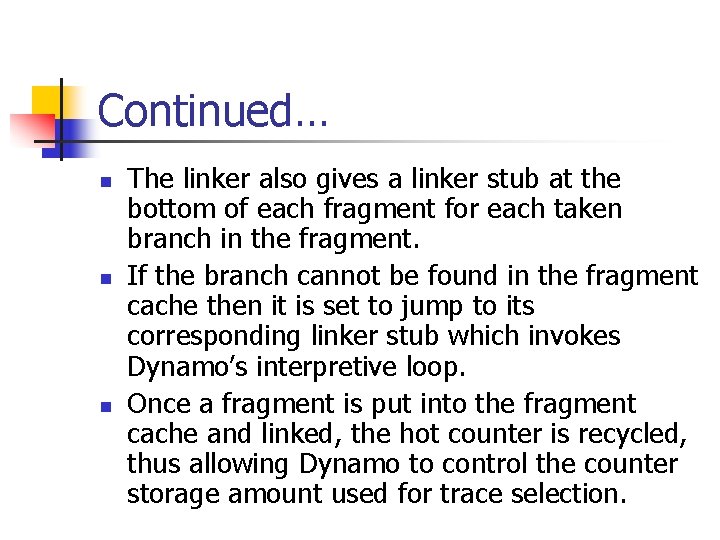

Continued… n n n The linker also gives a linker stub at the bottom of each fragment for each taken branch in the fragment. If the branch cannot be found in the fragment cache then it is set to jump to its corresponding linker stub which invokes Dynamo’s interpretive loop. Once a fragment is put into the fragment cache and linked, the hot counter is recycled, thus allowing Dynamo to control the counter storage amount used for trace selection.

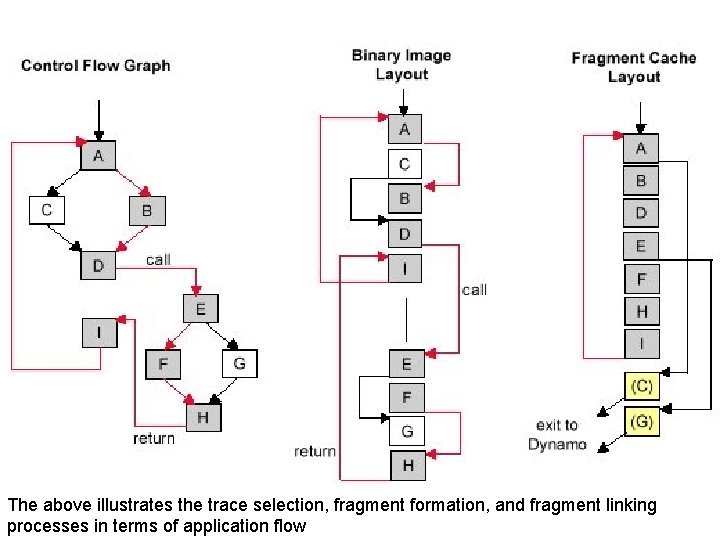

The above illustrates the trace selection, fragment formation, and fragment linking processes in terms of application flow

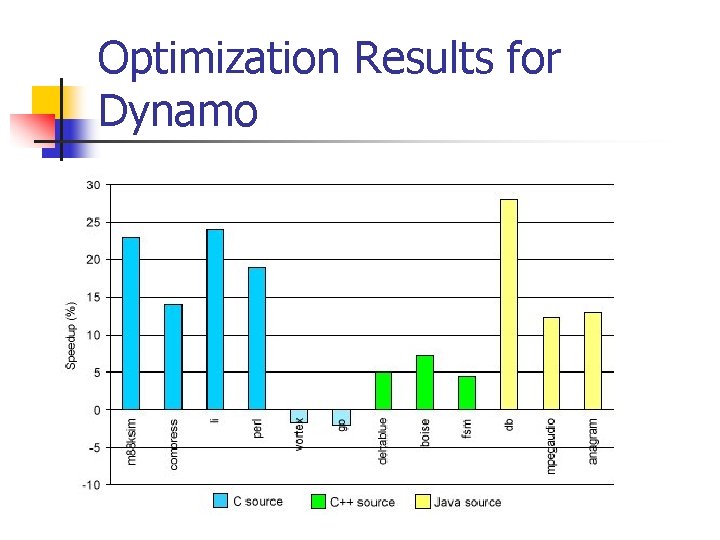

Optimization Results for Dynamo n

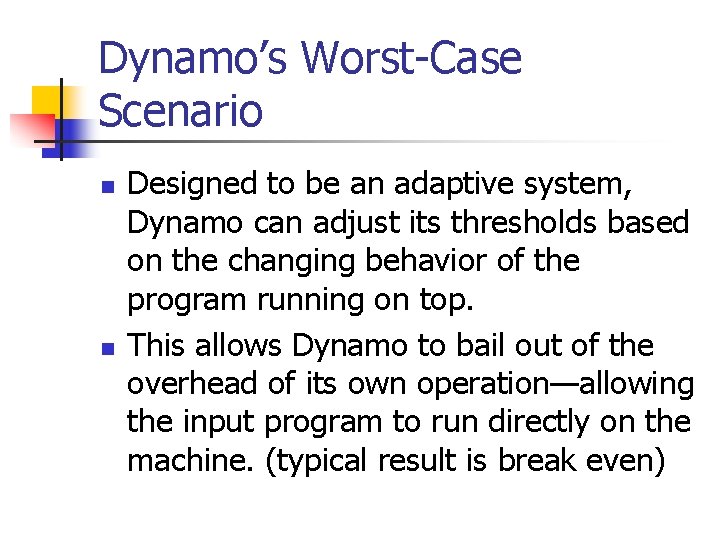

Dynamo’s Worst-Case Scenario n n Designed to be an adaptive system, Dynamo can adjust its thresholds based on the changing behavior of the program running on top. This allows Dynamo to bail out of the overhead of its own operation—allowing the input program to run directly on the machine. (typical result is break even)

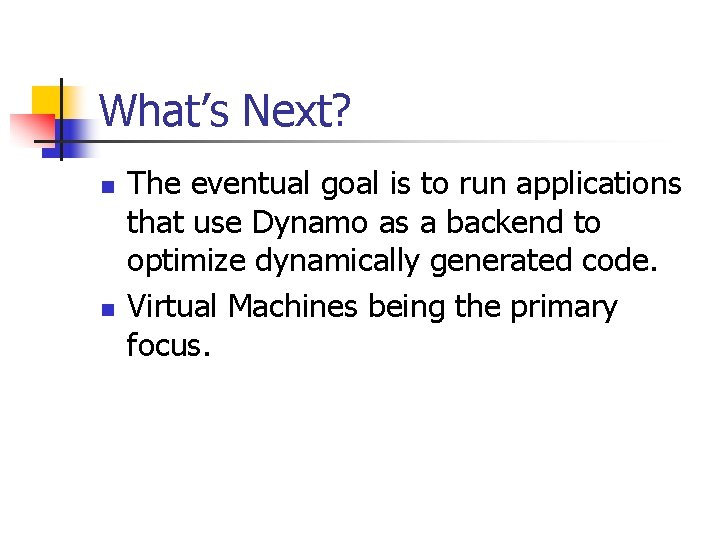

What’s Next? n n The eventual goal is to run applications that use Dynamo as a backend to optimize dynamically generated code. Virtual Machines being the primary focus.
