Dynamics of Articulated Robots Kris Hauser ECE 383

Dynamics of Articulated Robots Kris Hauser ECE 383 / ME 442 Spring 2015

Agenda • Basic elements of simulation • Derive the standard form of the dynamics of an articulated robot in joint space • Also works for humans, biological systems, non-actuated mechanical systems … • Brief discussion of computational complexity • Featherstone algorithm: fast method for computing forward dynamics (torques to accelerations) and inverse dynamics (accelerations to torques) • Constrained dynamics

Robot Dynamics •

Lagrangian Mechanics • Kinetic energy Potential energy

Lagrangian Mechanics • A system of n partial differential equations

Example: Point Mass • Sanity check: Newton’s laws

Kinetic energy for articulated robot • Mass matrix: symmetric positive definite

Derivative of K. E. w. r. t q •

Potential energy for articulated robot in gravity field • Generalized gravity

Putting it all together • Group these terms together

Final canonical form • Generalized inertia Centrifugal/ coriolis forces Generalized gravity Generalized forces (joint torques + external forces)

Quiz

Forward/Inverse Dynamics •

Example: RP manipulator

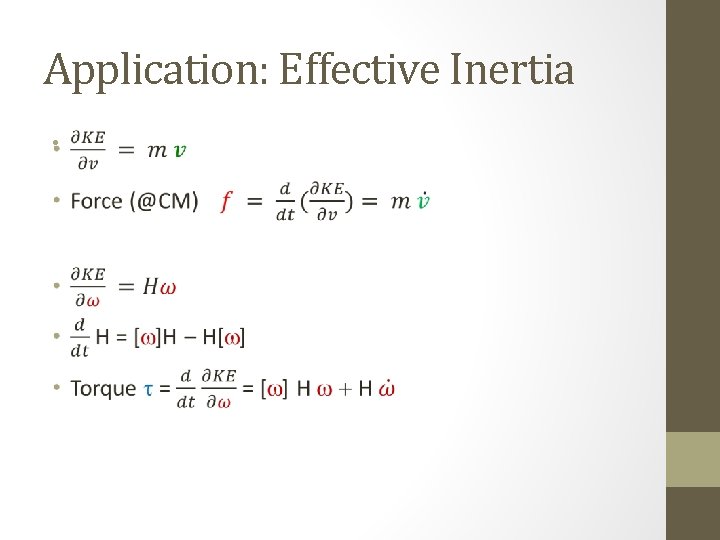

Application: Effective Inertia •

Application: Effective Inertia •

Application: Effective Inertia • Can be infinite at singular configurations!

Application: Feedforward control • Feedback control: let torques be a function of the current error between actual and desired configuration • Problem: heavy arms require strong torques, requiring a stiff system • Stiff systems become unstable relatively quickly

Application: Feedforward control • Solution: include feedforward torques to reduce reliance on feedback • Estimate the torques that would compensate for gravity and coriolis forces, send those torques to the motors

Feedforward Torques •

Computational Complexity 1. 2. 3. 4. Evaluate matrix B(q) Vector C(q, q’) Vector G(q) Invert B(q) O(n 3) O(n 4) O(n 3)

Newton-Euler Method (Featherstone 1984) • Explicitly solves a linear system for joint constraint forces and accelerations, related via Newton’s equations • No matrix inversions larger than 6 x 6 • Faster forward/inverse dynamics for large chains (O(n))

Forward Dynamics: Basic Intuition •

Software • Both Lagrangian dynamics and Newton-Euler methods are implemented in Klamp’t • Lagrangian form is usually most mathematically convenient representation • Newton-Euler is usually more efficient for simulation

Calculating Langrangian equation terms quicker •

CONSTRAINED DYNAMICS

Constrained Systems •

The Wrong Way •

The Right Way… •

Solving… •

Back to Pseudoinverses • A pseudoinverse A# of the matrix A is a matrix such that • A = AA#A • A# = A#AA# • Generalizes the concept of inverse to non-square, noninvertible matrices • Such a matrix exists (in fact, there are infinitely many) • The Moore-Penrose pseudoinverse, denoted A+, can be derived as • A+ = (ATA)-1 AT when ATA is invertible (overconstrained) • A+ = AT(AAT)-1 when AAT is invertible (underconstrained)

Properties • Note connection to least-squares formula • Ax=b => x = A+b • If system is overconstrained, this solution minimizes ||b-Ax||2 • If system is underconstrained, this solution minimizes ||x||2 • Note that (I-AA+)Ay = 0 is always satisfied • (I-AA+) is a projection matrix

Weighted Pseudoinverse • If (AAT)-1 exists, given any positive definite weighting matrix W, we can derive a new pseudoinverse • A# = W-1 AT(AW-1 AT)-1 • This is a weighted pseudoinverse • Has the property that x=A#b is a solution to Ax = b such that • x minimizes x. TWx – a weighted norm

Weighted Pseudoinverse •

Rigid Body Simulators •

Next class • Feedback control • Principles App J • Principles Ch. 4. 1 -4. 4
