Dynamics a branch of mechanics that deals with
Dynamics a branch of mechanics that deals with the “motion” of bodies under the action of forces. Two parts: 1. Kinematics Study of motion without reference to the forces that cause the motion 2. Kinetics Study of motion under the action of forces on bodies for resulting motions. 1
Kinematics Kinetics study of objects’ motion without reference to the forces that cause the motion study of motion under the action of forces on bodies about the bodies’ motions. kinematics relation is necessary to solve kinetics problem How does w. AB related with another wCD (kinematics) If you want a. CD = 36. 5 rad/s 2, how much torques do you apply to AB (kinetics) 2
Kinematics Particles Kinetics Before Midterm Rigid Bodies After Midterm 3

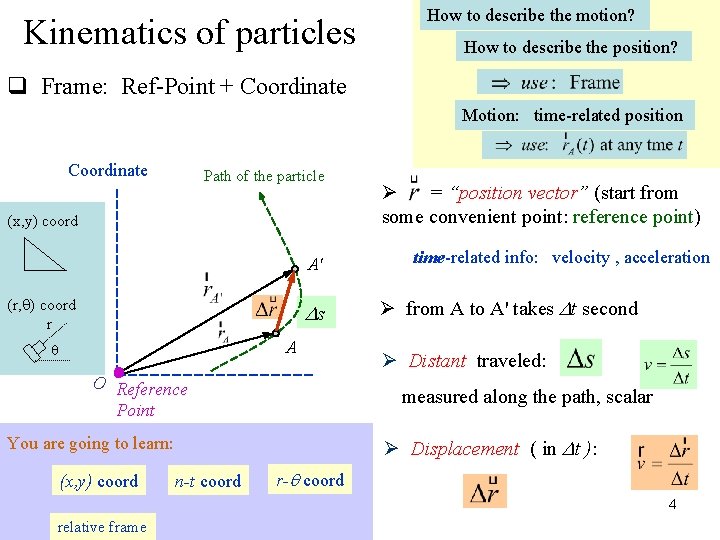

Kinematics of particles How to describe the motion? How to describe the position? q Frame: Ref-Point + Coordinate Motion: time-related position Coordinate Path of the particle (x, y) coord A' (r, ) coord r s A O Reference Point time-related info: velocity , acceleration Ø from A to A' takes t second Ø Distant traveled: measured along the path, scalar You are going to learn: (x, y) coord Ø = “position vector” (start from some convenient point: reference point) Ø Displacement ( in t ): n-t coord r- coord 4 relative frame

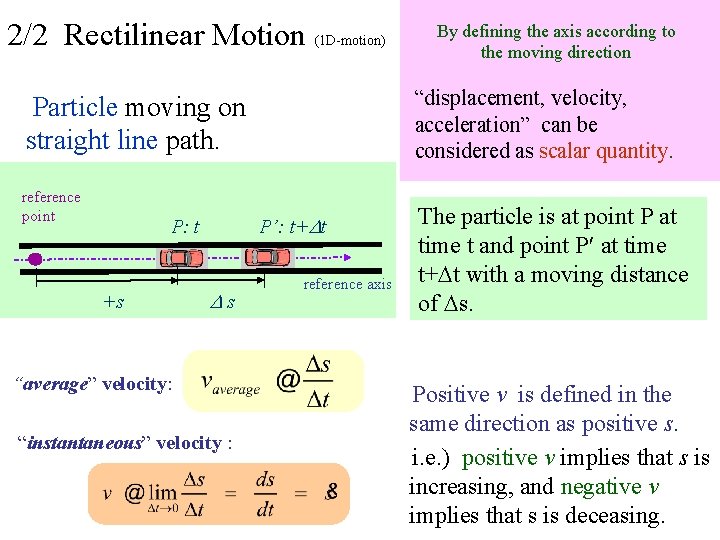

2/2 Rectilinear Motion (1 D-motion) “displacement, velocity, acceleration” can be considered as scalar quantity. Particle moving on straight line path. reference point P’: t+ t P: t +s s “average” velocity: “instantaneous” velocity : By defining the axis according to the moving direction reference axis The particle is at point P at time t and point P at time t+ t with a moving distance of s. Positive v is defined in the same direction as positive s. i. e. ) positive v implies that s is increasing, and negative v 5 implies that s is deceasing.

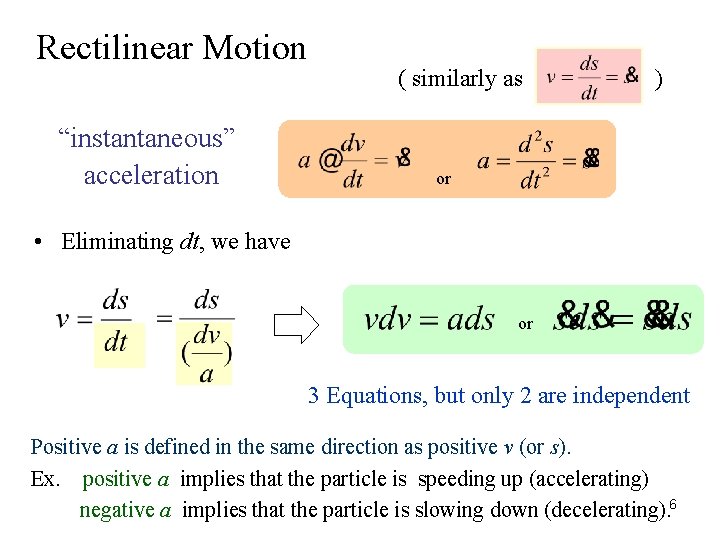

Rectilinear Motion “instantaneous” acceleration ( similarly as ) or • Eliminating dt, we have or 3 Equations, but only 2 are independent Positive a is defined in the same direction as positive v (or s). Ex. positive a implies that the particle is speeding up (accelerating) negative a implies that the particle is slowing down (decelerating). 6

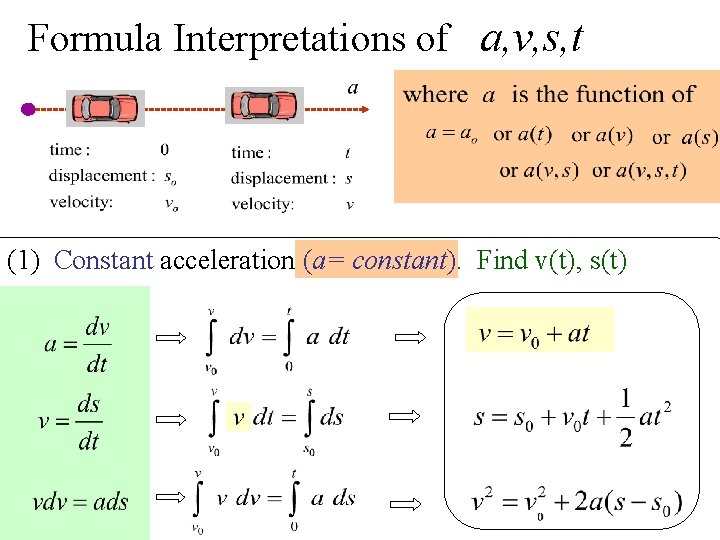

Formula Interpretations of a, v, s, t (1) Constant acceleration (a= constant). Find v(t), s(t) 8

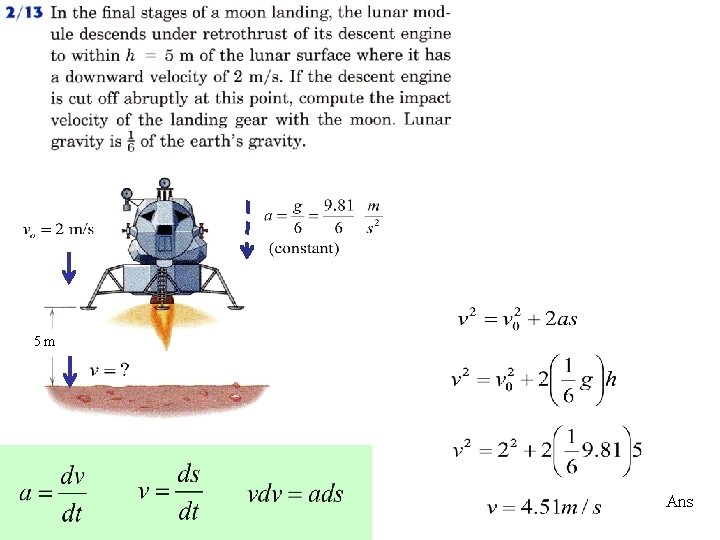

5 m Ans

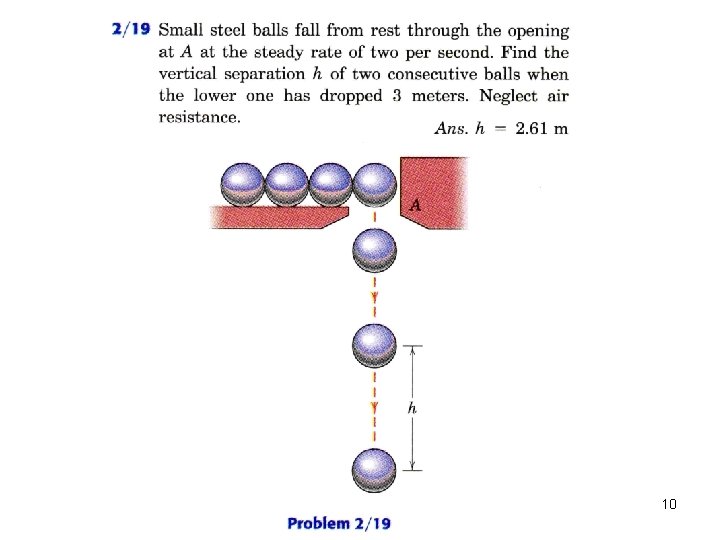

10

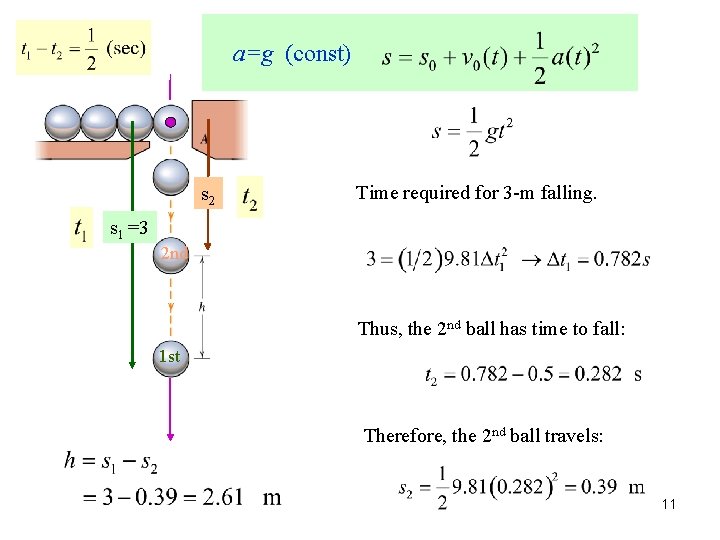

a=g (const) s 2 Time required for 3 -m falling. s 1 =3 2 nd Thus, the 2 nd ball has time to fall: 1 st Therefore, the 2 nd ball travels: 11
Formula Interpretations of a, v, s, t (2) Acceleration given as a function of time, a = f(t). Find v(t), s(t) v(t) Or by solving the differential equation: s(t) v(t) 12

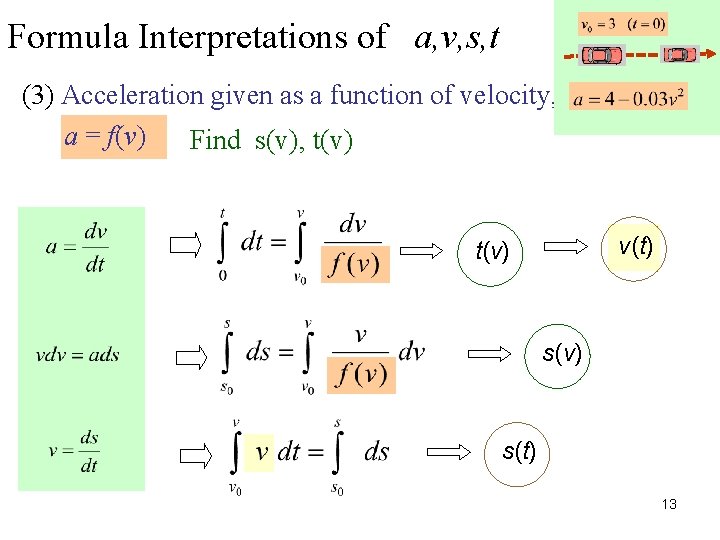

Formula Interpretations of a, v, s, t (3) Acceleration given as a function of velocity, a = f(v) Find s(v), t(v) v(t) t(v) s(t) 13

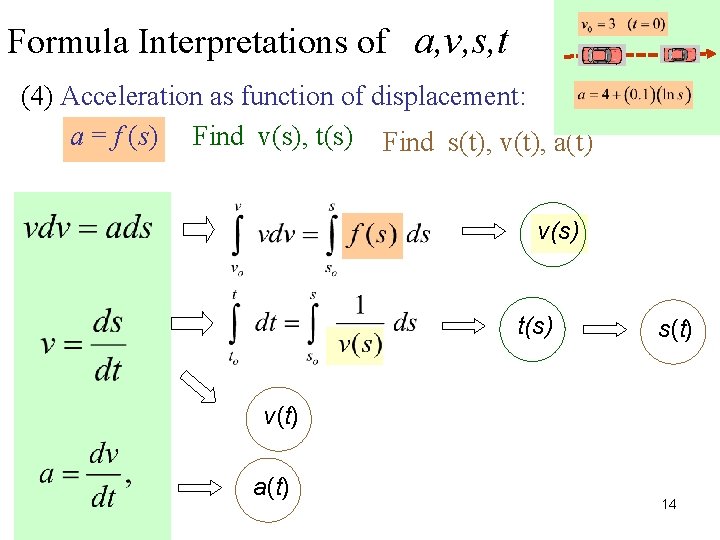

Formula Interpretations of a, v, s, t (4) Acceleration as function of displacement: a = f (s) Find v(s), t(s) Find s(t), v(t), a(t) v(s) t(s) s(t) v(t) a(t) 14

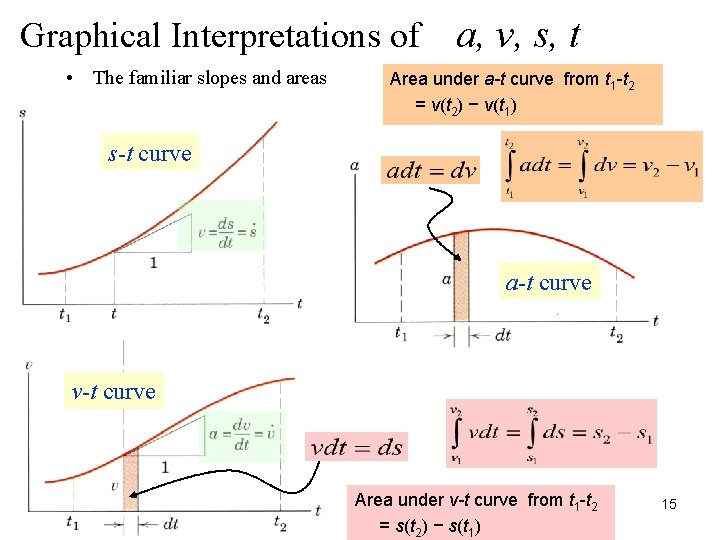

Graphical Interpretations of • The familiar slopes and areas a, v, s, t Area under a-t curve from t 1 -t 2 = v(t 2) − v(t 1) s-t curve a-t curve v-t curve Area under v-t curve from t 1 -t 2 = s(t 2) − s(t 1) 15

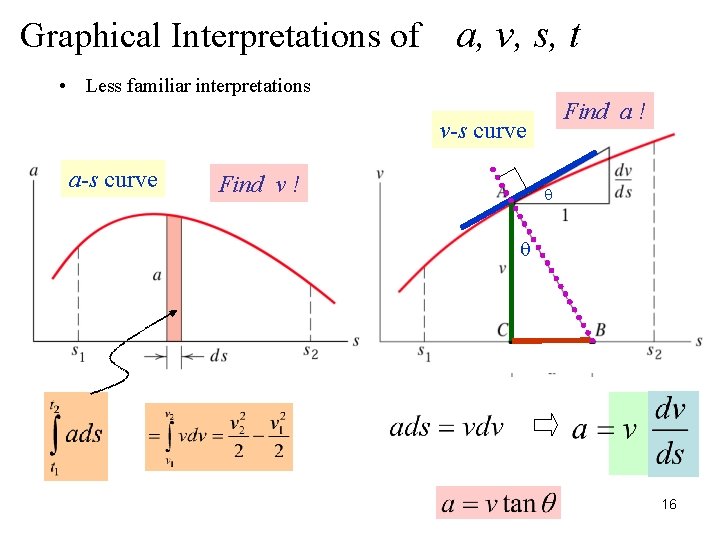

Graphical Interpretations of a, v, s, t • Less familiar interpretations Find a ! v-s curve a-s curve Find v ! 16

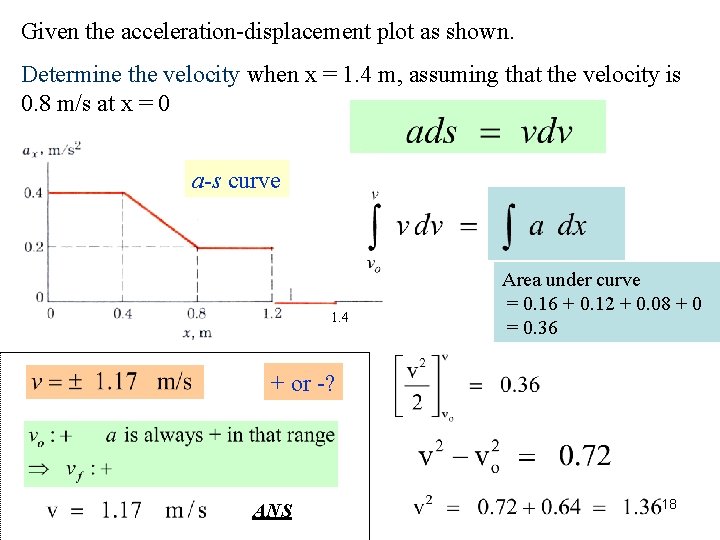

Given the acceleration-displacement plot as shown. Determine the velocity when x = 1. 4 m, assuming that the velocity is 0. 8 m/s at x = 0 a-s curve 1. 4 Area under curve = 0. 16 + 0. 12 + 0. 08 + 0 = 0. 36 + or -? ANS 18
20

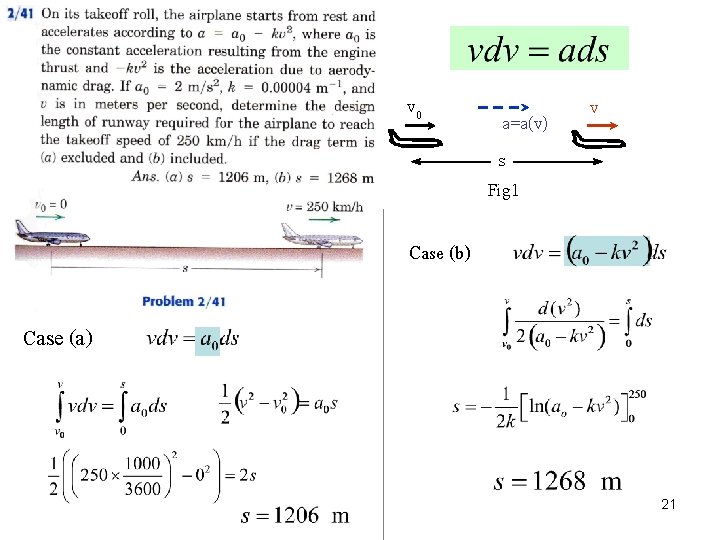

v 0 a=a(v) s Fig 1 v Case (b) Case (a) 21

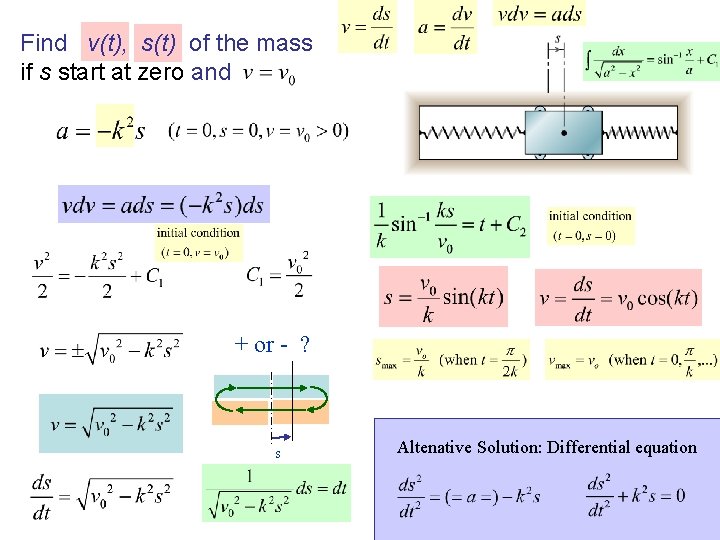

Find v(t), s(t) of the mass if s start at zero and + or - ? s Altenative Solution: Differential equation 22

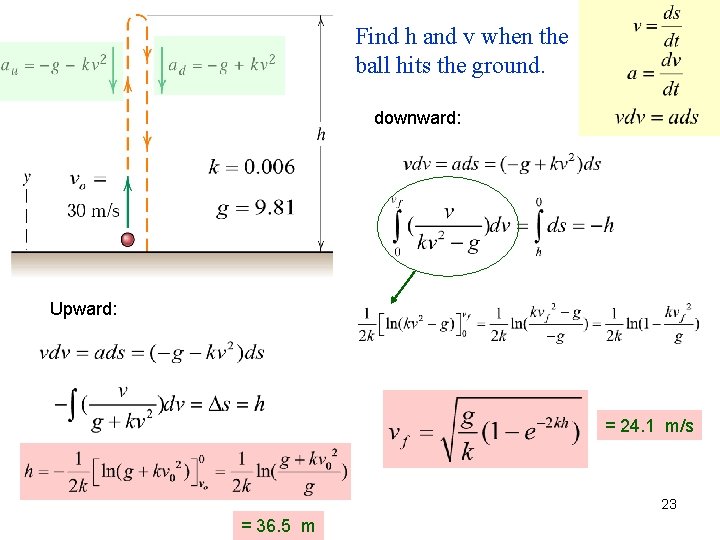

Find h and v when the ball hits the ground. downward: Upward: = 24. 1 m/s 23 = 36. 5 m
SP 2/1 Given: x Find 1) t when v=+72 How many turns? 2) a when v=+32 3) total distance traveled from t=1 to t=4 Correct? total distance traveled net displacement != total distance traveled 24

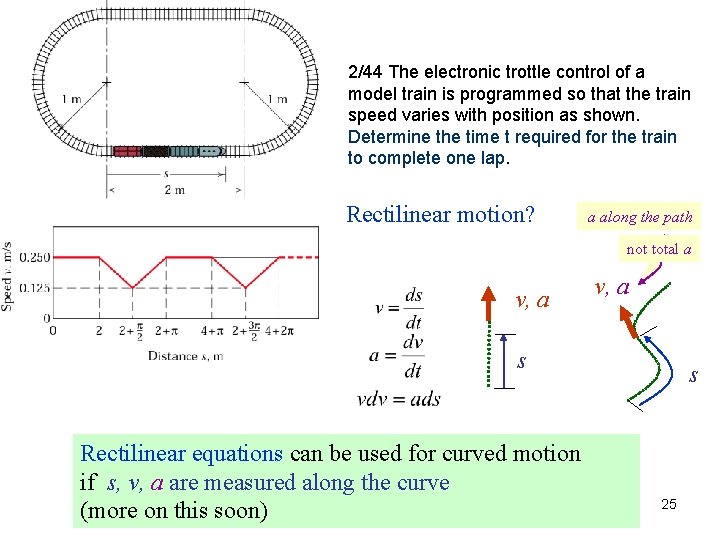

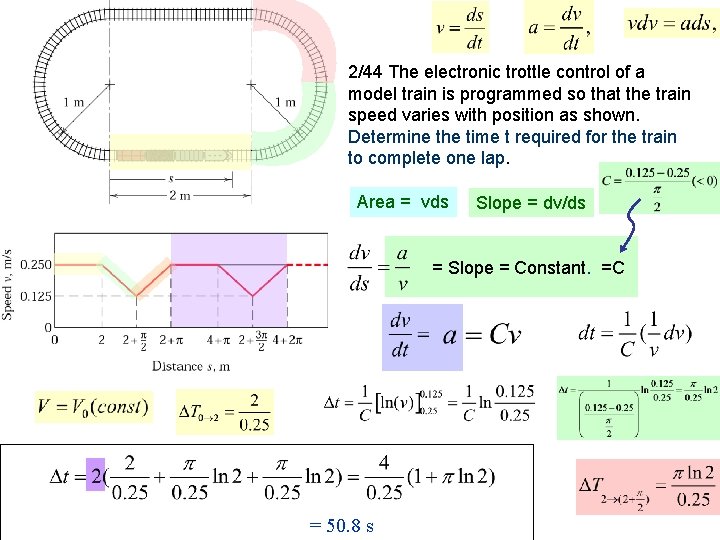

2/44 The electronic trottle control of a model train is programmed so that the train speed varies with position as shown. Determine the time t required for the train to complete one lap. Rectilinear motion? a along the path not total a v, a s Rectilinear equations can be used for curved motion if s, v, a are measured along the curve (more on this soon) s 25
2/44 The electronic trottle control of a model train is programmed so that the train speed varies with position as shown. Determine the time t required for the train to complete one lap. Area = vds Slope = dv/ds = Slope = Constant. =C 26 = 50. 8 s

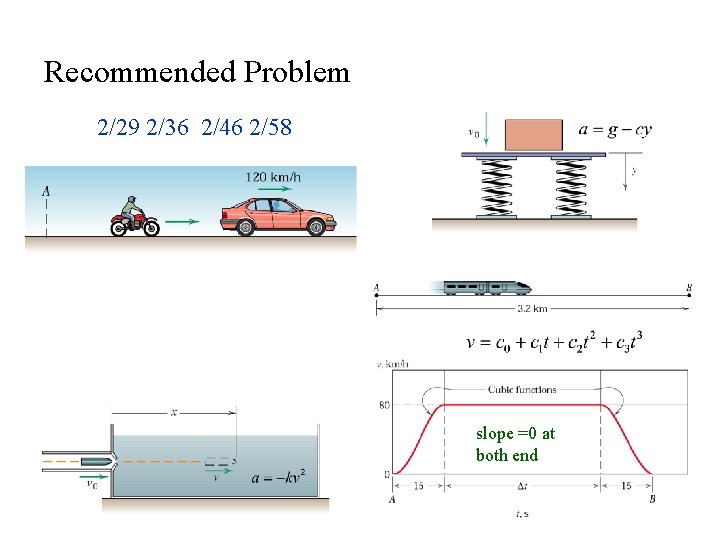

Recommended Problem 2/29 2/36 2/46 2/58 slope =0 at both end 27

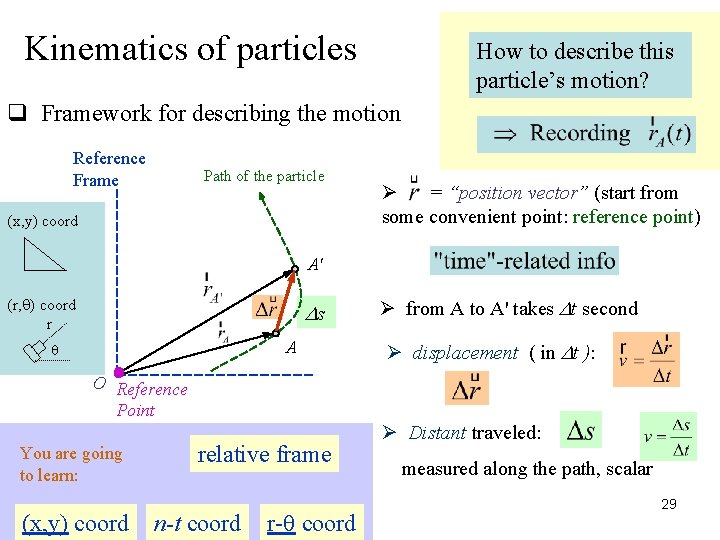

Kinematics of particles How to describe this particle’s motion? q Framework for describing the motion Reference Frame Path of the particle (x, y) coord Ø = “position vector” (start from some convenient point: reference point) A' (r, ) coord r s A Ø from A to A' takes t second Ø displacement ( in t ): O Reference Point You are going to learn: (x, y) coord relative frame n-t coord r- coord Ø Distant traveled: measured along the path, scalar 29

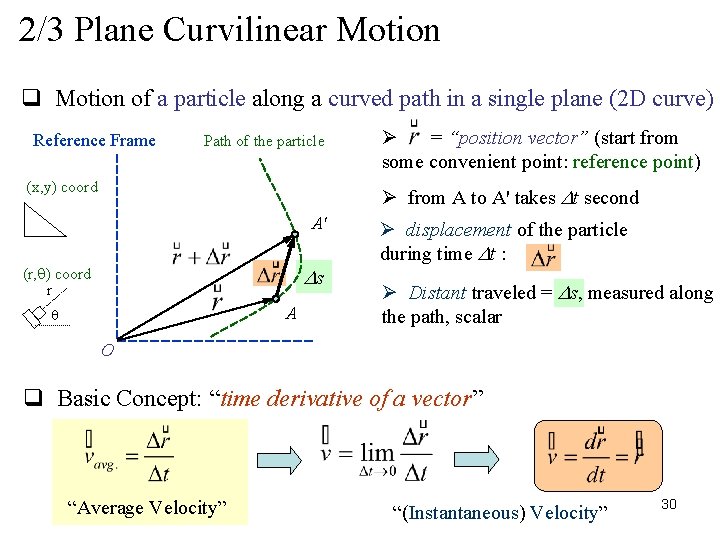

2/3 Plane Curvilinear Motion q Motion of a particle along a curved path in a single plane (2 D curve) Reference Frame Path of the particle (x, y) coord Ø = “position vector” (start from some convenient point: reference point) Ø from A to A' takes t second A' s (r, ) coord r A Ø displacement of the particle during time t : Ø Distant traveled = s, measured along the path, scalar O q Basic Concept: “time derivative of a vector” “Average Velocity” “(Instantaneous) Velocity” 30

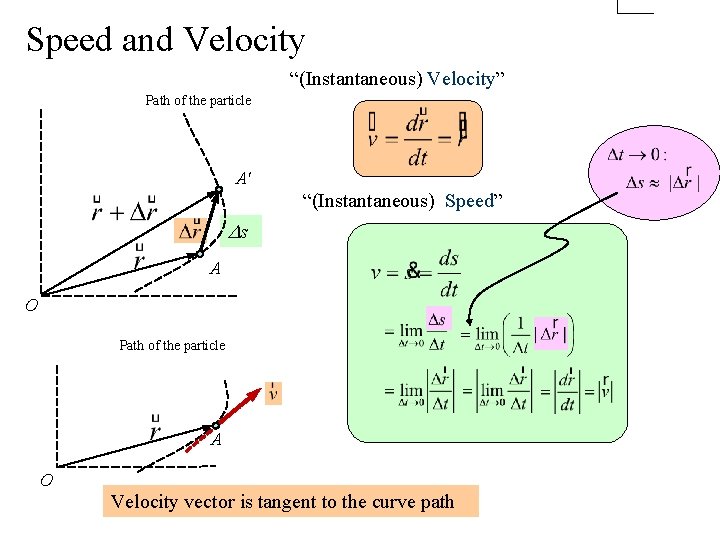

Speed and Velocity “(Instantaneous) Velocity” Path of the particle A' “(Instantaneous) Speed” s A O Path of the particle A O Velocity vector is tangent to the curve path

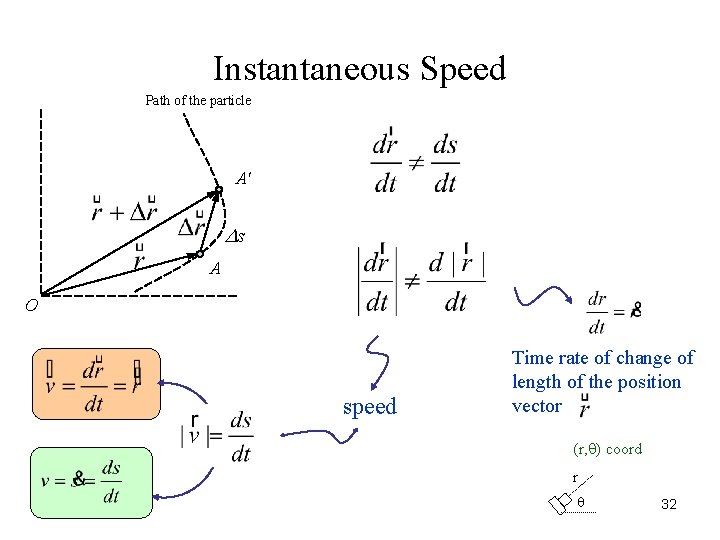

Instantaneous Speed Path of the particle A' s A O speed Time rate of change of length of the position vector (r, ) coord r 32

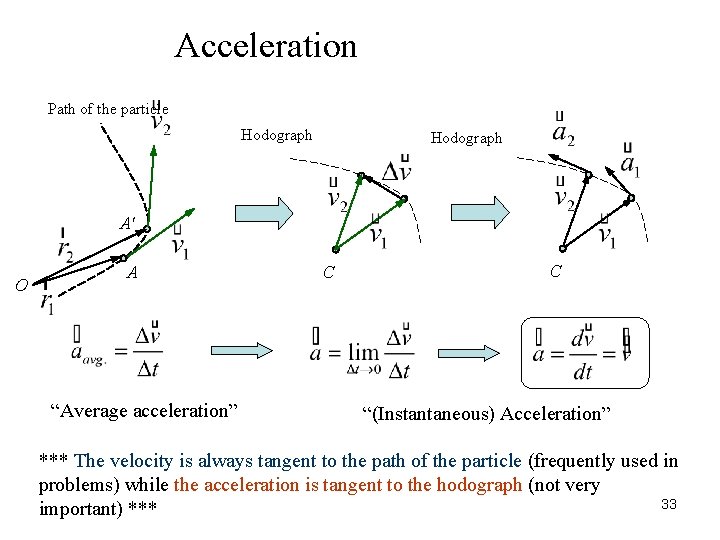

Acceleration Path of the particle Hodograph A' O A “Average acceleration” C C “(Instantaneous) Acceleration” *** The velocity is always tangent to the path of the particle (frequently used in problems) while the acceleration is tangent to the hodograph (not very 33 important) ***

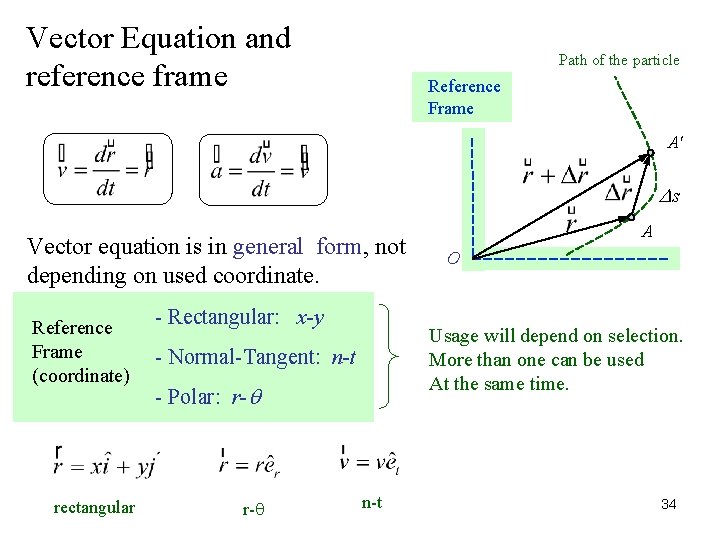

Vector Equation and reference frame Path of the particle Reference Frame A' s Vector equation is in general form, not depending on used coordinate. Reference Frame (coordinate) rectangular - Rectangular: x-y O Usage will depend on selection. More than one can be used At the same time. - Normal-Tangent: n-t - Polar: r- A n-t 34

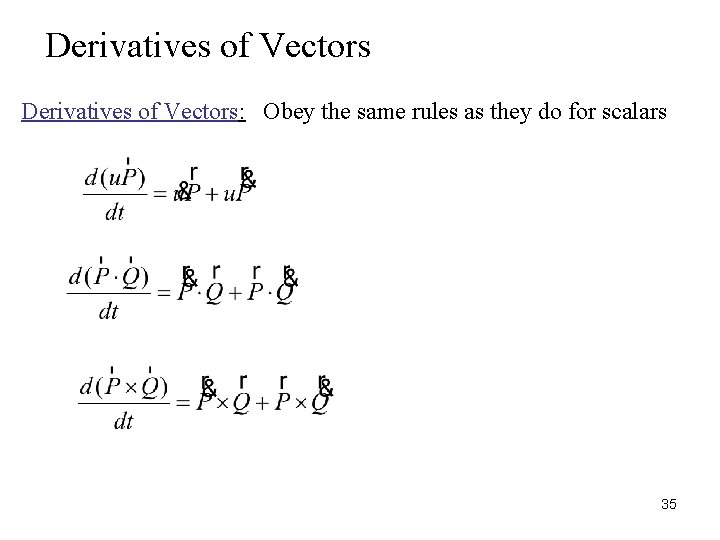

Derivatives of Vectors: Obey the same rules as they do for scalars 35

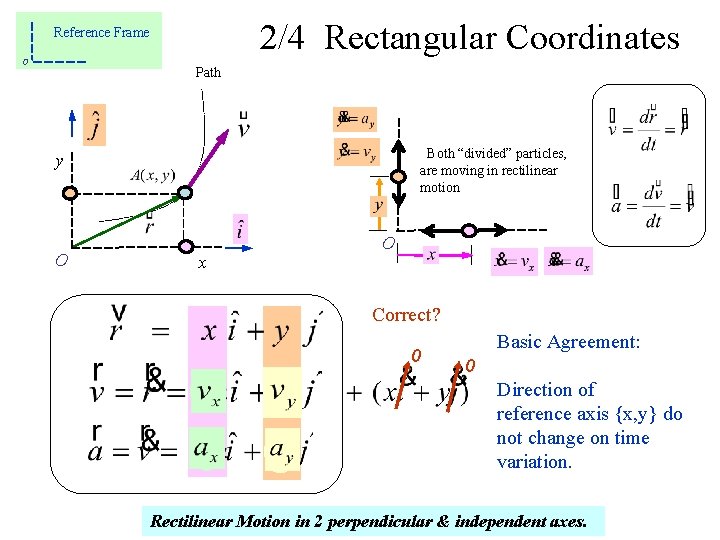

2/4 Rectangular Coordinates Reference Frame O Path Both “divided” particles, are moving in rectilinear motion y O x O Correct? 0 Basic Agreement: 0 Direction of reference axis {x, y} do not change on time variation. Rectilinear Motion in 2 perpendicular & independent axes.

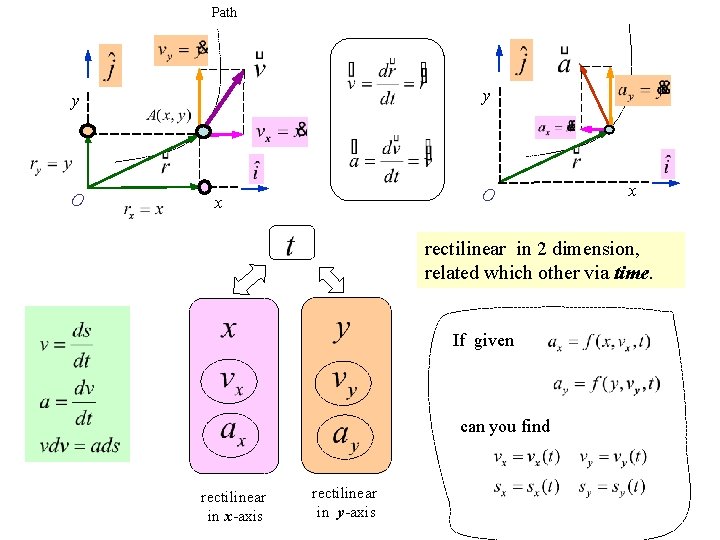

Path y y O O x x rectilinear in 2 dimension, related which other via time. If given can you find rectilinear in x-axis rectilinear in y-axis
Common Cases Rectangular coordinates are usually good for problems where x and y variables can be calculated independently! Ex 1) Given ax = f 1(t) and ay = f 2(t) Ex 2) Given x = f 1(t) and y = f 2(t) From this, you can find “path” of particles
Projectile motion • The most common case is when ax = 0 and ay = -g (approximation) • x and y direction can be calculated independently y vo vx (vo)y = v 0 sin vx g vy (vo)x = v 0 cos x-axis a=0 v vy Note: a = const v x y-axis vx = (vo)x x = xo + (vo)xt 40 ( in case of )

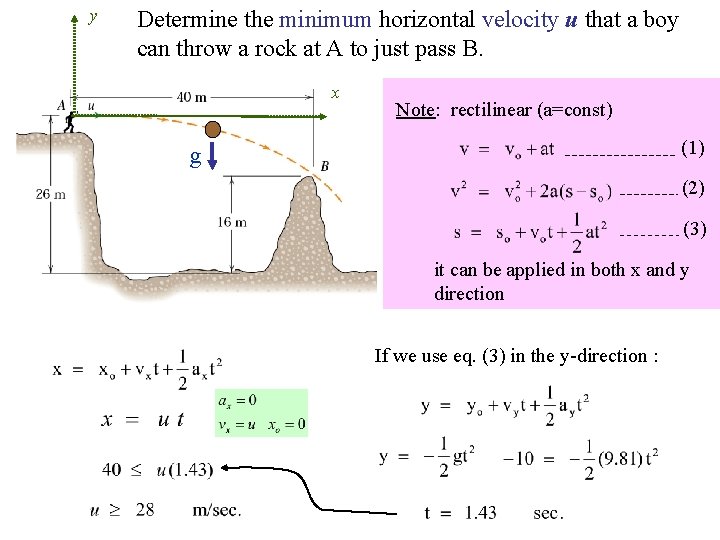

y Determine the minimum horizontal velocity u that a boy can throw a rock at A to just pass B. x Note: rectilinear (a=const) (1) g (2) (3) it can be applied in both x and y direction If we use eq. (3) in the y-direction :
k : const Find x-, y-component of velocity and displacement as function of time , if the drag on the projectile results in an acceleration term as specified. Include the gravitational acceleration. 42

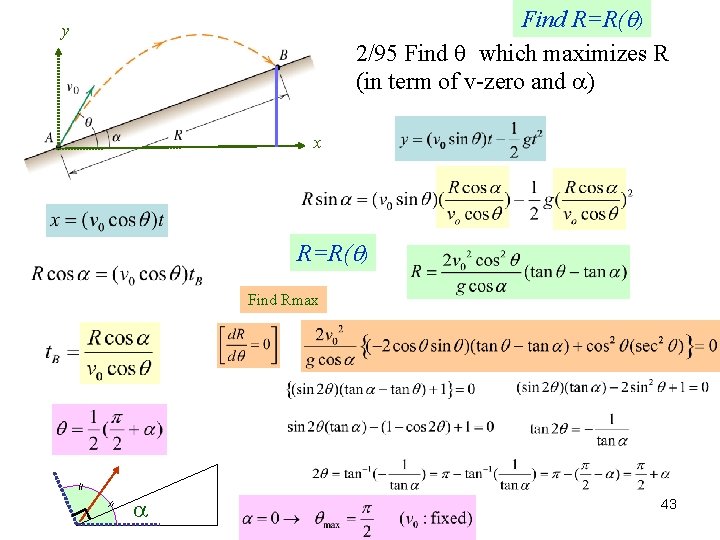

Find R=R( ) 2/95 Find which maximizes R (in term of v-zero and a) y x R=R( ) Find Rmax a 43

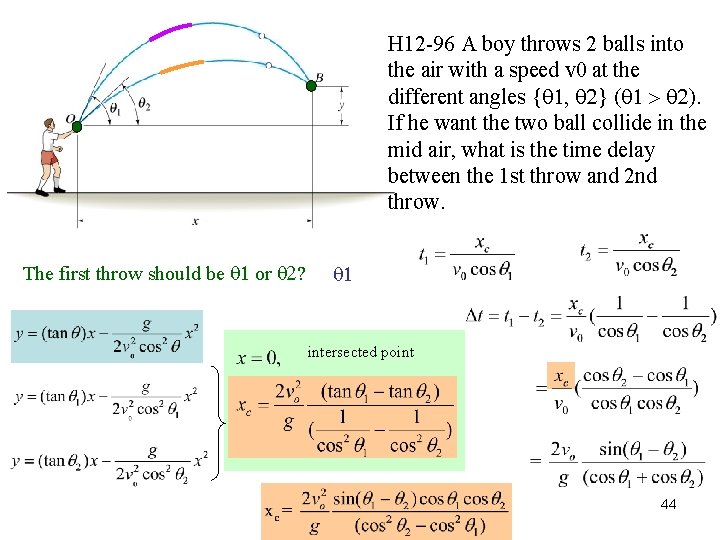

H 12 -96 A boy throws 2 balls into the air with a speed v 0 at the different angles { 1, 2} ( 1 > 2). If he want the two ball collide in the mid air, what is the time delay between the 1 st throw and 2 nd throw. The first throw should be 1 or 2? 1 intersected point 44

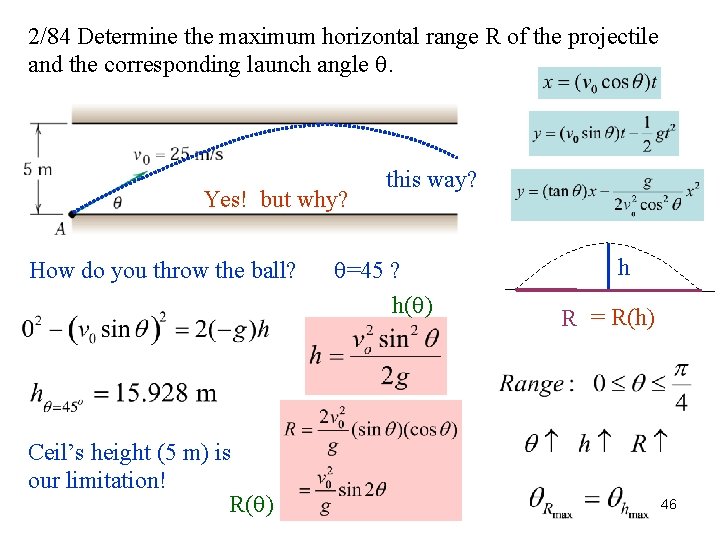

2/84 Determine the maximum horizontal range R of the projectile and the corresponding launch angle . Yes! but why? How do you throw the ball? Ceil’s height (5 m) is our limitation! R( ) this way? =45 ? h( ) h R = R(h) 46
2/84 Determine the maximum horizontal range R of the projectile and the corresponding launch angle . this way? 47
H 12/92 The man throws a ball with a speed v=15 m/s. Determine the angle q at which he should released the ball so that it strikes the wall at the highest point possible. The room has a ceiling height of 6 m. 48

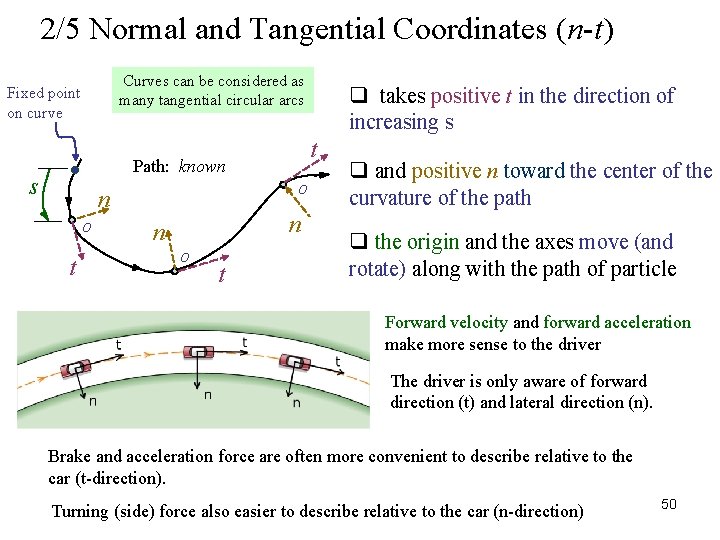

2/5 Normal and Tangential Coordinates (n-t) Curves can be considered as many tangential circular arcs Fixed point on curve t Path: known s O n O t n n O t q takes positive t in the direction of increasing s q and positive n toward the center of the curvature of the path q the origin and the axes move (and rotate) along with the path of particle Forward velocity and forward acceleration make more sense to the driver The driver is only aware of forward direction (t) and lateral direction (n). Brake and acceleration force are often more convenient to describe relative to the car (t-direction). Turning (side) force also easier to describe relative to the car (n-direction) 50

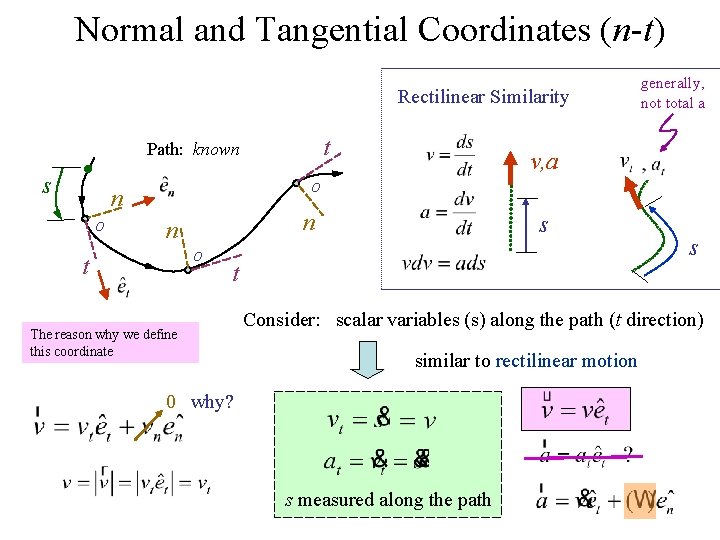

Normal and Tangential Coordinates (n-t) Rectilinear Similarity t Path: known s v, a O n O generally, not total a n n O t s s t The reason why we define this coordinate Consider: scalar variables (s) along the path (t direction) similar to rectilinear motion 0 why? s measured along the path 51
Velocity Small curves can be considered as circular arcs Path C ** The velocity is always tangent to the path ** Velocity ( ): Speed: A d A Fixed point on curve ds = (d ) y path x 52

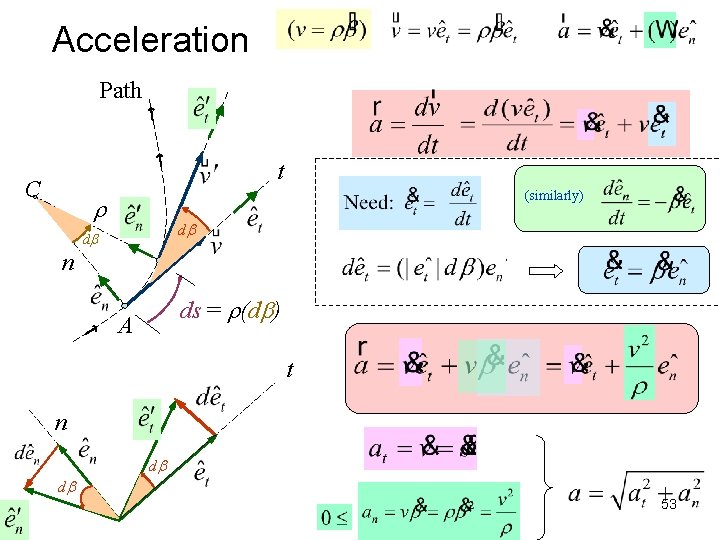

Acceleration Path t C (similarly) d d A n ds = (d ) A t n d d 53

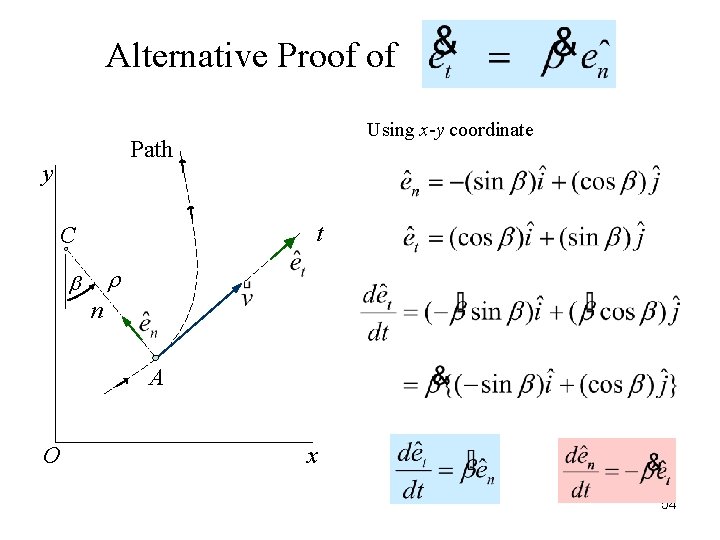

Alternative Proof of Using x-y coordinate Path y t C n A O x 54

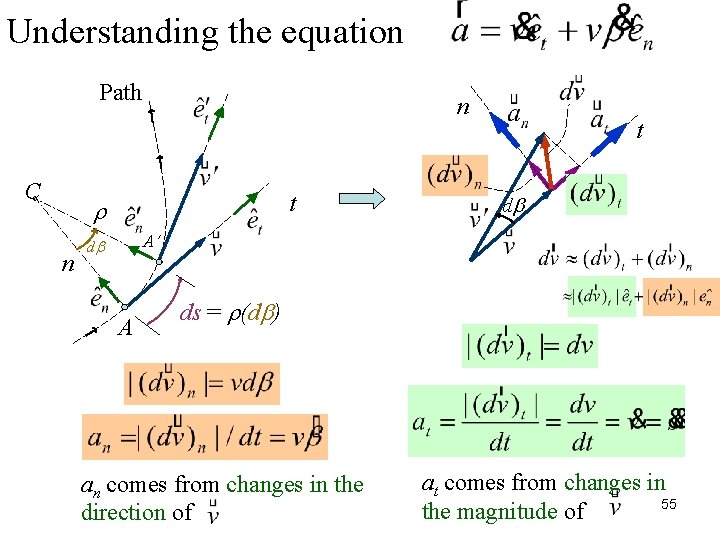

Understanding the equation Path C n t d A ds = (d ) an comes from changes in the direction of at comes from changes in 55 the magnitude of
What to remember by definition of n-t axis Rectilinear Similarity generally, not total a v, a s y s path x

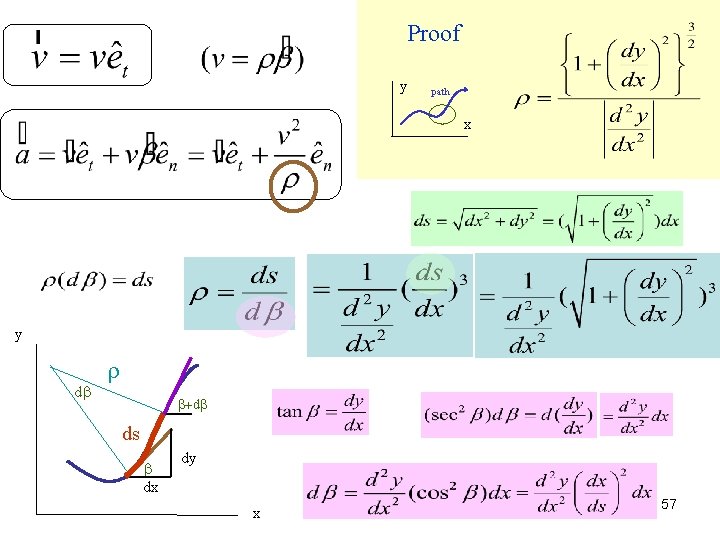

Proof y path x y d +d ds dx dy x 57

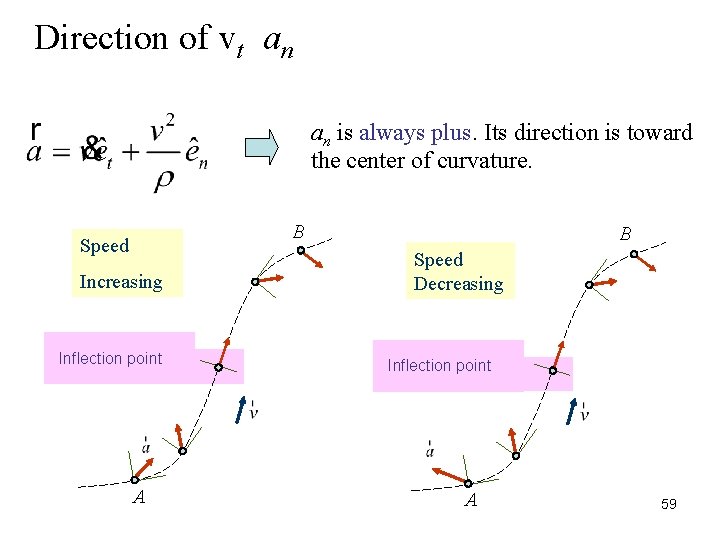

Direction of vt an an is always plus. Its direction is toward the center of curvature. B Speed Increasing Inflection point A B Speed Decreasing Inflection point A 59

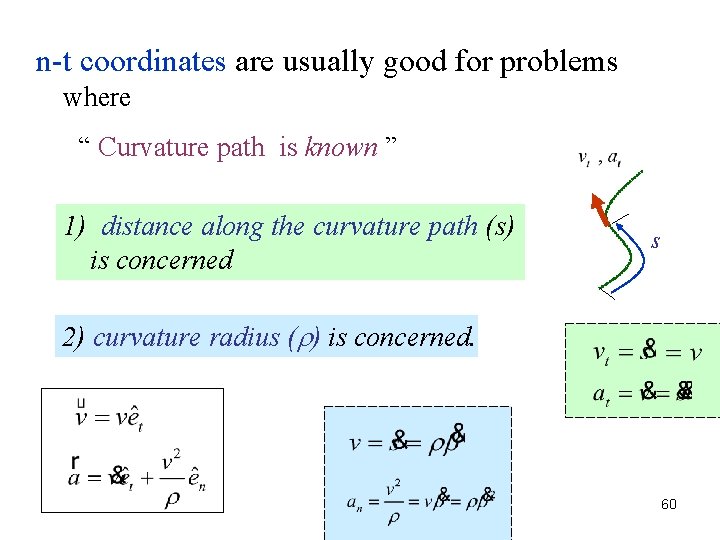

n-t coordinates are usually good for problems where “ Curvature path is known ” 1) distance along the curvature path (s) is concerned s 2) curvature radius ( ) is concerned. 60

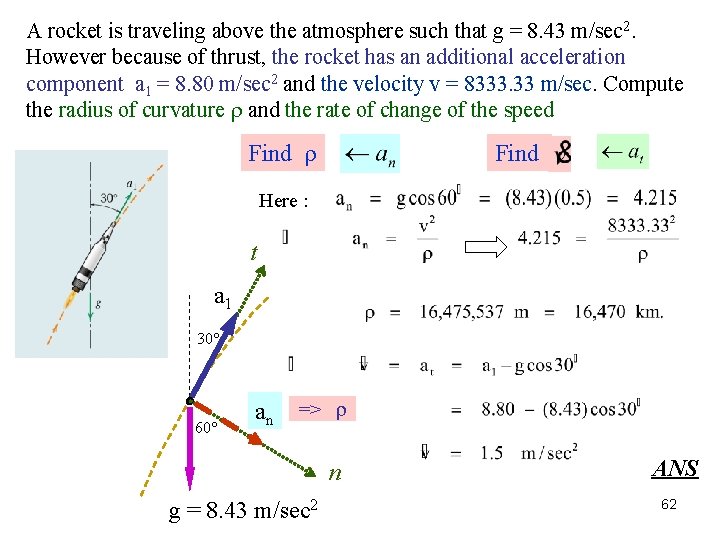

A rocket is traveling above the atmosphere such that g = 8. 43 m/sec 2. However because of thrust, the rocket has an additional acceleration component a 1 = 8. 80 m/sec 2 and the velocity v = 8333. 33 m/sec. Compute the radius of curvature and the rate of change of the speed Find Here : t a 1 30° 60° an => n g = 8. 43 m/sec 2 ANS 62

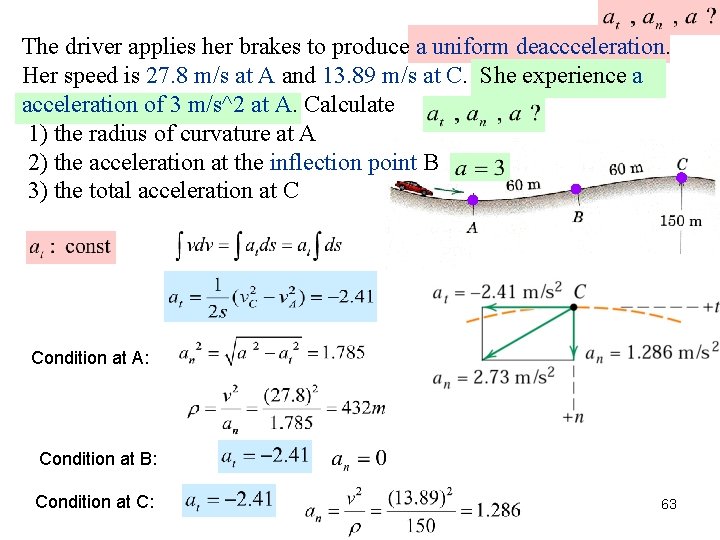

The driver applies her brakes to produce a uniform deaccceleration. Her speed is 27. 8 m/s at A and 13. 89 m/s at C. She experience a acceleration of 3 m/s^2 at A. Calculate 1) the radius of curvature at A 2) the acceleration at the inflection point B 3) the total acceleration at C Condition at A: Condition at B: Condition at C: 63

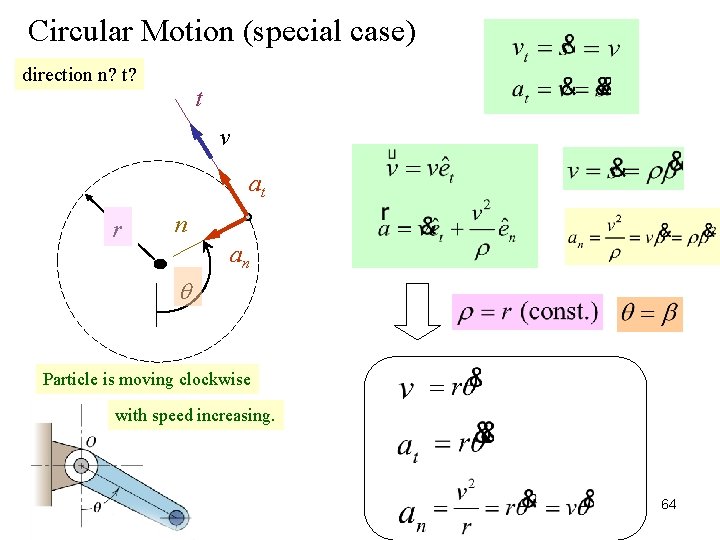

Circular Motion (special case) direction n? t? t v at r n an Particle is moving clockwise with speed increasing. 64

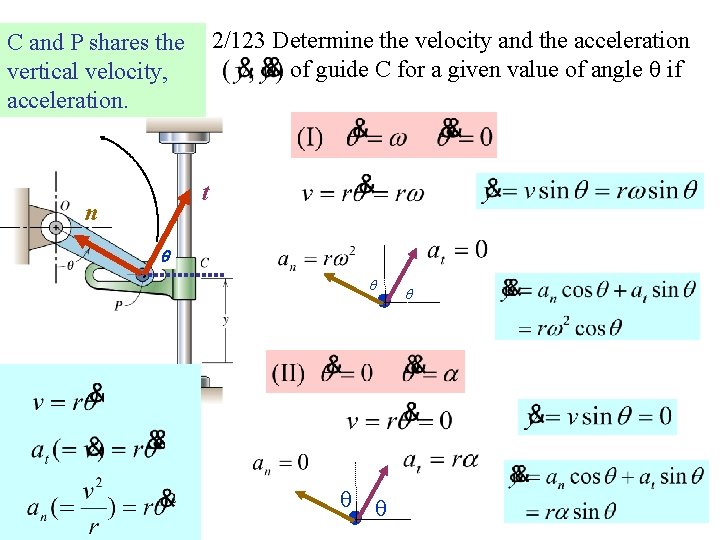

2/123 Determine the velocity and the acceleration of guide C for a given value of angle if C and P shares the vertical velocity, acceleration. t n q 65

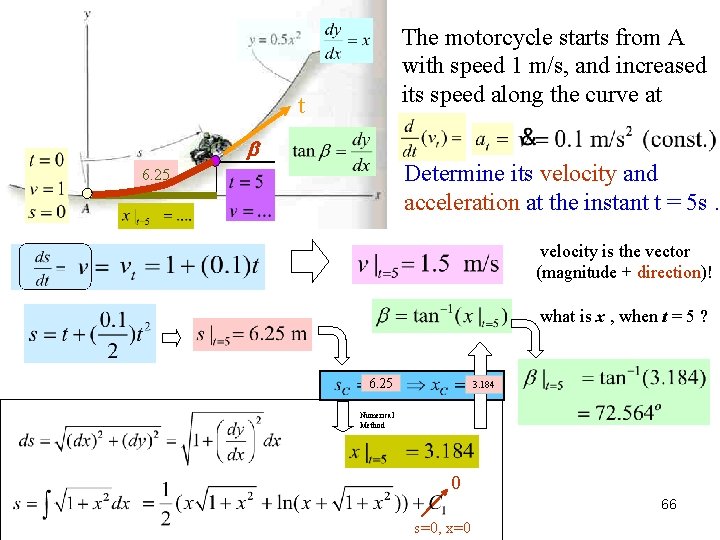

The motorcycle starts from A with speed 1 m/s, and increased its speed along the curve at t b Determine its velocity and acceleration at the instant t = 5 s. 6. 25 velocity is the vector (magnitude + direction)! what is x , when t = 5 ? 6. 25 3. 184 Numerical Method 0 66 s=0, x=0

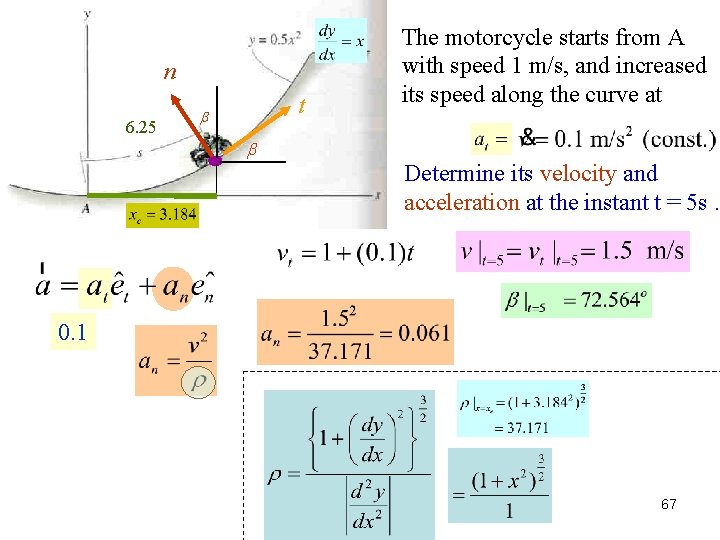

n 6. 25 t The motorcycle starts from A with speed 1 m/s, and increased its speed along the curve at Determine its velocity and acceleration at the instant t = 5 s. 0. 1 67
2/6 Polar Coordinates ( r - ) Radar Coordinate t r q 0. 0 0. 1 0. 2 0. 3 0. 4 0. 5 25. 1 26. 2 26. 1 24. 8 23. 2 25. 2 32. 0 35. 0 39. 0 40. 0 37. 0 35. 0 Detect What is the velocity and acceleration of the plane? Path q direction of = direction of positive r r A reference point reference axis 69

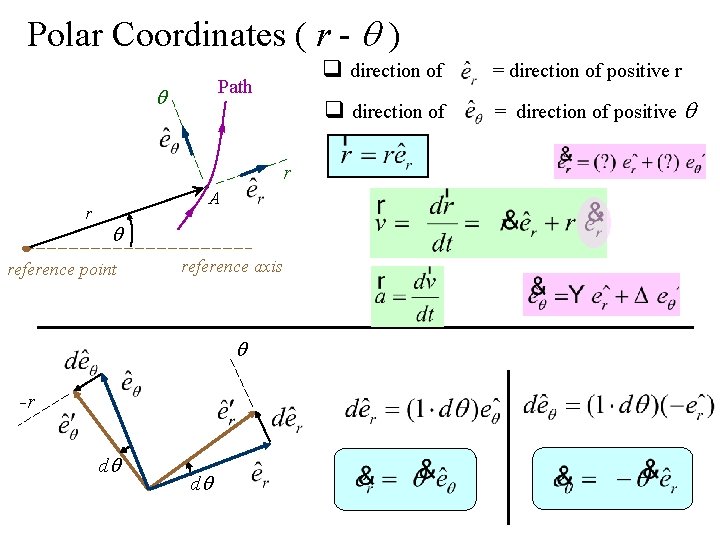

Polar Coordinates ( r - ) Path q direction of = direction of positive r r A reference point reference axis -r d d 70

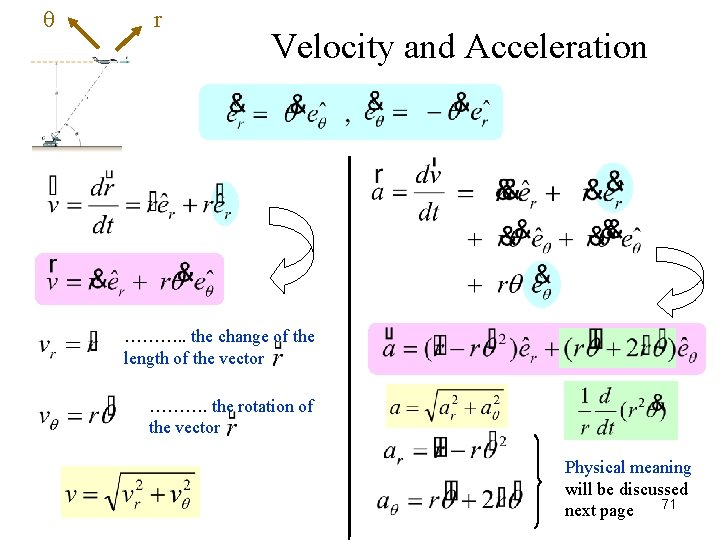

r Velocity and Acceleration ………. . the change of the length of the vector ………. the rotation of the vector Physical meaning will be discussed next page 71

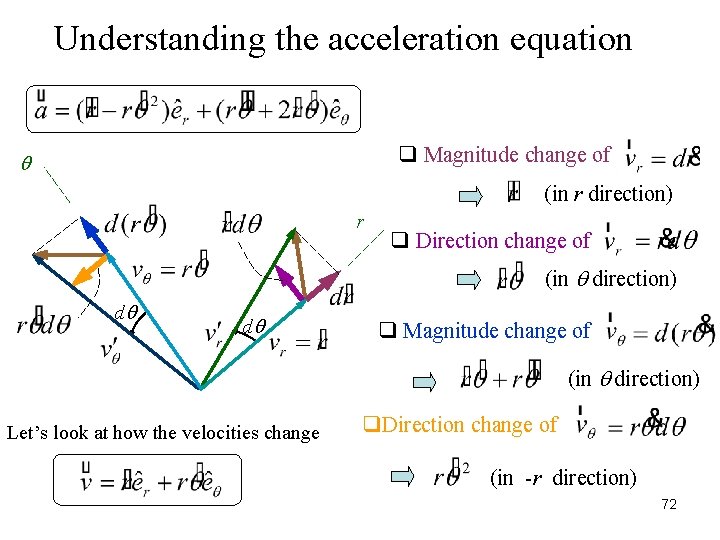

Understanding the acceleration equation q Magnitude change of (in r direction) r q Direction change of (in direction) d d q Magnitude change of (in direction) Let’s look at how the velocities change q. Direction change of (in -r direction) 72

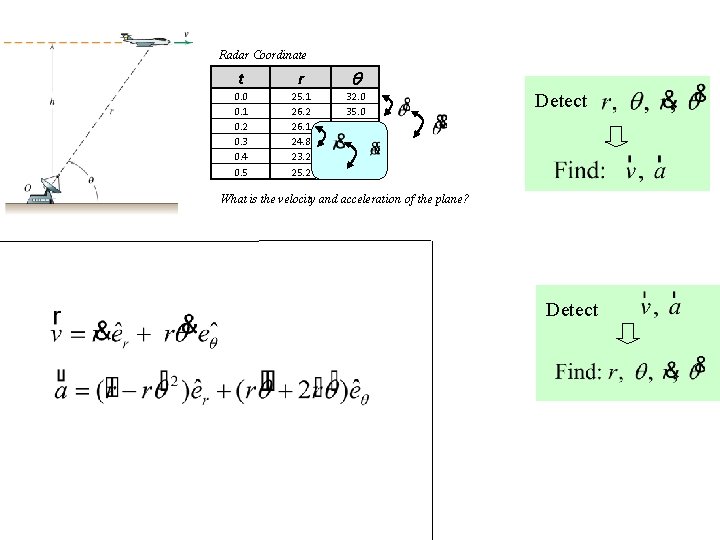

Radar Coordinate t r q 0. 0 0. 1 0. 2 0. 3 0. 4 0. 5 25. 1 26. 2 26. 1 24. 8 23. 2 25. 2 32. 0 35. 0 39. 0 40. 0 37. 0 35. 0 Detect What is the velocity and acceleration of the plane? Detect

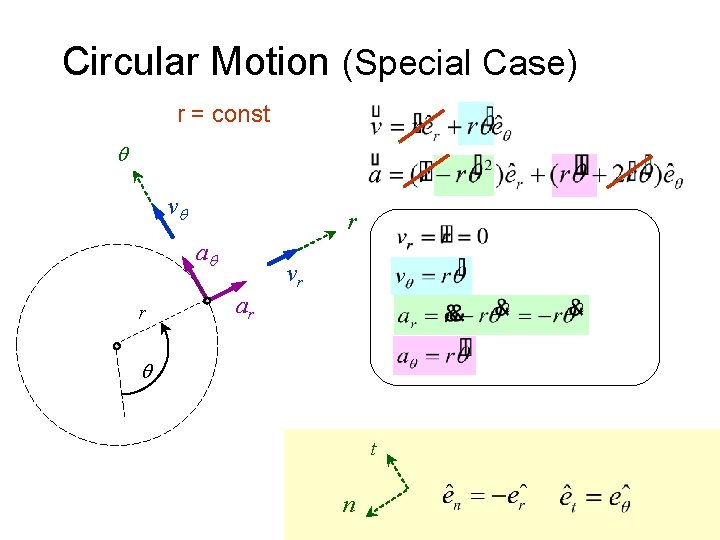

Circular Motion (Special Case) r = const v r a r vr ar t n 75

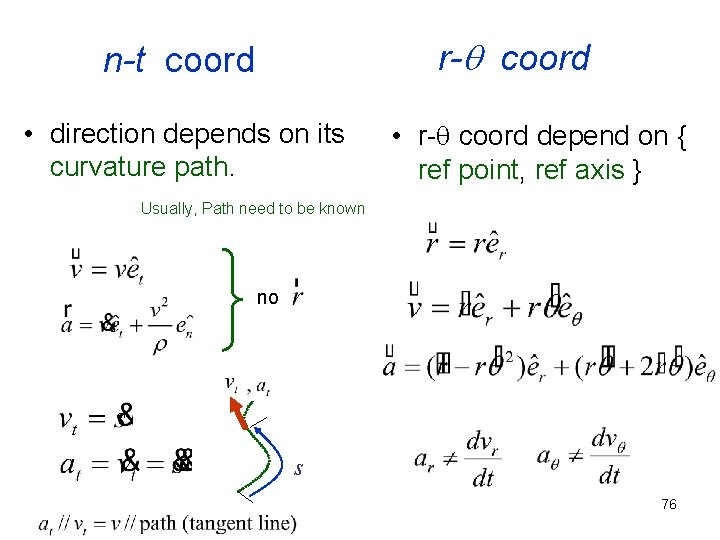

r- coord n-t coord • direction depends on its curvature path. • r- coord depend on { ref point, ref axis } Usually, Path need to be known no s 76

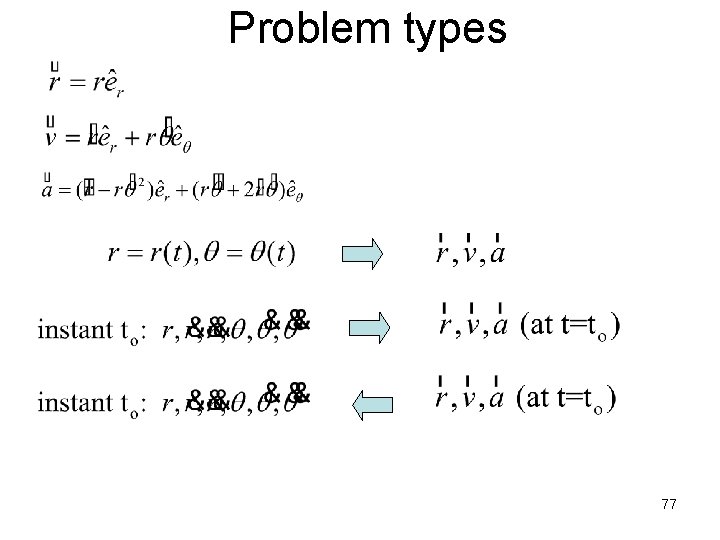

Problem types 77
2/145 The angular position of the arm is given by the shown function, where is in radians and t is in seconds. The slider is at r = 1. 6 m (t = 0) and is drawn inward at the constant rate of 0. 2 m/s. Determine the magnitude and direction (expressed by the angle relative to the x-axis) of the velocity and acceleration of the slider when t = 4. At t = 4 s: v Ans y a x Ans

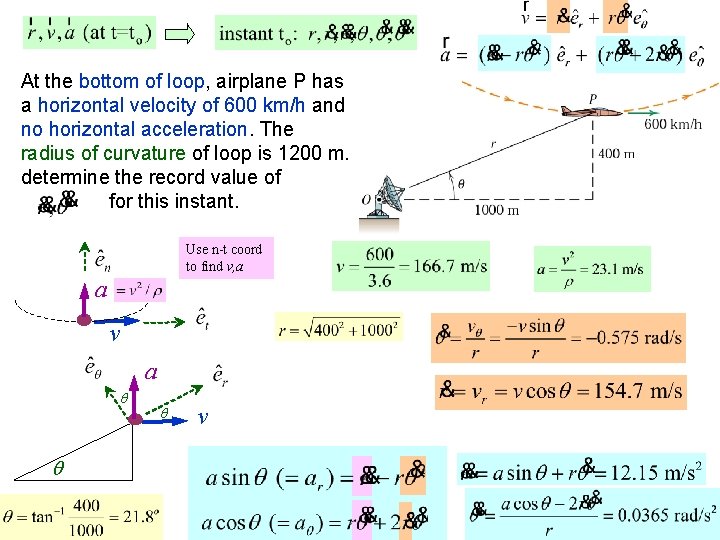

At the bottom of loop, airplane P has a horizontal velocity of 600 km/h and no horizontal acceleration. The radius of curvature of loop is 1200 m. determine the record value of for this instant. Use n-t coord to find v, a a v a v 81

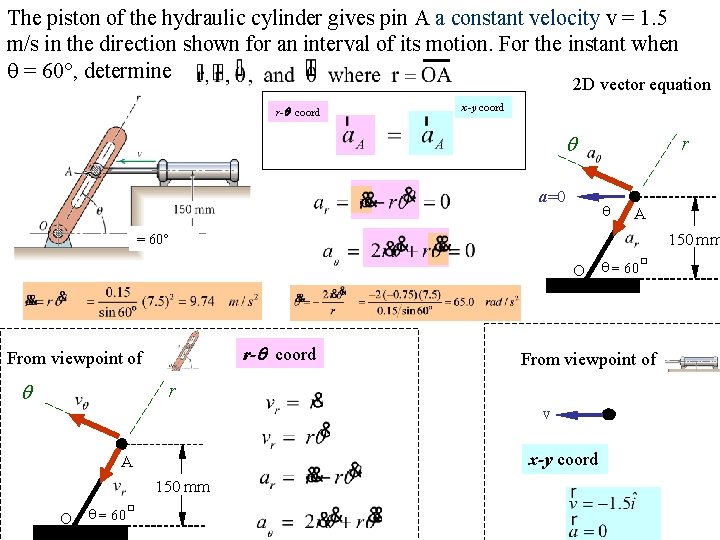

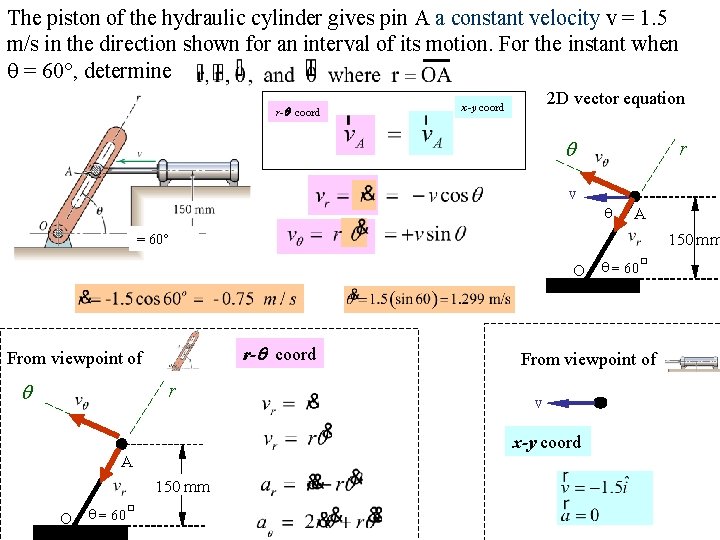

The piston of the hydraulic cylinder gives pin A a constant velocity v = 1. 5 m/s in the direction shown for an interval of its motion. For the instant when = 60°, determine r-q coord 2 D vector equation x-y coord r v A 150 mm = 60° O r-q coord From viewpoint of r 150 mm o O = 60 o From viewpoint of v x-y coord A = 60
The piston of the hydraulic cylinder gives pin A a constant velocity v = 1. 5 m/s in the direction shown for an interval of its motion. For the instant when = 60°, determine 2 D vector equation r-q coord x-y coord a=0 r A 150 mm = 60° O r-q coord From viewpoint of v x-y coord 150 mm o O = 60 o From viewpoint of r A = 60
The piston of the hydraulic cylinder has a constant velocity v = 1. 5 m/s For the instant when = 60°, determine = 60° x-y coord r-q coord mag? mag=0 Only max 2 unknown to be solved 0 r- coord x-y coord
velocity mag? x-y coord = 60° mag? r- coord Alternate Solution ? ? Acceleration mag? x-y coord mag? r- coord 85

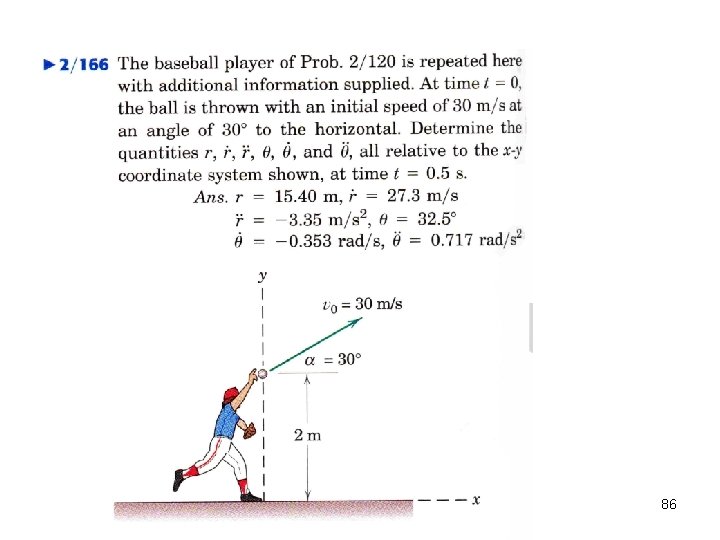

86
sx y r At t = 0. 5 s vy s y vx 2 = 15. 401 m = 32. 495 deg x x-y coord = 12. 990 m = 27. 337 m/s = 6. 274 m = 25. 981 m/s = -0. 353 rad/s = 10. 095 m/s 87
The slotted link is pinned at O, and as a result of the constant angular velocity 3 rad/s, it drives the peg P for a short distance along the spiral guide r = 0. 4 q m, where is in radians. Determine the velocity and acceleration of the particle at the instant it leaves the slot in the link, i. e. when r = 0. 5 m Use r- where reference-origin is at O, and reference axis is horizontal line. Constrained motion at r=0. 5 89

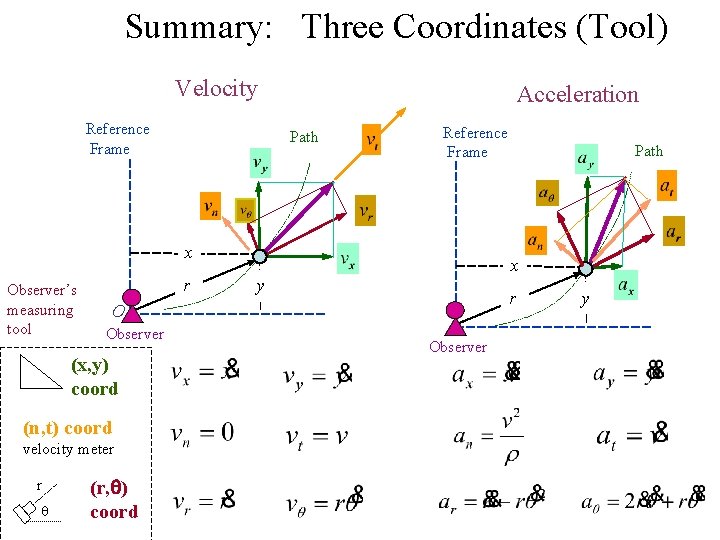

Summary: Three Coordinates (Tool) Velocity Reference Frame Acceleration Path Reference Frame x Observer’s measuring tool r x y r O Observer (x, y) coord Path y Observer (n, t) coord velocity meter r (r, q) coord 92

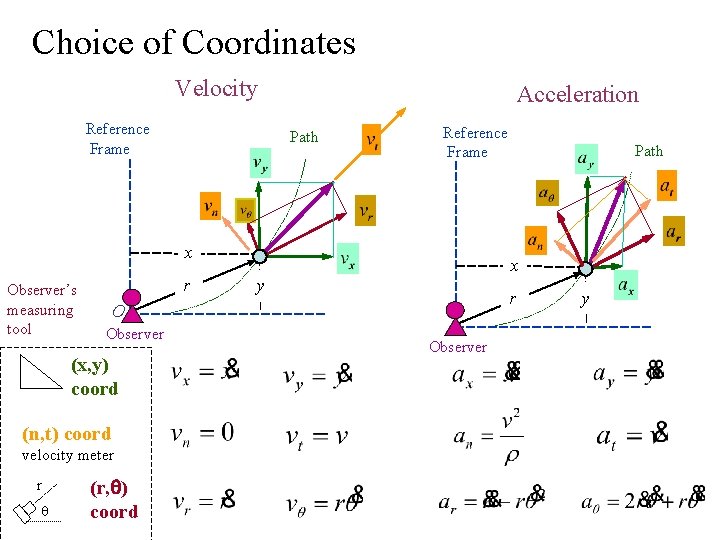

Choice of Coordinates Velocity Reference Frame Acceleration Path Reference Frame x Observer’s measuring tool r x y r O Observer (x, y) coord Path y Observer (n, t) coord velocity meter r (r, q) coord 93
Translating Observer’s Measuring tool (x, y) coord “Translating-only Frame” will be studied today (r, ) coord Rotating No! Path Observer B (moving) (n, t) coord velocity meter r Two observers (moving and not moving) see the particle moving the same way? Observer O (non-moving) Which observer sees the “true” velocity? A both! It’s matter of viewpoint. This particle path, depends on specific observer’s viewpoint “relative” “absolute” Two observers (rotating and non rotating) see the particle moving the same way? Point: if O understand B’s motion, he can describe the velocity which B sees. No! Observer (non-rotating) “Rotating axis” will be studied later. “translating” “rotating” 95

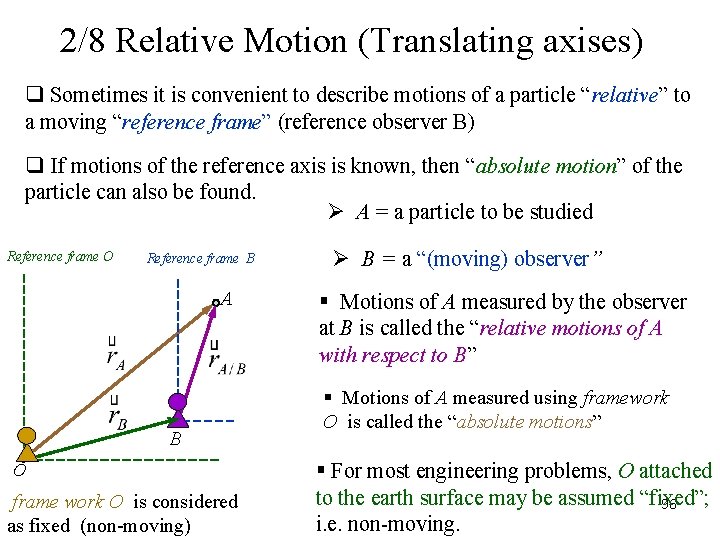

2/8 Relative Motion (Translating axises) q Sometimes it is convenient to describe motions of a particle “relative” to a moving “reference frame” (reference observer B) q If motions of the reference axis is known, then “absolute motion” of the particle can also be found. Ø A = a particle to be studied Reference frame O Reference frame B A B O frame work O is considered as fixed (non-moving) Ø B = a “(moving) observer” § Motions of A measured by the observer at B is called the “relative motions of A with respect to B” § Motions of A measured using framework O is called the “absolute motions” § For most engineering problems, O attached to the earth surface may be assumed “fixed”; 96 i. e. non-moving.
Relative position Y ØIf the observer at B use the x-y ** coordinate system to describe the position vector of A we have y A B O x ØHere we will consider only the case where the x-y axis is not rotating (translate only) X where = position vector of A relative to B (or with respect to B), and are the unit vectors along x and y axes (x, y) is the coordinate of A measured in x-y frame ** other coordinates systems can be used; e. g. n-t. 97

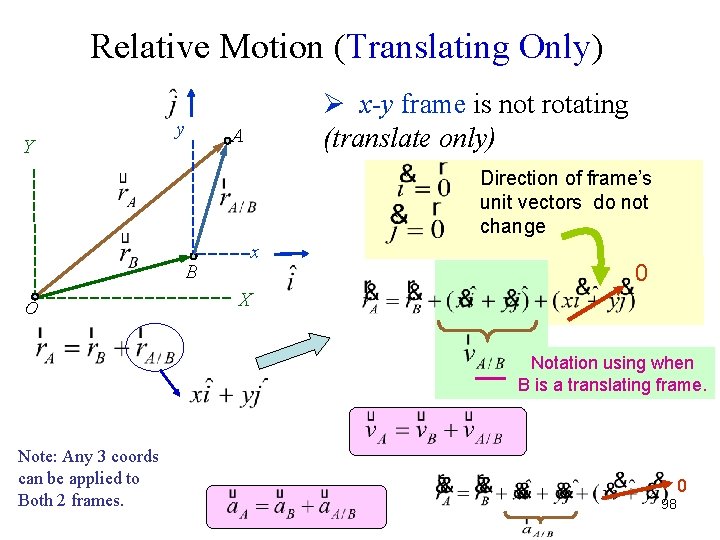

Relative Motion (Translating Only) Y y Ø x-y frame is not rotating (translate only) A Direction of frame’s unit vectors do not change B O x 0 X Notation using when B is a translating frame. Note: Any 3 coords can be applied to Both 2 frames. 0 98

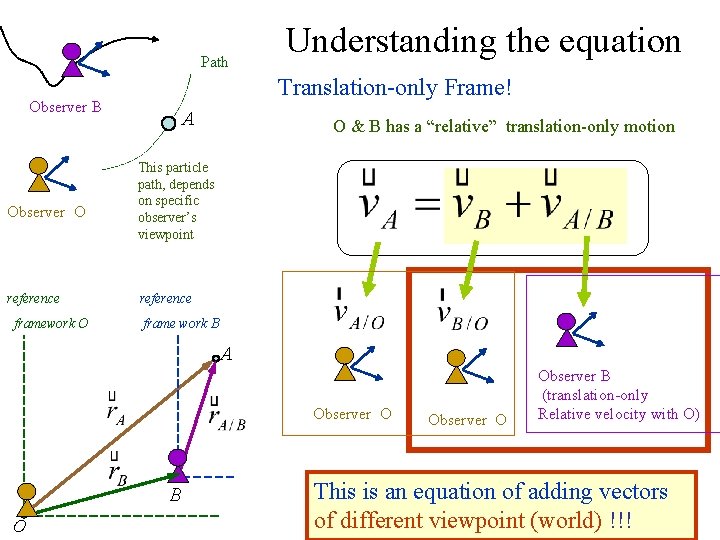

Path Translation-only Frame! Observer B Observer O reference framework O Understanding the equation A O & B has a “relative” translation-only motion This particle path, depends on specific observer’s viewpoint reference frame work B A Observer O B O Observer B (translation-only Relative velocity with O) This is an equation of adding vectors 99 of different viewpoint (world) !!!
The passenger aircraft B is flying with a linear motion to theeast with velocity v. B = 800 km/h. A jet is traveling south with velocity v. A = 1200 km/h. What velocity does A appear to a passenger in B ? Solution y x 100
Translational-only relative velocity You can find v and a of B 101
v v. A y v. B x y a. B v. A/B Velocity Diagram a. A/B x Acceleration Diagram 102

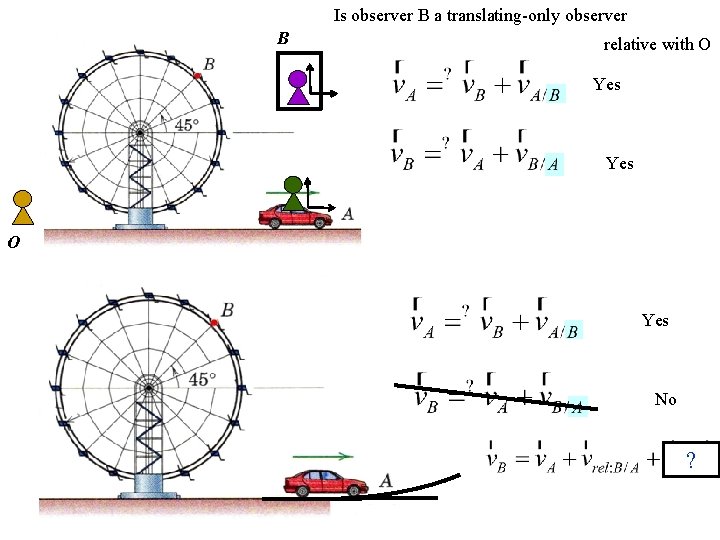

Is observer B a translating-only observer B relative with O Yes No ?

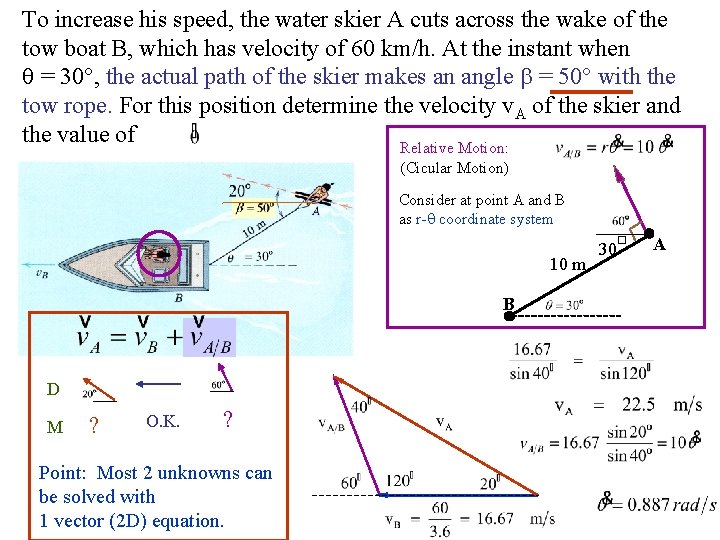

To increase his speed, the water skier A cuts across the wake of the tow boat B, which has velocity of 60 km/h. At the instant when = 30°, the actual path of the skier makes an angle = 50° with the tow rope. For this position determine the velocity v. A of the skier and the value of Relative Motion: (Cicular Motion) Consider at point A and B as r- coordinate system 10 m 30 o A B D M ? O. K. ? Point: Most 2 unknowns can be solved with 1 vector (2 D) equation. 104

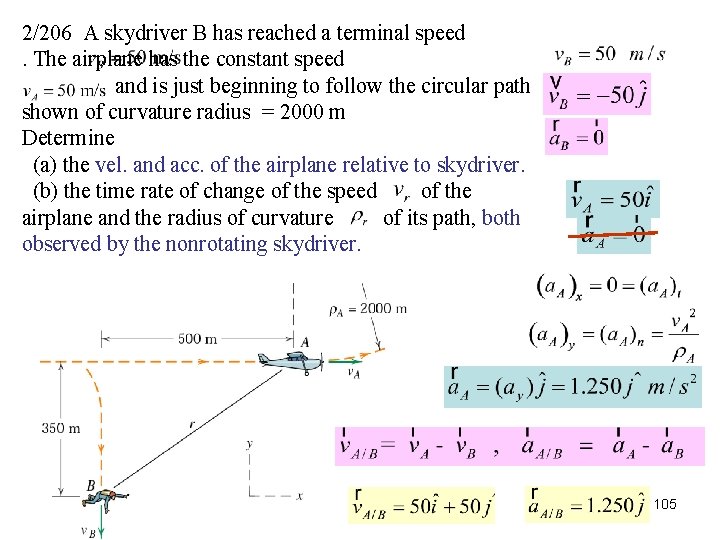

2/206 A skydriver B has reached a terminal speed. The airplane has the constant speed and is just beginning to follow the circular path shown of curvature radius = 2000 m Determine (a) the vel. and acc. of the airplane relative to skydriver. (b) the time rate of change of the speed of the airplane and the radius of curvature of its path, both observed by the nonrotating skydriver. 105

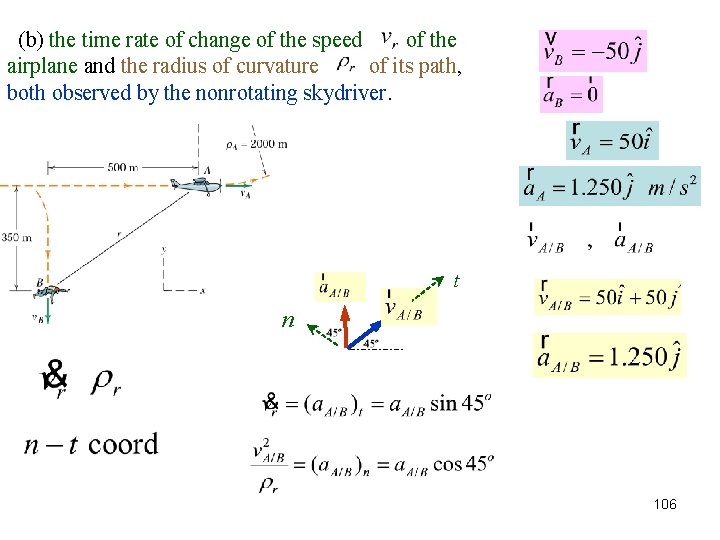

(b) the time rate of change of the speed of the airplane and the radius of curvature of its path, both observed by the nonrotating skydriver. t n 106

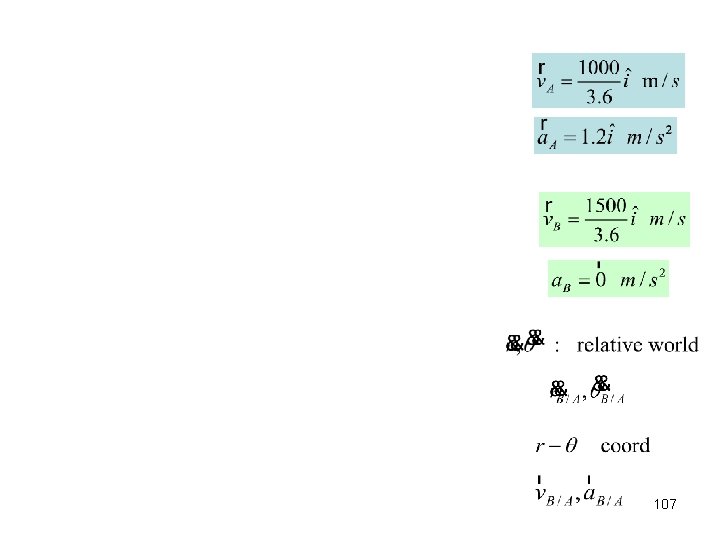

107

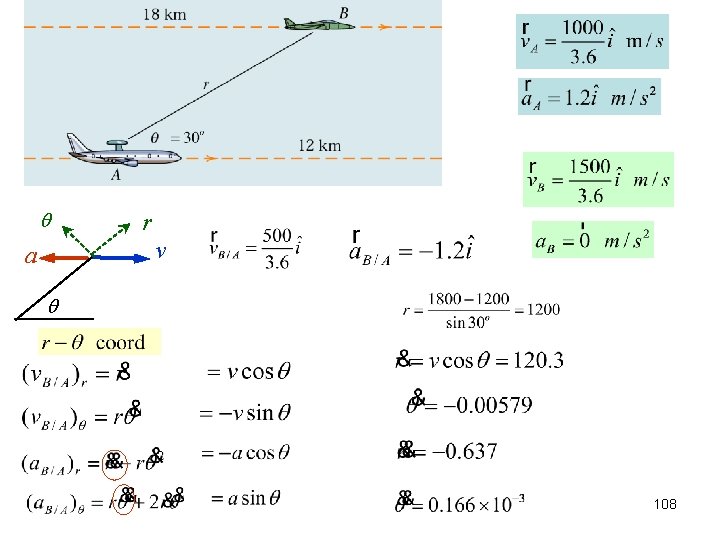

r v a 108
