Dynamic Memory Allocation Agenda Process Layout Memory Allocation
- Slides: 137
Dynamic Memory Allocation
Agenda • Process Layout • Memory Allocation Algorithms • Garbage Collection Algorithms Reference: Ch. 5. 7 and 8. 5

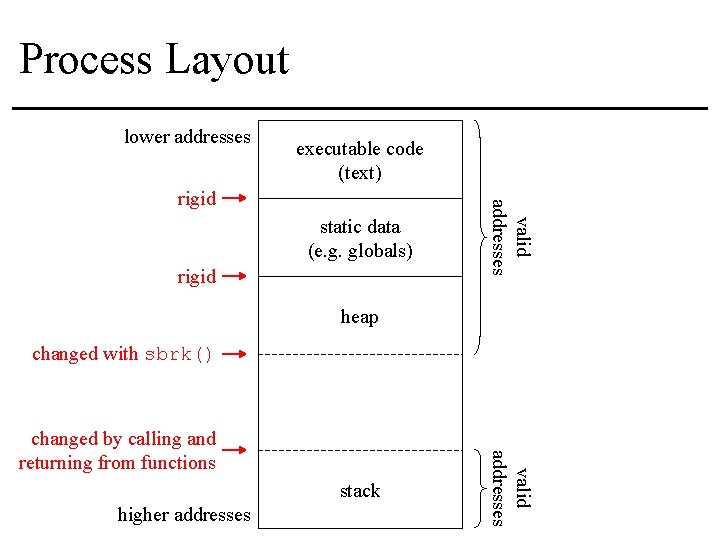

Process Layout lower addresses executable code (text) static data (e. g. globals) heap stack higher addresses
Process Layout lower addresses executable code (text) valid addresses static data (e. g. globals) heap higher addresses valid addresses stack
Process Layout lower addresses executable code (text) static data (e. g. globals) rigid valid addresses rigid heap changed with sbrk() stack higher addresses valid addresses changed by calling and returning from functions
sbrk() • #include <unistd. h> • Prototype: void *sbrk(ptrdiff_t increment); • Increases or decreases the address of the bottom of the heap • Returns the previous address • sbrk(0) can be used to obtain the current address • Implementation of sbrk() is operating system dependent
Example • Compiled on queen using gcc, this program produces the following output: 0 x 00020908 #include <stdio. h> #include <stdlib. h> #include <unistd. h> int main() { printf("0 x%08 pn", sbrk(0)); 0 x 00022908 malloc(1024); printf("0 x%08 pn", sbrk(0)); return 0; }
What happened… • Initially, the heap ended at 0 x 00020908 executable code (text) static data (e. g. globals) 0 x 00020908 stack
What happened… • Initially, the heap ended at 0 x 00020908 • Then I said that I needed an additional 1 k executable code (text) static data (e. g. globals) 0 x 00020908 stack
What happened… • Initially, the heap ended at 0 x 00020908 • Then I said that I needed an additional 1 k • So malloc() increased the heap size by 8 k executable code (text) static data (e. g. globals) 0 x 00020908 0 x 00022908 stack
Agenda • Process Layout • Memory Allocation Algorithms – Fixed Size – Variable Size • • First-Fit Next-Fit Best-Fit The Buddy Algorithm • Garbage Collection Algorithms
Fixed Size Algorithm • Maintain a list of free blocks (the free-list) • To allocate a block, pop one off the front of the list • To free a block, push it back onto the front of the list
Fixed Size Algorithm Obtain a large chunk of memory
Fixed Size Algorithm Divide it up into blocks of the appropriate size
Fixed Size Algorithm Give each of the blocks a four-byte header
Fixed Size Algorithm front Use these headers as next-pointers, and arrange the blocks into a linked list
Fixed Size Algorithm front To allocate a block, pop one off the front of the list, e. g. p 1 = alloc(); p 2 = alloc(); p 3 = alloc();
Fixed Size Algorithm front p 1 To allocate a block, pop one off the front of the list, e. g. p 1 = alloc(); p 2 = alloc(); p 3 = alloc();
Fixed Size Algorithm front p 1 p 2 To allocate a block, pop one off the front of the list, e. g. p 1 = alloc(); p 2 = alloc(); p 3 = alloc();
Fixed Size Algorithm front p 1 p 2 p 3 To allocate a block, pop one off the front of the list, e. g. p 1 = alloc(); p 2 = alloc(); p 3 = alloc();
Fixed Size Algorithm front p 1 p 2 p 3 To free a block, push it back onto the front of the list, e. g. free(p 1); free(p 3); free(p 2);
Fixed Size Algorithm front p 1 p 2 p 3 To free a block, push it back onto the front of the list, e. g. free(p 1); free(p 3); free(p 2);
Fixed Size Algorithm front p 1 p 2 p 3 To free a block, push it back onto the front of the list, e. g. free(p 1); free(p 3); free(p 2);
Fixed Size Algorithm front p 1 p 2 p 3 To free a block, push it back onto the front of the list, e. g. free(p 1); free(p 3); free(p 2);
Fixed Size Algorithm front Note that the list is not usually kept sorted by address
Agenda • Process Layout • Memory Allocation Algorithms – Fixed Size – Variable Size • • First-Fit Next-Fit Best-Fit The Buddy Algorithm • Garbage Collection Algorithms
Variable Size Algorithms* • Maintain a list of free blocks (the free-list) • To allocate a block, find a block of sufficient size and remove it from the list • To free a block, insert it into the list, keeping the list sorted by address * The Buddy Algorithm does not adhere to this overall scheme.
Variable Size Algorithms • Both free and allocated blocks have headers • The composition of the headers will vary with the implementation • Example user data size Allocated Block: unused next free block size Free Block:
Variable Size Algorithms user data Allocated Block: size From the memory manager’s perspective, the block starts before the headers From the user’s perspective, the block starts after the headers
unused next free block 8 k unused 4 k 12 k Variable Size Algorithms • Adjacent free blocks must be coalesced
Finding a block of sufficient size • At least three approaches – First-Fit • Find the first block in the list of sufficient size – Next-Fit – Best-Fit
Variable Size: First-Fit front 16 k Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: First-Fit front 2 k 14 k p 1 Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: First-Fit front 2 k p 1 Example: 1 k 13 k p 2 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: First-Fit front 2 k p 1 Example: 1 k 5 k 8 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: First-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 7 k p 4 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: First-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 3 k
Variable Size: First-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: First-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: First-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: First-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: First-Fit front 2 k p 1 Example: 1 k 3 k p 2 p 7 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 2 k 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: First-Fit front Coalesced 2 k p 1 Example: 1 k 3 k p 2 p 7 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 2 k 1 k 7 k p 4 p 5 p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: First-Fit front 1 k 1 k 1 k p 8 p 1 Example: 3 k p 2 p 7 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 2 k 1 k 7 k p 4 p 5 p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: First-Fit front 1 k 1 k 1 k p 8 p 1 Example: 3 k p 2 p 7 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 2 k 1 k 6 k p 4 p 9 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Finding a block of sufficient size • At least three approaches – First-Fit – Next-Fit • There is an additional pointer into the free-list called the roving pointer • The search starts at the block pointed to by the roving pointer • Once a block is found, the roving pointer is pointed to the next block in the free-list – Best-Fit
Variable Size: Next-Fit front rp 16 k Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Next-Fit front rp 2 k 14 k p 1 Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 13 k p 2 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 5 k 8 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 7 k p 4 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 3 k
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 3 k p 2 p 7 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 2 k 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 3 k p 2 p 7 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); Coalesced 2 k 1 k 7 k p 4 p 5 p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 3 k p 2 p 7 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 1 k 1 k p 8 7 k p 4 p 5 p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Next-Fit front rp 2 k p 1 Example: 1 k 3 k p 2 p 7 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 1 k 1 k p 8 6 k p 4 p 9 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Finding a block of sufficient size • At least three approaches – First-Fit – Next-Fit – Best-Fit • Find the smallest block in the list of sufficient size

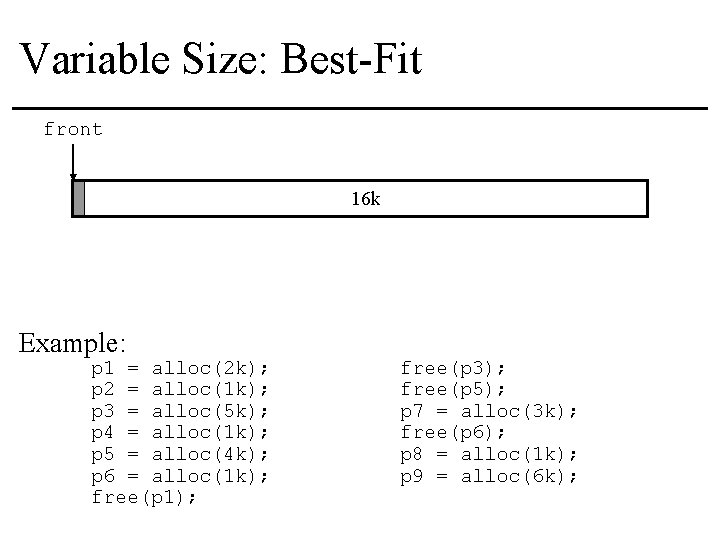

Variable Size: Best-Fit front 16 k Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Best-Fit front 2 k 14 k p 1 Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 13 k p 2 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 5 k 8 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 7 k p 4 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 3 k
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 4 k p 4 p 5 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Best-Fit front 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 3 k p 4 p 5 1 k 1 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); 2 k
Variable Size: Best-Fit front Coalesced 2 k p 1 Example: 1 k 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 3 k p 4 p 5 4 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Best-Fit front 1 k 1 k 1 k p 8 p 1 Example: 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 3 k p 4 p 5 4 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k);
Variable Size: Best-Fit front 1 k 1 k 1 k p 8 p 1 Example: 5 k p 2 p 3 p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); p 6 = alloc(1 k); free(p 1); 1 k 3 k p 4 p 5 4 k p 6 free(p 3); free(p 5); p 7 = alloc(3 k); free(p 6); p 8 = alloc(1 k); p 9 = alloc(6 k); FAIL!
Summary of the three approaches • First-Fit – Bad if you get a cluster of small blocks at the front of the free-list • Best-Fit – Visits every free block during an allocation – Tends to leave a lot of small blocks in the free-list • Next-Fit – Generally considered the best of the three
Agenda • Process Layout • Memory Allocation Algorithms – Fixed Size – Variable Size • • First-Fit Next-Fit Best-Fit The Buddy Algorithm • Garbage Collection Algorithms
The Buddy Algorithm • The size of all blocks (both free and allocated) are powers of 2 • Wastes a lot of space • But makes the algorithm much faster
A block’s buddy • A block may or may not have a buddy • A block and its buddy are always the same size • If a block of size 2 k resides at binary address … 000… 0 k 0’s then its buddy (if it has one) resides at binary address … 100… 0 k-1 0’s
The Buddy Algorithm • There is one free-list for each size of block – The lists are doubly-linked – The lists are not kept sorted by address
The Buddy Algorithm • To allocated a block of size n – Determine the smallest integer k such that 2 k ≥ n – Find a block of size 2 k, and remove the block from its free-list – If there are no blocks of size 2 k • • Find the next larger block, and remove it from its free-list Divide the block into two buddies Keep one and insert the other into the appropriate free-list Continue in this manner until you have a block of size 2 k
The Buddy Algorithm • To deallocate a block of size 2 k – Check the block’s buddy – If they are both free, coalesce them into one block of size 2 k+1 – Continue in this manner until you cannot coalesce any more blocks – Insert the block that you are left with into the appropriate free-list
user data logarithmic size Free Block: allocated? unused back pointer forward pointer logarithmic size allocated? The Buddy Algorithm Allocated Block:
The Buddy Algorithm 16 k: 16 k 8 k: 4 k: 2 k: 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7);
The Buddy Algorithm 16 k: 8 k: 4 k: 8 k p 1 2 k: 4 k 2 k 2 k 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7);
The Buddy Algorithm 16 k: 8 k: 4 k: 8 k p 1 4 k 2 k p 2 2 k: 1 k: 1 k 1 k Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7);
The Buddy Algorithm p 3 16 k: 8 k: 4 k: 5 k p 1 4 k 2 k p 2 2 k: 1 k: 1 k 1 k Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 3 k
The Buddy Algorithm p 3 16 k: 8 k: 4 k: 5 k p 1 4 k 2 k p 2 p 4 2 k: 1 k: 1 k 1 k Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 3 k
The Buddy Algorithm p 3 16 k: p 5 8 k: 4 k: p 1 5 k 4 k 2 k p 2 p 4 2 k: 1 k: 1 k 1 k Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 3 k
The Buddy Algorithm p 3 16 k: p 5 8 k: 4 k: p 1 2 k: 4 k 2 k 1 k: 5 k p 4 1 k 1 k Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 3 k
The Buddy Algorithm p 3 16 k: p 5 8 k: 4 k: p 1 2 k: 4 k 2 k 1 k: 5 k 2 k Coalesced Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 3 k
The Buddy Algorithm 16 k: p 5 8 k: 4 k: p 1 2 k: 8 k 4 k 2 k 2 k 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7);
The Buddy Algorithm 16 k: p 5 8 k: 4 k: p 1 2 k: p 6 4 k 2 k 3 k 1 k 2 k 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 4 k
The Buddy Algorithm 16 k: p 5 8 k: 4 k: p 1 2 k: p 6 4 k 2 k p 7 3 k 1 k 3 k 2 k 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 1 k
The Buddy Algorithm 16 k: p 6 8 k: 4 k: p 1 2 k: 4 k 2 k p 7 3 k 1 k 3 k 2 k 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 1 k
The Buddy Algorithm 16 k: p 7 8 k: 4 k: p 1 2 k: 4 k 2 k 4 k 3 k 2 k 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 1 k
The Buddy Algorithm 16 k: 8 k: p 7 8 k 4 k: Coalesced 4 k 3 k 2 k: 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7); 1 k
The Buddy Algorithm 16 k: 16 k 8 k: Coalesced 4 k: 2 k: 1 k: Example: p 1 = alloc(2 k); p 2 = alloc(1 k); p 3 = alloc(5 k); p 4 = alloc(1 k); p 5 = alloc(4 k); free(p 2); free(p 4); free(p 3); p 6 = alloc(3 k); p 7 = alloc(3 k); free(p 5); free(p 6); free(p 1); free(p 7);
Agenda • Process Layout • Memory Allocation Algorithms • Garbage Collection Algorithms – Reference Counting – Mark-and-Sweep
Garbage Collection • Automatically determining at runtime when an object may be deallocated
Reference Counting • Every object is given an additional integer field • At any point in time, this field holds the total number of references to the object – When a reference is redirected to the object, the field is incremented – When a reference is redirected away from the object, the field is decremented • When the field becomes zero, the object is deallocated
Reference Counting p 1: p 2: p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting Count: 1 p 1: f: p 2: g: p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting Count: 1 p 1: f: p 2: g: p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL; Count: 1
Reference Counting Count: 1 p 1: f: p 2: g: Count: 1 p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting Count: 2 p 1: f: p 2: g: Count: 1 p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting Count: 2 p 1: f: p 2: g: Count: 1 Count: 2 p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting Count: 1 p 1: f: p 2: g: Count: 1 Count: 2 p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting Count: 0 p 1: f: p 2: g: Count: 1 Count: 2 p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting Count: 0 p 1: f: p 2: g: Count: 0 Count: 1 p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting Count: 0 p 1: f: p 2: g: Count: 0 Count: 1 p 3: Example: p 1 = new …; p 1 ->f = new …; p 1 ->g = new …; p 2 = p 1; p 3 = p 1 ->g; p 1 = NULL; p 2 = NULL;
Reference Counting p 1: Example: p 1 = new …; p 1 ->f = p 1; p 1 = NULL;
Reference Counting Count: 1 p 1: f: Example: p 1 = new …; p 1 ->f = p 1; p 1 = NULL;
Reference Counting Count: 2 p 1: f: Example: p 1 = new …; p 1 ->f = p 1; p 1 = NULL;
Reference Counting Count: 1 p 1: f: Example: p 1 = new …; p 1 ->f = p 1; p 1 = NULL;
Reference Counting Count: 1 p 1: f: Example: p 1 = new …; p 1 ->f = p 1; p 1 = NULL; Will never be deallocated
Mark-and-Sweep • Every object is given an additional single bit – If the bit is set, then the object is said to be marked – If the bit is not set, then the object is said to be unmarked • Objects are allocated until all available memory is exhausted • When this happens, the bits of all objects are cleared • The registers, stack, and static data are then traversed to determine which objects are referenced • When a reference to an object is found, the object becomes marked • This process is recursive, in that when an object becomes marked, all of the objects to which it refers also become marked • Once all accessible objects have been marked, the objects that are unmarked are deallocated
Mark-and-Sweep Mark: p 1: f: p 2: g: Mark: p 3: p 4: Mark: f: Mark:
Mark-and-Sweep Mark: 0 p 1: f: p 2: g: Mark: 0 p 3: p 4: Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 0 p 1: f: p 2: g: Mark: 0 p 3: p 4: Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 0 p 3: p 4: Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 0 p 3: p 4: Mark: 1 Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 0 p 3: p 4: Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 Mark: 0 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 f: Mark: 0
Mark-and-Sweep Mark: 1 p 1: f: p 2: g: Mark: 1 p 3: p 4: Mark: 1 f: Mark: 0
Problems with Mark-and-Sweep • Often, the marking process causes a noticeable pause in execution • Often, Mark-and-Sweep has to be conservative, treating fields as references, even when they are not
Reference Counting vs. Mark-and-Sweep • Nonetheless, Mark-and. Sweep is generally considered the superior algorithm • Consider the following program: #include <…> int { T T T main() *p 1 = new …; *p 2 = new …; *p 3; for (int i = 0; i < 100000; i++) { p 3 = p 1; p 1 = p 2; p 2 = p 3; p 3 = NULL; } return 0; }
