DYNAMIC IMAGE SPHERIZATION USING PROGRAMMABLE LOGIC Barry University, Department of Math and Computer Science By Dr. James Haralambides, Hugo Torres, Reynaldo Pino

Objectives to be covered. � � � Intro to image-filtering Spherization theory Algorithm Hardware Components Conclusions Questions?

Introduction to Image Filtering � Modification of an image to achieve a modified result. Edge Detection Gaussian Blur Embossing

Image Filtering continued… � Spherizationmodifying a 2 D image so that it appears to be wrapped around a 3 D sphere. Befor e After

Spherization theory � To spherize an image: � Describing the pixel’s location: Done using polar coordinates: �Establish the center: W/2 �Establish the angle of the input pixel in relation to the center using the Arctangent function. �Find the Euclidian distance of the input pixel with relation to the newly established center.

Spherization theory continued… Pixel’s original location serves as reference to find the data to be placed at the new location, since the data about the pixel itself remains unchanged. The function to find each pixel’s new location is given by

Hardware/Software Components � FPGA � Integrated circuit designed to be reprogrammed

Components(continued…) � Serial Cable � Used to transfer image data � Monitor � Used to display old and new image � Visual Basic � Used to capture image and to compile the table.

Algorithm used � � � image capture using web-cam convert image to 3 -bit color (FPGA limitation) Serial cable transmission store image to block RAM compute spherized image's pixels using sqrt, atan, sin/cos

Extensions � We are not limited to just one model of spherization: Offset � Different modes of extentions exist: Center of sphere is offset. Radius is smaller than normal Spherization filter Negative Spherization. Small Radius Negative

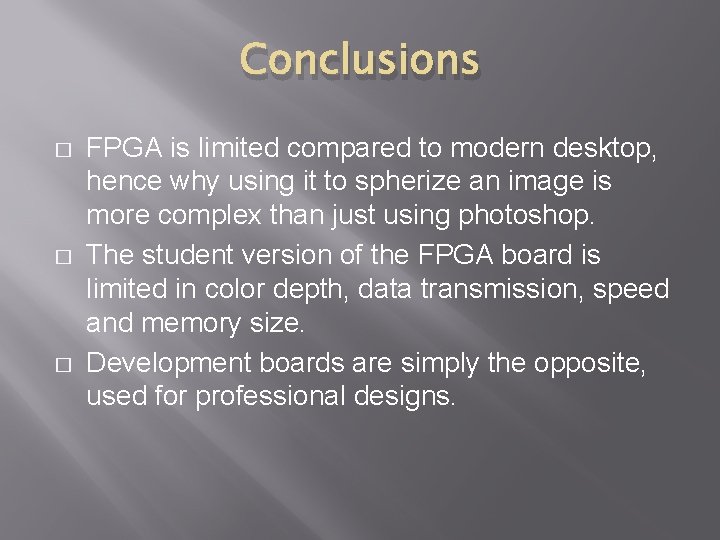

Conclusions � � � FPGA is limited compared to modern desktop, hence why using it to spherize an image is more complex than just using photoshop. The student version of the FPGA board is limited in color depth, data transmission, speed and memory size. Development boards are simply the opposite, used for professional designs.

Questions?
