DWARF SIGNALS

DWARF SIGNALS

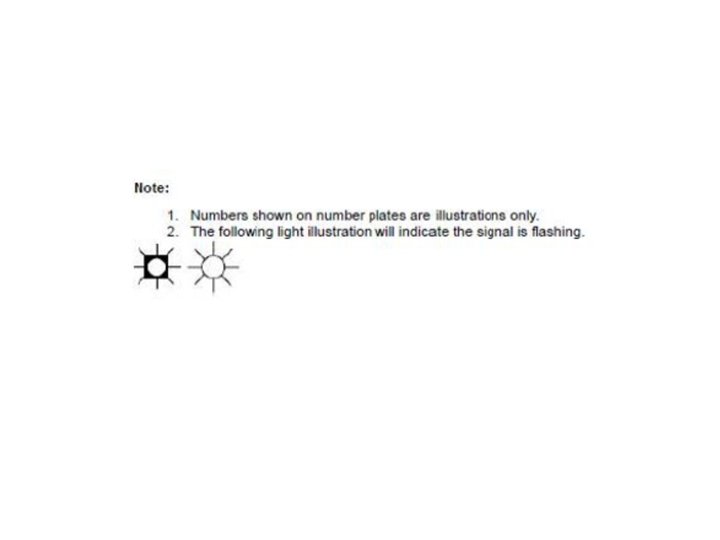

DWARF SIGNAL RULE 1281 : CLEAR; PROCEED

DWARF SIGNAL RULE 1281 : CLEAR; PROCEED

DWARF SIGNAL RULE 1281 B: APPROACH LIMITED; PROCEED TO NEXT SIGNAL NOT EXCEEDING THE

DWARF SIGNAL RULE 1281 B: APPROACH LIMITED; PROCEED TO NEXT SIGNAL NOT EXCEEDING THE SPEED LIMIT

DWARD SINGAL RULE 1281 C: LIMITED CLEAR; LIMTED SPEED OVER TURNOUTS, CROSSOVERS, SIDINGS, AND

DWARD SINGAL RULE 1281 C: LIMITED CLEAR; LIMTED SPEED OVER TURNOUTS, CROSSOVERS, SIDINGS, AND OVER POWER OPERATED SWITCHES THEN PROCEED

DWARF SIGNAL RULE 1281 D: LIMITED APPROACH; LIMTED SPEED THROUGH TUNROUTS, CROSSOVERS, SIDINGS, AND

DWARF SIGNAL RULE 1281 D: LIMITED APPROACH; LIMTED SPEED THROUGH TUNROUTS, CROSSOVERS, SIDINGS, AND POWER OPERATED SWITCHES THEN PROCEED PREPARE TO STOP AT THE NEXT SIGNALS

DWARF SIGNAL RULE 1282: APPROACH MEDIUM; PROCEED TO NEXT SIGNAL NOT EXCEEDING MEDIUM SPEED

DWARF SIGNAL RULE 1282: APPROACH MEDIUM; PROCEED TO NEXT SIGNAL NOT EXCEEDING MEDIUM SPEED

DWARF SIGNAL RULE 1283: MEDIUM CLEAR; MEDIUM SPEED OVER TURNOUTS, CROSSOVERS, SIDINGS, POWER OPERATED

DWARF SIGNAL RULE 1283: MEDIUM CLEAR; MEDIUM SPEED OVER TURNOUTS, CROSSOVERS, SIDINGS, POWER OPERATED SWITCHES THEN PROCEED

DWARD SIGNAL RULE 1283 A: MEDIUM APPROACH MEDIUM: MEDIUM SPEED THROUGH TURNOUTS, CROSSOVERS, SIDINGS

DWARD SIGNAL RULE 1283 A: MEDIUM APPROACH MEDIUM: MEDIUM SPEED THROUGH TURNOUTS, CROSSOVERS, SIDINGS AND POWER OPERATED SWITCHES THEN PROCEED, APPROACHING NEXT SIGNAL NOT EXCEEDING MEDIUM SPEED

DWARF SIGNAL RULE 1283 B: MEDIUM APPROACH SLOW; MEDIUM SPEED THOURGH TUNROUTS. CROSSOVERS, SIDINGS,

DWARF SIGNAL RULE 1283 B: MEDIUM APPROACH SLOW; MEDIUM SPEED THOURGH TUNROUTS. CROSSOVERS, SIDINGS, AND POWER OPERATED SWITCHES, THEN PROCEED, APPROACHING NEXT SIGNAL NOT EXCEEDING SLOW SPEED

DWARF SIGNAL RULE 1283 C: MEDIUM ADVANCE APPROACH; MEDIUM SPEED THROUGH TURNOUTS, CROSSOVERS, SIDINGS,

DWARF SIGNAL RULE 1283 C: MEDIUM ADVANCE APPROACH; MEDIUM SPEED THROUGH TURNOUTS, CROSSOVERS, SIDINGS, AND POWER OPERATED SWITCHES THEN PROCEED TO STOP AT SECOND SIGNAL

DWARF SIGNAL RULE 1284: APPROACH SLOW; PROCEED APPRAOCHING NEXT SPEED NOT EXCEEDING SLOW SPEED

DWARF SIGNAL RULE 1284: APPROACH SLOW; PROCEED APPRAOCHING NEXT SPEED NOT EXCEEDING SLOW SPEED

DWARF SIGNAL RULE 1285: APPROACH; PROCEE PREPARED TO STOP AT THE NEXT SIGNAL. TRAIN

DWARF SIGNAL RULE 1285: APPROACH; PROCEE PREPARED TO STOP AT THE NEXT SIGNAL. TRAIN EXCEDING MEDIUM SPEED MUST IMMEDIATELY BEIGN REDUCTION TO MEDIUM SPEED AS SOON AS THE LOCOMOTIVE PASS THE NEXT SIGNAL

DWARF SIGNALS RULE 1286: MEDIUM APPROACH; MEDIUM SPEED THROUGH TURNOUTSM CROSSOVERS, SIDINGS, AND POWER

DWARF SIGNALS RULE 1286: MEDIUM APPROACH; MEDIUM SPEED THROUGH TURNOUTSM CROSSOVERS, SIDINGS, AND POWER OPERATED SWITCHES THEN BE PREPARED TO STOP AT THE NEXT SIGNAL

DWARF SIGNAL RULE 1287: SLOW CLEAR; SLOW SPEED OVER TURNOUTS, CROSSOVER, SIDINGS, AND POWER

DWARF SIGNAL RULE 1287: SLOW CLEAR; SLOW SPEED OVER TURNOUTS, CROSSOVER, SIDINGS, AND POWER OPERATED SWITCHES THEN PROCEED

DWARF SIGNAL RULE 1287 A: SLOW APPROACH SLOW; SLOW SPEED THROUGH TURNOUTS, CROSSOVERS, SIDINGS,

DWARF SIGNAL RULE 1287 A: SLOW APPROACH SLOW; SLOW SPEED THROUGH TURNOUTS, CROSSOVERS, SIDINGS, AND POWER OPERATED SWITCHES THEN PROCEED THE NEXT SIGNAL NOT EXCEEDING SLOW SPEED

DWARF SIGNAL RULE 1288: SLOW APPROACH; SLOW SPEED THROUGH TUNROUTS. CROSSOVERS, SIDINGS AND POWER

DWARF SIGNAL RULE 1288: SLOW APPROACH; SLOW SPEED THROUGH TUNROUTS. CROSSOVERS, SIDINGS AND POWER OPERATED SWITCHES THEN PROCEED TO PREPARE TO STOP AT THE NEXT SIGNAL

DWARF SIGNAL RULE 1290: RESTRICTING; PROCEED TO RESTRICTED SPEED

DWARF SIGNAL RULE 1290: RESTRICTING; PROCEED TO RESTRICTED SPEED

DWARF SIGNAL RULE 1291: RESTRICTED PROCEED; PROCEED AT RESTRICTED SPEED

DWARF SIGNAL RULE 1291: RESTRICTED PROCEED; PROCEED AT RESTRICTED SPEED

DWARF SIGNAL RULE 1292: STOP; STOP

DWARF SIGNAL RULE 1292: STOP; STOP

DWARF SIGNAL RULE 1293: STOP AND CHECK; STOP AND CHECK POSTION OF DRAWBRIDGE, SPRING

DWARF SIGNAL RULE 1293: STOP AND CHECK; STOP AND CHECK POSTION OF DRAWBRIDGE, SPRING SWITCH, DERAILS OR GATES PROTECTING RAILROAD CROSSING. IF WAY IS CLEAR AND THE DRAWBRIDGE, SPRING SWITCH, OR DERAILS, OR GATES ARE IN PROPER POSTION PROCEED AT RESTRICTED SPEED NOTE: STOP AND CHECK SIGNAL ARE DESIGNATED WITH A C MARKER

DWARF SIGNAL RULE 1294: STOP AND OPEN SWITCH; STOP AND OPEN HAND OPERATED SWITCH:

DWARF SIGNAL RULE 1294: STOP AND OPEN SWITCH; STOP AND OPEN HAND OPERATED SWITCH: NOTE: STOP AND OPEN SWITCH IS DESIGNATED BY AN ILLUMIANTED S MARKER

DWARF SIGNALS RULE 1295: APP MARKER; PROCCED, TO NEXT SIGNAL AS AUTHORIZED BY ASPECT

DWARF SIGNALS RULE 1295: APP MARKER; PROCCED, TO NEXT SIGNAL AS AUTHORIZED BY ASPECT DISPLAY. IF THE SIGNAL IS DARK PROCEED, PREPARED TO STOP AT THE NEXT SIGNAL UNITL IT CAN BE PLAINLY SEEN THAT THE INDICATION OF THE NEXT SIGNAL ALLOWS THE TRAIN TO PROCEED NOTE: A SIGNAL EQUIPPED WITH APP MARKER INFORMATION ONLY ABOUT THE NEXT SIGNAL, NOTR CONDITIONS OF THE TRACK AHEAD
