DVM Dashboard Available via One Support Launchpad Introduction
DVM – Dashboard Available via One Support Launchpad
Introduction
Target Group The DVM Dashboard Applications are targeted towards: § IT Manager – Find optimization potential in different HANA (S/4, Suite, SAP_FIN) systems of IT landscape – Reduce IT cost through better utilizing available memory resources and disk space § DVM Project Manager – Determine reduction potential in HANA system – Focus on optimal methodology for data reduction (right tool for required reduction area) § DVM Expert – Detect reduction potential on different areas (Memory and Disk) – Find proper tools for reduction, such as Archiving, Deletion & Technical Measures – See impact of data reduction measures © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 3
DVM Dashboard - Availability DVM Dashboard – One Support Launchpad § Standalone Dashboard ▫ Available for all customers since July 2018 § Integration into SAP Solution Manager 7. 2 (Sp 03) – SAP S/4 HANA ▫ Available as CQC Service (since August 2018) ▫ Available as Self Service (as of October 2018) – SAP_FIN (s. FIN / c. FIN) ▫ Reduced scope of analysis content ▫ Same availability as S/4 HANA – SAP HANA (Suite on HANA) ▫ Available © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 4

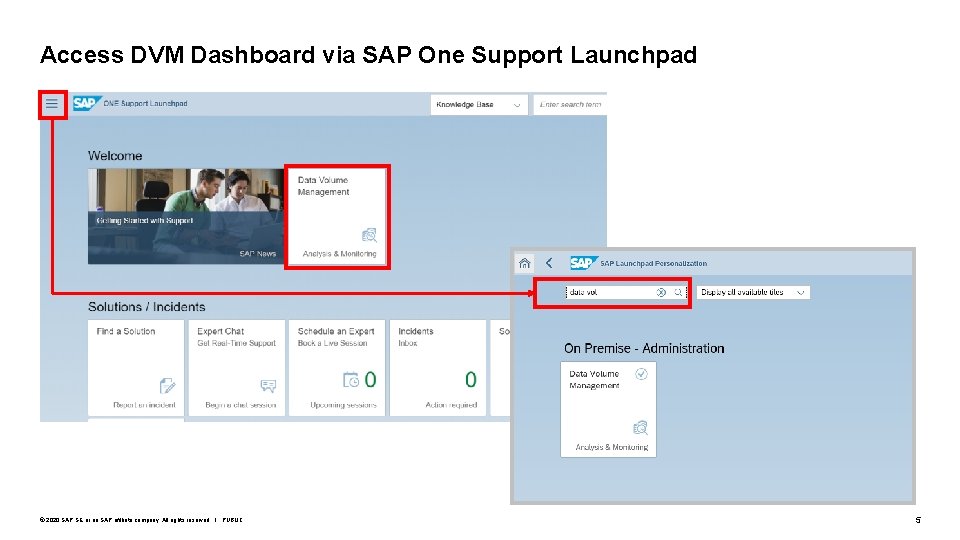

Access DVM Dashboard via SAP One Support Launchpad © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 5

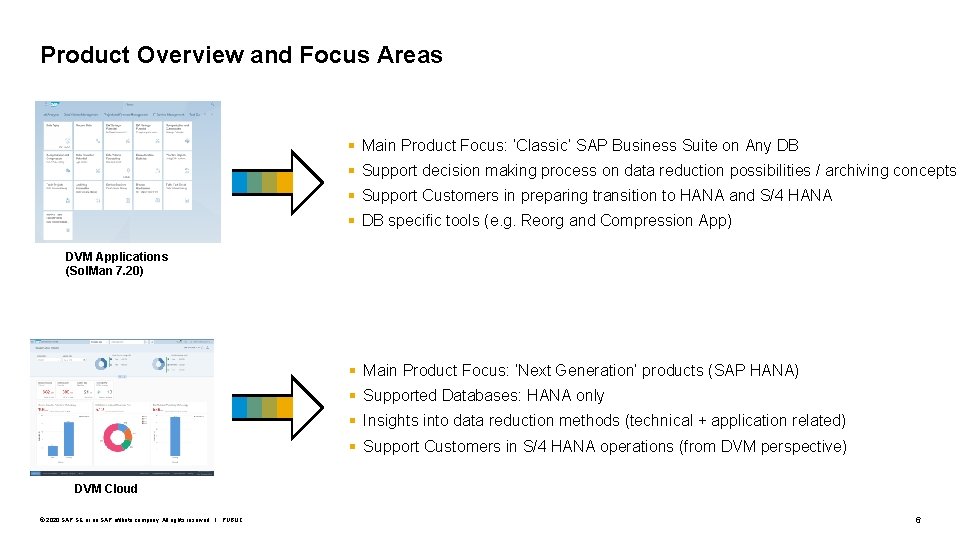

Product Overview and Focus Areas § Main Product Focus: ‘Classic’ SAP Business Suite on Any DB § Support decision making process on data reduction possibilities / archiving concepts § Support Customers in preparing transition to HANA and S/4 HANA § DB specific tools (e. g. Reorg and Compression App) DVM Applications (Sol. Man 7. 20) § Main Product Focus: ‘Next Generation’ products (SAP HANA) § Supported Databases: HANA only § Insights into data reduction methods (technical + application related) § Support Customers in S/4 HANA operations (from DVM perspective) DVM Cloud © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 6
Architecture

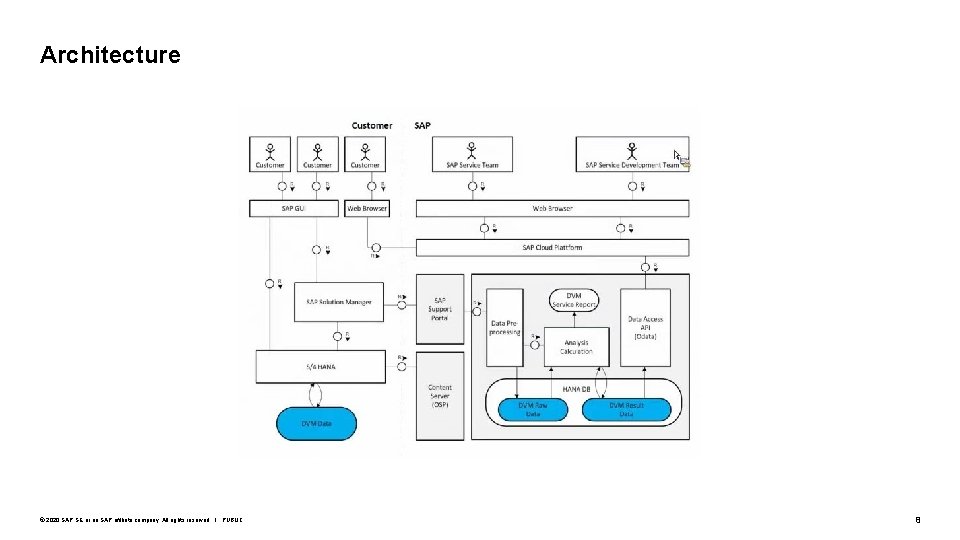

Architecture © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 8
Data Collection
How to run a new Analysis? Fully Automated: EWA based data collection From plugin version ST-PI 740 SP 11 onwards, the DVM data collection for HANA systems is included in the EWA data collectors (SDCCN). This automatically ensures that DVM data is collected for additional evaluation in the DVM Dashboard. q Dashboard is populated automatically q Data is collected once per month q If you do not meet the EWA requirements or if you need a more frequent upload of data you can use the following self-service options: © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 10
How to run a new Analysis? Customer Self-Service Options: Option 1: Automated Self. Service - Auto GSS “Solman_setup” ´configuration will trigger the report RAGS_DVM_CQC_CONTROL to run in your SAP Solution Manager. This report will subsequently trigger a second job, AGS_DVM_CQC_ANALYSIS, in your managed system. The result can be found in SAP One Support Launchpad. Option 2: Data collection via Self Service Session in SAP Solution Manager 7. 2 Option 3: Manual DVM data collection in the S/4 Hana System A connection to the SAP Portal is required (this is setup as a part of Solution Manager Setup) In case SAP Solution Manager 7. 2 is not in place or the required connections from Solution Manager to SAP or the managed system are not setup, there is the option to manually transfer data without the involvement of SAP Solution Manager The DVM applications can be entered by transaction SM_WORKCENTER and the DVM Self Services can be found and created via tile “Service Sessions” SAP KBA 2716655 contains all the details of the steps needed to collect the data for the DVM Dashboard Application (with and without SAP Solution Manager) as a Customer Self Service by using a suitable option from above: © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 11

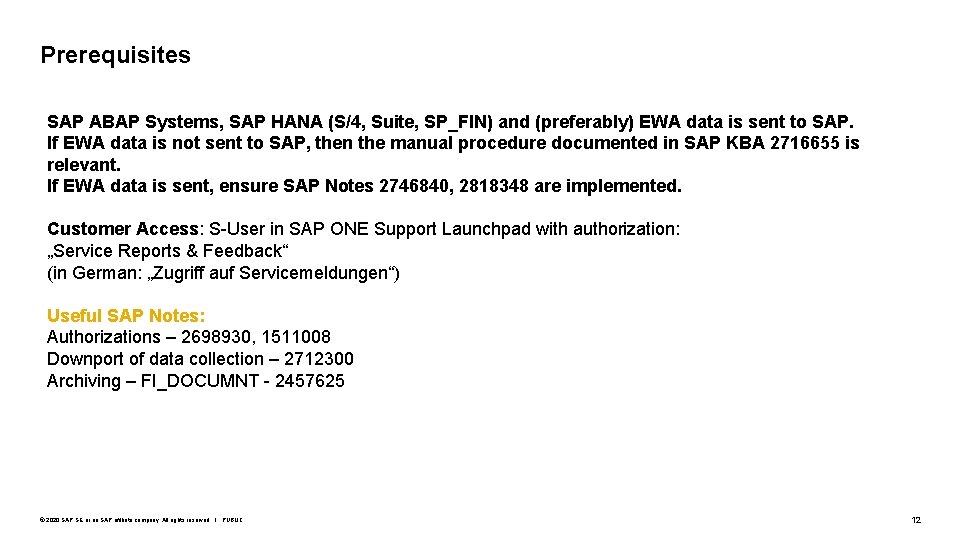

Prerequisites SAP ABAP Systems, SAP HANA (S/4, Suite, SP_FIN) and (preferably) EWA data is sent to SAP. If EWA data is not sent to SAP, then the manual procedure documented in SAP KBA 2716655 is relevant. If EWA data is sent, ensure SAP Notes 2746840, 2818348 are implemented. Customer Access: S-User in SAP ONE Support Launchpad with authorization: „Service Reports & Feedback“ (in German: „Zugriff auf Servicemeldungen“) Useful SAP Notes: Authorizations – 2698930, 1511008 Downport of data collection – 2712300 Archiving – FI_DOCUMNT - 2457625 © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 12
DVM Dashboard
User Interface The central landing page provides a comprehensive overview of your system regarding Memory and Disk space usage. Color coded tiles and graphics highlight the most beneficial topics to be addressed to manage the data volume topic. Central Landing Page – System Overview Reduction potential for memory and disk usage are immediately available “out of the box”. Drill-downs by tile and graph provide access to detailed information on reduction potential by area. • Distribution of records by year • Custom table statistics • Achievements (via Archiving primarily) • Growth Statistics (Increase/Decrease) • Technical SAP HANA Analysis • Largest tables on Disk or on Memory, • Top Growing tables, • Top Shrinking tables, • Tables with more than 1 billion records etc. , are all available as standard • Each Dashboard can be shared via email • New Analyses can be uploaded manually • Services can be requested from SAP © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 14
SAP DVM Dashboard – Optimize Memory Usage A ranked list of reduction objects based on reduction potential. • Can be filtered by method i. e. Aging, Archiving, Deletion. • Can be displayed in Tabular or Graphical format © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 15

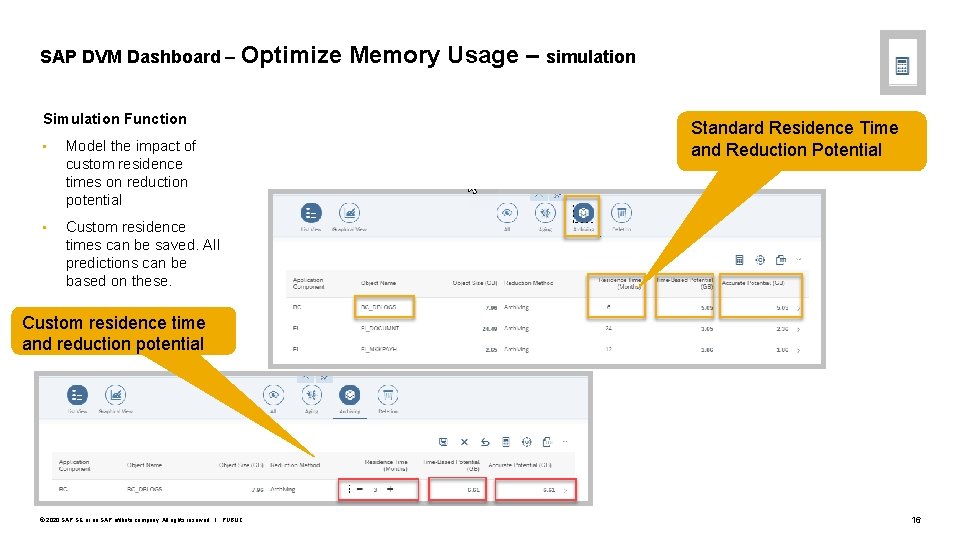

SAP DVM Dashboard – Optimize Simulation Function • Model the impact of custom residence times on reduction potential • Custom residence times can be saved. All predictions can be based on these. Memory Usage – simulation Standard Residence Time and Reduction Potential Custom residence time and reduction potential © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 16

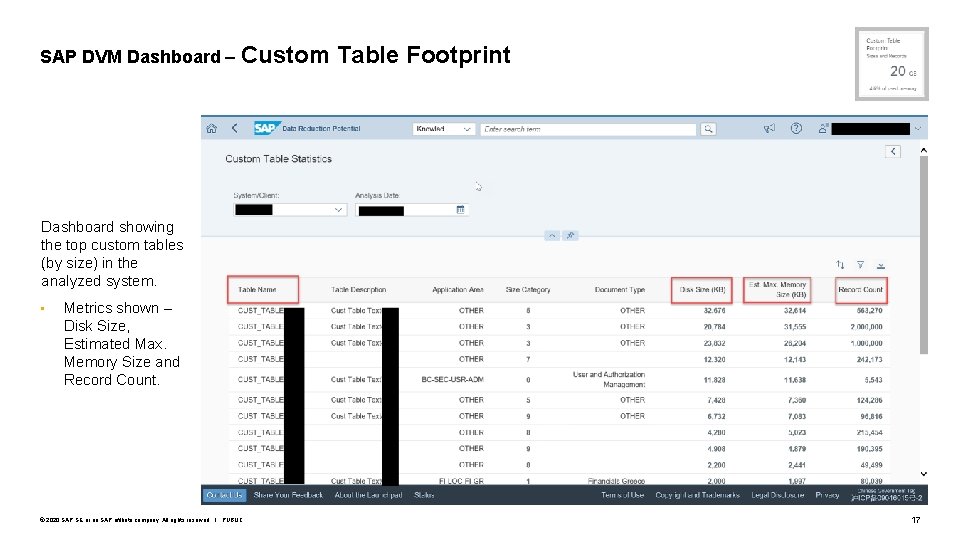

SAP DVM Dashboard – Custom Table Footprint Dashboard showing the top custom tables (by size) in the analyzed system. • Metrics shown – Disk Size, Estimated Max. Memory Size and Record Count. © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 17

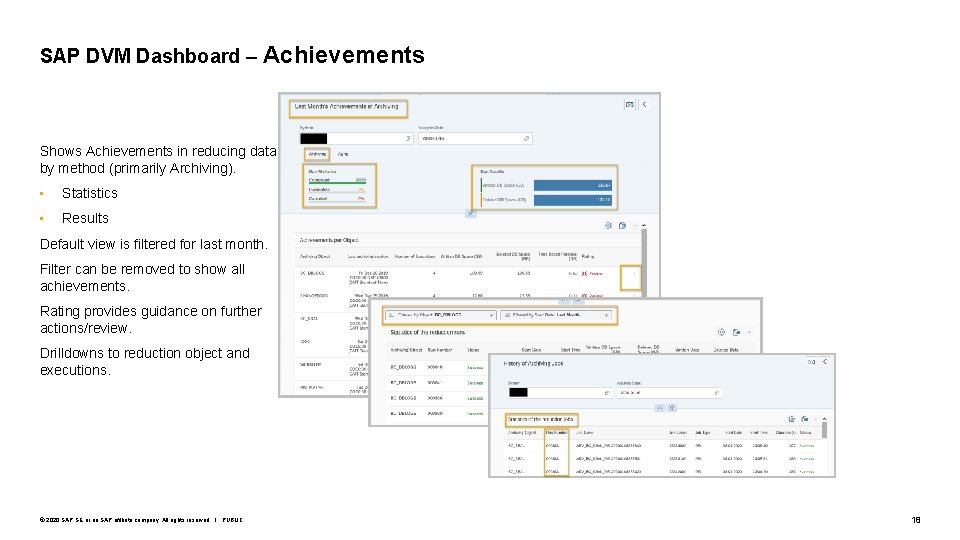

SAP DVM Dashboard – Achievements Shows Achievements in reducing data by method (primarily Archiving). • Statistics • Results Default view is filtered for last month. Filter can be removed to show all achievements. Rating provides guidance on further actions/review. Drilldowns to reduction object and executions. © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 18
SAP DVM Dashboard – Growth Statistics Detailed analysis available for Tables & Applications. • Top Growing • Top Shrinking Easy switch between growing/shrinking views Multiple sort options System growth rate is plotted over a 12 month timeline © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 19

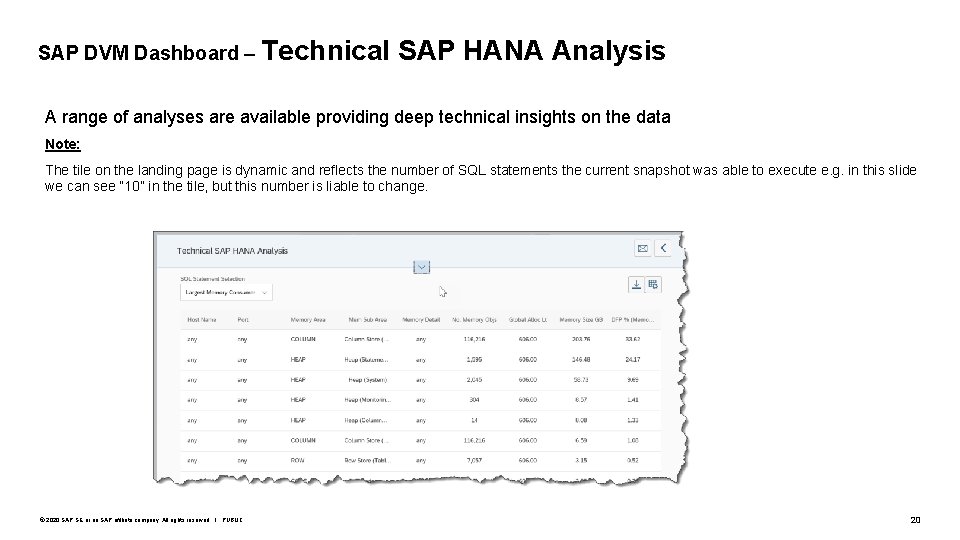

SAP DVM Dashboard – Technical SAP HANA Analysis A range of analyses are available providing deep technical insights on the data Note: The tile on the landing page is dynamic and reflects the number of SQL statements the current snapshot was able to execute e. g. in this slide we can see “ 10” in the tile, but this number is liable to change. © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 20

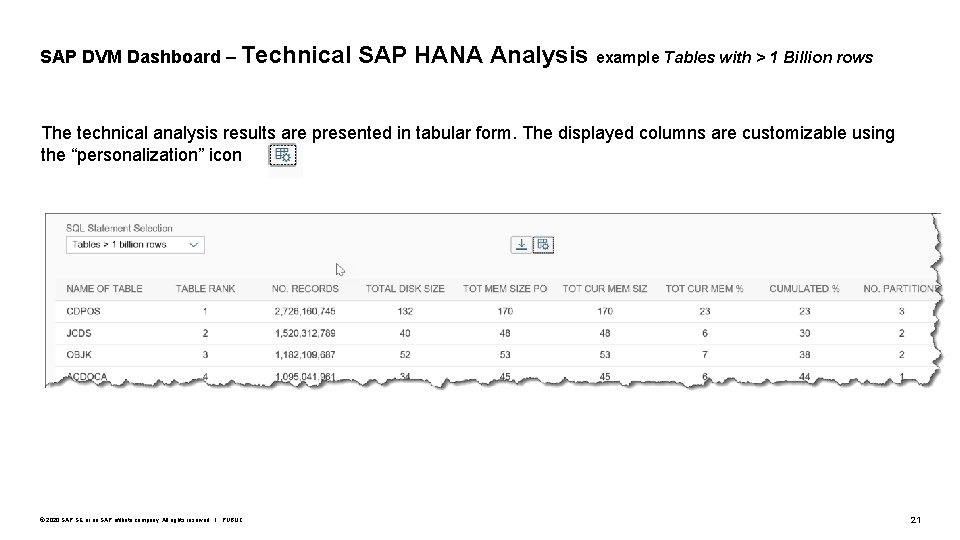

SAP DVM Dashboard – Technical SAP HANA Analysis example Tables with > 1 Billion rows The technical analysis results are presented in tabular form. The displayed columns are customizable using the “personalization” icon © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 21

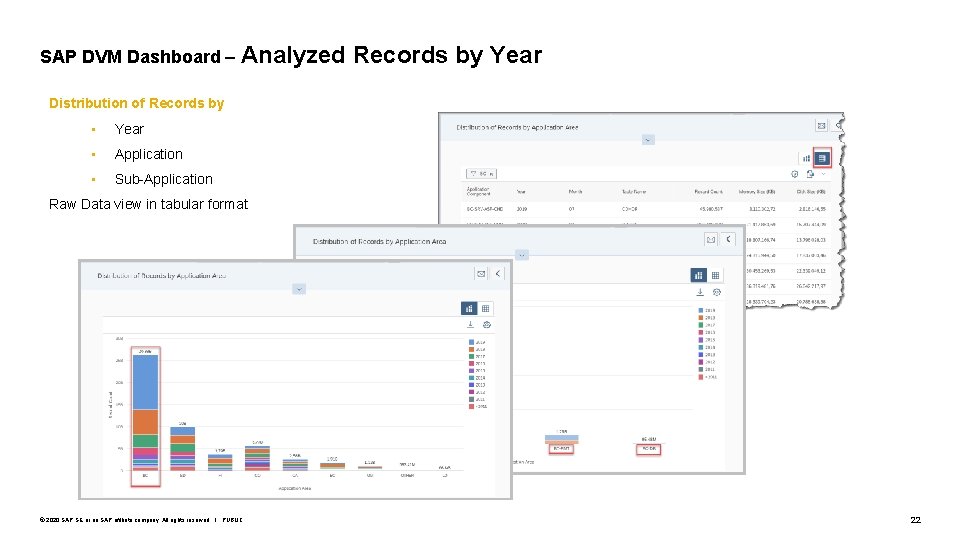

SAP DVM Dashboard – Analyzed Records by Year Distribution of Records by • Year • Application • Sub-Application Raw Data view in tabular format © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 22

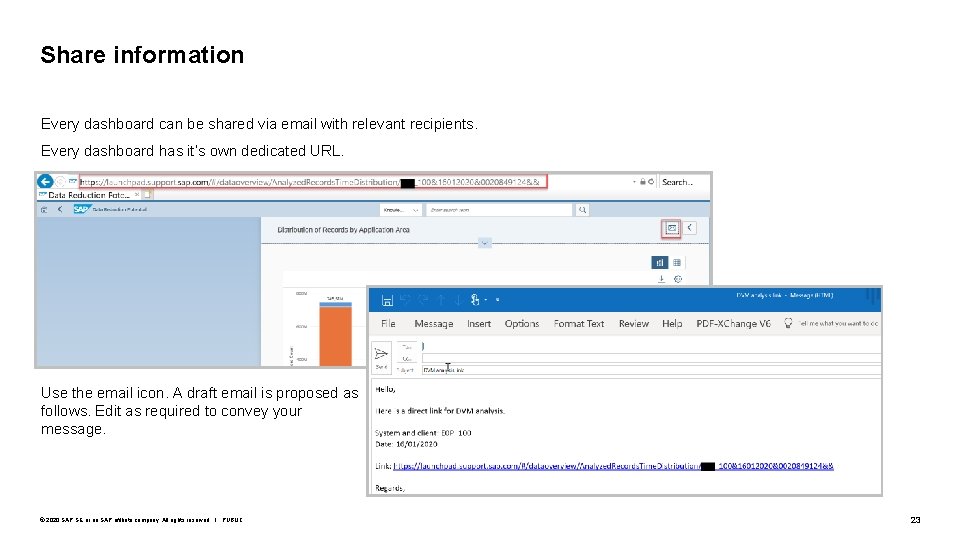

Share information Every dashboard can be shared via email with relevant recipients. Every dashboard has it’s own dedicated URL. Use the email icon. A draft email is proposed as follows. Edit as required to convey your message. © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 23

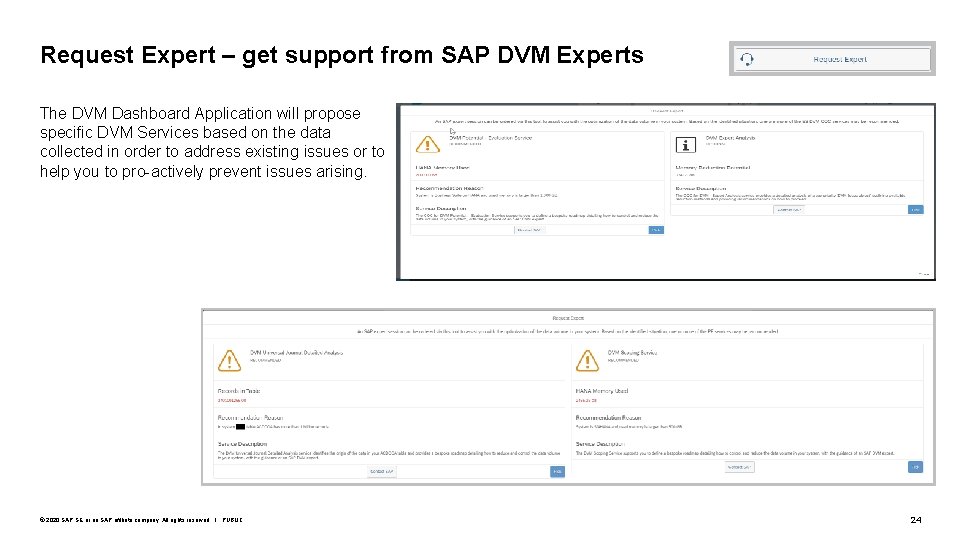

Request Expert – get support from SAP DVM Experts The DVM Dashboard Application will propose specific DVM Services based on the data collected in order to address existing issues or to help you to pro-actively prevent issues arising. © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 24

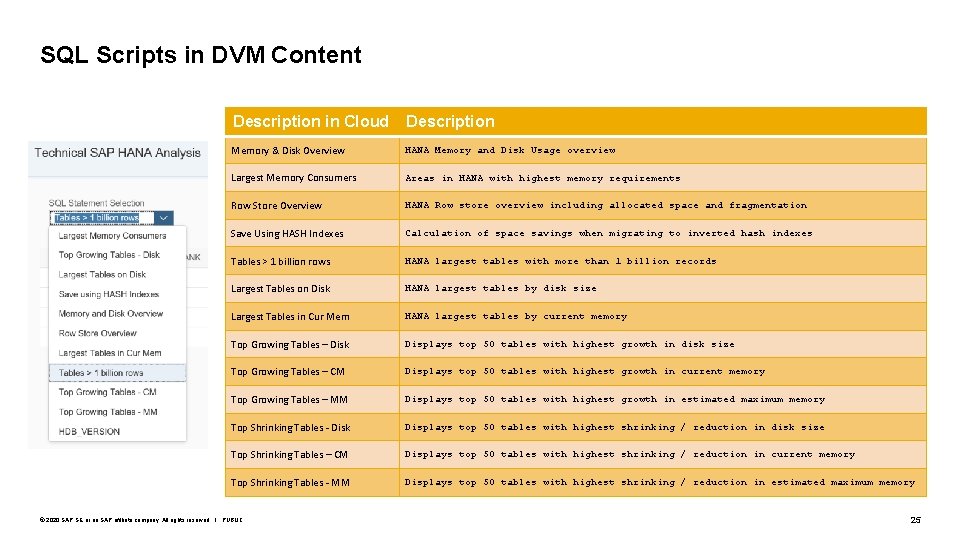

SQL Scripts in DVM Content Description in Cloud Description Memory & Disk Overview HANA Memory and Disk Usage overview Largest Memory Consumers Areas in HANA with highest memory requirements Row Store Overview HANA Row store overview including allocated space and fragmentation Save Using HASH Indexes Calculation of space savings when migrating to inverted hash indexes Tables > 1 billion rows HANA largest tables with more than 1 billion records Largest Tables on Disk HANA largest tables by disk size Largest Tables in Cur Mem HANA largest tables by current memory Top Growing Tables – Disk Displays top 50 tables with highest growth in disk size Top Growing Tables – CM Displays top 50 tables with highest growth in current memory Top Growing Tables – MM Displays top 50 tables with highest growth in estimated maximum memory Top Shrinking Tables - Disk Displays top 50 tables with highest shrinking / reduction in disk size Top Shrinking Tables – CM Displays top 50 tables with highest shrinking / reduction in current memory Top Shrinking Tables - MM Displays top 50 tables with highest shrinking / reduction in estimated maximum memory © 2020 SAP SE or an SAP affiliate company. All rights reserved. ǀ PUBLIC 25
