DView Cam V 3 0 Video Management System

D-View. Cam V 3. 0 Video Management System D-Link HQ, January 2010 D-Link confidential

Contents Ø Market Update Ø Product Overview Ø Product Features Ø Product Comparison Ø Software Interface Overview • • • Main Console Search and add camera Smart Guard System Schedule System Start Playback E-Map Remote Live Viewer/Remote Playback Web Live Viewer/Web Playback Network Service Ø Product Roadmap Ø Product Application

Market Update Global video surveillance market in 2005 -2011 55% REVENUE ($US Million) 112% 91% 81% 74% 69% Source: i. Suppli 2007

Market Update REVENUE ($US Million) Source: TRI 2007

Product Overview n D-View. Cam software is a video management system (VMS) - It just like DVR for CCTV system, D-View. Cam provides video/Audio recording, live view and playback management for IP camera or video server devices. MS-IE Browser Client PC Client D-View. Cam Server Remote Live Viewer/ Remote Playback Video Streaming Video/Audio Recording Remote Client Audio Streaming Video/Audio Live View Browser (MS-IE) Client I/O or Event Trigger Video/Audio Playback

Product Overview n D-View. Cam for SOHO/SMB level D-View. Cam • 32 channels, Free Bundle with IP Camera • New V 3. 0 will replace current D-View. Cam V 2. 0 x • D-View. Cam V 3. 0 official release in January, 2010 • More stable & functions than V 2. 0 x versions • Support D-Link IP surveillance products, including Ø IP Camera Ø Video Server

Product Overview n D-View. Cam CVS for SMB/Enterprise level D-View. Cam CVS • D-View. Cam CVS V 1. 0 expect to release in Q 1/2010 • Professional Video Management System • Manage up to 32/64 channels • License charge • More Features than D-View. Cam 3. 0 • Could manage other D-View. Cam CVS - Compatible with D-Link NVR - Compatible with 3 rd party CMS Support D-Link IP surveillance products •

Product Overview n D-View. Cam V 3. 0 HW Support List • Pink color devices will be supported in DVC V 3. 01

Product Overview System 1 Service /Integration Video Management System Data storage 6 Network infrastructure 2 3 5 4 Accessory IP security Video streaming

Product Overview n Minimum System Requirements E D C B A 1200~600 600~480 480~240 240~120 120~ CPU Intel Core 2 Quad Q 6600 Intel Core 2 Duo E 6400 Intel Core 2 Duo E 5200 RAM 2 GB S of All Cameras Total FPS at CIF 1 GB Intel Core 2 Duo E 5200 512 MB Motherboard Intel G 31 or above; ASUS, Gigabyte, or MSI vendor with Intel chipset recommended Display ATi Radeon 9200, n. VIDIA Ge. Force FX-5200, Intel 945 G/965 G or above (ATi recommended) Hard Drive 80 GB or above Ethernet 100 -base. T or above, Gigabit LAN recommended OS Microsoft Windows® XP Pro (SP 2 or higher) / 2003 / Vista®

Product Overview n How to calculate S value Parameter definition: M: parameter of resolution of camera. 1 Mega-pixel : M=10 VGA or D 1 resolution : M=5 CIF resolution : M=1 N: FPS of Camera S=M*N For example: 8 channel system C a) 1 camera at 1 Mega-pixel resolution with 10 FPS b) 2 cameras at D 1 resolution with 15 FPS c) 5 cameras at CIF resolution with 30 FPS 480~240 a) M=10; N=10, S=10*10=100 b) M=5; N=15, S=5*15=75 c) M=1; N=30, S=1*30=30 S of All Cam. =1*100+2*75+5*30=400 Therefore, the Minimum Hardware Requirement is C level. Intel Core 2 Duo E 5200 1 GB

Product Overview n How to calculate FPS value If users apply Intel Core 2 Quad CPU with D-View. Cam software and they want to calculate the FPS per channel, then it could be: N (FPS per Channel)= S ÷ M ÷ 32 1. FPS for CIF resolution with 32 channels = 1200 ÷ 32 ÷ 1 = 37. 5 FPS/Ch It means D-View. Cam software can record 30 FPS per channel, and it can also display 30 FPS for each channel with CIF resolution. 2. FPS for VGA or D 1 resolution with 32 channels = 1200 ÷ 32 ÷ 5 = 7. 5 FPS/Ch It means D-View. Cam software can record at least 7. 5 FPS per channel and display at least 7. 5 FPS for each channel with VGA or D 1 resolution. 3. FPS for Mega-pixel resolution with 32 channels = 1200 ÷ 32 ÷ 10 = 3. 75 FPS/Ch It means D-View. Cam software can record at least 3. 75 FPS per channel and display at least 3. 75 FPS for each channel with Mega-pixel resolution.

Product Features General Features Supports up to 32 cameras Megapixel IP camera support MJPEG/MPEG-4/H. 264 compression format support Multilingual support OSD(on screen display) setting support Live Monitoring 30 FPS maximum recording per camera (subject to camera and video server capacity) Automatic camera model detection On-the-fly configuration changes E-mail notification to address book Lock system to avoid abnormal change Chinese (Traditional) Chinese (Simplified ) German English French Italian Japanese Portuguese(Brazil) Portuguese(Portugal) Russian Spanish • Multilingual Support

Product Features System User Management User validation User password restriction User profiling Access privilege control • User Account Setting

Product Features Video/Audio Recording Multiple storage locations support Record by schedule Record by event Pre-record/Post-record support Manual recording with up to 32 channel support • Video Encoder Support single way audio record of multiple channels Record and live display at different frame rates and resolution

Product Features Data Search and Playback Video playback control Histogram quick search for video Video Stamp Video extract by snapshot Video extract by AVI/ASF Support remote playback/web playback to play historical videos Video Enhancement • Video Enhancement

Product Features Video Mode Screen division layout support Monitor display by video drag and drop Support full screen to display videos Information windows support Enable move function to control P/T/Z camera Digital zoom in/out support Support remote livewer/web live viewer to display videos • Enable Move Menu

Product Features Map Mode Multiple map support Alarm notification Customized map background support Camera preview Camera and I/O indicator P/T/Z Control Manual control Preset positions (device dependent) Preset patrolling Multiple patrol group support • Multiple patrol group

Product Features I/O Feature Output port control Input port trigger on event Output port relay when event detected Backup database for logs and videos Import/Export configuration DB tool CD burning for backup videos and logs in Windows XP • I/O Device Control

Product Comparison between DVC V 3. 0 and V 2. 0 x Cont …

Product Comparison between DVC V 3. 0 and V 2. 0 x

Product Comparison between DVC V 3. 0 and DCVS V 1. 0 Cont …

Product Comparison between DVC V 3. 0 and DCVS V 1. 0 Cont …

Product Comparison between DVC V 3. 0 and DCVS V 1. 0

Product Comparison between NVR and DVC V 3. 0 Cont …

Product Comparison between NVR and DVC V 3. 0

Product Comparison between DVC V 3. 0 and Competitors Cont …

Product Comparison between DVC V 3. 0 and Competitors Cont …

Product Comparison between DVC V 3. 0 and Competitors

Main Console

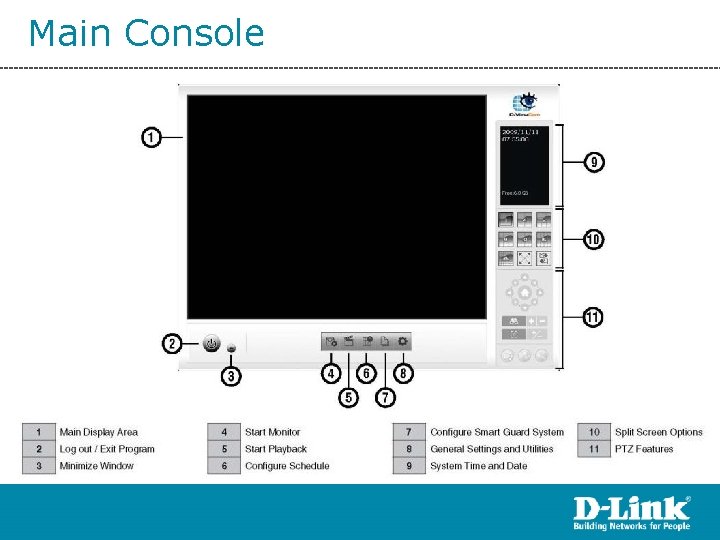

Main Console General Setting & Utilities: Select to modify general settings, user account settings, save/ load configuration settings, access log viewer and backup files, and configure network services. Configure Smart Guard System: Add/edit type(s) of events that you want to detect and setup action(s) responding to events. Configure Schedule System: Organize the recording schedule and configure recorder settings. Start Playback: Click on the icon to open the Playback Console. You can watch recorded video, search recorded video, adjust the image of the stored data, save video/pictures, print images, check log information and event records, and set up recording function configuration. Start Monitor: Click on the Start Monitor icon and select from the menu to start/stop recording schedule system or the guard system features. You can also open monitor tools such as event report, E-Map, I/O control panel, and system lock.

Search and add camera Search: Click on the Search icon to obtain the Search IP Camera panel. The system will start scanning automatically once the panel is opened. You may manually stop scanning by clicking on the Stop Scan button. Fill in the user name and password for each IP camera found and click OK to add it to the camera list. Note: Drag the mouse to multi-select the cameras and then insert the username and password. The username and password will be applied to all the selected cameras automatically.

Smart Guard System n There are 2 sources of events: 1. Camera (video image) 2. Digital Input • Event and Action configuration

Smart Guard System – Camera Event n There are two types of events: 1. Signal Lost 2. General Motion • Select Event Types

Smart Guard System – Digital Input Event Step 1: Click and highlight the Digital Input on the event type list and then click the Insert Event icon. Step 2: Select the device that is connected to your camera(s).

Smart Guard System – Action n There are four types of actions: 1. 2. 3. 4. On Screen Display Play Sound Send E-mail DO Trigger • Select Action Types

Schedule System n Adjust the Scheduled Setting • Schedule Configuration

Schedule System n Configure schedule recording steps: 1. Load a preset mode or 2. Insert a new schedule manually or 3. Copy to other cameras after manually setup. • Schedule Recording Configuration

Schedule System – Preset Mode n Preset modes of schedule recording: Mode Regular Office Shop Highly Secure Disk Saving Minor Format M-JPEG MPEG-4 M-JPEG MPEG-4 Time Record 0: 00 -24: 00 Always 8: 00 -20: 00 Always 10: 00 -22: 00 Always 0: 00 -24: 00 Motion • Preset mode definition FPS Max Max 10 i-frame 5 i-frame Quality Resolution Max Max Max

Schedule System – Record on motion Record on Motion Select this option to start recording when motions are detected. Please adjust sensitivity, the frame interval and setup the detection zone to detect motion. To setup a single detection zone, left-click and drag the mouse to draw a rectangle. To setup more than one detection zones, simply repeat the same process. You may create up to 10 detection zones. Click All to select the entire detection zone.

Schedule System – Video Encoder Keep Original Video format Select this option to lower the frame rate but not re-encode the video stream. • Adjust MJPEG video frame rate: Use the slider to reduce or increase the frame rate. Note: The maximum FPS (move the slider to the right) will be correspond with original video stream set up on camera configuration. • Keep key-frame only: System will only record key frames of video streaming. Note: The key frame interval is controlled by each camera manufacturer and cannot be adjusted.

Start Playback n Playback windows layout

Start Playback n Playback windows layout

Start Playback n Open Record and open Date Time search dialog • Playback Open Record -> Date time search dialog

Start Playback n Time Table & Show Records

Start Playback – Post Processing Tool n Visibility: Check the option and adjust the gamma value of the image to enhance the image and make it cleaner. n Sharpen: Check the option to activate the function. Move the slider control to the right to sharpen the image, to the left to soften it. n Brightness: Check the option to activate the function. Move the slider control to the right to make the image brighter. n Contrast: Check the option to activate the function. Move the slider control to the right to increase contrast. n Grey Scale: Check the option to show the record in grey scale mode so the image displays in black and white. • Video Enhancement

Start Playback – Save Video n Click on the display screen to choose the camera display that you want to save as a video clip. • Video Cue In/Cue Out n Step 1: Click Save Video icon, choose the folder where you want to save the file at, enter the file name and click SAVE. n Step 2: Set the Export Format as ASF or AVI and set the Use Profile. n Step 3: Select to export (i. e. save) the record video with Audio, OSD, or export video only. n Step 4: Click OK to save the video. • Export Video/Audio

Start Playback – Save Image n Save Image (Snapshot) Step 1: Click on the display screen to select the camera display from which you want to save pictures. Step 2: Click the Save Image button when the image you want is displayed on the screen. You may click Pause to freeze the video and use the Step Forward/Step Backward buttons to find the picture that you want to save. Step 3: Check the OSD box to export the image with the date/time and camera number/name displayed. If the digital PTZ function is enabled in the display view, you can also select either Full size or Selected Region as your image region. Step 4: You have the option to copy the image to the clipboard or to save it to your computer. • Snapshot Screen

Start Monitor Option Function Start/Stop Monitor All Click to start or stop all monitoring functions. Start/Stop Recording Schedule Click to start or stop the recording schedule. Start/Stop Smart Guard System Click to start or stop the smart guard system. Open Event Report Click to open the event report which will log any events. Open E-Map Click to open E-Map which monitors all devices with map indicators. Open I/O Control Panel Click to open the I/O control panel which monitors the DI/DO and manual triggering the DO devices. Lock System Click to lock the system.

E-Map n With E-Map, users can track the actual location and alarm status easily for each camera and receive instant response when the event happens. The arrows and lightening icon on E-Map represent cameras and I/O devices and these icons will turn red once they are trigger by alarms. • E-Map Configuration

E-Map – Edit Mode n Edit Mode Users need to be in Edit Mode to activate the function buttons. • E-Map Edit Mode

E-Map – Operate Mode n Operate Mode To carry out the operation functions in E-Map, you need to be in Operate Mode. • E-Map Operate Mode

Remote Live Viewer n With the Remote Live Viewer console, remote users may watch up to 64 real-time video channels from remote live streaming servers. • Remote Live Viewer Screen

Remote Live Viewer – Server Setting Server List • Remote Live Viewer – Server Setting

Remote Live Viewer – Group Setting • Remote Live Viewer – Group Setting

Remote Live Viewer - Monitor Display Setting • Remote Live Viewer – Monitor Display Setting

Remote Playback n With the Remote Playback console, remote users may watch 1 historical video channels from remote D-View. Cam server. • Remote Playback Screen

Remote Playback n Open Record and Date-Time Panel • Remote Playback Open Record -> Date Rime Panel

Web Live Viewer n How to open Web Live Viewer window • Note: Make sure the Live Stream Server is enabled.

Web Live Viewer n Web Live Viewer window

Web Playback n How to open Remote Playback windows • Open Remote Playback window through Web View

Web Playback n Web Playback window

Network Service n Live Streaming Server - When starting the live streaming function of computer, the system allows remote users to log in to the specific computer and view cameras that are connected to it.

Network Service n Live Streaming Server - Black / White List.

Network Service n Live Streaming Server – Performance Monitor.

Product Roadmap Q 1 / 2010 Windows 7 O. S. support More Languages support Device Pack Digital Watermark DVD Burning Q 2 / 2010 Q 3 / 2010 SOHO Q 4 / 2009 DCS-100 V 3. 1 (32 ch) SMB D-View. Cam DCS-100 V 3. 0 (32 ch) Multilingual support Web Viewer/Playback Remote Viewer/Playback Enhancement Access Privilege Control Lock System Full Screen E-map DB Tools CD Burning n Available n In Development n In Plan Enterprise D-View. Cam CVS DCS-220/230 V 1. 0 (32 ch/64 ch) Including all DCS-100 V 3. 0 Features Multi-Channel Playback Multi-Layer E-Map Compatible with D-Link NVR Compatible with 3 rd party CMS Intelligent search Tool Auto Reboot Remote Desktop System DDNS SMS Alert

Product Application

Product Application
