DVB Update Service Information Martin Gold NDS 1

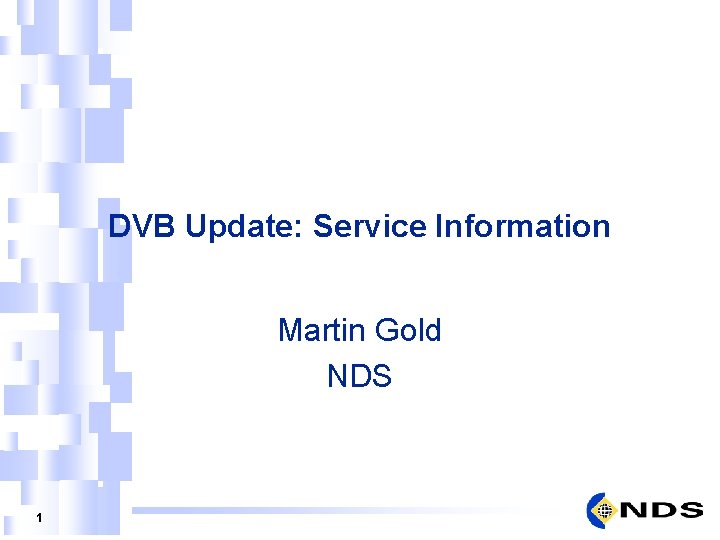

DVB Update: Service Information Martin Gold NDS 1

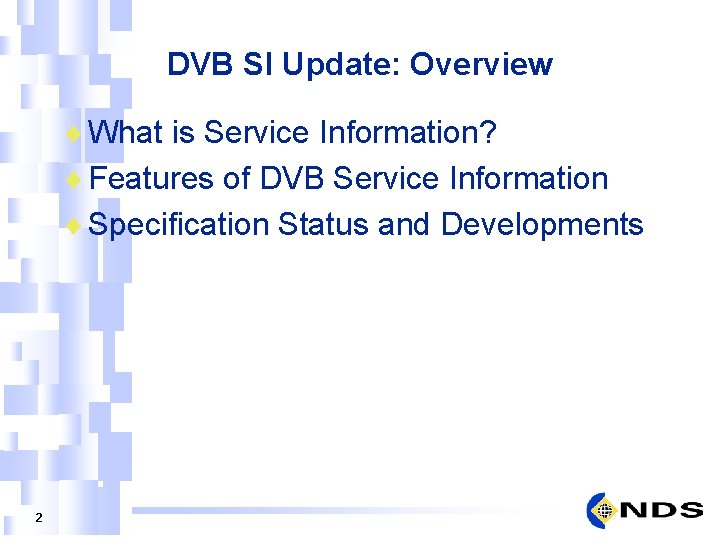

DVB SI Update: Overview ¨ What is Service Information? ¨ Features of DVB Service Information ¨ Specification Status and Developments 2

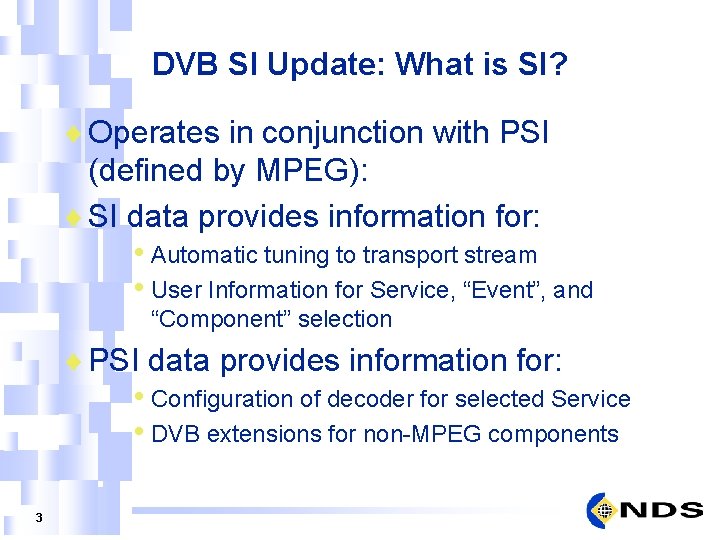

DVB SI Update: What is SI? ¨ Operates in conjunction with PSI (defined by MPEG): ¨ SI data provides information for: • Automatic tuning to transport stream • User Information for Service, “Event”, and “Component” selection ¨ PSI data provides information for: • Configuration of decoder for selected Service • DVB extensions for non-MPEG components 3

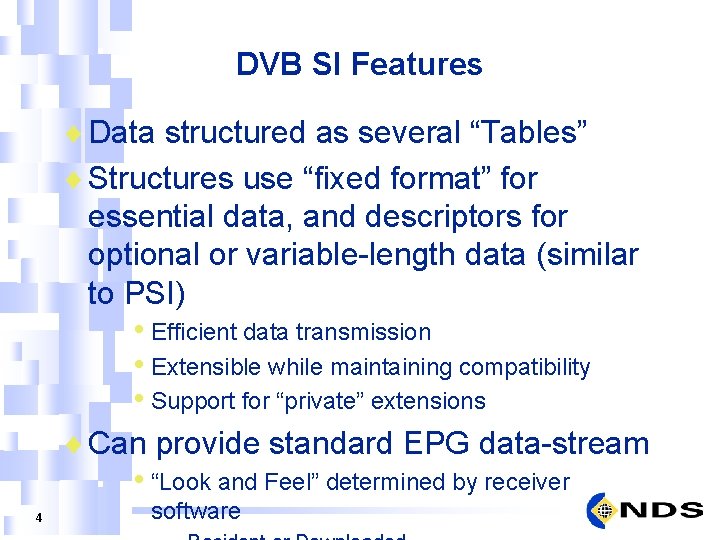

DVB SI Features ¨ Data structured as several “Tables” ¨ Structures use “fixed format” for essential data, and descriptors for optional or variable-length data (similar to PSI) • Efficient data transmission • Extensible while maintaining compatibility • Support for “private” extensions ¨ Can provide standard EPG data-stream • “Look and Feel” determined by receiver 4 software

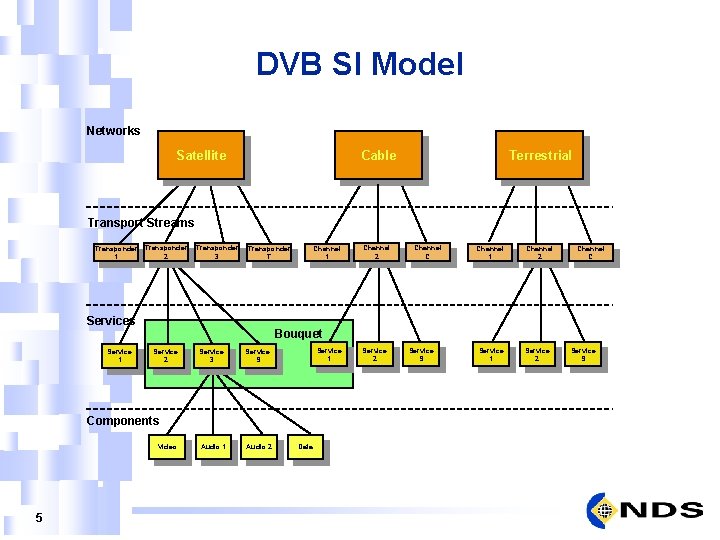

DVB SI Model Networks Satellite Cable Terrestrial Transport Streams Transponder 2 1 Transponder 3 Services Service 1 Channel 1 Transponder T Channel C Channel 1 Channel 2 Channel C Bouquet Service 2 Service 3 Service S Audio 1 Audio 2 Service 1 Components Video 5 Channel 2 Data Service 2 Service S Service 1 Service 2 Service S

SI Features: NIT ¨ Network Information Table n Identification of transmission as a member of a group of multiplexes - “Network” n Network Name n Tuning parameters with support for various delivery media • List of additional frequencies for terrestrial transmission n Designed for simple transcoding of transport streams 6

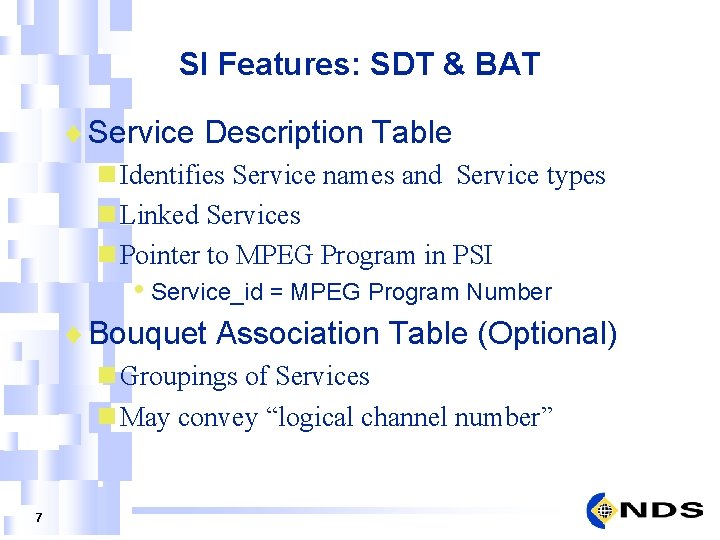

SI Features: SDT & BAT ¨ Service Description Table n Identifies Service names and Service types n Linked Services n Pointer to MPEG Program in PSI • Service_id = MPEG Program Number ¨ Bouquet Association Table (Optional) n Groupings of Services n May convey “logical channel number” 7

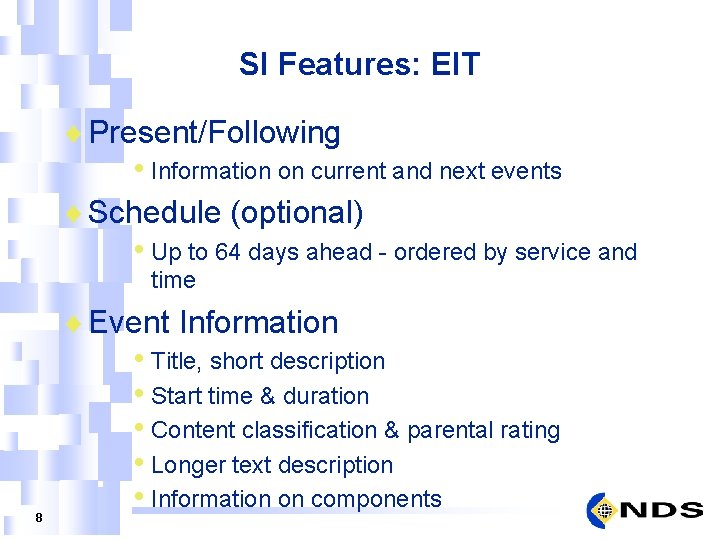

SI Features: EIT ¨ Present/Following • Information on current and next events ¨ Schedule (optional) • Up to 64 days ahead - ordered by service and time 8 ¨ Event Information • Title, short description • Start time & duration • Content classification & parental rating • Longer text description • Information on components

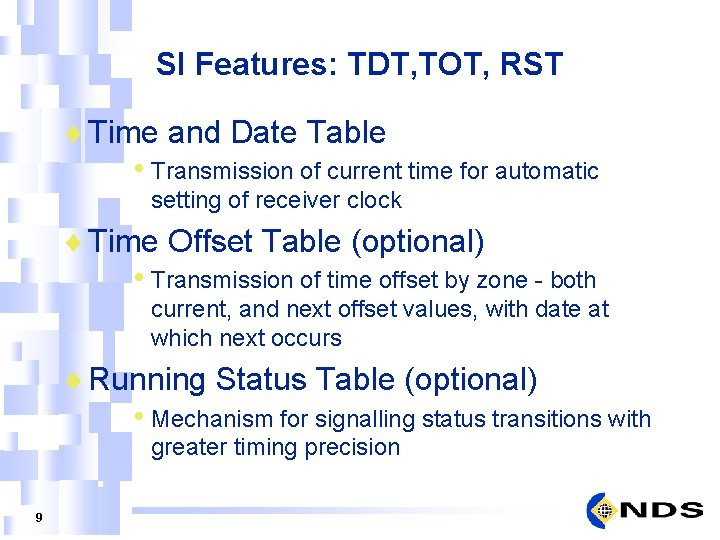

SI Features: TDT, TOT, RST ¨ Time and Date Table • Transmission of current time for automatic setting of receiver clock ¨ Time Offset Table (optional) • Transmission of time offset by zone - both current, and next offset values, with date at which next occurs ¨ Running Status Table (optional) • Mechanism for signalling status transitions with greater timing precision 9

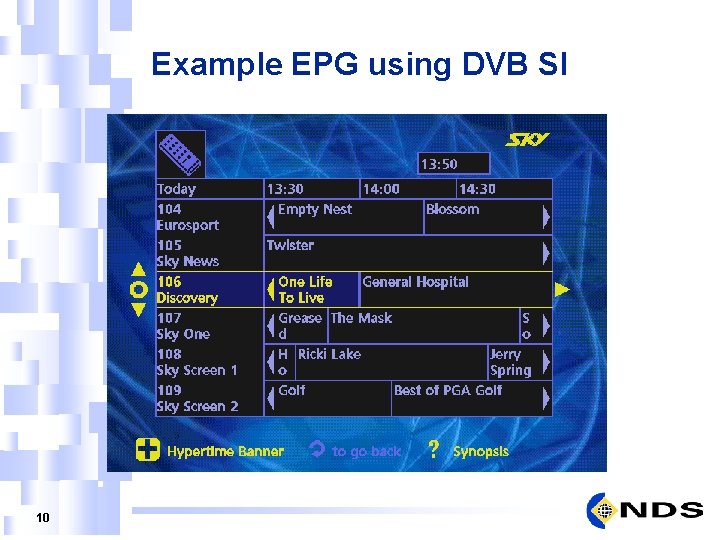

Example EPG using DVB SI 10

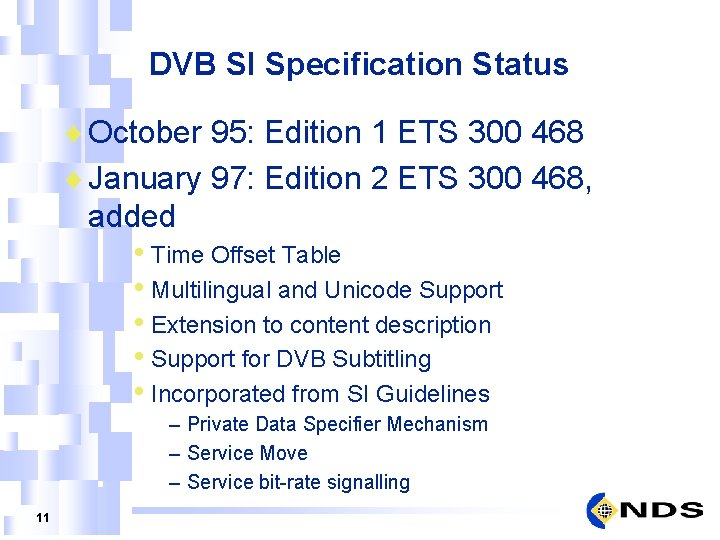

DVB SI Specification Status ¨ October 95: Edition 1 ETS 300 468 ¨ January 97: Edition 2 ETS 300 468, added • Time Offset Table • Multilingual and Unicode Support • Extension to content description • Support for DVB Subtitling • Incorporated from SI Guidelines – Private Data Specifier Mechanism – Service Move – Service bit-rate signalling 11

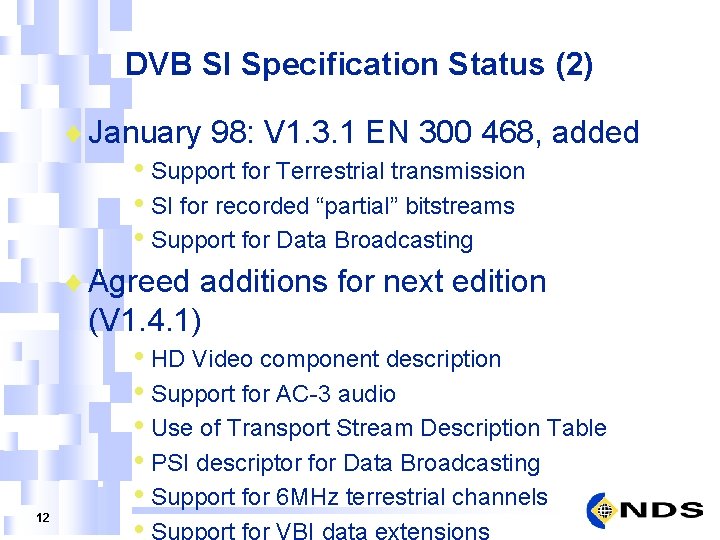

DVB SI Specification Status (2) 12 ¨ January 98: V 1. 3. 1 EN 300 468, added • Support for Terrestrial transmission • SI for recorded “partial” bitstreams • Support for Data Broadcasting ¨ Agreed additions for next edition (V 1. 4. 1) • HD Video component description • Support for AC-3 audio • Use of Transport Stream Description Table • PSI descriptor for Data Broadcasting • Support for 6 MHz terrestrial channels • Support for VBI data extensions
