Dust Collector Presentation En Tech Industries Agenda 1

Dust Collector Presentation En. Tech Industries

Agenda 1. Who We Are 2. Design Theories 3. Design Configurations 4. Working With En. Tech 5. Questions?

Who We Are En. Tech Industries, Inc. engineers, manufactures and sells the Cyclone Series of high performance dust collectors, GRS Grit Recycling Systems and a variety of custom products, developed for your specific needs. The company's commitment to its customers, the environment and to maintaining high quality standards are just a few of the reasons why they continue to grow. En. Tech's reliable equipment can be found running on job sites from coast to coast.

Design Theories

Bag Type Limitations • Dust Particles • Area Restrictions • Cost of Maintenance

Cartridge Type - Side Loaded Limitations • Caked Filters • Filter Replacement – Messy – Time Consuming Benefits • Space Saving

Cartridge Type - Bottom Loaded Limitations • Accessibility • Filter Replacement – Messy – Time Consuming Benefits • Space Saving • Vertical Filters

Cartridge Type - Top Loaded Limitations • Space Benefits • Vertical Filters • Filter Replacement – Clean – Time-saving

Design Configurations

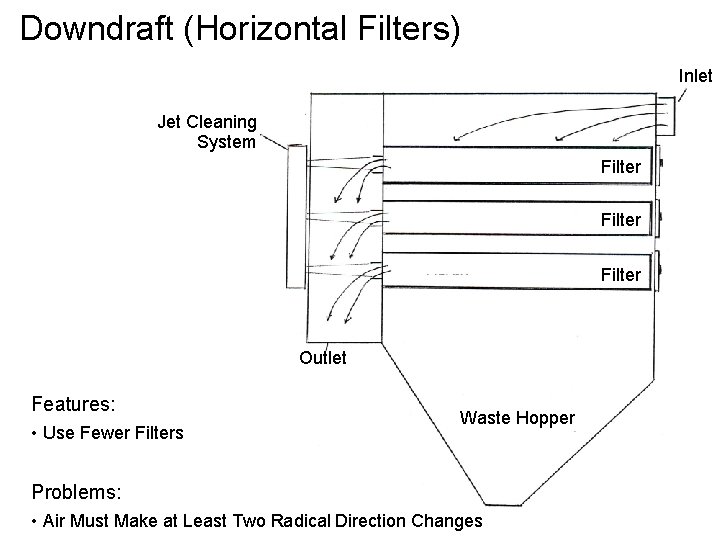

Downdraft (Horizontal Filters) Inlet Jet Cleaning System Filter Outlet Features: • Use Fewer Filters Waste Hopper Problems: • Air Must Make at Least Two Radical Direction Changes

Downdraft (Vertical Filters) Jet Cleaning System Outlet Inlet Filter Waste Hopper Filter

Jet Cleaning System Bottomdraft Outlet Filter Inlet Features: • Requires Less Horsepower and Fan Power Problems: • Possible Re-intranement of Dust in the Air Stream Waste Hopper Filter

Jet Cleaning System Built Into Hopper Lid Sidedraft Outlet Filter Baffle Sheet Flow Through Diverter Inlet Waste Hopper Features: • Requires Less Horsepower and Fan power

Working With En. Tech Industries is committed to customer service and strives to offer you the variety of options to fulfill the results you desire. En. Tech Industries offers you the following: • Horizontal Diffuser or Diverter • Ease of Service, Ease of Maintenance • Simplicity of Design • Straight Through Airflow • Baffle Plates Between Each Row of Filters • Vertical Loaded Filters • Readily Available Parts • Quality of Finish

Questions?
