DuoAqua Trap ON BOARD FILTERS DAT 1 FILTERS

  • Slides: 16
Download presentation
Duo-Aqua. Trap™ - ON BOARD FILTERS DAT 1 FILTERS & CARTRIDGES Part No Description

Duo-Aqua. Trap™ - ON BOARD FILTERS DAT 1 FILTERS & CARTRIDGES Part No Description New list VAT Total list Max flow rate IXFDA-0001 Duo-Aqua. Trap™ DAT 1 filter complete with cartridge 1533. 53 214. 69 1748. 22 3. 78 l/p/m IXFDA-0002 Duo-Aqua. Trap™ DAT 1 filter long clear bowl for extra water retention with cartridge 2600. 33 364. 05 2964. 38 3. 78 l/p/m IXFDA-0003 Duo-Aqua. Trap™ DAT 1 filter + spin on adaptor + pump head with priming pump 2160. 27 302. 44 2462. 71 3. 78 l/p/m IXCDA-0004 Replacement sub micron paper / depth synthetic cartridge with yellow caps 250. 00 35. 00 285. 00 IXCDA-0021 Replacement 2 micron paper cartridge (green caps) 150. 00 21. 00 171. 00 IXCDA-0014 Replacement 10 micron paper cartridge (red caps) 150. 00 21. 00 171. 00 IXCDA-0024 DAT 1 PTFE cage with stainless steel mesh – water trap 365. 00 51. 10 416. 10 NOTE: STANDARD CARTRIDGE FITMENT IS 10 MICRON – RED CAPS IXFDC - 0001 IXFDC - 0002 IXFDC - 0003 IXCDA-0014 IXCDA-0021 IXCDA 0024

Duo-Aqua. Trap™ - ON BOARD FILTERS - continued DAT 2 FILTERS & CARTRIDGES Part

Duo-Aqua. Trap™ - ON BOARD FILTERS - continued DAT 2 FILTERS & CARTRIDGES Part No Description New list VAT Total list Max flow rate IXFDA-0004 Duo-Aqua. Trap™ DAT 2 filter complete with cartridge 2600. 33 364. 05 2600. 33 7. 56 l/p/m IXFDA-0005 Duo-Aqua. Trap™ DAT 2 filter with spin on adaptor (Parker head) with cartridge 2600. 33 364. 05 2964. 38 7. 56 l/p/m IXFDA-0006 Duo-Aqua. Trap™ DAT 2 filter with spin on adaptor and pump head with priming pump 3293. 75 461. 13 3754. 88 7. 56 l/p/m IXCDA-0005 Replacement sub micron paper / depth synthetic cartridge with yellow caps. 500. 00 70. 00 570. 00 IXCDA-0022 Replacement 2 micron paper cartridge with green caps 328. 00 45. 92 373. 92 IXCDA-0015 Replacement 10 micron paper cartridge with red caps 328. 00 45. 92 373. 92 IXCDA-0025 DAT 2 PTFE cage with stainless steel mesh – water trap 489. 50 68. 53 558. 03 NOTE: STANDARD CARTRIDGE FITMENT IS 10 MICRON – RED CAPS IXFDA-0004 IXFDA-0005 IXFDA-0006 IXCDA-0015 IXCDA-0025

1” IN LINE WATER INDICATOR & STRAINER FILTER / CARTRIDGES Part No Description New

1” IN LINE WATER INDICATOR & STRAINER FILTER / CARTRIDGES Part No Description New List VAT Total list Applications 1” in line water indicator filter with a resin coated stainless steel mesh and 30 micron pleated paper 1915. 00 268. 10 2183. 10 - Mobile trailers 1” inline filter with 150 micron strainer 1915. 00 268. 10 2183. 10 1” FIL-PART/WAT 1” FIL-STR 150 - Farmers gravity tanks 1” CART- PART/WAT Cartridge - Resin coated stainless steel mesh and 30 micron pleated paper cartridge 564. 30 79. 00 643. 30 1” CART-STR 150 Cartridge - Stainless steel mesh strainer Ideal for protecting the pump. 564. 30 79. 00 643. 30 1” BRACKET Bracket - Steel powder coated slotted mounting bracket for securing 1” in line filter. 1” CART-PART/WAT 1” CART-STR 150 1”FIL-PART/WAT - Filling Gensets on receiving - Inline strainers - Small kerbside pumps 1” FIL-STR 150

DEPTH FILTRATION REPLACEMENT CARTRIDGES Part No Description New List VAT Total list ICTP 2

DEPTH FILTRATION REPLACEMENT CARTRIDGES Part No Description New List VAT Total list ICTP 2 -DIESEL Ultrafine ISO spec sure depth synthetic on board diesel cartridge - 250 mm in length 531. 86 74. 46 606. 32 ICTP 2 -OIL Ultrafine ISO spec sure depth synthetic on board engine oil cartridge - 250 mm in length 620. 52 86. 87 707. 39 ICTP 3 -DIESEL Ultrafine ISO spec sure depth synthetic on board diesel cartridge - 375 mm in length 652. 67 91. 37 744. 04 ICTP 3 - OIL Ultrafine ISO spec sure depth synthetic on board engine oil cartridge - 375 mm in length 836. 66 117. 13 953. 79 NOTE: NEW SEAL & O RING SUPPLIED WITH EACH CARTRIDGE ICTP 1 -DIESEL ICTP 2 -DIESEL ICTP 3 -OIL

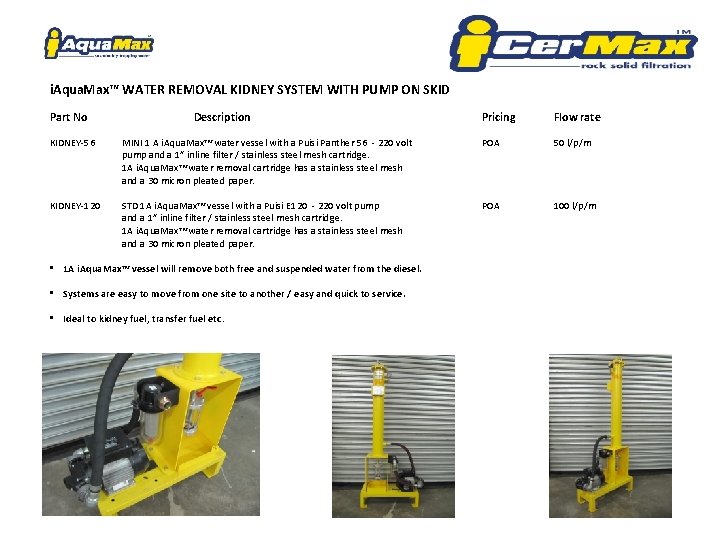

i. Aqua. Max™ WATER REMOVAL KIDNEY SYSTEM WITH PUMP ON SKID Part No Description

i. Aqua. Max™ WATER REMOVAL KIDNEY SYSTEM WITH PUMP ON SKID Part No Description Pricing Flow rate KIDNEY-56 MINI 1 A i. Aqua. Max™ water vessel with a Puisi Panther 56 - 220 volt pump and a 1” inline filter / stainless steel mesh cartridge. 1 A i. Aqua. Max™ water removal cartridge has a stainless steel mesh and a 30 micron pleated paper. POA 50 l/p/m KIDNEY-120 STD 1 A i. Aqua. Max™ vessel with a Puisi E 120 - 220 volt pump and a 1” inline filter / stainless steel mesh cartridge. 1 A i. Aqua. Max™ water removal cartridge has a stainless steel mesh and a 30 micron pleated paper. POA 100 l/p/m • 1 A i. Aqua. Max™ vessel will remove both free and suspended water from the diesel. • Systems are easy to move from one site to another / easy and quick to service. • Ideal to kidney fuel, transfer fuel etc.

TROLLEY FILTRATION SYSTEMS Part No Description Pricing Flow rate TROLLEY-2 Two vessels mounted on

TROLLEY FILTRATION SYSTEMS Part No Description Pricing Flow rate TROLLEY-2 Two vessels mounted on a 4 wheel reinforced trolley with handle. Puisi Panther 56, 220 volt pump protected by 1” inline filter / strainer 1 st in line is a bag filter vessel with a double layer (100/10 micron) guff bag. 2 nd in line is a 1 A i. Aqua. Max™ water removal vessel with a stainless steel mesh and 30 micron pleated paper cartridge. 1 A i. Aqua. Max™ water trap has a special drain valve Pump has a 20 metre heavy duty cable and both suction pipes have a ball valve and three metre of hose each. POA 50 l/p/m TROLLEY 3 Three vessels mounted on a 4 wheel reinforced trolley with handle. Puisi Panther 72, POA 220 volt pump protected by 1” inline filter / strainer 1 st and 2 nd in line are the two bag filter vessels with triple layer (50/50/10 micron) guff bags. 3 rd in line is a 1 A i. Aqua. Max™ water removal vessel with a stainless steel mesh and 30 micron pleated paper cartridge. 1 A i. Aqua. Max™ water trap has a special drain valve. Pump has a 20 metre heavy duty cable and both suction pipes have a ball valve and three metres of hose each. NOTE: Can flow diesel through the two bag vessels only and then through the bag filter vessels and the 1 A i. Aqua. Max™ vessel. 70 l/p/m NOTE: IDEAL FOR VEHICLE / SMALL TANK CLEANING / TRANSFERRING FUEL.

INDIVIDUAL FILTER VESSELS – ISO SPEC SURE RANGE. Part No Description New List VAT

INDIVIDUAL FILTER VESSELS – ISO SPEC SURE RANGE. Part No Description New List VAT Total list Max flow Ideal flow rate IXFL-0004 1 M Mini single steel filter (excluding cartridge) 6200. 78 868. 11 7068. 89 90 l/p/m 30 to 75 l/p/m IXCDA-0020 1 M Mini paper / synthetic cartridge 1066. 94 149. 37 1216. 31 IXST-1 M 1 M stand - optional 821. 54 115. 02 936. 56 IXFG-1 M 1 M single steel filter (excluding cartridge) 6200. 78 868. 11 7068. 89 180 l/p/m 60 to 120 l/p/m IXFCD-1 MBXU 1 M paper / synthetic cartridge 2172. 27 304. 12 2476. 39 IXST-1 M 1 M stand – optional 935. 47 130. 97 1066. 44 IXFL-0004 IXCDA-0020 IXFG-1 M Standard IXFCD-1 MBXU

INDIVIDUAL FILTER VESSELS continued Part No Description New List VAT Total list Max flow

INDIVIDUAL FILTER VESSELS continued Part No Description New List VAT Total list Max flow Ideal flow rate IXFG-3 M 3 M triple steel filter (excluding cartridge) 11875. 00 1662. 50 13537. 50 160 l/p/m 105 to 150 l/p/m IXFDC-3 MBX 3 M paper / synthetic cartridge – 3 per set 4267. 00 597. 00 4864. 38 IXST-1 M 3 M stand – optional 1111. 53 155. 61 1267. 14 IXFG-7 M 7 M – seven steel filter (excluding cartridges) 26231. 00 3672. 34 29303. 34 160 l/p/m 120 to 150 l/p/m IXFCD-7 MBX 7 M paper / synthetic cartridge – 7 per set 9956. 33 1393. 89 11350. 22 IXFG-3 M IXFDC-3 MBX 3 PER SET IXFG-7 M IXFCD-7 MBX 7 PER SET

INDIVIDUAL BAG FILTER VESSELS Part No Description New List VAT Total list Max flow

INDIVIDUAL BAG FILTER VESSELS Part No Description New List VAT Total list Max flow Ideal flow rate IXFL-0006 Mini bag Filter vessel (excluding guff bag) 6200. 00 868. 00 7068. 00 120 l/p/m 70 to 100 l/p/m IXBF-RFB 4 Mini single layer guff bag – 1 micron 358. 00 50. 12 408. 12 IXBF-RFB 5 Mini double layer guff bag – 100/10 microns 485. 00 67. 90 552. 90 IXBF-RFB 6 Mini triple layer guff bag – 100/10/1 microns 499. 00 69. 86 568. 86 IXBF-150 MINI Mini stainless steel mesh strainer – 150 microns 1166. 96 163. 37 1330. 33 IXFL-0006 IXBF-RFB 4/5 or 6 IXBF-150 MINI Guff bag and support cage Dirty guff bag

INDIVIDUAL BAG FILTER VESSELS continued Part No Description New List VAT Total list Max

INDIVIDUAL BAG FILTER VESSELS continued Part No Description New List VAT Total list Max flow Ideal flow rate IXFG-BF Standard bag filter vessel (excluding guff bag) 11112. 40 1555. 74 12668. 14 160 l/p/m 100 to 150 l/p/m IXBF-ISOCART ISO spec sure bag filter cartridge 3734. 47 522. 83 4257. 30 IXBF-RFB 1 Single layer guff bag – 1 micron 295. 00 41. 30 336. 30 IXBF-RFB 2 Double layer guff bag – 100/10 microns 485. 00 67. 90 552. 90 IXBF-RFB 3 Triple layer guff bag – 100/10/1 microns 635. 00 88. 90 723. 90 IXBF-RFB 3 TOTAL Triple layer guff bag – 50/50/10 microns 635. 00 88. 90 723. 90 IXBF-25 MMC Stainless steel German mesh – 25 microns 3862. 59 540. 76 4403. 35 IXBF-100 MMC Stainless steel mesh strainer – 100 microns 1500. 37 210. 05 1710. 42 IXBF-150 MMC Stainless steel mesh strainer – 150 microns 1500. 37 210. 05 1710. 42 IXFG-BF Mesh strainer Bag filter on burner Guff bag + support cage Dirty guff bag

i. Aqua. Max™ WATER FILTRATION VESSELS Part No Description New List VAT Total list

i. Aqua. Max™ WATER FILTRATION VESSELS Part No Description New List VAT Total list Max flow Ideal flow rate IXFL-0005 MINI 1 A i. Aqua. Max™ vessel with stand water trap (excluding cartridge) MINI 1 A i. Aqua water cartridge MINI lockable cage for water trap Replacement ½” 100 mm O/D water trap 8812. 89 1233. 80 10046. 69 60 l/p/m 30 to 50 l/p/m 2395. 00 1533. 53 335. 30 214. 69 2730. 30 1748. 22 1 A i. Aqua. Max™ vessel with stand water trap (excluding cartridge) 1 A i. Aqua cartridge Lockable cage for water trap Replacement ½” 100 mm O/D water trap 12384. 21 1733. 79 14118. 00 120 l/p/m 60 to 100 l/p/m 3668. 00 1800. 23 513. 52 252. 03 4181. 52 2052. 26 3 A i. Aqua. Max™ vessel with stand water trap (excluding cartridge) 3 A i. Aqua cartridge lockable cage for water trap Replacement ½” 130 mm O/D water trap 20909. 28 2927. 30 23836. 58 160 l/p/m 105 to 150 l/p/m 4473. 00 1933. 58 626. 22 270. 70 5099. 22 2204. 28 7 A i. Aqua. Max™ vessel with stand water trap (excluding cartridge) 7 A i. Aqua cartridge 36074. 84 5050. 48 41125. 32 350 l/p/m 150 to 200 l/p/m 7219. 63 1010. 75 8230. 38 IXCDA-0017 IXIA-1 ACAGE IXIA-1 A IXCDA-0011 IXIA-1 ACAGE IXIA-3 A IXCDA-0013 IXIA-3 ACAGE IXIA-7 A IXCDA-0017 IXFL-0012 IXIA-1 A IXIA-3 A

MINI COMBO UNITS Part No Description New List VAT Total list Max flow Ideal

MINI COMBO UNITS Part No Description New List VAT Total list Max flow Ideal flow rate IXFL-0010 MINI 1 A i. Aqua. Max™ + 1 M + Bag filter combo (includes water trap, drip tray, lockable cage) 27500. 00 3850. 00 31350. 00 90 l/p/m 30 to 60 l/p/m IXFL-0011 MINI 1 A i. Aqua. Max™ + 1 M combo (includes water trap, drip tray and lockable cage) 19850. 00 2779. 00 22629. 00 75 l/p/m 30 to 50 l/p/m IXFL-0012 MINI 1 A i. Aqua. Max™ + Bag filter combo (includes water trap, drip tray and lockable cage) 21837. 40 3057. 24 24894. 64 90 l/p/m 30 to 60 l/p/m IXFL-0010 IXFL-0011 IXFL-0012

COMBO FILTRATION SYSTEMS Part No Description New List VAT Total list Max flow Ideal

COMBO FILTRATION SYSTEMS Part No Description New List VAT Total list Max flow Ideal flow rate IXFG-D 1 COMBO 1 A i. Aqua. Max™ and 1 M vessel mounted on skid 29762. 00 4166. 68 33928. 68 120 l/p/h 60 to 100 l/p/m IXFG-D 2 COMBO 1 A i. Aqua. Max™ and 3 M vessel mounted on skid 34290. 00 4800. 00 39090. 60 120 l/p/m 60 to 100 l/p/m IXFG-D 3 COMBO 3 A i. Aqua. Max™ and 3 M vessel mounted on skid 41628. 71 5828. 02 47456. 73 250 l/p/m 120 to 200 l/p/m IXFG-D 4 COMBO 3 A i. Aqua. Max™ and bag vessel mounted on skid 42309. 61 5923. 35 48232. 96 250 l/p/m 120 to 200 l/p/m IXFG-D 5 COMBO Bag and 3 M vessel mounted on skid 28506. 81 3990. 95 32497. 76 250 l/p/m 120 to 200 l/p/m IXFG-D 6 COMBO Bag and 7 M vessel mounted on skid 46734. 00 6542. 76 53276. 76 250 l/p/m 120 to 200 l/p/m NOTE: All above i. Aqua. Max™ vessels include water trap, drip tray, lockable cage and hose between vessels. IXFG-D 1 COMBO IXFG-D 2 COMBO IXFG-D 3 COMBO IXFG-D 4 COMBO

COMBO FILTRATION SYSTEMS continued Part No Description New List VAT Total list Max flow

COMBO FILTRATION SYSTEMS continued Part No Description New List VAT Total list Max flow Ideal flow rate IXFG-01 COMBO Bag filter vessel X 2 with double layer guff bags 29929. 26 4190. 10 34119. 36 500 l /p/m 300 to 380 l/p/m IXFG-02 COMBO Bag X 4 – capacity combo unit - 1’ hoses 49750. 00 6965. 00 56715. 00 600 l/p/m 300 to 400 l/p/m IXFG-03 COMBO 3 A i. Aqua. Max™ vessel X 2 with water traps + trays. 45976. 12 6436. 66 52412. 78 500 l/p/m 300 to 380 l/p/m IXFG-04 COMBO 3 A i. Aqua. Max™ X 2 + Bag filter vessel X 2 76496. 28 10709. 48 87205. 76 500 l/p/m 300 to 380 l/p/m IXFG-05 COMBO 3 M triple steel vessel X 2 34027. 46 4763. 84 38791. 30 500 l/p/m 300 to 380 l/p/m IXFG-06 COMBO 3 M vessel, bag filter, 3 A i. Aqua. Max™ mounted on a skid. 57395. 00 8035. 30 65430. 30 300 l/p/m 105 to 250 l/p/m NOTE: All above i. Aqua. Max™ vessels include water trap, drip tray and lockable cage. All combo units include cartridges / guff bags. All combo units mounted on a skid. IXFG-01 COMBO IXFG-02 COMBO IXFG-03 COMBO IXFG-05 COMBO

COMBO FILTRATION SYSTEMS continued Part No Description New List VAT Total list Max flow

COMBO FILTRATION SYSTEMS continued Part No Description New List VAT Total list Max flow Ideal flow rate IXFG-07 COMBO 7 M steel vessel X 2 (excludes hoses / plumbing) 68728. 00 9621. 92 78349. 92 320 l/p/m 240 to 300 l/p/m IXFG-08 COMBO 7 M vessel X 2 + 3 A i. Aqua. Max™ X 2 vessels. 117430. 00 16440. 20 133870. 20 250 l/p/m 150 to 200 l/p/m IXFG-09 COMBO 7 M vessel, Bag vessel, 3 A i. Aqua. Max™ vessels 76397. 00 10695. 58 87092. 58 250 l/ p/ m 180 to 200 l/p/m IXFG-10 COMBO 7 M vessel, Bag filter X 2, 3 A i. Aqua. Max™ vessel 93782. 00 13129. 48 106911. 48 250 l/p/m 150 to 200 l/p/m NOTE: All above i. Aqua. Max™ vessels include water trap, drip tray and lockable cage. All combo units include cartridges and guff bags. All combo units mounted on a skid. IXFG-07 COMBO IXFG-08 COMBO IXFG-09 COMBO

SILICA GEL BREATHERS Part No Description New List VAT Total list TXP 1 2000

SILICA GEL BREATHERS Part No Description New List VAT Total list TXP 1 2000 litre bulk tank 1029. 14 144. 08 1173. 22 TXP-1 C Replacement pack for TXP 1 breather 208. 03 29. 12 237. 15 TXP 4 16000 litre bulk tank 2333. 63 326. 71 2660. 34 TXP-4 C TXP 4 PLUMB TXP 7 Replacement pack for TXP 4 breather Plumbing for installation of breather 23000 litre bulk tank 865. 44 716. 09 3667. 13 121. 16 100. 25 513. 40 986. 60 816. 34 4180. 53 TXP-7 C Replacement pack for TXP 7 breather 1109. 47 155. 33 1264. 80 TXP 7 PLUMB Plumbing for installation of breather 716. 09 100. 25 816. 34 IXFG-A 23 Velvet Coalesce air breather for 23000 tank 2513. 65 351. 91 2865. 56 IXFG-A 83 Velvet Coalesce air breather for 83000 tank 3333. 75 466. 73 3800. 48 TXP 1 and TXP 4 Installation of breather with reducer and one way valve
