(Duke suicide picture by Gary Mc. Graw. ) CS 201 j: Engineering Software University of Virginia 14 November 2002 Computer Science Lecture 20: Security in Java / Java (In? ) Security CS 201 J Fall 2002 David Evans http: //www. cs. virginia. edu/evans

Menu • Low-level Code Safety – Java Byte Code Verifier • Policy Code Safety – Reference Monitors – Java’s Security Manager 14 November 2002 CS 201 J Fall 2002 2

Java Security Real or Decaf? 14 November 2002 CS 201 J Fall 2002 3

Java : Programming Language “A simple, object-oriented, distributed, interpreted, robust, secure, architecture neutral, portable, high-performance, multithreaded, and dynamic language. ” [Sun 95] 14 November 2002 CS 201 J Fall 2002 4

What is a secure programming language? 1. Language is designed so it cannot express certain computations considered insecure. A few attempt to do this: PLAN, packet filters 2. Language is designed so that (accidental) program bugs are likely to be caught by the compiler or runtime environment instead of leading to security vulnerabilities. 14 November 2002 CS 201 J Fall 2002 5

Safe Programming Languages • Type Safety – Compiler and run-time environment ensure that bits are treated as the type they represent • Memory Safety – Compiler and run-time environment ensure that program cannot access memory outside defined storage • Control Flow Safety – Can’t jump to arbitrary addresses Which of these does C/C++ have? Is Java the first language to have them? No way! LISP had them all in 1960. 14 November 2002 CS 201 J Fall 2002 6

Java Safety • Type Safety – Most types checked statically – Coercions, array assignments type checked at run time • Memory Safety – No direct memory access (e. g. , pointers) – Primitive array type with mandatory run-time bounds checking • Control Flow Safety – Structured control flow, no arbitrary jumps 14 November 2002 CS 201 J Fall 2002 7

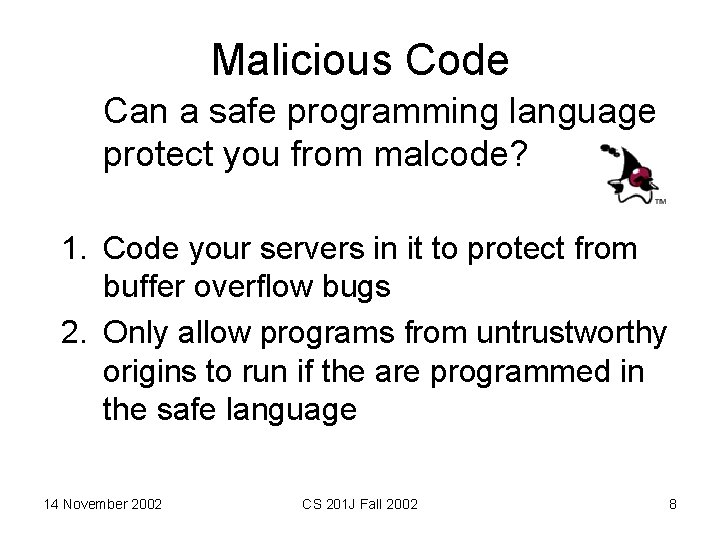

Malicious Code Can a safe programming language protect you from malcode? 1. Code your servers in it to protect from buffer overflow bugs 2. Only allow programs from untrustworthy origins to run if the are programmed in the safe language 14 November 2002 CS 201 J Fall 2002 8

Safe Languages? • But how can you tell program was written in the safe language? – Get the source code and compile it (most vendors, and all malicious attackers refuse to provide source code) – Special compilation service cryptographically signs object files generated from the safe language (SPIN, [Bershad 96]) – Verify object files preserve safety properties of source language (Java) 14 November 2002 CS 201 J Fall 2002 9

JVML malcode. java Java Source Code javac Compiler malcode. class JVML Object Code Java. VM Joe User 14 November 2002 Joe wants to know JVML code satisfies Java ’s safety properties. CS 201 J Fall 2002 10

Does JVML satisfy Java ’s safety properties? iconst_2 istore_0 aload_0 arraylength push integer constant 2 on stack store top of stack in variable 0 as int load object reference from variable 0 replace array on top of stack with its length No! This code violates Java ’s type rules. 14 November 2002 CS 201 J Fall 2002 11

Do Java Byte Codes provide these? • Type Safety iconst_3 fadd astore_1 iload_1 • Memory Safety iconst_3 iadd • Control Flow Safety ifeq 2359 14 November 2002 CS 201 J Fall 2002 12

malcode. class JVML Object Code Bytecode Verifier Trusted Computing Base Java Bytecode Verifier Invalid “Okay” STOP Java. VM Joe User 14 November 2002 CS 201 J Fall 2002 13

Bytecode Verifier • Checks class file is formatted correctly – Magic number: class file starts with 0 x. CAFEBABE – String table, code, methods, etc. • Checks JVML code satisfies safety properties 14 November 2002 CS 201 J Fall 2002 14

Verifying Safety Properties • Type safe – Stack and variable slots must store and load as same type • Memory safe – Must not attempt to pop more values from stack than are on it check this in bytecode verifier, VM must – Array bounds? Can’t check array bounds at run time. • Control flow safe – Jumps must be to valid addresses within function, or call/return 14 November 2002 CS 201 J Fall 2002 15

Are Java Bytecode Verifiers Complicated? • ~700 rules to enforce, JVML specification is (not all clearly specified) • Emin Gün Sirer found > 100 bugs in commercial bytecode verifiers (using automatic test generation) – At least 15 of them were security vulnerabilities • JVML includes jsr instruction (jump to subroutine), can be called with different types in variables and on stack Added to allow implementations to reuse code in finally blocks to save code size. Would have saved more space to keep original language name (“Oak”). 14 November 2002 CS 201 J Fall 2002 16

Java malcode. javac Compiler malcode. class JVML Trusted Computing Base Java Bytecode Verifier Invalid “Okay” STOP Joe User 14 November 2002 Java. VM CS 201 J Fall 2002 17

Java. VM • Virtual machine – interpreter for JVML programs • Has complete access to host machine • Bytecode verifier ensures some safety properties, Java. VM must ensure rest: – Type safety of run-time casts, array assignments – Memory safety: array bounds checking – Resource use policy 14 November 2002 CS 201 J Fall 2002 18

Reference Monitors 14 November 2002 CS 201 J Fall 2002 19

Program Execution Monitor Program Speakers Network Disk 14 November 2002 Memory CS 201 J Fall 2002 Super. Soaker 2000 20

Program Execution Reference Monitor Program Speakers Network Disk 14 November 2002 Memory CS 201 J Fall 2002 Super. Soaker 2000 21

Ideal Reference Monitor 1. Sees everything a program is about to do before it does it 2. Can instantly and completely stop program execution (or prevent action) 3. Has no other effect on the program or system Can we build this? Probably not unless we can build a time machine. . . 14 November 2002 CS 201 J Fall 2002 22

Real. Reference Monitor Ideal most things 1. Sees everything a program is about to do before it does it 2. Can instantly and completely stop program execution (or prevent action) limited 3. Has no other effect on the program or system 14 November 2002 CS 201 J Fall 2002 23

Operating Systems • Provide reference monitors for most security-critical resources – When a program opens a file in Unix or Windows, the OS checks that the principal running the program can open that file • Doesn’t allow different policies for different programs • No flexibility over what is monitored – OS decides for everyone – Hence, can’t monitor inexpensive operations 14 November 2002 CS 201 J Fall 2002 24

Reference Monitor as Finite State Automaton [Schneider 99] All other instructions 0 All other instructions Aim 1 Aim Fire 2 All other instructions Fire STOP Policy Violation 14 November 2002 CS 201 J Fall 2002 25

What policies can be enforced? • Assume: – Security Automaton can see entire state of world, everything about instruction about to execute – Security Automaton has unlimited memory, can do unlimited computation • Are there interesting policies that still can’t be enforced? 14 November 2002 CS 201 J Fall 2002 26

What’s a Security Policy? • What’s a program? – A set of possible executions • What’s an execution? – A sequence of states • What’s a security policy? – A predicate on a set of executions 14 November 2002 CS 201 J Fall 2002 27

Reference Monitors cannot enforce all Security Policies • Some policies depend on: – Knowing about the future • If the program charges the credit card, it must eventually ship the goods – Knowing about all possible executions • Information flow – can’t tell if a program reveals secret information without knowing about other possible executions • Reference Monitors can only know about past of this particular execution 14 November 2002 CS 201 J Fall 2002 28

Safety Policies • Reference monitors can only enforce safety policies • Safety policy is a predicate on a prefix of states (see Schneider 98 for more formal definition) – Cannot depend on future: prefix means once it is false, it is always false – Cannot depend on other possible executions 14 November 2002 CS 201 J Fall 2002 29

Java. VM Policy Enforcment [JDK 1. 0 – JDK 1. 1] From java. io. File: public boolean delete() { Security. Manager security = System. get. Security. Manager(); if (security != null) { security. check. Delete(path); } if (is. Directory()) return rmdir 0(); else return delete 0(); } 14 November 2002 CS 201 J Fall 2002 30

java. lang. Security. Manager /** Throws a Security. Exception if the calling thread is not allowed to delete the specified file. This method is invoked for the current security manager by the delete method of class File. */ (Some other comments deleted. ) public void check. Delete(String file) { throw new Security. Exception(); } 14 November 2002 CS 201 J Fall 2002 31

Security Manager • Reference monitor – How well does it satisfy the requirements? • Complete mediation • Can stop execution/prevent action • Limited effect on execution until policy violation • User/host application creates a subclass of Security. Manager to define a policy 14 November 2002 CS 201 J Fall 2002 32

Java. VM Policy Enforcment [JDK 1. 0 – JDK 1. 1] From java. io. File: public boolean delete() { Security. Manager security = System. get. Security. Manager(); if (security != null) { security. check. Delete(path); } if (is. Directory()) return rmdir 0(); else return delete 0(); } What could go seriously wrong with this? ! 14 November 2002 CS 201 J Fall 2002 33

Hot. Java’s Policy (JDK 1. 1. 7) public class Applet. Security extends Security. Manager {. . . public synchronized void check. Delete(String file) { check. Write(file); }. . . } 14 November 2002 CS 201 J Fall 2002 34

Applet. Security. check. Write (some exception handling code removed) public synchronized void check. Write(String file) { if (in. Applet()) { if (!init. ACL) initialize. ACLs(); String real. Path = (new File(file)). get. Canonical. Path(); for (int i = write. ACL. length ; i-- > 0 ; ) { if (real. Path. starts. With(write. ACL[i])) return; } throw new Applet. Security. Exception ("checkwrite", file, real. Path); } } Note: no checking if not in. Applet! Very important this does the right thing. 14 November 2002 CS 201 J Fall 2002 35

in. Applet boolean in. Applet() { return in. Class. Loader(); } Inherited from java. lang. Security. Manager: protected boolean in. Class. Loader() { return current. Class. Loader() != null; } 14 November 2002 CS 201 J Fall 2002 36

current. Class. Loader /** Returns an object describing the most recent class loader executing on the stack. Returns the class loader of the most recent occurrence on the stack of a method from a class defined using a class loader; returns null if there is no occurrence on the stack of a method from a class defined using a class loader. */ protected native Class. Loader current. Class. Loader(); 14 November 2002 CS 201 J Fall 2002 37

Recap • java. io. File. delete calls before deleting • Hot. Java overrides Security. Manager with Applet. Security to set policy • Applet. Security. check. Delete calls Security. Manager. check. Delete Applet. Security. check. Write • Applet. Security. check. Write checks if any method on stack has a Class. Loader • If not no checks; if it does, checks ACL list 14 November 2002 CS 201 J Fall 2002 38

JDK 1. 0 Trust Model • When Java. VM loads a class from the CLASSPATH, it has no associated Class. Loader (can do anything) • When Java. VM loads a class from elsewhere (e. g. , the web), it has an associated Class. Loader 14 November 2002 CS 201 J Fall 2002 39

JDK Evolution • JDK 1. 1: Signed classes from elsewhere and have no associated Class. Loader • JDK 1. 2: – Different classes can have different policies based on Class. Loader – Explict enable/disable/check privileges – Security. Manager is now Access. Controller 14 November 2002 CS 201 J Fall 2002 40

What can go wrong? • Java API doesn’t call right Security. Manager checks (63 calls in java. *) – Font loading bug, synchronization • Class. Loader is tricked into loading external class as internal • Bug in Bytecode Verifier can be exploited to circumvent Security. Manager • Policy is too weak and allows damaging behavior 14 November 2002 CS 201 J Fall 2002 41

Hostile Applets • See http: //java. sun. com/sfaq/chronology. html (about 1 new vulnerability/month) • Easy to write “annoying” applets (policy is too imprecise; no way to constrain many resource operations) • After your PS 6 phylogeny programs finish on all the ITC machines, try http: //www. cigital. com/hostile-applets/index. html 14 November 2002 CS 201 J Fall 2002 42

Charge • No classes next week • Exams due before 4: 30 pm Tuesday, drop off to Brenda Perkins 14 November 2002 CS 201 J Fall 2002 43
