DSP-CIS Chapter-6: Filter Implementation Marc Moonen Dept. E. E. /ESAT, KU Leuven marc. moonen@esat. kuleuven. be www. esat. kuleuven. be/scd/

Filter Design/Realization • Step-1 : define filter specs (pass-band, stop-band, optimization criterion, …) • Step-2 : derive optimal transfer function FIR or IIR design Chapter-4 • Step-3 : filter realization (block scheme/flow graph) direct form realizations, lattice realizations, … Chapter-5 • Step-4 : filter implementation (software/hardware) finite word-length issues, … question: implemented filter = designed filter ? ‘You can’t always get what you want’ -Jagger/Richards (? ) DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 Chapter-6 p. 2

Chapter-6 : Filter Implementation • Introduction Filter implementation & finite wordlength problem • Coefficient Quantization • Arithmetic Operations Scaling Quantization noise Limit Cycles • Orthogonal Filters DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 3

Introduction Filter implementation & finite word-length problem : • So far have assumed that signals/coefficients/arithmetic operations are represented/performed with infinite precision. • In practice, numbers can be represented only to a finite precision, and hence signals/coefficients/arithmetic operations are subject to quantization (truncation/rounding/. . . ) errors. • Investigate impact of… - quantization of filter coefficients - quantization (& overflow) in arithmetic operations • PS: Chapter partly adopted from `A course in digital signal processing’, B. Porat, Wiley 1997 DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 4

Introduction Filter implementation & finite word-length problem : • We consider fixed-point filter implementations, with a `short’ word-length. In hardware design, with tight speed requirements, finite word-length problem is a relevant problem. • In signal processors with a `sufficiently long’ word-length, e. g. with 16 bits (=4 decimal digits) or 24 bits (=7 decimal digits) precision, or with floating-point representations and arithmetic, finite word-length issues are less relevant. DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 5

Introduction Back to Chapter-5… Q: Why bother about many different realizations for one and the same filter? DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 6

Introduction: Example • • • % IIR Elliptic Lowpass filter designed using % ELLIP function. % All frequency values are in Hz. Fs = 48000; % Sampling Frequency L = 8; % Order Fpass = 9600; % Passband Frequency Apass = 60; % Passband Ripple (d. B) Astop = 160; % Stopband Attenuation (d. B) Transfer function Poles & zeros DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 7

Introduction: Example Filter outputs… Direct form realization @ infinite precision… Lattice-ladder realization @ infinite precision… Difference… DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 8

Introduction: Example Filter outputs… Direct form realization @ infinite precision… Direct form realization @ 10 -bit precision… Difference… DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 9

Introduction: Example Filter outputs… Direct form realization @ infinite precision… Direct form realization @ 8 -bit precision… Difference… DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 10

Introduction: Example Filter outputs… Direct form realization @ infinite precision… Lattice-ladder realization @ 8 -bit precision… Difference… Better select a good realization ! DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 11

Coefficient Quantization The coefficient quantization problem : • Filter design in Matlab (e. g. ) provides filter coefficients to 15 decimal digits (such that filter meets specifications) • For implementation, have to quantize coefficients to the word-length used for the implementation. • As a result, implemented filter may fail to meet specifications… ? ? DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 12

Coefficient Quantization Coefficient quantization effect on pole locations : • example : 2 nd-order system (e. g. for cascade/direct form realization) `triangle of stability’ : denominator polynomial is stable (i. e. roots inside unit circle) iff coefficients lie inside triangle… 1 -2 2 -1 Proof: Apply Schur-Cohn stability test (see Chapter-5). DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 13

Coefficient Quantization • example (continued) : with 5 bits per coefficient, all possible `quantized’ pole positions are. . . Low density of `quantized’ pole locations at z=1, z=-1, hence problem for narrow-band LP and HP filters (see Chapter-4). DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 14

Coefficient Quantization • example (continued) : possible remedy: `coupled realization’ poles are where are realized/quantized hence ‘quantized’ pole locations are (5 bits) u[k] + + + y[k] coefficient precision = pole precision DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 15

Coefficient Quantization Coefficient quantization effect on pole locations : • example : higher-order systems (first-order analysis) tightly spaced poles (e. g. for narrow band filters) imply high sensitivity of pole locations to coefficient quantization hence preference for low-order systems (e. g. in parallel/cascade) DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 16

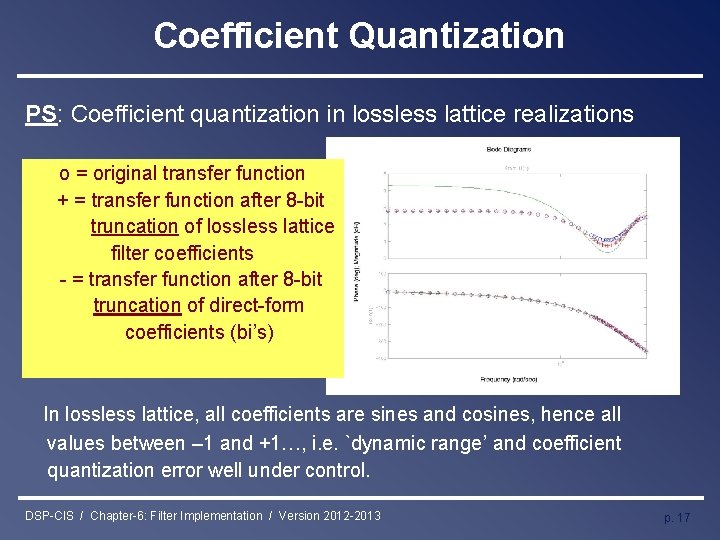

Coefficient Quantization PS: Coefficient quantization in lossless lattice realizations o = original transfer function + = transfer function after 8 -bit truncation of lossless lattice filter coefficients - = transfer function after 8 -bit truncation of direct-form coefficients (bi’s) In lossless lattice, all coefficients are sines and cosines, hence all values between – 1 and +1…, i. e. `dynamic range’ and coefficient quantization error well under control. DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 17

Arithmetic Operations Finite word-length effects in arithmetic operations : • In linear filters, have to consider additions & multiplications • Addition: if, two B-bit numbers are added, the result has (B+1) bits. • Multiplication: if a B 1 -bit number is multiplied by a B 2 -bit number, the result has (B 1+B 2 -1) bits. For instance, two B-bit numbers yield a (2 B-1)-bit product • Typically (especially so in an IIR (feedback) filter), the result of an addition/multiplication has to be represented again as a B’-bit number (e. g. B’=B). Hence have to remove most significant bits and/or least significant bits… DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 18

Arithmetic Operations • Option-1: Most significant bits (MSBs) If the result is known to be (almost) always upper bounded such that 1 or more MSBs are (almost) always redundant, these MSBs can be dropped without loss of accuracy (mostly). Dropping MSBs then leads to better usage of available word-length, hence better SNR. This implies we have to monitor potential overflow (=dropping MSBs that are non-redundant), and possibly introduce additional scaling to avoid overflow. • Option-2 : Least significant bits (LSBs) Rounding/truncation/… to B’ bits introduces quantization noise. The effect of quantization noise is usually analyzed in a statistical manner. Quantization, however, is a deterministic non-linear effect, which may give rise to limit cycle oscillations. DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 19

Quantization Noise Quantization mechanisms: Rounding Truncation Magnitude Truncation mean=0 mean=(-0. 5)LSB (biased!) mean=0 variance=(1/12)LSB^2 variance=(1/6)LSB^2 output input probability error DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 20

Quantization Noise Statistical analysis is based on the following assumptions : - each quantization error is random, with uniform probability distribution function (see previous slide) - quantization errors at the output of a given multiplier are uncorrelated/independent (=white noise assumption) - quantization errors at the outputs of different multipliers are uncorrelated/independent (=independent sources assumption) One noise source is inserted for each multiplier(/adder) u[k] + + e[k] -. 99 x Since the filter is a linear filter the output noise generated by each noise source can be y[k] computed and added to the output signal… DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 21

Limit Cycles Statistical analysis is simple/convenient, but quantization is truly a non-linear effect, and should be analyzed as a deterministic process. Though very difficult, such analysis may reveal odd behavior: Example: y[k] = -0. 625. y[k-1]+u[k] 4 -bit rounding arithmetic input u[k]=0, y[0]=3/8 output y[k] = 3/8, -1/4, 1/8, -1/8, . . Oscillations in the absence of input (u[k]=0) are called `zero-input limit cycle oscillations’ DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 22

Limit Cycles Example: y[k] = -0. 625. y[k-1]+u[k] 4 -bit truncation (instead of rounding) input u[k]=0, y[0]=3/8 output y[k] = 3/8, -1/4, 1/8, 0, 0, 0, . . (no limit cycle!) Example: y[k] = 0. 625. y[k-1]+u[k] 4 -bit rounding input u[k]=0, y[0]=3/8 output y[k] = 3/8, 1/4, 1/8, . . Example: y[k] = 0. 625. y[k-1]+u[k] 4 -bit truncation input u[k]=0, y[0]=-3/8 output y[k] = -3/8, -1/4, -1/8, . . Conclusion: weird, … ! DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 23

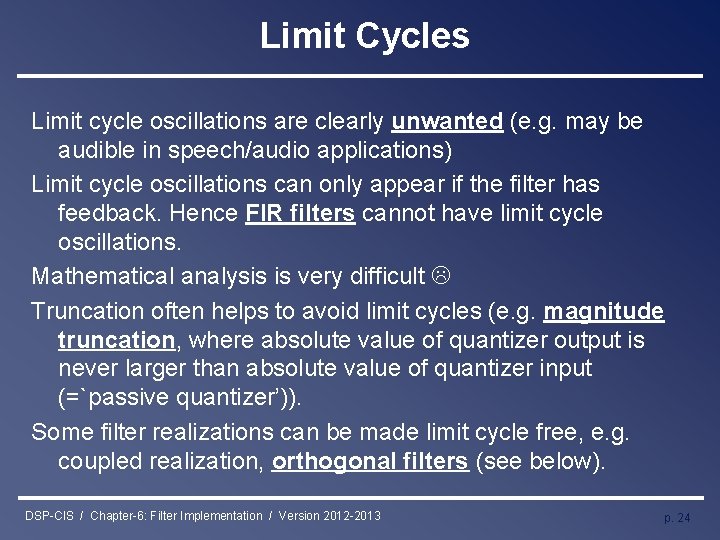

Limit Cycles Limit cycle oscillations are clearly unwanted (e. g. may be audible in speech/audio applications) Limit cycle oscillations can only appear if the filter has feedback. Hence FIR filters cannot have limit cycle oscillations. Mathematical analysis is very difficult Truncation often helps to avoid limit cycles (e. g. magnitude truncation, where absolute value of quantizer output is never larger than absolute value of quantizer input (=`passive quantizer’)). Some filter realizations can be made limit cycle free, e. g. coupled realization, orthogonal filters (see below). DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 24

Orthogonal Filters e d i l ss i h t p i Orthogonal filter = state-space realization with Sk orthogonal realization matrix: PS : lattice filters and lattice-part of lattice-ladder …. Strictly speaking, these are not state-space realizations (cfr. supra), but orthogonal R is realized as a product of matrices, each of which is again orthogonal, such that useful properties of orthogonal statesspace realizations indeed carry over (see p. 38) Why should we be so fond of orthogonal filters ? DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 25

Sk Orthogonal Filters e i h t p i d i l ss Scaling : - in a state-space realization, have to monitor overflow in internal states - transfer functions from input to internal states (`scaling functions’) are defined by impulse response sequence (see p. 22) - for an orthogonal filter (R’. R=I), it is proven (next slide) that which implies that all scaling functions (rows of Delta) have L 2 -norm=1 (=diagonal elements of ) conclusion: orthogonal filters are `scaled in L 2 -sense’ DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 26

Sk Proof : Orthogonal Filters e i h t p i d i l ss First : Then: DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 27

Orthogonal Filters e i h t p i d i l ss Quantization noise : Sk - in a state-space realization, quantization noise in internal states may be represented by equivalent noise source (vector) Ex[k] - transfer functions from noise sources to output (`noise transfer functions’) are defined by impulse response sequence - for an orthogonal filter (R’. R=I), it is proven that (…try it) which implies that all noise gains are =1 (all noise transfer functions have L 2 -norm = 1 = diagonal elements of ). - This is then proven to correspond to minimum possible output noise variance for given transfer function, under L 2 scaled conditions (i. e. when states are scaled such that scaling functions have L 2 -norm=1) !! (details omitted) DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 28

Orthogonal Filters Limit cycle oscillations : if magnitude truncation is used (=`passive quantization’), orthogonal filters are guaranteed to be free of limit cycles (details omitted) intuition: quantization consumes energy/power, orthogonal filter does not generate power to feed limit cycle. DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 29

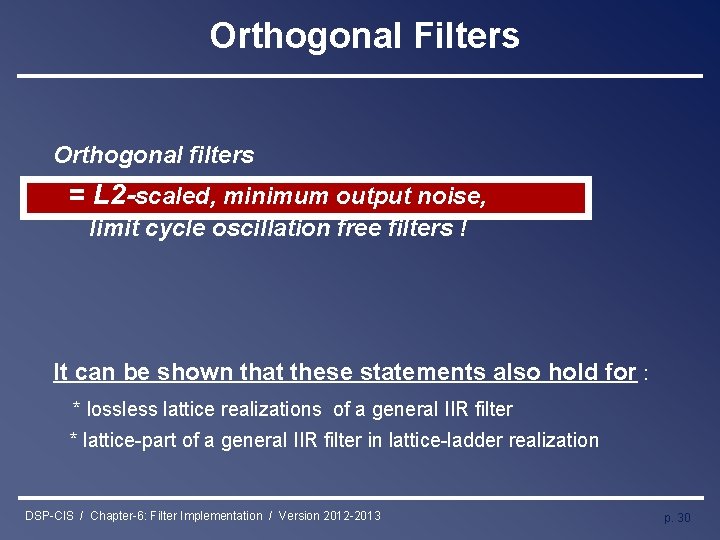

Orthogonal Filters Orthogonal filters = L 2 -scaled, minimum output noise, limit cycle oscillation free filters ! It can be shown that these statements also hold for : * lossless lattice realizations of a general IIR filter * lattice-part of a general IIR filter in lattice-ladder realization DSP-CIS / Chapter-6: Filter Implementation / Version 2012 -2013 p. 30
