DSI OTEC Power Plant Proposal Innovative and Cost-effective Project Nagan Srinivasan Deepwater Structures Inc. Houston, Texas, USA Deepwaterstructure@yahoo. com 1

Specialty of DSI-OTEC Oil & Gas Deepwater Technology Sub-Sea Heat Exchangers and Pumps DSI-OTEC has Harsh Environment Support Vessel DSI-OTEC has No Cold Water Pipe Hybrid with added Waves, Wind, and Solar Power Deepwater Structures Inc. - OTEC 2

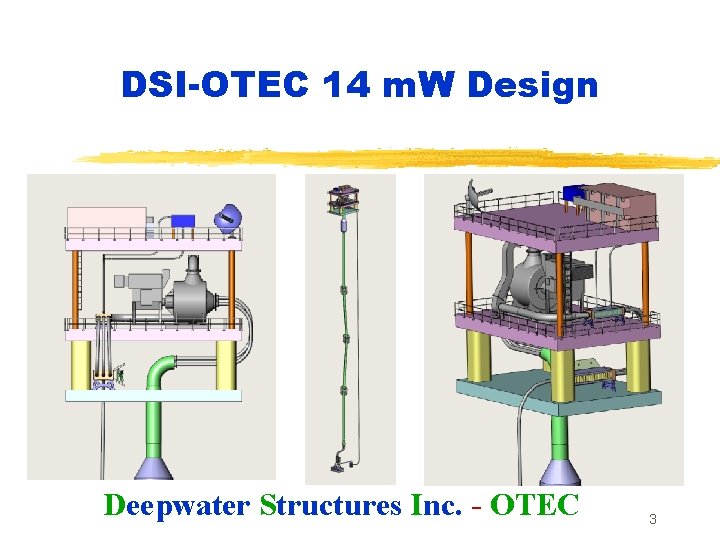

DSI-OTEC 14 m. W Design Deepwater Structures Inc. - OTEC 3

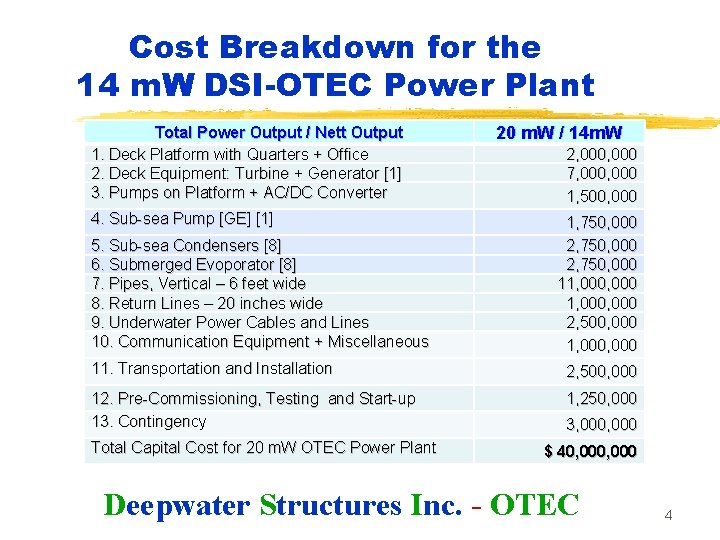

Cost Breakdown for the 14 m. W DSI-OTEC Power Plant Total Power Output / Nett Output 1. Deck Platform with Quarters + Office 2. Deck Equipment: Turbine + Generator [1] 3. Pumps on Platform + AC/DC Converter 4. Sub-sea Pump [GE] [1] 5. Sub-sea Condensers [8] 6. Submerged Evoporator [8] 7. Pipes, Vertical – 6 feet wide 8. Return Lines – 20 inches wide 9. Underwater Power Cables and Lines 10. Communication Equipment + Miscellaneous 20 m. W / 14 m. W 2, 000 7, 000 1, 500, 000 1, 750, 000 2, 750, 000 11, 000, 000 2, 500, 000 1, 000 11. Transportation and Installation 2, 500, 000 12. Pre-Commissioning, Testing and Start-up 13. Contingency 1, 250, 000 Total Capital Cost for 20 m. W OTEC Power Plant 3, 000 $ 40, 000 Deepwater Structures Inc. - OTEC 4

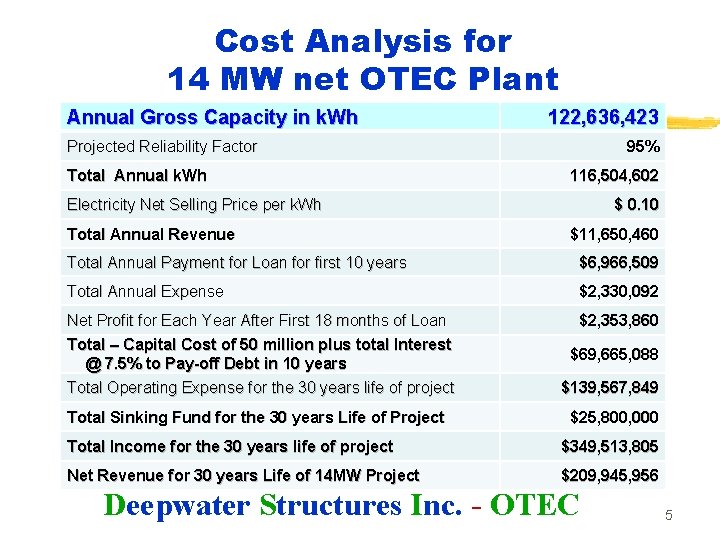

Cost Analysis for 14 MW net OTEC Plant Annual Gross Capacity in k. Wh 122, 636, 423 Projected Reliability Factor Total Annual k. Wh 95% 116, 504, 602 Electricity Net Selling Price per k. Wh Total Annual Revenue $ 0. 10 $11, 650, 460 Total Annual Payment for Loan for first 10 years $6, 966, 509 Total Annual Expense $2, 330, 092 Net Profit for Each Year After First 18 months of Loan Total – Capital Cost of 50 million plus total Interest @ 7. 5% to Pay-off Debt in 10 years Total Operating Expense for the 30 years life of project $2, 353, 860 Total Sinking Fund for the 30 years Life of Project $69, 665, 088 $139, 567, 849 $25, 800, 000 Total Income for the 30 years life of project $349, 513, 805 Net Revenue for 30 years Life of 14 MW Project $209, 945, 956 Deepwater Structures Inc. - OTEC 5

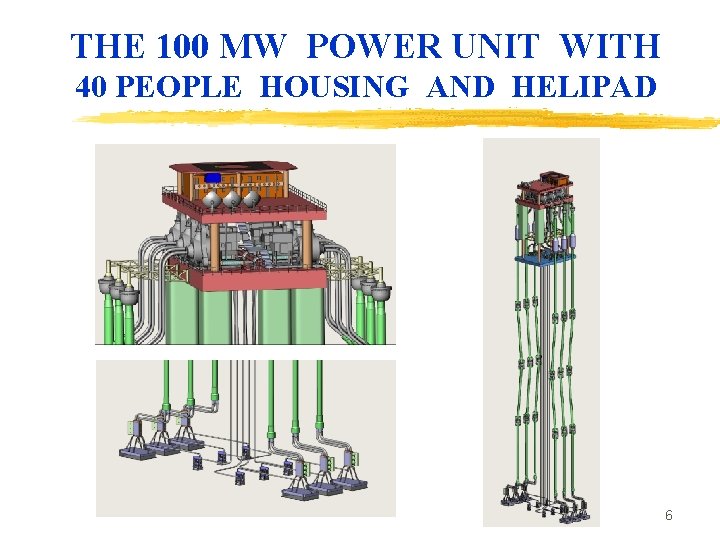

THE 100 MW POWER UNIT WITH 40 PEOPLE HOUSING AND HELIPAD 6

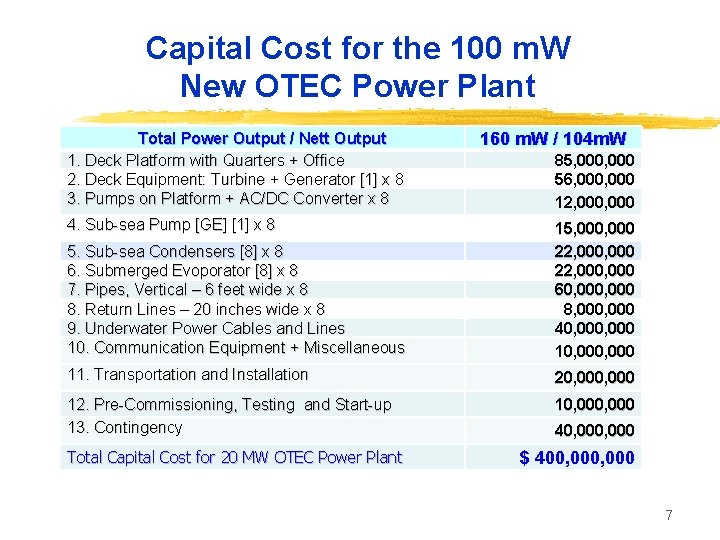

Capital Cost for the 100 m. W New OTEC Power Plant Total Power Output / Nett Output 1. Deck Platform with Quarters + Office 2. Deck Equipment: Turbine + Generator [1] x 8 3. Pumps on Platform + AC/DC Converter x 8 4. Sub-sea Pump [GE] [1] x 8 160 m. W / 104 m. W 85, 000 56, 000 12, 000 5. Sub-sea Condensers [8] x 8 6. Submerged Evoporator [8] x 8 7. Pipes, Vertical – 6 feet wide x 8 8. Return Lines – 20 inches wide x 8 9. Underwater Power Cables and Lines 10. Communication Equipment + Miscellaneous 15, 000, 000 22, 000 60, 000 8, 000 40, 000, 000 11. Transportation and Installation 20, 000 12. Pre-Commissioning, Testing and Start-up 13. Contingency 10, 000 Total Capital Cost for 20 MW OTEC Power Plant 40, 000 $ 400, 000 7

Cost Analysis for 100 MW OTEC Plant Annual Gross Capacity in k. Wh Projected Reliability Factor Total Annual k. Wh Electricity Net Selling Price per k. Wh Total Annual Revenue 875, 974, 450 95% 832, 175, 728 $ 0. 14 $116, 504, 602 Total Annual Payment for Loan for first 10 years $71, 221, 056 Total Annual Expense $35, 229, 623 Net Profit for Each Year After First 18 months of Loan Total – Interest plus Capital Cost of 400 million to Pay-off Debt in 10 years Total Operating Expense for the 30 years life of project $10, 053, 923 $712, 210, 615 Total Sinking Fund for the 30 years Life of Project $258, 000 Total Revenue for life of project Total Capital Cost + Total Operating Cost for 30 years Life of Project $798, 888, 698 $3, 495, 138, 056 $1, 769, 099, 313 8

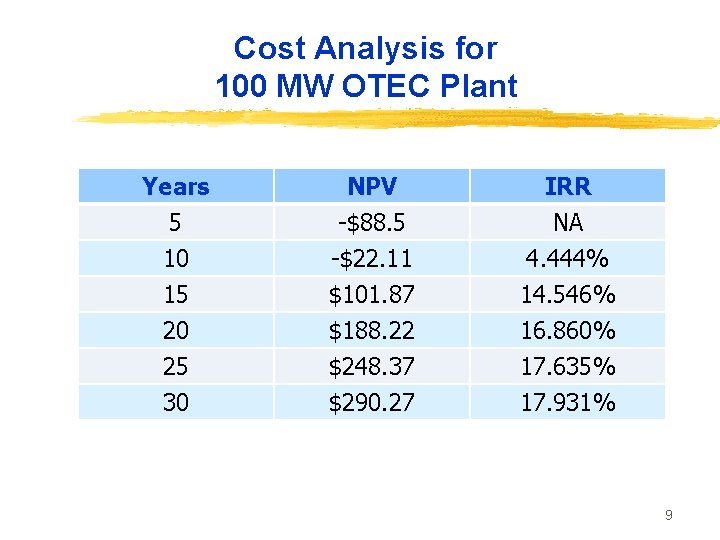

Cost Analysis for 100 MW OTEC Plant Years 5 10 15 NPV -$88. 5 -$22. 11 $101. 87 IRR NA 4. 444% 14. 546% 20 25 30 $188. 22 $248. 37 $290. 27 16. 860% 17. 635% 17. 931% 9

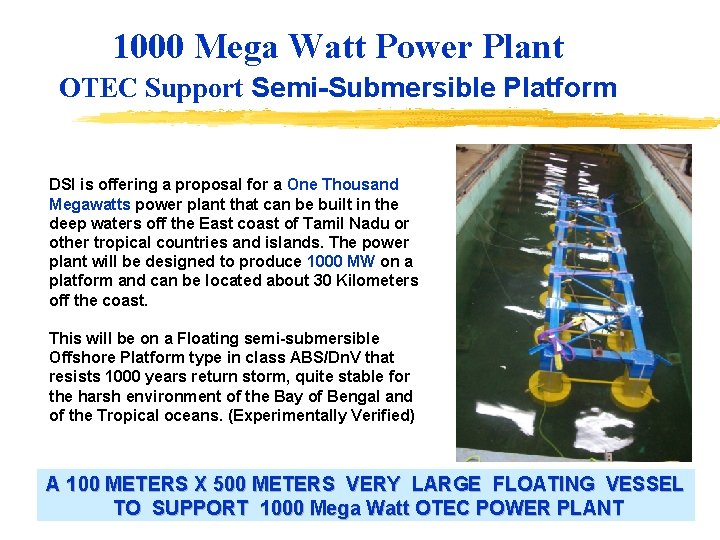

1000 Mega Watt Power Plant OTEC Support Semi-Submersible Platform DSI is offering a proposal for a One Thousand Megawatts power plant that can be built in the deep waters off the East coast of Tamil Nadu or other tropical countries and islands. The power plant will be designed to produce 1000 MW on a platform and can be located about 30 Kilometers off the coast. This will be on a Floating semi-submersible Offshore Platform type in class ABS/Dn. V that resists 1000 years return storm, quite stable for the harsh environment of the Bay of Bengal and of the Tropical oceans. (Experimentally Verified) A 100 METERS X 500 METERS VERY LARGE FLOATING VESSEL TO SUPPORT 1000 Mega Watt OTEC POWER PLANT 10

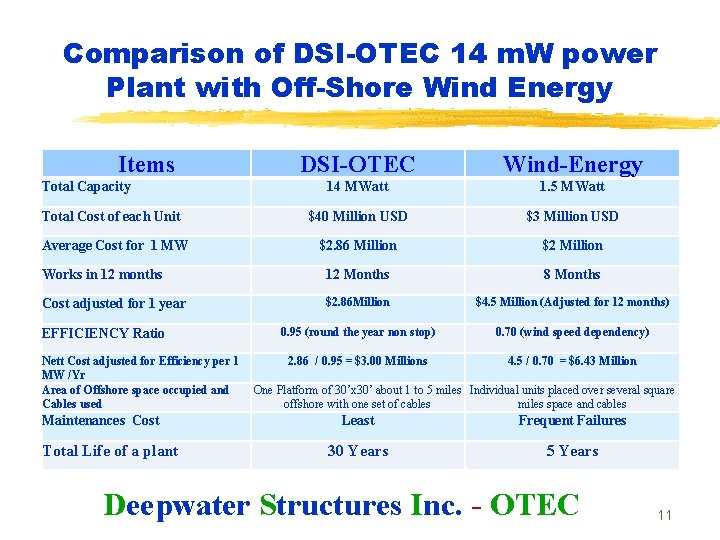

Comparison of DSI-OTEC 14 m. W power Plant with Off-Shore Wind Energy Items DSI-OTEC Wind-Energy 14 MWatt 1. 5 MWatt Total Cost of each Unit $40 Million USD $3 Million USD Average Cost for 1 MW $2. 86 Million $2 Million Works in 12 months 12 Months 8 Months Cost adjusted for 1 year $2. 86 Million $4. 5 Million (Adjusted for 12 months) 0. 95 (round the year non stop) 0. 70 (wind speed dependency) 2. 86 / 0. 95 = $3. 00 Millions 4. 5 / 0. 70 = $6. 43 Million Total Capacity EFFICIENCY Ratio Nett Cost adjusted for Efficiency per 1 MW /Yr Area of Offshore space occupied and Cables used Maintenances Cost Total Life of a plant One Platform of 30’x 30’ about 1 to 5 miles Individual units placed over several square offshore with one set of cables miles space and cables Least Frequent Failures 30 Years 5 Years Deepwater Structures Inc. - OTEC 11

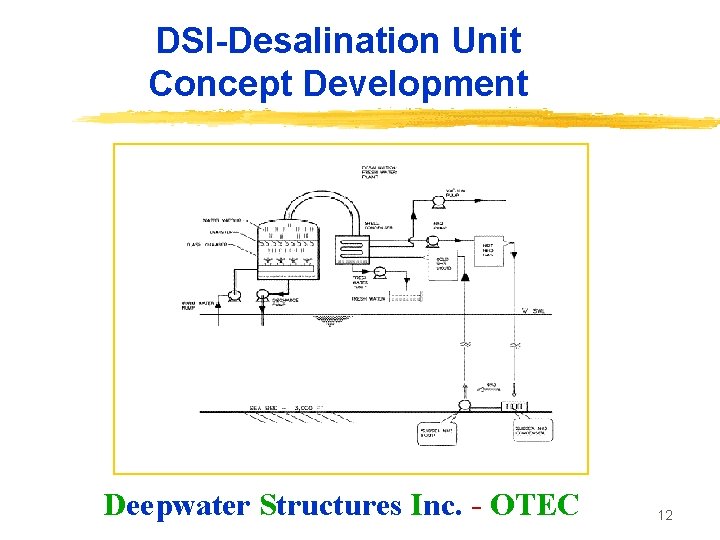

DSI-Desalination Unit Concept Development Deepwater Structures Inc. - OTEC 12

Desalination Storage Vessel Concept NON-SHIP-SHAPED Can With Stand Storm Structurally Strong Easy to Build Can Store 1 -2 million Barrels of water Cost Effective Deck Accommodates: 500 m. Watt OTEC Power Plant Deepwater Structures Inc. - OTEC 13

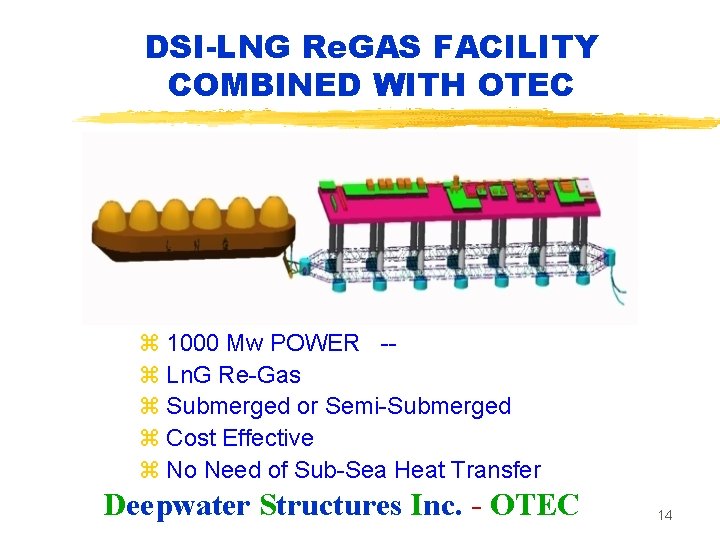

DSI-LNG Re. GAS FACILITY COMBINED WITH OTEC z 1000 Mw POWER -z Ln. G Re-Gas z Submerged or Semi-Submerged z Cost Effective z No Need of Sub-Sea Heat Transfer Deepwater Structures Inc. - OTEC 14

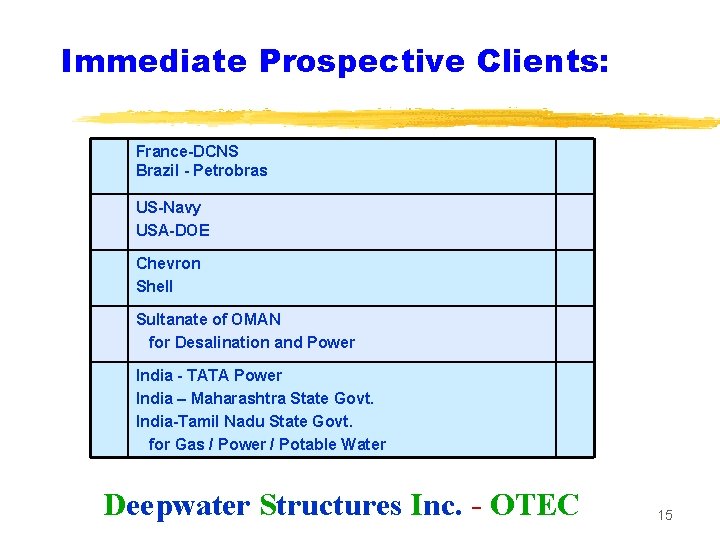

Immediate Prospective Clients: France-DCNS Brazil - Petrobras US-Navy USA-DOE Chevron Shell Sultanate of OMAN for Desalination and Power India - TATA Power India – Maharashtra State Govt. India-Tamil Nadu State Govt. for Gas / Power / Potable Water Deepwater Structures Inc. - OTEC 15

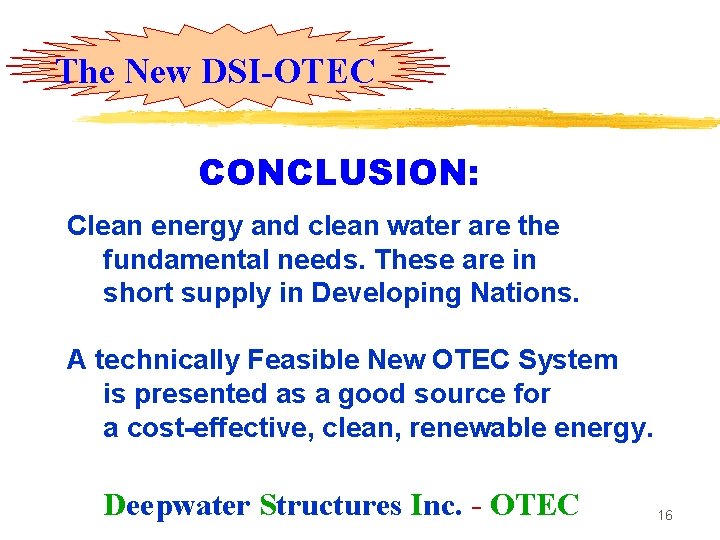

The New DSI-OTEC CONCLUSION: Clean energy and clean water are the fundamental needs. These are in short supply in Developing Nations. A technically Feasible New OTEC System is presented as a good source for a cost-effective, clean, renewable energy. Deepwater Structures Inc. - OTEC 16

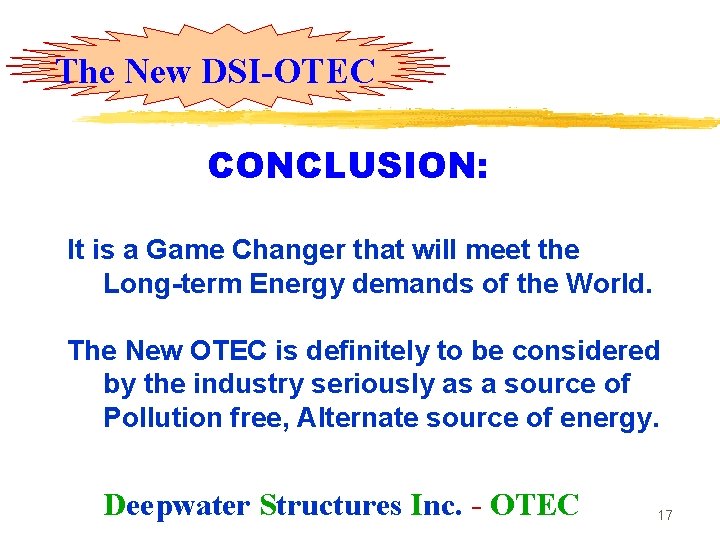

The New DSI-OTEC CONCLUSION: It is a Game Changer that will meet the Long-term Energy demands of the World. The New OTEC is definitely to be considered by the industry seriously as a source of Pollution free, Alternate source of energy. Deepwater Structures Inc. - OTEC 17
