Drug Design Dr Bilal AlJaidi Dr AbdelNasser Dakka

Drug Design Dr. Bilal Al-Jaidi Dr. Abdel-Nasser Dakka

Introduction Medicinal Chemistry is the science that deals with the design and developmnet of new pharmaceutical agents. Medicinal Chemist interests in: The synthesis of drugs. The isolation of natural products. Establishing the structure activity relationships of the compounds. Studying the drug-target interaction. The pharmacokinetic profile of drugs

Drug Discovery Drug discovery is a costly and time consuming process… from 10000 obtained compounds, only one will reach the market. After establishing the safety and efficacy of the designed compound on laboratory animals, clinical trials must be applied on human.

Clinical trials Phase-I (lasts for 1 month -1 year): evaluate the safety, tolerability, pharmacokinetic and pharmacological activity of drugs on 20 -100 volunteers. Phase-II (lasts for 1 -3 years): further assess the efficacy , safety of drugs in addition to dosing regimen in 300600 patients.

Clinical trials Phase-III (last for 2 -6 years): covers several thousands of patients in clinics or hospitals; study the activity and possible side effects on the long term. Phase-IV: it is the post marketing feedback, after prescribing drugs to the out patients.

Lead compound Is a prototype compound that has many attractive properties, most importantly, good activity, stability and suitable pharmacokinetics. Lead optimization is to modify the chemical structure of the lead compound in order to improve the desired properties and trying to minimize the unwanted ones.

Drug candidate and clinical drug Drug candidate: is that drug obtained from the lead optimization experiment…. needs extensive studies to be clinically available. Clinical drug: compound that is ready for clinical trials.

Lead Discovery Is the first step in drug discovery. You can not discover a lead if you do not have: A well established bioassay…that will study the efficacy and potency of compounds. High throughput screening and ultra high throughput screening. Enzymatic assay. Instrumental analysis such as MS and NMR to interpret the bioassay results.

Sources of the lead 1. If the biological target is known, then the lead compound will be the natural ligand of this receptor or enzyme Leads for adrenergic Agonists and antagonists Lead for cholinergic agonist And antagonists

Sources of the lead 2. The marketed drugs can be used as lead compounds. 3. Random screening: this approach is used if we do not know the biological target: examples: the sulfa drug; sulfanilamide was used as the lead for the development of many sulfa drugs. Aminoglycosides and tetracyclines were discovered after random screening of soil samples on different bacterial strains

Sources of the lead 4. Non-random screening: in this approach the tested compounds having some structural similarity to a weakly active agents. 5. Drug metabolism studies:

Sources of the lead 6. From clinical observations: in this case the drug candidate exhibits more than one pharmacological action: Examples: (Drugs off Label) Sildenafil was designed for anti-hypertensive action but found to improve the erectile function. Buclizine and Meclizine first synthesized as anti-allergic agents, but they exhibited a good activity in treating motion sickness.

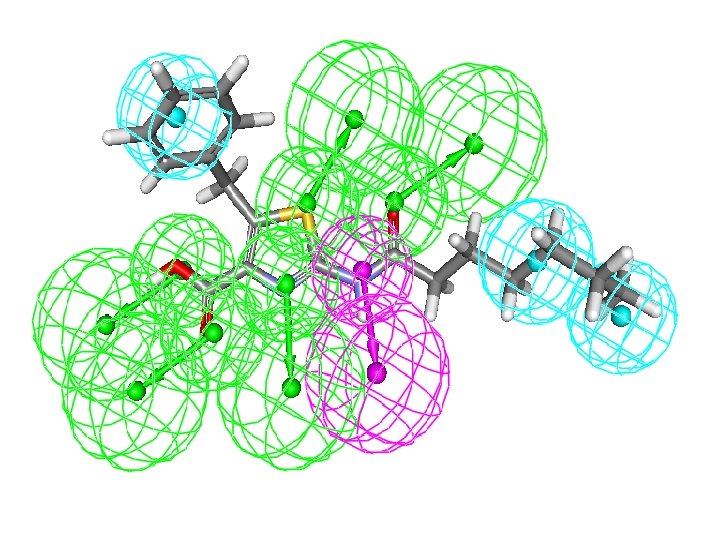

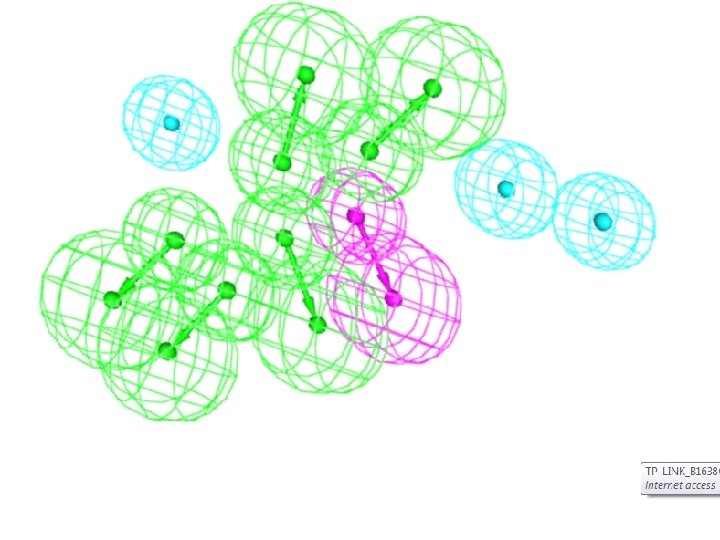

Lead modification The aim here is to improve the desired properties in the lead compound and try to reduce the toxic or un favorable effects. The first step in this process is to identify the PHARMACOPHORE. Pharmacophore is a collection of groups in the molecule that interact with the receptor or the enzyme and are responsible for activity

Pharmacophore and Auxophore: is the groups rather than the pharmacophore in the chemical structure. Many roles have been identified for the auxophore: Hold the pharmacophoric groups in their place. Interfere with the binding to the receptor…un-favorable. Occupy an inert space. Affect the pharmacokinetic properties of the whole structure.

Example of the study of pharmacophore The pharmacophoric groups in opioid analgesics are shown below (Bold style): the other groups (not in the bold style) are auxophoric group.

Lead modification The second step in the lead modification is the functional group modification depending on the study of the pharmacophore. Example: sulfonamide lead modification:

Lead modification The second step in the lead modification is the functional group modification depending on the study of the pharmacophore. Example: sulfonamide lead modification: This is the antibacterial pharmacophore This is the hypoglycemic pharmacophore

Lead modification The third step is to construct the structure activity relationships. Drugs can be classified into: Structurally specific: here the drug binds to specific site (receptor, enzyme, DNA, …etc). Structurally non-specific: drug has no specific site to bind with in order to exert its pharmacological effect (such as gaseous anesthetics, disinfectants and most of sedative hypnotics) Structurally specific drugs are more potent than structurally non-specific ones

Structural modification The main aim is to get more active, potent and safer agents compared to the lead compound. Methods for structural modification: Homologation: is to lengthen the alkyl chain in the chemical structure by CH 2: Chain length up to 9 carbon atom…. tolerable (optimum lipophilicity and water solubility. Chain length more than 9 carbon atoms…low water solubility… low availability.

Chain branching: alkyl branching will lower the lipophilicity. Alkyl branching will weaken the binding with the biological target. Ring chain transformation: Affects both lipophilicity and drug metabolism

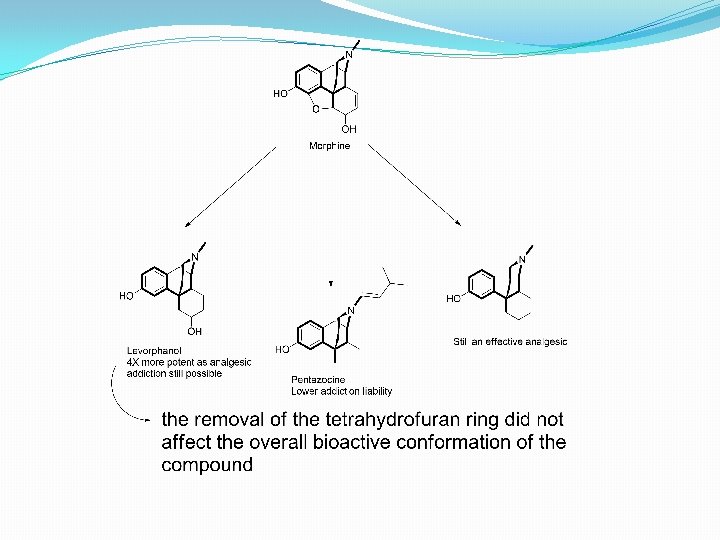

Molecular Disconnection /Simplification

Bioisosterism: Bioisosteres are groups or substituents that have chemical or physical similarities which produce similar biological activity. Importance of the use of Bioisosteres: Alter the pharmacokinetic properties. Attenuate toxicity. Modify activity. Potentiate activity. Two types of Bioisosteres: Classical Bioisosteres. Non-classical Bioisosteres.

Classical Bioisosteres Are atoms or molecules in which the peripheral layers of electrons can be considered identical. Subclasses: Univalent: CH 3 , NH 2 , OH , F , Cl Cl, SH Br, i-Pr I, t-Bu Divalent: -CH 2 - , -NH- , -O- , -S-CO-CH 2 - , -CO-NH- , -CO-O-, -CO-S-

Classical Bioisosteres Trivalent: -CH= , -N= Tetravalent: Ring equivalent:

Non-Classical Bioisostere They do not have the same no. of atoms…this means that the size, shape and electronic properties are different…at the same time they have the same impact on biological activity. Examples:

Structural modification to improve oral bioavailability Factors affecting oral bioavailability: Physicochemical stability. Biological stability: Effect of intestinal enzymes. First pass metabolism. Lipophilicity. Extent of ionization.

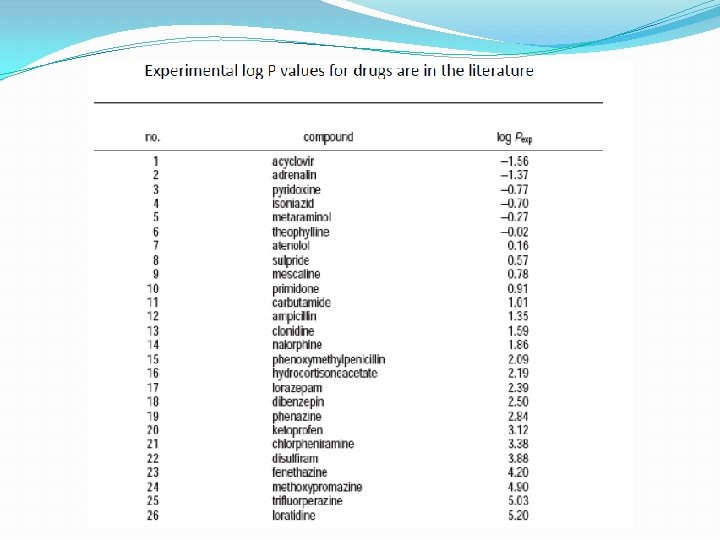

Lipophilicity The orally administered drug must have moderate lipophilicity (log. P = 2 -5) in order to absorbed through the lipophilic mucus membrane. It is recommended that one can predict the lipophilicity of the chemical compound before start synthesizing it. P = [C]octanol /[C]water Octanol was selected because it simulates the lipophilic membrane; lipophilic and sparingly soluble in water

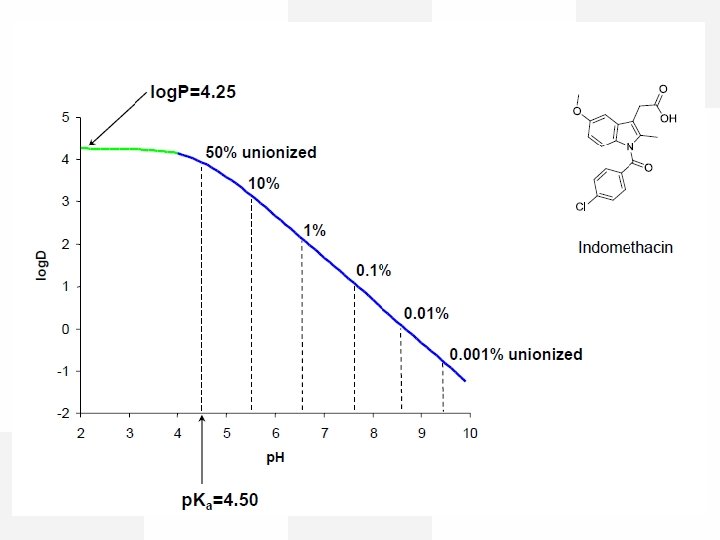

Lipophilicity Ionized drug will have lower lipophilicity than the neutral form. � is the degree of dissociation in water, depends on ionization constant. Log. D: is the log of distribution coefficient that describe the lipophilicity of ionizable compound

Example of log. D Log. D p. H -1. 31 2. 0 0. 12 7. 5 1. 73 10. 0

Prediction of lipophilicity To predict the lipophilicity, we must know the lipophilicity of substituents. Lipophilicity substituent constant (π) Π = log. PX –Log. PH (Hansh approach)

Substituent or fragment constant

Example Calculate the log. P of Aspirin: log. P = 1. 67 -0. 03 -. 56+0. 89 = 1. 97

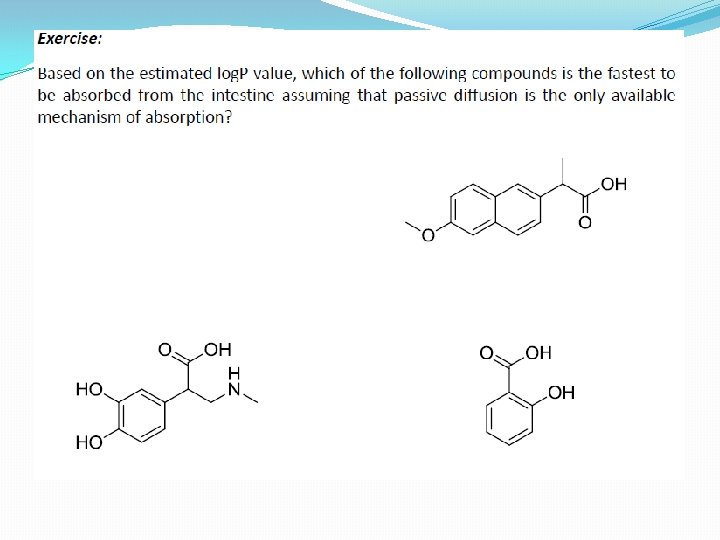

Calculate the approximate Log. P for the following drugs using the Hansh equation and fragment table

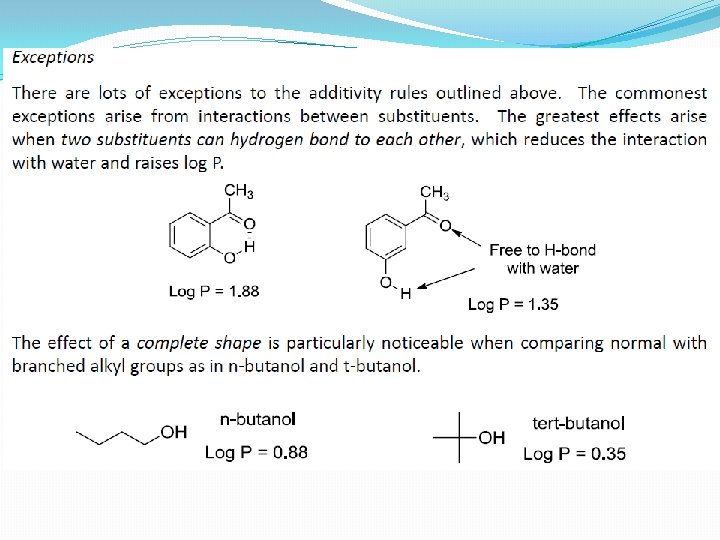

Other factors affecting lipophilicity Branching: log. P will be lowered by 0. 2 per branch. Inductive effect of electron withdrawing groups. Resonance effect: if it will affect the possibility of Hbonding. Example

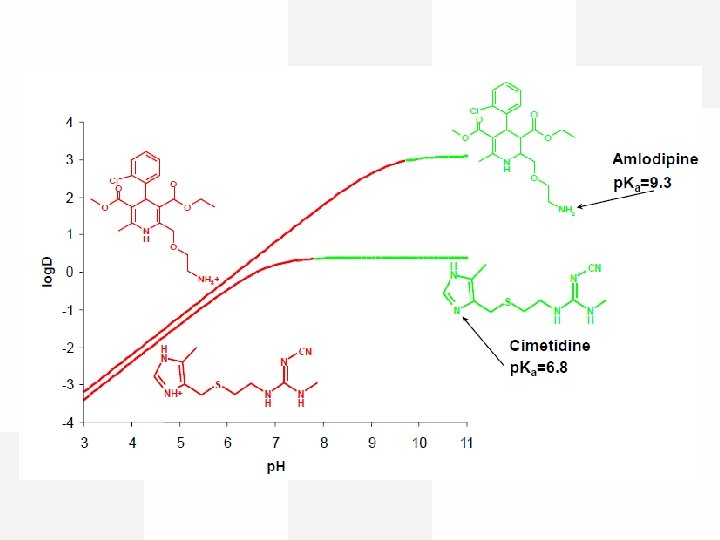

Effect of Ionization Extent of ionization of drugs may affect the following: Lipophilicity. Oral availability. Receptor-drug interaction. Excretion. Distribution

Effect of Ionization At a given p. H, there is an equilibrium between the ionized and unionized form. Only the unionized form will be absorbed from the GIT. The equilibrium between the ionized and unionized will be reestablished to generate unionized drug again for absorption (what are the factors affecting this equilibrium? )

Example

Electron Withdrawing effect of sulfonate

Electron donating effect of alkyl chain

Example

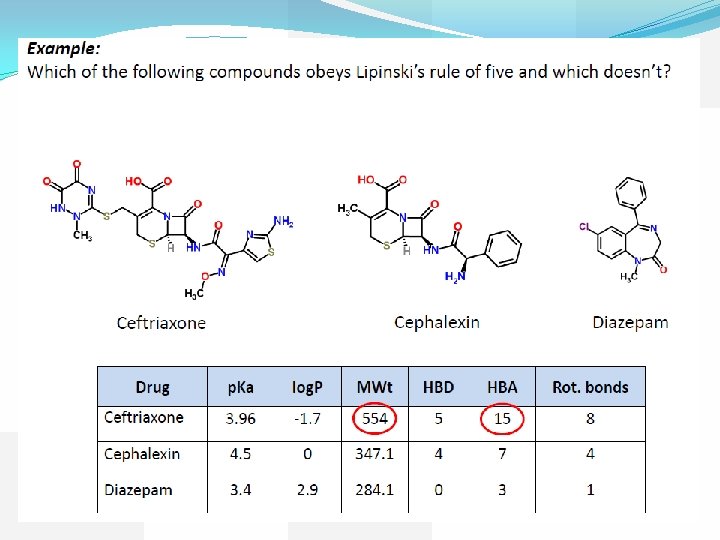

Lipinski’s rule of five The orally administered drug must not have: A molecular weight > 500 Dalton Log. P > 5 H-bond donor > 5 H-bond acceptor > 10 There are some exceptions out of this rule: Drugs that have specific transporters such as peptidomimetic agents. Drugs targeting CNS should have: H-bond donor ≤ 3 H-bond acceptor ≤ 6

Veber findings For better oral availability, drug candidate must have: Rotatable bonds ≤ 10 Polar surface area ≤ 140 A° 2 Total hydrogen bond count ≤ 12

Ajay findings For drugs targeting CNS: If the molecular weight, the degree of branching, the no. of rotatable bonds or the no. of H-bond acceptors increased, the compound will less likely to be CNS active. If the aromatic density, no. of H-bond donors or log. P is increased, the compound is more likely to be CNS active.

Some Exceptions

This can be beneficial
