DRILL LIST 2 EXAMPLES OF WHAT LIVE LOADS
- Slides: 13
DRILL: LIST 2 EXAMPLES OF WHAT LIVE LOADS ARE IN THE HOUSE BELOW
STRUCTURAL ENGINEERING: FORCES AND STRUCTURES APPLICATIONS OF TECHNOLOGY

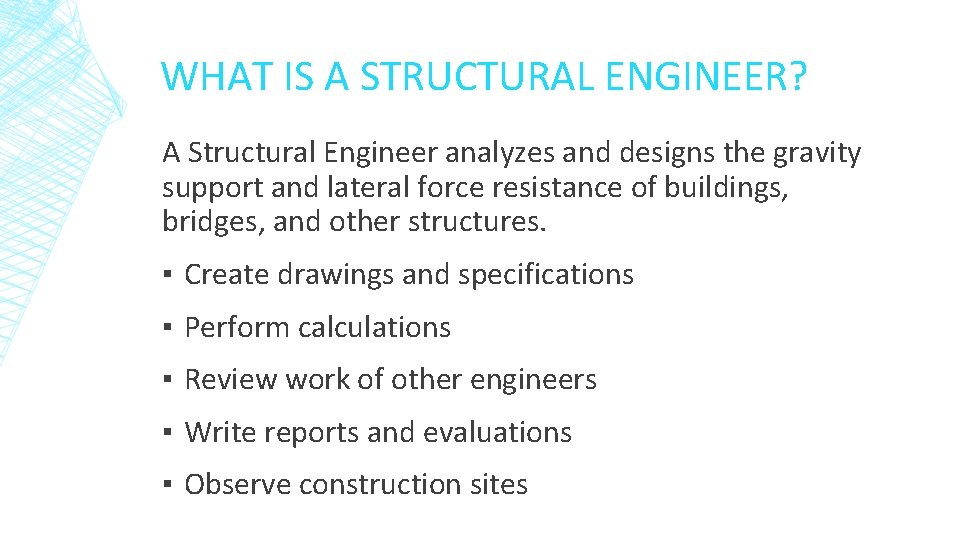

WHAT IS A STRUCTURAL ENGINEER? A Structural Engineer analyzes and designs the gravity support and lateral force resistance of buildings, bridges, and other structures. ▪ Create drawings and specifications ▪ Perform calculations ▪ Review work of other engineers ▪ Write reports and evaluations ▪ Observe construction sites

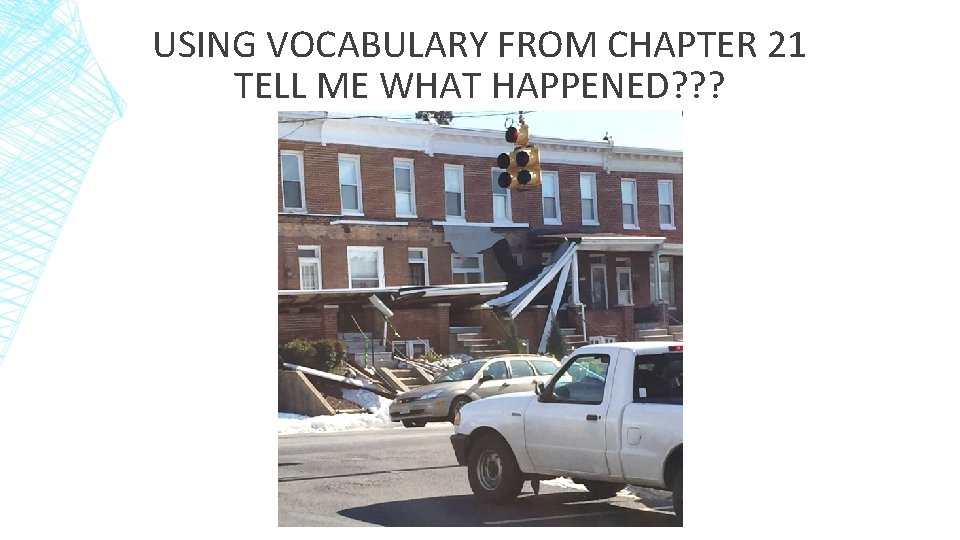

USING VOCABULARY FROM CHAPTER 21 TELL ME WHAT HAPPENED? ? ?
WHAT IS A LOAD? A load is any force that impacts a structural member. Live Loads Dead Loads Earthquakes Weight of Structure Wind Weight of People permanent building Furnishings and fixtures Equipment Snow & Rain

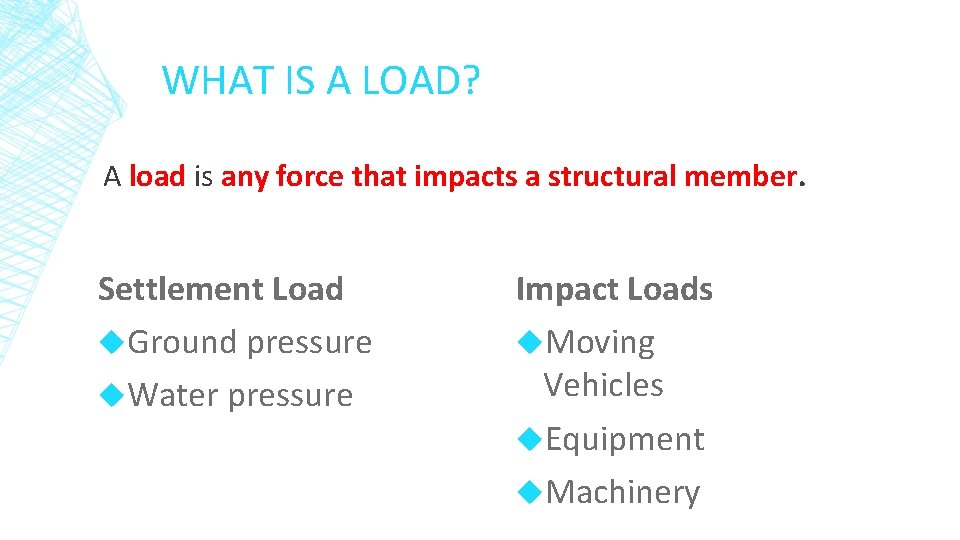

WHAT IS A LOAD? A load is any force that impacts a structural member. Settlement Load Ground pressure Water pressure Impact Loads Moving Vehicles Equipment Machinery

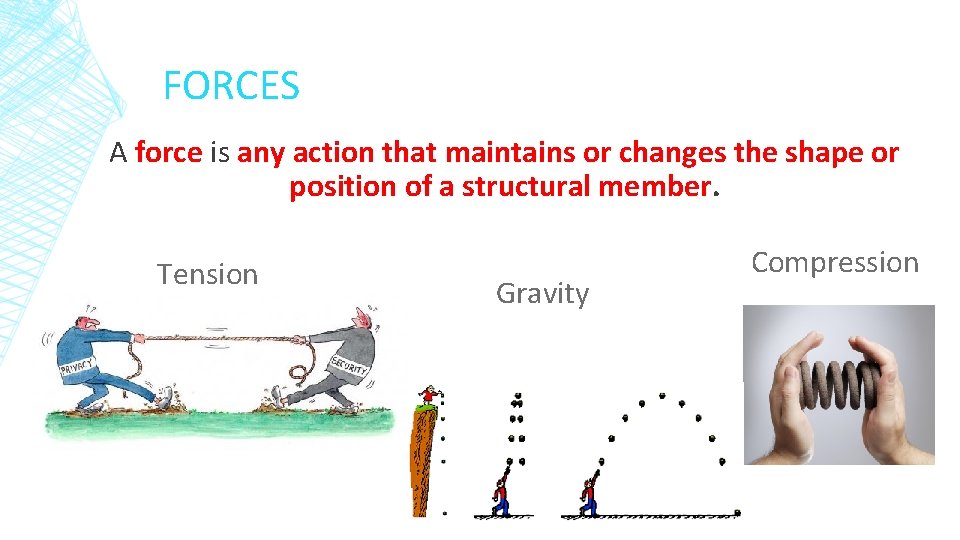

FORCES A force is any action that maintains or changes the shape or position of a structural member. Tension Gravity Compression

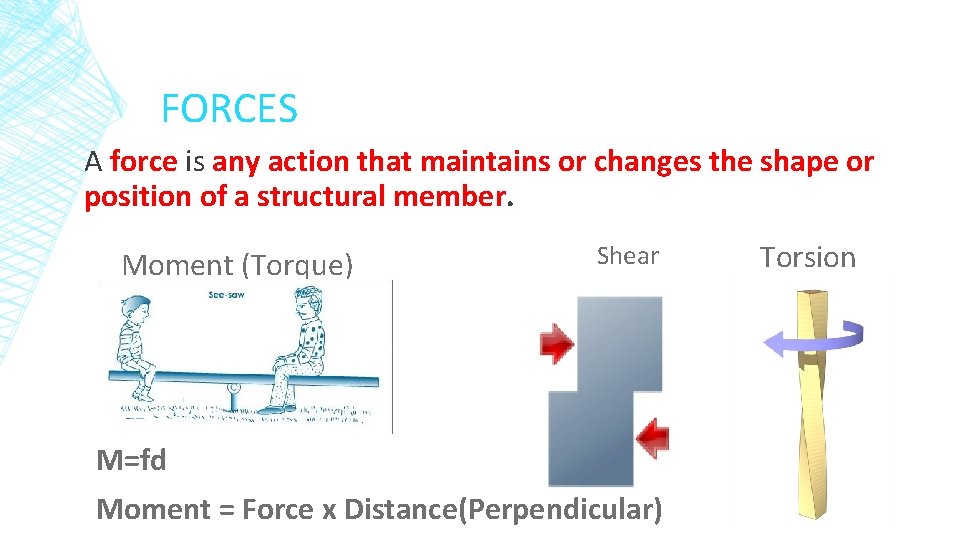

FORCES A force is any action that maintains or changes the shape or position of a structural member. Moment (Torque) Shear M=fd Moment = Force x Distance(Perpendicular) Torsion

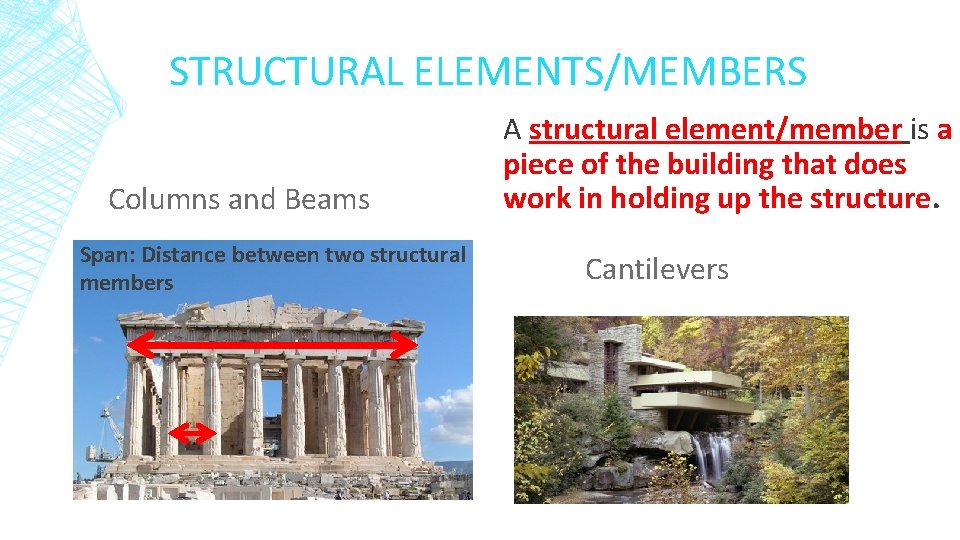

STRUCTURAL ELEMENTS/MEMBERS Columns and Beams Span: Distance between two structural members A structural element/member is a piece of the building that does work in holding up the structure. Cantilevers

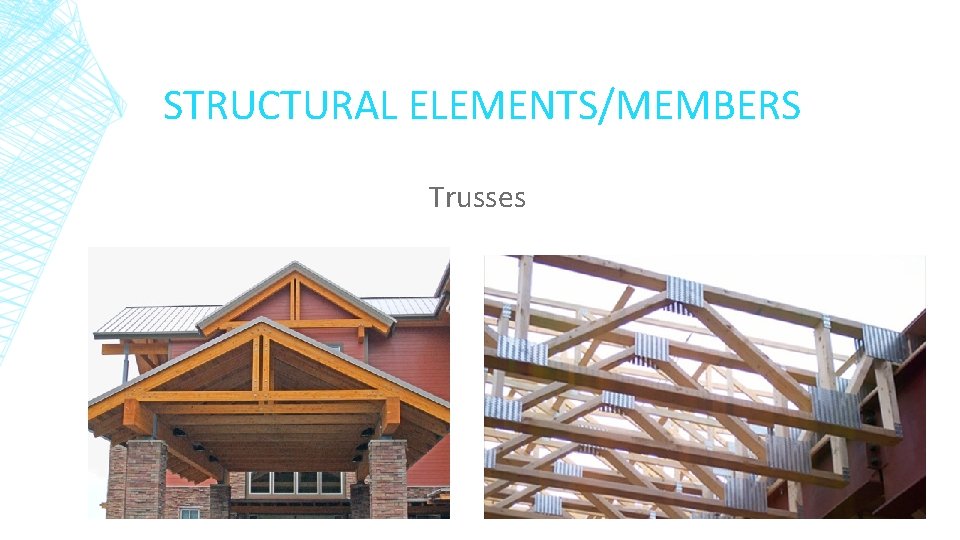

STRUCTURAL ELEMENTS/MEMBERS Trusses

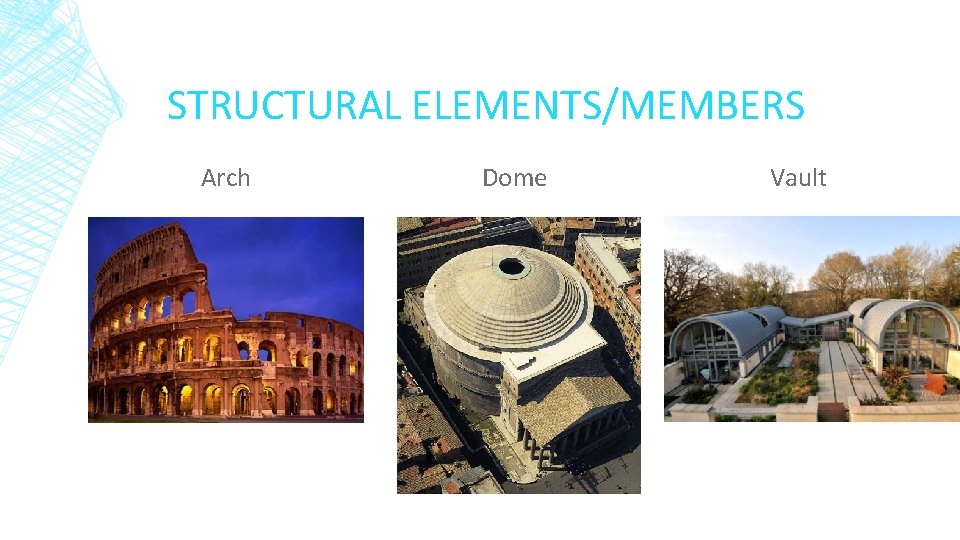

STRUCTURAL ELEMENTS/MEMBERS Arch Dome Vault

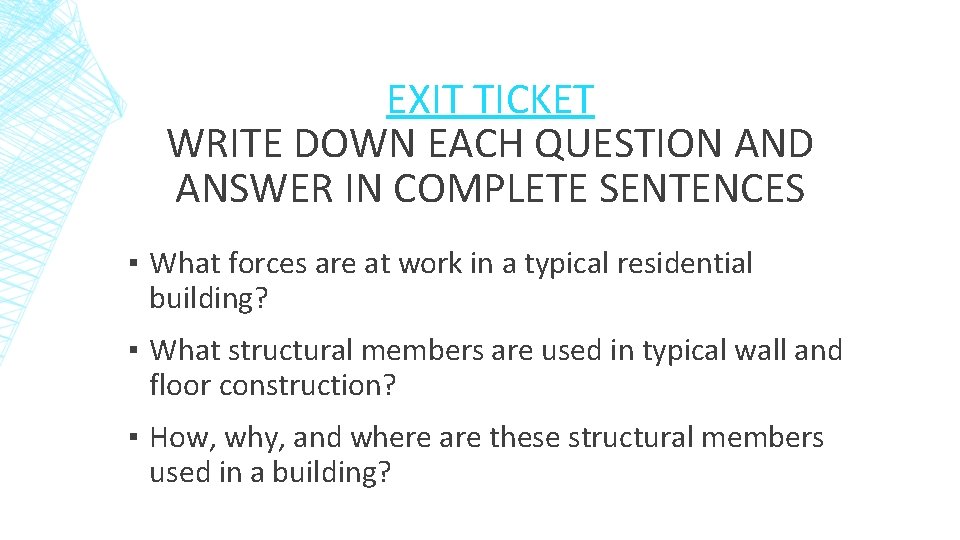

EXIT TICKET WRITE DOWN EACH QUESTION AND ANSWER IN COMPLETE SENTENCES ▪ What forces are at work in a typical residential building? ▪ What structural members are used in typical wall and floor construction? ▪ How, why, and where are these structural members used in a building?

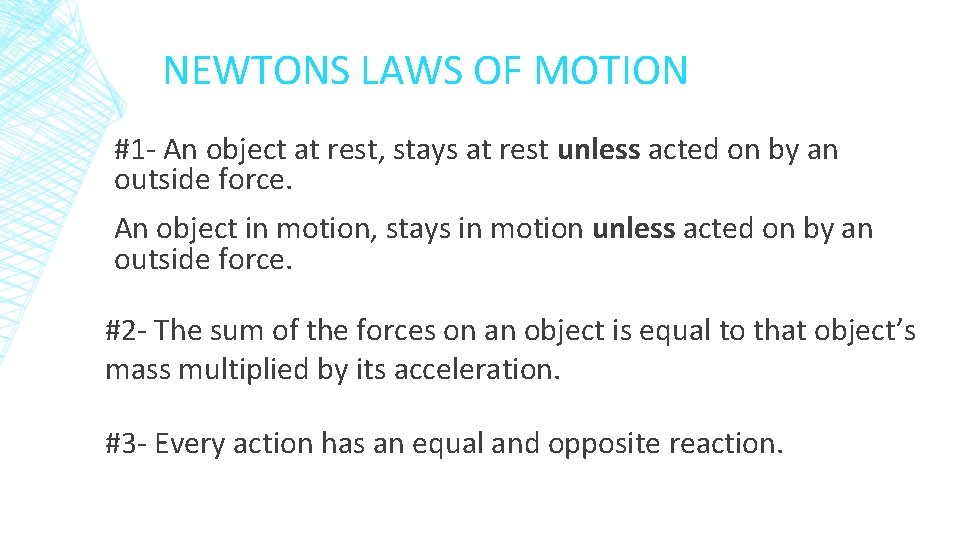

NEWTONS LAWS OF MOTION #1 - An object at rest, stays at rest unless acted on by an outside force. An object in motion, stays in motion unless acted on by an outside force. #2 - The sum of the forces on an object is equal to that object’s mass multiplied by its acceleration. #3 - Every action has an equal and opposite reaction.
