Drill Draw each of the following 4 methyl2
- Slides: 64
Drill: Draw each of the following: • 4 -methyl-2 -pentyne • cis-octa-5 -en-2 -yne
Aromatic Hydrocarbons
Aromatic Hydrocarbons • Hydrocarbons with 4 n+2 p electrons
Aromatic Hydrocarbons • Compounds with an odd # of double bonds at every other carbon
Aromatic Hydrocarbons • The double bonds must lie in a flat plane
Aromatic Hydrocarbons • Most contain benzene rings or related systems
Aromatic Hydrocarbons • All have an odor • Most are pleasant
Aromatic Hydrocarbons • Also called: • Arenes
Aliphatic Hydrocarbons • Hydrocarbons other than aromatic hydrocarbons
Benzene H H C C H C H
Benzene

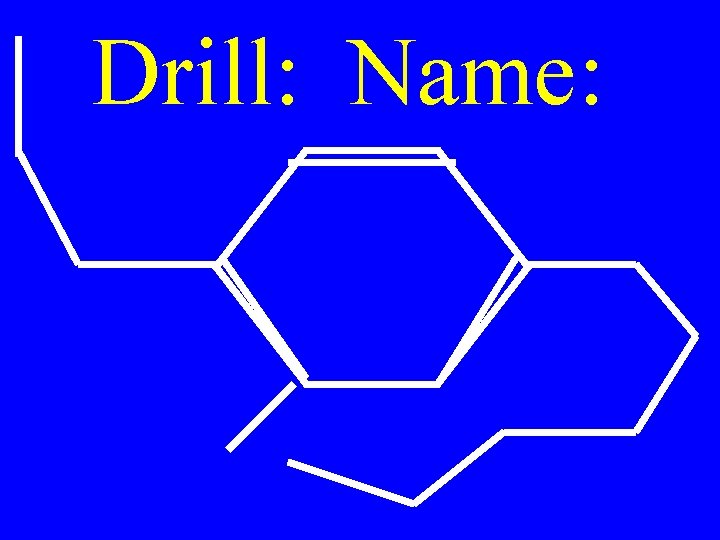

Drill: Name:
Draw propylbenzene
Benzene
propylbenzene
Naming Arenes
Naming Arenes • Use the same rules as for cyclic compounds • Special exception will follow

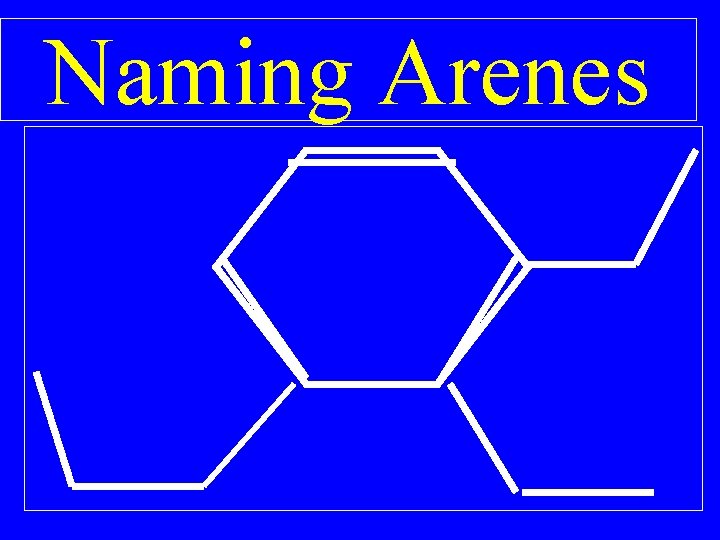

Naming Arenes 5 4 3 6 1 2
2, 3 -diethyl-1 -propylbenzene
Special Exceptions • Some aromatic compounds have common names

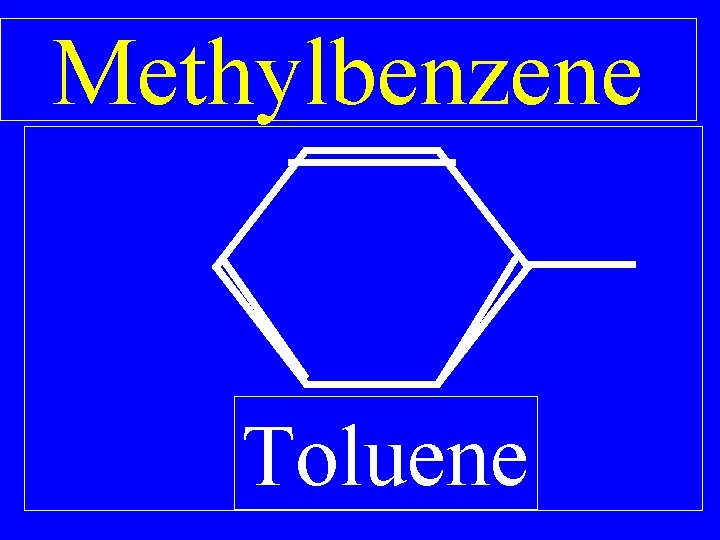

Methylbenzene Toluene
1, 4 -dimethylbenzene 1, 4 -Xylene
Disubstituted Benzene Rings 2 groups attached to a benzene ring

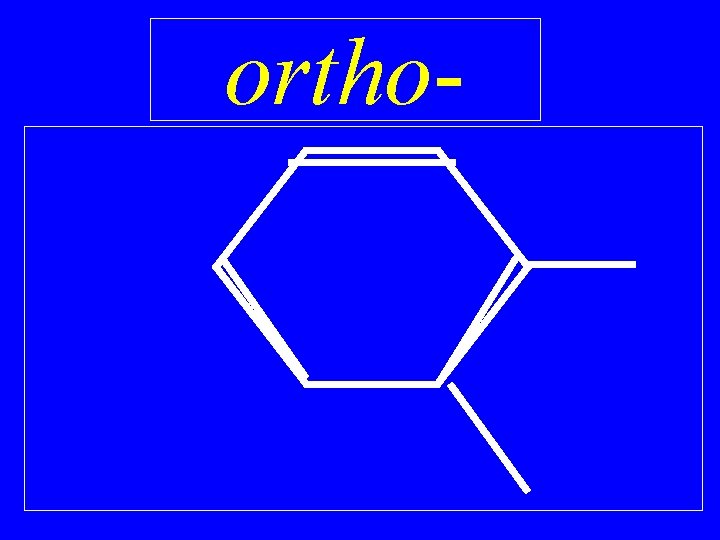

ortho-
meta-
para-
1, 4 -dimethylbenzene para-xylene
Name:

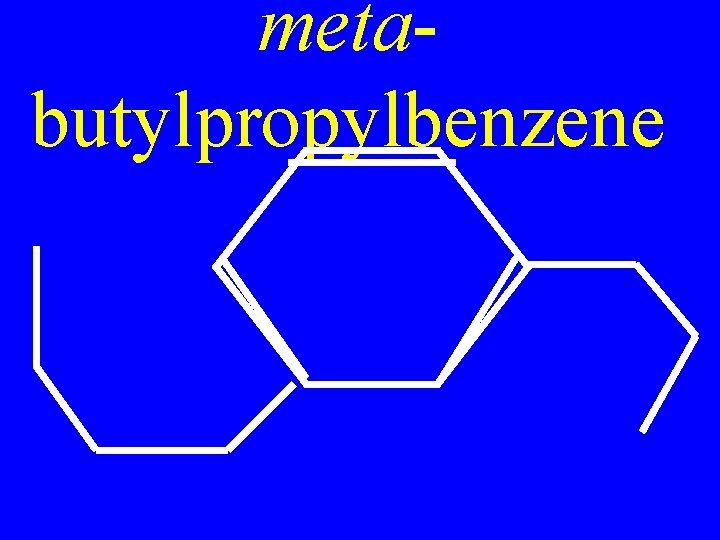

metabutylpropylbenzene
____ benzene R phenyl ____
Pyr phenylpyruvate
Strange Names

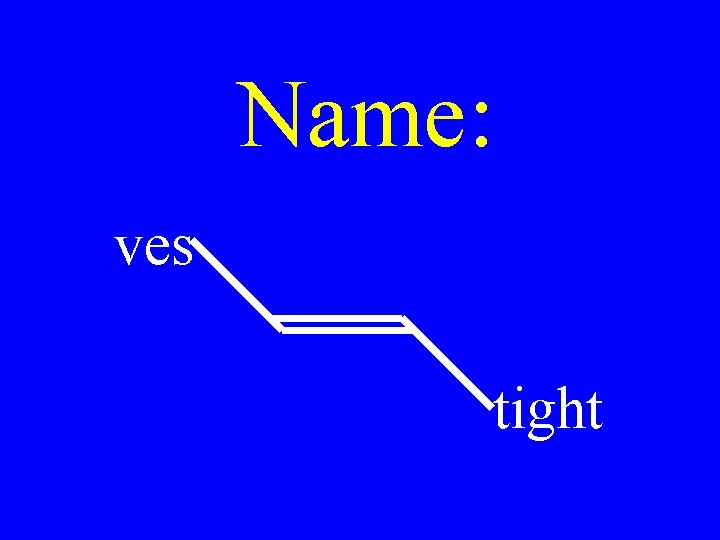

Name: ves tight
Name: stem attic
Name: dude strange

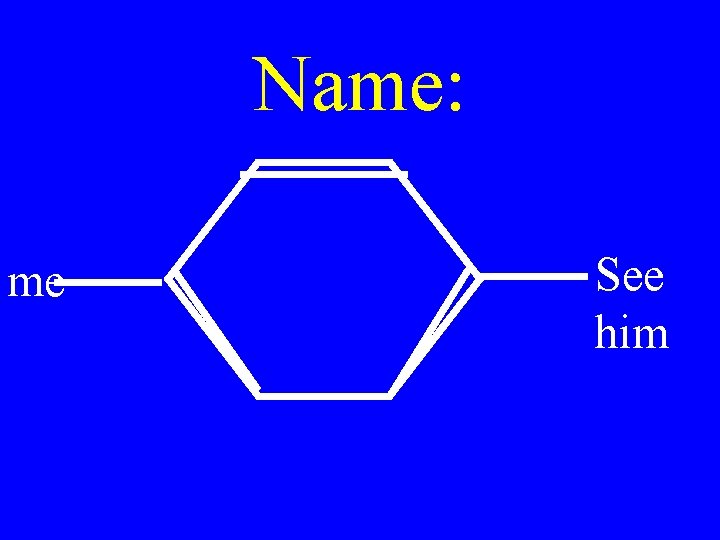

Name: me See him
ORG CHM HW • Come up with at least one strange name based on organic nomenclature
Draw & name a compound with 8 carbons, 1, branch, 1 double bond, & 1 triple bond
Draw & Name all the possible isomers for C 6 H 10

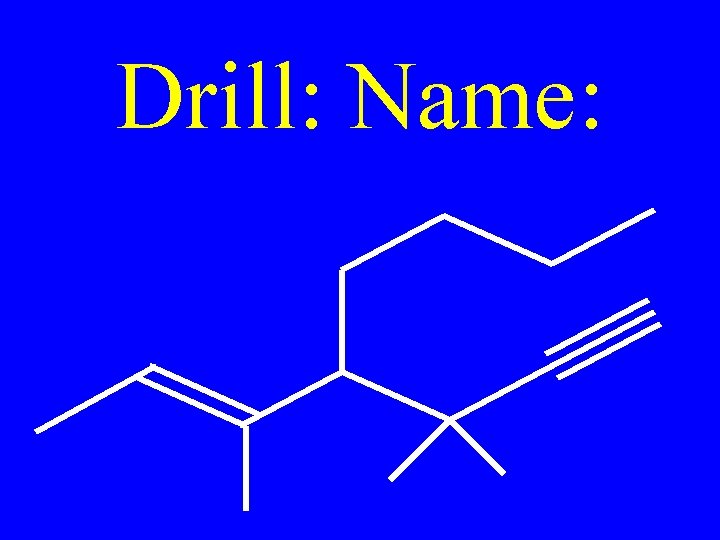

Drill: Name:
The check is in the mail Of course, I’ll love you in the morning
Organic HW • Study for the test tomorrow
Name the following:
Name the following:

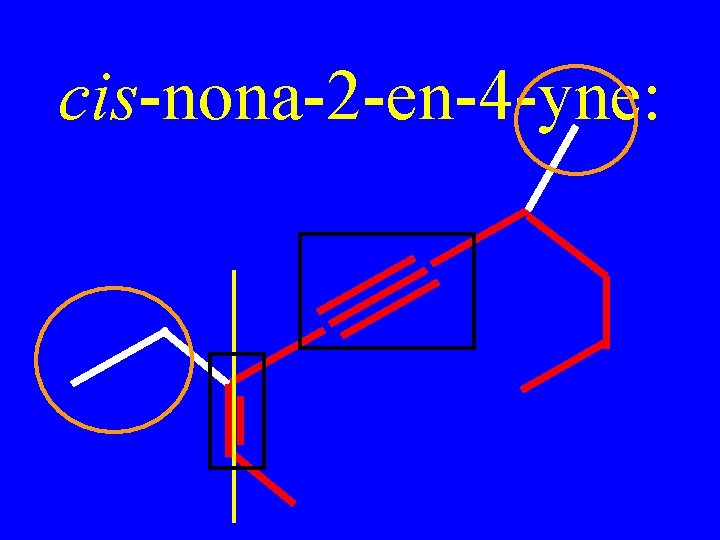

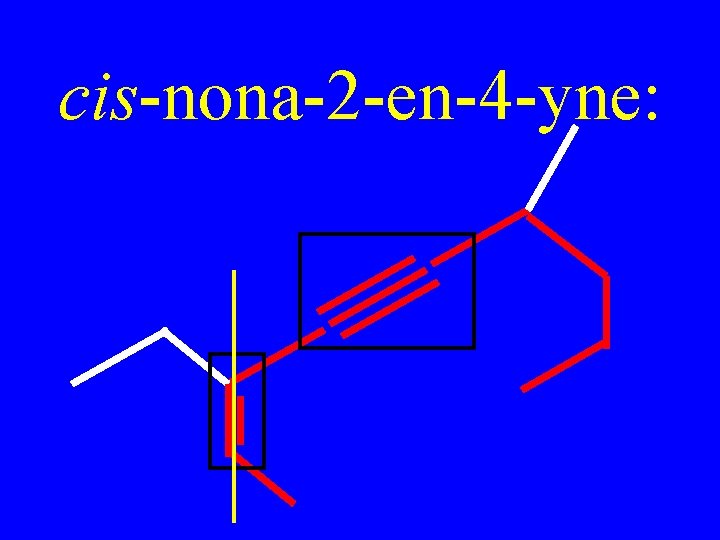

cis-nona-2 -en-4 -yne:
cis-nona-2 -en-4 -yne:
cis-3 -ethyl-6 -methylnona -2 -en-4 -yne:

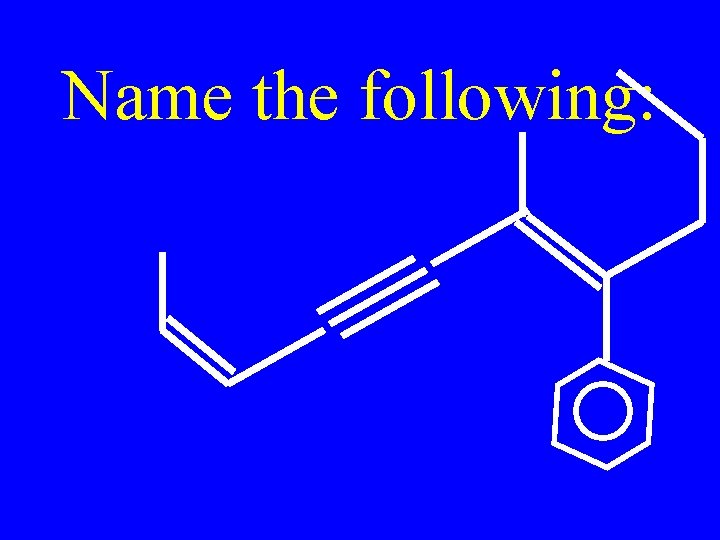

Name the following:
Name the following:
cis, trans-deca-2, 6 dien-4 -yne:
cis, trans-deca-2, 6 dien-4 -yne:
cis, trans-6 -methyl-7 phenyldeca-2, 6 -dien-4 -yne:
Draw: • cis-6 -ethyl-2, 3 dimethyl-5 -phenyl-4 octene
Draw: all trans-3, 4, 5, 6, 7, 8 hexamethyldeca 2, 4, 6, 8 -tetraene
Draw & name all the possible isomers of C 7 H 14
Draw & name all the possible isomers of C 7 H 12
Naphthalene

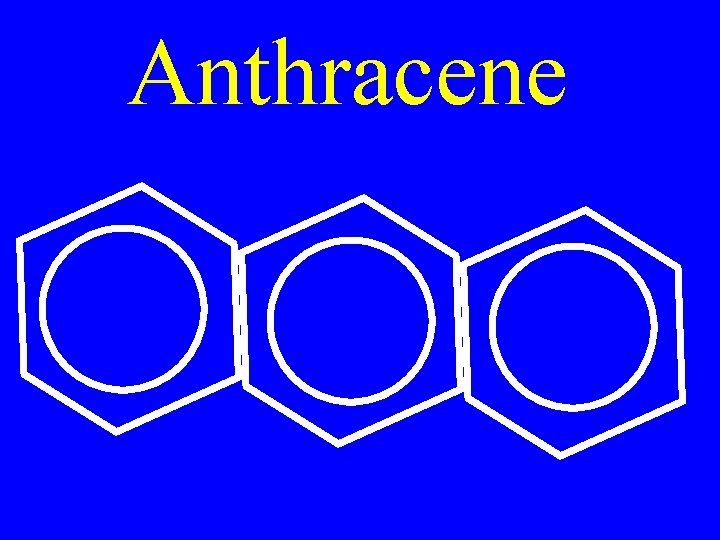

Anthracene
Phenanthrene
Lab: Tomorrow Review: Thur Test: Friday
Name the compounds on the board
Draw & name all the possible isomers of C 6 H 12
Draw & name all the possible isomers of C 5 H 8
The check is in the mail Of course, I’ll love you in the morning
