Introduction • DREN is Do. D’s network serving the RDT&E community • It serves as the Do. D IPv 6 “pilot” network. • DREN operates 2 IPv 6 wide area networks – Testbed • Dedicated Cisco routers • ATM PVC mesh – Production • Dual stack production backbone • Juniper routers 18 -Jul-05 DREN IPv 6 Update 2

DREN “production” network 18 -Jul-05 DREN IPv 6 Update 3

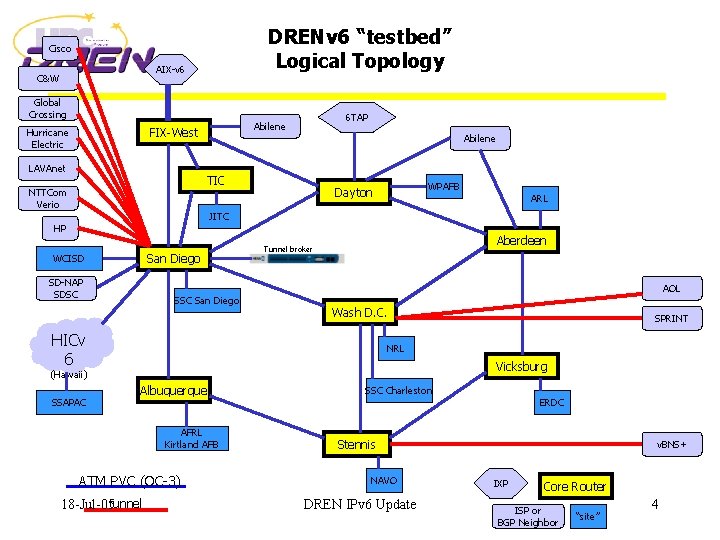

DRENv 6 “testbed” Logical Topology Cisco AIX-v 6 C&W Global Crossing LAVAnet 6 TAP Abilene FIX-West Hurricane Electric Abilene TIC NTTCom Verio WPAFB Dayton ARL JITC HP San Diego WCISD SD-NAP SDSC San Diego Aberdeen Tunnel broker AOL Wash D. C. HICv 6 NRL Vicksburg (Hawaii) SSAPAC SPRINT Albuquerque AFRL Kirtland AFB ATM PVC (OC-3) 18 -Jul-05 tunnel SSC Charleston ERDC Stennis NAVO DREN IPv 6 Update v. BNS+ IXP Core Router ISP or BGP Neighbor “site” 4

DREN IPv 6 transition architecture – FY 04 To 6 bone, Abilene, and other IPv 6 enabled ISPs IPv 6 demonstrations (Moonv 6) links run native IPv 6 where possible, otherwise tunnelled in IPv 4 DRENv 6 (Testbed) Native IPv 6 backbone SSCSD ARL-APG ERDC Testbed at DREN site v 6 ACL sdp. sandiego NIDSv 6 ACL NIDSv 6 v 6 ACL sdp. erdc DREN 2 (Production / Pilot) sdp. arlapg Dual stack IPv 4 and IPv 6 wide area infrastructure sdp Goal: As secure as the IPv 4 backbone 18 -Jul-05 sdp Type “A” (IP) production service to DREN sites IPv 4 and IPv 6 provided over the same interface DREN IPv 6 Update 5

DREN IPv 6 philosophy • Push the “I believe” button, and turn on IPv 6 everywhere to see what works (and what doesn’t) • Do it in a production environment – can get away with this in an R&D environment, but not on operational networks. • Go native. (no tunnels) • Even if the world doesn’t convert for years, R&D environments need it now. • Figure out how to deploy IPv 6 to the rest of Do. D in the future. 18 -Jul-05 DREN IPv 6 Update 6

Report on some current efforts • Security • IPv 6 Multicast • DHCPv 6/DNS 18 -Jul-05 DREN IPv 6 Update 7

Security • Reported previously – many security features missing in implementations • IPsec, ACLs, etc – many security products don’t do IPv 6 • firewalls, IDS, scanners, etc. • Update – snort-2. 3. 3 upgraded to IPv 6 by DREN • in production as part of DREN’s IDS – giving up on Juniper IPv 6 port-mirroring • installing Foundry switches at exchanges – independent security review contracted to SAIC • report due Oct ‘ 05 18 -Jul-05 DREN IPv 6 Update 8

Independent Security Review • Reviewing… • Analyzing… • So far… • Good stuff… – – – protocol stack maturity tool maturity – – – v 6 versions of all v 4 attacks packets emitted on boot, as well as other traffic and interactions how things behave with strange packets – – – – protocol is no less secure than v 4 mobility is scary multicast is still spoofable ND – spoofable, but no exploits found yet Windows – ack’s things twice in all v 6 TCP streams? ? ? router renumbering – can spoof – possible Do. S landv 6 attack works, but doesn’t crash machine – – ethereal – excellent v 6 parsing scapy – great packet hacking tool, supports v 6 18 -Jul-05 DREN IPv 6 Update 9

IPv 6 multicast • Focus: get DREN backbones fully ipv 6 multicast enabled. • Status (work in progress) Test Environment Linux – Testbed – fully operational Testbed • PIMv 2, MLDv 2, SSM, ASM, static RP, embedded-rp SSCSD – Production – operational • routers all upgraded to Jun. OS 7. 2 • PIMv 2, MLDv 2, SSM, ASM, some embedded -rp sdp. sandiego • ASM and SSM, using embedded-rp group address – Test environment – simulating cross-domain interaction 18 -Jul-05 DREN IPv 6 Update Cisco Juniper Production – Beacon – operational (dbeacon) • Linux 2. 6. 11, Linux 2. 4, Solaris 10 • Cisco (testbed), Juniper (DREN production), Juniper (site), Foundry BI (site) (beacon) Linux Solaris sdp Juniper Site Juniper, Foundry Linux 10

IPv 6 Multicast • Learned: – lots of good work already done by folks at m 6 bone – ssmping – great test/debug tool • server (source) doesn’t need MLDv 2, only receivers – dbeacon – new beacon software – notion of multicast/PIM domains blurred or gone. • use embedded-rp for cross-domain ASM – embedded-rp works great • Cisco – enabled by default • Juniper – disabled by default (surprise) – needs to be enabled on all routers between the RP and potential receivers. • Some Issues – Foundry – no MLDv 2 yet – no MLDv 2 in Win. XP, broken in old Linux, Solaris. • To. Do: – test beyond DREN (Abilene? m 6 bone? ) 18 -Jul-05 DREN IPv 6 Update 11

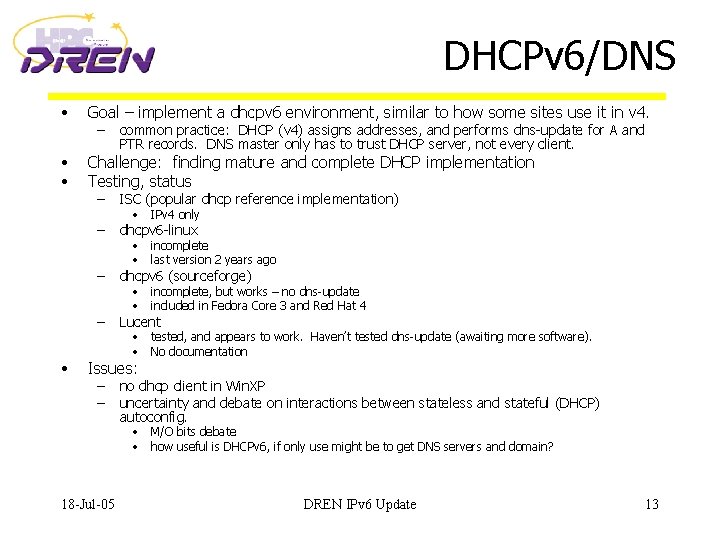

DHCPv 6/DNS • Goal – implement a dhcpv 6 environment, similar to how some sites use it in v 4. • • Challenge: finding mature and complete DHCP implementation Testing, status • – common practice: DHCP (v 4) assigns addresses, and performs dns-update for A and PTR records. DNS master only has to trust DHCP server, not every client. – ISC (popular dhcp reference implementation) – dhcpv 6 -linux – dhcpv 6 (sourceforge) – Lucent • IPv 4 only • incomplete • last version 2 years ago • incomplete, but works – no dns-update • included in Fedora Core 3 and Red Hat 4 • tested, and appears to work. Haven’t tested dns-update (awaiting more software). • No documentation Issues: – – no dhcp client in Win. XP uncertainty and debate on interactions between stateless and stateful (DHCP) autoconfig. • M/O bits debate • how useful is DHCPv 6, if only use might be to get DNS servers and domain? 18 -Jul-05 DREN IPv 6 Update 13
