Introduction to Computer Graphics Present to: Amirkabir University of Technology (Tehran Polytechnic) & Semnan University Dr. Kourosh Kiani Email: kkiani 2004@yahoo. com Email: Kourosh. kiani@aut. ac. ir Web: aut. ac. com 3

Amirkabir & Semnan University Computer & Electrical Faculty Lecture 09 3 D viewing 4

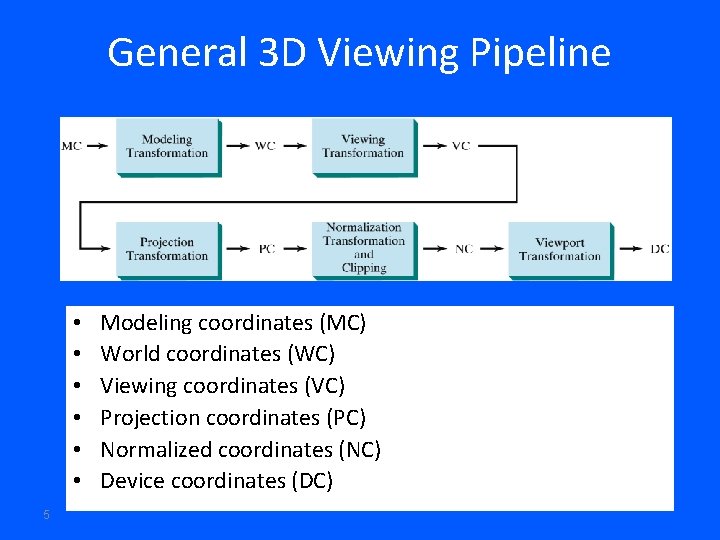

General 3 D Viewing Pipeline • • • 5 Modeling coordinates (MC) World coordinates (WC) Viewing coordinates (VC) Projection coordinates (PC) Normalized coordinates (NC) Device coordinates (DC)

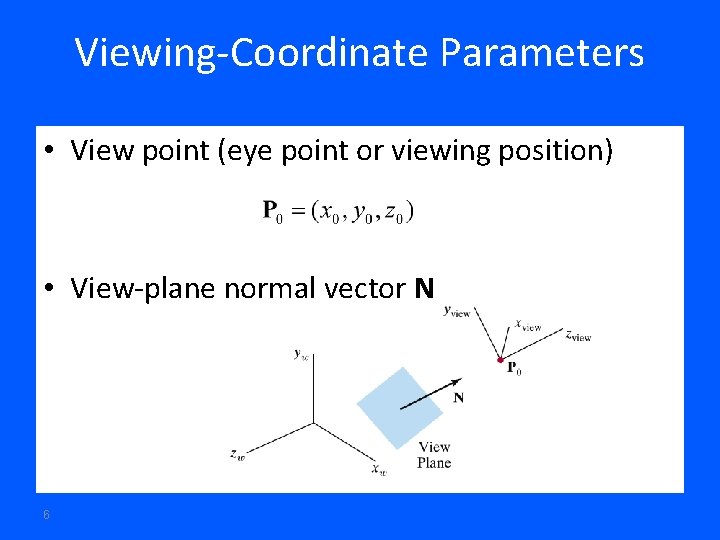

Viewing-Coordinate Parameters • View point (eye point or viewing position) • View-plane normal vector N 6

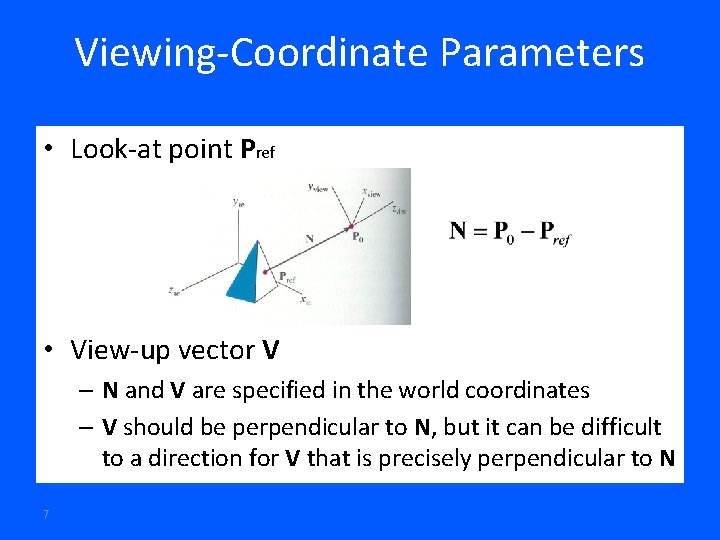

Viewing-Coordinate Parameters • Look-at point Pref • View-up vector V – N and V are specified in the world coordinates – V should be perpendicular to N, but it can be difficult to a direction for V that is precisely perpendicular to N 7

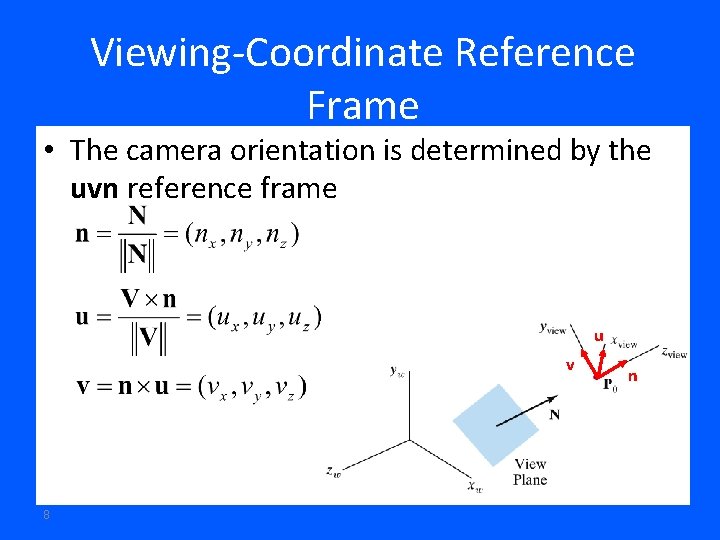

Viewing-Coordinate Reference Frame • The camera orientation is determined by the uvn reference frame u v 8 n

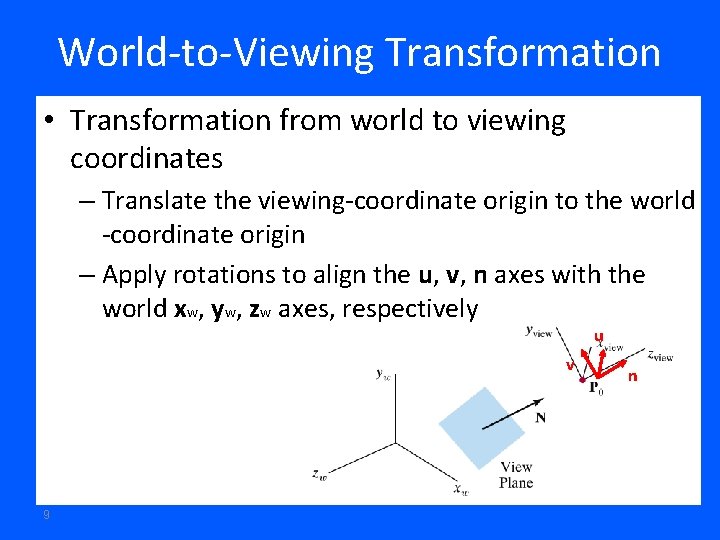

World-to-Viewing Transformation • Transformation from world to viewing coordinates – Translate the viewing-coordinate origin to the world -coordinate origin – Apply rotations to align the u, v, n axes with the world xw, yw, zw axes, respectively u v 9 n

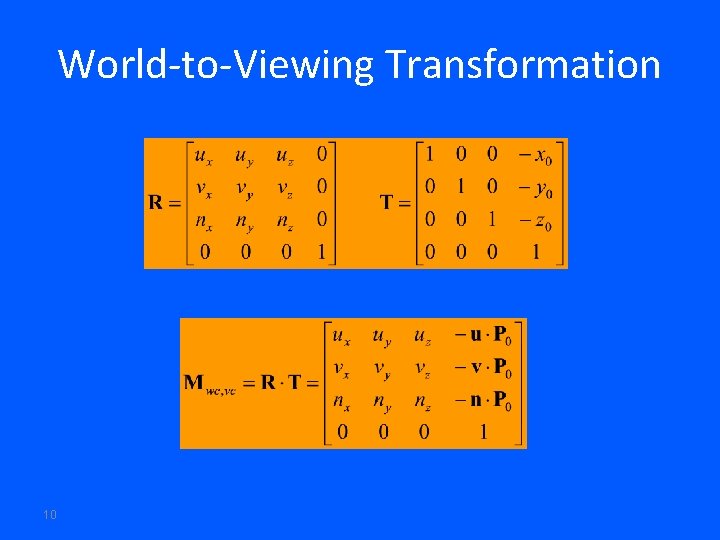

World-to-Viewing Transformation 10

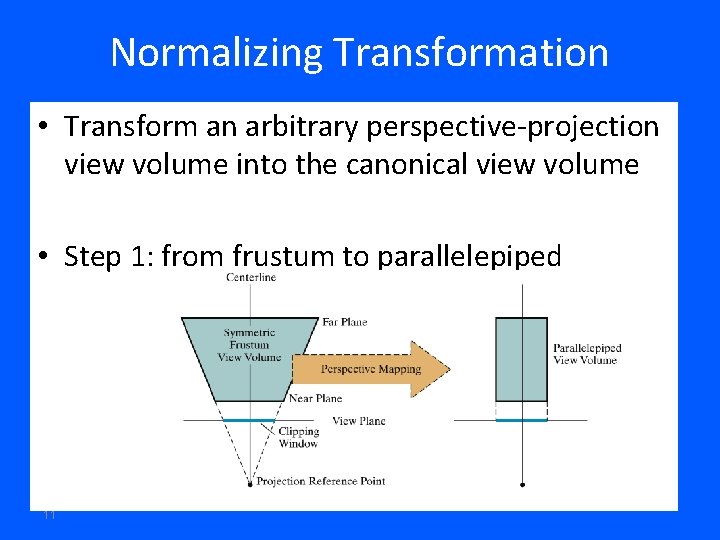

Normalizing Transformation • Transform an arbitrary perspective-projection view volume into the canonical view volume • Step 1: from frustum to parallelepiped 11

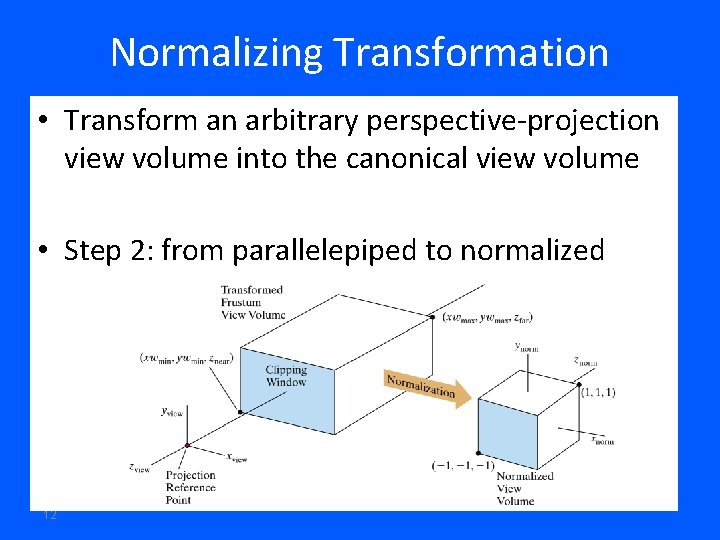

Normalizing Transformation • Transform an arbitrary perspective-projection view volume into the canonical view volume • Step 2: from parallelepiped to normalized 12

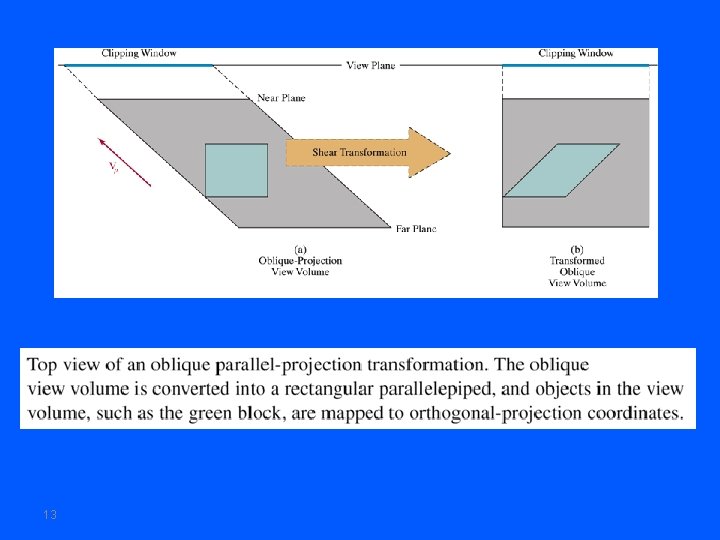

13

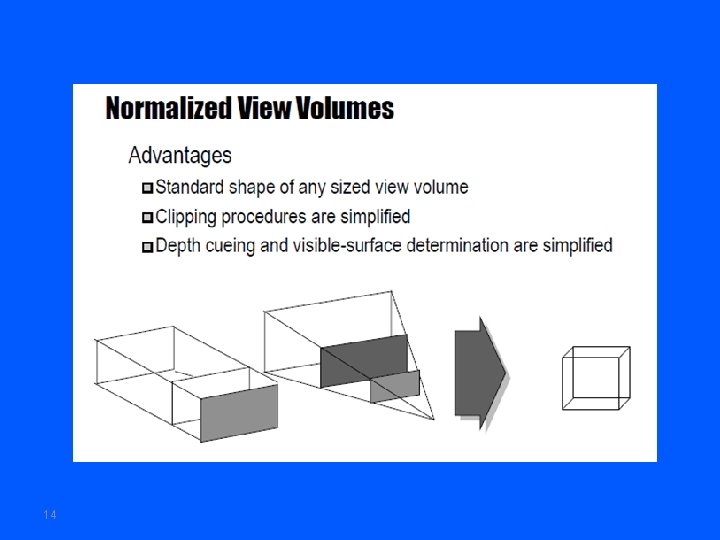

14

15

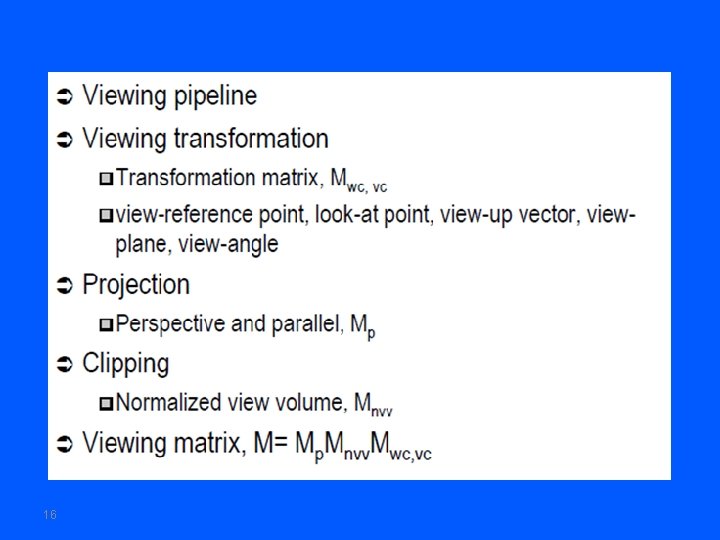

16

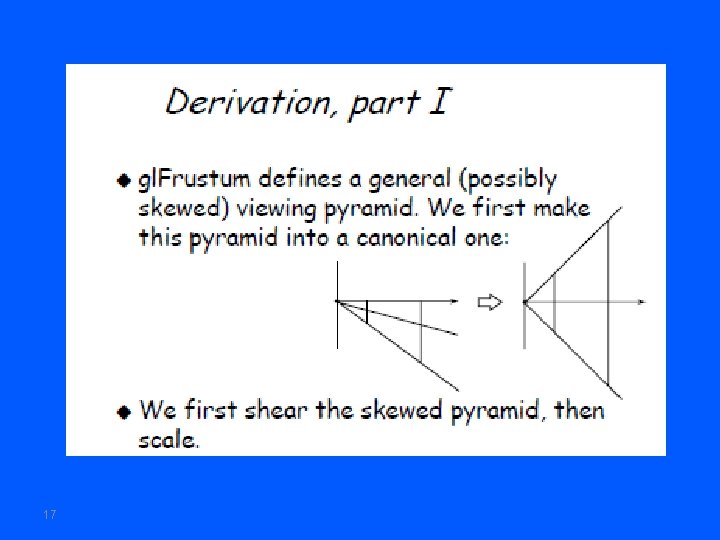

17

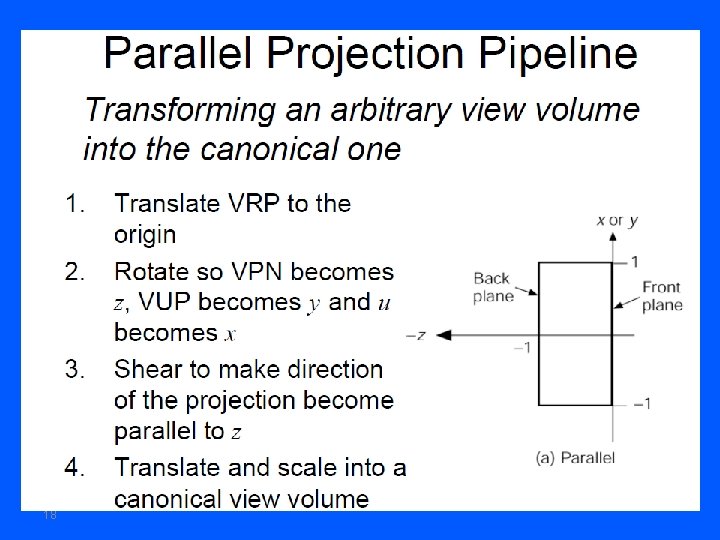

18

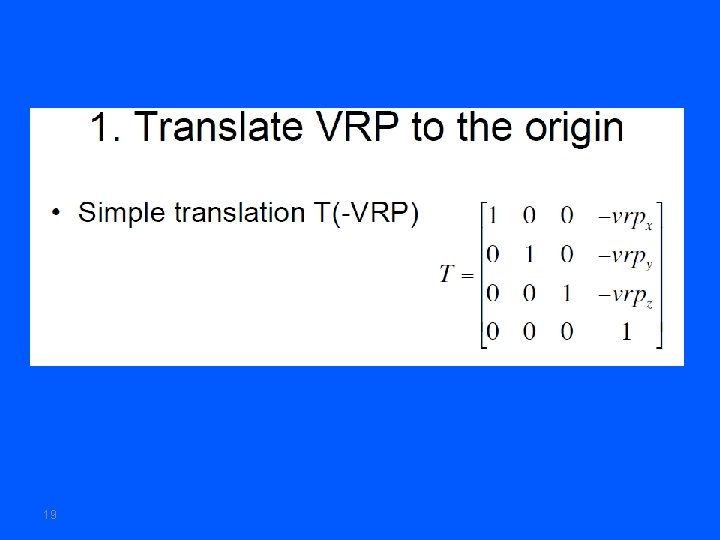

19

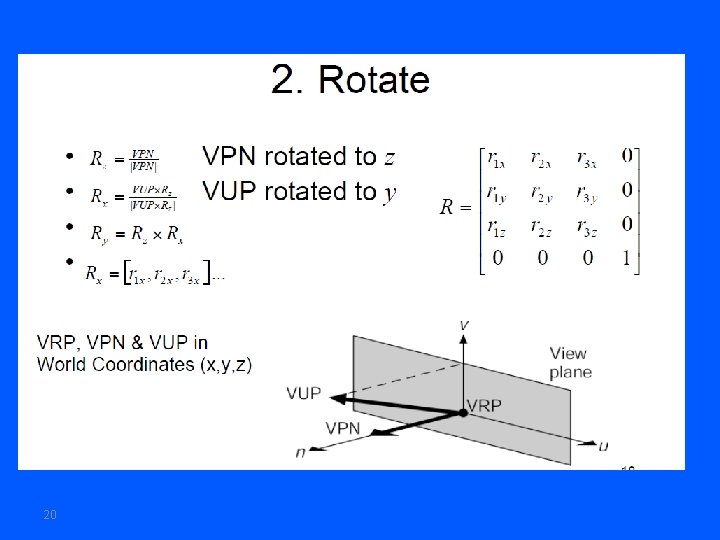

20

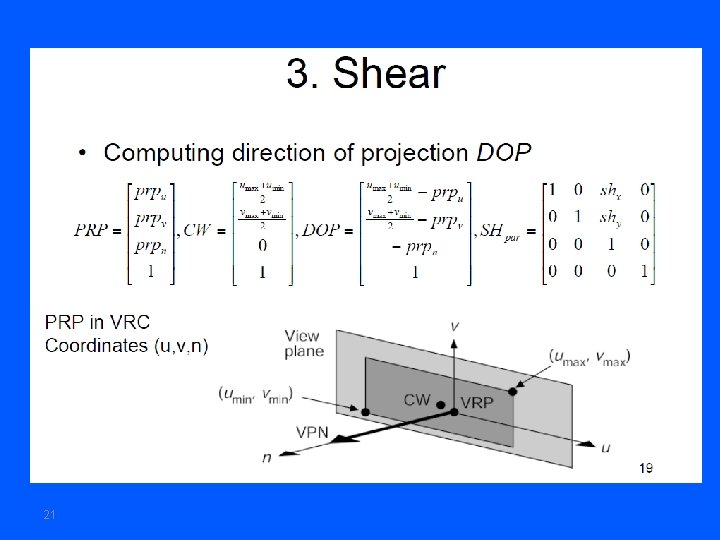

21

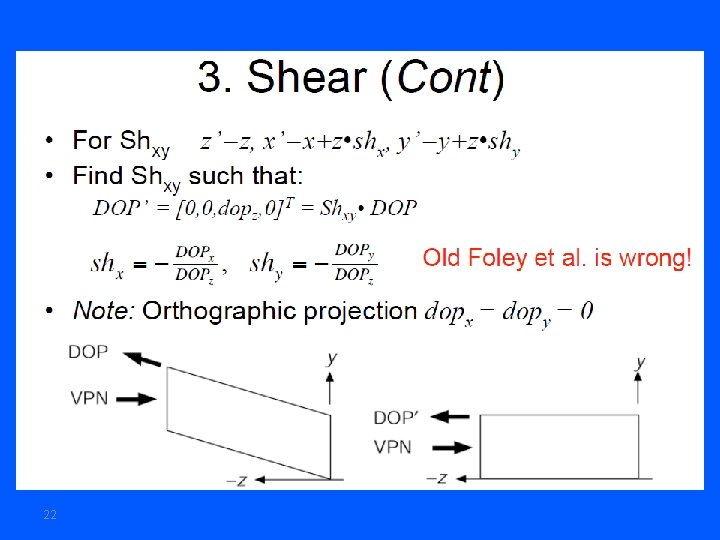

22

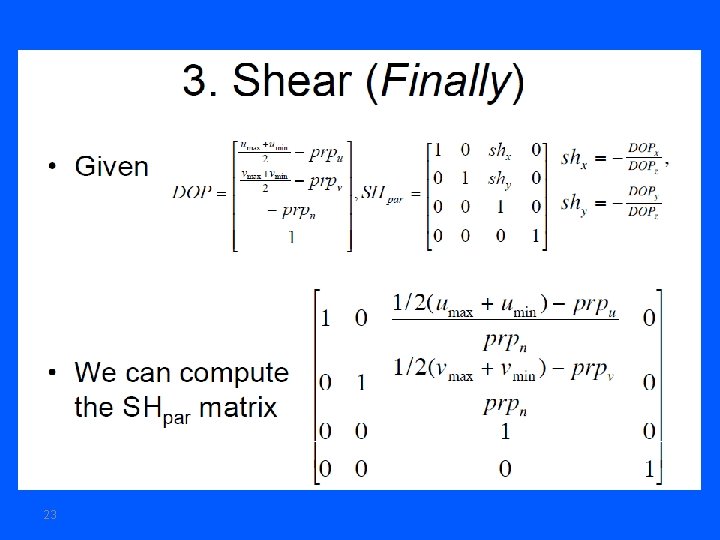

23

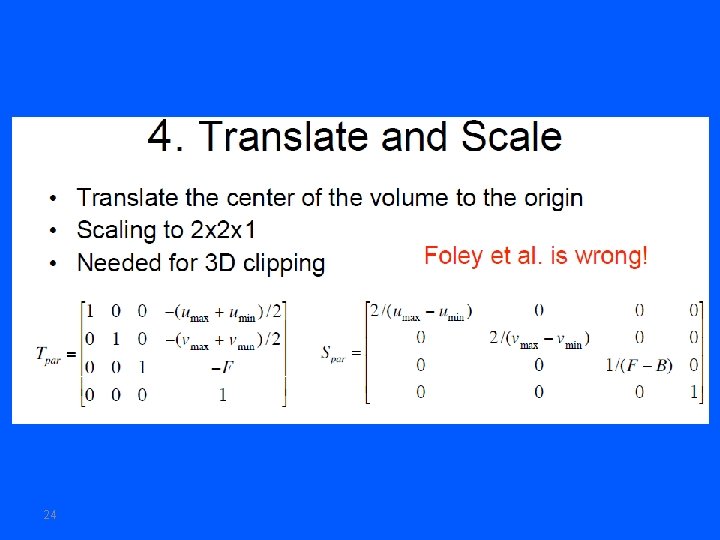

24

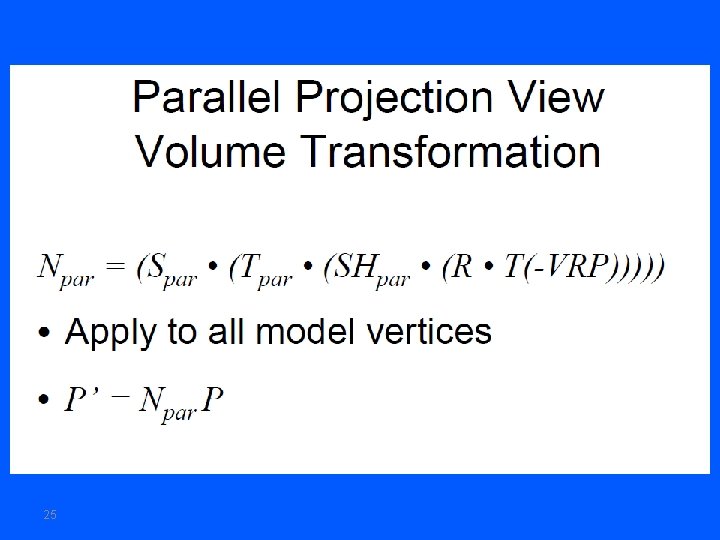

25

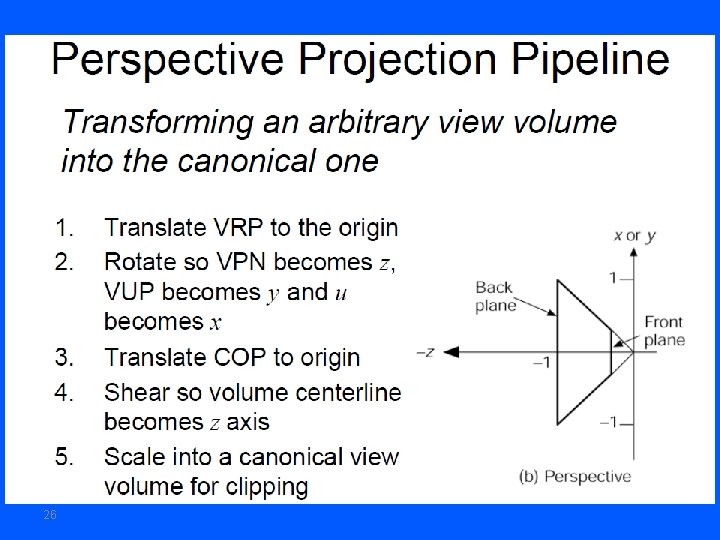

26

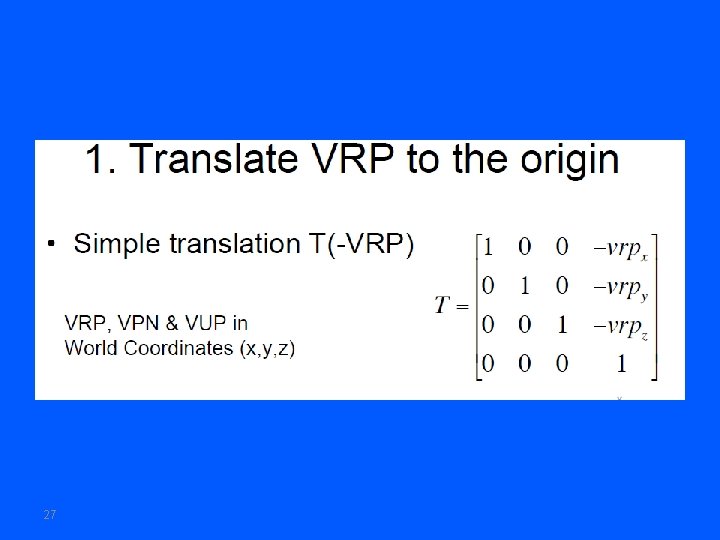

27

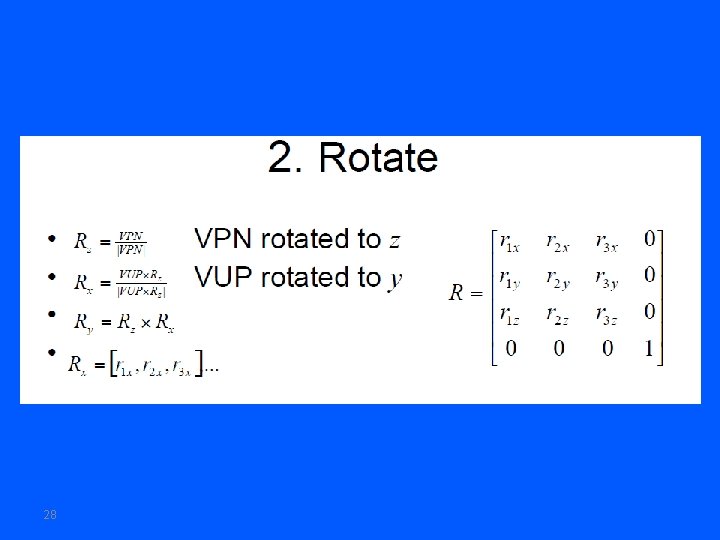

28

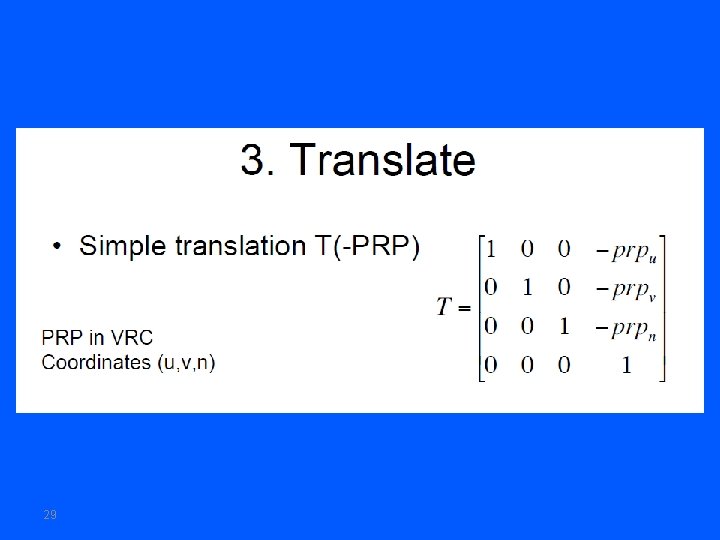

29

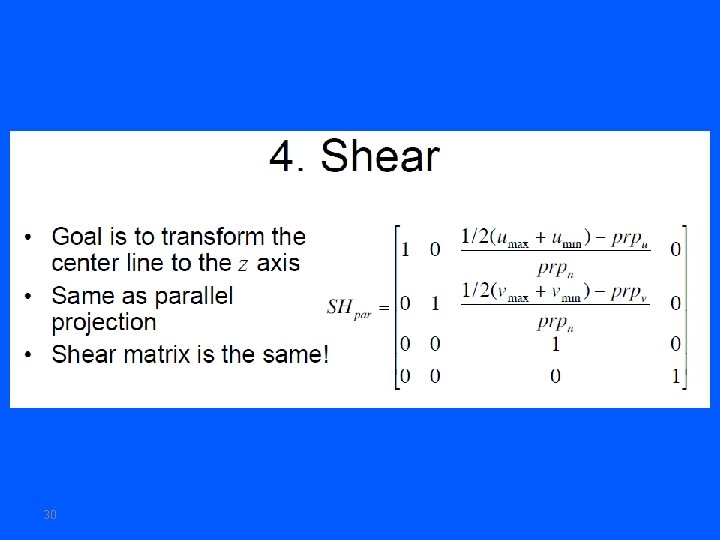

30

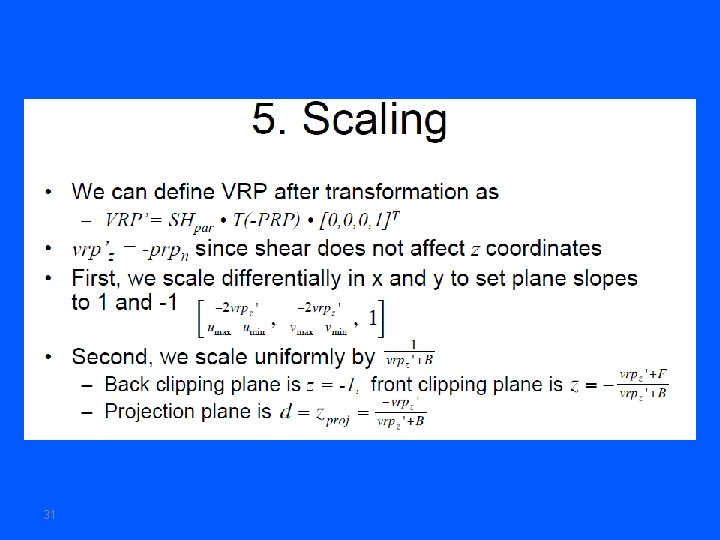

31

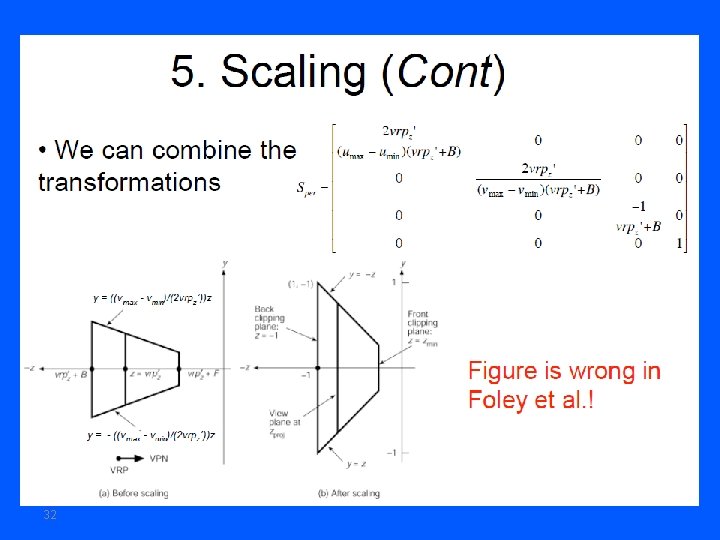

32

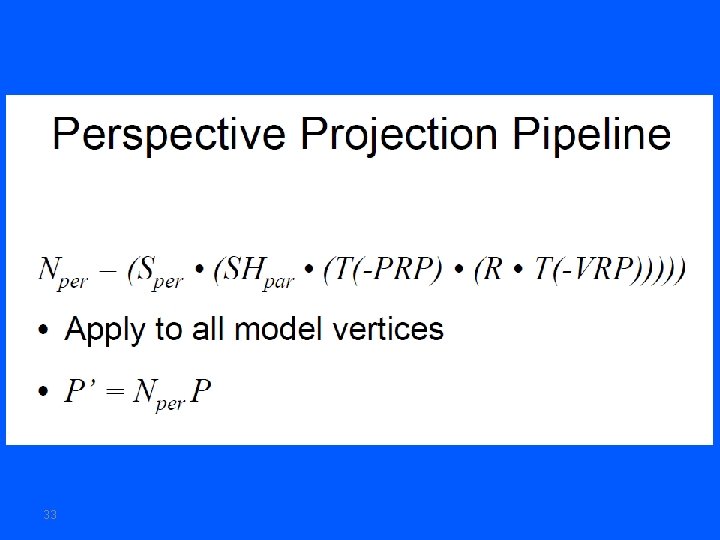

33

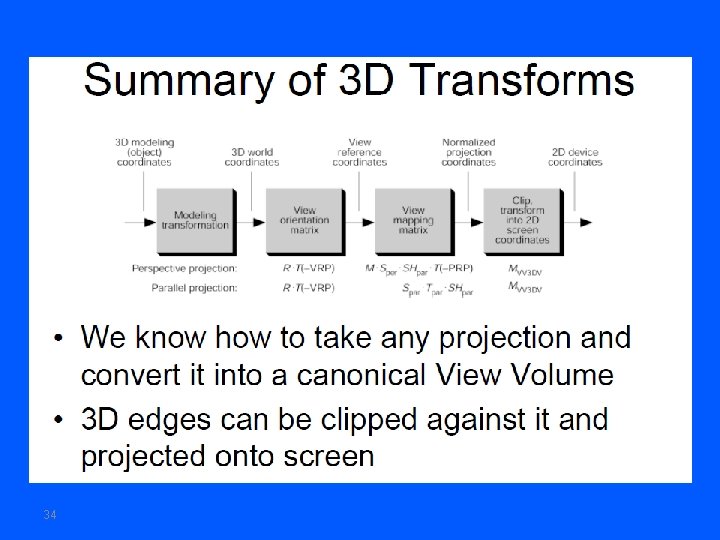

34

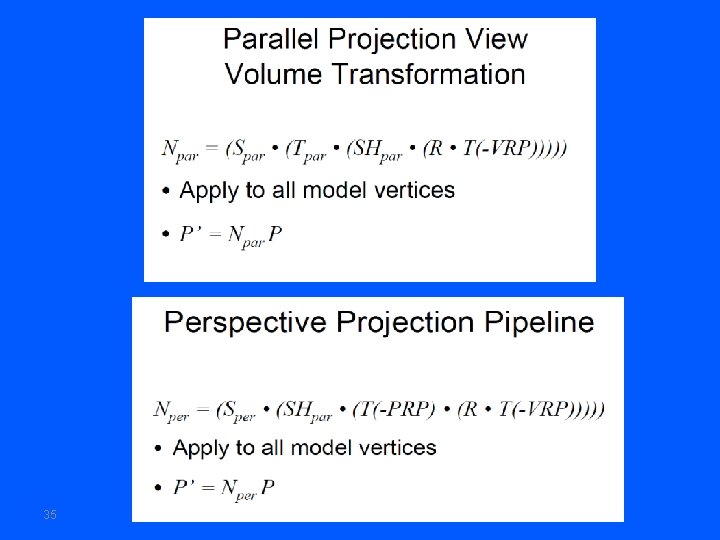

35

Questions? Discussion? Suggestions ?
