Dray Tek Corp Broadband Access ADSL 22 Solution

Dray. Tek Corp. Broadband Access ADSL 2/2+ Solution 1

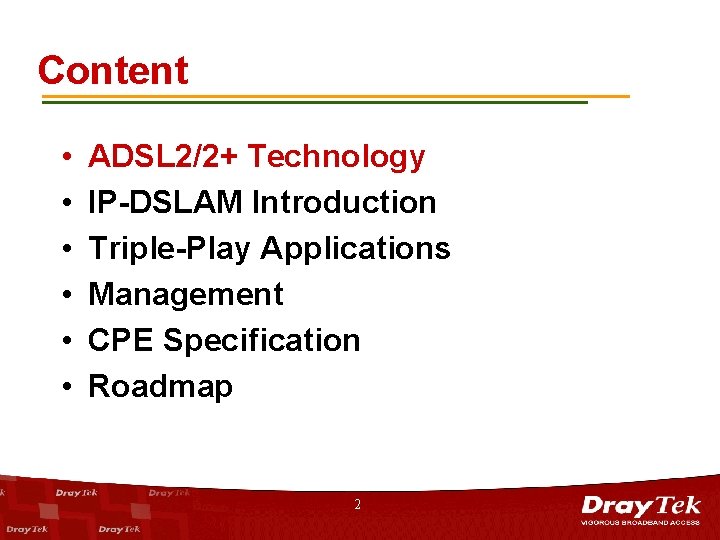

Content • • • ADSL 2/2+ Technology IP-DSLAM Introduction Triple-Play Applications Management CPE Specification Roadmap 2

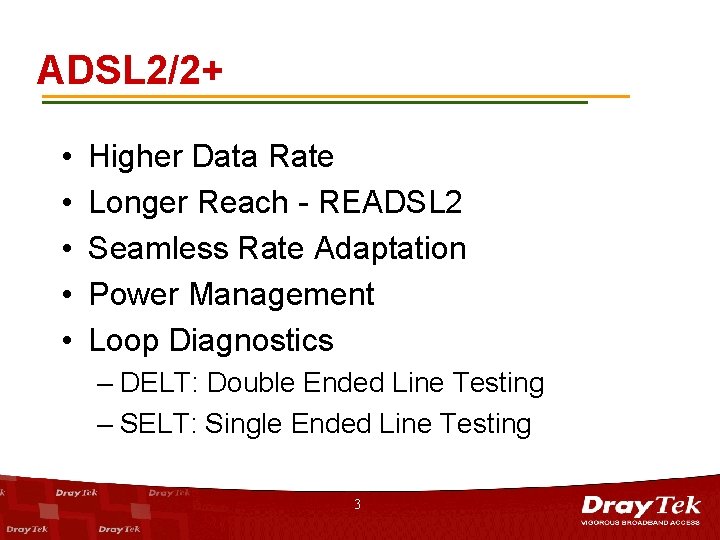

ADSL 2/2+ • • • Higher Data Rate Longer Reach - READSL 2 Seamless Rate Adaptation Power Management Loop Diagnostics – DELT: Double Ended Line Testing – SELT: Single Ended Line Testing 3

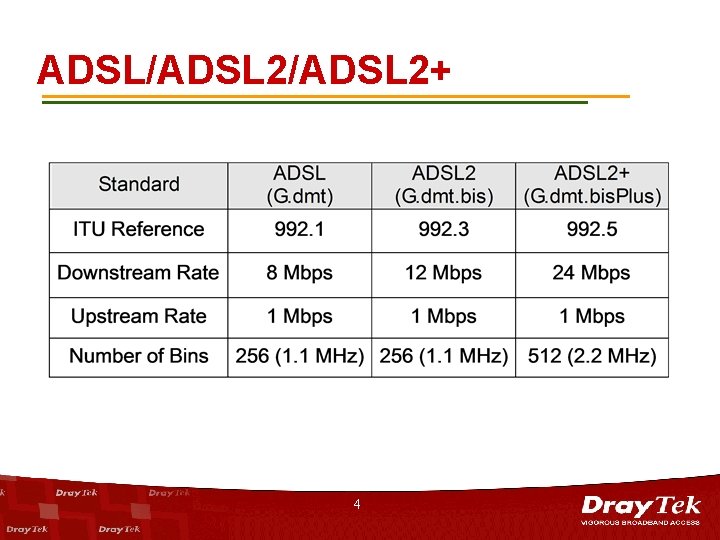

ADSL/ADSL 2+ 4

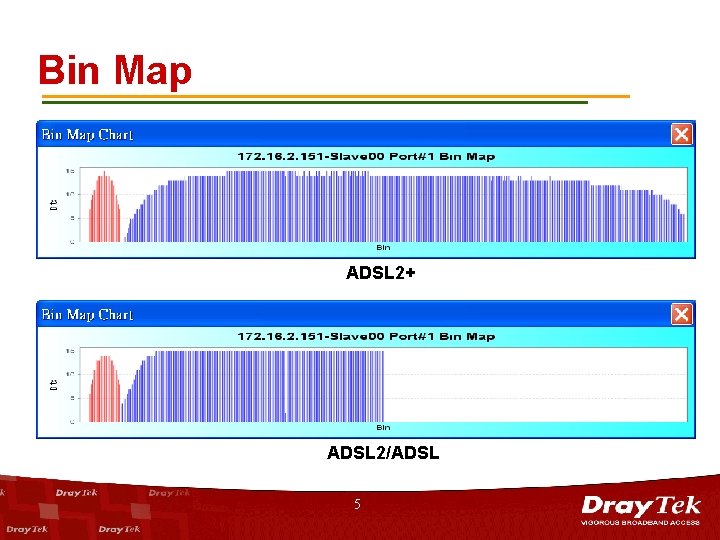

Bin Map ADSL 2+ ADSL 2/ADSL 5

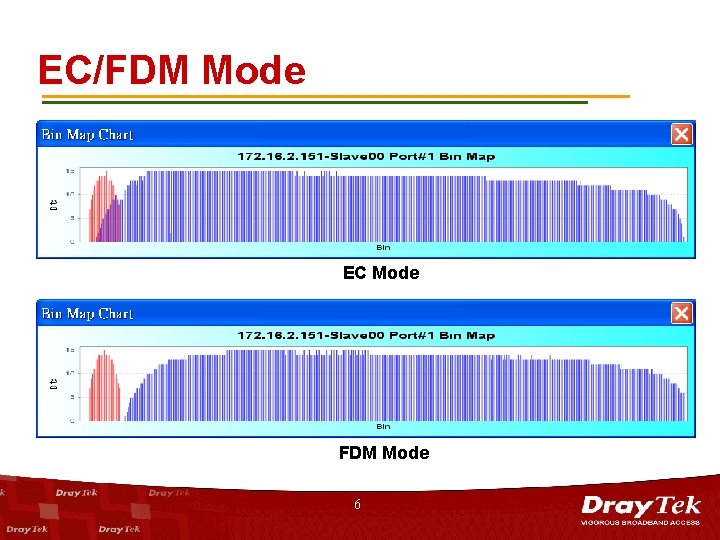

EC/FDM Mode EC Mode FDM Mode 6

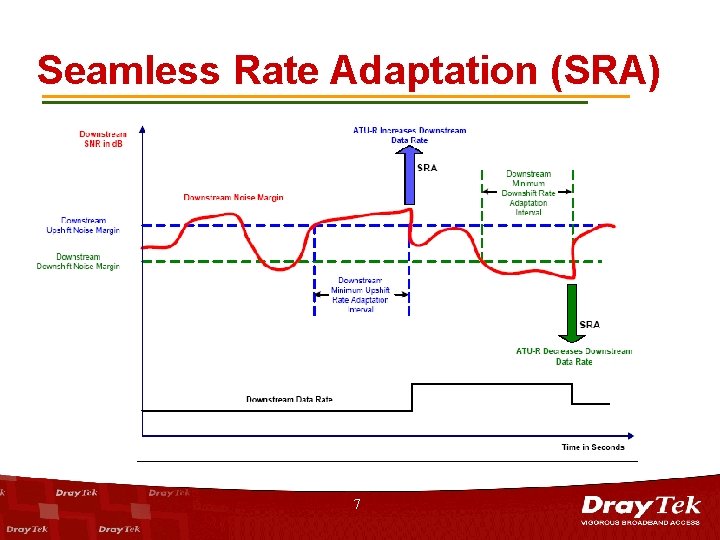

Seamless Rate Adaptation (SRA) 7

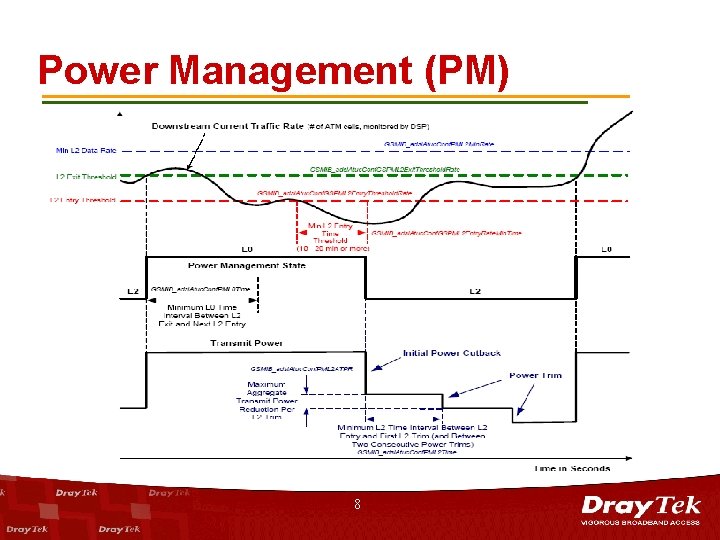

Power Management (PM) 8

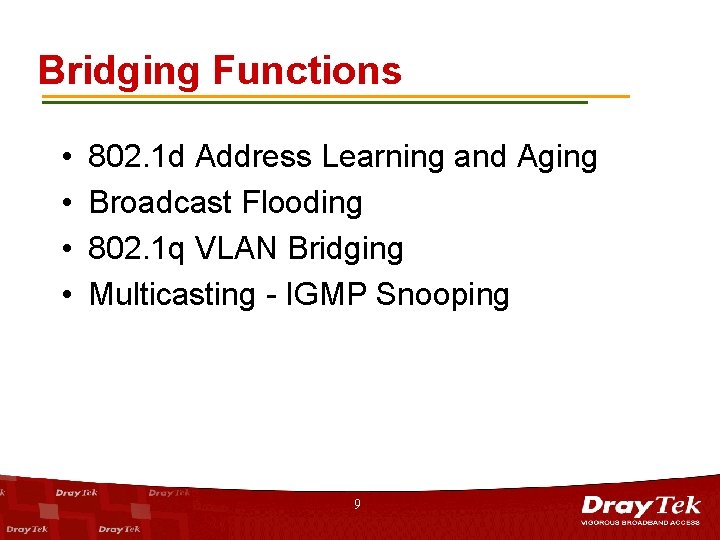

Bridging Functions • • 802. 1 d Address Learning and Aging Broadcast Flooding 802. 1 q VLAN Bridging Multicasting - IGMP Snooping 9

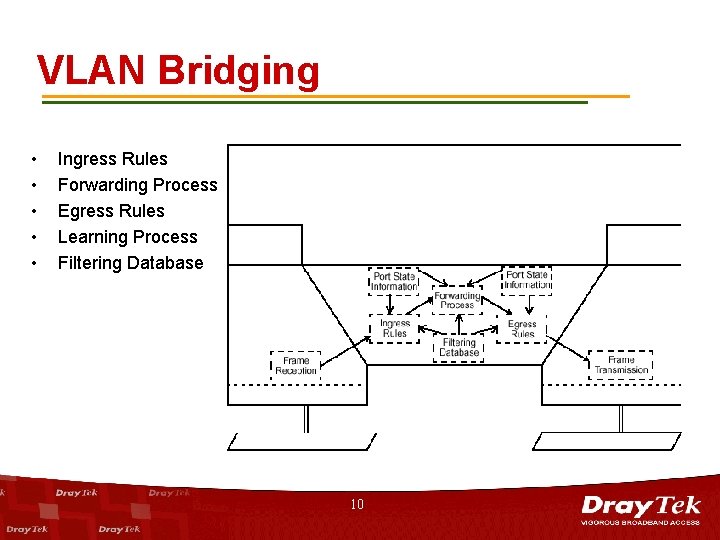

VLAN Bridging • • • Ingress Rules Forwarding Process Egress Rules Learning Process Filtering Database 10

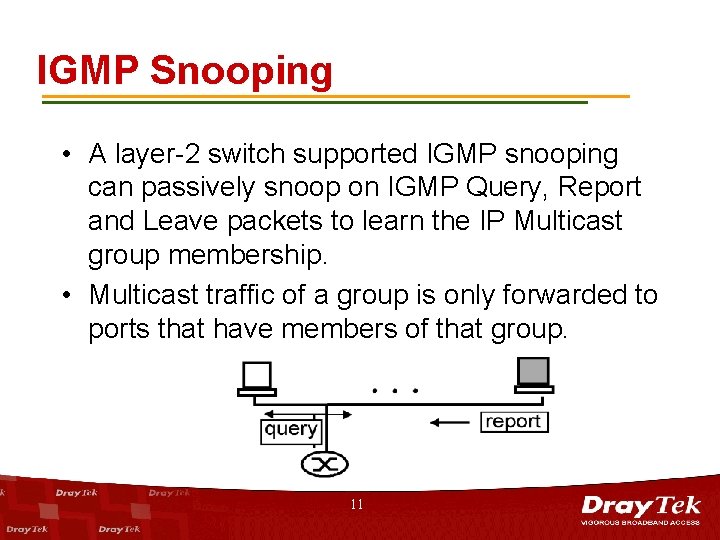

IGMP Snooping • A layer-2 switch supported IGMP snooping can passively snoop on IGMP Query, Report and Leave packets to learn the IP Multicast group membership. • Multicast traffic of a group is only forwarded to ports that have members of that group. 11

Content • • • ADSL 2/2+ Technology IP-DSLAM Introduction Triple-Play Applications Management CPE Specification Roadmap 12

System Benefit • • New DSL Technology - ADSL 2/2+ Inventory Saving Scalable Reliability Multimedia Qo. S Friendly EMS 13

Topology • Cascade Master/Slave • Standalone 14

Specification • ADSL 2/2+ IP DSLAM • Target on outdoor and/or small-size CO side – 24 DSL Ports per Unit – Maximum 168 Ports for Master-Slave Architecture • Splitter Built-in • Data Flow – ATM/AAL 5/SAR on CPE side – IP/Ethernet Packet on Network side • Bridging Functions: 802. 1 d, 802. 1 p, 802. 1 q • Multicasting Support - IGMP Snooping • Packet Filtering, Scheduling, Qo. S 15

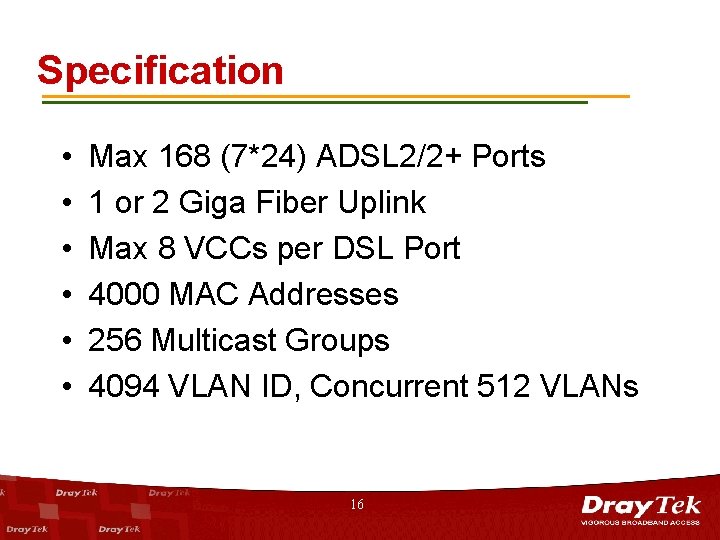

Specification • • • Max 168 (7*24) ADSL 2/2+ Ports 1 or 2 Giga Fiber Uplink Max 8 VCCs per DSL Port 4000 MAC Addresses 256 Multicast Groups 4094 VLAN ID, Concurrent 512 VLANs 16

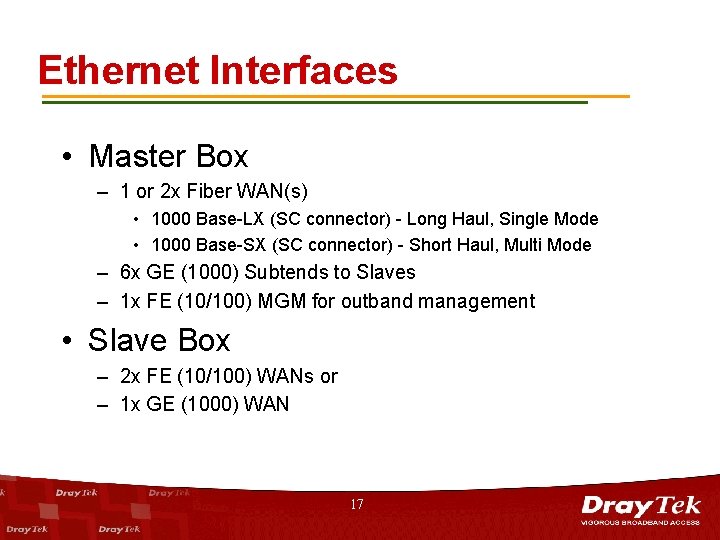

Ethernet Interfaces • Master Box – 1 or 2 x Fiber WAN(s) • 1000 Base-LX (SC connector) - Long Haul, Single Mode • 1000 Base-SX (SC connector) - Short Haul, Multi Mode – 6 x GE (1000) Subtends to Slaves – 1 x FE (10/100) MGM for outband management • Slave Box – 2 x FE (10/100) WANs or – 1 x GE (1000) WAN 17

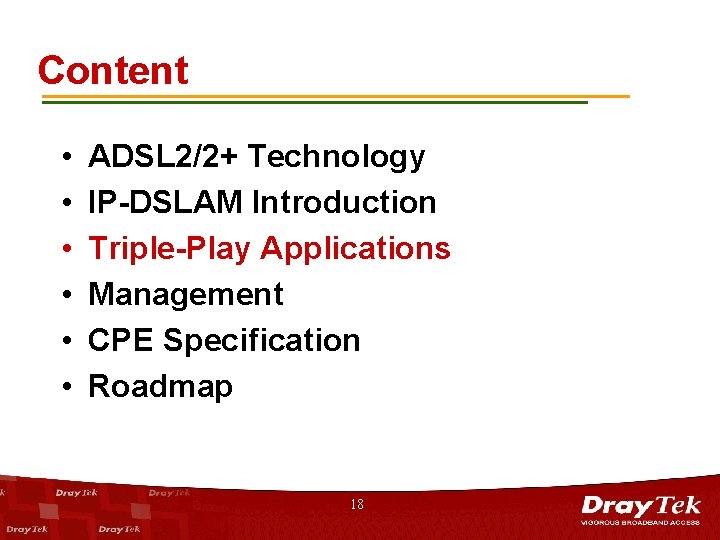

Content • • • ADSL 2/2+ Technology IP-DSLAM Introduction Triple-Play Applications Management CPE Specification Roadmap 18

Application • • • Triple-Play Application Broadband FTTB Application Broadband Enterprise Application DSL Extension Application Campus/Hospital Application Hotel Application 19

Triple-Play Application 20

Broadband FTTB Application 21

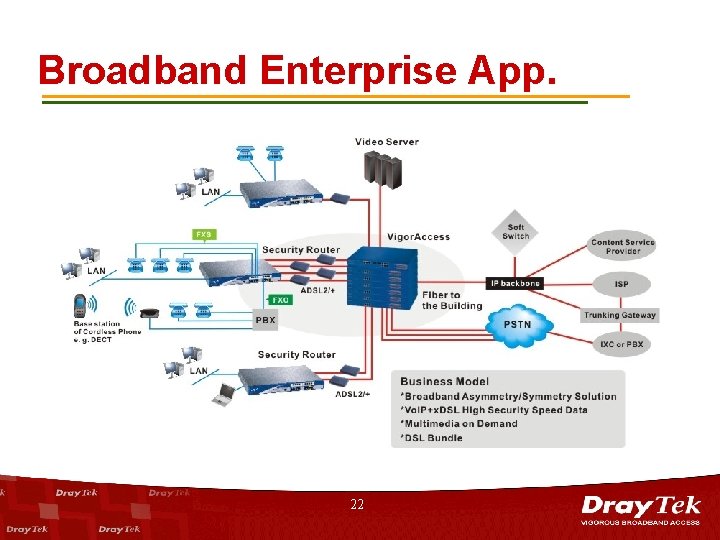

Broadband Enterprise App. 22

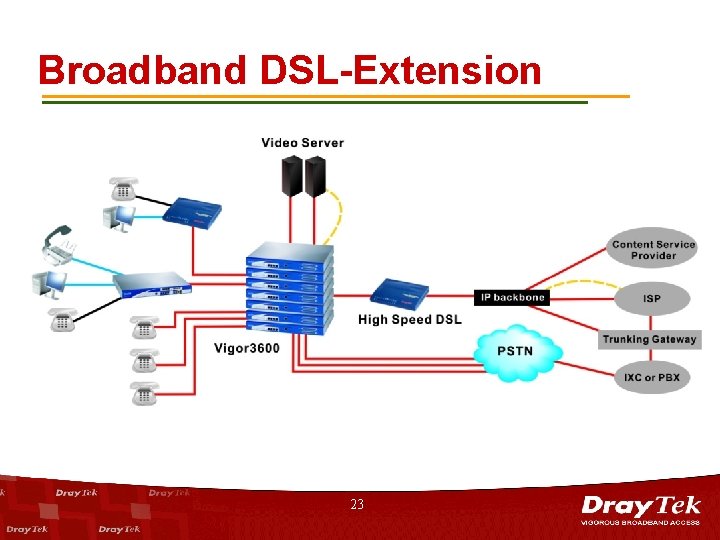

Broadband DSL-Extension 23

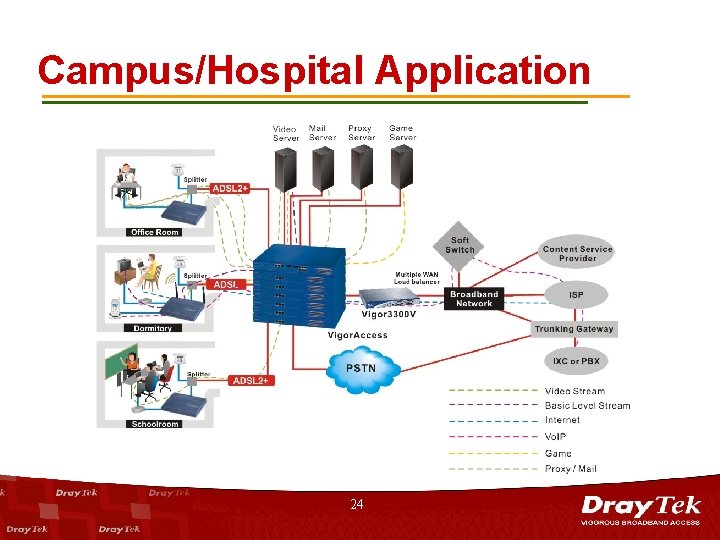

Campus/Hospital Application 24

Hotel Application 25

Content • • • ADSL 2/2+ Technology IP-DSLAM Introduction Triple-Play Applications Management CPE Specification Roadmap 26

Management • • • Serial CLI Telnet CLI SNMP v 1/v 2 TFTP Firmware Upgrade Configuration Backup/Restore Inband/Outband Management VLAN Single IP Management Access Control 27

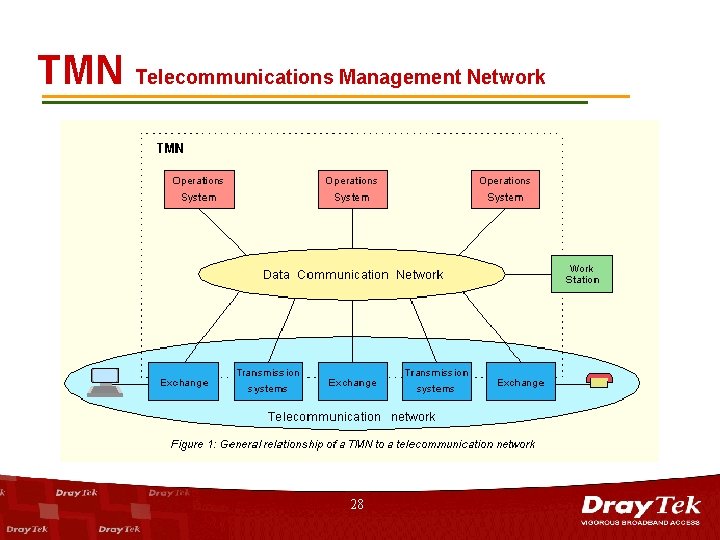

TMN Telecommunications Management Network 28

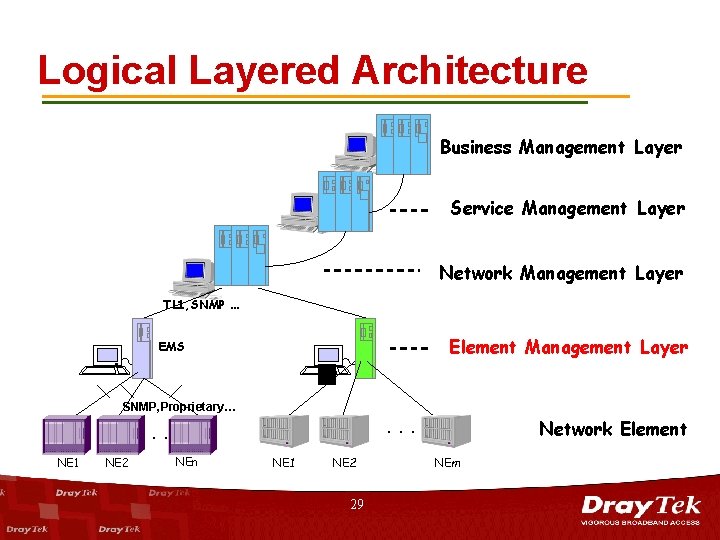

Logical Layered Architecture Business Management Layer Service Management Layer Network Management Layer TL 1, SNMP … Element Management Layer EMS SNMP, Proprietary… NE 1 NE 2 NEn Network Element . . . NE 1 NE 2 29 NEm

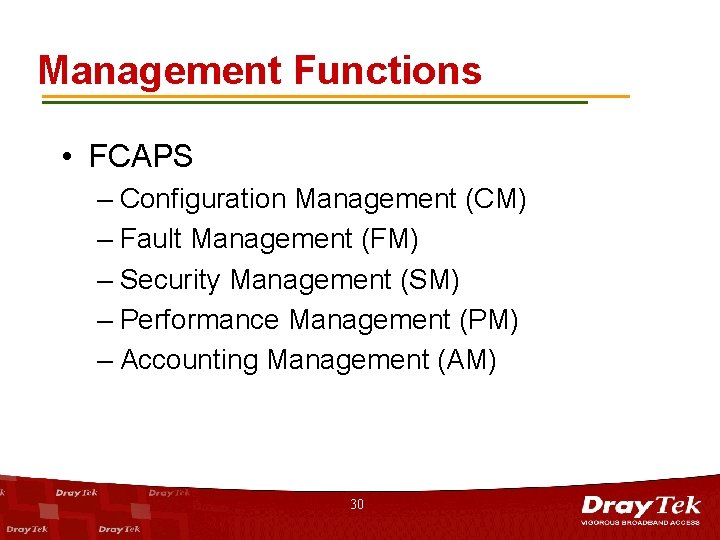

Management Functions • FCAPS – Configuration Management (CM) – Fault Management (FM) – Security Management (SM) – Performance Management (PM) – Accounting Management (AM) 30

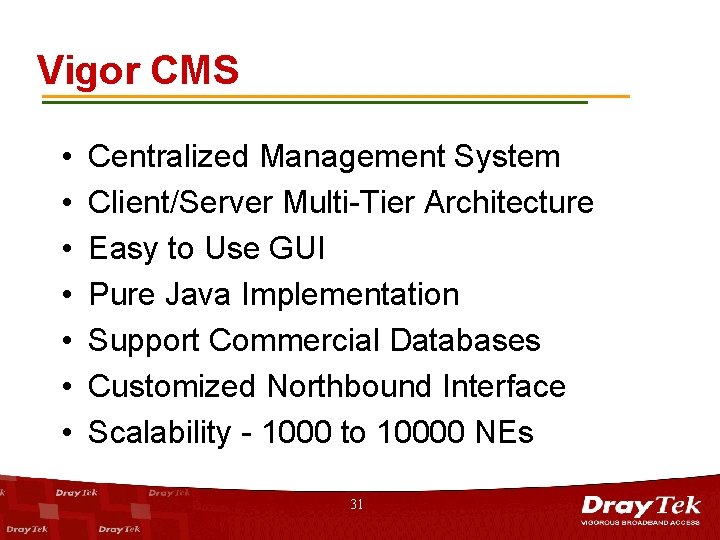

Vigor CMS • • Centralized Management System Client/Server Multi-Tier Architecture Easy to Use GUI Pure Java Implementation Support Commercial Databases Customized Northbound Interface Scalability - 1000 to 10000 NEs 31

CMS Architecture 32

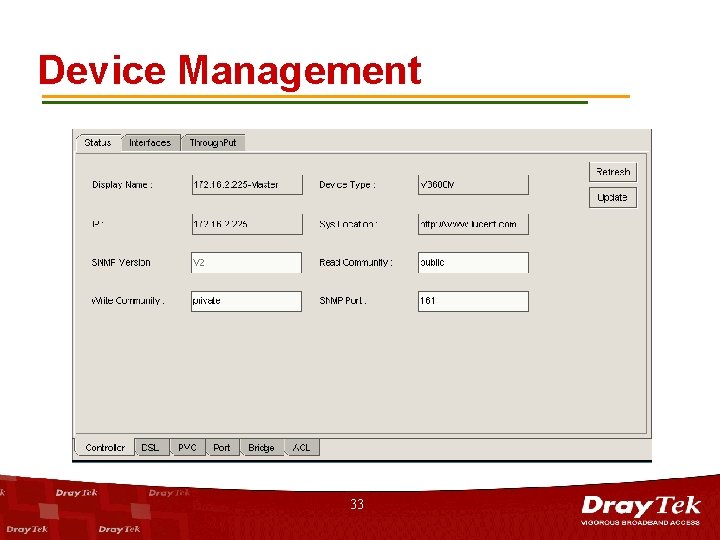

Device Management 33

DSL Status Report 34

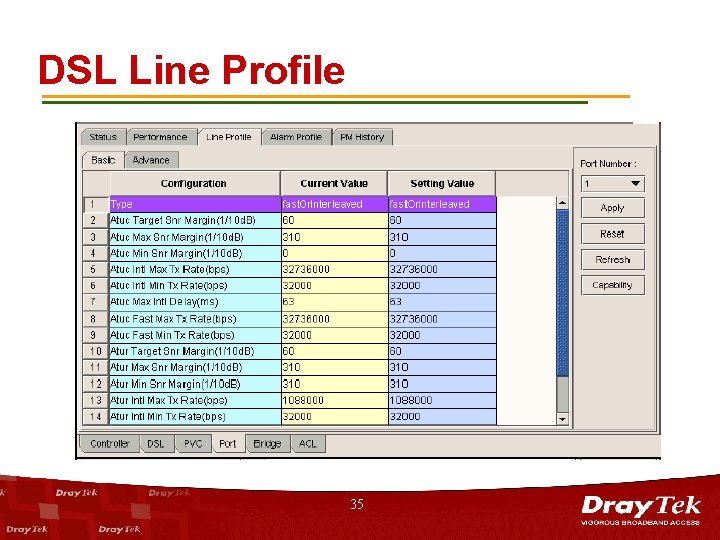

DSL Line Profile 35

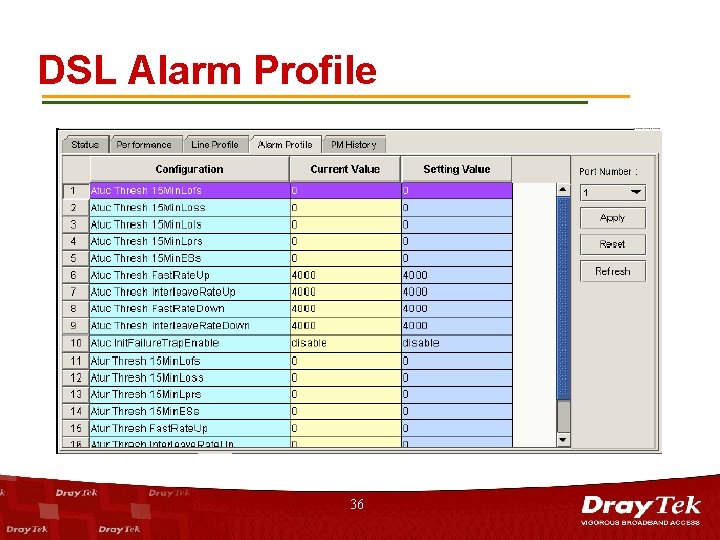

DSL Alarm Profile 36

Connection (VCCs) Management 37

Performance Management 38

Traffic Statistics 39

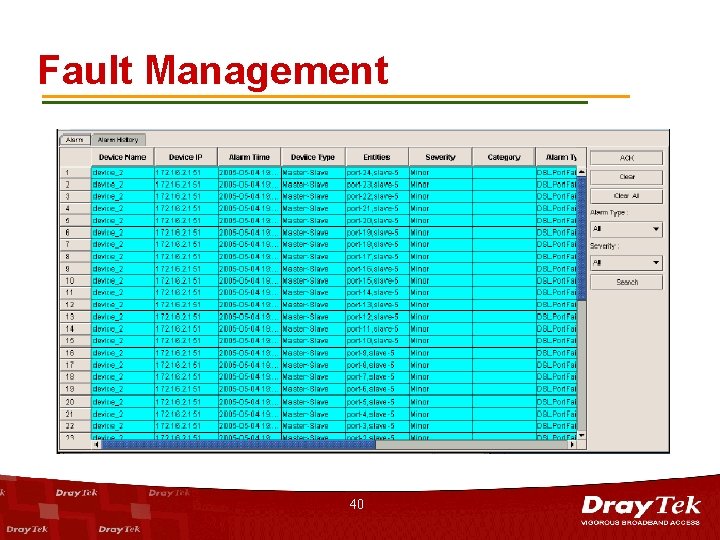

Fault Management 40

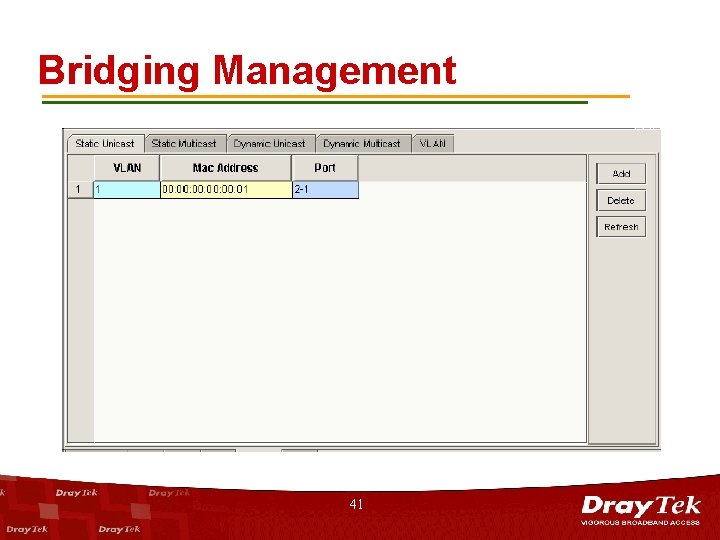

Bridging Management 41

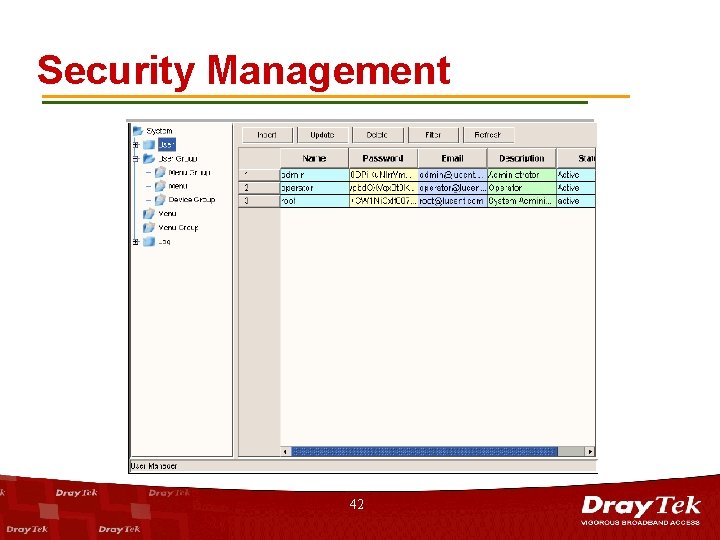

Security Management 42

Diagnostics • • F 5 OAM Loopback Ping Trace. Route Telnet 43

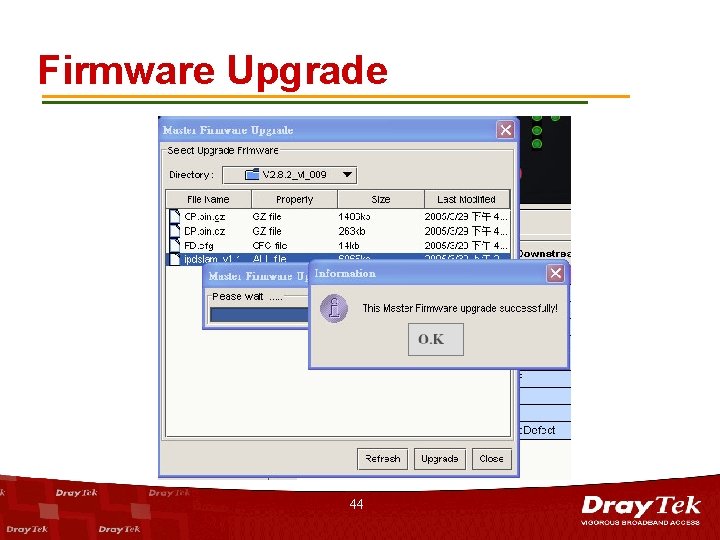

Firmware Upgrade 44

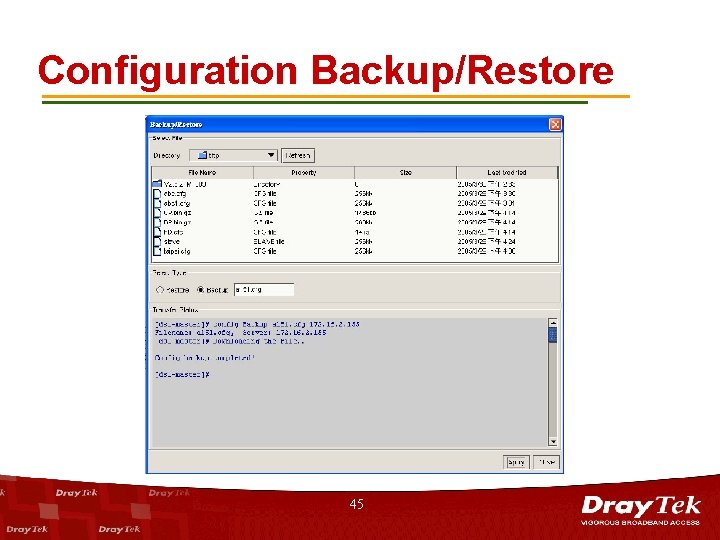

Configuration Backup/Restore 45

Content • • • ADSL 2/2+ Technology IP-DSLAM Introduction Triple-Play Applications Management CPE Specification Roadmap 46

CPE Specification –DSL Solutions • ADSL – Maximum Downstream rate of 8 Mbps – Maximum Upstream rate of 1 Mbps • ADSL 2/2+ – Maximum Downstream rate of 24 Mbps – Maximum Upstream rate of 1 Mbps • SDSL ( G. SHDSL ) – Symmetrical data rates from 192 Kbps up to 2. 3 Mbps ( one pair ) 47

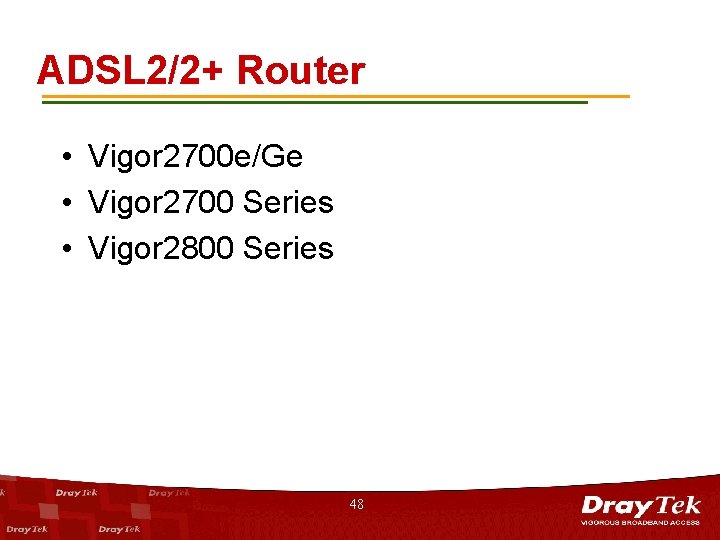

ADSL 2/2+ Router • Vigor 2700 e/Ge • Vigor 2700 Series • Vigor 2800 Series 48

Vigor 2700 e/Ge • Cost competivity ADSL 2/2+ security router • Integrated with 802. 11 g WLAN ( Vigor 2700 Ge) • Packet-OVERDRIVETM (use Packet Burst, Block ACK and Frame Aggregation) increases 40% wireless performance • Firewall supports IP Filter, MAC Address Control, Do. S/DDo. S Protection and URL Content Filter 49

Vigor 2700 e/Ge 50

Vigor 2700 Series • High-integration with ADSL 2+, 802. 11 g, Vo. IP and ISDN • Packet-OVERDRIVETM (use Packet Burst, Block ACK and Frame Aggregation) increases 40% wireless performance • One FXS port supports SIP and MGCP ( optional ) • One PSTN/ISDN Loop-through • Supplementary services support Call Hold, Call Waiting, Call Transfer, Call Forwarding, DND (Do Not Disturb) and T. 38 • IGMP proxy & snooping for triple-play application 51

Vigor 2700 Series • Firewall supports IP Filter, MAC Address Control, Do. S/DDo. S Protection, Web/URL Content Filter and IM/P 2 P Blocking • Two VPN tunnels for teleworker and LAN-to. LAN • Automatic ISDN backup when ADSL 2+ failure 52

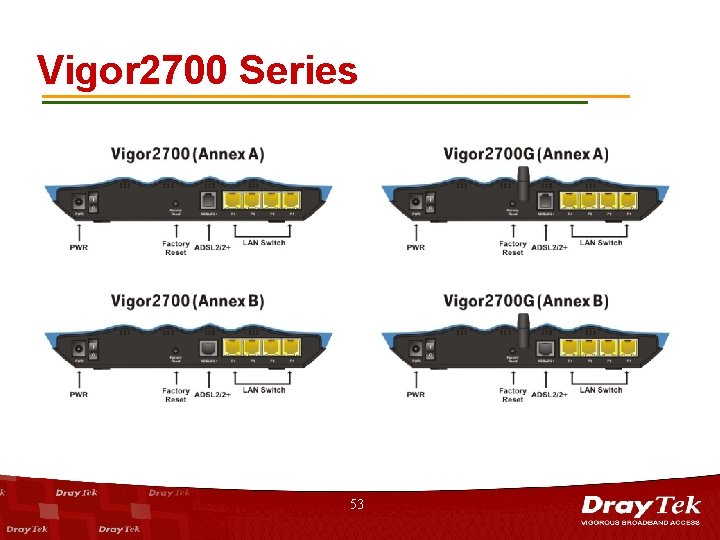

Vigor 2700 Series 53

Vigor 2700 V Series 54

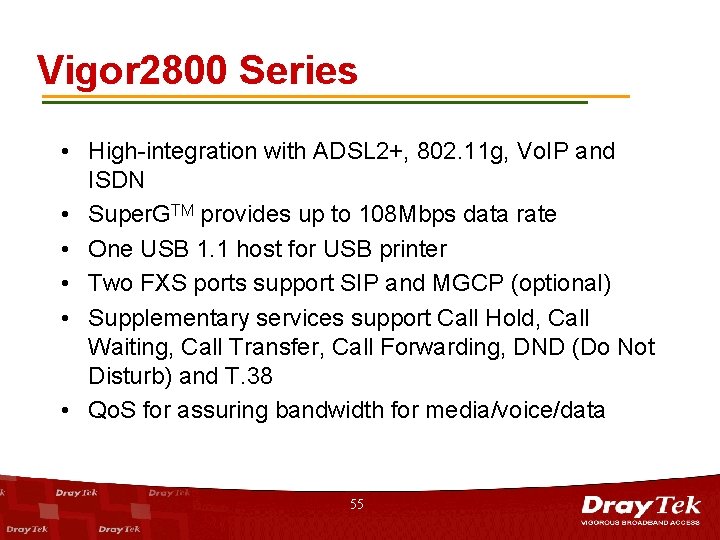

Vigor 2800 Series • High-integration with ADSL 2+, 802. 11 g, Vo. IP and ISDN • Super. GTM provides up to 108 Mbps data rate • One USB 1. 1 host for USB printer • Two FXS ports support SIP and MGCP (optional) • Supplementary services support Call Hold, Call Waiting, Call Transfer, Call Forwarding, DND (Do Not Disturb) and T. 38 • Qo. S for assuring bandwidth for media/voice/data 55

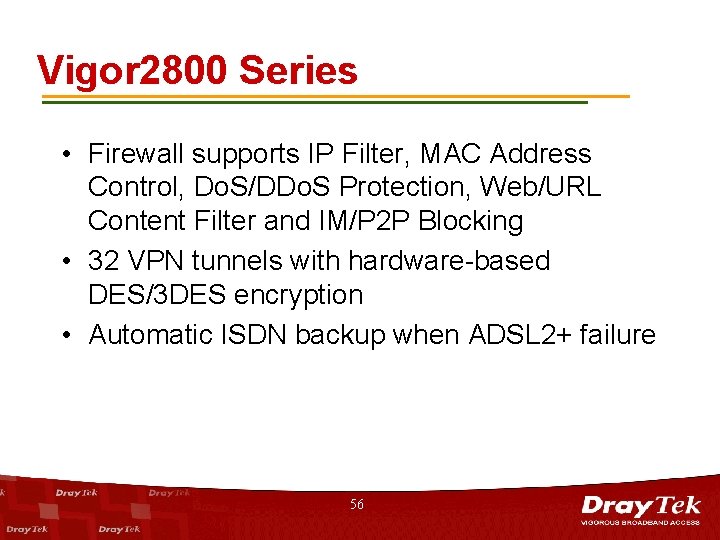

Vigor 2800 Series • Firewall supports IP Filter, MAC Address Control, Do. S/DDo. S Protection, Web/URL Content Filter and IM/P 2 P Blocking • 32 VPN tunnels with hardware-based DES/3 DES encryption • Automatic ISDN backup when ADSL 2+ failure 56

Vigor 2800 Series 57

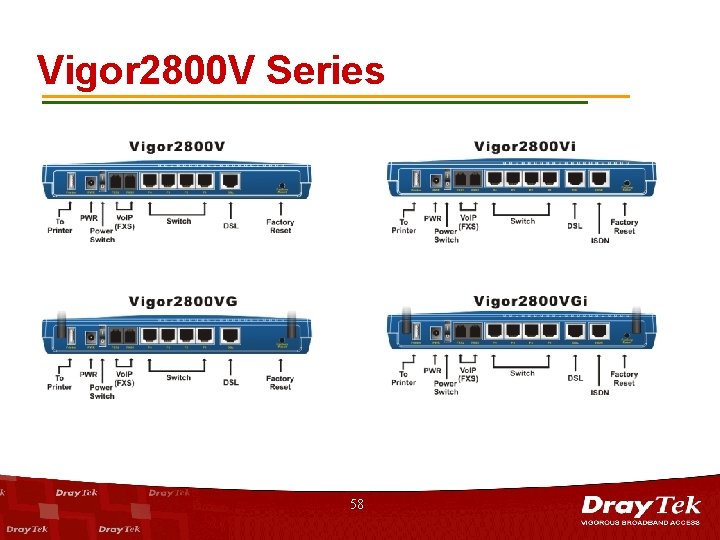

Vigor 2800 V Series 58

G. SHDSL • G. SHDSL will be a significant factor in the rapidly growing worldwide marketplace for business-class and residential SDSL. • Symmetrical high-data-rate DSL • Offers data at 192 Kbps to 2. 3 Mbps over a single pair 59

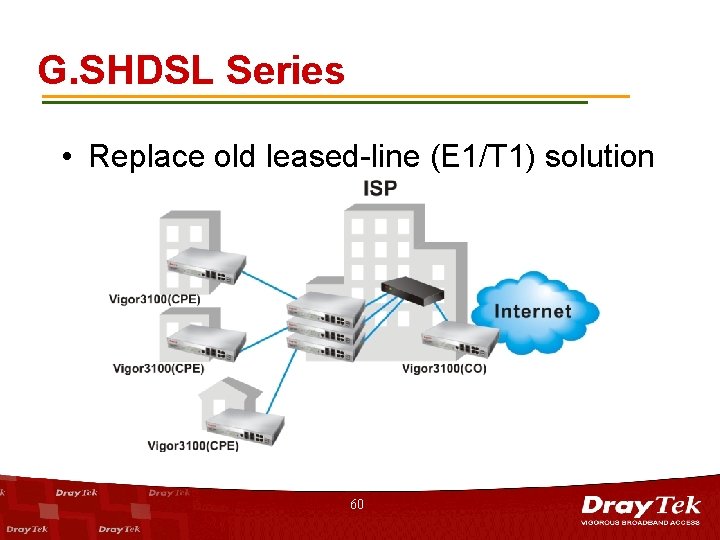

G. SHDSL Series • Replace old leased-line (E 1/T 1) solution 60

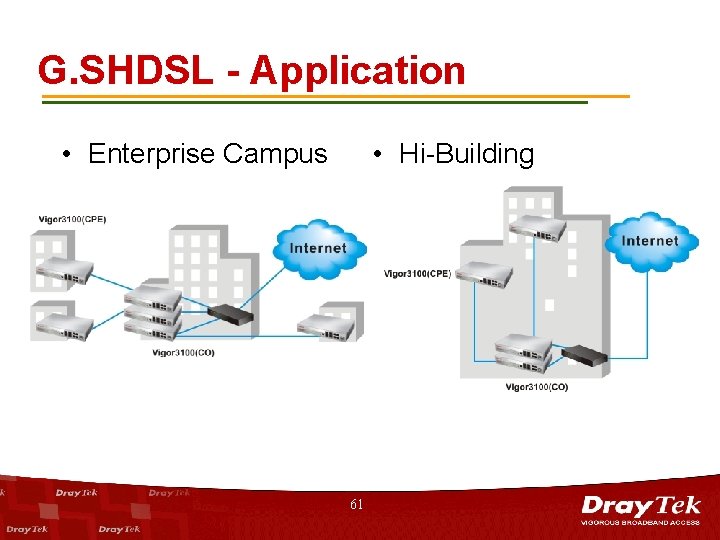

G. SHDSL - Application • Enterprise Campus • Hi-Building 61

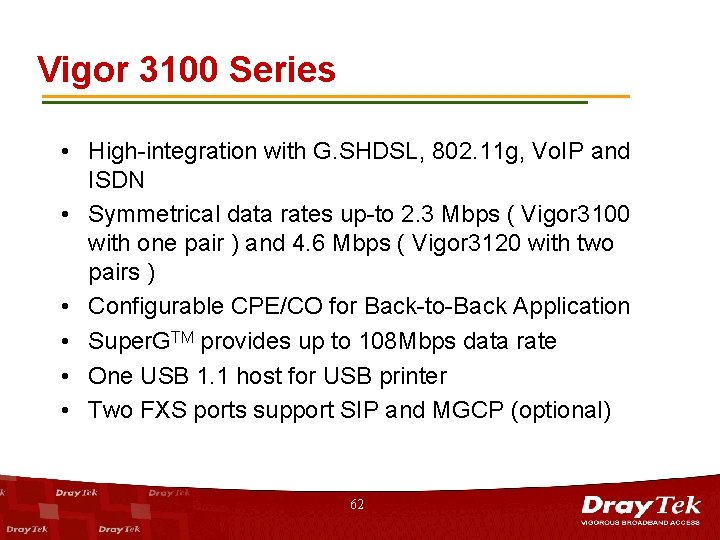

Vigor 3100 Series • High-integration with G. SHDSL, 802. 11 g, Vo. IP and ISDN • Symmetrical data rates up-to 2. 3 Mbps ( Vigor 3100 with one pair ) and 4. 6 Mbps ( Vigor 3120 with two pairs ) • Configurable CPE/CO for Back-to-Back Application • Super. GTM provides up to 108 Mbps data rate • One USB 1. 1 host for USB printer • Two FXS ports support SIP and MGCP (optional) 62

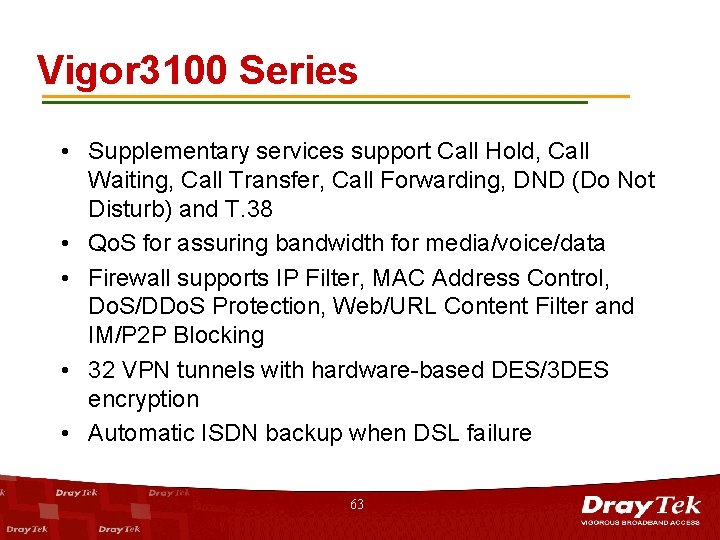

Vigor 3100 Series • Supplementary services support Call Hold, Call Waiting, Call Transfer, Call Forwarding, DND (Do Not Disturb) and T. 38 • Qo. S for assuring bandwidth for media/voice/data • Firewall supports IP Filter, MAC Address Control, Do. S/DDo. S Protection, Web/URL Content Filter and IM/P 2 P Blocking • 32 VPN tunnels with hardware-based DES/3 DES encryption • Automatic ISDN backup when DSL failure 63

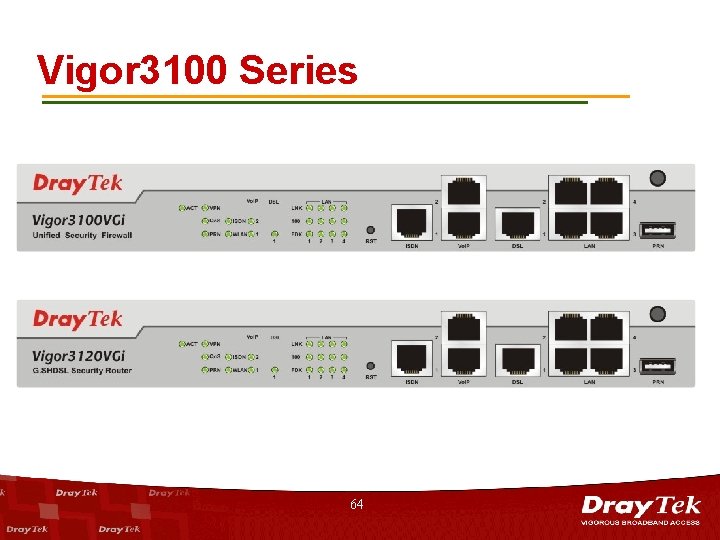

Vigor 3100 Series 64

Content • • • ADSL 2/2+ Technology IP-DSLAM Introduction Triple-Play Applications Management CPE Specification Roadmap 65

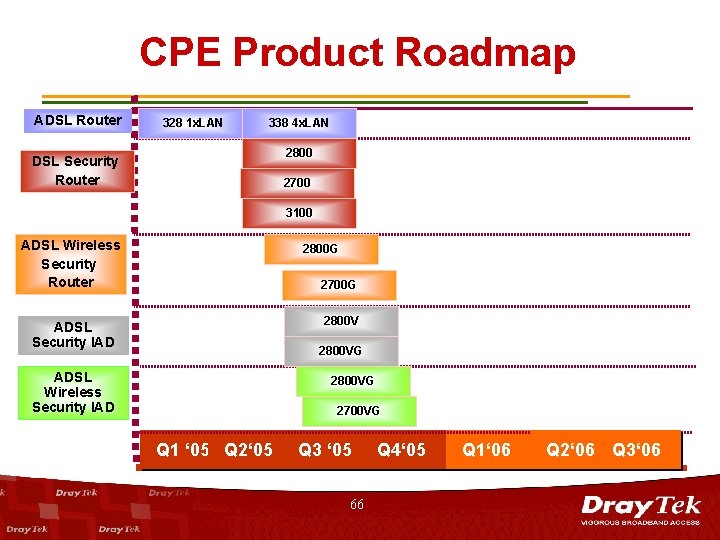

CPE Product Roadmap ADSL Router DSL Security Router 328 1 x. LAN 338 4 x. LAN 2800 2700 3100 ADSL Wireless Security Router ADSL Security IAD ADSL Wireless Security IAD 2800 G 2700 G 2800 VG 2700 VG Q 1‘ 05 Q 4 ‘ 03 Q 3 ‘ 05 Q 1 ‘ 05 Q 2‘ 05 66 Q 4‘ 05 Q 1‘ 06 Q 2‘ 06 Q 3‘ 06

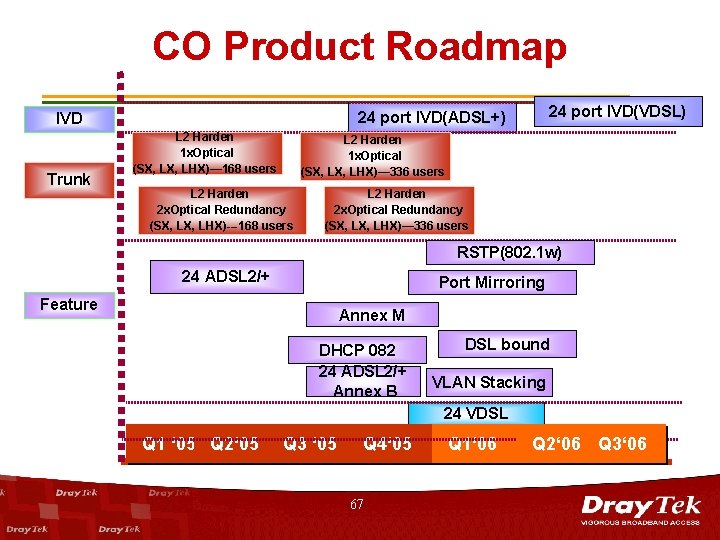

CO Product Roadmap Trunk 24 port IVD(VDSL) 24 port IVD(ADSL+) IVD L 2 Harden 1 x. Optical (SX, LHX)— 168 users L 2 Harden 2 x. Optical Redundancy (SX, LHX)---168 users L 2 Harden 1 x. Optical (SX, LHX)— 336 users L 2 Harden 2 x. Optical Redundancy (SX, LHX)— 336 users RSTP(802. 1 w) 24 ADSL 2/+ Port Mirroring Feature Annex M DHCP 082 24 ADSL 2/+ Annex B DSL bound VLAN Stacking 24 VDSL Q 1‘ 05 Q 4 ‘ 03 Q 3 ‘ 05 Q 1 ‘ 05 Q 2‘ 05 Q 4‘ 05 67 Q 1‘ 06 Q 2‘ 06 Q 3‘ 06

Live Demo 68
