Dray Tek ADSL 2 Access William Lu Sales

Dray. Tek ADSL 2+ Access William Lu Sales Department Dray. Tek Corp.

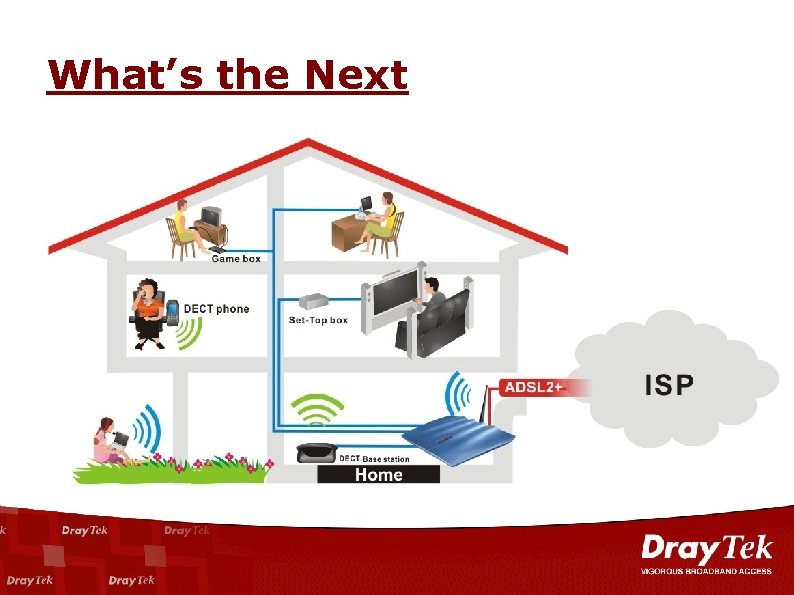

What’s the Next

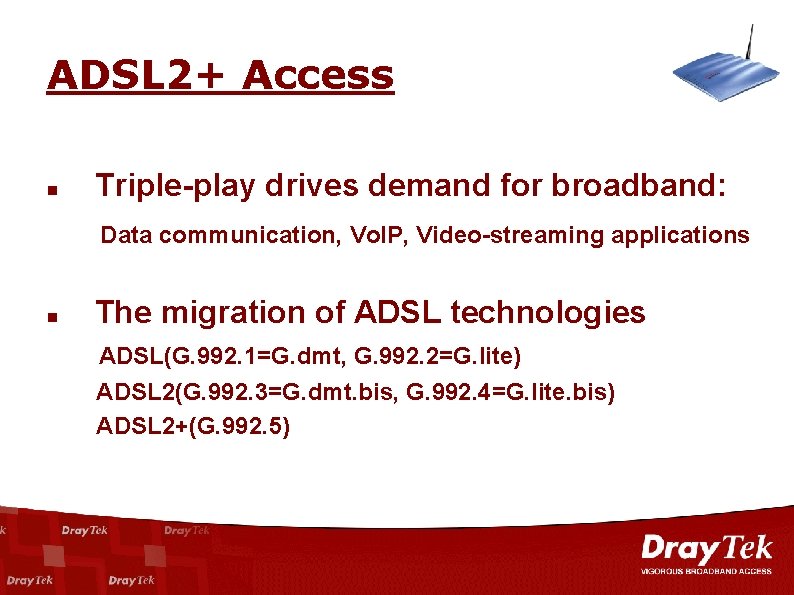

ADSL 2+ Access n Triple-play drives demand for broadband: Data communication, Vo. IP, Video-streaming applications n The migration of ADSL technologies ADSL(G. 992. 1=G. dmt, G. 992. 2=G. lite) ADSL 2(G. 992. 3=G. dmt. bis, G. 992. 4=G. lite. bis) ADSL 2+(G. 992. 5)

x. DSL Comparison Types G. SHDSL ADSL 2/2+ VDSL Features Transmission Rate 192 Kbps~2. 3 Mbps within 2 -3 km 10 Mbps~26 Mbps within 3 km Symmetric mode: 13 M/13 M(1 km) or 26 M /26 M(300 m) Asymmetric mode: 26 M/3 M (1 Km) 52 M/6 M(300 m) or Construction Benefit -Firmware upgrade on existing ATM equipment. -No need to change current network construction on client sides. Distance between client and CO. is under 3~4 Km in most existing architectures. Provides the fastest connection speed in x. DSL family. Niche Market -Combines the features of ADSL &SDSL. -Supports signal transmission over T 1, E 1, ISDN, ATM, IP. -Ideal replacement for leased lines. -Provides enough bandwidth for multimedia applications (e. g. Vo. D, streaming, . . . ). -E-learning, egovernment, teleworking. More suitable for crowded areas (community offices / home buildings) or locations with FTTH infrastructure.

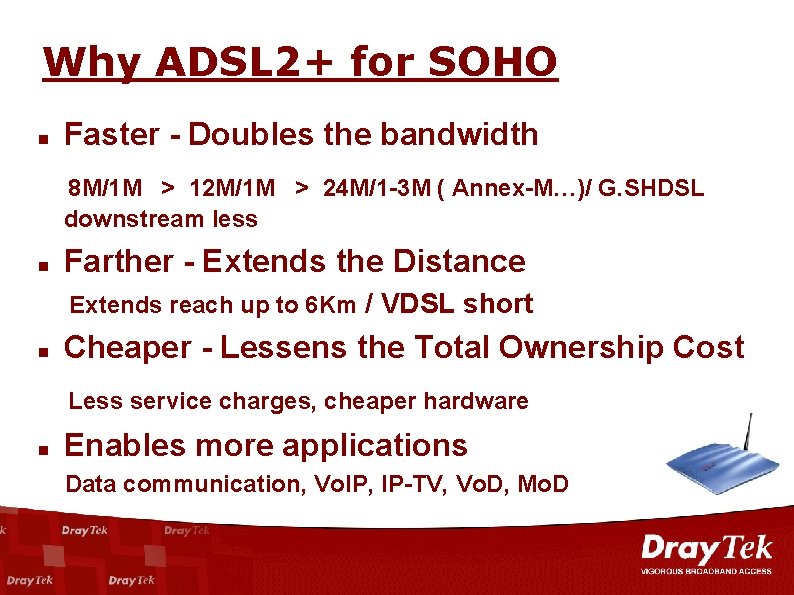

Why ADSL 2+ for SOHO n Faster - Doubles the bandwidth 8 M/1 M > 12 M/1 M > 24 M/1 -3 M ( Annex-M…)/ G. SHDSL downstream less n Farther - Extends the Distance Extends reach up to 6 Km / VDSL short n Cheaper - Lessens the Total Ownership Cost Less service charges, cheaper hardware n Enables more applications Data communication, Vo. IP, IP-TV, Vo. D, Mo. D

ADSL 2 plus: Doubles downstream data rate Source: ADSL forum

ADSL 2: Improvement in reach about 600 ft Source: ADSL forum

What do we need for Triple Play on Vigor n IGMP proxy/snooping Multicast video streaming for specified ports behind NAT n Multiple PVC Different PVCs for Voice, Video, management packets n Tag/ Port-based VLAN Different VLANs for one or more PVCs

Dray. Tek ADSL 2+ Solutions n Vigor 2800 series (Conexant) Vigor 2800/ 2800 G/ 2800 i/ 2800 Gi Vigor 2800 V/ 2800 VG/ 2800 Vi/ 2800 VGi n Vigor 2700 series (Infineon) Vigor 2700/ 2700 G/ 2700 i/ 2700 Gi Vigor 2700 V/ 2700 VG/ 2700 Vi/ 2700 VGi

Vigor 2800 Series

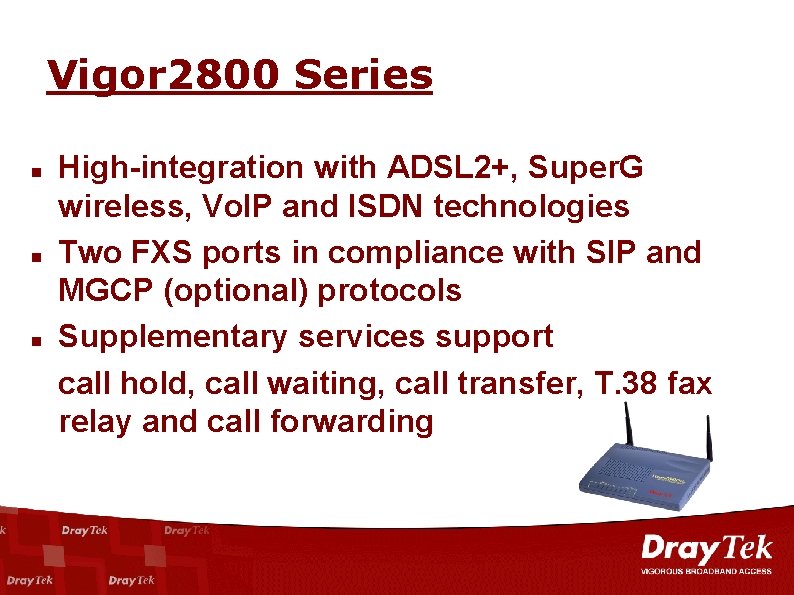

Vigor 2800 Series n n n High-integration with ADSL 2+, Super. G wireless, Vo. IP and ISDN technologies Two FXS ports in compliance with SIP and MGCP (optional) protocols Supplementary services support call hold, call waiting, call transfer, T. 38 fax relay and call forwarding

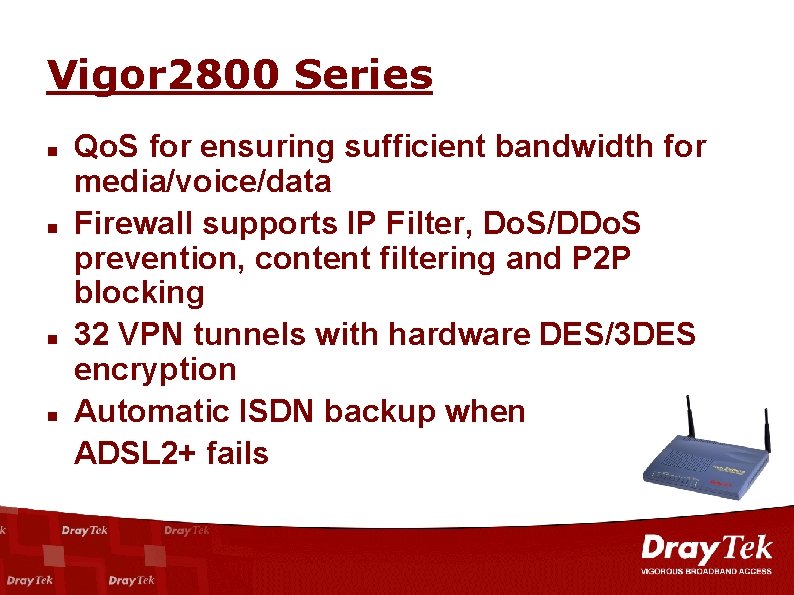

Vigor 2800 Series n n Qo. S for ensuring sufficient bandwidth for media/voice/data Firewall supports IP Filter, Do. S/DDo. S prevention, content filtering and P 2 P blocking 32 VPN tunnels with hardware DES/3 DES encryption Automatic ISDN backup when ADSL 2+ fails

Vigor 2700 e/Ge

Vigor 2700 e/Ge n n Cost competivity ADSL 2/2+ security router Integrated with 802. 11 g WLAN ( Vigor 2700 Ge) Packet-OVERDRIVETM (use Packet Burst, Block ACK and Frame Aggregation) increases 40% wireless performance Firewall supports IP Filter, MAC Address Control, Do. S/DDo. S Protection and URL Content Filter

Vigor 2700 Series

Vigor 2700 Series n n High-integration with ADSL 2+, 802. 11 g, Vo. IP and ISDN technologies Two FXS ports in compliance with SIP and MGCP protocols One PSTN/ISDN Loop-through (optional) Supplementary services support call hold, call waiting, call transfer, T. 38 fax relay, and call forwarding

Vigor 2700 Series n n IGMP proxy & snooping for Triple-play applications Qo. S ensures bandwidth for media/voice/data Firewall supports IP Filter, Do. S/DDo. S prevention and URL content filter Two VPN tunnels for teleworkers and LAN-to-LAN

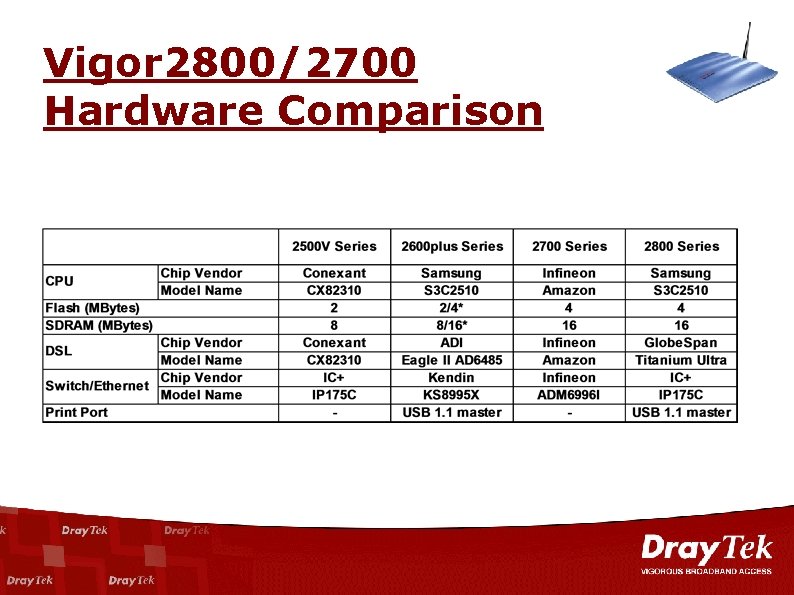

Vigor 2800/2700 Hardware Comparison

Dray. Tek Vigor VPN Comparison

Dray. Tek Vigor Wireless Comparison

Dray. Tek Vigor Vo. IP Comparison 1

Dray. Tek Vigor Vo. IP Comparison 2

G. SHDSL n n n G. SHDSL will be a significant factor in the rapidly growing worldwide marketplace for businessclass and residential SDSL. Symmetrical high-data-rate DSL Offers data at 192 Kbps to 2. 3 Mbps over a single pair

G. SHDSL Series n Replace old leased-line (E 1/T 1) solution

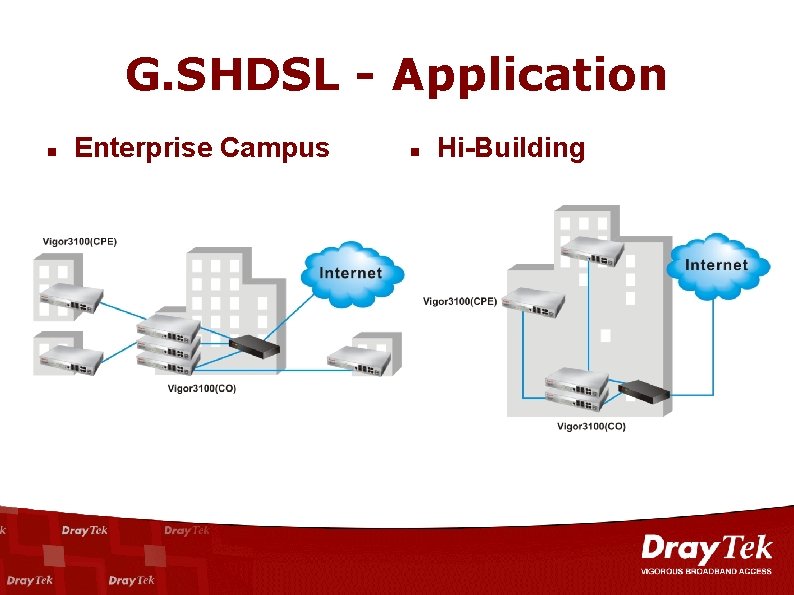

G. SHDSL - Application n Enterprise Campus n Hi-Building

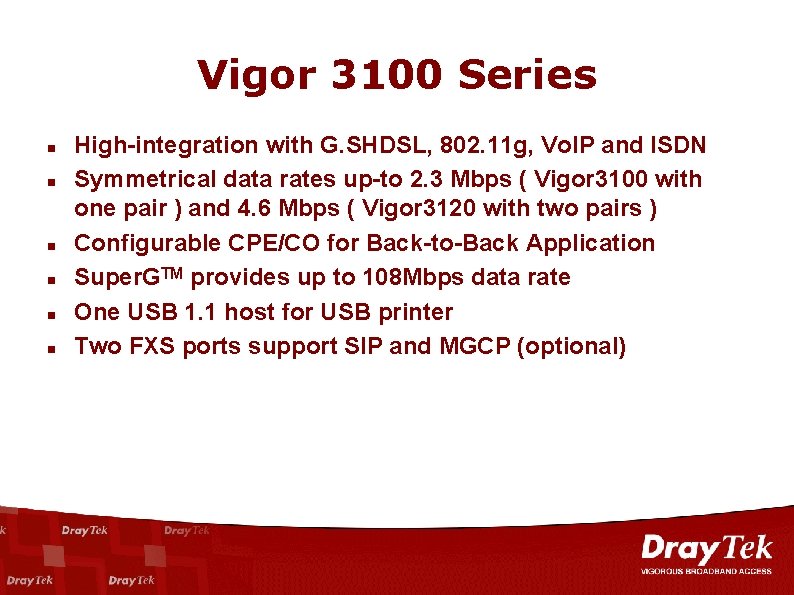

Vigor 3100 Series n n n High-integration with G. SHDSL, 802. 11 g, Vo. IP and ISDN Symmetrical data rates up-to 2. 3 Mbps ( Vigor 3100 with one pair ) and 4. 6 Mbps ( Vigor 3120 with two pairs ) Configurable CPE/CO for Back-to-Back Application Super. GTM provides up to 108 Mbps data rate One USB 1. 1 host for USB printer Two FXS ports support SIP and MGCP (optional)

Vigor 3100 Series n n n Supplementary services support Call Hold, Call Waiting, Call Transfer, Call Forwarding, DND (Do Not Disturb) and T. 38 Qo. S for assuring bandwidth for media/voice/data Firewall supports IP Filter, MAC Address Control, Do. S/DDo. S Protection, Web/URL Content Filter and IM/P 2 P Blocking 32 VPN tunnels with hardware-based DES/3 DES encryption Automatic ISDN backup when DSL failure

Vigor 3100 Series

Thank You
