Drawing Shapes & Views
Today’s Plan • • • Sketching Circles Lettering Drawing Horizontal, Vertical Lines Drawing Angles Making A One-View Drawing Geometric Shapes
Sketching Circles • When sketching a circle, start by sketching a square
Sketching Circles • Then divide the square up into QUARTERS
Sketching Circles • Then draw your circle one quarter at a time
Exercises
Letters & Numbers • Letters & Numbers on a drawing have to be NEAT and LEDGIBLE! • ALWAYS in CAPS – rarely in lower case. • Good lettering & numbering takes PRACTICE
Exercises
Horizontal Lines • Horizontal lines are drawn using the T-Square
Vertical Lines • Vertical lines can also be drawn using the T-Square
Vertical Lines • More commonly, vertical lines are drawn using the 45 or 60 Triangles
Angle Lines • Angle lines are drawn using the 60 or 45 angle triangles and T-Square
Angle Lines • All common angles of the 180 spectrum can be drawn using the 45 and 60 triangles
Exercises
Making A One-View Drawing

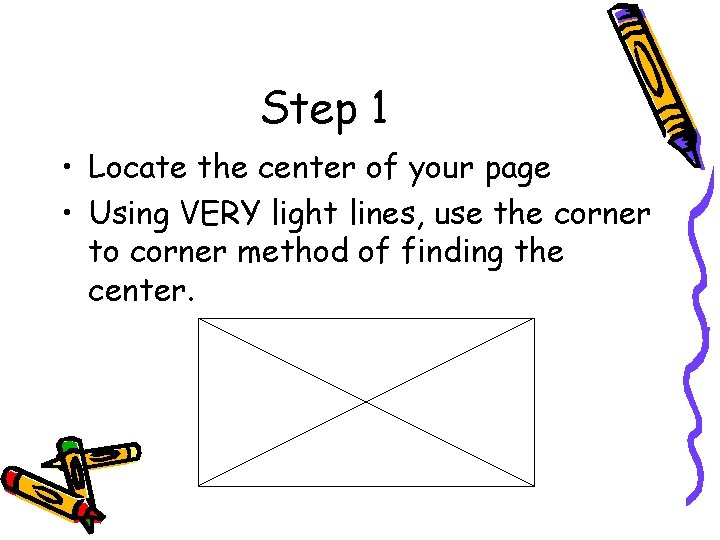

Step 1 • Locate the center of your page • Using VERY light lines, use the corner to corner method of finding the center.
Step 2 • Draw in LIGHTLY – the center lines
Step 3 Transfer all Vertical Line Measurements 108 38 50 76 25 19 30 57 216 126 63 25

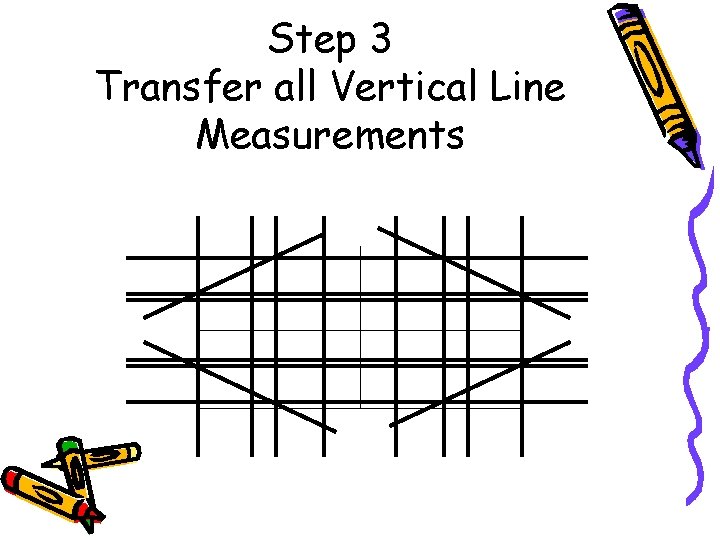

Step 3 Transfer all Vertical Line Measurements
Step 4 Transfer All Horizontal Measurements 108 38 50 76 25 19 30 57 216 126 63 25
Step 3 Transfer all Vertical Line Measurements
Step 5 Transfer all Angles 108 38 50 76 25 19 30 57 216 126 63 25
Step 3 Transfer all Vertical Line Measurements
Step 6 Darken in body of Part
