Drafting Product Design Architecture Orthographic Projection Alphabet of
Drafting – Product Design & Architecture Orthographic Projection
Alphabet of Lines Short Break Line: A freehand Object Line: Thick lines Hidden Line: Lines used to drawn line that shows where a part is. 6 mm(. 032 in) that show interior detail that is not visible broken toabout reveal detail behind the part or visible edges of an object. Center Line: of Lines from the outside that part. define to shortenthe a long continuous part. (See Section Lines are used to the center of Lines: arcs, circles, or symmetrical parts. example of Long Break Line definearewhere there is material They half as thick as an object line. on the next slide. ) after a part of the object is cut away. Construction Line: Very lightly drawn lines used as guides to help draw all other lines and shapes properly. Usually erased after being used.
Alphabet of Lines Dimension that used Line: to Cutting Plane A line used to Long Break Lines: Break. Lines lines are used show detail distance. are drawn on thea part has been cut to either show or as. Arrows in thisdesignate case theywhere can Lines: Lines used to see show where ends to. Extension show where the dimension line starts and The ends. arrows should detail. be used to shorten very longaway objects that a dimension and located stops on object. The actual distance isstarts usually ininan the middle of this point the direction that you are do not change in detail. Notice that this part with dimension lines properly dimension line to letlong youhowever know thewe distance beinglooking communicated. at the cutout. is. Used 12” havetoshortened object. with The line 1/16” from the Dimension lines areislines used inaway conjunction thean drawing break to use partour as to notextension get confused the object lines with lineswith to properly space more efficiently. dimension objects. Leader Lines: Leader lines are used to show dimensions of arcs, circles and to help show detail. An arrow head is used to point to the part you are dimensioning and the line comes off the arrow point usually at a 45 degree angle. At the end of this line a horizontal line is drawn with a note at the end telling information How many lines from the about what is being pointed at. previous slide can you identify here?
Alphabet of lines Phantom Lines: Phantom lines are used to identify alternate positions that a part my take up. In this example we are using Phantom lines to show that the door handle may only move 45 degrees from it’s horizontal position. How many lines from the previous 2 slides can you identify here?
Orthographic (Multiview Drawings) o Pictorial sketches are great for engineers to explain ideas and communicate what the final part will look like to the customer. Unfortunately, pictorial drawings have some disadvantages. Foreshortened views and distorted features do not allow for accurate prototyping. Many times, for parts to be accurately depicted, you need straight on views of each surface.
Orthographic (Multiview Drawings) o In order to obtain these straight line views we have a type of drawing called Orthographic Projection also known as Multiview drawings. Orthographic projection is a way to project a view based on a line of sight that is perpendicular to that view. There are six of these views to any object as shown in the next slide.
Orthographic (Multiview Drawings) The arrows represent the line of sight associated with each view. Use the button below to jump between this view and the ortho view on the next page. ORTHO

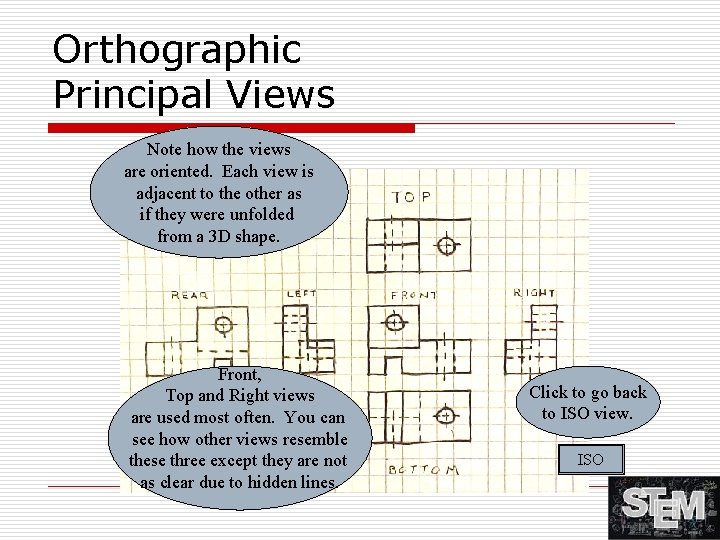

Orthographic Principal Views Note how the views are oriented. Each view is adjacent to the other as if they were unfolded from a 3 D shape. Front, Top and Right views are used most often. You can see how other views resemble these three except they are not as clear due to hidden lines. Click to go back to ISO view. ISO

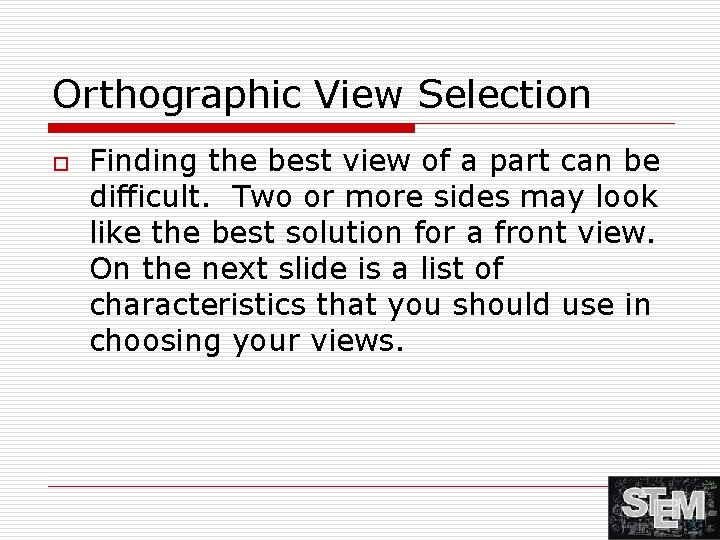

Orthographic View Selection o Finding the best view of a part can be difficult. Two or more sides may look like the best solution for a front view. On the next slide is a list of characteristics that you should use in choosing your views.

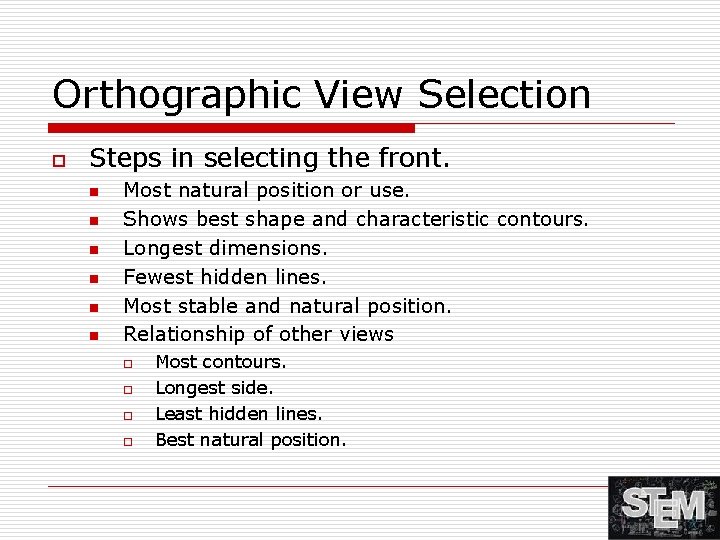

Orthographic View Selection o Steps in selecting the front. n n n Most natural position or use. Shows best shape and characteristic contours. Longest dimensions. Fewest hidden lines. Most stable and natural position. Relationship of other views o o Most contours. Longest side. Least hidden lines. Best natural position.
Orthographic View Selection Longest Dimension Most natural position. Best shape description. No hidden lines.

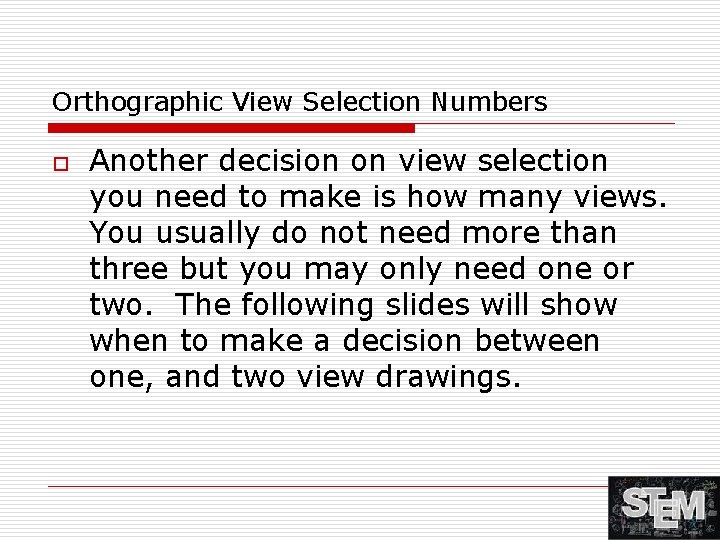

Orthographic View Selection Numbers o Another decision on view selection you need to make is how many views. You usually do not need more than three but you may only need one or two. The following slides will show when to make a decision between one, and two view drawings.

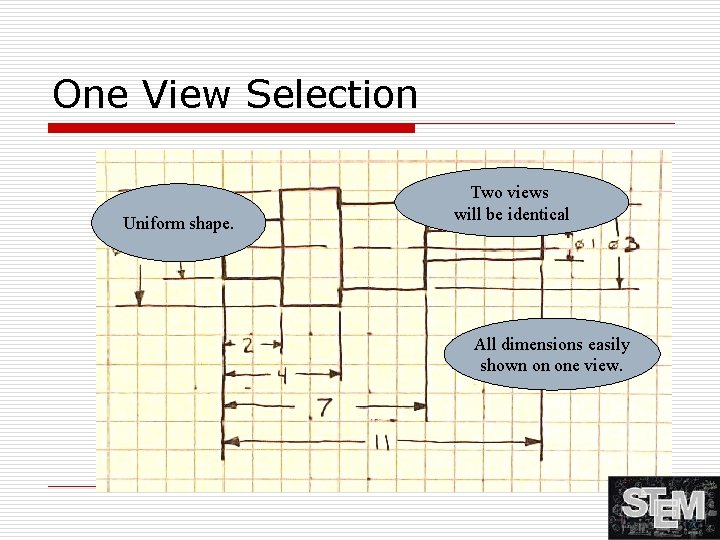

One View Selection Uniform shape. Two views will be identical All dimensions easily shown on one view.
One View Selection It is also possible to have one view drawings of objects that are flat and have even thickness. Gauges and gaskets are two such objects. We have a gauge here on the left.
Two View Selection Symmetrical parts. A third view would be identical to the other views Second view is necessary for depth.
Precedence of Lines o In multiple view drawings, many times different line types will take up the same space, therefore, we have line precedence. The following is an explanation of which lines exist over others. n n n o Object lines over hidden and center. Hidden over center. Cutting plane lines over center lines. The following slide will show an example.

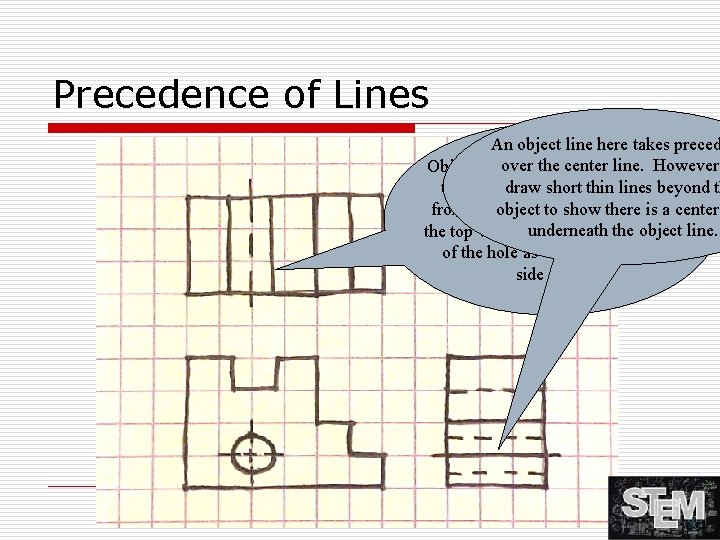

Precedence of Lines An object line here takes preced over theprecedence center line. over However Object lines took draw short lines the hidden lines youthin would seebeyond th to show there from the object hole. The center lineisina center underneath the depth object line. the top view would show the of the hole as well as the right side view.
Do you want to be a good sketcher? First Slide
Multiview Drawing o o Another name for orthographic projection is multiview drawing Involves visualization and implementation n n Ability to see clearly in the mind’s eye an object Process of drawing the object
Multiview Drawing o A system that allows you to make a two-dimensional drawing of a threedimensional object

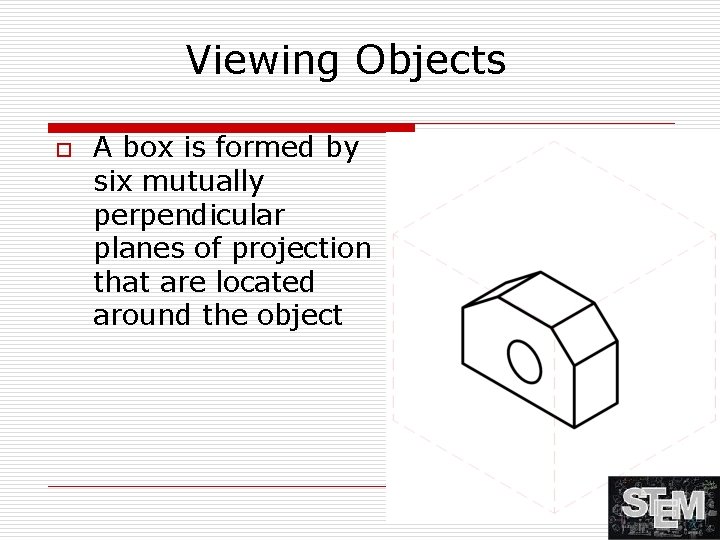

Viewing Objects o A box is formed by six mutually perpendicular planes of projection that are located around the object

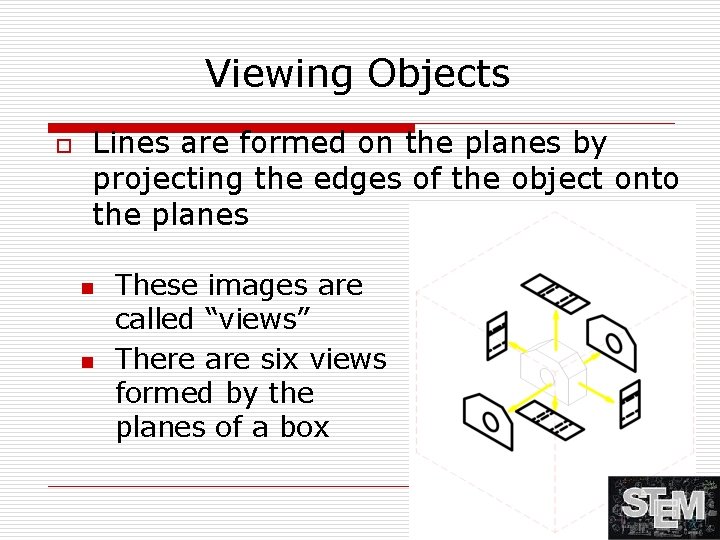

Viewing Objects o Lines are formed on the planes by projecting the edges of the object onto the planes n n These images are called “views” There are six views formed by the planes of a box
Viewing Objects o Unfolding the box produces an arrangement of the six views

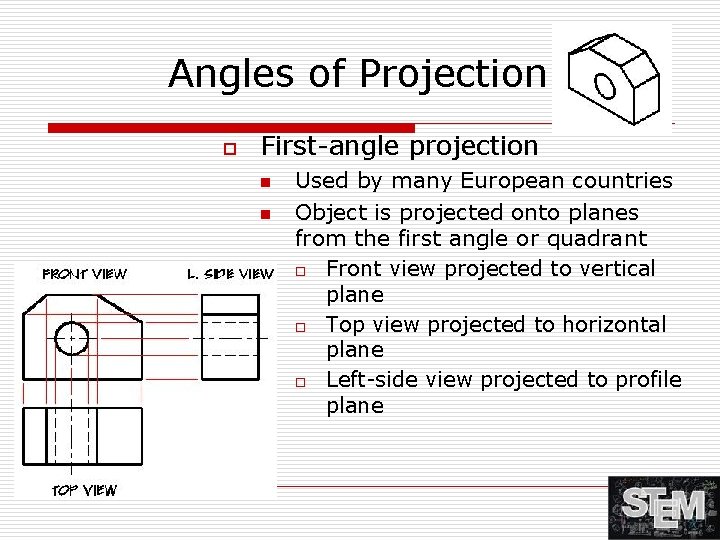

Angles of Projection o First-angle projection n n Used by many European countries Object is projected onto planes from the first angle or quadrant o Front view projected to vertical plane o Top view projected to horizontal plane o Left-side view projected to profile plane

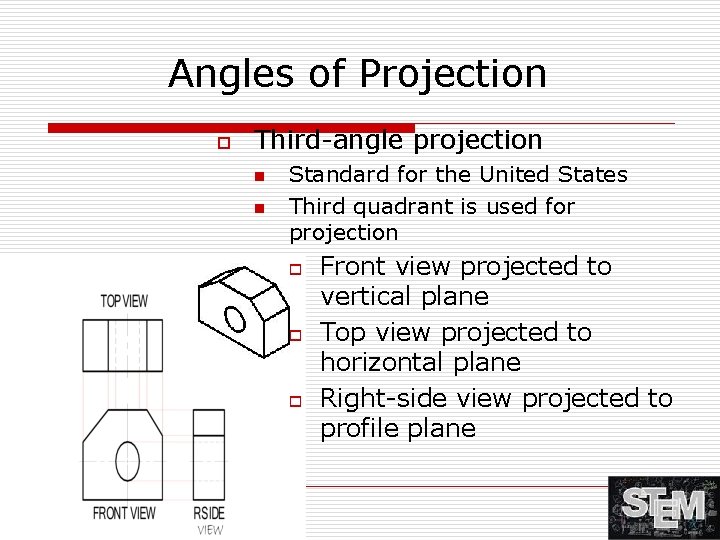

Angles of Projection o Third-angle projection n n Standard for the United States Third quadrant is used for projection o o o Front view projected to vertical plane Top view projected to horizontal plane Right-side view projected to profile plane

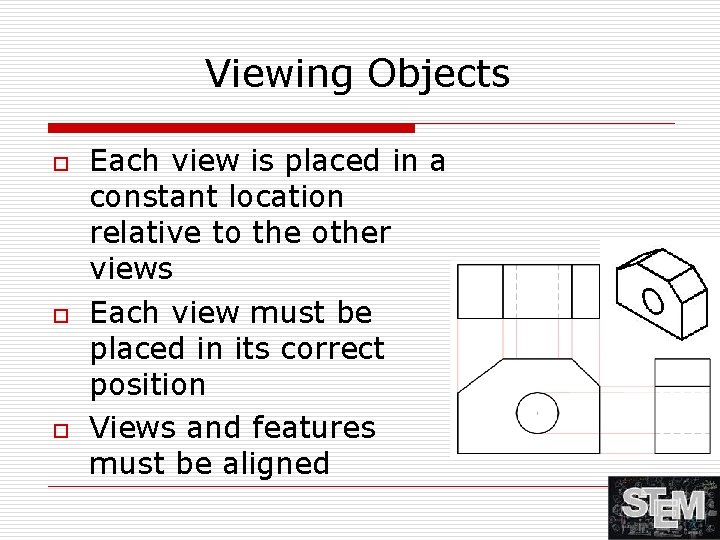

Viewing Objects o o o Each view is placed in a constant location relative to the other views Each view must be placed in its correct position Views and features must be aligned

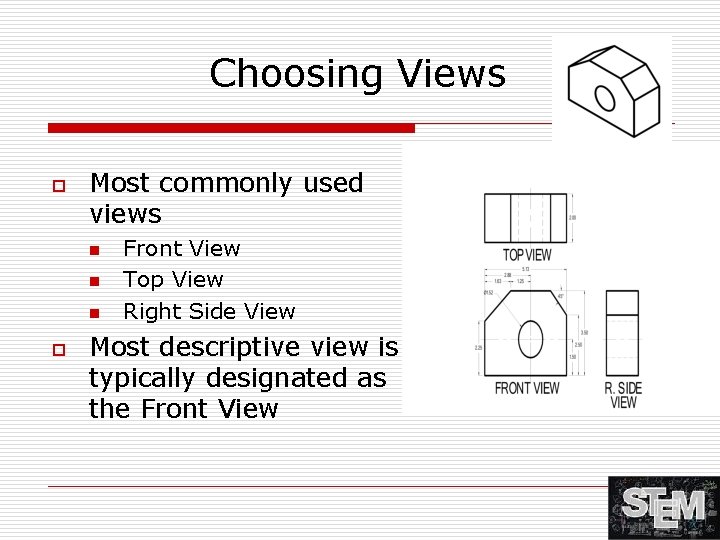

Choosing Views o Most commonly used views n n n o Front View Top View Right Side View Most descriptive view is typically designated as the Front View

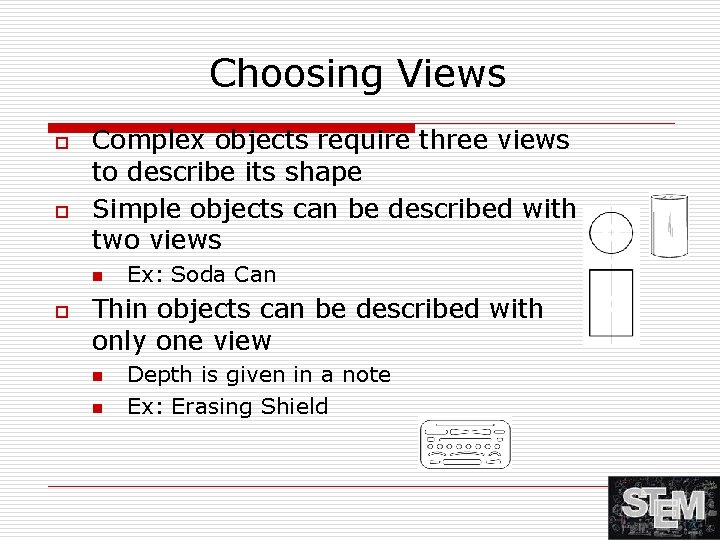

Choosing Views o o Complex objects require three views to describe its shape Simple objects can be described with two views n o Ex: Soda Can Thin objects can be described with only one view n n Depth is given in a note Ex: Erasing Shield

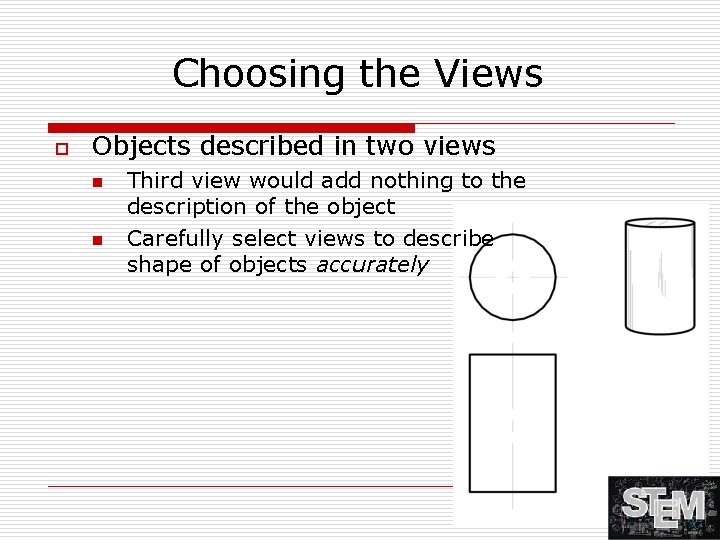

Choosing the Views o Objects described in two views n n Third view would add nothing to the description of the object Carefully select views to describe shape of objects accurately
Curved Surfaces CYLINDER o Some curved surfaces do not show as curves in all views WHEEL CONE FRUSTRUM
Object Dimensions o All objects have 3 dimensions n n n Height o Distance from top to bottom Width o Distance from side to side Depth o Distance from the front to back

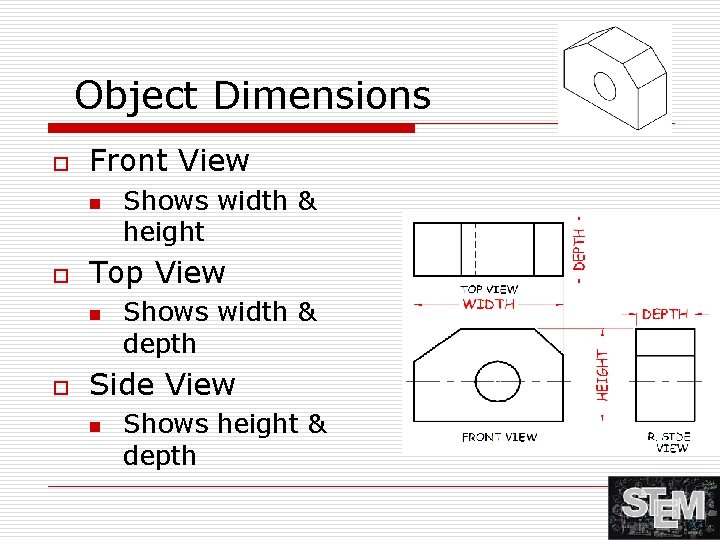

Object Dimensions o Front View n o Top View n o Shows width & height Shows width & depth Side View n Shows height & depth

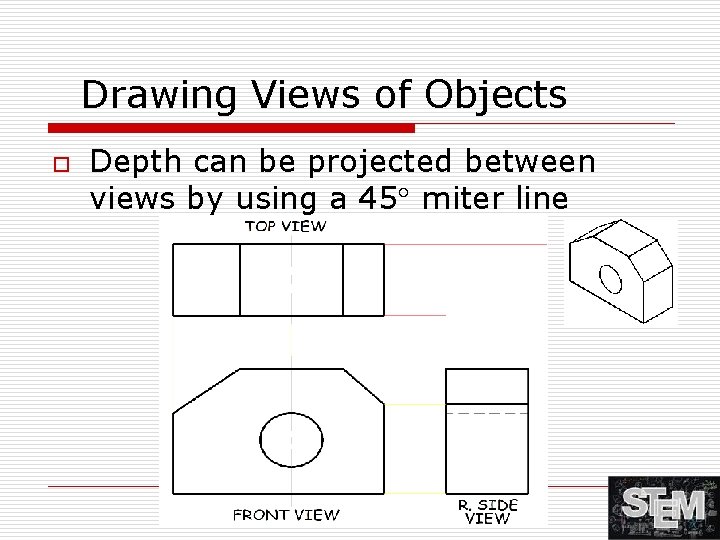

Drawing Views of Objects o Depth can be projected between views by using a 45° miter line

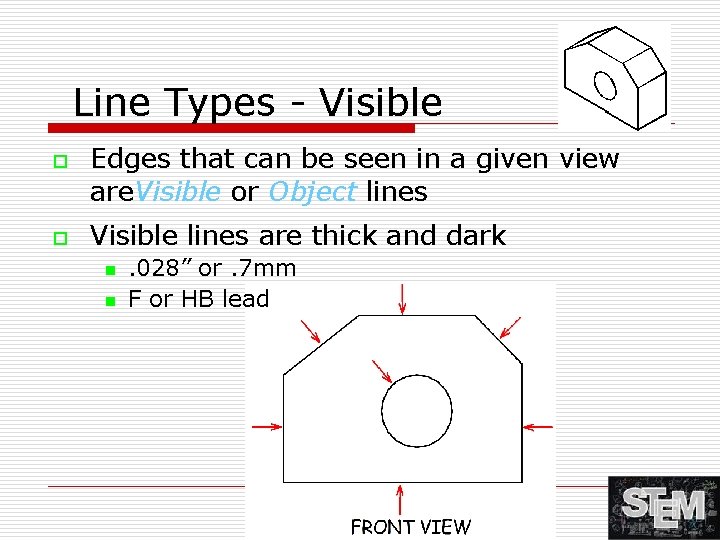

Line Types - Visible o o Edges that can be seen in a given view are. Visible or Object lines Visible lines are thick and dark n n . 028” or. 7 mm F or HB lead

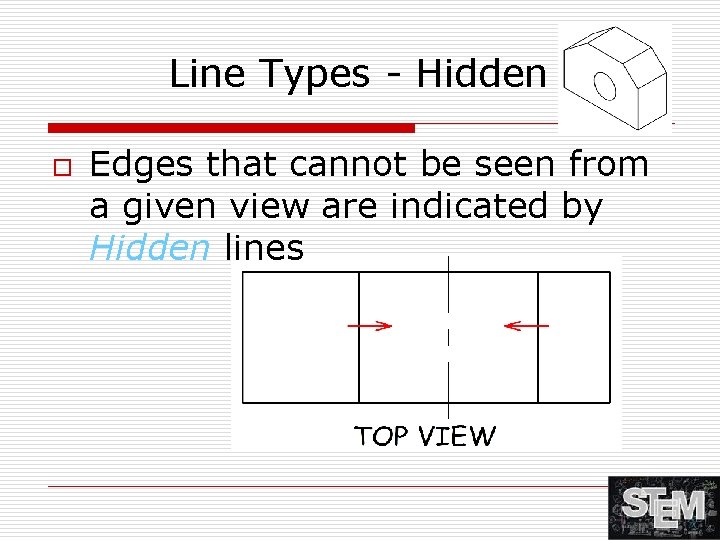

Line Types - Hidden o Edges that cannot be seen from a given view are indicated by Hidden lines

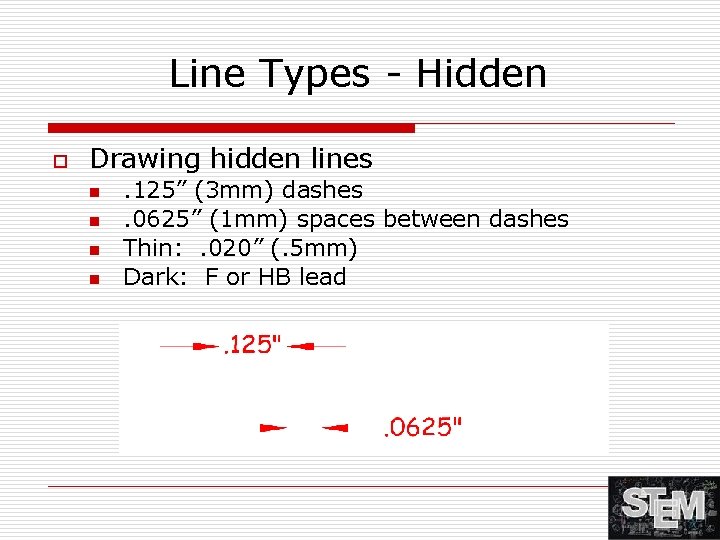

Line Types - Hidden o Drawing hidden lines n n . 125” (3 mm) dashes. 0625” (1 mm) spaces between dashes Thin: . 020” (. 5 mm) Dark: F or HB lead

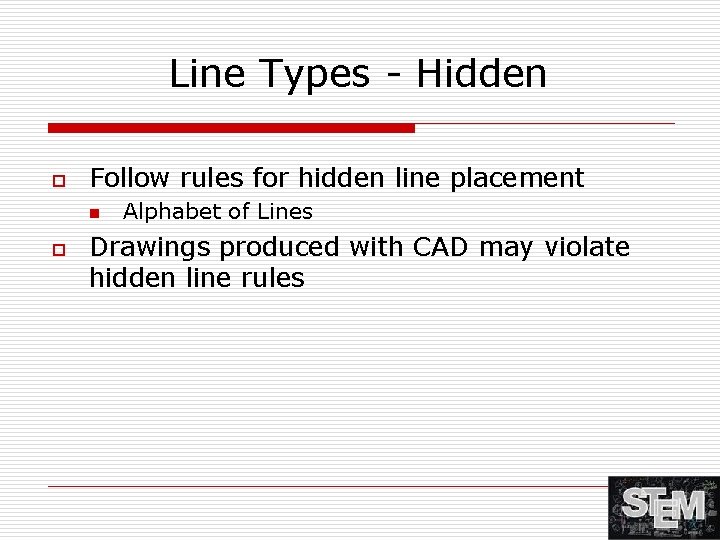

Line Types - Hidden o Follow rules for hidden line placement n o Alphabet of Lines Drawings produced with CAD may violate hidden line rules
Line Types – Center o Center lines indicate axes of symmetry

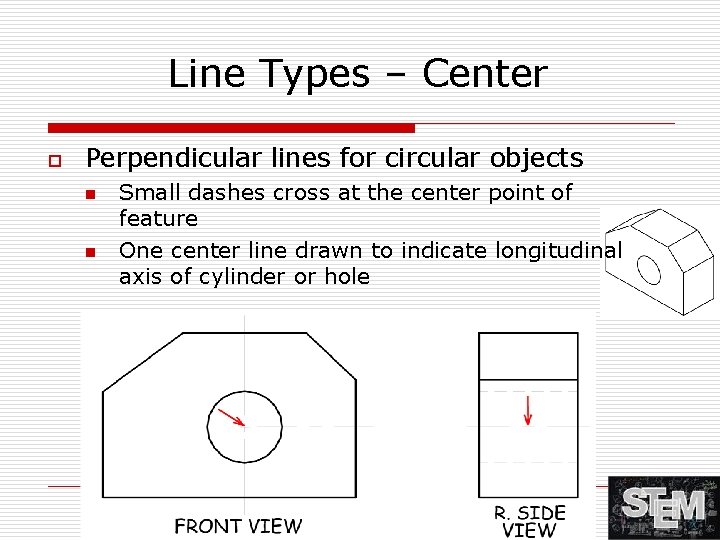

Line Types – Center o Perpendicular lines for circular objects n n Small dashes cross at the center point of feature One center line drawn to indicate longitudinal axis of cylinder or hole

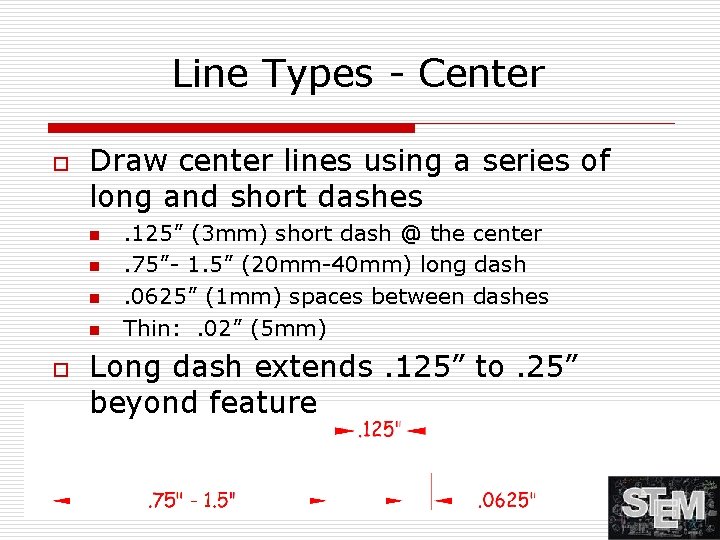

Line Types - Center o Draw center lines using a series of long and short dashes n n o . 125” (3 mm) short dash @ the center. 75”- 1. 5” (20 mm-40 mm) long dash. 0625” (1 mm) spaces between dashes Thin: . 02” (5 mm) Long dash extends. 125” to. 25” beyond feature

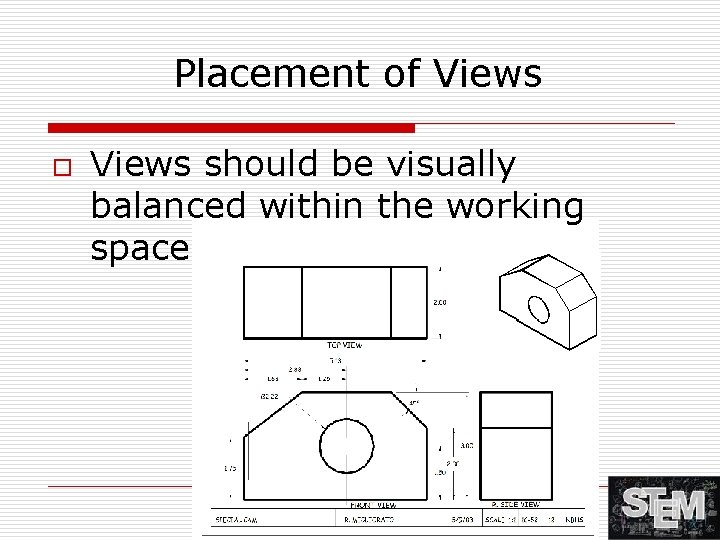

Placement of Views o Views should be visually balanced within the working space

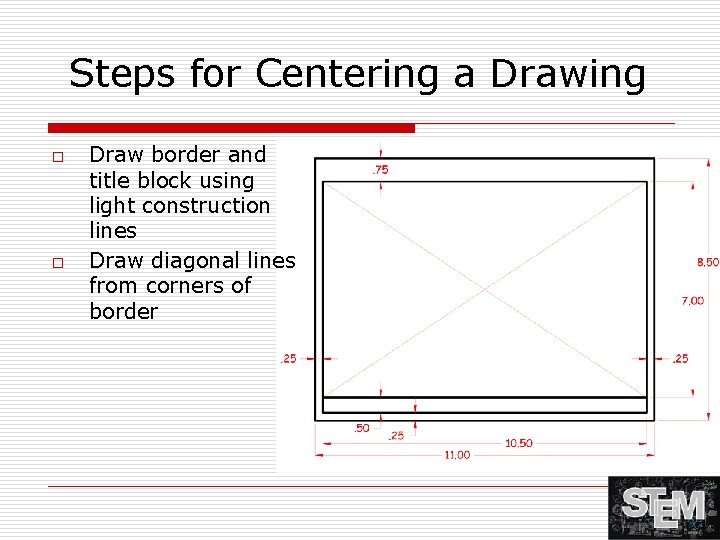

Steps for Centering a Drawing o o Draw border and title block using light construction lines Draw diagonal lines from corners of border

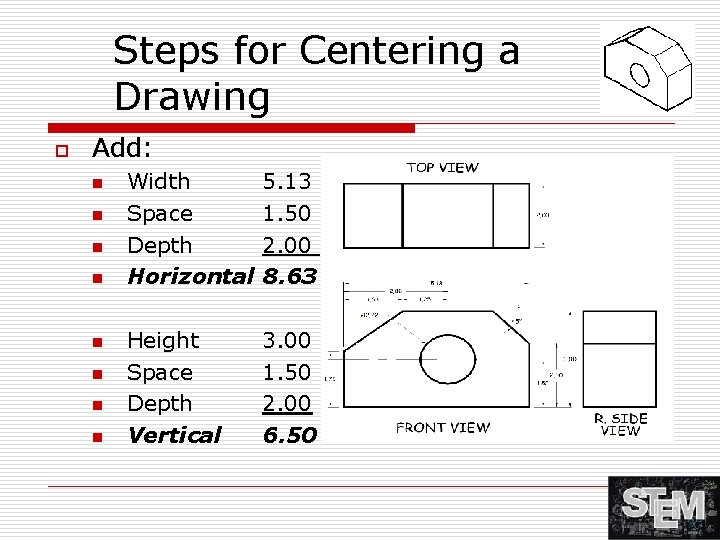

Steps for Centering a Drawing o Add: n n n n Width Space Depth Horizontal 5. 13 1. 50 2. 00 8. 63 Height Space Depth Vertical 3. 00 1. 50 2. 00 6. 50

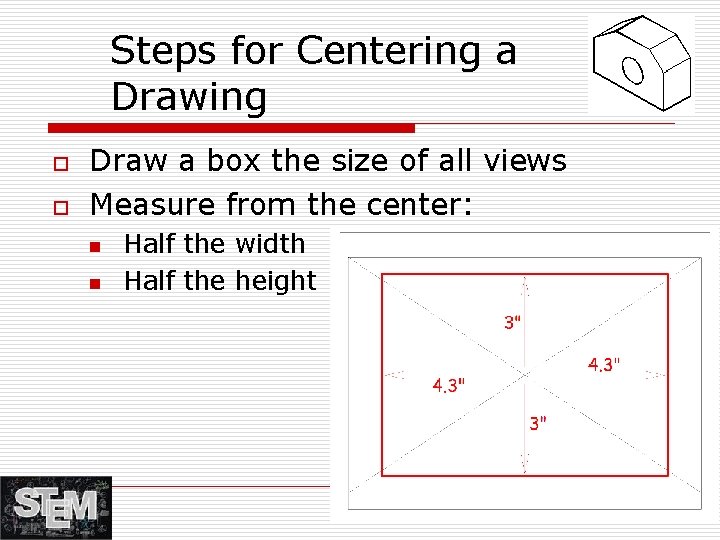

Steps for Centering a Drawing o o Draw a box the size of all views Measure from the center: n n Half the width Half the height
Steps for Centering a Drawing o Draw in views using light construction lines
Adding Details o o o Add holes and features Transfer horizontal and vertical features Use miter line to transfer depth
Multiview Drawing

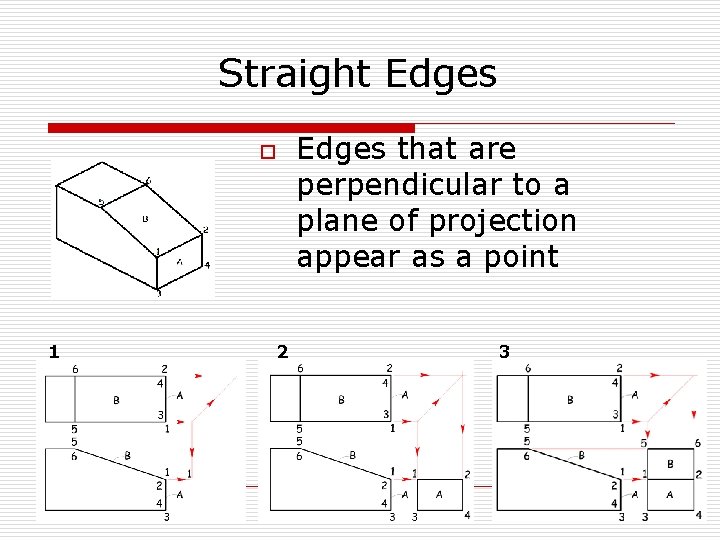

Straight Edges that are perpendicular to a plane of projection appear as a point o 1 2 3

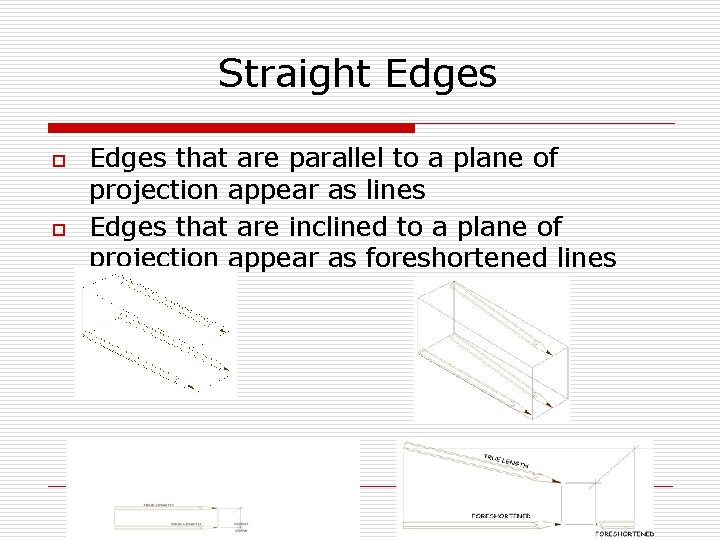

Straight Edges o o Edges that are parallel to a plane of projection appear as lines Edges that are inclined to a plane of projection appear as foreshortened lines

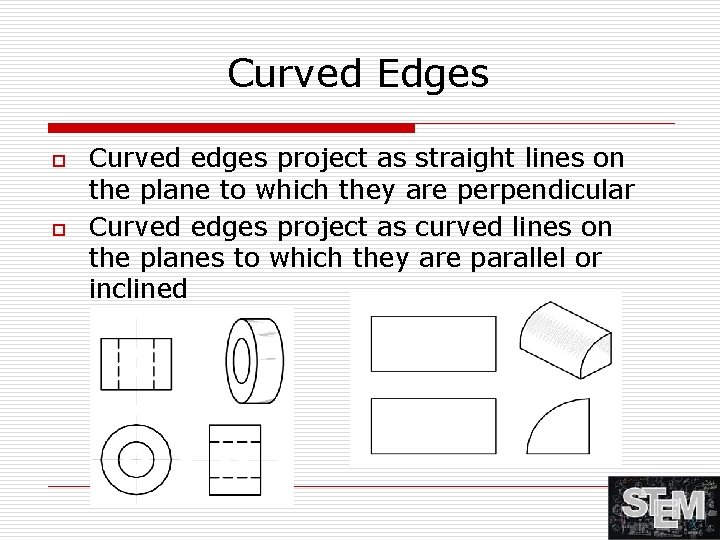

Curved Edges o o Curved edges project as straight lines on the plane to which they are perpendicular Curved edges project as curved lines on the planes to which they are parallel or inclined

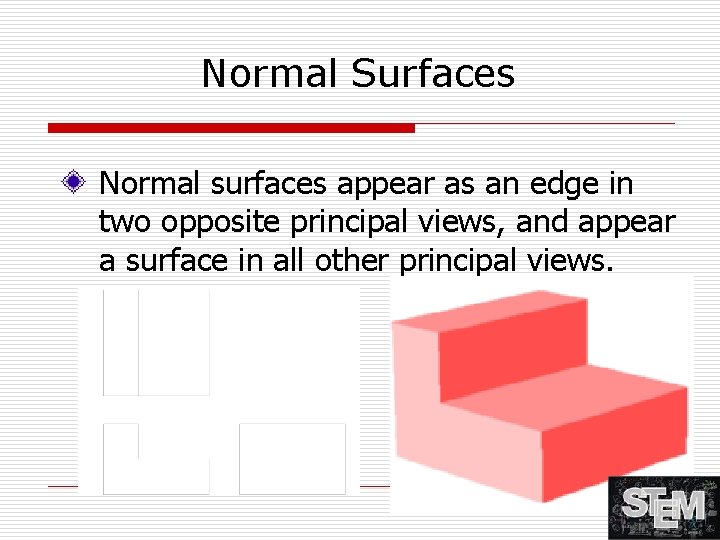

Normal Surfaces Normal surfaces appear as an edge in two opposite principal views, and appear a surface in all other principal views.

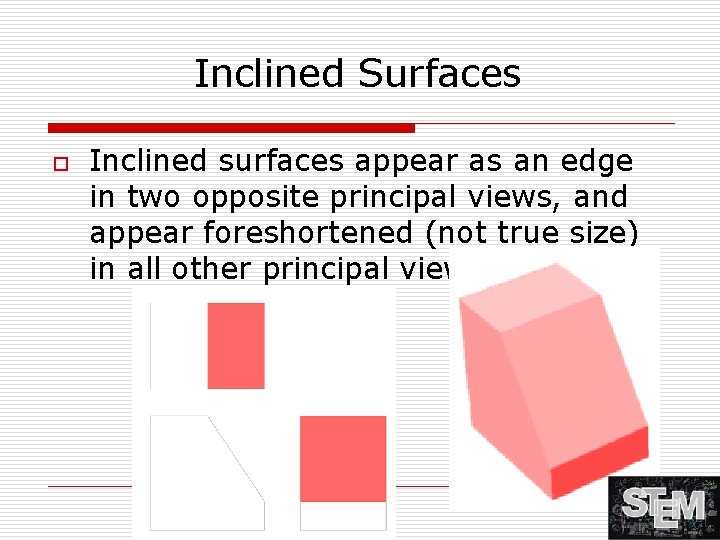

Inclined Surfaces o Inclined surfaces appear as an edge in two opposite principal views, and appear foreshortened (not true size) in all other principal views.

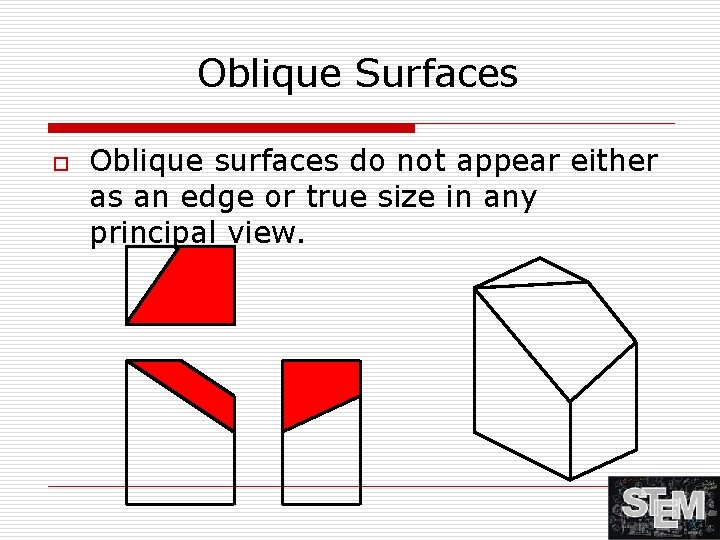

Oblique Surfaces o Oblique surfaces do not appear either as an edge or true size in any principal view.

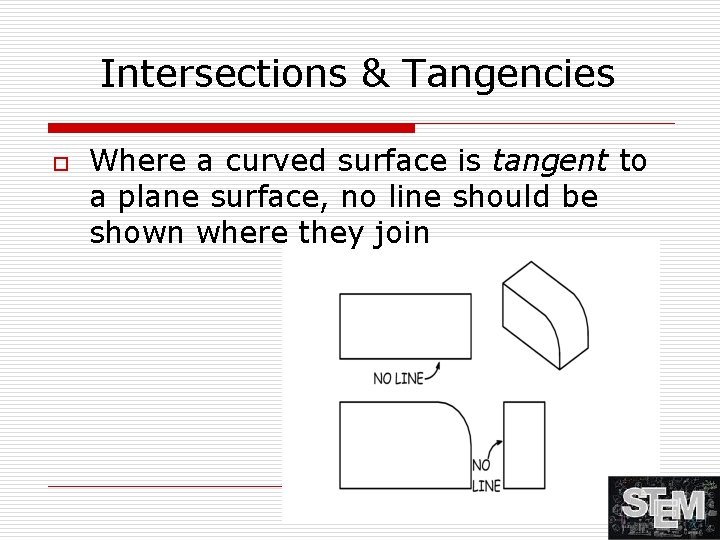

Intersections & Tangencies o Where a curved surface is tangent to a plane surface, no line should be shown where they join
Intersections & Tangencies o Where a plane surface intersects a curved surface, an edge is formed

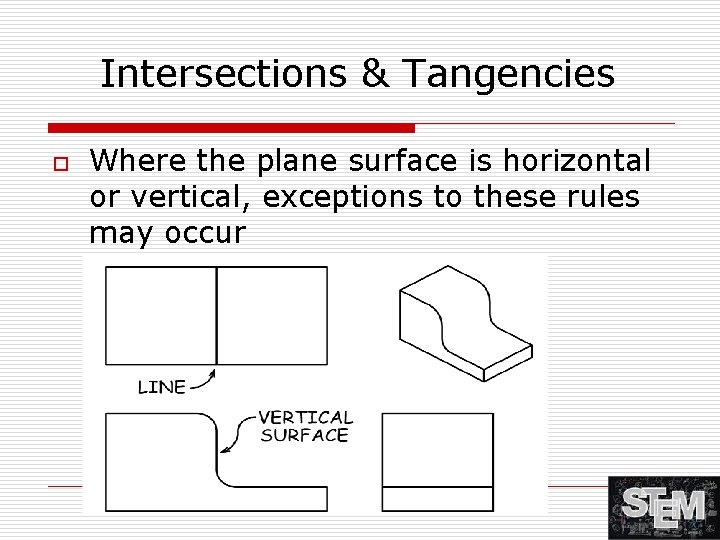

Intersections & Tangencies o Where the plane surface is horizontal or vertical, exceptions to these rules may occur
