Drafting 2 Arch Quiz Review 4 Quiz Review
- Slides: 75
Drafting 2 (Arch) Quiz Review #4 Quiz Review
Quiz Review #4 1. What is the difference between a pier and column? Bearing capacity Soil impact Concrete block Reinforcing bars
Quiz Review #4 1. What is the difference between a pier and column? Bearing capacity Soil impact Concrete block Reinforcing bars
Quiz Review #4 2. What is the vertical wall that extends from the top of the footing up to the first floor level? Knee wall Foundation wall Partition wall Retaining wall
Quiz Review #4 2. What is the vertical wall that extends from the top of the footing up to the first floor level? Knee wall Foundation wall Partition wall Retaining wall
Quiz Review #4 3. What is the actual thickness of 8" concrete block? 8” 7 -1/4” 7 -5/8” 8 -3/8”
Quiz Review #4 3. What is the actual thickness of 8" concrete block? 8” 7 -1/4” 7 -5/8” 8 -3/8”
Quiz Review #4 4. The shape of a foundation wall makes a difference in its ability to resist: Lateral earth loads Live loads Dead loads Water table
Quiz Review #4 4. The shape of a foundation wall makes a difference in its ability to resist: Lateral earth loads Live loads Dead loads Water table
Quiz Review #4 5. What does a drain tile remove? Waste from the sewage system Water that collects around the foundation wall Water that collects in a septic tank Water standing above the septic tank
Quiz Review #4 5. What does a drain tile remove? Waste from the sewage system Water that collects around the foundation wall Water that collects in a septic tank Water standing above the septic tank
Quiz Review #4 6. What is the actual size of a 8" X 16" masonry block? 8” X 16” 7 -1/2” X 15 -1/2” 7 -5/8” X 15 -5/8” 7 -3/4” X 15 -3/4”
Quiz Review #4 6. What is the actual size of a 8" X 16" masonry block? 8” X 16” 7 -1/2” X 15 -1/2” 7 -5/8” X 15 -5/8” 7 -3/4” X 15 -3/4”
Quiz Review #4 7. How deep should a footing be placed? Elevation Fill line Below the frost line Grade
Quiz Review #4 7. How deep should a footing be placed? Elevation Fill line Below the frost line Grade
Quiz Review #4 8. How would the correct note for a built-up wooden girder read? 3 – 2 X 10 #2 SPF Girder W 8 X 14 Girder 6 X 12 LVL Girder 2 X 10 @ 16” O. C. Girder
Quiz Review #4 8. How would the correct note for a built-up wooden girder read? 3 – 2 X 10 #2 SPF Girder W 8 X 14 Girder 6 X 12 LVL Girder 2 X 10 @ 16” O. C. Girder
Quiz Review #4 9. What would be the BEST note for a pier column footing? 2’-0” X 10” CONC PIER FOOT 2’-0” X 2’-0” CONC PIER FOOT 2’-0” X 8” CONT CONC PIER FOOT 300 PSI CONC FOOT
Quiz Review #4 9. What would be the BEST note for a pier column footing? 2’-0” X 10” CONC PIER FOOT 2’-0” X 2’-0” CONC PIER FOOT 2’-0” X 8” CONT CONC PIER FOOT 300 PSI CONC FOOT
Quiz Review #4 10. Floor joist length is determined by all of the following EXCEPT: Consideration of live and dead loads Density of earth supporting foundation Material strength of floor joist Size of the floor joist
Quiz Review #4 10. Floor joist length is determined by all of the following EXCEPT: Consideration of live and dead loads Density of earth supporting foundation Material strength of floor joist Size of the floor joist
Quiz Review #4 11. What do dashed lines drawn parallel to both sides of a foundation wall most likely represent? Drain tile Footings Foundation vents Piers a foundation wall most likely represents
Quiz Review #4 11. What do dashed lines drawn parallel to both sides of a foundation wall most likely represent? Drain tile Footings Foundation vents Piers a foundation wall most likely represents
Quiz Review #4 12. What determines the connection between floor joists and the foundation plan? Floor joists are vertical members shown on the foundation plan Floor joist direction is shown on the foundation plan Floor joists are typically made of concrete Floor joists are the lowest member of the foundation system
Quiz Review #4 12. What determines the connection between floor joists and the foundation plan? Floor joists are vertical members shown on the foundation plan Floor joist direction is shown on the foundation plan Floor joists are typically made of concrete Floor joists are the lowest member of the foundation system
Quiz Review #4 13. What is the relationship between floor joists and double joists? Both are typically made of concrete They run perpendicular to each other They run parallel to each other Both are vertical foundation members
Quiz Review #4 13. What is the relationship between floor joists and double joists? Both are typically made of concrete They run perpendicular to each other They run parallel to each other Both are vertical foundation members
Quiz Review #4 14. What is the horizontal member of the roof used to resist outward spread of the rafters and provide a surface on which to mount the finished ceiling? Soffit Collar tie/beam Cornice/Eve Ceiling joist
Quiz Review #4 14. What is the horizontal member of the roof used to resist outward spread of the rafters and provide a surface on which to mount the finished ceiling? Soffit Collar tie/beam Cornice/Eve Ceiling joist

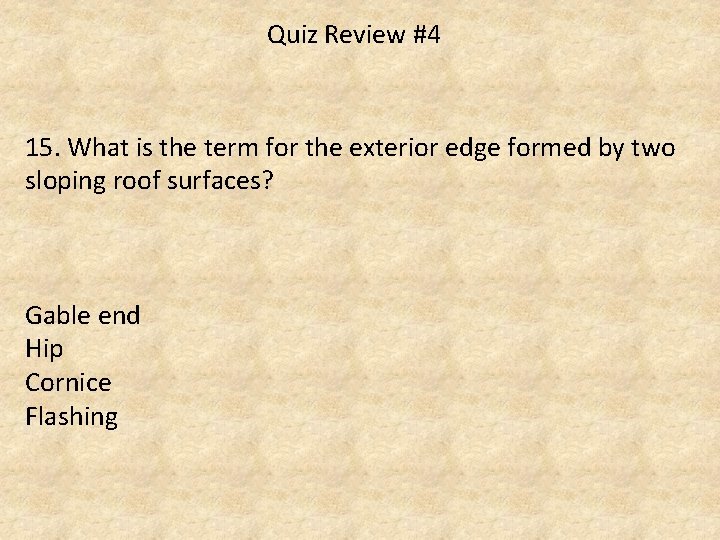

Quiz Review #4 15. What is the term for the exterior edge formed by two sloping roof surfaces? Gable end Hip Cornice Flashing
Quiz Review #4 15. What is the term for the exterior edge formed by two sloping roof surfaces? Gable end Hip Cornice Flashing
Quiz Review #4 16. Name the term that is a description of the angle of the roof that compares the horizontal run and the vertical rise. Rafter Truss Ridge Roof pitch/slope
Quiz Review #4 16. Name the term that is a description of the angle of the roof that compares the horizontal run and the vertical rise. Rafter Truss Ridge Roof pitch/slope
Quiz Review #4 17. What covers the rafter end enclosing the overhang? Flashing Fascia Ridge board Soffit
Quiz Review #4 17. What covers the rafter end enclosing the overhang? Flashing Fascia Ridge board Soffit
Quiz Review #4 18. Name the part of the roof that extends out from the wall. Cornice/Eave Flashing Gable end wall Hip wall
Quiz Review #4 18. Name the part of the roof that extends out from the wall. Cornice/Eave Flashing Gable end wall Hip wall
Quiz Review #4 19. What is the term for the internal corner formed between two interesting roof surfaces? Valley Roof truss Rafter Ridge
Quiz Review #4 19. What is the term for the internal corner formed between two interesting roof surfaces? Valley Roof truss Rafter Ridge
Quiz Review #4 20. What roof type is similar to a gambrel roof with the angled lower roof on all four sides? Hip Gambrel Mansard Shed
Quiz Review #4 20. What roof type is similar to a gambrel roof with the angled lower roof on all four sides? Hip Gambrel Mansard Shed
Quiz Review #4 21. What are the horizontal ties between rafters near the ridge to help resist the tendency of the rafters to separate? Soffits Ridge boards Collar ties/beams Flashings
Quiz Review #4 21. What are the horizontal ties between rafters near the ridge to help resist the tendency of the rafters to separate? Soffits Ridge boards Collar ties/beams Flashings
Quiz Review #4 22. What type of roof offers the same simplicity and economical construction methods as a flat roof without the drainage problems? Shed Gable Gambrel Mansard
Quiz Review #4 22. What type of roof offers the same simplicity and economical construction methods as a flat roof without the drainage problems? Shed Gable Gambrel Mansard
Quiz Review #4 23. What is a beam used to support the cornice/eave loads? Eave Fascia Lookout Flashing
Quiz Review #4 23. What is a beam used to support the cornice/eave loads? Eave Fascia Lookout Flashing
Quiz Review #4 24. What roof type has a lower level covered with a steep surface connecting to the upper roof system with a slighter pitch? Hip Gambrel Shed Flat
Quiz Review #4 24. What roof type has a lower level covered with a steep surface connecting to the upper roof system with a slighter pitch? Hip Gambrel Shed Flat
Quiz Review #4 25. What is the name of static or fixed weights of the structure itself? Live load Dead load Movable load Fixed load
Quiz Review #4 25. What is the name of static or fixed weights of the structure itself? Live load Dead load Movable load Fixed load
Quiz Review #4 26. What is the inclined structural member of a roof system designed to support loads? Collar Beam Rafter Ridge Valley
Quiz Review #4 26. What is the inclined structural member of a roof system designed to support loads? Collar Beam Rafter Ridge Valley
Quiz Review #4 27. Which roof slope produces the flattest roof? 3 to 12 4 to 12 5 to 12 6 to 12
Quiz Review #4 27. Which roof slope produces the flattest roof? 3 to 12 4 to 12 5 to 12 6 to 12
Quiz Review #4 28. Which requires the calculation of rise and run? Roof pitch Solar angles Size of the pier footing Slope of ground
Quiz Review #4 28. Which requires the calculation of rise and run? Roof pitch Solar angles Size of the pier footing Slope of ground
Quiz Review #4 29. The contrast number in the roof pitch is: 10 12 14 16
Quiz Review #4 29. The contrast number in the roof pitch is: 10 12 14 16
Quiz Review #4 30. A manufactured unit that includes all of the members needed to perform the function of the rafters, ceiling joists, collars, and knees is the: LVL Roof joist I-joist Truss
Quiz Review #4 30. A manufactured unit that includes all of the members needed to perform the function of the rafters, ceiling joists, collars, and knees is the: LVL Roof joist I-joist Truss
Quiz Review #4 31. The purpose of a LOOKOUT in eave/cornice construction is to: Support the sole plate Serve as a nailer for wide soffits Support the roof sheathing Serve as a nailing surface for the building felt (paper)
Quiz Review #4 31. The purpose of a LOOKOUT in eave/cornice construction is to: Support the sole plate Serve as a nailer for wide soffits Support the roof sheathing Serve as a nailing surface for the building felt (paper)
Quiz Review #4 32. The underside of a roof overhang is a: Rake Drip edge Fascia Soffit
Quiz Review #4 32. The underside of a roof overhang is a: Rake Drip edge Fascia Soffit
Quiz Review #4 33. What does a pitch of 4/12 represent? A rise of 12, a run of 4 20 degrees A rise of 4, a run of 12 30 degrees
Quiz Review #4 33. What does a pitch of 4/12 represent? A rise of 12, a run of 4 20 degrees A rise of 4, a run of 12 30 degrees
Quiz Review #4 34. The framing member whose purpose is to provide a nailing surface for the soffit is the: Bridging Header Jack stud Lookout
Quiz Review #4 34. The framing member whose purpose is to provide a nailing surface for the soffit is the: Bridging Header Jack stud Lookout
Quiz Review #4 35. A home built in an area that has large amounts of snow should have: A low roof pitch A high roof pitch Fiberglass shingles Wood shingles
Quiz Review #4 35. A home built in an area that has large amounts of snow should have: A low roof pitch A high roof pitch Fiberglass shingles Wood shingles
Quiz Review #4 36. Attached to the end of the rafter tail is the: Frieze board Sole plate Fascia Wall sheathing
Quiz Review #4 36. Attached to the end of the rafter tail is the: Frieze board Sole plate Fascia Wall sheathing
Quiz Review #4 37. What is the most frequently used roof style in North Carolina? Flat Gable Gambrel Mansard
Quiz Review #4 37. What is the most frequently used roof style in North Carolina? Flat Gable Gambrel Mansard
