Draft Project Objectives Draft Project Objectives Project Area
• Draft Project Objectives
• Draft Project Objectives

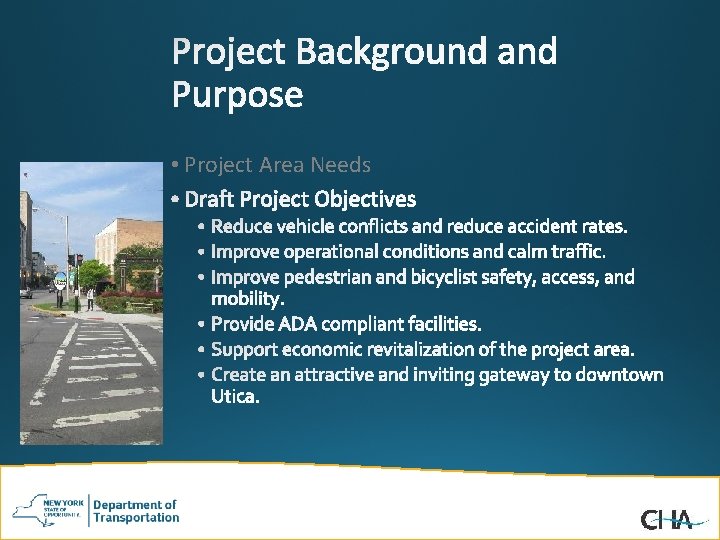

• Project Area Needs
• Project Area Needs

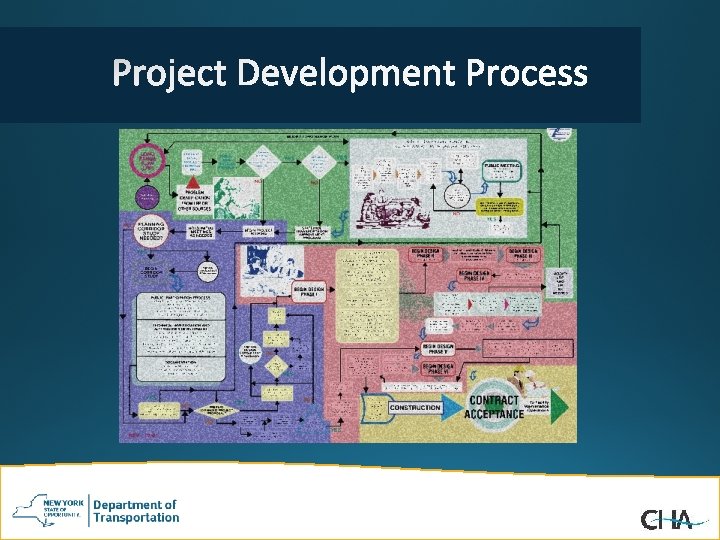

• Project Initiation Phase • Preliminary Design Phases • Final Design Phases • Construction
• • • Project Initiation Phase (completed) Scoping Phase (Summer 2015 completion) Preliminary Design Phases (Spring 2016 completion) Final Design Phases (Spring 2017 completion) Construction (Spring 2018 start)

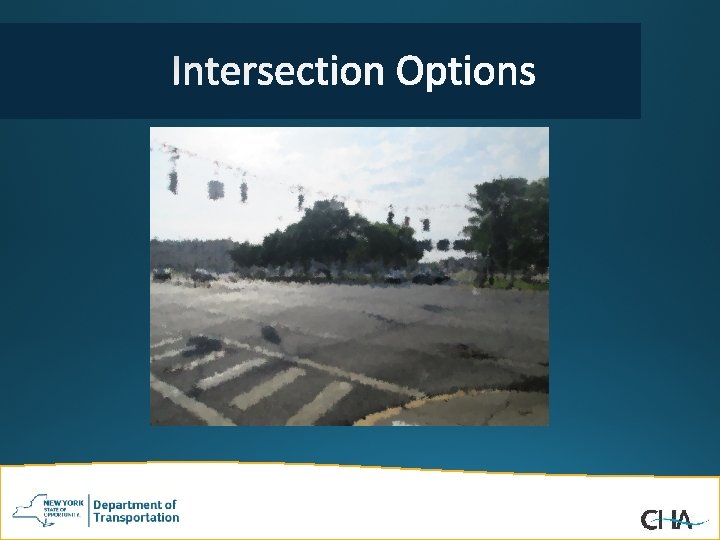

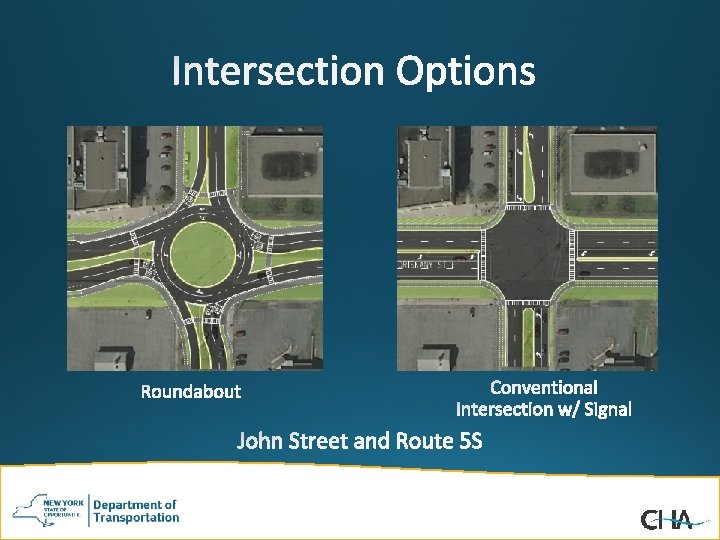

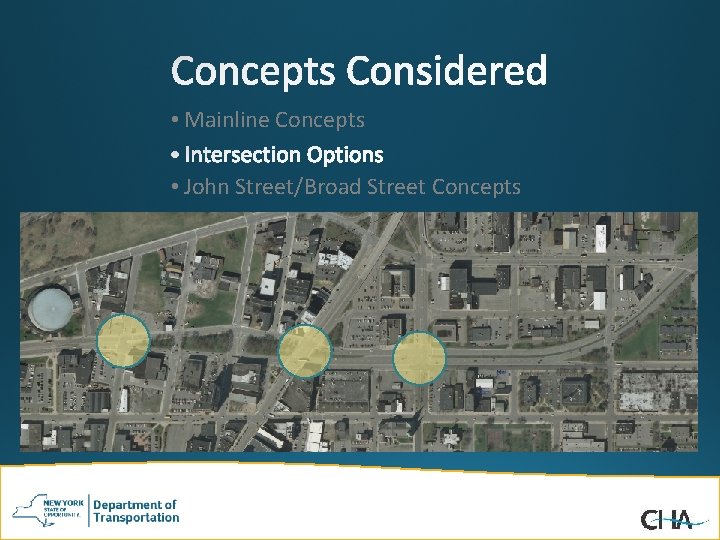

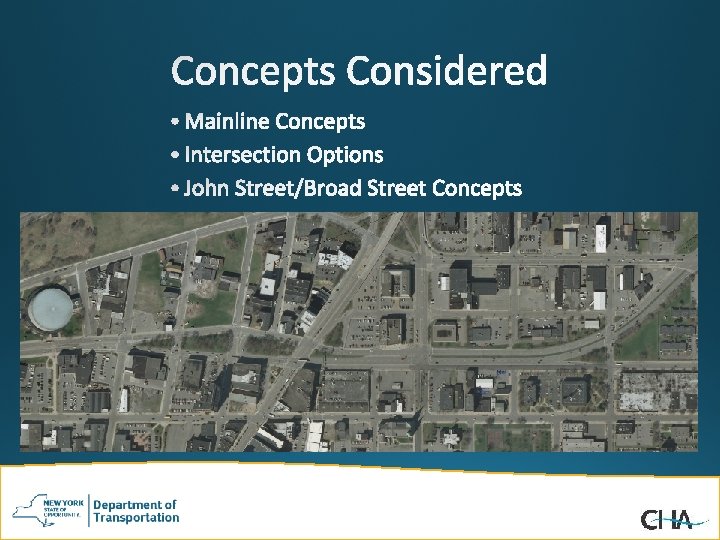

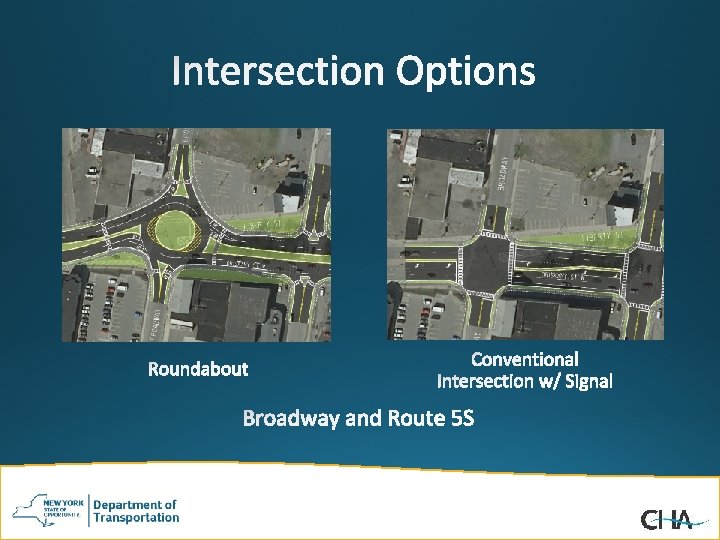

• Intersection Options • John Street/Broad Street Concepts

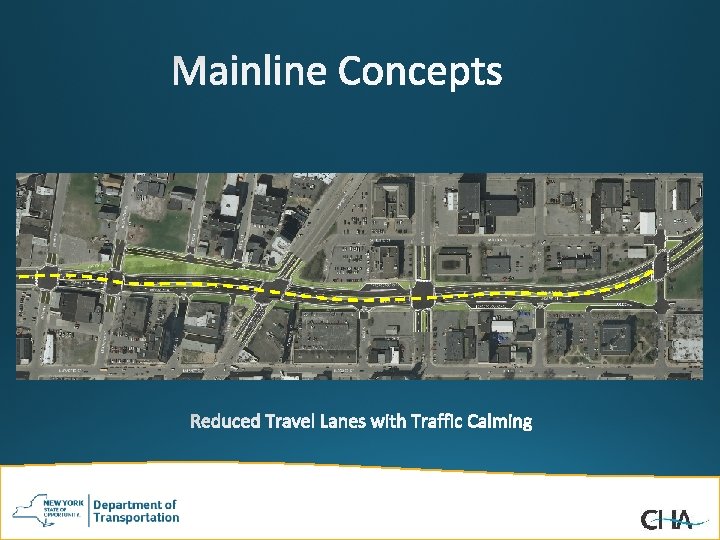

• Mainline Concepts • John Street/Broad Street Concepts
• Mainline Concepts • Intersection Options

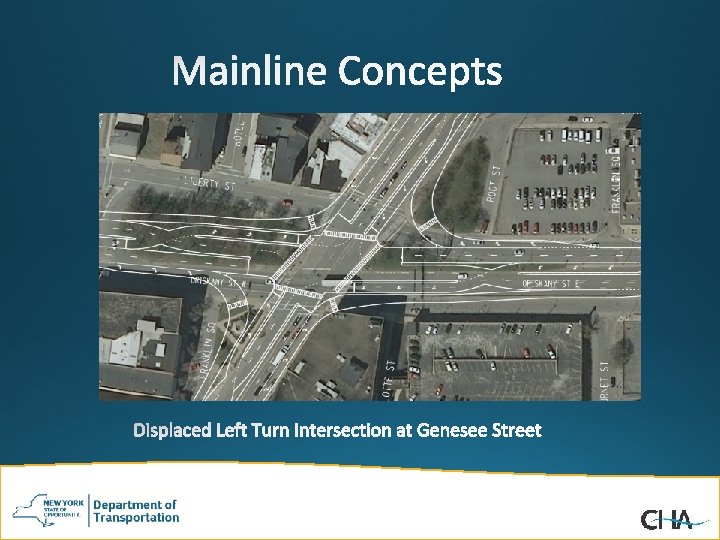

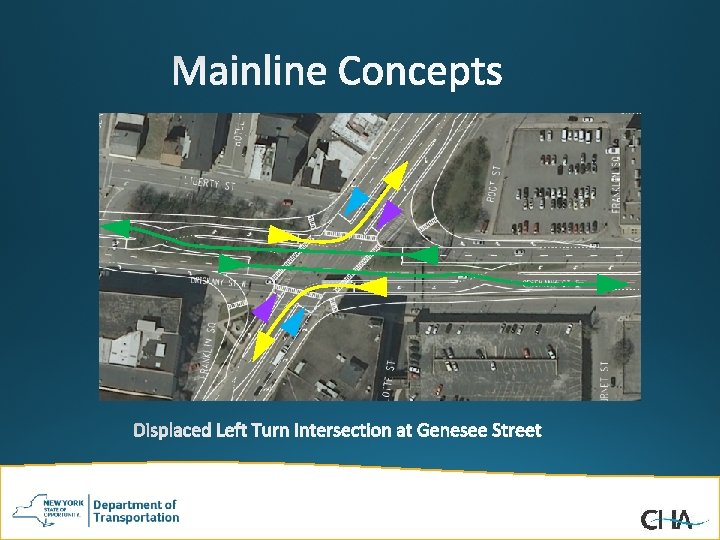

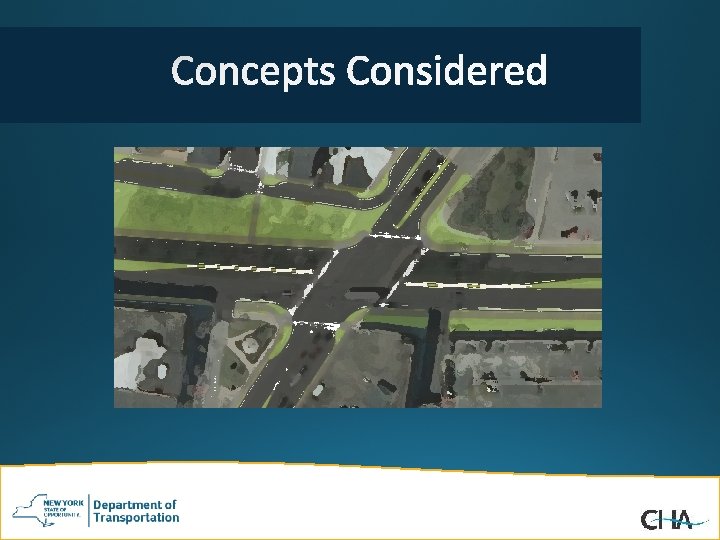

• Displaced Left Turn Intersection at Genesee Street

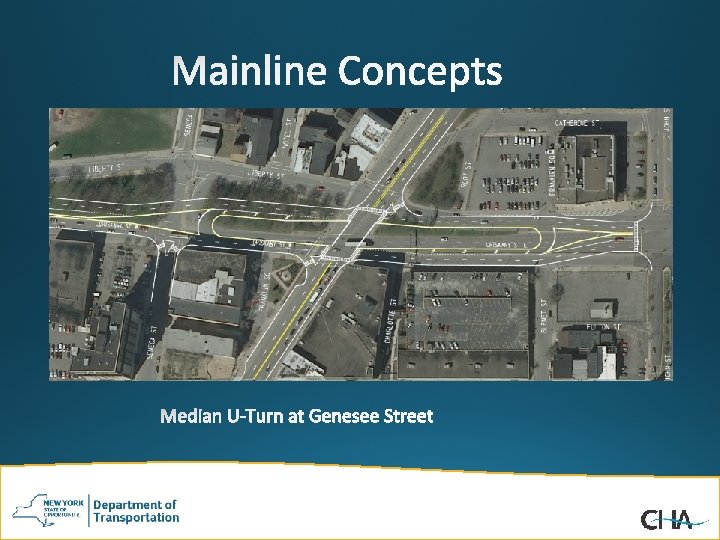

• Displaced Left Turn Intersection at Genesee Street • Median U-turn at Genesee Street

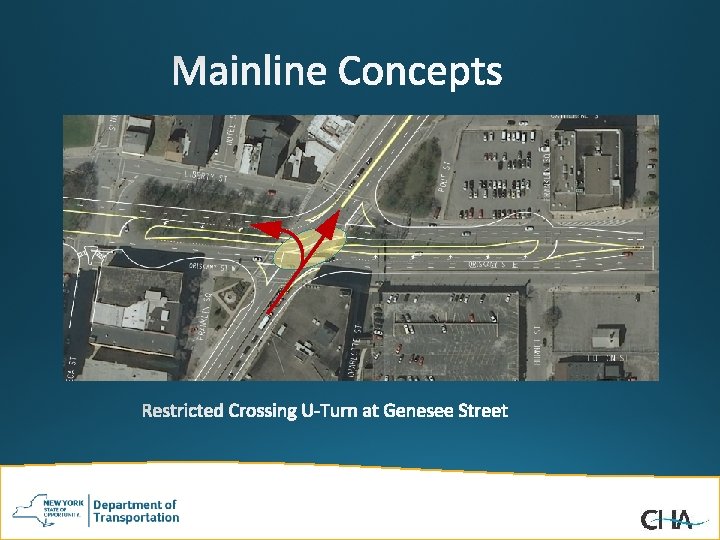

• Displaced Left Turn Intersection at Genesee Street • Median U-turn at Genesee Street • Restricted Crossing U-turn at Genesee Street

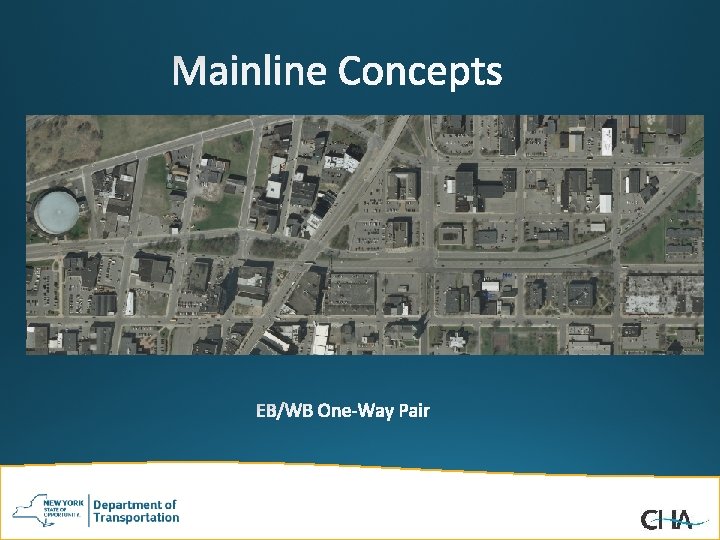

• Displaced Left Turn Intersection at Genesee Street • Median U-turn at Genesee Street • Restricted Crossing U-turn at Genesee Street • EB/WB One-way Pair

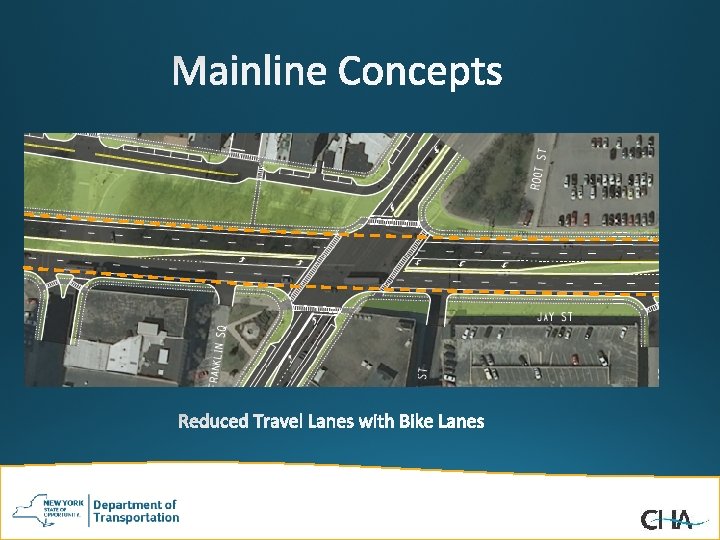

2 TRAVEL LANES EACH DIRECTION BIKE LANES IN EACH DIRECTION
• Displaced Left Turn Intersection at Genesee Street • Median U-turn at Genesee Street • Restricted Crossing U-turn at Genesee Street • EB/WB One-way Pair ü
2 TRAVEL LANES EACH DIRECTION BIKE LANES IN EACH DIRECTION
• Displaced Left Turn Intersection at Genesee Street • Median U-turn at Genesee Street • Restricted Crossing U-turn at Genesee Street • EB/WB One-way Pair ü ü
2 TRAVEL LANES EACH DIRECTION BIKE LANES IN EACH DIRECTION
• Displaced Left Turn Intersection at Genesee Street • Median U-turn at Genesee Street • Restricted Crossing U-turn at Genesee Street • EB/WB One-way Pair ü ü ü
• Mainline Concepts • John Street/Broad Street Concepts
• Mainline Concepts • Intersection Options
