Dr V K Sethi Director UIT RGPV Bhopal

Dr. V K Sethi , Director – UIT, RGPV Bhopal

Sustained economic growth at 8 to 9% requires that by the year 2012, we would need an installed capacity over 2, 000 MW and by 2050 at the level of 10 Lakh MW i. e. a trillion or Terra Watt – This poses a Terra watt challenges for India.

Major Contradictory Challenges Faced by Developing world n n n Quest for increased Generation capacity - Terawatt Challenge Climate Change - rising GHG level Continued focus on coal based generation

Climate Change - rising GHG level Green current House from level arise Gas of 390 ppm and consequent climate change, floods and draughts has affected 260 million people between 2000 and 2004 through natural calamities of these, 98% were in developing nations. Developed countries with population of 15% of world population have the share of CO 2 emissions at 50%. There is so much momentum in the system that we will certainly double CO 2 level by end of the century. Global temperature rise by 3 to 4 0 C will cause displacement of over 330 million people in developing world.

• • 29, 000 Million tones per annum (MTPA) with US over 20% (India with total emission of about 1400 MTPA is only at 4. 8 %. ) power generation in at least next Three decades for India (92, 157 MW Coal based generation out of 1, 43, 311 MW total power installed capacity)

Therefore there is Global Tri-lima. The country is thus facing: Ø Quest for increased generation. Ø Dependence on Coal based generation. Ø Climate change due to rising GHG level. Solution lies in üAdoption of Green Power Technologies üLow Carbon/ No Carbon technologies & Clean Coal Technologies üDevelopment of Carbon capture & Sequestration technologies

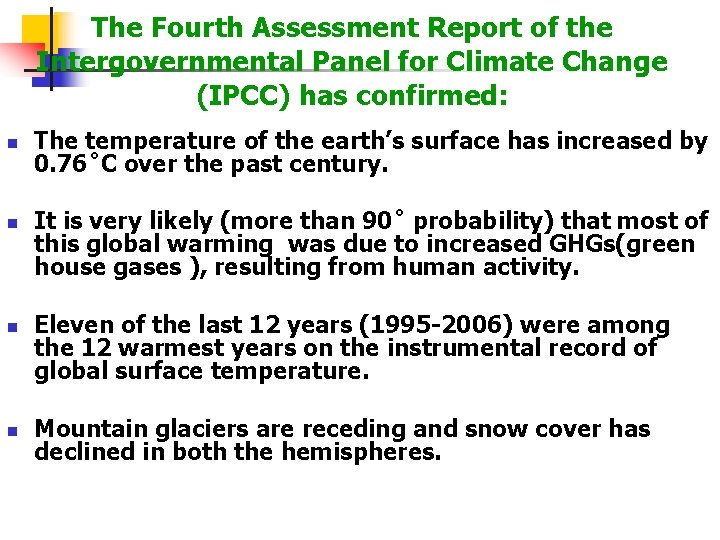

The Fourth Assessment Report of the Intergovernmental Panel for Climate Change (IPCC) has confirmed: n n The temperature of the earth’s surface has increased by 0. 76˚C over the past century. It is very likely (more than 90˚ probability) that most of this global warming was due to increased GHGs(green house gases ), resulting from human activity. Eleven of the last 12 years (1995 -2006) were among the 12 warmest years on the instrumental record of global surface temperature. Mountain glaciers are receding and snow cover has declined in both the hemispheres.

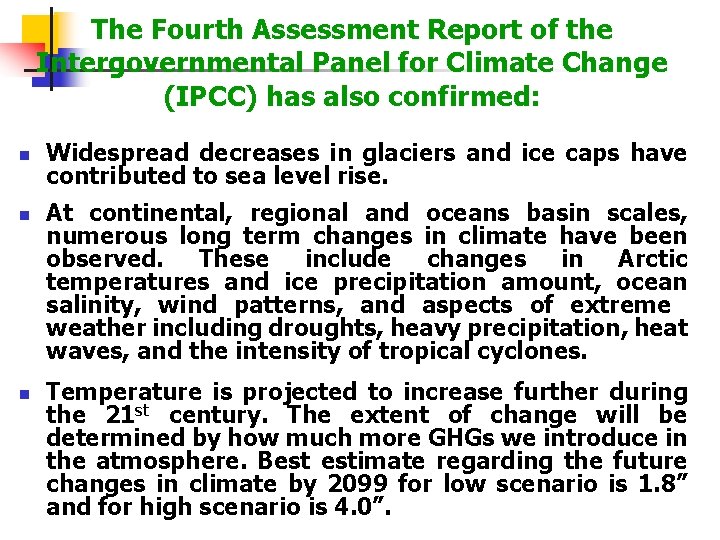

The Fourth Assessment Report of the Intergovernmental Panel for Climate Change (IPCC) has also confirmed: n n n Widespread decreases in glaciers and ice caps have contributed to sea level rise. At continental, regional and oceans basin scales, numerous long term changes in climate have been observed. These include changes in Arctic temperatures and ice precipitation amount, ocean salinity, wind patterns, and aspects of extreme weather including droughts, heavy precipitation, heat waves, and the intensity of tropical cyclones. Temperature is projected to increase further during the 21 st century. The extent of change will be determined by how much more GHGs we introduce in the atmosphere. Best estimate regarding the future changes in climate by 2099 for low scenario is 1. 8” and for high scenario is 4. 0”.

INDIAN POWER SECTOR JOINS TERA CLUB BY 2010 POWER GENERATION BY UTILITIES TODAY 1, 43, 311 MW … 600 Billion k. Wh per annum n TARGETTED CAPACITY ADDITION BY 2010 n Central 46, 500 MW n State & IPP 41, 800 MW n NCES 10, 700 MW n Nuclear 6, 400 MW Total 105, 400 MW n n n BY 2010 WE NEED TO GENERATE ANNULLY …Over 1000 Billion k. Wh THUS WE WILL BE A TRILLION or TERA k. Wh (Unit) TERA k. Wh GENERATING POWER SECTOR BY 2010

Tera-watt Challenge for synergy in Energy & Environment n A terawatt Challenge of 2010 for India To give over one billion people in India the minimum Electrical Energy they need by 2010, we need to generate over 0. 2 terra watt (oil equivalent to over 3 million barrels of oil per day) and 1 TW by 2040, primarily through Advanced fossil fuel technologies like CCTs for limiting GHG emission levels n By 2020 our mix of generation would have the Peak in Thermal, certainly it would be the Green Thermal Power: n n Thermal Renewable & Hydro Nuclear Total 326, 000 MW 104, 000 MW 20, 000 MW 450, 000 MW

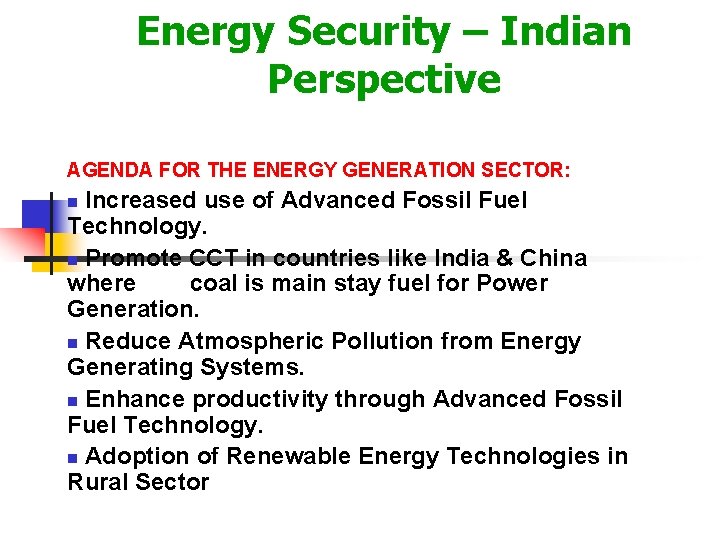

Energy Security – Indian Perspective AGENDA FOR THE ENERGY GENERATION SECTOR: Increased use of Advanced Fossil Fuel Technology. n Promote CCT in countries like India & China where coal is main stay fuel for Power Generation. n Reduce Atmospheric Pollution from Energy Generating Systems. n Enhance productivity through Advanced Fossil Fuel Technology. n Adoption of Renewable Energy Technologies in Rural Sector n

POWER SCENARIO IN INDIA Installed capacity in Utilities as on April 07 … 1, 43, 311 MW n Thermal Installed Capacity… 92, 157 MW (Coal 70, 618 MW, Gas 14, 582 MW, Diesel 1202 MW + Others- cogen etc. ) n Hydro Power … 35, 909 MW n Nuclear Power … 4120 MW n Renewable Energy Sources … 11, 125 MW n Electric Demand…. . 7 -8% growth n Peak & Energy Shortage…. . 16. 7% & 12. 1% n Capacity Addition in 11 th Plan…… 80, 020 MW

INDIAN POWER SECTOR - TOWARDS SUSTAINABLE POWER DEVELOPMENT n n Total Installed Capacity … 1, 43, 311 MW Thermal Generation … over 66 % Although no GHG reduction targets for India but taken steps through adoption of Renewable Energy Technologies, Combined cycles, Co-generation, Coal beneficiation, Plant Performance optimization Under Kyoto Protocol; Clean Development Mechanism (CDM) conceived to reduce cost of GHG mitigation, while promoting sustainable development as per Framework Convention on Climate change (FCCC)

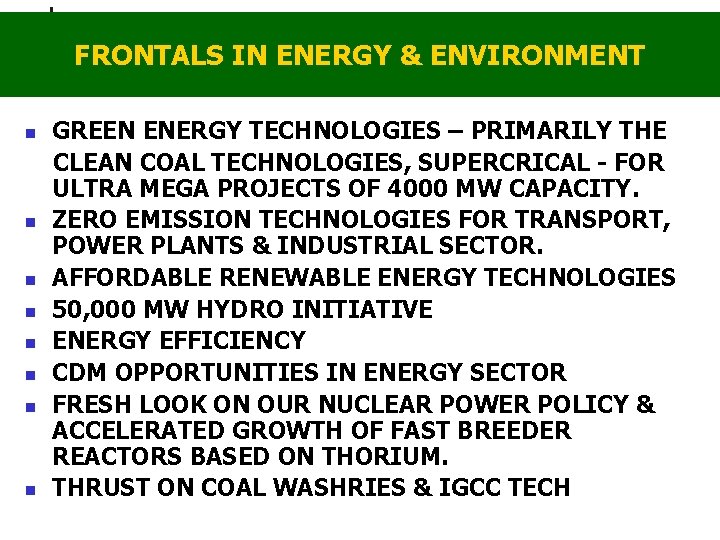

FRONTALS IN ENERGY & ENVIRONMENT n n n n GREEN ENERGY TECHNOLOGIES – PRIMARILY THE CLEAN COAL TECHNOLOGIES, SUPERCRICAL - FOR ULTRA MEGA PROJECTS OF 4000 MW CAPACITY. ZERO EMISSION TECHNOLOGIES FOR TRANSPORT, POWER PLANTS & INDUSTRIAL SECTOR. AFFORDABLE RENEWABLE ENERGY TECHNOLOGIES 50, 000 MW HYDRO INITIATIVE ENERGY EFFICIENCY CDM OPPORTUNITIES IN ENERGY SECTOR FRESH LOOK ON OUR NUCLEAR POWER POLICY & ACCELERATED GROWTH OF FAST BREEDER REACTORS BASED ON THORIUM. THRUST ON COAL WASHRIES & IGCC TECH

Low Carbon Economy on Sustainable Path n n n n Combating Climate Change – Nature’s Fury Solar for irrigation High Efficiency CNT Based PV Cells Hydrogen as Fuel for future Accelerated Program on Thorium based Nuclear Reactor Clean coal Technologies like SCR, IGCC Bio-fuels for Railways and Mass Transport Energy Security by 2020, Energy Independence by 2030 …. Reference: Address by President of India 14 th Aug 2005

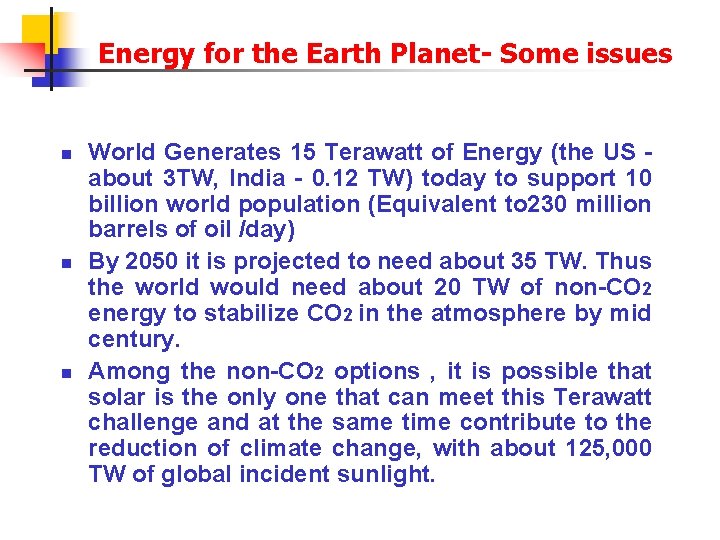

Energy for the Earth Planet- Some issues n n n World Generates 15 Terawatt of Energy (the US - about 3 TW, India - 0. 12 TW) today to support 10 billion world population (Equivalent to 230 million barrels of oil /day) By 2050 it is projected to need about 35 TW. Thus the world would need about 20 TW of non-CO 2 energy to stabilize CO 2 in the atmosphere by mid century. Among the non-CO 2 options , it is possible that solar is the only one that can meet this Terawatt challenge and at the same time contribute to the reduction of climate change, with about 125, 000 TW of global incident sunlight.

Energy for the Earth Planet- Some issues…Contd. n n n Key scenario for stabilizing CO 2 in the atmosphere during 21 st century turn on the viability of CO 2 sequestration. This implies CO 2 capture, storage and then pumping to aquifers, to stay for millennia. In any case minimum 10 TW is needed within a decade from Breeder Nuclear , CCTs and Renewables. Biomass CO 2 sequestration could also meet this challenge.

Prime Clean Coal Technology Options n n n Supercritical Power Plants Integrated Gasification Combined Cycle (IGCC) Power Plants Circulating Fluidized Bed Combustion (CFBC) Power Plants

Zero Emission Technology (ZET) This Technology Combines and Forms a Part of : n n n n Clean Coal Technologies Solid to liquid fuel technology GHG mitigation technology Clean Development Mechanism for power sector Non-CFC Refrigerant and Non-CFC Aerosol Propellant Technology Clean Aviation Fuel or ATF for aircraft Substitute LPG for domestic use.

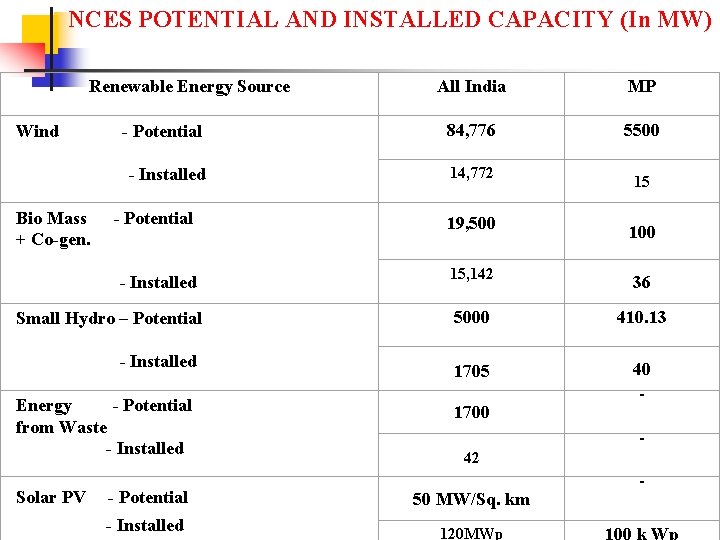

NCES POTENTIAL AND INSTALLED CAPACITY (In MW) Renewable Energy Source Wind Bio Mass + Co-gen. All India MP - Potential 84, 776 5500 - Installed 14, 772 15 - Potential 19, 500 - Installed 15, 142 36 Small Hydro – Potential 5000 410. 13 1705 40 - - Installed Energy - Potential from Waste - Installed Solar PV 1700 100 42 - Potential 50 MW/Sq. km - Installed 120 MWp -

Energy for the Earth Planet- Non-CO 2 Options n n n World Generates 15 Terawatt of Energy (the US - about 3 TW, India - 0. 12 TW) today to support 10 billion world population. This is Equivalent to 230 million barrels of oil /day. By 2050 it is projected to need about 35 TW. The world would need about 20 TW of non-CO 2 energy to stabilize CO 2 in the atmosphere by mid century. Among the non-CO 2 options , it is possible that solar is the only one that can meet this Terawatt challenge and at the same time contribute to the reduction of climate change, with about 125, 000 TW of global incident sunlight.

Energy for the Earth Planet- Non-CO 2 Options…Contd. n n n Key scenario for stabilizing CO 2 in the atmosphere during 21 st century turn on the viability of CO 2 sequestration. This implies CO 2 capture, storage and then pumping to aquifers, to stay for millennia. In any case minimum 10 TW is needed within a decade from Breeder Nuclear , Clean Coal Technologies (CCTs) and Renewables. Biomass CO 2 sequestration could also meet this challenge.

MAJOR TECHNOLOGICAL CHALLENGES n Technology Breakthroughs in areas like CO 2 capture & Clean Coal Technologies n Low cost Solar Photo Voltaic Cells. n Energy efficiency on top of the agenda. n Carbon trading in all Major Industries. n Future funding in Clean Technologies. n Evolving Base line methodologies for variety of Green & Clean technologies.

Green Energy solutions Ø Promote CCT in countries like India & China where coal is main stay fuel for Power Generation. Ø Increased use of Advanced Fossil Fuel Technology Ø Energy Farming Ø Energy Efficiency Ø Major shift towards Green Technologies Ø Adoption of Renewable Energy Technologies in Rural Sector

Issues before the house n n Technology break thoughts in the areas like CO 2 capture and Clean Coal Technologies Development of low cost solar photo voltaic cells Bringing Energy Efficiency & Energy Conservation on the top of the National Agenda Promotion of Carbon Trading on the strength of Energy Efficiency and Green Environment initiatives.

• Energy conservation along with low-or-no- carbon energy sources is the key to dealing with the global warming problem. • • Geothermal, Tidal, Solar and Wind will meet only a quarter of projected demand for electricity by 2050 for supporting 10 billion world populations. Though there are differing opinions of some technologists who favour nuclear fission, the only long term viable source of energy is thermo nuclear fusion. If there is any chance of Helium-3 fusion becoming a practical reality by 2050, we must better start now.

• There is serious under investment today in basic low carbon energy technologies such as photovoltaic materials for cost effective Solar Cells, membrane materials for better fuel cells and wide band-gap semiconductors for power electronics. • Capacity addition targets of no-carbon sources comprise of 6400 MW through Nuclear and 10700 MW through non-conventional sources by 2012. These are encouraging steps of Government of India. • Major thrust in CO 2 reduction in long term and sustainable basis world came through adoption of advanced technologies of Coal utilization for power generation like Supercritical/ Ultra-supercritical power cycle, Integrated Gasification Combined Cycle (IGCC), Fluidized bed combustion/Gasification and so on.

• Revamping of old polluting power plants and achieving energy conversion efficiencies in the range of 40 -45% by 2010 is the need of the hour. • India joined hands with global community of 16 countries in R&D efforts through Carbon Sequestration Leadership Forum (CSLF) in June 2003 and signed the charter.

• • India’s position with regard to Carbon Capture & Storage (CCS) is very clear. We don’t make any commitment at this stage regarding deployment of CCS technologies. India advocates very strongly the Carbon Capture & Sequestration. Some of the demo pilot projects include. - Pilot project on Geological CO 2 sequestration in basalt rock formation. The question of adoption of CCS will depend on this technology being cost effective. -Projects under DST sponsored National Program on Carbon Sequestration (NPCS)

ge ber A • • • stages under NPCS through the country. India has also joined ‘Methane to Markets’ Partnership along with Argentina, Brazil, China, Columbia, Italy, Japan, Mexico, Nigeria, Russia, Ukraine, UK in November 2004, for Hydrogasification of Coal & Biomass countries, Japan, China and south Korea in “International Partnership for hydrogen Economy (IPHE)” in November 2003.

• US and India have signed the framework protocol during April 2006 in New Delhi, for the “Future. Gen” project aiming to design develop built and operate first coal fired emission free power plant of 275 MW. A project involving IGCC + CO 2 capture. • The ITER- International Thermo Nuclear Experimental Reactor project is well on its way.

Pre-combustion de-carbonization is offering a promising technology for carbon capture. A typical example is coal gasification for production of synthetic Gas (Syn Gas) of CO and H 2. This CO and H 2 then react with steam to produce CO 2 and H 2. The CO 2 can be saturated and H 2 used in fuel cell. Other options include Oxy fuel technology involving recycling of CO 2 plus oxygen. Other options include IGCC, Supercritical and Underground coal mining which can reduce CO 2 emission through environmentally benign coal utilization for Power Generation.

Post combustion approach on an actual fossil fuel based Power Plant will be cost effective when CO 2 concentration is increased such as in an oxy fuel technology stated above. Likely options currently identifiable for CO 2 separation and capture include: Chemical & Physical absorption Pressure swing and electrical swing absorption Cryogenic Separation Capture in fuel cell & carbon Nano-tubes Biochemical approach

RGTU INITIATIVES Hybrid power plant of Wind, Solar & Biomass has been setup which will pave way for sustainable power supply for variety of biomass fuels & environment limitations. Biomass Gasifier (10 k. W) & Bio-diesel Plant (100 LPD) has been commissioned Green Energy Technology Center has been set up to focus on following areas: - Clean Coal Technology & CDM - Bio-fuels and bio-diesel Renewable Energy devices (hybrid) targeted to produce 1 MW Power for the campus - Energy Conservation & Management - CO 2 Sequestration & CO 2 capture technologies .

The pilot plant at RGPV is one of the Carbon Capture & Sequestration plant together with CO 2 conversion into Hydrogen, Methane & Biodiesel through Algae Route.

CO 2 Sequestration Plant

A SUSTAINABLE POWER DEVELOPMENT MODEL FOR INDIA n n Meeting Energy need of Rural India (about 100 Billion Units per annum) through use of Renewable Energy technologies like Biomass, Wind, Solar and their Hybrid. Use of Clean Coal Technologies (CCTs) & Green Power Engineering (About 500 billion Units) for Mega Power Generation for Cities, Industries and all other sectors of economy.

Summary n Coal is going to remain our main stay in Power Scenario. A synergy between Energy & Environment is need of the day as over 56% GHG Emission is from Energy Generating Systems, for which: • Accelerated growth of Power generation should be n • • n coupled with Environmental concern through adoption of Clean Coal Technologies Renewable Energy Technologies need a fillip particularly for Rural Sector Energy Conservation measures will go a long way in reducing Demand : Supply Gap ONCE THE PROJECT IS TAKEN UP UNDER CDM IT BECOMES SELF SUSTAINABLE.

THANK YOU
