Dr Reuven Gallant Jerusalem College of Technology All
- Slides: 173
להנדסה תוכנה מערכות תיכון אישי פרויקט ופיתוח Dr. Reuven Gallant Jerusalem College of Technology All Rights Reserved-Dr. Reuven Gallant 1
The SHADOW All Rights Reserved-Dr. Reuven Gallant 2
How did the SHADOW get its name? ? ? • 2 Theories All Rights Reserved-Dr. Reuven Gallant 3
Theory I • Sikorsky Helicopter Advanced Demonstrator of Operator Workload All Rights Reserved-Dr. Reuven Gallant 4
Theory II • Jimmy Durante’s radio program and nose! All Rights Reserved-Dr. Reuven Gallant 5
All Rights Reserved-Dr. Reuven Gallant 6
Dessert (if anyone has room( All Rights Reserved-Dr. Reuven Gallant 7
The SHADOW was top secret!!!! • Not members of the U. S. House of Representatives… • Not even Senators… – Got to see the SHADOW All Rights Reserved-Dr. Reuven Gallant 8
The SHADOW was top secret!!!! • But the King got to fly in it! All Rights Reserved-Dr. Reuven Gallant 9
4 Helicopters were sent to fetch the King from Boston All Rights Reserved-Dr. Reuven Gallant 10
It was raining, and the King decided that discretion was the better part of valour All Rights Reserved-Dr. Reuven Gallant 11
Our course Jonah’s course All Rights Reserved-Dr. Reuven Gallant 12

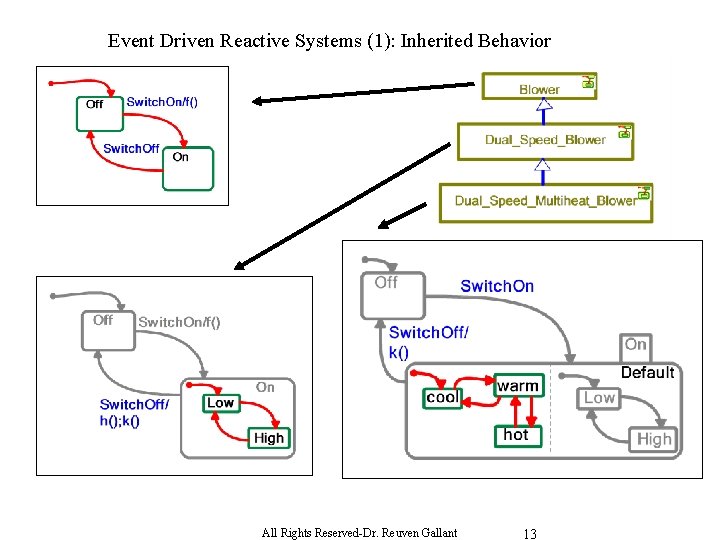

Event Driven Reactive Systems (1): Inherited Behavior All Rights Reserved-Dr. Reuven Gallant 13
Event Driven Reactive Systems (2) All Rights Reserved-Dr. Reuven Gallant 14
Event Driven Reactive Systems (3) All Rights Reserved-Dr. Reuven Gallant 15
Event Driven Reactive Systems(4) All Rights Reserved-Dr. Reuven Gallant 16
Event Driven Reactive Systems(5) All Rights Reserved-Dr. Reuven Gallant 17
What is a (good) Design? • “Those characteristics of a system …that are selected by a developer in response to the requirements. ” …Some (characteristics) will be implementation-related, … such as software units and logic…to satisfy the requirements. ” MIL-STD-498 • TNTWI-WHDI? • We will return to this question throughout the course All Rights Reserved-Dr. Reuven Gallant 18
Course Objective (1): to know that good design is להיות יותר חכם מפ'רדי All Rights Reserved-Dr. Reuven Gallant 19
Course Objective (2) To know the state of the art All Rights Reserved-Dr. Reuven Gallant 20
Course Objective (3) To take yourselves seriously All Rights Reserved-Dr. Reuven Gallant 21
Course Objective (4) To program with models All Rights Reserved-Dr. Reuven Gallant 22
What we will learn • to apply ECSAM to Object Oriented Development – to deepen understanding of Statecharts • solidify knowledge of C++ – and its relation to Software Design – acquire good coding style conventions (as exemplified in Rhapsody • to learn how to build and understand UML models – to learn how to work with executable modeling tools • to learn why and how to apply Design Patterns • to learn why and how to design systems with reactive objects • to learn a viable development process for small projects – Agile Software Development, extreme programming, test first programming, refactoring • to learn something about personal life management – Stephen Covey’s 7 Habits of Highly Effective People All Rights Reserved-Dr. Reuven Gallant 23
What’s confusing about this course? • Example-based teaching – this is good • Each example repeats much of what was learned earlier – this is good, provided you keep clear what is old and what is new. • Examples usually require more than one of the skills in the previous slide – thus we have to learn (a little bit) of everything at once – this can be confusing!!!! All Rights Reserved-Dr. Reuven Gallant 24
Course Syllabus-Software Design • • Review of ECSAM (only most relevant parts) Review and enrichment of statecharts Introduction to Object Orientation (OOAD) UML symbology and mapping to Code – exemplified with Rhapsody • UML real-time approaches – exercised in Rhapsody • • Class Design Principles Package Design Principles Non-realtime examples (weather station) Real-time examples All Rights Reserved-Dr. Reuven Gallant 25
Course Syllabus-Personal Software Process • Personal and Interpersonal Growth and Development (leadership and management) – The 7 Habits of Highly Effective People • Management and Leadership of Small Projects – e. Xtreme Programming • Teamwork – Pair Programming • Software Requirements Analysis in the Small – Use Cases • Building in Software Quality – Refactoring All Rights Reserved-Dr. Reuven Gallant 26
Course Topics • ECSAM in UML • Principles of Class Design • Principles of Package Design • Case Study with Design Patterns • Real Time Object Oriented Design • Model Driven Development • Executable Models (Rhapsody) All Rights Reserved-Dr. Reuven Gallant 27
סופי מבחן של דוגמא All Rights Reserved-Dr. Reuven Gallant 35

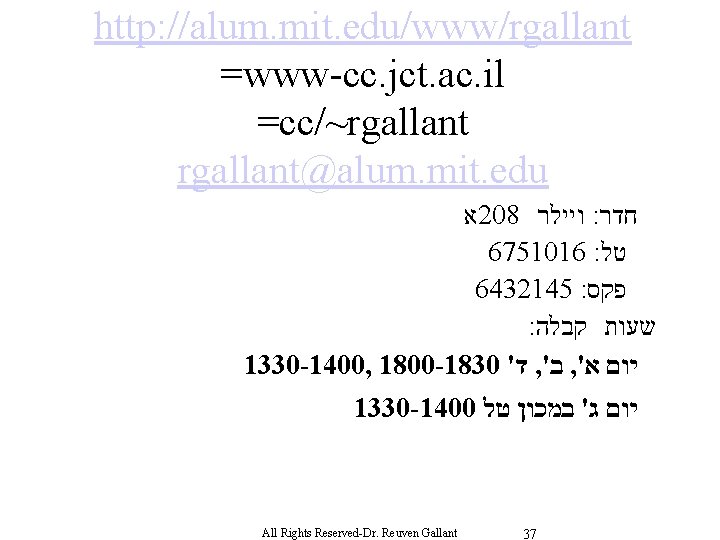

http: //alum. mit. edu/www/rgallant =www-cc. jct. ac. il =cc/~rgallant@alum. mit. edu א 208 ויילר : חדר 6751016 : טל 6432145 : פקס : קבלה שעות 1330 -1400, 1800 -1830 ' ד , ' ב , ' יום א 1330 -1400 יום ג' במכון טל All Rights Reserved-Dr. Reuven Gallant 37
Class symbol in UML(1) All Rights Reserved-Dr. Reuven Gallant 38
Class symbol in UML(2) All Rights Reserved-Dr. Reuven Gallant 39
Class symbol in UML(3): Class Name All Rights Reserved-Dr. Reuven Gallant 40
Class symbol in UML(4): Attribute All Rights Reserved-Dr. Reuven Gallant 41

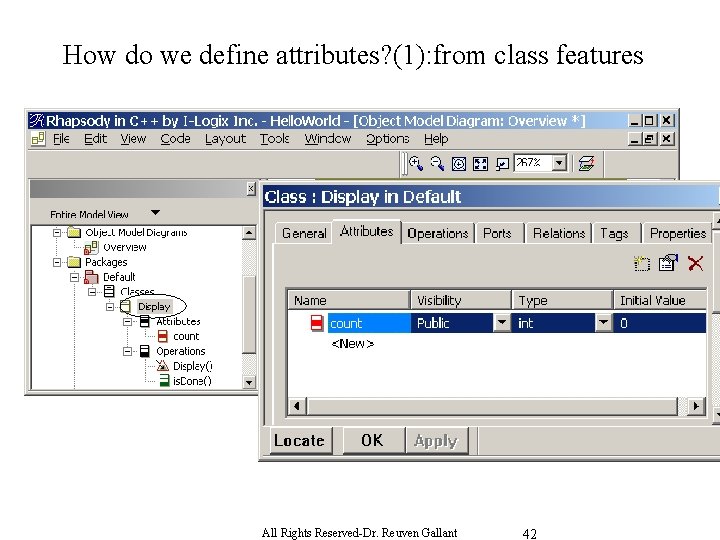

How do we define attributes? (1): from class features All Rights Reserved-Dr. Reuven Gallant 42
How do we define attributes? (2): from attribute features All Rights Reserved-Dr. Reuven Gallant 43
Class symbol in UML(5): operation All Rights Reserved-Dr. Reuven Gallant 44
How do we define operations? (1): from class features All Rights Reserved-Dr. Reuven Gallant 45
How do we define operations? (2): from operation features All Rights Reserved-Dr. Reuven Gallant 46
How do we define operations? (3): from operation features All Rights Reserved-Dr. Reuven Gallant 47
Generated Code for an Attribute • Save then edit the code for the Display class Initial Value Protected attribute Accessor Mutator All Rights Reserved-Dr. Reuven Gallant 48
All Rights Reserved-Dr. Reuven Gallant 49
Display -count : int +Display() +is. Done(): bool All Rights Reserved-Dr. Reuven Gallant 50
CG: CGGeneral: Generated. Code. In. Browser All Rights Reserved-Dr. Reuven Gallant 51
Class Source Files // File Display. h #ifndef Display_H #define Display_H class Display { public: Display(); ……. . }; #endif // File Display. cpp #include "Display. h" Display: : Display() { //#[ operation Display() cout << "Hello World" << endl; //#] } …… All Rights Reserved-Dr. Reuven Gallant 52
What is a component? Name Scope Executable All Rights Reserved-Dr. Reuven Gallant 53
What is a Configuration(1)? Name Current configuration All Rights Reserved-Dr. Reuven Gallant 54
What is a Configuration(2)? : Initial Instance All Rights Reserved-Dr. Reuven Gallant 55
What is a Configuration(3)? : ”Settings” Instrumentation Environment All Rights Reserved-Dr. Reuven Gallant 56
What is a Package in UML(1)? All Rights Reserved-Dr. Reuven Gallant 57
What is a Package in UML(2)? All Rights Reserved-Dr. Reuven Gallant 58
What is a reactive object? : Simple Statechart actions default transition timeout state condition connector transition guards terminator All Rights Reserved-Dr. Reuven Gallant 59

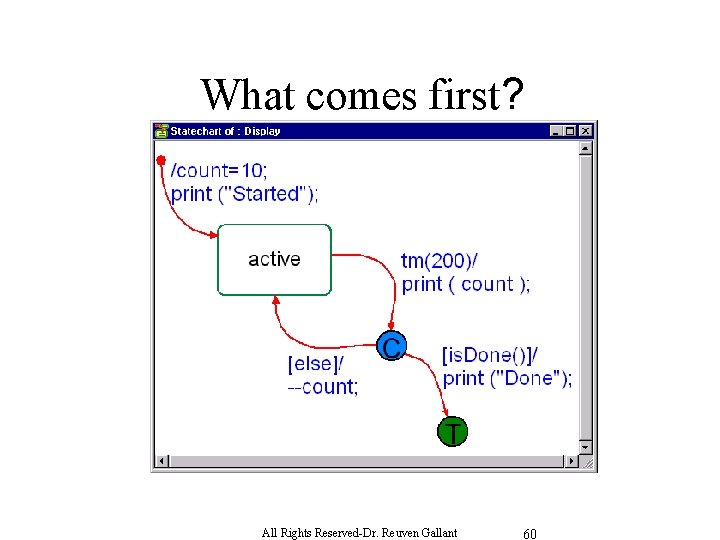

What comes first? All Rights Reserved-Dr. Reuven Gallant 60
Sequence Diagram before execution: What We Expect All Rights Reserved-Dr. Reuven Gallant 61
Animated Sequence Diagram: Animated What We Expect All Rights Reserved-Dr. Reuven Gallant 62
Useful View Buttons(1( All Rights Reserved-Dr. Reuven Gallant 63
Useful View Buttons(2( All Rights Reserved-Dr. Reuven Gallant 64
What is a reactive object? (3) Please enter OMTracer Command>> timestamp Please enter OMTracer Command>> go idle OMTracer (0: 00. 000) New instance Display[0]: Display created by main() OMTracer (0: 00. 000) main() Invoked Display[0]->Start Behavior OMTracer (0: 00. 000) Display[0] Entered State ROOT OMTracer (0: 00. 000) Display[0] Invoked print(string = started) OMTracer (0: 00. 000) Display[0]->print(string = started) Returned OMTracer (0: 00. 000) Display[0] Entered State ROOT. active OMTracer (0: 00. 000) Display[0] set tm(200) at ROOT. active OMTracer (0: 00. 000) Display[0]->Start Behavior Returned Executable is Idle All Rights Reserved-Dr. Reuven Gallant 65

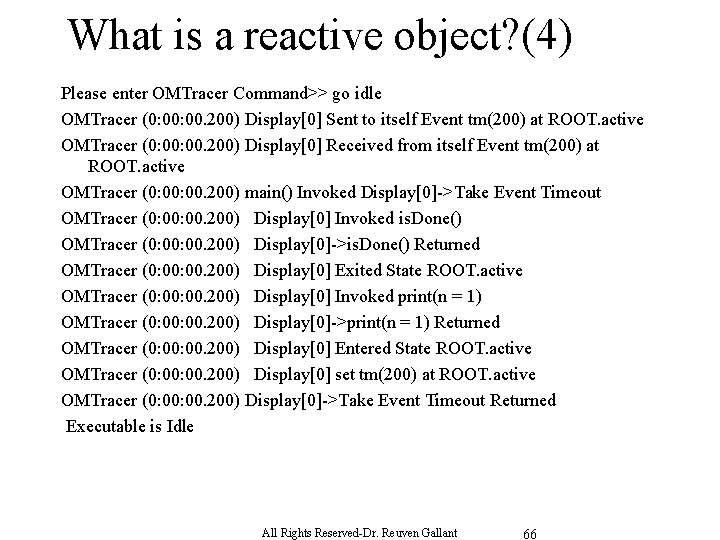

What is a reactive object? (4) Please enter OMTracer Command>> go idle OMTracer (0: 00. 200) Display[0] Sent to itself Event tm(200) at ROOT. active OMTracer (0: 00. 200) Display[0] Received from itself Event tm(200) at ROOT. active OMTracer (0: 00. 200) main() Invoked Display[0]->Take Event Timeout OMTracer (0: 00. 200) Display[0] Invoked is. Done() OMTracer (0: 00. 200) Display[0]->is. Done() Returned OMTracer (0: 00. 200) Display[0] Exited State ROOT. active OMTracer (0: 00. 200) Display[0] Invoked print(n = 1) OMTracer (0: 00. 200) Display[0]->print(n = 1) Returned OMTracer (0: 00. 200) Display[0] Entered State ROOT. active OMTracer (0: 00. 200) Display[0] set tm(200) at ROOT. active OMTracer (0: 00. 200) Display[0]->Take Event Timeout Returned Executable is Idle All Rights Reserved-Dr. Reuven Gallant 66
What is a reactive object? (5) Please enter OMTracer Command>> go idle OMTracer (0: 00. 400) Display[0] Sent to itself Event tm(200) at ROOT. active OMTracer (0: 00. 400) Display[0] Received from itself Event tm(200) at ROOT. active OMTracer (0: 00. 400) main() Invoked Display[0]->Take Event Timeout OMTracer (0: 00. 400) Display[0] Invoked is. Done() OMTracer (0: 00. 400) Display[0]->is. Done() Returned OMTracer (0: 00. 400) Display[0] Exited State ROOT. active OMTracer (0: 00. 400) Display[0] Invoked print(n = 0) OMTracer (0: 00. 400) Display[0]->print(n = 0) Returned OMTracer (0: 00. 400) Display[0] Invoked print(string = Done) OMTracer (0: 00. 400) Display[0]->print(string = Done) Returned OMTracer (0: 00. 400) Display[0] Reached Termination State OMTracer (0: 00. 400) Display[0]->Take Event Timeout Returned OMTracer (0: 00. 400) main() Invoked Display[0]->~Display() OMTracer (0: 00. 400) Display[0]->~Display() Returned OMTracer (0: 00. 400) Instance Display[0] of class Display deleted by main() Executable is Idle All Rights Reserved-Dr. Reuven Gallant 67
What is a Method? (1( “The design of software is essentially a creative operation, but the designer of a large system usually requires at least guidelines, and preferably a method. . . ” (David Budgen, Introduction to Software Design, SEI Curriculum Module, SEI-CM-2 -2. 1, January 1989, p. 1. ) Method: (Techniques, notation, heuristics, quality factors) All Rights Reserved-Dr. Reuven Gallant 68
What is a Method? (2( Method: (Techniques, notation, heuristics, quality factors) EXAMPLE OF METHOD AND ITS COMPONENTS METHOD: Real-Time Object Oriented Process for Embedded Systems (ROPES) TECHNIQUE: Dependency Inversion Principle (DIP) NOTATION: Unified Modeling Language HEURISTICS: 1. Identify Use Cases and Draw Use Case Diagram 2. Draw Statechart for each Use Case 3. Draw Black Box Scenario Sequence Diagram(s) for each Use Case. 4. Propose initial architecture, draw Object Model Diagram 5. Map Black Box Scenarios to White box and draw sequence diagrams. 6. Perform strategic closure analysis 7. Enhance the design to support strategic closure. 8. … QUALITY FACTORS: Open Closed Principle (OCP), … All Rights Reserved-Dr. Reuven Gallant 69
Where do quality factors come from? • Quality is not a matter of aesthetics – quality is axiology • Quality must be derived from a process goal – axiology is the chambermaid of teleology • The teleos of object oriented technolgy is effective management of unstable requirements All Rights Reserved-Dr. Reuven Gallant 70

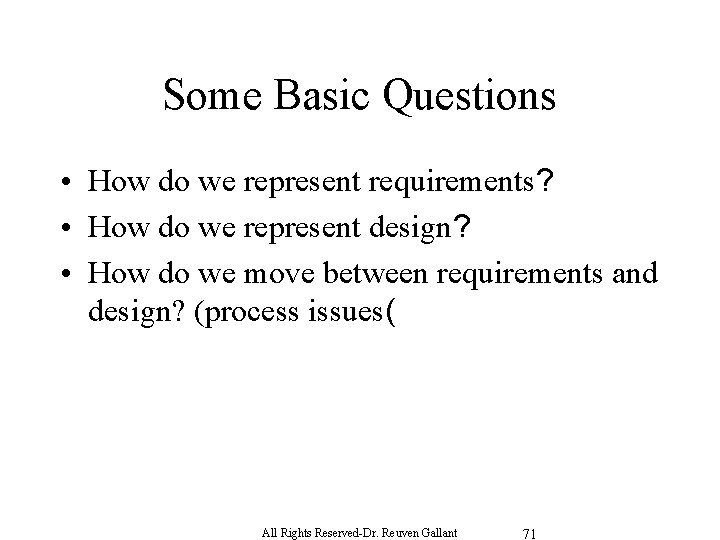

Some Basic Questions • How do we represent requirements? • How do we represent design? • How do we move between requirements and design? (process issues( All Rights Reserved-Dr. Reuven Gallant 71
Answers from the Structured World (1( Requirements Model (DFD) A C All Rights Reserved-Dr. Reuven Gallant B 72
Answers from the Structured World (2( Alternative Designs (Structure Chart) B A C C C A BOSS C B A All Rights Reserved-Dr. Reuven Gallant B 73
Answers from the Structured World (2( Alternative Designs (Structure Charts) B A C C C A BOSS C B A All Rights Reserved-Dr. Reuven Gallant B 74
ECSAM Review (1( All Rights Reserved-Dr. Reuven Gallant 75

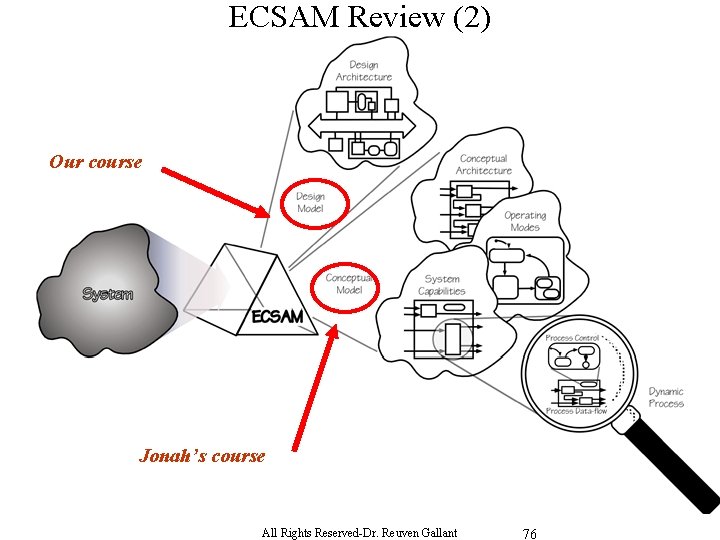

ECSAM Review (2) Our course Jonah’s course All Rights Reserved-Dr. Reuven Gallant 76
How do we do it in OO? (1): UML Object Model Diagram if Telephone System corresponds to ECSAM System in its Environment Chart All Rights Reserved-Dr. Reuven Gallant 77

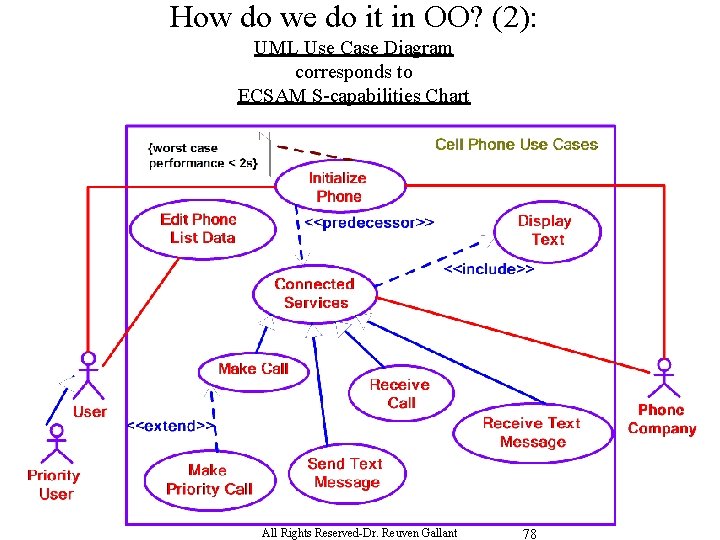

How do we do it in OO? (2): UML Use Case Diagram corresponds to ECSAM S-capabilities Chart All Rights Reserved-Dr. Reuven Gallant 78
How do we do it in OO? (3): UML/Rhapsody Statechart of “Make Call” Use Case corresponds to ECSAM S-capability Control Chart All Rights Reserved-Dr. Reuven Gallant 79
How do we do it in OO? (4): UML/Rhapsody Sequence Diagram of ‘sunny day’ Scenario of “Initialize Phone” Use Case corresponds to ECSAM Operational Scenario All Rights Reserved-Dr. Reuven Gallant 80
How do we do it in OO? (5): UML/Rhapsody Sequence Diagram of ‘Failure’ Scenario of “Initialize Phone” Use Case corresponds to ECSAM Operational Scenario All Rights Reserved-Dr. Reuven Gallant 81
How do we do it in OO? (6) Use case: Make Call (from Requirements Document) Scenario: Successful connection 1. User presses the digit buttons to enter the phone number. 2. For each digit, the display is updated to add the digit to the phone number. 3. For each digit, the dialer generates the corresponding tone and emits it from the speaker. 4. User presses “Send” 5. The “in use” indicator is illuminated on the display 6. The cellular radio establishes a connection to the network. 7. The accumulated digits are sent to the network. 8. The connection is made to the called party. All Rights Reserved-Dr. Reuven Gallant 82
Problem Domain Model: Composite All Rights Reserved-Dr. Reuven Gallant 83
Composition in Browser All Rights Reserved-Dr. Reuven Gallant 84
Problem Domain Model: Composite All Rights Reserved-Dr. Reuven Gallant 85
Composite in Browser All Rights Reserved-Dr. Reuven Gallant 86
Dynamic Requirements Model (Collaboration Diagram) All Rights Reserved-Dr. Reuven Gallant 87
Dynamic Requirements Model (Sequence Diagram Version) All Rights Reserved-Dr. Reuven Gallant 88
Reconcilation of Static and Dynamic Model 1 its. Display All Rights Reserved-Dr. Reuven Gallant 89
Reconcilation of Static and Dynamic Model 1 its. Display All Rights Reserved-Dr. Reuven Gallant 90
Initial Object Model (Design(? 1 its. Display All Rights Reserved-Dr. Reuven Gallant 91
Designing for Unstable Requirements Class Design Principles Open-Closed Principle (OCP) Liskov Substitution Principle (LSP) Dependency Inversion Principle (DIP) Interface Segregation Principle (ISP) Package Design Principles Reuse/Release Equivalence Principle (REP) Common Reuse Principle (CRP) Common Closure Principle (CCP) Acyclic Dependencies Principle (ADP) Stable Dependencies Principle (SDP) Stable Abstractions Principle (SAP) Design Metrics All Rights Reserved-Dr. Reuven Gallant 92

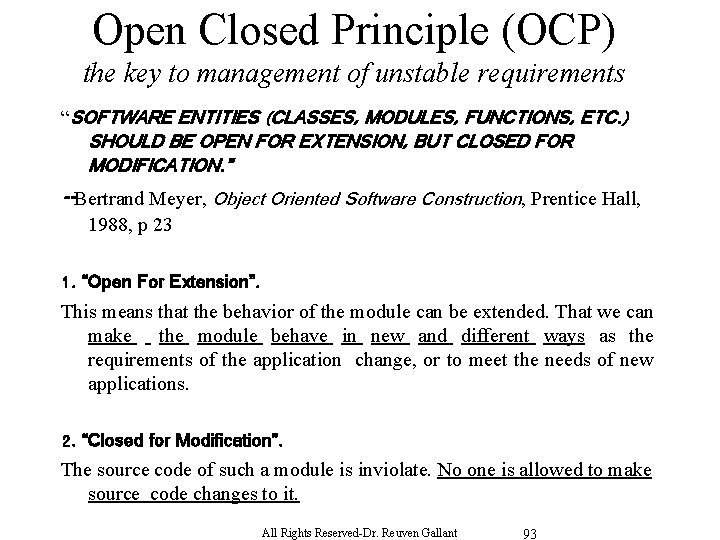

Open Closed Principle (OCP) the key to management of unstable requirements “SOFTWARE ENTITIES (CLASSES, MODULES, FUNCTIONS, ETC. ) SHOULD BE OPEN FOR EXTENSION, BUT CLOSED FOR MODIFICATION. ” --Bertrand Meyer, Object Oriented Software Construction, Prentice Hall, 1988, p 23 1. “Open For Extension”. This means that the behavior of the module can be extended. That we can make the module behave in new and different ways as the requirements of the application change, or to meet the needs of new applications. 2. “Closed for Modification”. The source code of such a module is inviolate. No one is allowed to make source code changes to it. All Rights Reserved-Dr. Reuven Gallant 93
Abstraction is the Key Closed Client Open Client All Rights Reserved-Dr. Reuven Gallant 94
(Object) ADAPTER SERVER pattern for decoupling Button from Dialer All Rights Reserved-Dr. Reuven Gallant 95
Embedded Avionic Software All Rights Reserved-Dr. Reuven Gallant 96
Interface Segregation Principle: Class Adapter Pattern All Rights Reserved-Dr. Reuven Gallant 97
Open Closed Principle (OCP) All Rights Reserved-Dr. Reuven Gallant 98
Open Closed Principle “SOFTWARE ENTITIES (CLASSES, MODULES, FUNCTIONS, ETC. ) SHOULD BE OPEN FOR EXTENSION, BUT CLOSED FOR MODIFICATION. ” Bertrand Meyer, Object Oriented Software Construction, Prentice Hall, 1988, p 23 לשינוי סגורה אלא , להרחבה פתוח מ נלקח הזאת ליחידה החומר רוב : הערה - Robert C. Martin, “The Open Closed Principle, ” www. objectmentor. com. All Rights Reserved-Dr. Reuven Gallant 99
How so? ● “Open For Extension”. – This means that the behavior of the module can be extended. That we can make the module behave in new and different ways as the requirements of the application change, or to meet the needs of new applications. ● “Closed for Modification”. – The source code of such a module is inviolate. No one is allowed to make source code changes to it. ● איך אפשר לשנות את ההתנהגות של מודול בלי לשנות את ( קוד המקור source code) ? ? All Rights Reserved-Dr. Reuven Gallant 100
Abstraction is the Key Closed Client Open Client All Rights Reserved-Dr. Reuven Gallant 101
The Shape Abstractionin C Listing 1 Procedural Solution to the Square/Circle Problem enum Shape. Type {circle, square}; struct Shape { Shape. Type its. Type; }; struct Circle { Shape. Type its. Type; double its. Radius; Point its. Center; }; struct Square { Shape. Type its. Type; double its. Side; Point its. Top. Left; }; // These functions are implemented elsewhere // void draw. Square(struct Square*) void draw. Circle(struct Circle*); typedef struct Shape *Shape. Pointer; void draw. All. Shapes(Shape. Pointer list[], int n) { int i; for (i=0; i<n; i++) { struct Shape* s = list[i]; switch (s->its. Type) { case square: draw. Square((struct Square*)s); break; case circle: draw. Circle((struct Circle*)s); break; }} All Rights Reserved-Dr. Reuven Gallant 102
The Shape Abstraction. OOD solution Listing 2 OOD solution to Square/Circle problem. class Shape { public: virtual void draw() const = 0; }; class Square : public Shape { public: virtual void draw() const; }; class Circle : public Shape { public: virtual void draw() const; }; void Draw. All. Shapes(Set<Shape*>& list) { for (Iterator<Shape*>i(list); i; i++) (*i)->draw(); } All Rights Reserved-Dr. Reuven Gallant 103
Run Time Type Identification (RTTI) Listing 9 RTTI violating the open-closed principle. class Shape {}; class Square : public Shape { private: Point its. Top. Left; double its. Side; friend Draw. Square(Square*); }; class Circle : public Shape { private: Point its. Center; double its. Radius; friend draw. Circle(Circle*); }; void draw. All. Shapes(Set<Shape*>& ss) { for (Iterator<Shape*>i(ss); i; i++) { Circle* c = dynamic_cast<Circle*>(*i); Square* s = dynamic_cast<Square*>(*i); if (c) draw. Circle(c); else if (s) draw. Square(s); } Listing 10 RTTI that does not violate the open-closed Principle. class Shape { public: virtual void draw() cont = 0; }; class Square : public Shape { // as expected. }; void draw. Squares. Only(Set<Shape*>& ss) { for (Iterator<Shape*>i(ss); i; i++) { Square* s = dynamic_cast<Square*>(*i); if (s) s->draw(); } All Rights Reserved-Dr. Reuven Gallant 104
Liskov Substitution Principle )LSP( All Rights Reserved-Dr. Reuven Gallant 105
LSP-What is it? “FUNCTIONS THAT USE POINTERS OR REFERENCES TO BASE CLASSES MUST BE ABLE TO USE OBJECTS OF DERIVED CLASSES WITHOUT KNOWING IT. ” The above is a paraphrase of the Liskov Substitution Principle (LSP). Barbara Liskov first wrote it as follows nearly 8 years ago: “What is wanted here is something like the following substitution property: If for each object o 1 of type S there is an object o 2 of type T such that for all programs P defined in terms of T, the behavior of P is unchanged when o 1 is substituted for o 2 then S is a subtype of T. ” [Barbara Liskov, “Data Abstraction and Hierarchy, ” SIGPLAN Notices, 23, 5 (May, 1988). ] All Rights Reserved-Dr. Reuven Gallant 106

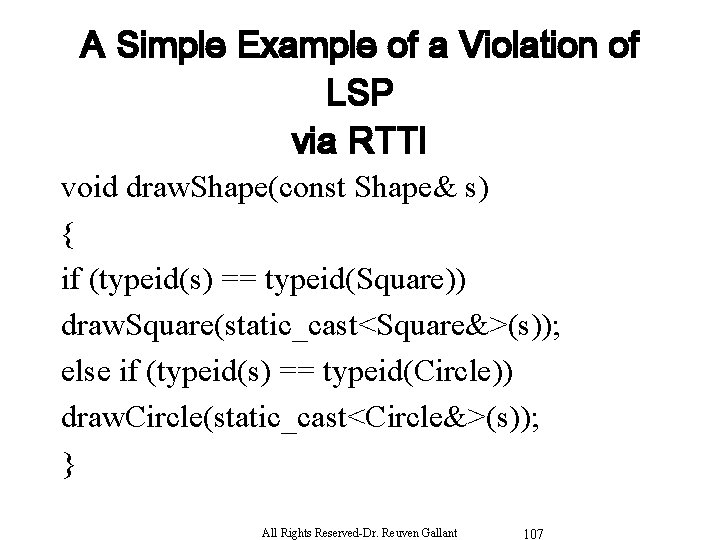

A Simple Example of a Violation of LSP via RTTI void draw. Shape(const Shape& s) { if (typeid(s) == typeid(Square)) draw. Square(static_cast<Square&>(s)); else if (typeid(s) == typeid(Circle)) draw. Circle(static_cast<Circle&>(s)); } All Rights Reserved-Dr. Reuven Gallant 107
Square and Rectangle: a More Subtle Violation. class Rectangle { public: void set. Width(double w) {its. Width=w; } void set. Height(double h) {its. Height=h; } double get. Height() const {return its. Height; } double get. Width() const {return its. Width; } private: double its. Width; double its. Height; }; All Rights Reserved-Dr. Reuven Gallant 108
What happens when we call f with an object that is a square? void Square: : set. Width(double w) { Rectangle: : set. Width(w); Rectangle: : Set. Height(w); } void Square: : set. Height(double h) { Rectangle: : set. Height(h); Rectangle: : set. Width(h); } Square s; s. set. Width(1); // Fortunately sets the //height to 1 too. s. set. Height(2); // sets width and //height to 2, good thing. But consider the following function: void f(Rectangle& r) { r. set. Width(32); // calls Rectangle: : Set. Width } All Rights Reserved-Dr. Reuven Gallant 109
Virtual to the rescue! class Rectangle { public: virtual void set. Width(double w) {its. Width=w; } virtual void set. Height(double h) {its. Height=h; } double get. Height() const {return its. Height; } double get. Width() const {return its. Width; } private: double its. Height; double its. Width; }; All Rights Reserved-Dr. Reuven Gallant 110
The Real Problem What does the client expect to happen when g is called with a square? void g(Rectangle& r) { r. set. Width(5); r. set. Height(4); assert(r. Get. Width() * r. Get. Height() == 20); } All Rights Reserved-Dr. Reuven Gallant 111
All Rights Reserved-Dr. Reuven Gallant 112
All Rights Reserved-Dr. Reuven Gallant 113
All Rights Reserved-Dr. Reuven Gallant 114
Fixed! template <class T> void Persistent. Set: : Add(const T& t) { its. Third. Party. Persistent. Set. Add(t); // This will generate a compiler error if t is // not derived from Persistent. Object. } As the listing above shows, any attempt to add an object that is not derived from Persistent. Object to a Persistent. Set will result in a compilation error. (The interface of the third party persistent set expects a Persistent. Object&). All Rights Reserved-Dr. Reuven Gallant 115
Application of Liskov Substitution Principle to Reactive Objects All Rights Reserved-Dr. Reuven Gallant 116
To Maximize State Inheritance Compliance with LSP • New States and transitions may be added freely in the child class · States and transitions defined by the parent cannot be deleted · Actions and activity lists may be changed (added or removed) for each transition and state · Actions and activities may be specialized in the subclass · Substates may not alter their enclosing superstate (including adding a new one) · Transitions may be retargeted to different states · Orthogonal components may be added to inherited states All Rights Reserved-Dr. Reuven Gallant 117
Dependency Inversion Principle )DIP( All Rights Reserved-Dr. Reuven Gallant 118
The Definition of a “Bad Design” • The TNTWI-WHDI Criterion – “Why’d you do it that way? ” “That’s not the way I would have done it” • But there is one set of criteria that I think all engineers will agree with. A piece of software that fulfills its requirements and yet exhibits any or all of the following three traits has a bad design. – It is hard to change because every change affects too many other parts of the system. (Rigidity) – When you make a change, unexpected parts of the system break. (Fragility) – It is hard to reuse in another application because it cannot be disentangled from the current application. (Immobility) All Rights Reserved-Dr. Reuven Gallant 119
Example: the “Copy” program Output. Device Listing 1. The Copy Program copy c c void copy() { int c; while ((c = Read. Keyboard()) != EOF) write. Printer(c); } Listing 2. The “Enhanced” Copy Program read Keyboard write Printer enum Output. Device {printer, disk}; void copy(output. Device dev) { int c; while ((c = read. Keyboard()) != EOF) if (dev == printer) write. Printer(c); else write. Disk(c); } All Rights Reserved-Dr. Reuven Gallant 120
Dependency Inversion The Copy Program: Listing 3: The OO Copy Program class IReader { public: virtual int read() = 0; }; class IWriter { public: virtual void Write(char) = 0; }; void Copier: : copy(IReader& r, I Writer& w) { int c; while((c=r. read()) != EOF) w. write(c); } Listing 4: Copy using stdio. h #include <stdio. h> #include Copy. h void Copier: : copy() { int c; while((c = getchar()) != EOF) putchar(c); } All Rights Reserved-Dr. Reuven Gallant 121
Case Study in Dependency Management copy_lowercase (courtesy of IPL—canata++) All Rights Reserved-Dr. Reuven Gallant 122
Concrete Classes All Rights Reserved-Dr. Reuven Gallant 123
Dependency on Private Variables!! //Hypothetical example of a stub for Keyboard: : Keyboard //Don’t do this in real life! #define STUB_KEYBOARD_PORTNUM 0 x 1002 Keyboard: : Keyboard() : port(STUB_KEYBOARD_PORTNUM) {} // //BAD IDEA! Depends on name and type of private data members All Rights Reserved-Dr. Reuven Gallant 124
Abstract Interface Classes All Rights Reserved-Dr. Reuven Gallant 125
Envelope-Letter Pattern All Rights Reserved-Dr. Reuven Gallant 126
Conditional Compilation All Rights Reserved-Dr. Reuven Gallant 127
The Dependency Inversion Principle: • What does it say? – HIGH LEVEL MODULES SHOULD NOT DEPEND UPON LOW LEVEL MODULES. BOTH SHOULD DEPEND UPON ABSTRACTIONS. – ABSTRACTIONS SHOULD NOT DEPEND UPON DETAILS SHOULD DEPEND UPON ABSTRACTIONS. • Does layering solve this: – “. . . all well structured object-oriented architectures have clearlydefined layers, with each layer providing some coherent set of services through a well-defined and controlled interface. ” • [Grady Booch, Object Solutions, Addison Wesley, 1996, p. 54. ] All Rights Reserved-Dr. Reuven Gallant 128
Not necessarily!! All Rights Reserved-Dr. Reuven Gallant 129
A Simple Example //file Button. h----------class Lamp; class Button { public : Button (Lamp& l); void detect(); private: bool get. Physical. State(); protected: Lamp * its. Lamp; }; // file lamp. h class Lamp { public: void turn. On(); void turn. Off(); }; // file Button. cpp------------#include “button. h” #include “lamp. h” void Button: : detect() { bool is. Button. On = get. Physical. State(); if (is. Button. On) its. Lamp->turn. On(); else its. Lamp->turn. Off(); }; All Rights Reserved-Dr. Reuven Gallant 130
// file: IButton. Server. h-----------{ public: virtual void turn. On() = 0; virtual void turn. Off() = 0; }; // file Button. h ----------------class IButton. Server; class Button { public: Button (IButton. Server& a. Button. Server); void detect(); virtual bool get. State() = 0; protected: IButton. Server * its. IButton. Server; }; // file Button. cpp -------------#include Button. h #include IButton. Server. h Button: : Button(IButton. Server& a. Button. Server) : its. IButton. Server (& a. Button. Server) { } void Button: detect() { bool is. Button. On = get. State(); if (is. Button. On) its. IButton. Server->turn. On(); else its. IButton. Server->turn. Off(); } //File Lamp. h-------------------#include “IButton. Server. h” class Lamp : public IButton. Server { public: virtual void turn. On(); virtual void turn. Off(); }; // File Button. Implement. h---------#include “Button. h” class Button. Implement : public Button { public: Button. Implementation (IButton. Server& a. Button. Server) virtual bool get. State(); }; // File Button. Implement. cpp---------Button. Implement: : Button. Implement (IButton. Server& a. Button. Server) : Button ( a. Button. Server) {} All Rights Reserved-Dr. Reuven Gallant 131
Extending the Abstraction Further What if Lamp is 3 rd Party software that doesn’t have turn. On() and turn. Off() operations? Button +detect(): void #get. State(): bool Button. Implement +get. State(): bool IButton. Server 1 its. IButton. Server +turn. On(): void +turn. Off(): void <<Interface>> Lamp. Adapter +turn. On(): void +turn. Off(): void 1 its. Lamp <<Usage>> All Rights Reserved-Dr. Reuven Gallant 132 Lamp +on(): void +off(): void
//File Lamp. Adapter. h----------------#include “IButton. Server” class Lamp; class Lamp. Adapter : public IButton. Server { public: Lamp. Adapter (Lamp & a. Lamp); virtual void turn. On(); virtual void turn. Off(); Lamp * its. Lamp; }; //File Lamp. Adapter. cpp------------#include “Lamp. Adapter. h” #include “Lamp. h” Lamp. Adapter: : Lamp. Adapter (Lamp & a. Lamp) : its. Lamp( & a. Lamp) {} Lamp. Adapter: : turn. On() {its. Lamp->on(); } Lamp. Adapter: : turn. Off() {its. Lamp->off(); } //File Lamp. h-------------------#include “Lamp. Adapter. h” class Lamp { public: Lamp (); virtual void on(); virtual void off(); }; //File Lamp. cpp------------------#include “Lamp. h” Lamp: : Lamp () { new Lamp. Adapter( *this); } All Rights Reserved-Dr. Reuven Gallant 133
Interface Segregation Principle )ISP( All Rights Reserved-Dr. Reuven Gallant 134
Interface Pollution Consider a security system. Door objects can be locked, unlocked, and know whether they are open or closed // file Door. h class Door { public : virtual void lock()=0; virtual void unlock()=0 ; virtual bool is. Open()=0; }; Now consider one such implementation. Timed. Door needs to sound an alarm when the door has been left open for too long. In order to do this, the Timed. Door object communicates with another object called Timer. // file Timer. Client. h class Timer. Client { public: virtual void time. Out ( ) = 0; }; // file Timer. h class Timer. Client; class Timer { public: void register_(int timeout, const Timer. Client & client) }; All Rights Reserved-Dr. Reuven Gallant 135
A Common Solution: Timer Client at top of hierarchy Let’s say we want to provide for cancellation of obsolete timeouts as per the listing below. Do we want to have to modify every derivative of Door? // file Timer. h class Timer. Client; class Timer { public: void register_ (int timeout, int time. Out. Id, Timer. Client & client) ; }; // file Timer. Client. h-------------------------class Timer. Client { public: virtual void time. Out(int time. Out. Id)=0; }; }; All Rights Reserved-Dr. Reuven Gallant 136
The Interface Segregation Principle (ISP) • CLIENTS SHOULD NOT BE FORCED TO DEPEND UPON INTERFACES THAT THEY DO NOT USE. All Rights Reserved-Dr. Reuven Gallant 137
Class Adapter Pattern Solution // file Timer. cpp #include “Timer. h” #include “Timer. Client. h” … // file Timer. h class Timer. Client; class Timer { public: void register_(int timeout, int time. Out. Id, const Timer. Client & client) }; // file Timer. Client. h class Timer. Client} public: virtual void time. Out(int timeout, int time. Out. Id; 0=( }; // file Door. h-------------class Door { public : virtual void lock()=0; virtual void unlock()=0 ; virtual bool is. Open()=0; }; // file Timed. Door. h----------#include “Door. h”; #include “Timer. Client. h”; class Timed. Door : public Door, public Timer. Client { public : virtual void lock(); virtual void unlock() ; virtual bool is. Open(); virtual void time. Out(int timeout, int time. Out. Id); }; All Rights Reserved-Dr. Reuven Gallant 138
Object Adapter Pattern Solution: Delegation // file Timed. Door. h-------#include Door. h class Door : public Door { public : virtual void lock()=0; virtual void unlock()=0 ; virtual bool is. Open()=0; virtual void sound. Alarm()=0; }; // file Timed. Door. cpp------#include Timed. Door. h class Door : public Door { public : virtual void lock()=0; virtual void unlock()=0 ; virtual bool is. Open()=0; virtual void sound. Alarm()=0; }; All Rights Reserved-Dr. Reuven Gallant 139
Package Design Principles All Rights Reserved-Dr. Reuven Gallant 140
Review: Class Design Principles 1. The Open Closed Principle. (OPC) a software module that is designed to be reusable, maintainable and robust must be extensible without requiring change. Such modules can be created in C++ by using abstract classes. The algorithms embedded in those classes make use of pure virtual functions and can therefore be extended by deriving concrete classes that implement those pure virtual function in different ways. The net result is a set of functions written in abstract classes that can be reused in differ-ent detailed contexts and are not affected by changes to those contexts. 2. The Liskov Substitution Principle. (LSP) Sometimes known as “Design by Contract”. This principle describes a system of constraints for the use of public inheritance in C++. The principle says that any function which uses a base class must not be confused when a derived class is substituted for the base class. This article showed how difficult this principle is to conform to, and described some of the subtle traps that the software designer can get into that affect reusability and maintainability. 3. The Dependency Inversion Principle. (DIP) This principle describes the overall structure of a well designed objectoriented application. The principle states that the modules that implement high level policy should not depend upon the modules that implement low level details. Rather both high level policy and low level details should depend upon abstractions. When this principle is adhered to, both the high level policy modules, and the low level detail modules will be reusable and maintainable. 4. The Interface Segregation Principle. (ISP) This principle deals with the disadvantages of “fat” interfaces. Classes that have “fat” interfaces are classes whose interfaces are not cohesive. In other words, the interfaces of the class can be broken up into groups of member functions. Each group serves a different set of clients. Thus some clients use one group of member functions, and other clients use the other groups. The ISP acknowledges that there are objects that require non-cohesive interfaces; however it suggests that clients should not know about them as a single class. Instead, clients should know about abstract base classes that have cohesive inter-faces; and which are multiply inherited into the concrete class that describes the non-cohesive object. All Rights Reserved-Dr. Reuven Gallant 141
What is a Package? “A general purpose mechanism for organizing elements into groups. Packages may be nested within other packages. A system may be thought of as a single highlevel package, with everything else in the system contained in it. ” All Rights Reserved-Dr. Reuven Gallant 142

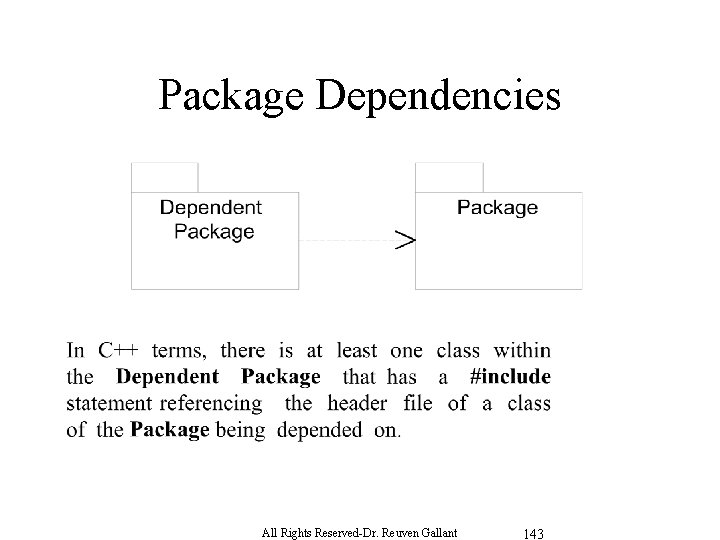

Package Dependencies All Rights Reserved-Dr. Reuven Gallant 143
Designing with Packages. • Packages allow us to reason about classes at a higher level of abstraction. But how should we partition classes to allocate them to packages? • What are the best partitioning criteria? • What are the relationships that exist between packages, and what design principles govern their use? • Should packages be designed before classes (Top down)? Or should classes be designed before packages (Bottom up)? • How are packages physically represented? In C++? In the development environment? • Once created, to what purpose will we put these packages? All Rights Reserved-Dr. Reuven Gallant 144
Package Design Principles The Reuse/Release Equivalence Principle (REP). THE GRANULE OF REUSE IS THE GRANULE OF RELEASE. ONLY COMPONENTS THAT ARE RELEASED THROUGH A TRACKING SYSTEM CAN BE EFFECTIVELY REUSED. THIS GRANULE IS THE PACKAGE. The Common Reuse Principle (CRP) THE CLASSES IN A PACKAGE ARE REUSED TOGETHER. IF YOU REUSE ONE OF THE CLASSES IN A PACKAGE, YOU REUSE THEM ALL. The Common Closure Principle (CCP) THE CLASSES IN A PACKAGE SHOULD BE CLOSED TOGETHER AGAINST THE SAME KINDS OF CHANGES. A CHANGE THAT AFFECTS A PACKAGE AFFECTS ALL THE CLASSES IN THAT PACKAGE. The Acyclic Dependencies Principle (ADP) THE DEPENDENCY STRUCTURE BETWEEN PACKAGES MUST BE A DIRECTED ACYCLIC GRAPH (DAG). THAT IS, THERE MUST BE NO CYCLES IN THE DEPENDENCY STRUCTURE. All Rights Reserved-Dr. Reuven Gallant 145
Methods for Breaking Cycles Dependency All Rights Reserved-Dr. Reuven Gallant 146
Package Design with Acyclic Dependencies All Rights Reserved-Dr. Reuven Gallant 147
Package Design with Cyclic Dependencies All Rights Reserved-Dr. Reuven Gallant 148
Weather Monitoring Station: Case Study This is a preliminary chapter of Object Oriented Analysis and Design with Applications, 2 d. ed. , Grady Booch, Robert C, Martin, James Newkirk. Copyright © 1998, by Addison Wesley Longman, Inc. No portion of this document may be reproduced without the written permission of Addison Wesley Longman, Inc. All Rights Reserved-Dr. Reuven Gallant 149
Requirements (1( Nimbus-LC Requirements Usage Requirements This system shall provide automatic monitoring of various weather conditions. Specifically, it must measure: • Wind speed and direction • Temperature • Barometric pressure • Relative Humidity • Wind chill • Dew point temperature The system shall also provide an indication of the current trend in the barometric pressure reading. The three possible values include stable, rising, and falling. For example, the current barometric pressure is 29. 95 inches of mercury (IOM) and falling. The system shall have a display which continuously indicates all measurements, as well as the current time and date. All Rights Reserved-Dr. Reuven Gallant 150
Requirements (2( 24 -Hour History Through the use of a touch screen the user may direct the system to display the 24 hour history of any of the following measurements: • Temperature • Barometric Pressure • Relative Humidity This history shall be presented to the user in the form a line chart (see Figure 3 -24) User Setup The system shall provide the following facilities to the user to allow the station to be configured during installation. • Setting the current time, date, and time zone. • Setting the units that will be displayed (english or metric) All Rights Reserved-Dr. Reuven Gallant 151
Requirements (3( All Rights Reserved-Dr. Reuven Gallant 152
Initial Sensor Model All Rights Reserved-Dr. Reuven Gallant 153
Making Periodic Measurments All Rights Reserved-Dr. Reuven Gallant 154
Making Periodic Measurments(2( All Rights Reserved-Dr. Reuven Gallant 155
Barometric Pressure Trend Where do we put it? Algorithm: If the pressure is rising or falling at a rate of at least 0. 06 inch per hour and the pressure change totals 0. 02 inch or more at the time of the observation [to be taken once every three hours], a pressure change remark shall be reported. - Federal Meteorological Handbook No. 1, Chapter 11, Section 11. 4. 6 (http: //www. nws. noaa. gov) All Rights Reserved-Dr. Reuven Gallant 156
Decoupling the User Interface and the Scheduler: Observer Pattern All Rights Reserved-Dr. Reuven Gallant 157
All Rights Reserved-Dr. Reuven Gallant 158
All Rights Reserved-Dr. Reuven Gallant 159

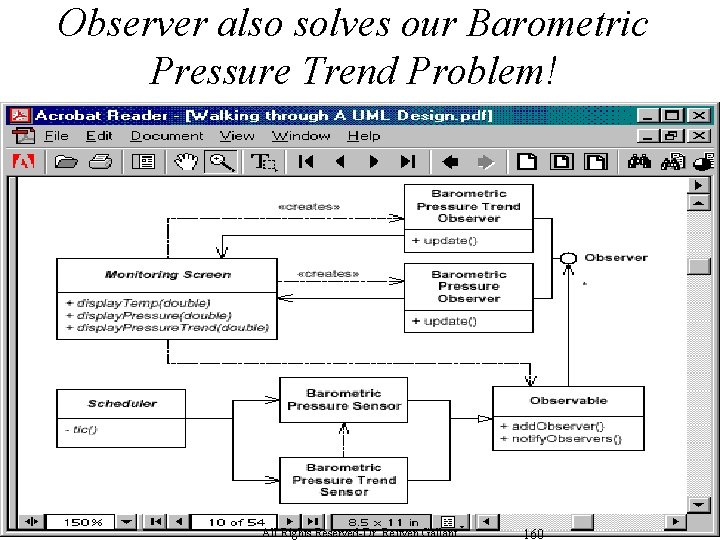

Observer also solves our Barometric Pressure Trend Problem! All Rights Reserved-Dr. Reuven Gallant 160
Okay, now let’s decouple scheduler from the sensors All Rights Reserved-Dr. Reuven Gallant 161
How do we structure the Sensors? use Template Method All Rights Reserved-Dr. Reuven Gallant 162
How do we separate hardware API from the system application? use Bridge pattern All Rights Reserved-Dr. Reuven Gallant 163
Creational Issues--hardware dependencies main does it public class Weather. Station { public static void main(String[] args) { Alarm. Clock ac = new Alarm. Clock(new Nimbus 1_0 Alarm. Clock); Temperature. Sensor ts =new Temperature. Sensor(ac, new Nimbus 1_0 Temperature. Sensor); Barometric. Pressure. Sensor bps = new Barometric. Pressure. Sensor(ac, new Nimbus 1_0 Barometric. Pressure. Sensor); Barometric. Pressure. Trend bpt = new Barometric. Pressure. Trend(bps) } } All Rights Reserved-Dr. Reuven Gallant 164
Abstract Factory does it better! All Rights Reserved-Dr. Reuven Gallant 165
Only Alarm. Clock (and the Tool. Kit) are hardware dependent All Rights Reserved-Dr. Reuven Gallant 166
But Sensor construction is only dependent on the Toolkit (no hardware dependence!) All Rights Reserved-Dr. Reuven Gallant 167
Getting the Tool. Kit to create the Alarm. Clock ala Bridge pattern All Rights Reserved-Dr. Reuven Gallant 168
Getting the Tool. Kit to create the Alarm. Clock ala Bridge pattern -the construction process All Rights Reserved-Dr. Reuven Gallant 169
Look ma, only one hand! All Rights Reserved-Dr. Reuven Gallant 170
Look ma, no hands! All Rights Reserved-Dr. Reuven Gallant 171
What’s wrong with this package structure? All Rights Reserved-Dr. Reuven Gallant 172
Doctor’s instructions • Pull main out of the Weather Station Class Package All Rights Reserved-Dr. Reuven Gallant 173
- Jérusalem jérusalem quitte ta robe de tristesse
- Reuven harrison
- Shlomi dolev
- Reuven feuerstein biografia
- Gallant the outsiders
- Unfathomable definition in the outsiders
- Ara gallant
- Bo gallant
- Parachute reflex
- Gallant
- Knight
- Gallant camper solutions
- Flemish clay meaning
- Bo gallant
- Name all rays
- Serpent pool jerusalem
- Evil merodach
- Jesus comes to jerusalem as king
- Nehemiah 3 gates
- Does jerusalem sit on 7 hills
- Jerusalem judea samaria
- Topography of jerusalem
- The four quarters of jerusalem
- Jerusalem lynn
- Jerusalem judea samaria
- Jerusalem judea samaria and the ends of the earth
- Plus haut plus loin que l'azur infini
- Ethiopia street jerusalem
- Muslim saladin retakes jerusalem
- Council of jerusalem (acts 15)
- Jerusalém povo de deus igreja santa
- Tochter zion eg
- Jesus enters jerusalem matthew
- Ice story jerusalem
- New jerusalem
- Jerusalem then and now
- Jerusalem focus israelipalestinian conflict
- [email protected]
- Happy coptic easter
- Tameteo jerusalem
- Thakur college of engineering and technology
- College of information sciences and technology
- Sappi paper
- College of engineering science and technology
- Nara images
- Animals that eat both plants and animals
- El camino college radiology
- Architectural technology sheridan
- Dublin institute of technology college of business
- Trent global college of technology and management
- Swedish college of engineering and technology
- Lee college process technology
- Kingsmead intranet
- Wake tech admissions
- Early college high school at midland college
- Grade 6 natural science term 3
- Midterm break by seamus heaney
- Poppy bruise meaning
- South park college know it all hippies
- Love all serve all
- Interventi sociali rivolti all'infanzia e all'adolescenza
- Above all powers above all kings
- I work all night i work all day
- All to one reduction
- Sistem all in all out
- Mesothenar
- Silent night holy night all is calm all is bright
- 馮定華神父
- All of you is more than enough for all of me
- 1012069
- What heights of love what depths of peace
- Above all powers
- Zara technology case study
- Year 7 food technology worksheets
- Conclusion for advantages and disadvantages essay
- New technology in wwi
- Cutting tools technology
- Work, exchange and technology
- Materials technology negative impacts
- Positive impacts of materials technology
- Positive effects of information technology
- Advantages of smart note taker
- Calc institute of technology
- Operation method sheet
- Thunderbolt technology
- Brewbaker technology magnet high school
- Weidmann fiber technology
- New technology in wwi
- Volvo information technology ab
- Vinno technology (suzhou) co. ltd
- Vidhyadeep institute of engineering and technology
- Vehicle technology directorate
- Waterford kamhlaba vacancies
- Talking typing teacher
- User acceptance of information technology
- Anti shock trousers
- University of science and technology of hanoi (usth)
- Unit 2 technology systems
- Categorizing materials
- Technology program management model
- Spike unist
- Sci technology work from home
- Fcc office of engineering and technology
- Conclusion of touch screen technology
- Bronze age technology
- Technology discontinuity
- Model roblyer
- Conclusion on ict
- Emerging technology synthesis
- Media literacy venn diagram
- Gsm network divided into
- Financial services technology consortium
- The boeing company
- Acct challenge course
- Technology transfer examples in philippines
- Technology student association motto
- Gmail
- S curve technology
- Win ccoa
- Definition of technology risk
- Ndia systems engineering conference
- Technology management process framework
- Technology life cycle management
- The giver lesson plans
- Office technology allows you to
- Technology in action
- History of communication technology timeline
- Technology life cycle
- Technology in ender's game
- Technology business management council
- Technology absorption
- Positive and negative impacts of materials technology
- Syslink technology
- Dixit surface technology
- Introduction to strategic hospitality technology investment
- Scste meghalaya
- Stanford
- Emotional disturbance assistive technology
- Sky x technologies
- Applications of skinput technology
- Six categories of technology
- Areas in technology
- Screenless display seminar report
- Underwater windmill seminar report
- International roadmap for semiconductors
- International roadmap for semiconductors
- Sekai technology
- Denouvo technology sa de cv
- Scot social construction of technology
- Mail @ stcu.int
- What is vmsat
- Sample design and technology gcse examination paper answers
- Sample design and technology gcse examination paper answers
- Www.technologystudent.com
- Location based computing
- Beringer technology group
- Rfid technology overview
- Canned fish retort
- Science technology university yemen
- Bsf technology
- Rainbow introduction
- Test permis hauturier
- Process control instrumentation technology
- Pressed steel water tanks
- Voltage classification
- Plasma display technology
- Open space technology principles
- Tripod pcb
- Orm ef
- Optical networking technology
- Ops technology invoicing
- Oklahoma alternative placement program
- Northwestern university information technology
- Image enhancement in night vision technology
