Dr Nabil Khouri MD Ph D ORAL CAVITY

Dr. Nabil Khouri MD, Ph. D ORAL CAVITY II

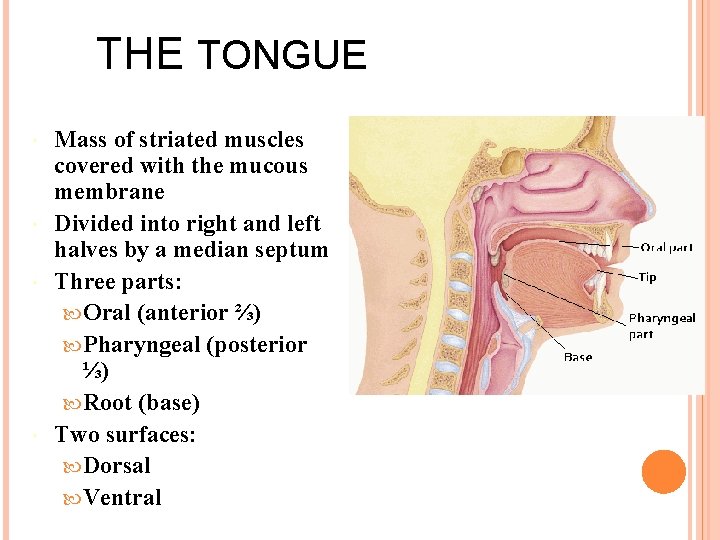

THE TONGUE Mass of striated muscles covered with the mucous membrane Divided into right and left halves by a median septum Three parts: Oral (anterior ⅔) Pharyngeal (posterior ⅓) Root (base) Two surfaces: Dorsal Ventral

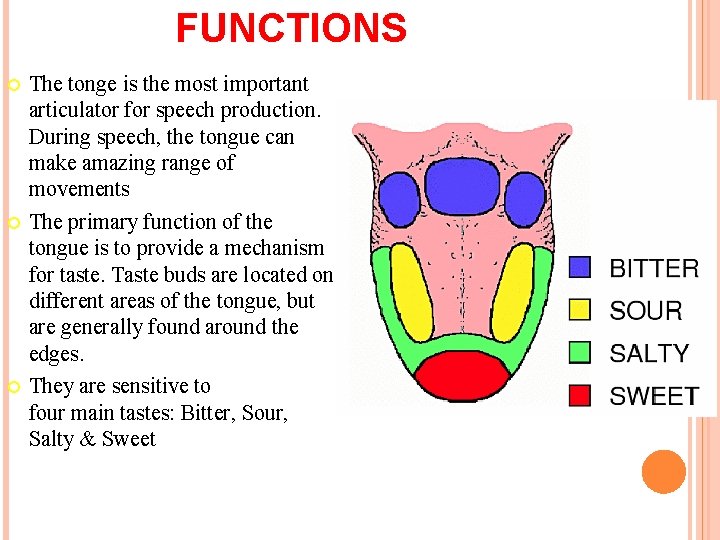

FUNCTIONS The tonge is the most important articulator for speech production. During speech, the tongue can make amazing range of movements The primary function of the tongue is to provide a mechanism for taste. Taste buds are located on different areas of the tongue, but are generally found around the edges. They are sensitive to four main tastes: Bitter, Sour, Salty & Sweet

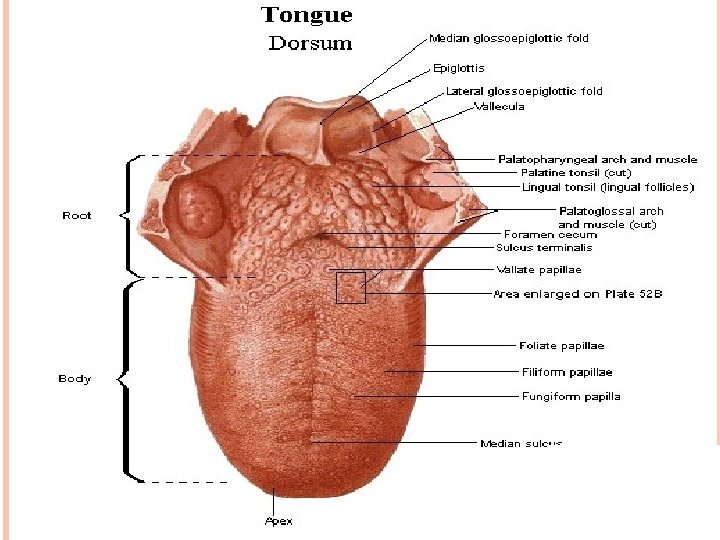

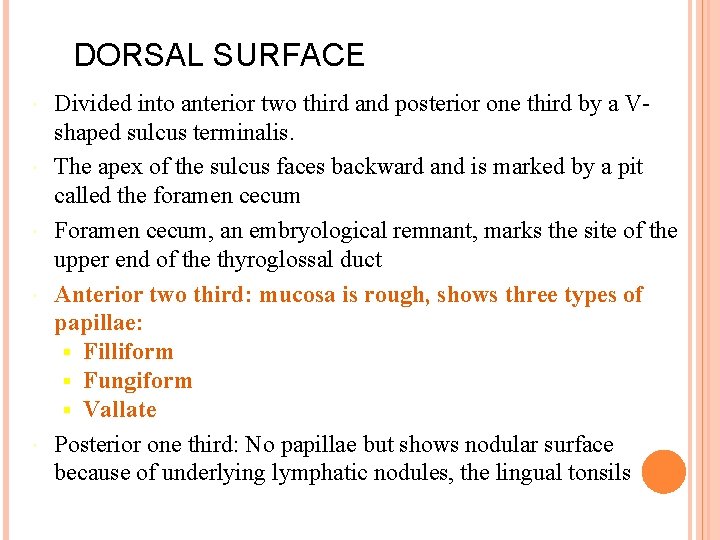

DORSAL SURFACE Divided into anterior two third and posterior one third by a Vshaped sulcus terminalis. The apex of the sulcus faces backward and is marked by a pit called the foramen cecum Foramen cecum, an embryological remnant, marks the site of the upper end of the thyroglossal duct Anterior two third: mucosa is rough, shows three types of papillae: § Filliform § Fungiform § Vallate Posterior one third: No papillae but shows nodular surface because of underlying lymphatic nodules, the lingual tonsils

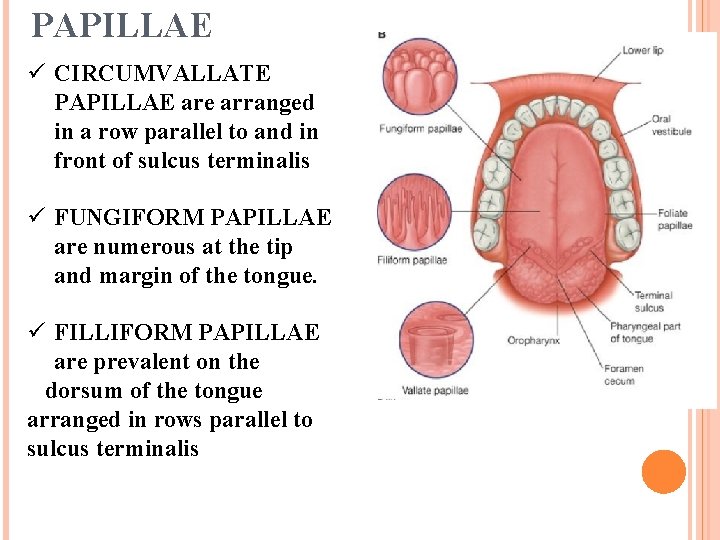

PAPILLAE ü CIRCUMVALLATE PAPILLAE are arranged in a row parallel to and in front of sulcus terminalis ü FUNGIFORM PAPILLAE are numerous at the tip and margin of the tongue. ü FILLIFORM PAPILLAE are prevalent on the dorsum of the tongue arranged in rows parallel to sulcus terminalis

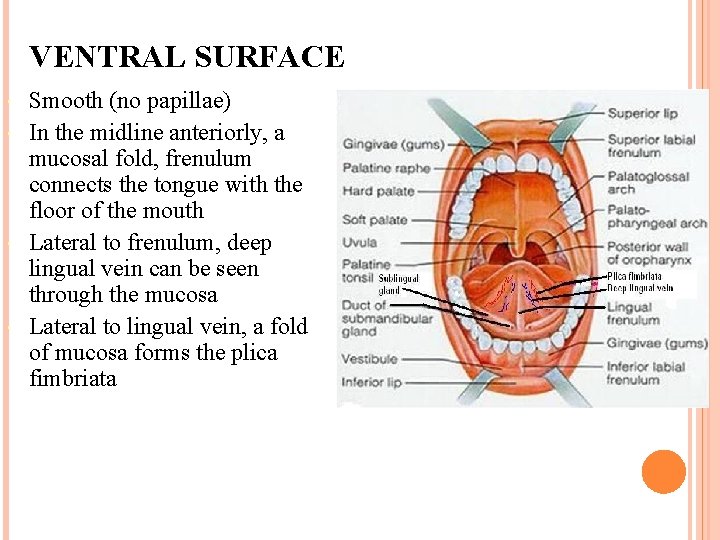

VENTRAL SURFACE Smooth (no papillae) In the midline anteriorly, a mucosal fold, frenulum connects the tongue with the floor of the mouth Lateral to frenulum, deep lingual vein can be seen through the mucosa Lateral to lingual vein, a fold of mucosa forms the plica fimbriata

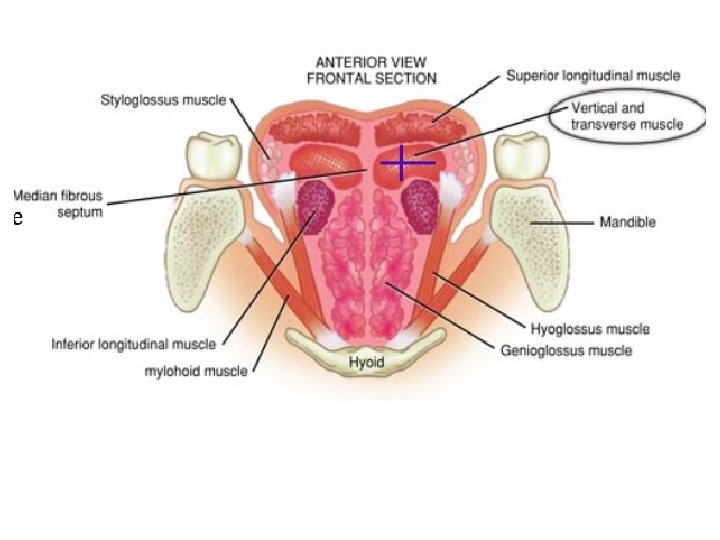

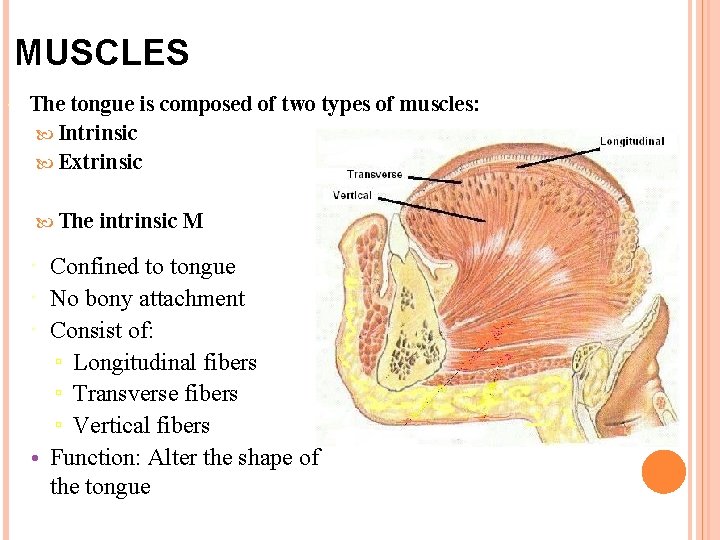

MUSCLES The tongue is composed of two types of muscles: Intrinsic Extrinsic The intrinsic M Confined to tongue No bony attachment Consist of: ▫ Longitudinal fibers ▫ Transverse fibers ▫ Vertical fibers • Function: Alter the shape of the tongue

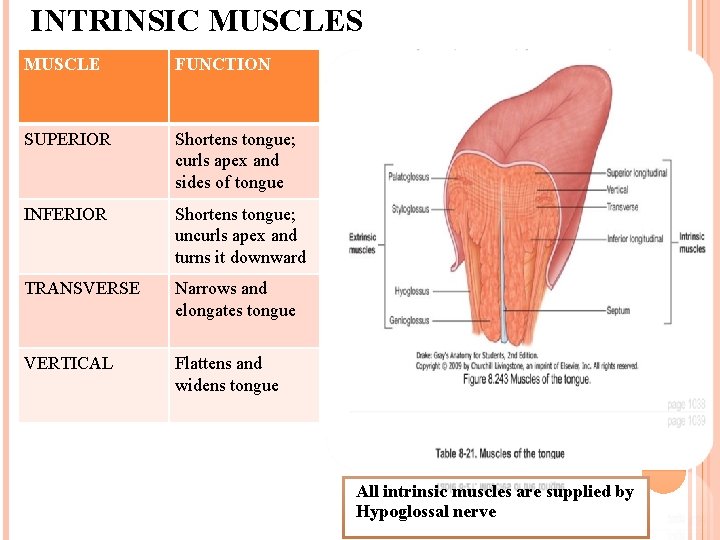

INTRINSIC MUSCLES OF THE TONGUE MUSCLE FUNCTION SUPERIOR Shortens tongue; curls apex and sides of tongue INFERIOR Shortens tongue; uncurls apex and turns it downward TRANSVERSE Narrows and elongates tongue VERTICAL Flattens and widens tongue All intrinsic muscles are supplied by Hypoglossal nerve

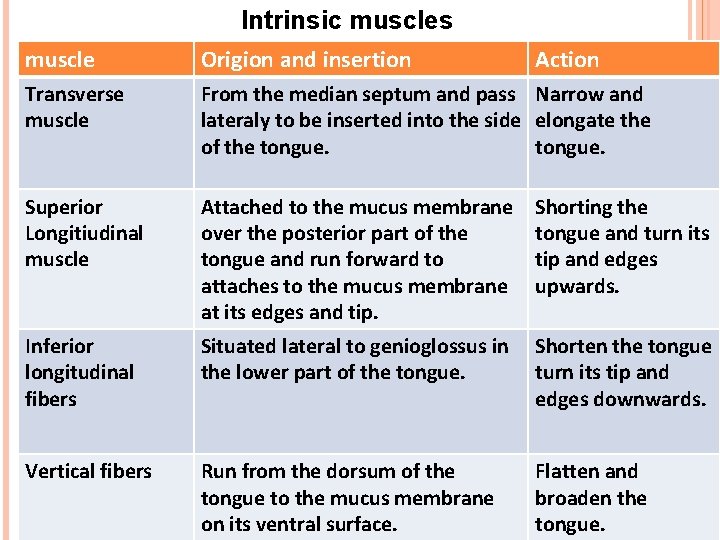

Intrinsic muscles muscle Origion and insertion Action Transverse muscle From the median septum and pass Narrow and lateraly to be inserted into the side elongate the of the tongue. Superior Longitiudinal muscle Attached to the mucus membrane over the posterior part of the tongue and run forward to attaches to the mucus membrane at its edges and tip. Shorting the tongue and turn its tip and edges upwards. Inferior longitudinal fibers Situated lateral to genioglossus in the lower part of the tongue. Shorten the tongue turn its tip and edges downwards. Vertical fibers Run from the dorsum of the tongue to the mucus membrane on its ventral surface. Flatten and broaden the tongue.

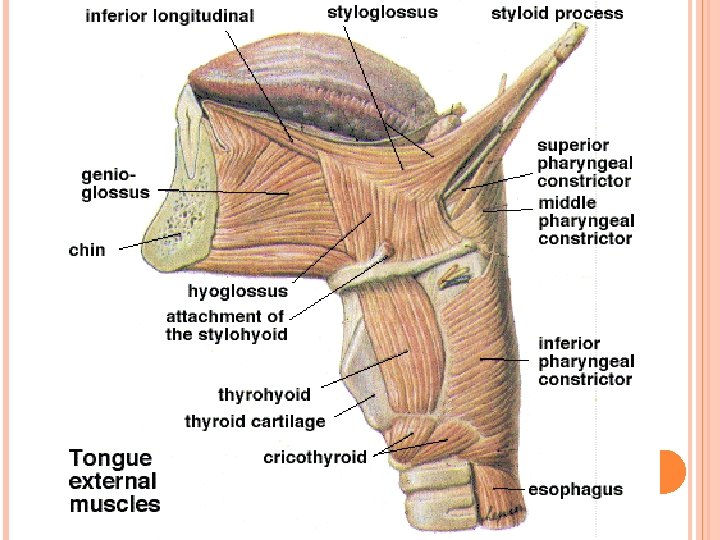

EXTRINSIC MUSCLES Connect the tongue to the surrounding structures: the soft palate and the bones (mandible, hyoid bone, styloid process) Include: Palatoglossus Genioglossus Hyoglossus Styloglossus Function: Help in movements of the tongue

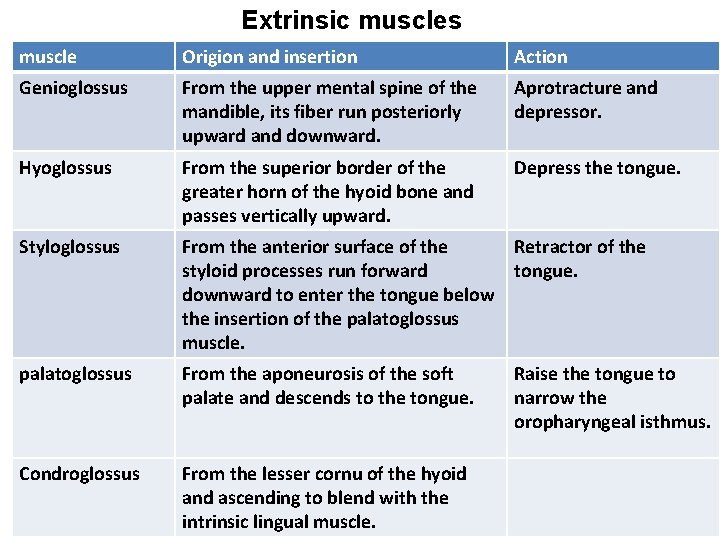

Extrinsic muscles muscle Origion and insertion Action Genioglossus From the upper mental spine of the mandible, its fiber run posteriorly upward and downward. Aprotracture and depressor. Hyoglossus From the superior border of the greater horn of the hyoid bone and passes vertically upward. Depress the tongue. Styloglossus From the anterior surface of the Retractor of the styloid processes run forward tongue. downward to enter the tongue below the insertion of the palatoglossus muscle. palatoglossus From the aponeurosis of the soft palate and descends to the tongue. Condroglossus From the lesser cornu of the hyoid and ascending to blend with the intrinsic lingual muscle. Raise the tongue to narrow the oropharyngeal isthmus.

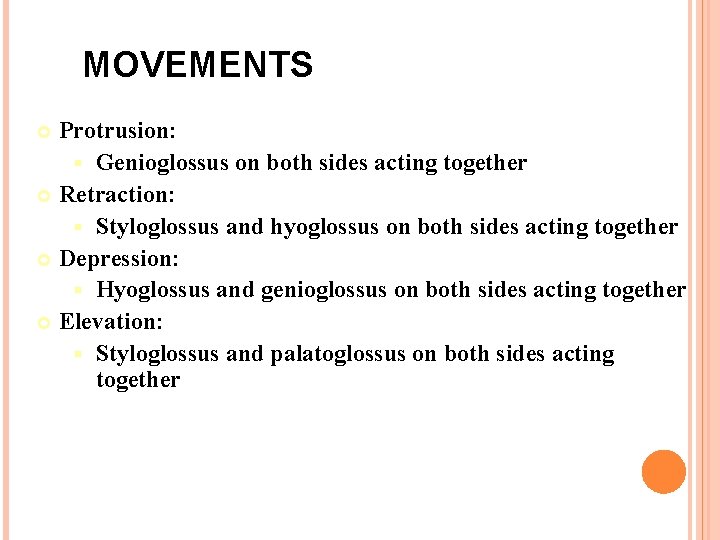

MOVEMENTS Protrusion: § Genioglossus on both sides acting together Retraction: § Styloglossus and hyoglossus on both sides acting together Depression: § Hyoglossus and genioglossus on both sides acting together Elevation: § Styloglossus and palatoglossus on both sides acting together

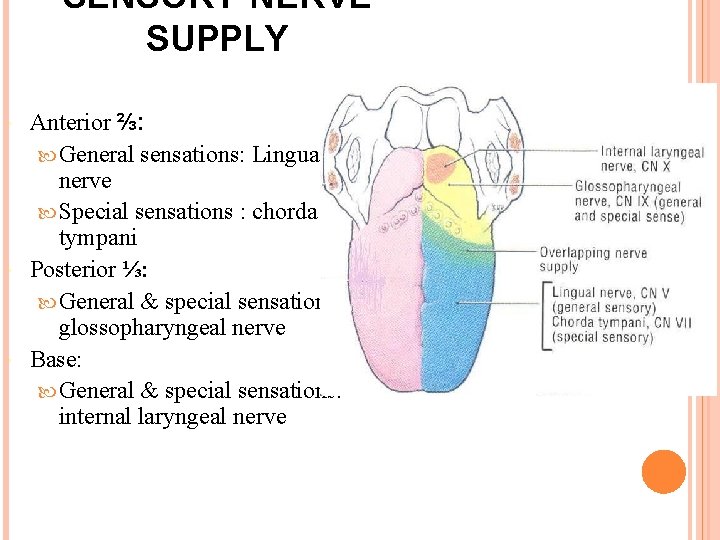

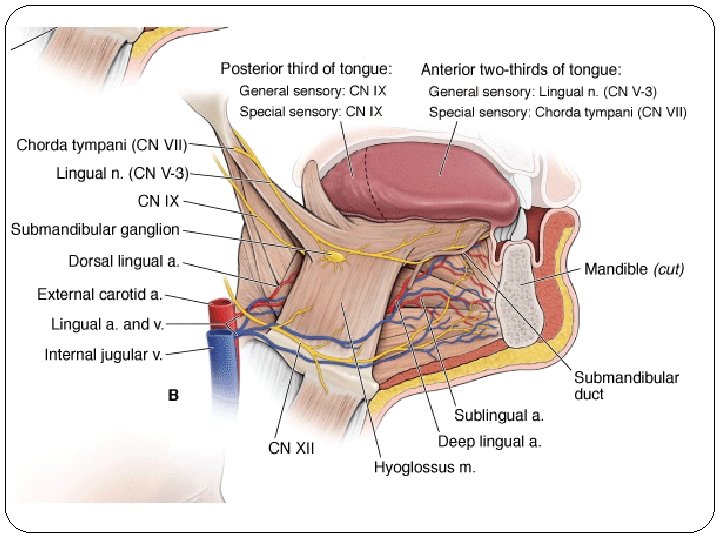

SENSORY NERVE SUPPLY Anterior ⅔: General sensations: Lingual nerve Special sensations : chorda tympani Posterior ⅓: General & special sensations: glossopharyngeal nerve Base: General & special sensations: internal laryngeal nerve

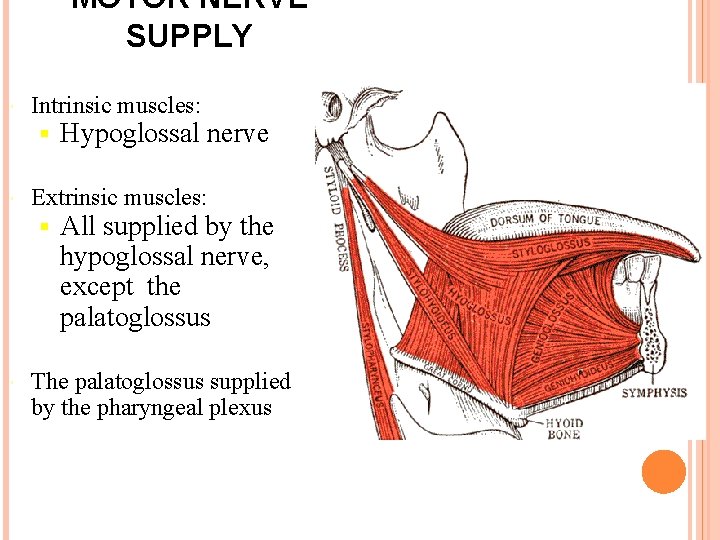

MOTOR NERVE SUPPLY Intrinsic muscles: § Hypoglossal nerve Extrinsic muscles: § All supplied by the hypoglossal nerve, except the palatoglossus The palatoglossus supplied by the pharyngeal plexus

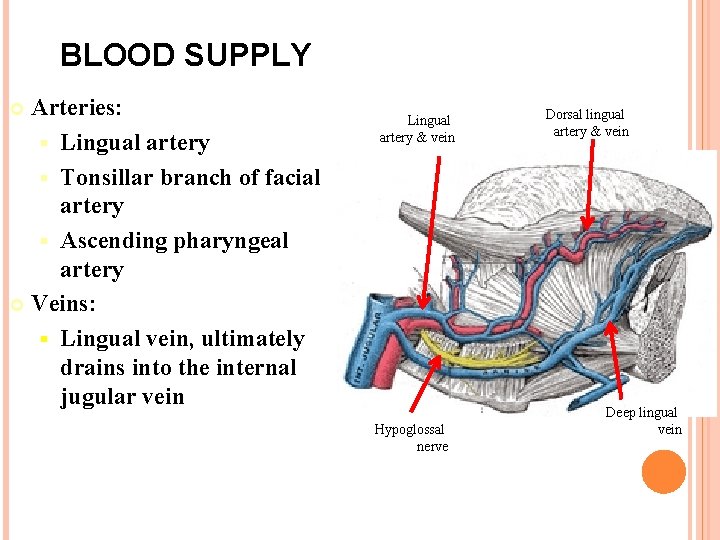

BLOOD SUPPLY Arteries: § Lingual artery § Tonsillar branch of facial artery § Ascending pharyngeal artery Veins: § Lingual vein, ultimately drains into the internal jugular vein Lingual artery & vein Hypoglossal nerve Dorsal lingual artery & vein Deep lingual vein

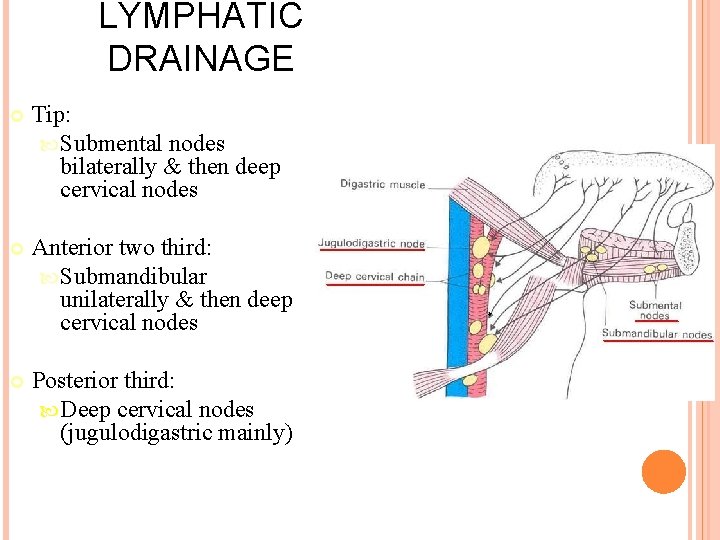

LYMPHATIC DRAINAGE Tip: Submental nodes bilaterally & then deep cervical nodes Anterior two third: Submandibular unilaterally & then deep cervical nodes Posterior third: Deep cervical nodes (jugulodigastric mainly)

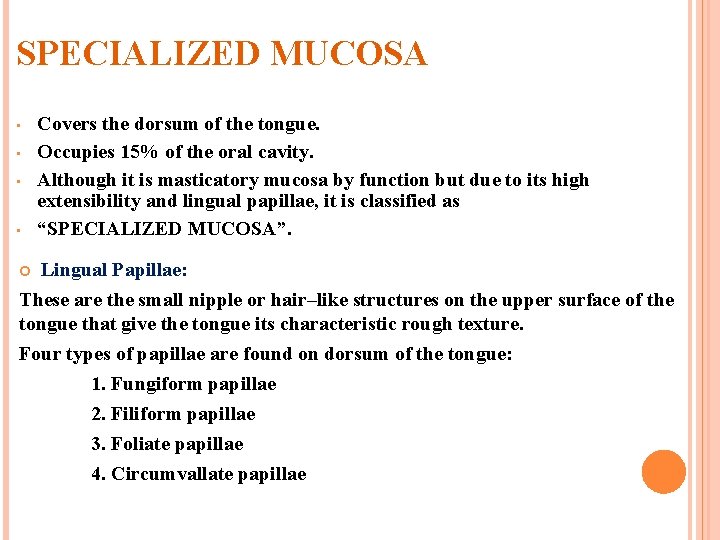

SPECIALIZED MUCOSA • • Covers the dorsum of the tongue. Occupies 15% of the oral cavity. Although it is masticatory mucosa by function but due to its high extensibility and lingual papillae, it is classified as “SPECIALIZED MUCOSA”. Lingual Papillae: These are the small nipple or hair–like structures on the upper surface of the tongue that give the tongue its characteristic rough texture. Four types of papillae are found on dorsum of the tongue: 1. Fungiform papillae 2. Filiform papillae 3. Foliate papillae 4. Circumvallate papillae

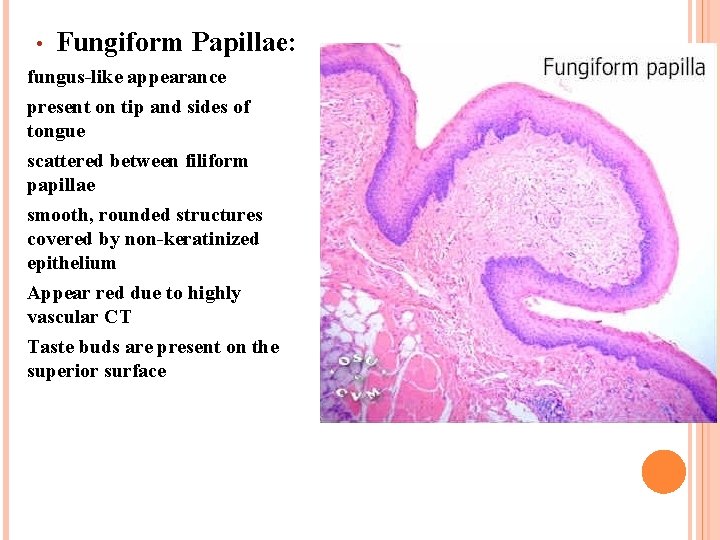

• Fungiform Papillae: fungus-like appearance present on tip and sides of tongue scattered between filiform papillae smooth, rounded structures covered by non-keratinized epithelium Appear red due to highly vascular CT Taste buds are present on the superior surface

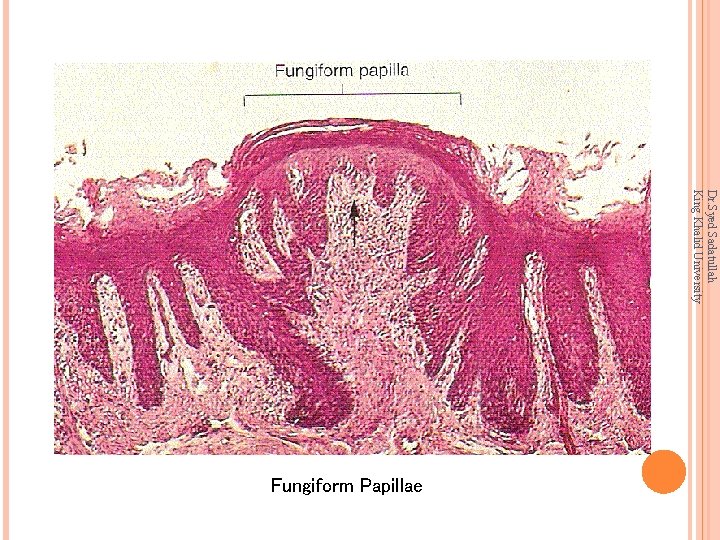

Dr. Syed Sadatullah King Khalid University Fungiform Papillae

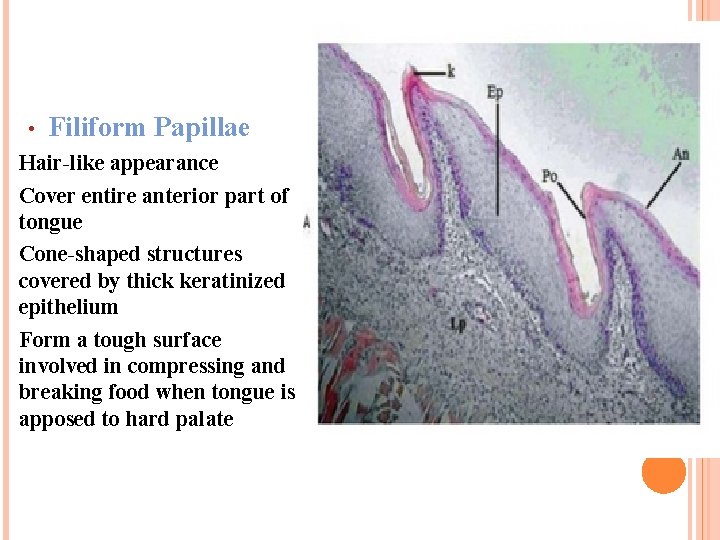

• Filiform Papillae Hair-like appearance Cover entire anterior part of tongue Cone-shaped structures covered by thick keratinized epithelium Form a tough surface involved in compressing and breaking food when tongue is apposed to hard palate

Dr. Syed Sadatullah King Khalid University Filliform Papillae

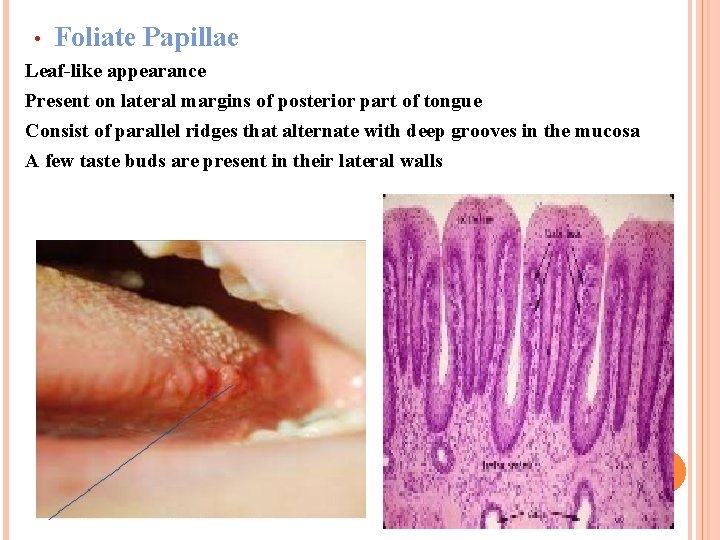

• Foliate Papillae Leaf-like appearance Present on lateral margins of posterior part of tongue Consist of parallel ridges that alternate with deep grooves in the mucosa A few taste buds are present in their lateral walls

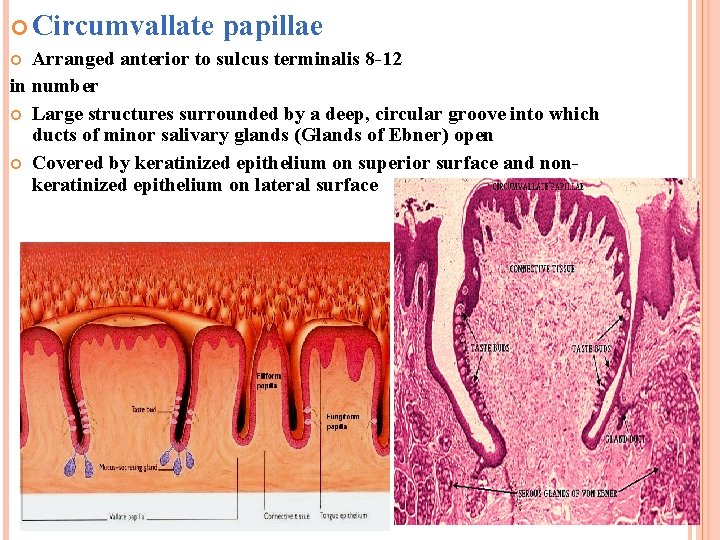

Circumvallate papillae Arranged anterior to sulcus terminalis 8 -12 in number Large structures surrounded by a deep, circular groove into which ducts of minor salivary glands (Glands of Ebner) open Covered by keratinized epithelium on superior surface and nonkeratinized epithelium on lateral surface

Dr. Syed Sadatullah King Khalid University Circumvallate Papilla and Taste buds (arrows)

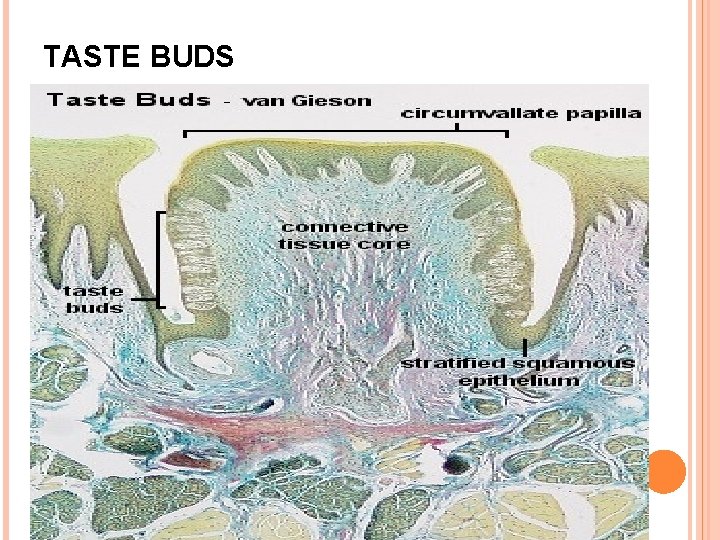

TASTE BUDS

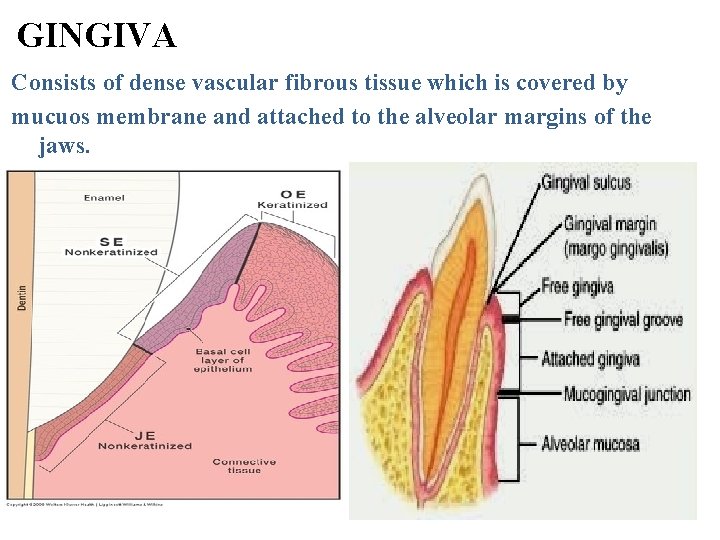

GINGIVA Consists of dense vascular fibrous tissue which is covered by mucuos membrane and attached to the alveolar margins of the jaws.

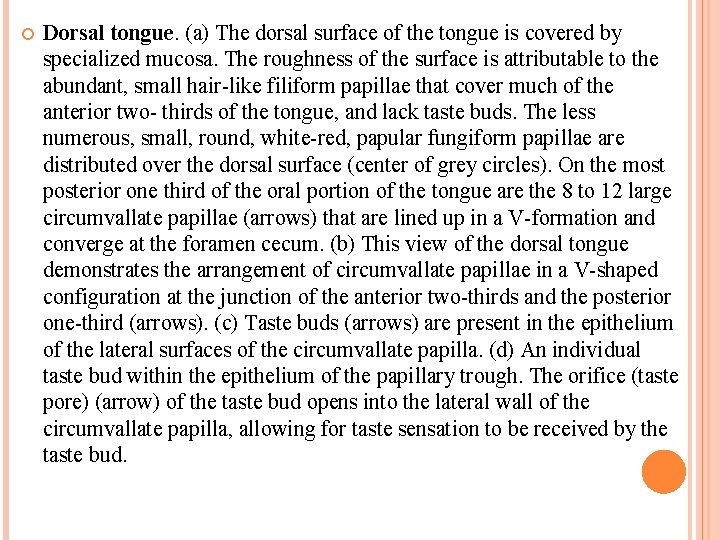

http: //pocketdentistry. com/9 -oral-mucosa-and-mucosal-sensation Dorsal tongue. (a) The dorsal surface of the tongue is covered by specialized mucosa. The roughness of the surface is attributable to the abundant, small hair-like filiform papillae that cover much of the anterior two- thirds of the tongue, and lack taste buds. The less numerous, small, round, white-red, papular fungiform papillae are distributed over the dorsal surface (center of grey circles). On the most posterior one third of the oral portion of the tongue are the 8 to 12 large circumvallate papillae (arrows) that are lined up in a V-formation and converge at the foramen cecum. (b) This view of the dorsal tongue demonstrates the arrangement of circumvallate papillae in a V-shaped configuration at the junction of the anterior two-thirds and the posterior one-third (arrows). (c) Taste buds (arrows) are present in the epithelium of the lateral surfaces of the circumvallate papilla. (d) An individual taste bud within the epithelium of the papillary trough. The orifice (taste pore) (arrow) of the taste bud opens into the lateral wall of the circumvallate papilla, allowing for taste sensation to be received by the taste bud.

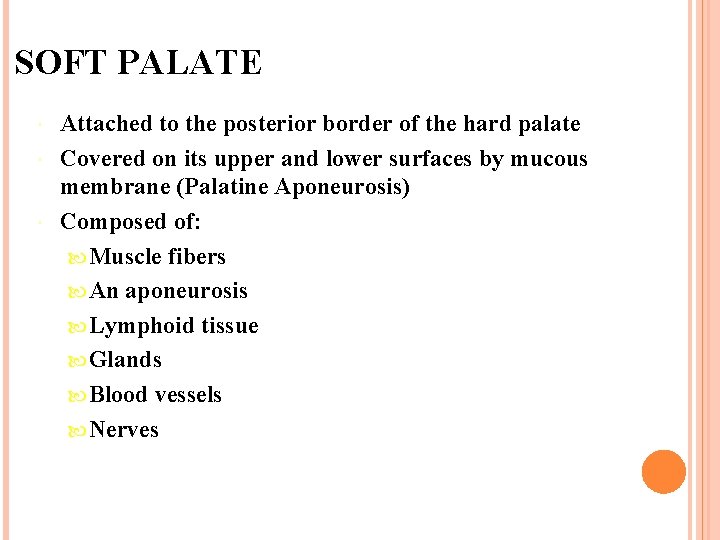

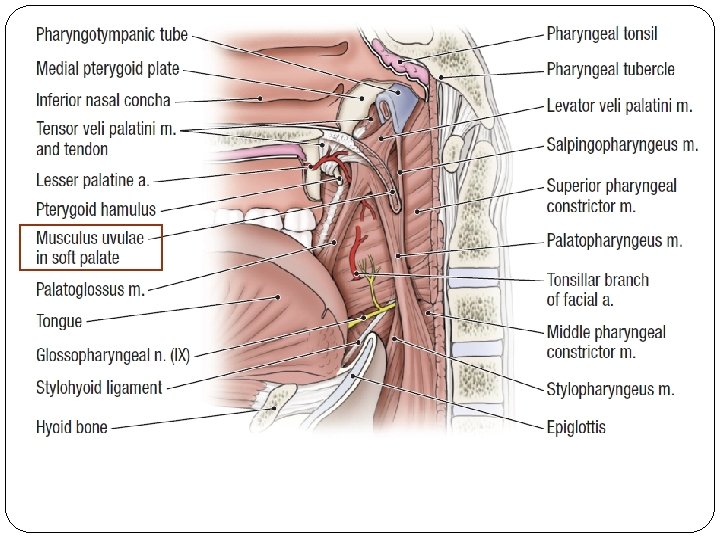

SOFT PALATE Attached to the posterior border of the hard palate Covered on its upper and lower surfaces by mucous membrane (Palatine Aponeurosis) Composed of: Muscle fibers An aponeurosis Lymphoid tissue Glands Blood vessels Nerves

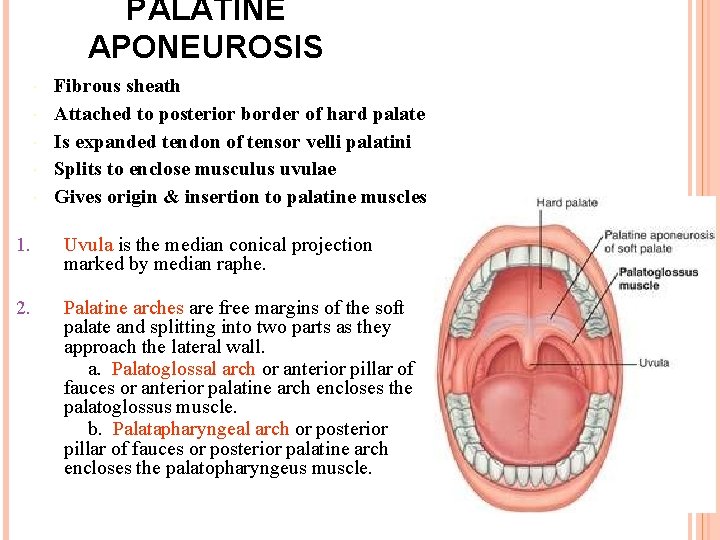

PALATINE APONEUROSIS Fibrous sheath Attached to posterior border of hard palate Is expanded tendon of tensor velli palatini Splits to enclose musculus uvulae Gives origin & insertion to palatine muscles 1. Uvula is the median conical projection marked by median raphe. 2. Palatine arches are free margins of the soft palate and splitting into two parts as they approach the lateral wall. a. Palatoglossal arch or anterior pillar of fauces or anterior palatine arch encloses the palatoglossus muscle. b. Palatapharyngeal arch or posterior pillar of fauces or posterior palatine arch encloses the palatopharyngeus muscle.

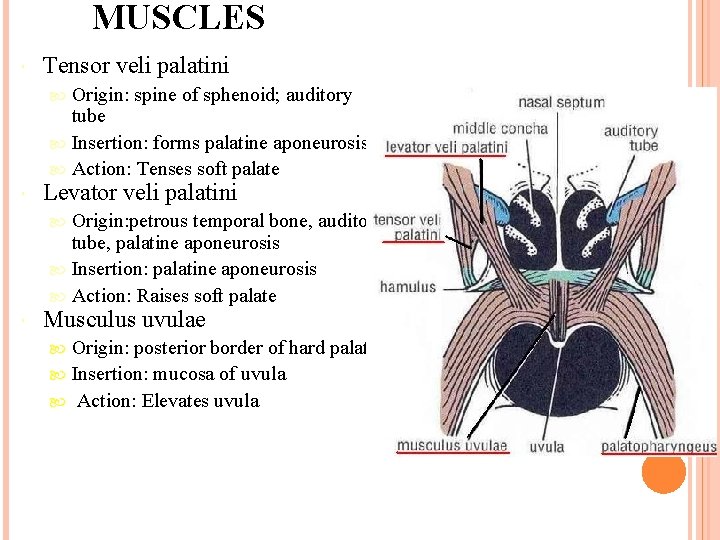

MUSCLES Tensor veli palatini Origin: spine of sphenoid; auditory tube Insertion: forms palatine aponeurosis Action: Tenses soft palate Levator veli palatini Origin: petrous temporal bone, auditory tube, palatine aponeurosis Insertion: palatine aponeurosis Action: Raises soft palate Musculus uvulae Origin: posterior border of hard palate Insertion: mucosa of uvula Action: Elevates uvula

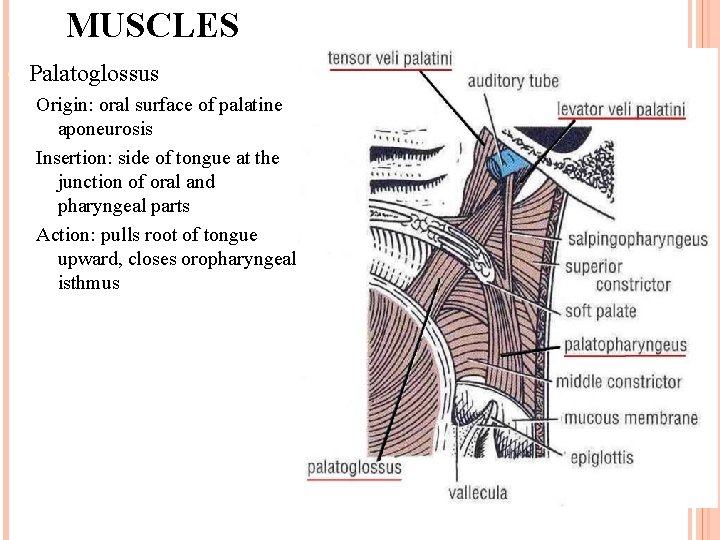

MUSCLES Palatoglossus Origin: oral surface of palatine aponeurosis Insertion: side of tongue at the junction of oral and pharyngeal parts Action: pulls root of tongue upward, closes oropharyngeal isthmus

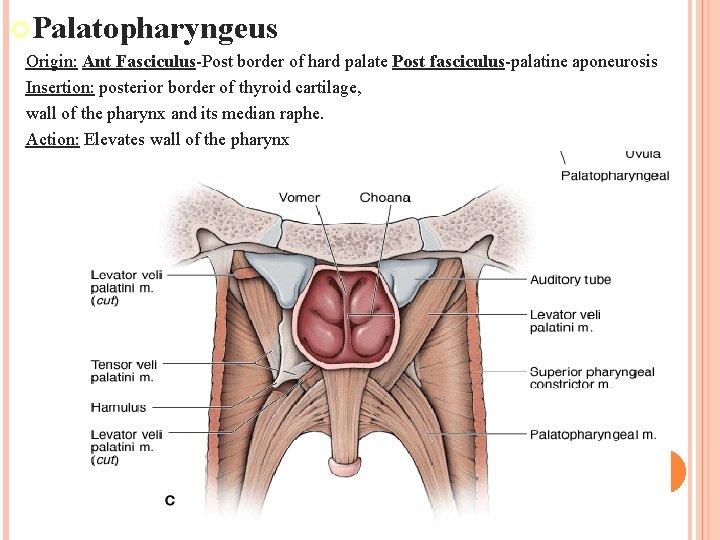

Palatopharyngeus Origin: Ant Fasciculus-Post border of hard palate Post fasciculus-palatine aponeurosis Insertion: posterior border of thyroid cartilage, wall of the pharynx and its median raphe. Action: Elevates wall of the pharynx

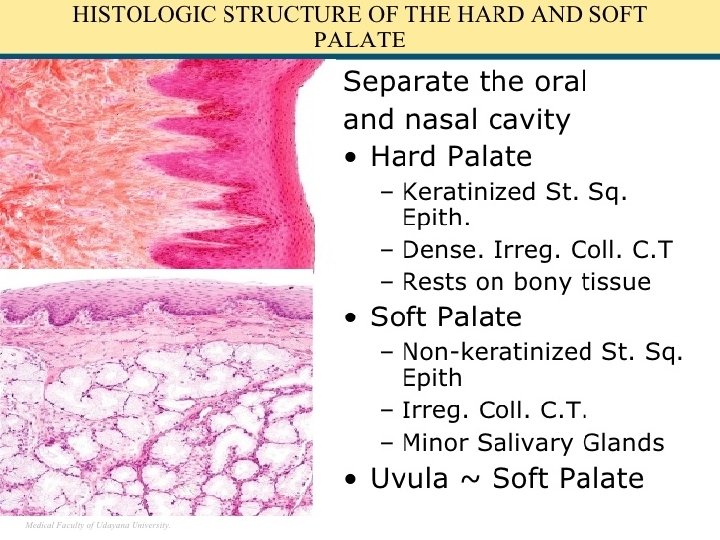

Non-Ketratinized stratified epith.

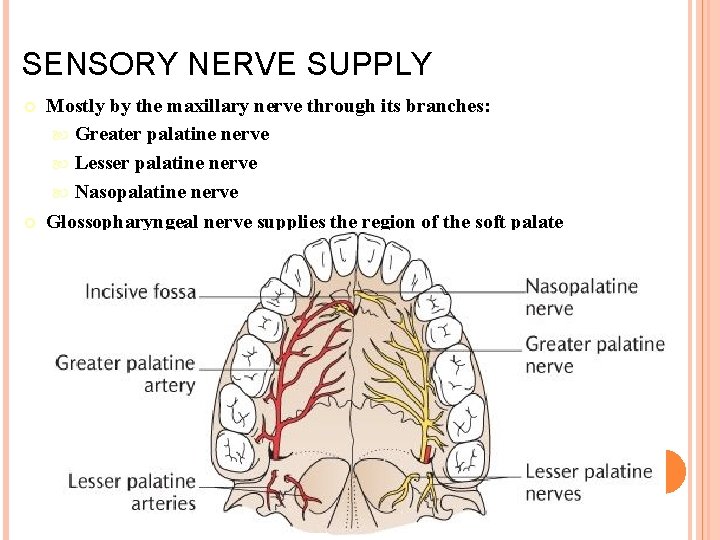

SENSORY NERVE SUPPLY Mostly by the maxillary nerve through its branches: Greater palatine nerve Lesser palatine nerve Nasopalatine nerve Glossopharyngeal nerve supplies the region of the soft palate

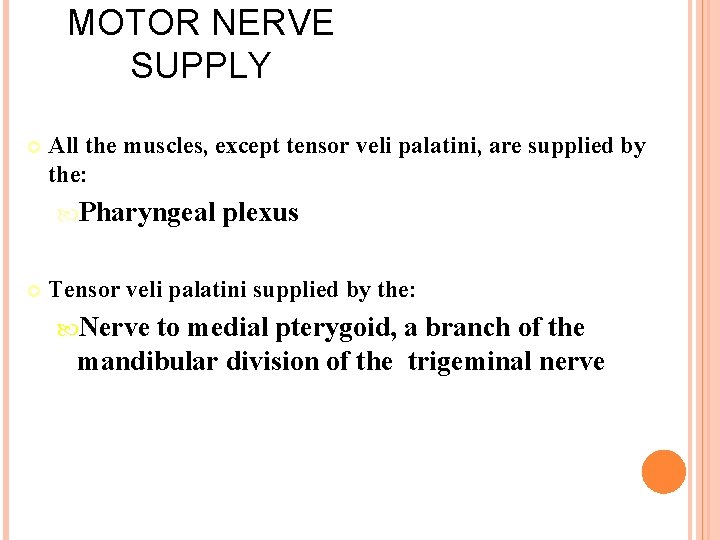

MOTOR NERVE SUPPLY All the muscles, except tensor veli palatini, are supplied by the: Pharyngeal plexus Tensor veli palatini supplied by the: Nerve to medial pterygoid, a branch of the mandibular division of the trigeminal nerve

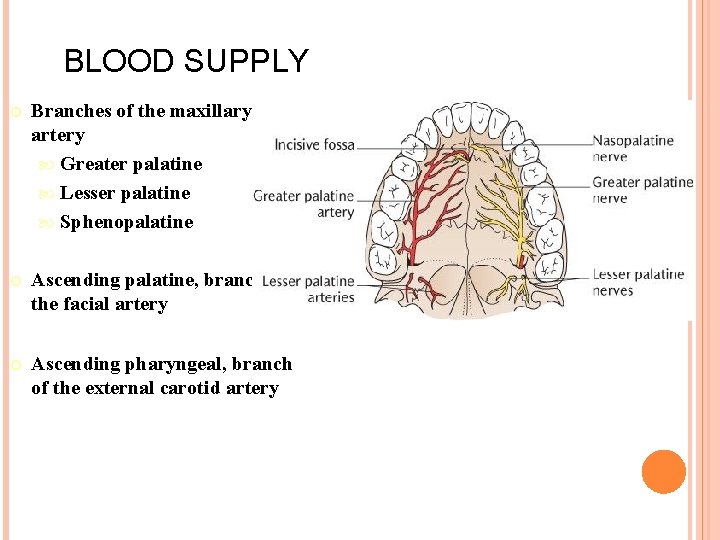

BLOOD SUPPLY Branches of the maxillary artery Greater palatine Lesser palatine Sphenopalatine Ascending palatine, branch of the facial artery Ascending pharyngeal, branch of the external carotid artery
