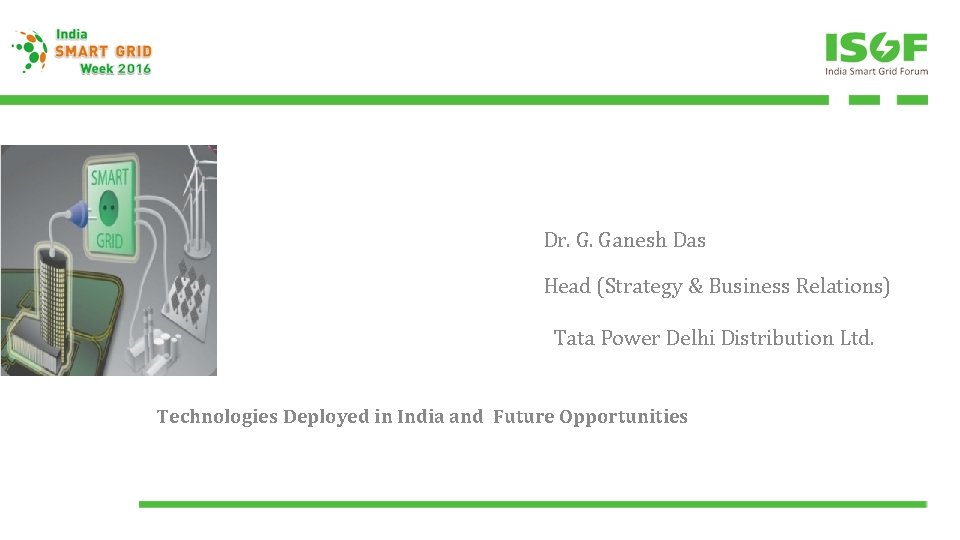

Dr. G. Ganesh Das Head (Strategy & Business Relations) Tata Power Delhi Distribution Ltd. Technologies Deployed in India and Future Opportunities

TPDDL’s Smart Grid Journey…

About Tata Power Delhi Distribution Ltd. Licensed for distribution of power in North and North West Delhi Tata Power, 51% Govt. of Delhi, 49% Parameter FY’ 15 Turnover INR 6503 Cr Peak Load 1704 MW Annual energy requirement 8423 MU Total registered consumers 14. 39 Lacs Number of employees 3543 Area 510 Sq Kms Population serviced in Network area (approx) 6 Million Certifications : ISO 9001, 14001, 27001 ; SA 8000 ; OHSAS 18001 UN Global Compact Reporting

Operational Excellence: Performance Snapshot Parameter Unit Jul-02 Mar-15 % 53. 1 9. 87 % 70 99. 55 % % 11 40 0. 76 99. 18 Operational Performance AT&C Losses System Reliability – ASAI -Availability Index Transformer Failure Rate Street Light Functionality Consumer Related Performance New Connection Energization Time Days 51. 8 5 Meter Replacement Time Provisional Billing Defective Bills Bill Complaint Resolution Days % % Days 25 15 6 45 4 1. 34 0. 14 4 Mean Time to Repair Faults Hours 11 1. 53 % - 92 Nos. - 417 % - 84 Call Center Performance - Service Level Customer Served Per Employee Consumer Satisfaction Index (Overall) Financial Performance Capex Incurred Distribution Rs. Cr. 1210 5106 Revenue (Annualized for FY 03 and FY 14) Rs. Cr. 1156 6503 7 5600 14. 39 3457 Others Consumers Employees Lacs Nos.

TPDDL- Technology Landscape Sub-transmission Grid Stations Distribution Stations (11 Kv) DATA CENTRE 2 Transco grid stations SAP (PM/PS/MM/HR/FICO) DATA CENTRE 1 OFFICES SAP-ISU (BI/FICA/DM/CS) WEB AMR/PG/SPT BILL SCADA/ Distributed Management System (DMS)/Distribution Automation(DA) Geographical Information System(GIS) Operational Management System(OMS) Customers Integrated Call Centre BACK BONE COMMUNICATION NETWORK

IT-OT Convergence

Year 2004 - 14 Projects Implemented Grid Sub-station Automation System Operational Management System SCADA/ Distribution Management System Geographical Information System

Adoption of Technology – Many Firsts

Smart Grid Roadmap– Future Projects Advanced Metering Infrastructure (AMI) Enterprise Service Bus Field Force Automation (FFA) Business Intelligence/Data Analytics Integrated Communication Technology

New Technology Introduction & Upgrade Advanced Distributed Management System (ADMS) Unified SCADA, DMS & OMS for better efficiency in monitoring & control Geographical Information System (GIS) Standards based integration possible with other IT /OT applications Integreted Communication Technologies (ICT) For meeting communication requirements of smart grid Business Intelligence(BI) Advanced Data analytics (DA) based on advanced Mathematical & Statistical modelling AMI & ESB Smart Metering for consumers having consumption >600 units per month. 2, 50, 000 consumers to be covered

ADR with Smart Meter- Architecture & Data Flow

Demand Response at TPDDL Shed Potential Analysis Shed Potential v/s Sanctioned Load Major Shed Potential Contributors Plans to Scale up to 40 MW in the Future Others 24000 Hospital • • 1970 steel 2221 Printing 1528 Footwear & Plastic Flour & Dal Mill 16891 Cold Storage Shed Potential (KW) 5000 0 INDUSTRY TYPE No of Consumers Shed Potential (KW) Sanctioned Load (KW) • • 6660 Cold Storage 10248 Sanctioned Load 15000 (KW) 10000 20000 Flour & Footwear Printing Dal Mill & Plastic Flour & Dal Mill Footwear & Plastic Printing Steel 25000 steel Hospital Others TOTAL 8 39 39 7 10 3 56 162 1364 3292 1718 423 629 375 3300 11101 10248 16891 6660 1528 2221 1970 24000 63518

Automated Demand Response with Smart Metering Results Current Status Brief: • 162 Consumer Enrolled • 12 MW Shed potential • 20 Events conducted starting May 2014 during peak load conditions • Max Shed achieved was 7. 2 MVA. • Future Potential: • Potential to add another 33 MW by enrolling high revenue consumers.

TPDDL Solar Journey • Spearheading the Solar Initiatives, TPDDL pioneered in the ‘Demonstration Programme on Tail End Grid Connected Solar Power Plants’, an initiative of Ministry of New and Renewable Energy (MNRE), Govt. of India. TPDDL has commissioned eight (8) Solar Plants under this prestigious program • The most significant in TPDDL Solar Projects is the Mega Watt Class of Grid connected Solar Plant at its Central Stores at Keshavpuram, which is a unique project where dual utilization of land has been achieved by creating a roof top solar plant over a fully functioning open material store. • TPDDL has set up twelve (12) no. of 1 KW capacity standalone Solar lighting system in RWA Porta Cabins in New Delhi Municipal Corporation area under “My Delhi I Care” scheme of Govt. of Delhi.

Demand Side Management LED Replacement program 2. 2 Million LED distribution at subsidized rates 15 MW load reduction to be achieved AC replacement program 20000 old AC to be replaced with more 5 star efficient ACs 13. 08 MW reduction to be achieved Load Research Study Covering Domestic, Commercial and Industrial Consumers Results to be used for identifying segment specific DSM initiatives

TPDDL Demand Projections with DER till 2025 Grid Connected Rooftop Solar 440 MW rooftop solar by 2025 No new fossil fuel PPA sign off Automated Demand Response 40 MW potential by 2025 12 MW ADR Potential connected and in use Energy Storage Explore utility level Energy Storage options Collaboration with Institutes Micro Grid Working with MIT for developing a model for facilitating development of Micro Grid in Rural India “Bihar Model”

Smart Grid Demonstration Lab State of art Smart Grid Lab Demonstration of various smart grid technologies. Collaborative partnerships with Business Associates Centre of Excellence for all segments including students, consumers, technology providers and other state utilities.

Future Roadmap of Technology in Distribution
