Dr Ahmed Fathalla Ibrahim INTRAEMBRYONIC COELOM INTRAEMBRYONIC COELOM

Dr. Ahmed Fathalla Ibrahim

INTRAEMBRYONIC COELOM

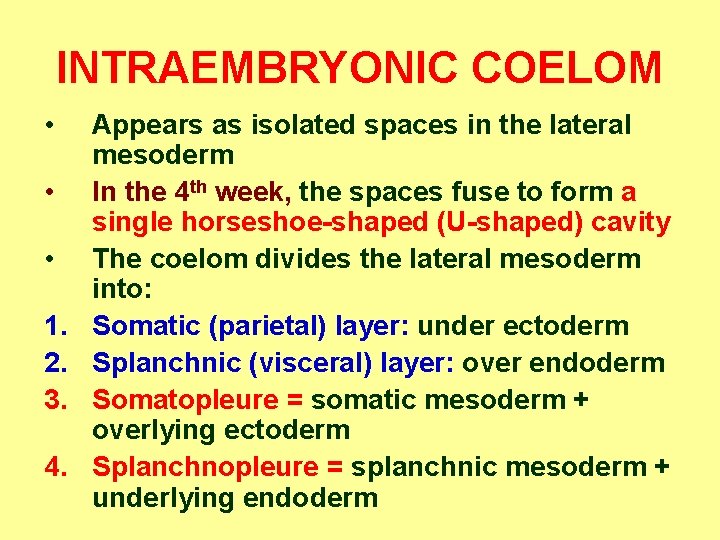

INTRAEMBRYONIC COELOM • • • 1. 2. 3. 4. Appears as isolated spaces in the lateral mesoderm In the 4 th week, the spaces fuse to form a single horseshoe-shaped (U-shaped) cavity The coelom divides the lateral mesoderm into: Somatic (parietal) layer: under ectoderm Splanchnic (visceral) layer: over endoderm Somatopleure = somatic mesoderm + overlying ectoderm Splanchnopleure = splanchnic mesoderm + underlying endoderm

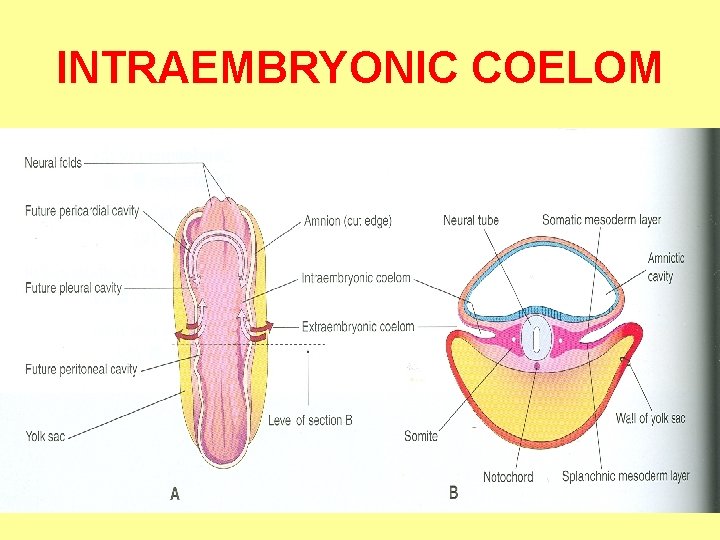

INTRAEMBRYONIC COELOM

INTRAEMBRYONIC COELOM • 1. 2. 3. 4. 5. DERIVATIVES: It gives rise to three body cavities: A pericardial cavity: the curve of U Two pericardioperitoneal canals (future pleural cavities): the proximal parts of the limbs of U Two peritoneal cavities: the distal parts of the limbs of U Each cavity has a parietal layer (derived from somatic mesoderm) & a visceral layer (derived from visceral mesoderm) FUNCTION: It provides space for the organs to develop & move

DEVELOPMENT OF PERITONEAL CAVITY • Major part of intraembryonic coelom • Develop from the distal parts of the limbs of the U-shaped cavity • Originally, it is connected with extraembryonic coelom (midgut herniates to the outside through this connection) • At 10 th week, it looses its connection with extraembryonic ceolom (when midgut returns to abdomen)

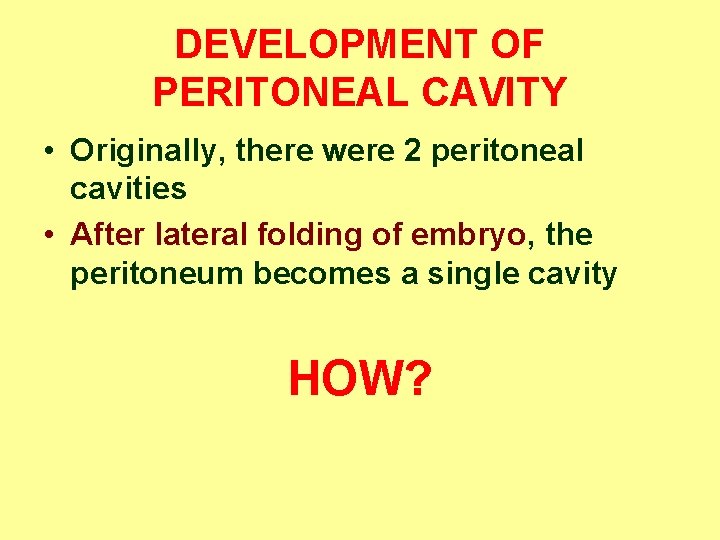

DEVELOPMENT OF PERITONEAL CAVITY • Originally, there were 2 peritoneal cavities • After lateral folding of embryo, the peritoneum becomes a single cavity HOW?

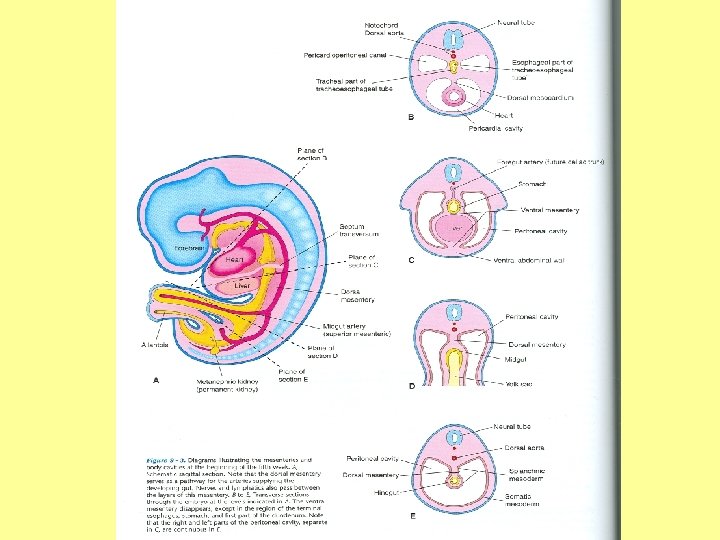

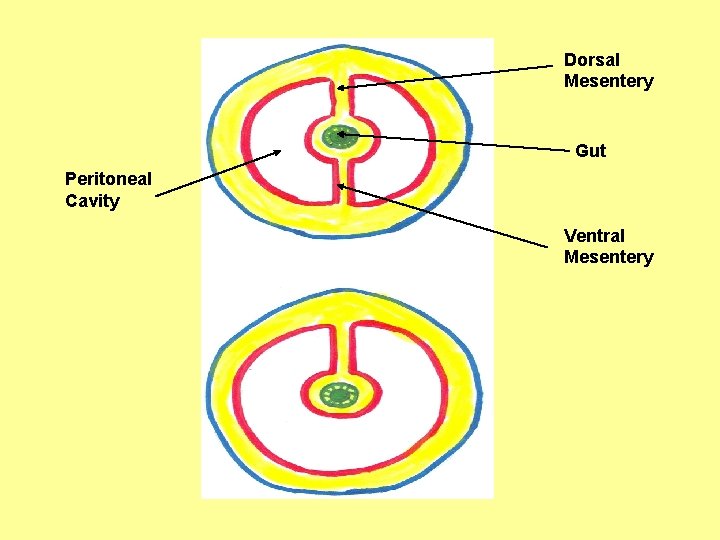

Dorsal Mesentery Gut Peritoneal Cavity Ventral Mesentery

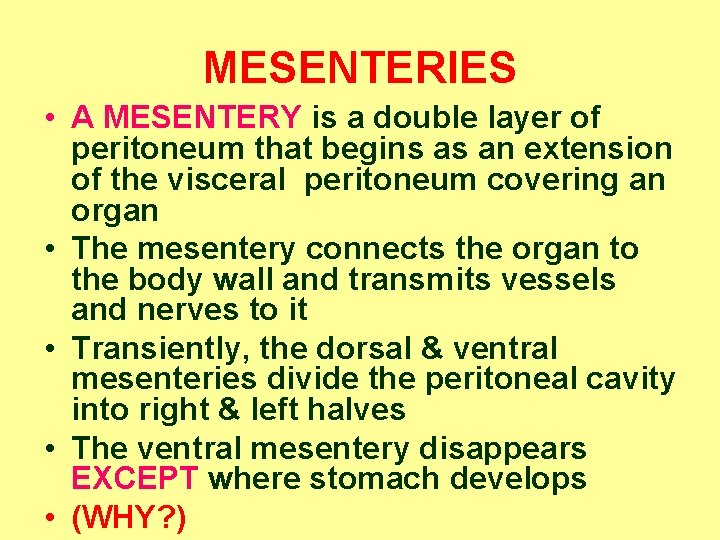

MESENTERIES • A MESENTERY is a double layer of peritoneum that begins as an extension of the visceral peritoneum covering an organ • The mesentery connects the organ to the body wall and transmits vessels and nerves to it • Transiently, the dorsal & ventral mesenteries divide the peritoneal cavity into right & left halves • The ventral mesentery disappears EXCEPT where stomach develops • (WHY? )

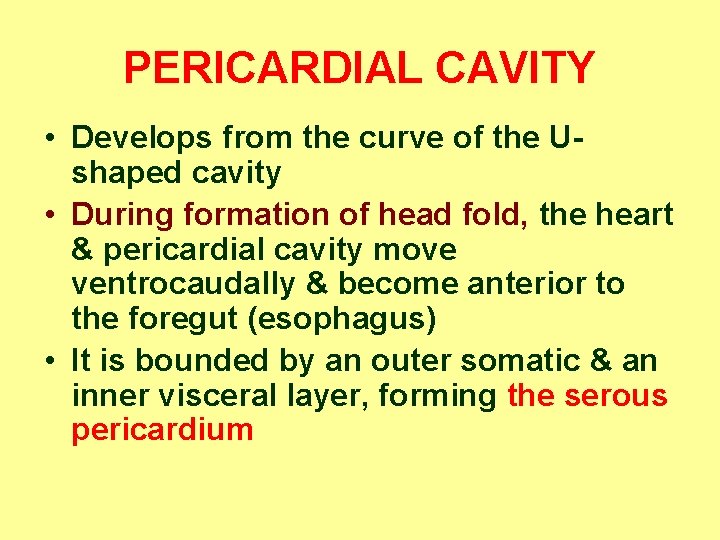

PERICARDIAL CAVITY • Develops from the curve of the Ushaped cavity • During formation of head fold, the heart & pericardial cavity move ventrocaudally & become anterior to the foregut (esophagus) • It is bounded by an outer somatic & an inner visceral layer, forming the serous pericardium

PERICARDIAL CAVITY • Originally, it is connected with the 2 pericardioperitoneal canals • Later on, it become separated from the 2 pericardioperitoneal canals HOW?

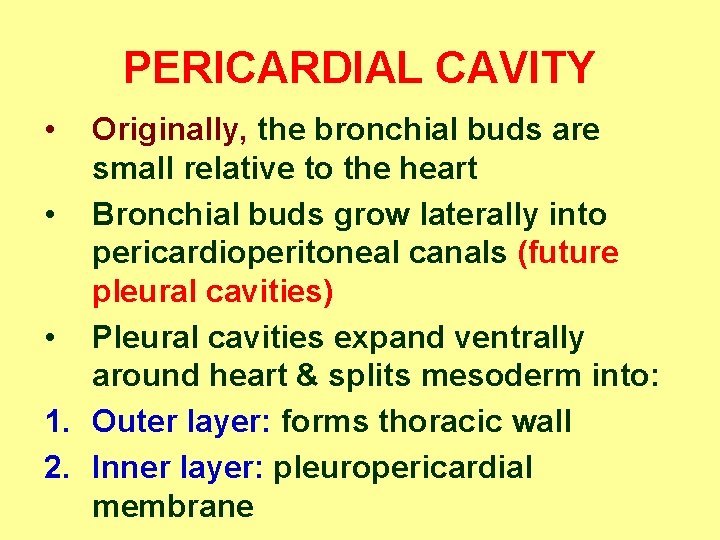

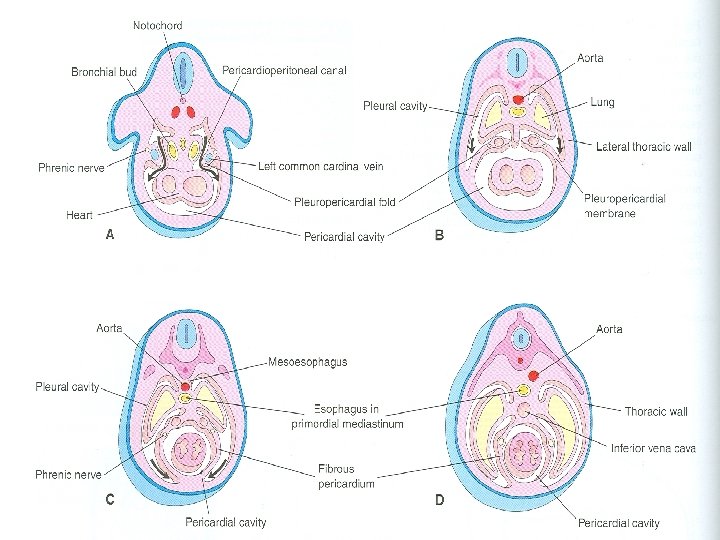

PERICARDIAL CAVITY • Originally, the bronchial buds are small relative to the heart • Bronchial buds grow laterally into pericardioperitoneal canals (future pleural cavities) • Pleural cavities expand ventrally around heart & splits mesoderm into: 1. Outer layer: forms thoracic wall 2. Inner layer: pleuropericardial membrane

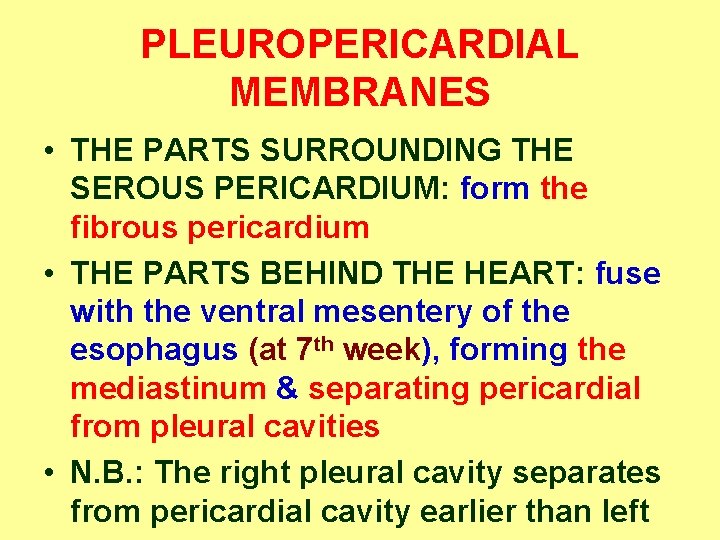

PLEUROPERICARDIAL MEMBRANES • THE PARTS SURROUNDING THE SEROUS PERICARDIUM: form the fibrous pericardium • THE PARTS BEHIND THE HEART: fuse with the ventral mesentery of the esophagus (at 7 th week), forming the mediastinum & separating pericardial from pleural cavities • N. B. : The right pleural cavity separates from pericardial cavity earlier than left

PLEURAL CAVITIES • Develop from the 2 pericardiperitoneal canals • Originally, they are connected with pericardial & peritoneal cavities • Later on, they become separated from: 1. Pericardial cavity 2. Peritoneal cavity (HOW? )

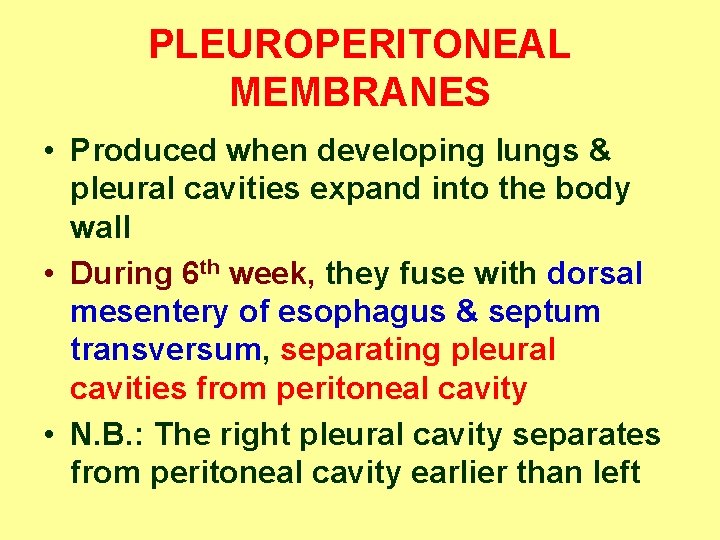

PLEUROPERITONEAL MEMBRANES • Produced when developing lungs & pleural cavities expand into the body wall • During 6 th week, they fuse with dorsal mesentery of esophagus & septum transversum, separating pleural cavities from peritoneal cavity • N. B. : The right pleural cavity separates from peritoneal cavity earlier than left

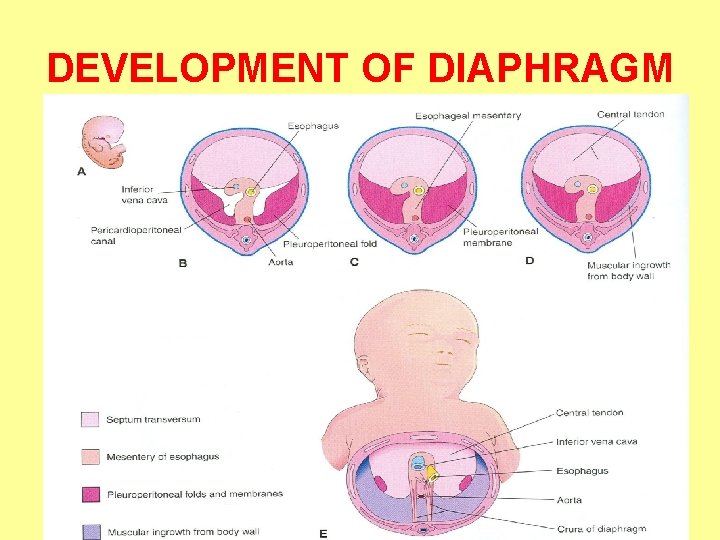

DEVELOPMENT OF DIAPHRAGM

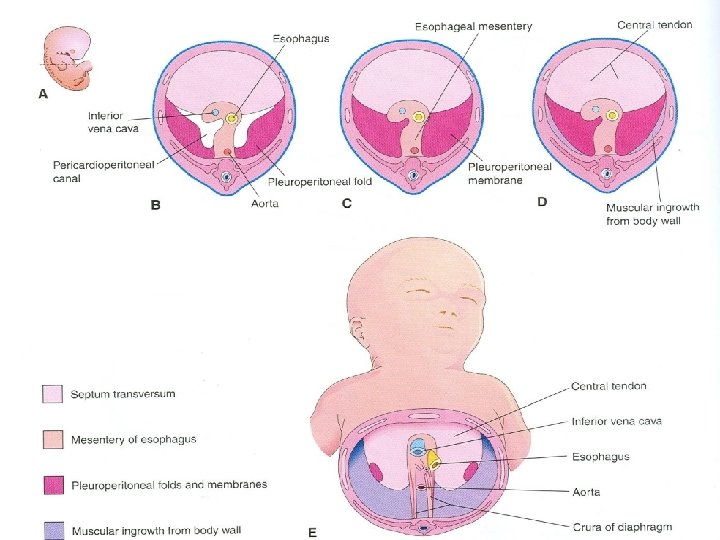

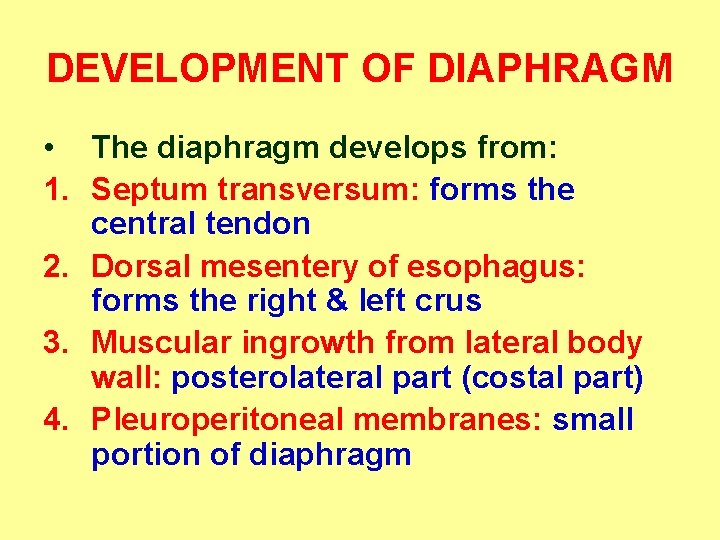

DEVELOPMENT OF DIAPHRAGM • The diaphragm develops from: 1. Septum transversum: forms the central tendon 2. Dorsal mesentery of esophagus: forms the right & left crus 3. Muscular ingrowth from lateral body wall: posterolateral part (costal part) 4. Pleuroperitoneal membranes: small portion of diaphragm

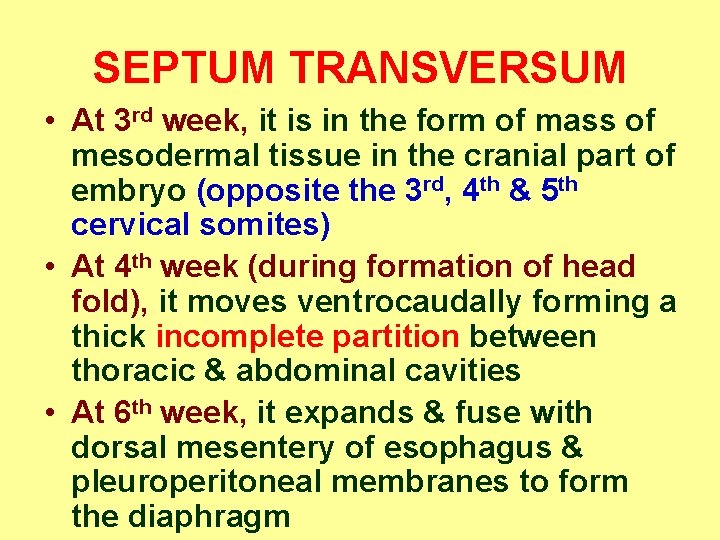

SEPTUM TRANSVERSUM • At 3 rd week, it is in the form of mass of mesodermal tissue in the cranial part of embryo (opposite the 3 rd, 4 th & 5 th cervical somites) • At 4 th week (during formation of head fold), it moves ventrocaudally forming a thick incomplete partition between thoracic & abdominal cavities • At 6 th week, it expands & fuse with dorsal mesentery of esophagus & pleuroperitoneal membranes to form the diaphragm

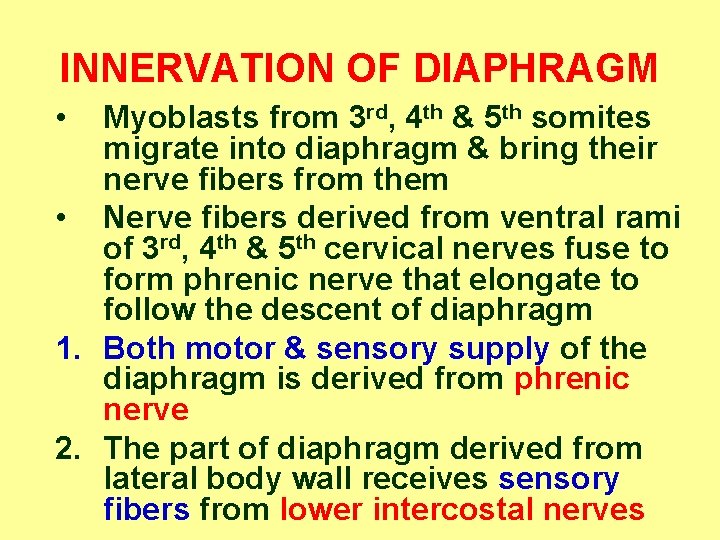

INNERVATION OF DIAPHRAGM • Myoblasts from 3 rd, 4 th & 5 th somites migrate into diaphragm & bring their nerve fibers from them • Nerve fibers derived from ventral rami of 3 rd, 4 th & 5 th cervical nerves fuse to form phrenic nerve that elongate to follow the descent of diaphragm 1. Both motor & sensory supply of the diaphragm is derived from phrenic nerve 2. The part of diaphragm derived from lateral body wall receives sensory fibers from lower intercostal nerves

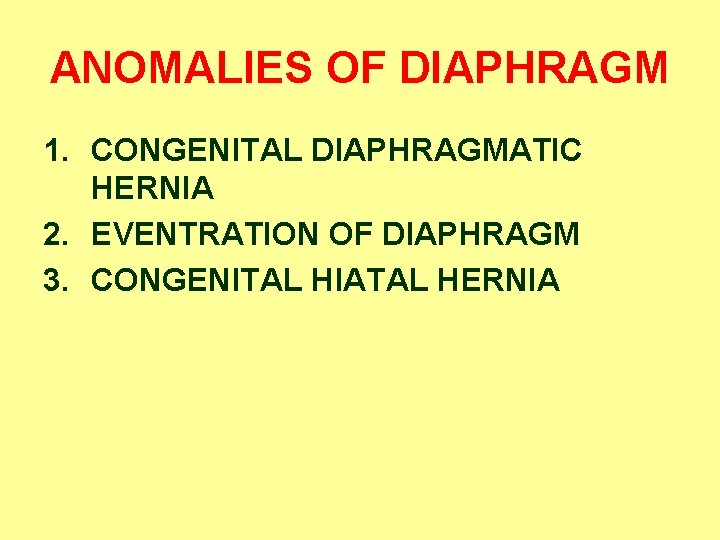

ANOMALIES OF DIAPHRAGM 1. CONGENITAL DIAPHRAGMATIC HERNIA 2. EVENTRATION OF DIAPHRAGM 3. CONGENITAL HIATAL HERNIA

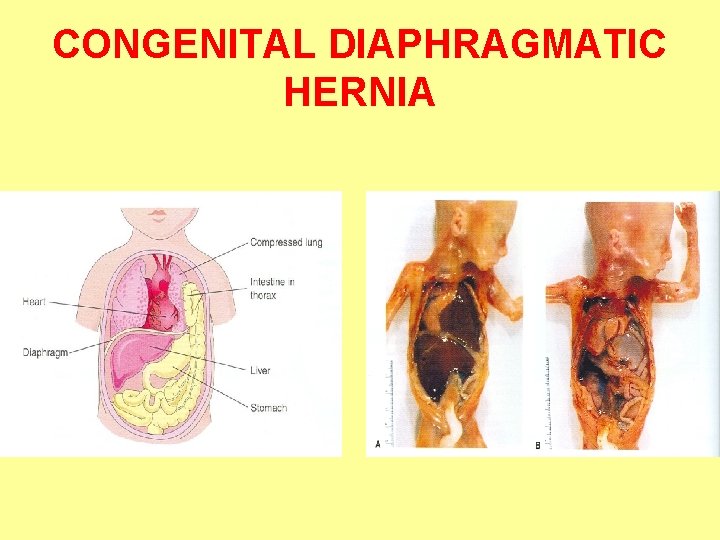

CONGENITAL DIAPHRAGMATIC HERNIA

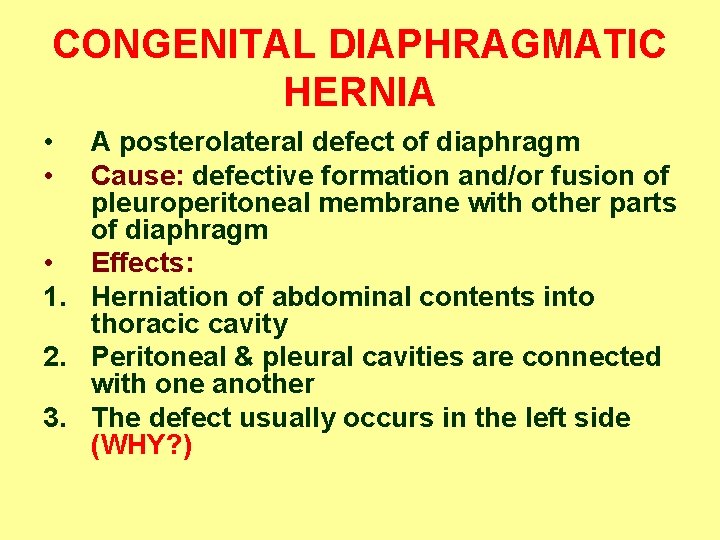

CONGENITAL DIAPHRAGMATIC HERNIA • • A posterolateral defect of diaphragm Cause: defective formation and/or fusion of pleuroperitoneal membrane with other parts of diaphragm • Effects: 1. Herniation of abdominal contents into thoracic cavity 2. Peritoneal & pleural cavities are connected with one another 3. The defect usually occurs in the left side (WHY? )

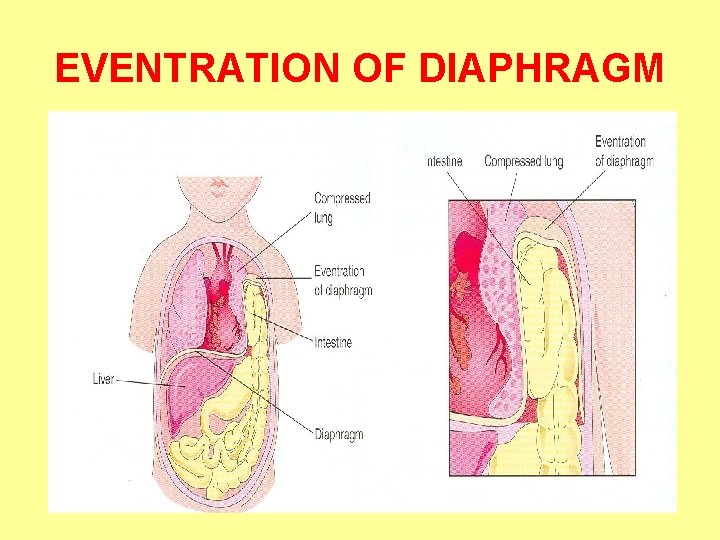

EVENTRATION OF DIAPHRAGM

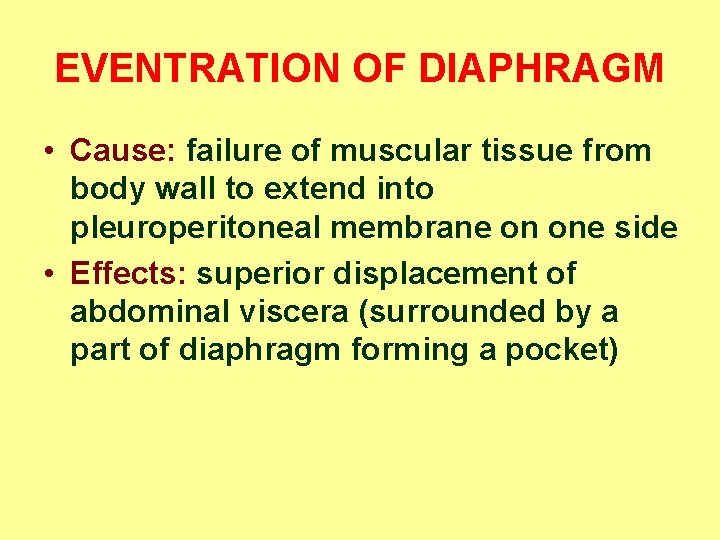

EVENTRATION OF DIAPHRAGM • Cause: failure of muscular tissue from body wall to extend into pleuroperitoneal membrane on one side • Effects: superior displacement of abdominal viscera (surrounded by a part of diaphragm forming a pocket)

CONGENITAL HIATAL HERNIA • Herniation of part of the stomach through a large esophageal hiatus (opening)
