DPO Application TDS 3000 Demonstration meta Site Oscilloscope
- Slides: 62
DPO기술과 Application & TDS 3000 Demonstration 강 사 : 이 석 복 meta. Site

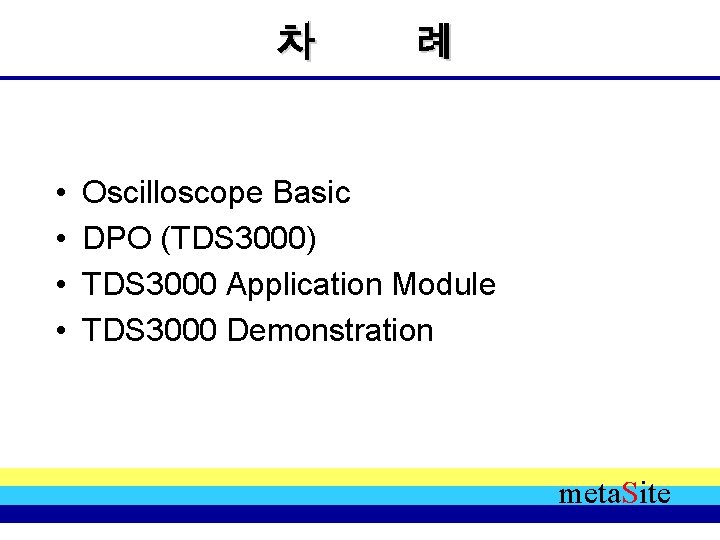

차 • • 례 Oscilloscope Basic DPO (TDS 3000) TDS 3000 Application Module TDS 3000 Demonstration meta. Site
10: 1 Probe 회로도 meta. Site

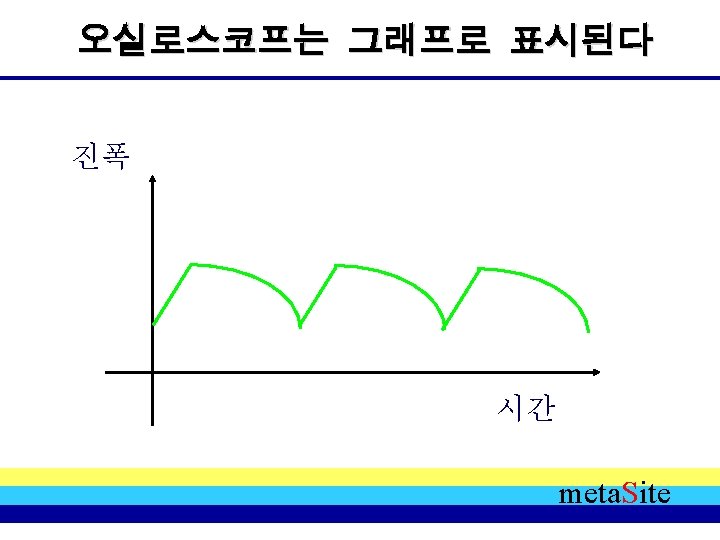

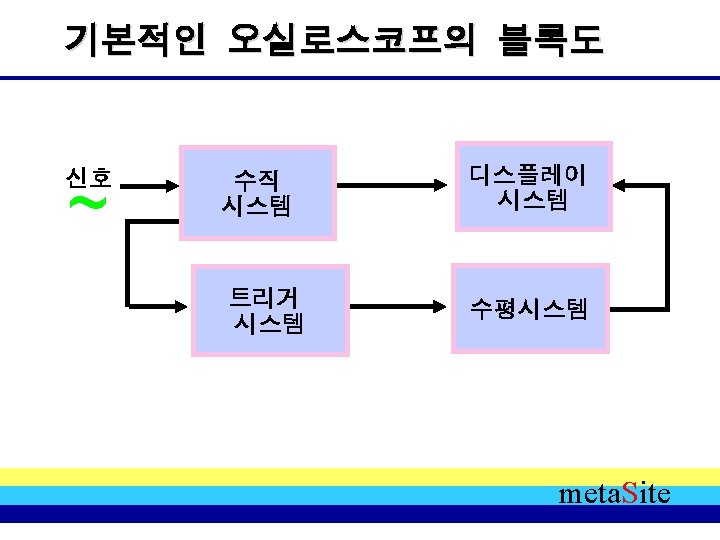

오실로스코프의 분류 • Analog Real Time (ART) • Digital Storage Oscilloscope (DSO) • Digital Phosphor Oscilloscope (DPO) meta. Site

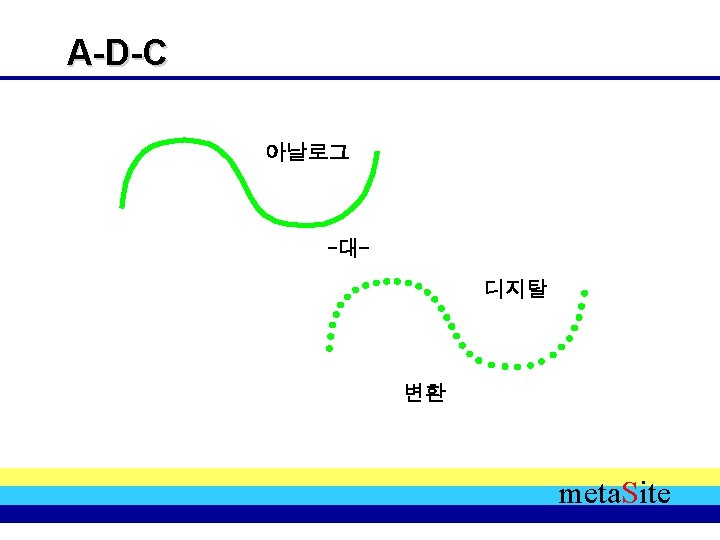

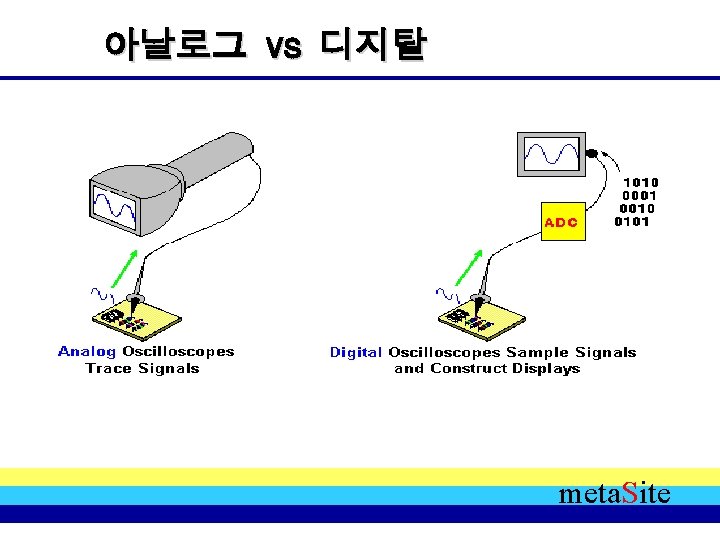

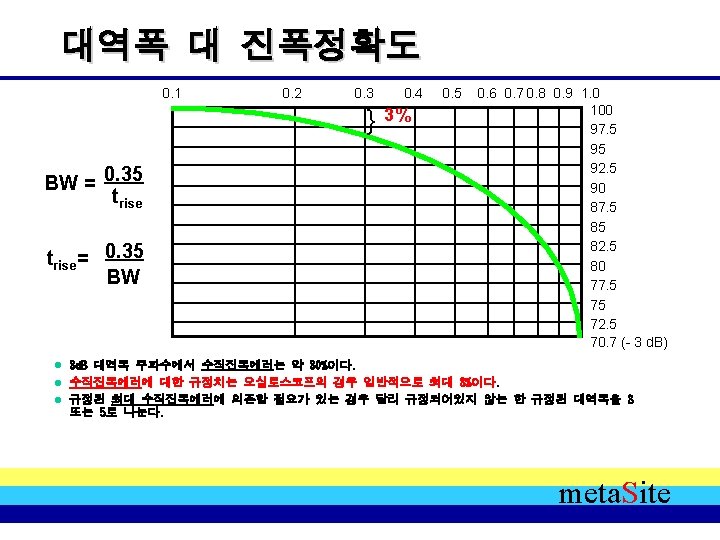

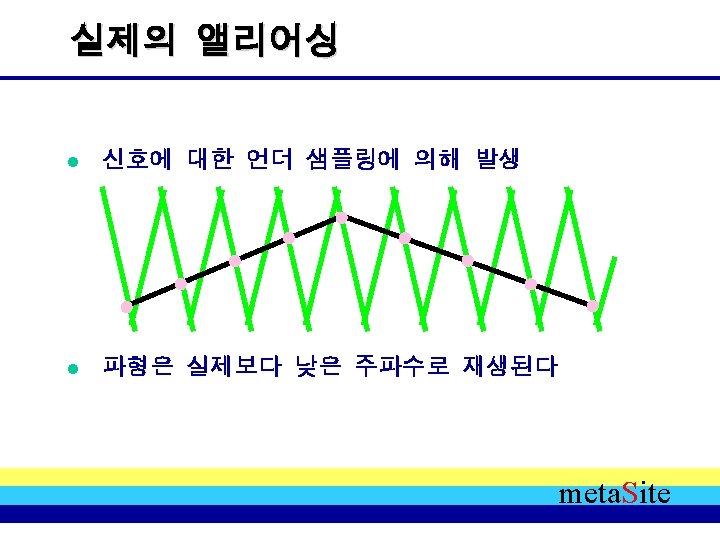

아날로그 vs 디지탈 Analog Real Time: "You may have dim traces, flicker and miss important signal details" Digital Real Time: "If you can trigger on the waveform, you can see it. " A/D Process Analog Signal Electron Beam is bright only when enough electrons can strike the phosphor (Writing Speed) Samples Equally Spaced in Time All Samples acquired in a Single Sweep Sample Rate Measured in Samples/Second (S/s, k. S/s, MS/s, GS/s) meta. Site

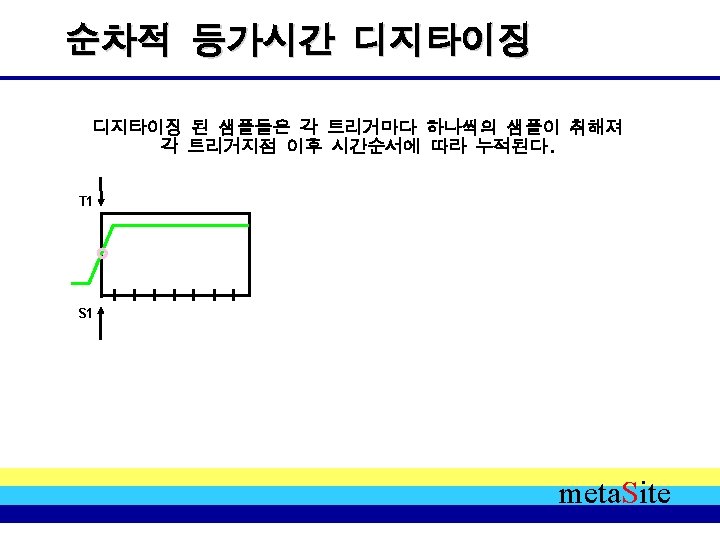

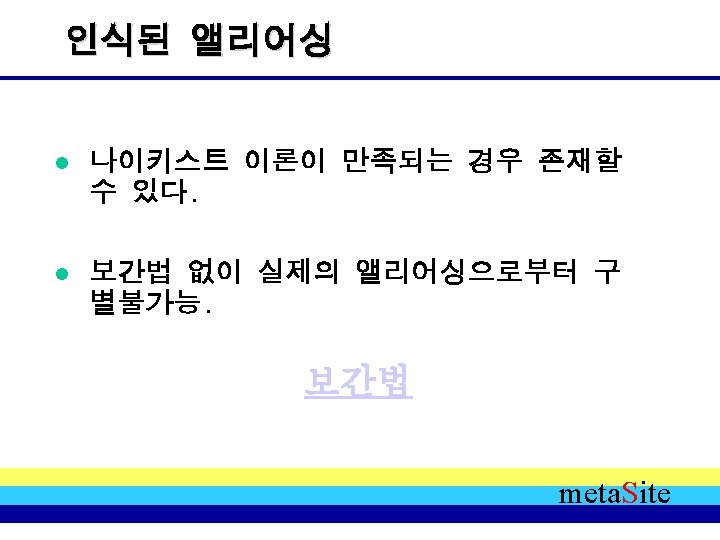

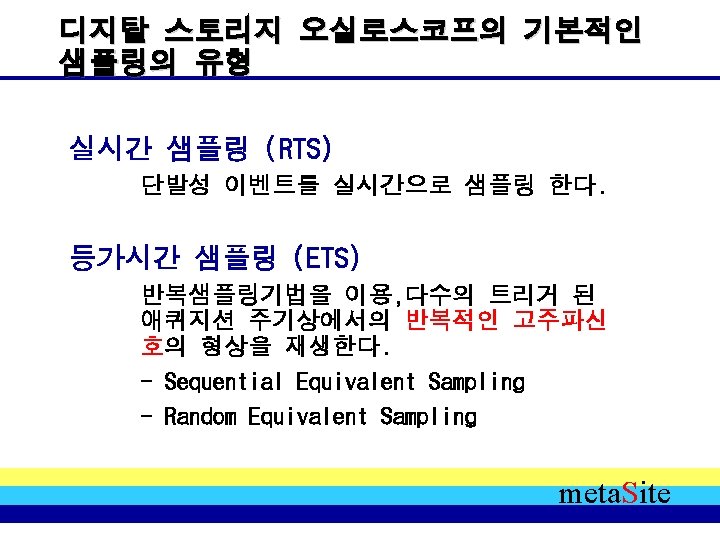

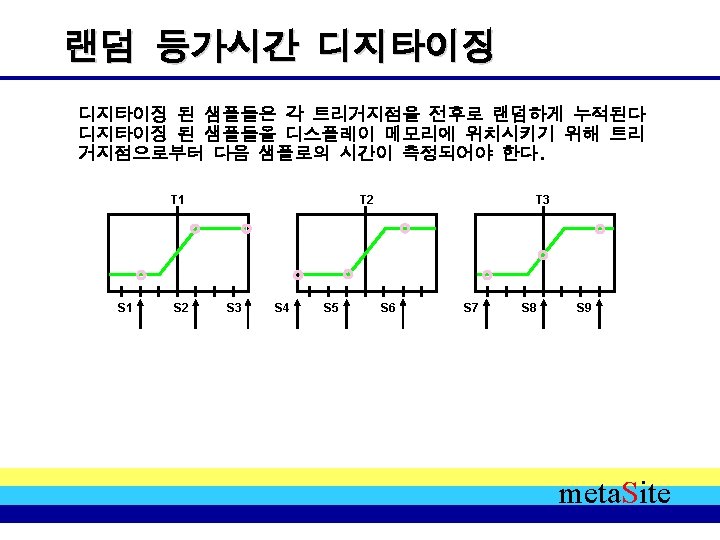

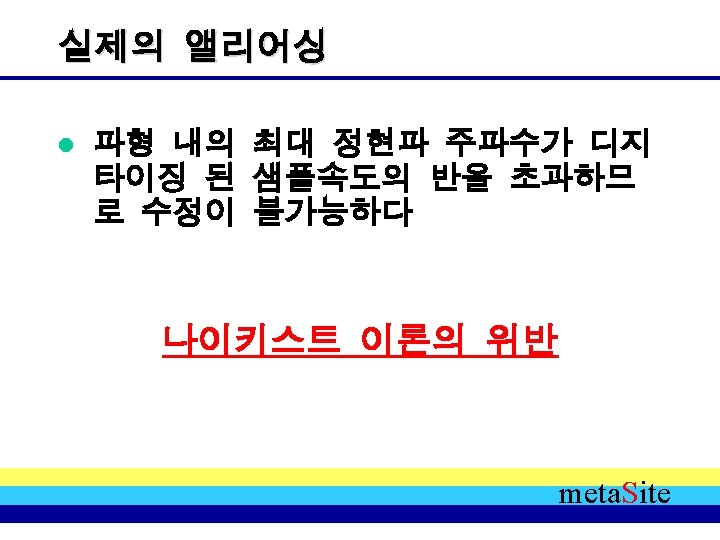

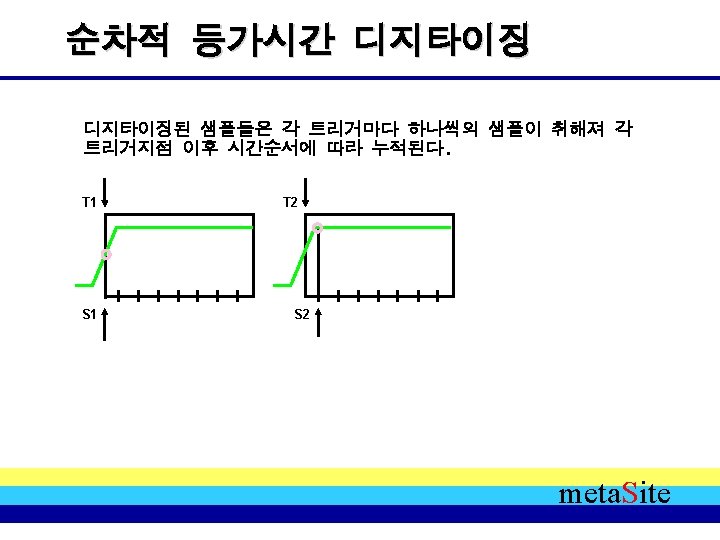

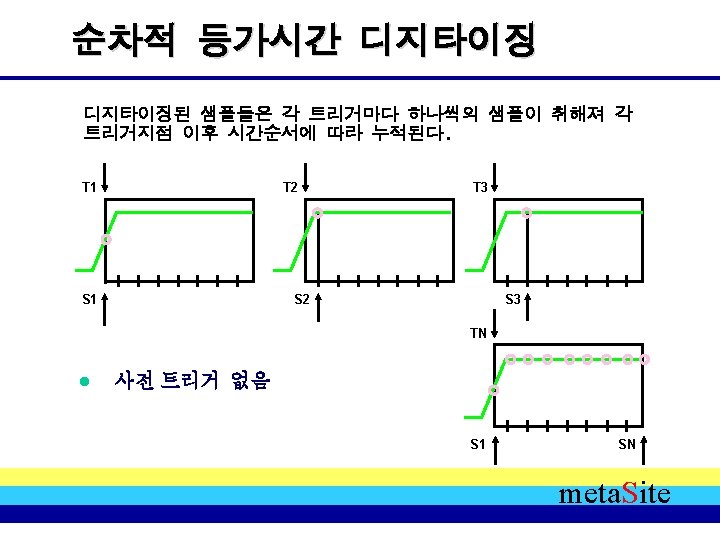

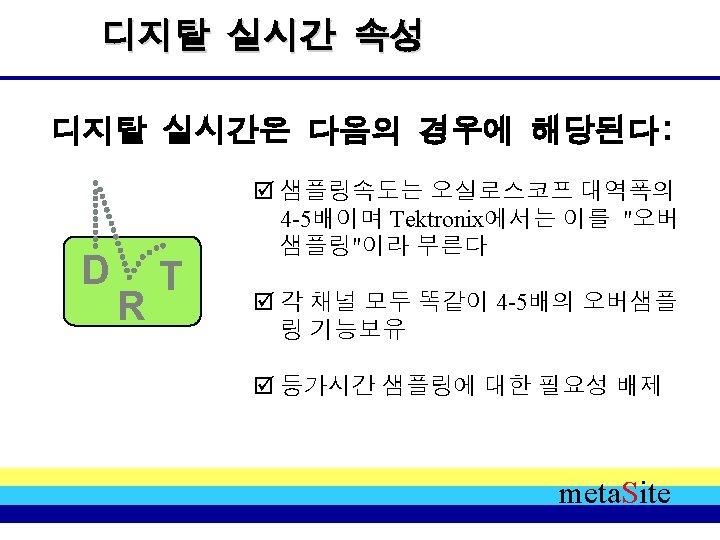

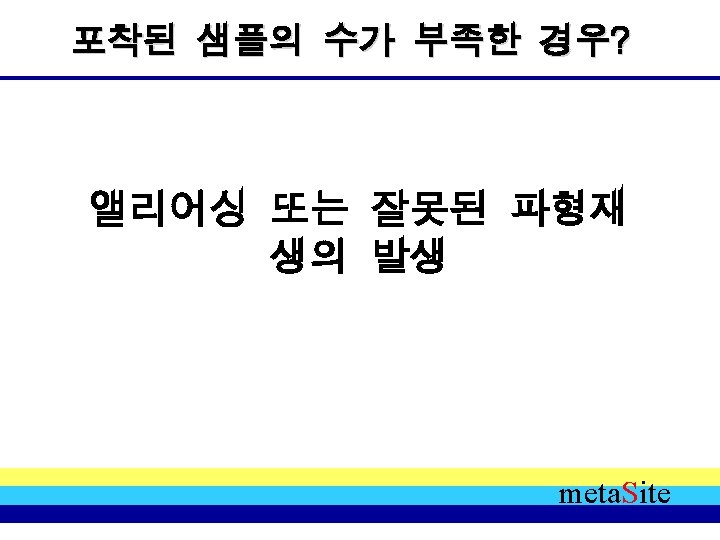

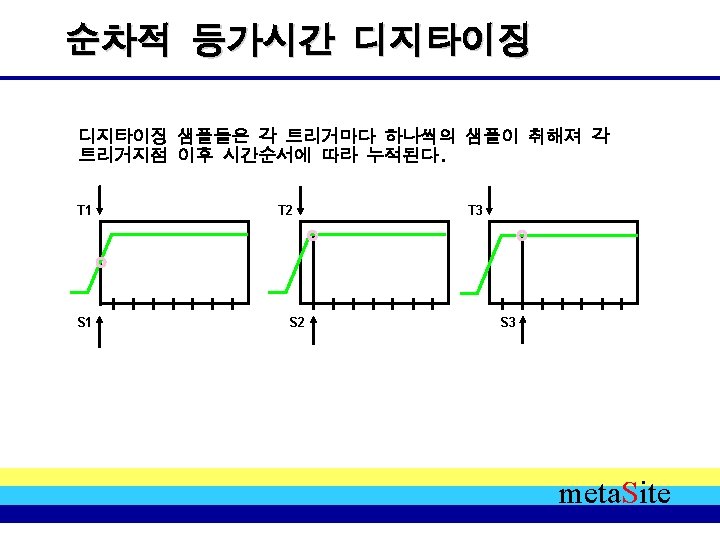

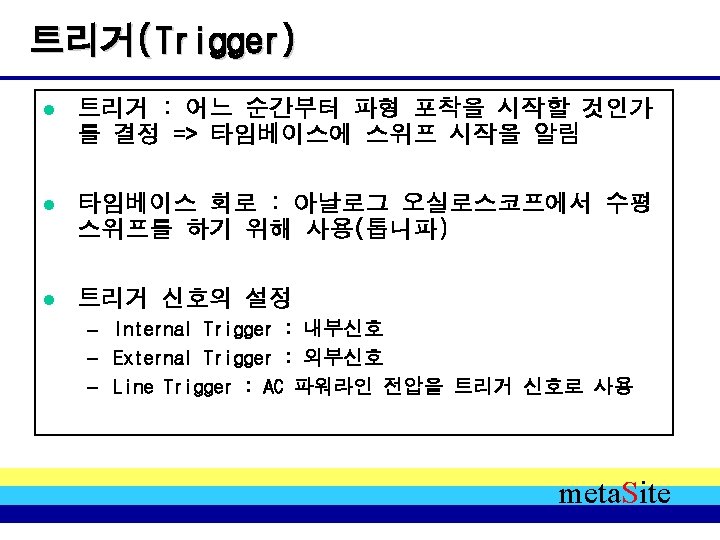

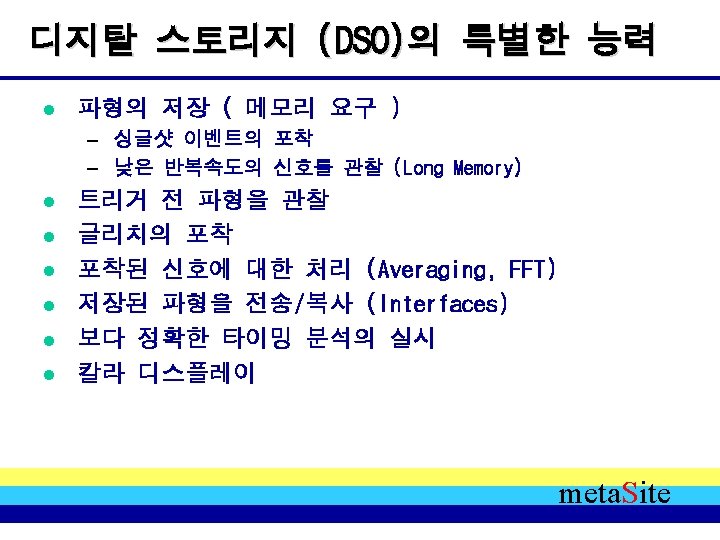

디지탈 스토리지 (DSO)의 트리거 종류 l 에지트리거(edge Trigger) – Rise Time, Fall Time l 비디오트리거(Video Trigger) – NTSC, PAL, SECAM l 펄스트리거(Pulse Trigger) – Runt, Width, Slew rate l 로직트리거(Logic Trigger) – Pattern, State l etc. . . meta. Site

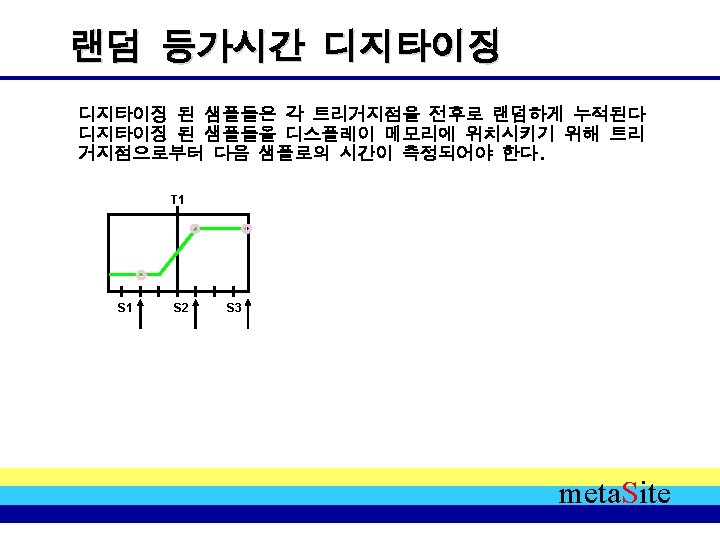

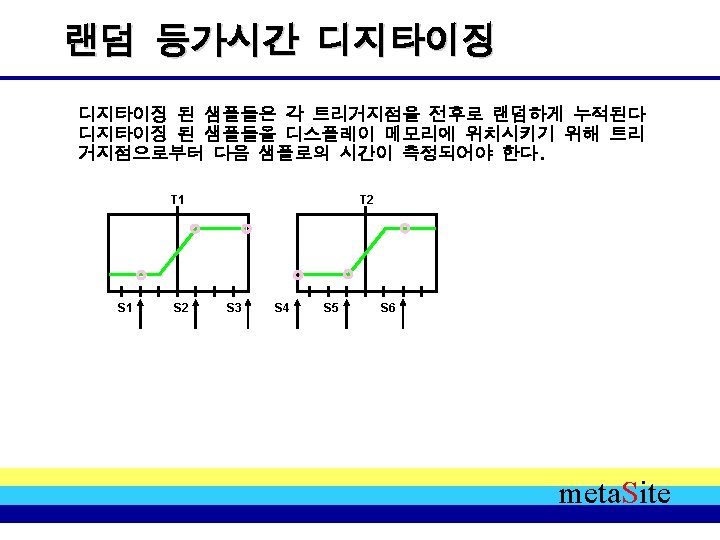

DSO Acquisition Modes l Sample Takes samples at the displayed sample rate. l Peak Detects peaks between displayed samples. l Envelope Accumulates peaks over multiple acquisitions. l Averages over multiple acquisitions. meta. Site

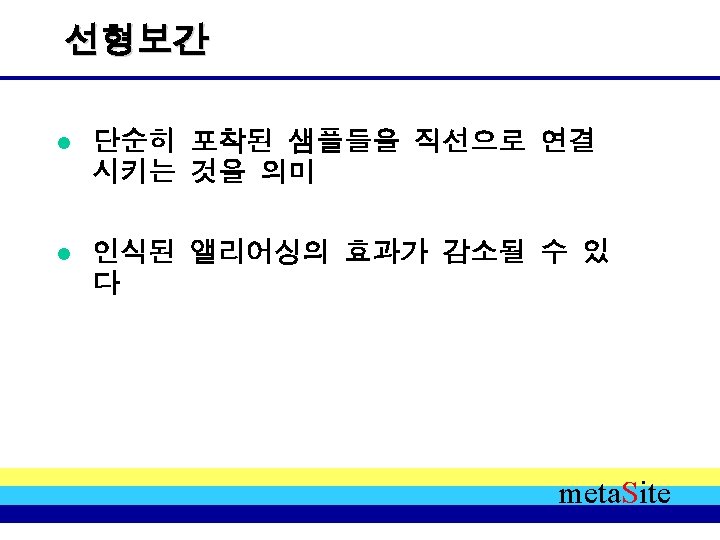

Basic DSO Display Modes l Dots Replaces old acquired and displayed dots with new ones. l Vectors Joins the acquisition dots in time with straight lines. l Persistence or Accumulate Holds acquired and displayed dots for a defined amount of time. Infinite persistence holds acquired and displayed dots until erased. Setup 1, Dots/Vectors meta. Site
DPO Defined Digital Phosphor Oscilloscopes Display, store and analyze complex signals in real time, using three dimensions of signal information: amplitude, time and distribution of amplitude over time. meta. Site
Architecture Diagram Delay Line ART Vert Amp Trigger DSO DPO Amp Analog Display Horiz Amp A/D De. MUX A/D Digital Phosphor Acquisition Memory Display u. P Display Memory Display Serial Processing Parallel Processing u. P meta. Site
Digital Phosphorescence Analog Real-Time Digital Storage Digital Phosphor meta. Site
DPO: NOT Just a Technology. . . But A Whole New Class of Scopes DPO !!! DPO DSO ANALOG meta. Site
The Reality of DPO is. . . DPO is NOT only a display Technology. . . DPO = ACQUISITION + Technology DISPLAY Technology meta. Site
Tektronix Introduces: TDS 3000 - The DPO for Everyone Better Than Analog, Better Than Digital, and More … meta. Site
TDS 3000 DPO : Expanded Market Opportunities DPO Performance Analog -Like Higher Bandwidth & Display More Channels Lower Price Point meta. Site
Product Highlights Color Traces meta. Site
Product Highlights Delay Zoom meta. Site
Product Highlights Quick. Menu meta. Site
Product Highlights Application Modules meta. Site

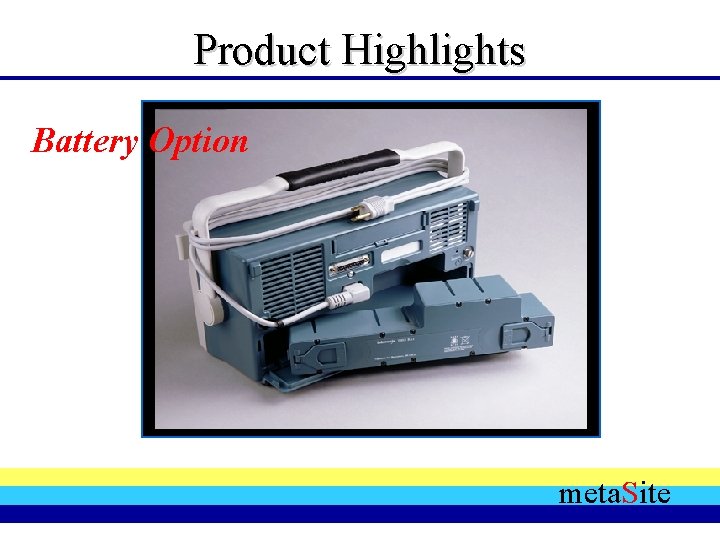

Product Highlights Battery Option meta. Site
TDS 3000 Series DPO Bandwidth (MHz) Channel Display Floppy Disk Tek. Probe Interface Centronics Interface Modules & Interfaces : FFT Adv. Triggering Adv. Video GPIB + RS 232 VGA + RS 232 TDS 3012 100 2 <-<-- <-<-<-- TDS 3032 TDS 3052 300 500 2 2 Color LCD Display Standard --> --> Optional Optional --> --> --> meta. Site
TDS 3000 Series DPO Bandwidth (MHz) Channel Display Floppy Disk Tek. Probe Interface Centronics Interface Modules & Interfaces : FFT Adv. Triggering Adv. Video GPIB + RS 232 VGA + RS 232 TDS 3014 100 4 <-<-- <-<-<-- TDS 3034 TDS 3054 300 500 4 4 Color LCD Display Standard --> --> Standard Optional --> --> --> meta. Site
Applications Modules TDS 3 FFT - FFT Module Adds FFT capability TDS 3 TRG - Advance Triggering Module Adds Pulse Triggers (Width or Glitch / Runt / Slew) Adds Logic Triggers (Pattern / State) TDS 3 VID - Advance Video Triggering Module Adds Line Count Triggers, Custom Video Line Rates, Readout in m. V or IRE units, and includes 75 ohm terminator TDS 3 TMT - Telecom Mask Test Module meta. Site
Accessories Communications Modules TDS 3 GM Adds GPIB & RS-232 ports TDS 3 EM 10 Base. T Ethernet(LAN) & RS-232 ports TDS 3 SDI ITU-R BT. 601 TDS 3 VM Adds VGA output & RS-232 ports Others TDS 3 BAT TDS 3 CHG AC 3000 - Battery Pack Quick Charger Soft case meta. Site
Other Accessories Others WSTRO AD 007 ADA 400 A TCP 202 P 5205 P 5210 P 6246 P 6247 P 5100 -Wave. Star for Oscilloscope -GPIB to LAN adapter -High gain differential amplifier -50 MHz AC/DC current probe -1 k. V differential probe -2 k. V differential probe -400 MHz differential probe -1 GHz differential probe -2. 5 k. V, 100 x high voltage passive probe meta. Site
Power Drain Factor Tek probe supports power drain factor total of 10 or less Active probe P 6205 P 6243 P 6246 P 6247 P 5205 P 5210 ADA 400 A TCP 202 013 -0278 -00 load factor probe type Recommended use 0 FET Digital Design 0 SMT Digital Design 0 Differential Digital Design 5 Differential Digital Design 6 HV Differential Power Electronics 5 Differential Mechanical/Medical Electronics 4 Current Probe Power Electronics 5 Video Clamp Video Applications meta. Site
Summary • DPO for Everyone TDS 3000 is a the extension of DPO offer for mainstream design • Price/Performance TDS 3000 meets customer needs at an affordable price • Flexible Features TDS 3000 offers unmatched flexibility of customization and use meta. Site
