Download Authentic Desktop Edition How to download Authentic

Download Authentic Desktop Edition How to download Authentic 2004　 Download Authentic 2004 Desktop edition from below URL http: //www. xmlspy. com/download_authentic. html (Authentic 2004 Desktop Edition) 1. Select the Windows version, and site to download, you’ll see the link for the download Authentic. 2. Click link, and select where you want to down load the Authentic in your local PC, then Click Save. 1 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Available License Information To activate your software, please go back to your installed AUTHENTIC software and enter these values into the 'Registration' dialog that will automatically pop up upon program startup: User Name: Company: E-Mail: Key-Code: Emilia Georgieva FAI egeorgieva@us. fujitsu. com Ph. A 4 P 1 -0 a 92 z. B-u. Dt. PMB-s. Fc 0 Mh-Auhz. C 2 2 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Request the Free License 　Request license. a free desktop ⑥　Enter the number of users ⑦ 　Enter the mandatory information, and click “Accept” ⑧ You’ll receive a license key code information via e-mail. 3 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Enter the License Information 　After installing Authentic, and opening the program for the first time, the window below will display. ⑦　Click “ENTER a new key code”, enter license key code, user name, and company name from e-mail. 4 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Install and configure Tortoise. CVS Download Tortoise. CVS from the following URL http: //www. tortoisecvs. org/download. shtml Select the Stable (for deployment) - Tortoise. CVS-1. 6. 7. exe - 4. 3 MB - 13 th March 2004 version. After installing it, create a folder called ‘CVS’ and open it. Right click inside the empty folder and select CVS Checkout: 5 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Install and configure Tortoise. CVS (2) To obtain a module from the CVS server for the first time, is known as a checkout. In order to checkout a module, user needs to provide information for the 1. Protocol 2. Server 3. Repository folder 4. User name 5. Module Name 6 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Information Specific to the Training 1. Protocol: Password Server (: pserver: ) 2. Server: cvs-jp. fbf. fai. fujitsu. com 3. Repository folder: /CVS 4. User name: th 1 (Thailand), vn 1 (Vietnam), sg 1 (Singapore) 5. Module Name: FBF_TH (Thailand), FBF_VN (Vietnam), FBF_SG (Singapore) NOTE: Password information will be send to each user in a separate email! 7 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Install and configure Tortoise. CVS (3) The user will see a checkout dialog and will be asked to enter a password. 8 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Install and configure Tortoise. CVS (4) After all the files are checked out the user will see a message ‘Success, CVS operation completed’ in the checkout dialog and the green colored folder the same as the Module name. 9 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Basic Use of Tortoise. CVS (1) Task: How to add an image and commit back to the CVS repository 1. 2. Open a folder called ‘images’ and add an image to the folder Notice that the new image has an ‘? ’ above the image type. 10 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Basic Use of Tortoise. CVS (2) Right click on the Image name and select ‘+CVS Add…’ The dialog pane will open to confirm the list of files to add to the CVS repository. 11 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Basic Use of Tortoise. CVS (3) After the check-in dialog and the message ‘Success, CVS operation completed’ the image will be colored in RED. 12 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Basic Use of Tortoise. CVS (4) To completely submit the image to the CVS repository, the user needs to commit the image. Right click on the image name and click ‘CVS Commit’. 13 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

Basic Use of Tortoise. CVS (5) The Commit dialog pane will ask if the user wants to add some comment for other users or future reference, e. g. if the user checked out a file and did some change to it, the message can contain information what type of change was done. 14 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002

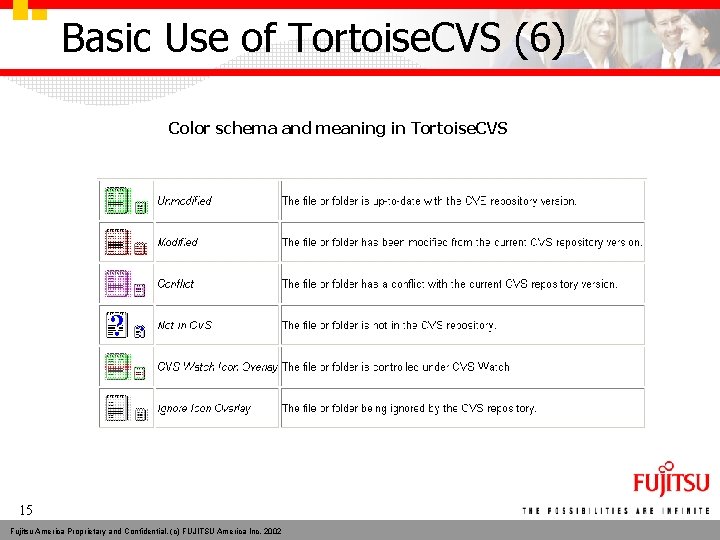

Basic Use of Tortoise. CVS (6) Color schema and meaning in Tortoise. CVS 15 Fujitsu America Proprietary and Confidential, (c) FUJITSU America Inc. 2002
