Down load www weeracha Down load Power point
- Slides: 15
Down load ������ www. weeracha Down load ������ Power point ����� www. weerachai. tk
Down load ������ www. weeracha A Quick Dip Into DEPT Distortionless Enhancement by Polarization Transfer -Mordern method of off-resonance -Requires an FT-pulsed spectrometer – (+)CH or –CH 3 – (-)CH 2 -CH protonated C
Down load ������ www. weeracha
Down load ������ www. weerachai. tk
Compounds with Aromatic Rings Down load ������ www. weeracha
Introduction to 2 D NMR spectroscopy Down load ������ www. weeracha COSY The basic 2 D NMR experiment based on through-bond scalar coupling is COSY(COrrelated Spectroscop. Y). The COSY experiment has the simplest pulse sequence of all 2 D NMR experiments. The pulse sequence is shown in Figure 1. 1. Figure 1. 1: The pulse sequence of the 2 D correlated spectroscopy (COSY). Two 90 -degree pulses are separated by the mixing period . In this experiment the spins undergo precession about one another, in addition to the usual precession about the applied magnetic field. During the mixing period, i. e. , the second pulse, of this experiment, J-coupled spins exchange coherence and communicate the information about their precession frequencies. The result, for the COSY experiment, is that a cross peak between two spins, i, and j, will occur in the spectrum if spin i and j are directly coupled to one another. The cross peaks in COSY spectra are antiphase in character, that is, half of the multiplet is "up" and the other half is "down" as shown in a simulated 2 D COSY spectrum in Figure 1. 2. Figure 1. 2: Simulated 2 D COSY contour plot of two coupling spins. Open circles with solid and dashed lines are cross peaks with positive and negative intensity, respectively. The dispersive diagonal peaks are represented by filled circles. This feature increases the difficulties of doing automated peak picking. To determine the center of each cross peak, two local maxima and minima have to be found which is difficult in a severely overlapped spectrum.
Down load ������ www. weeracha
Down load ������ www. weerachai. tk 2 -nitropropane

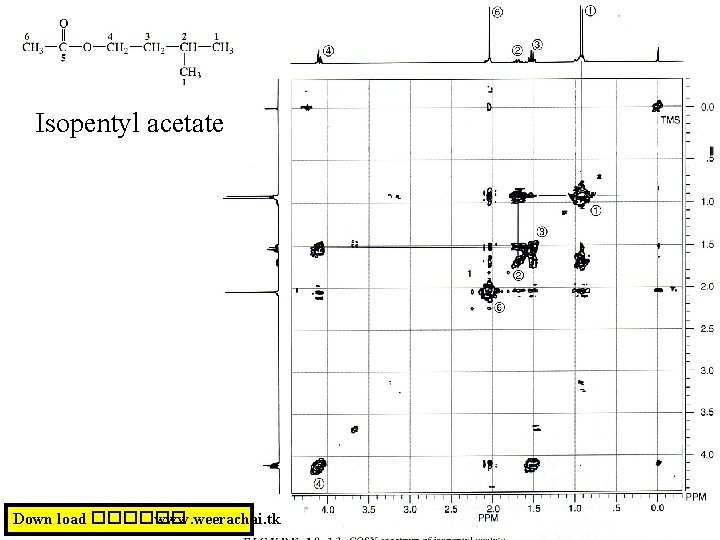

Isopentyl acetate Down load ������ www. weeracha
Isopentyl acetate Down load ������ www. weerachai. tk

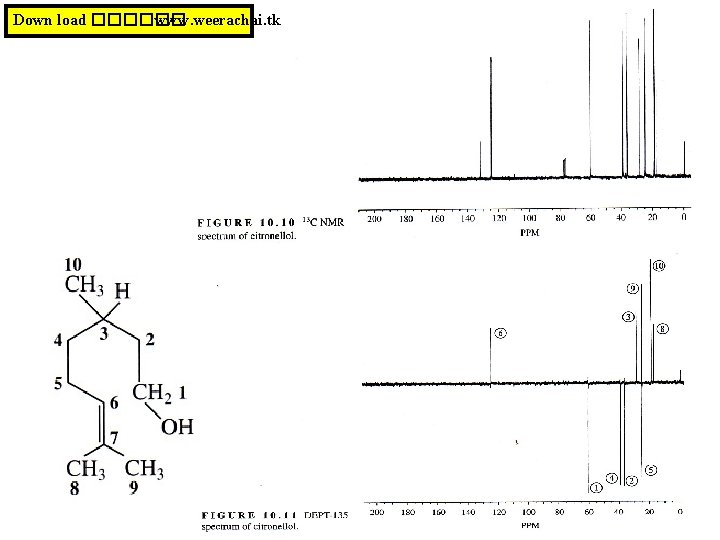

citronellol Down load ������ www. weerachai. tk
HETCOR(HETeronuclear chemical shift CORrelation) HMQC (Heteronuclear Multiple Quantum Correlation) and HSQC (Heteronuclear Single Quantum Correlation) experiments correlate the chemical shift of proton with the chemical shift of the directly bonded carbon (or nitrogen). This experiment utilizes one-bond couplings 2 -nitropropane Down load ������ www. weerachai. tk
Down load ������ www. weeracha Isopentyl acetate
4 -methyl-2 -pentanol Down load ������ www. weerachai. tk
