Doubletube shock absorber upper mounting Expansion Compression piston

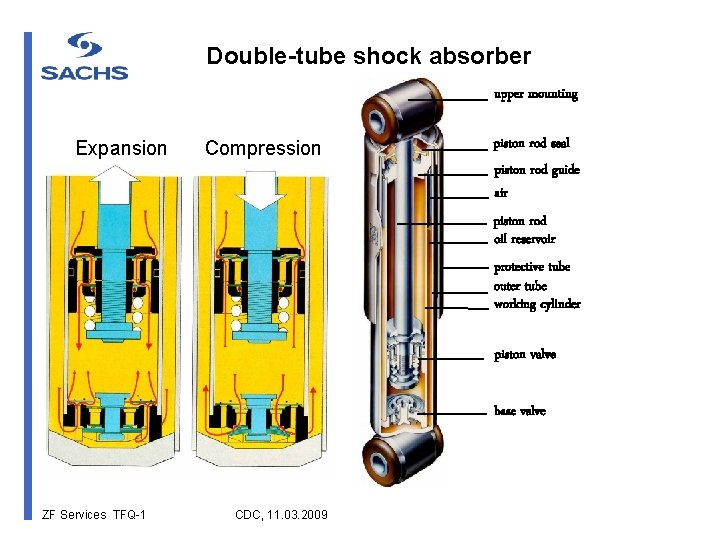

Double-tube shock absorber upper mounting Expansion Compression piston rod seal piston rod guide air piston rod oil reservoir protective tube outer tube working cylinder piston valve base valve ZF Services TFQ-1 CDC, 11. 03. 2009

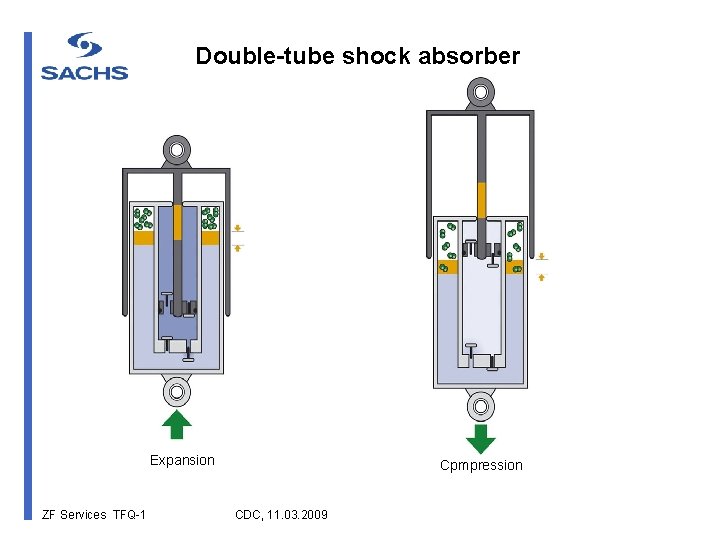

Double-tube shock absorber Expansion ZF Services TFQ-1 Cpmpression CDC, 11. 03. 2009

Mono-tube shock absorber (gas) Expansion Compression upper mounting piston rod guide piston rod seal piston rod protective tube piston valve working cylinder separator piston gas (nitrogen) ZF Services TFQ-1 CDC, 11. 03. 2009

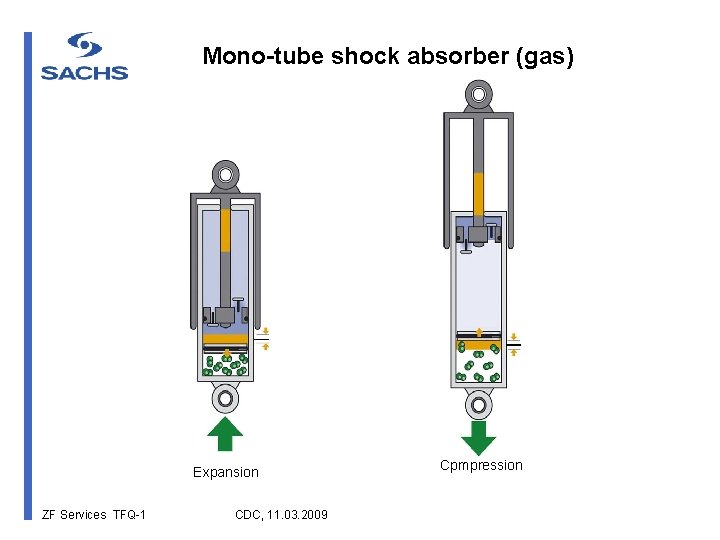

Mono-tube shock absorber (gas) Expansion ZF Services TFQ-1 CDC, 11. 03. 2009 Cpmpression

High Tech SACHS Shock absorbers and modules Vario ZF Services TFQ-1 CDC, 11. 03. 2009 CDC

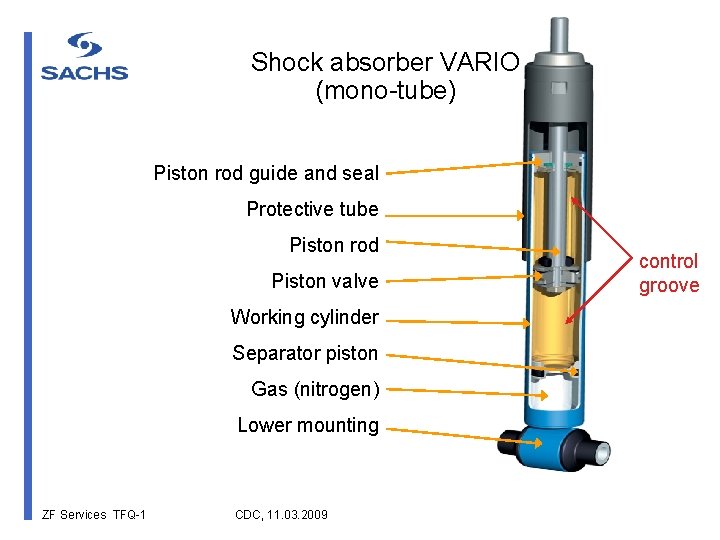

Shock absorber VARIO (mono-tube) Piston rod guide and seal Protective tube Piston rod Piston valve Working cylinder Separator piston Gas (nitrogen) Lower mounting ZF Services TFQ-1 CDC, 11. 03. 2009 control groove

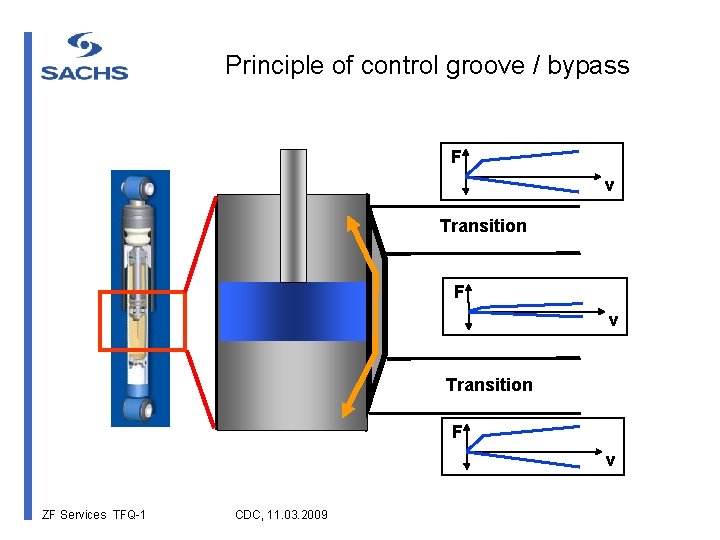

Principle of control groove / bypass F v Transition F v ZF Services TFQ-1 CDC, 11. 03. 2009

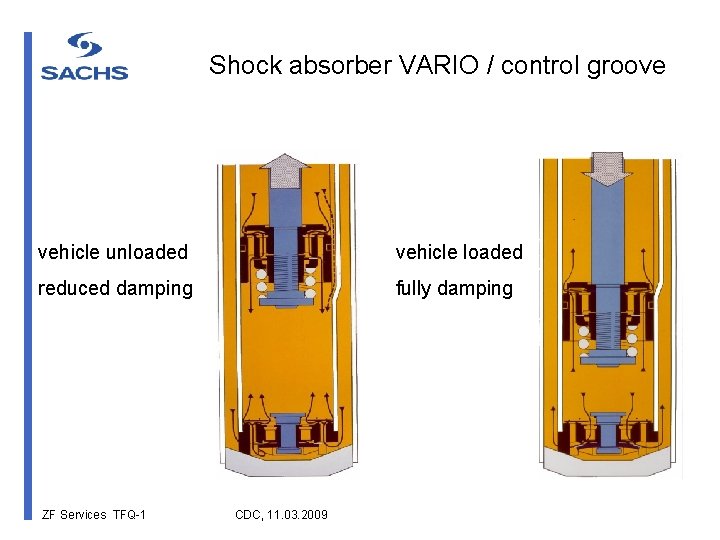

Shock absorber VARIO / control groove vehicle unloaded vehicle loaded reduced damping fully damping ZF Services TFQ-1 CDC, 11. 03. 2009

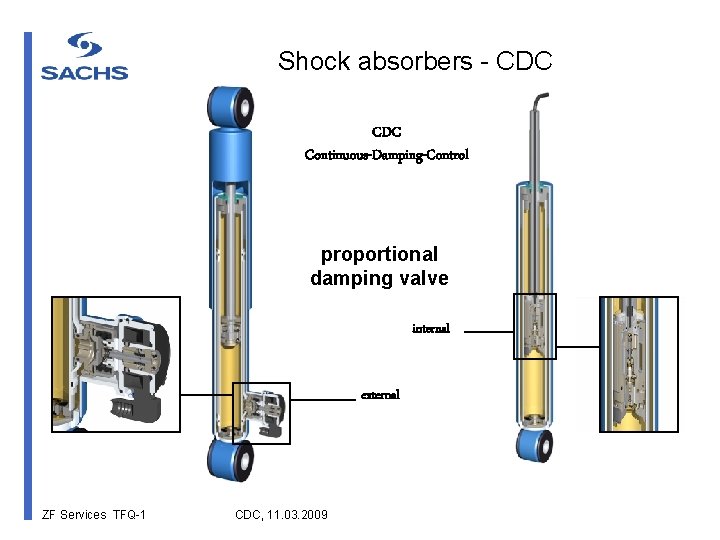

Shock absorbers - CDC Continuous-Damping-Control proportional damping valve internal external ZF Services TFQ-1 CDC, 11. 03. 2009

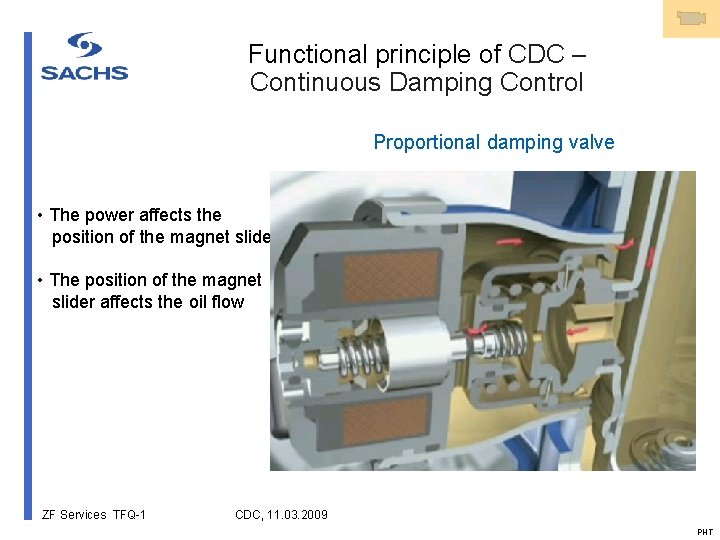

Functional principle of CDC – Continuous Damping Control Proportional damping valve • The power affects the position of the magnet slider • The position of the magnet slider affects the oil flow ZF Services TFQ-1 CDC, 11. 03. 2009 PHT
